Cudy 16 Port Fast Ethernet PoE 190W 2 Gigabit 1SFP Switch | FS1018PS1

Cudy 18 Port with 16 PoE 190W 2 Gigabit 1SFP Combo Switch | FS1018PS1

Cudy's CD-FS1018PS is a 16 Port Fast Ethernet switch with 16x 802.3af/at PoE ports and 2x Gigabit, 1x SFP Combo Uplink ports.
The switch offers a 190W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-16 while Extender mode increases the transmission distance on ports 1-16 to 250m at 10Mbps.
The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.

Specifications
Ethernet Ports: 16x 10/100 ; 2x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 10W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~16

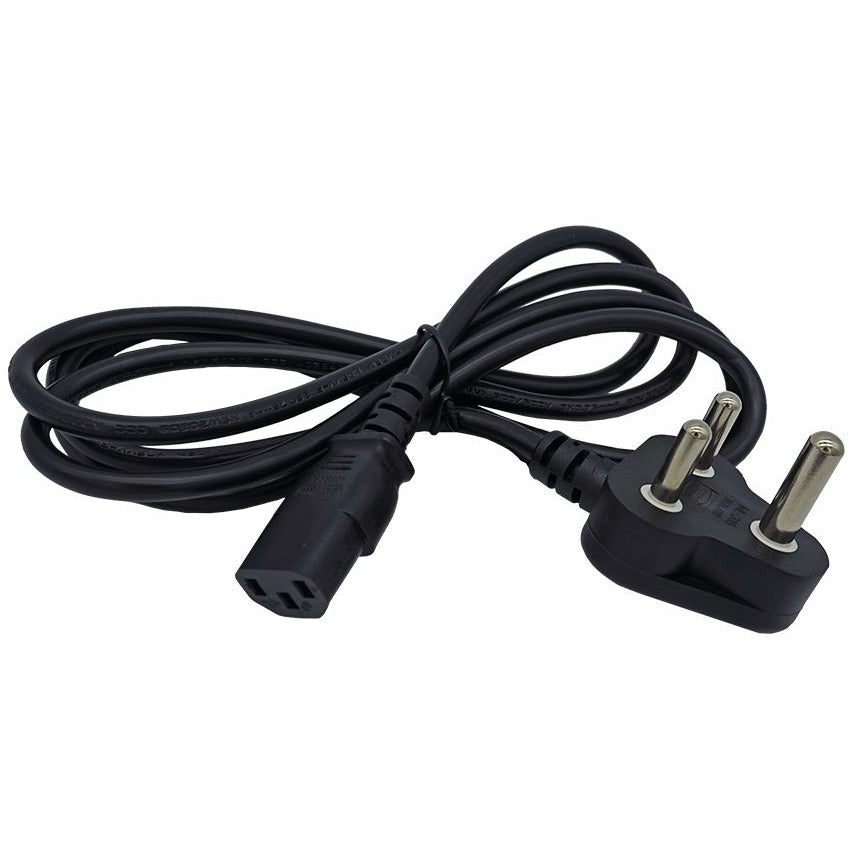

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V

Dimensions: 320 x 210 x 50mm
Weight: 1.8kg

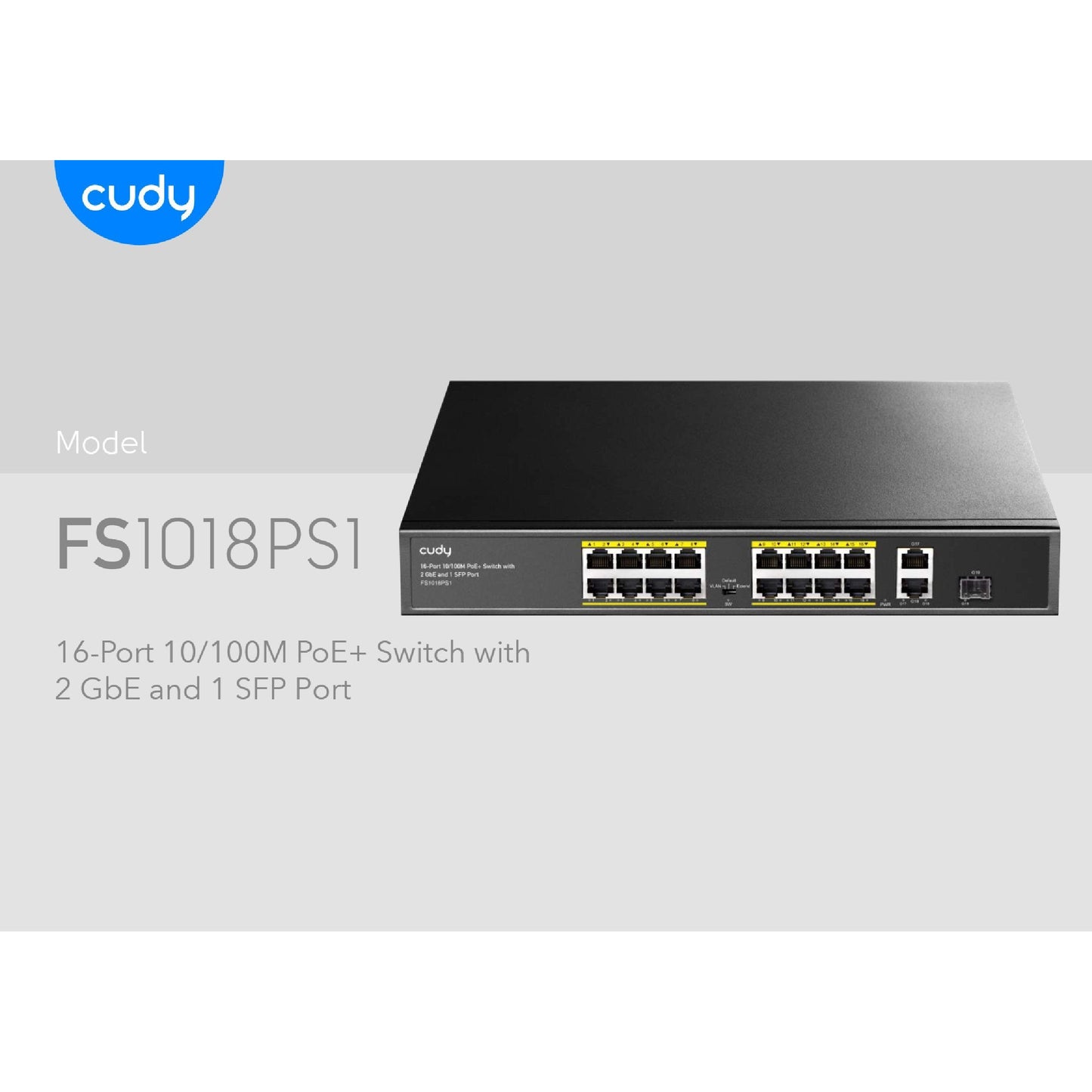

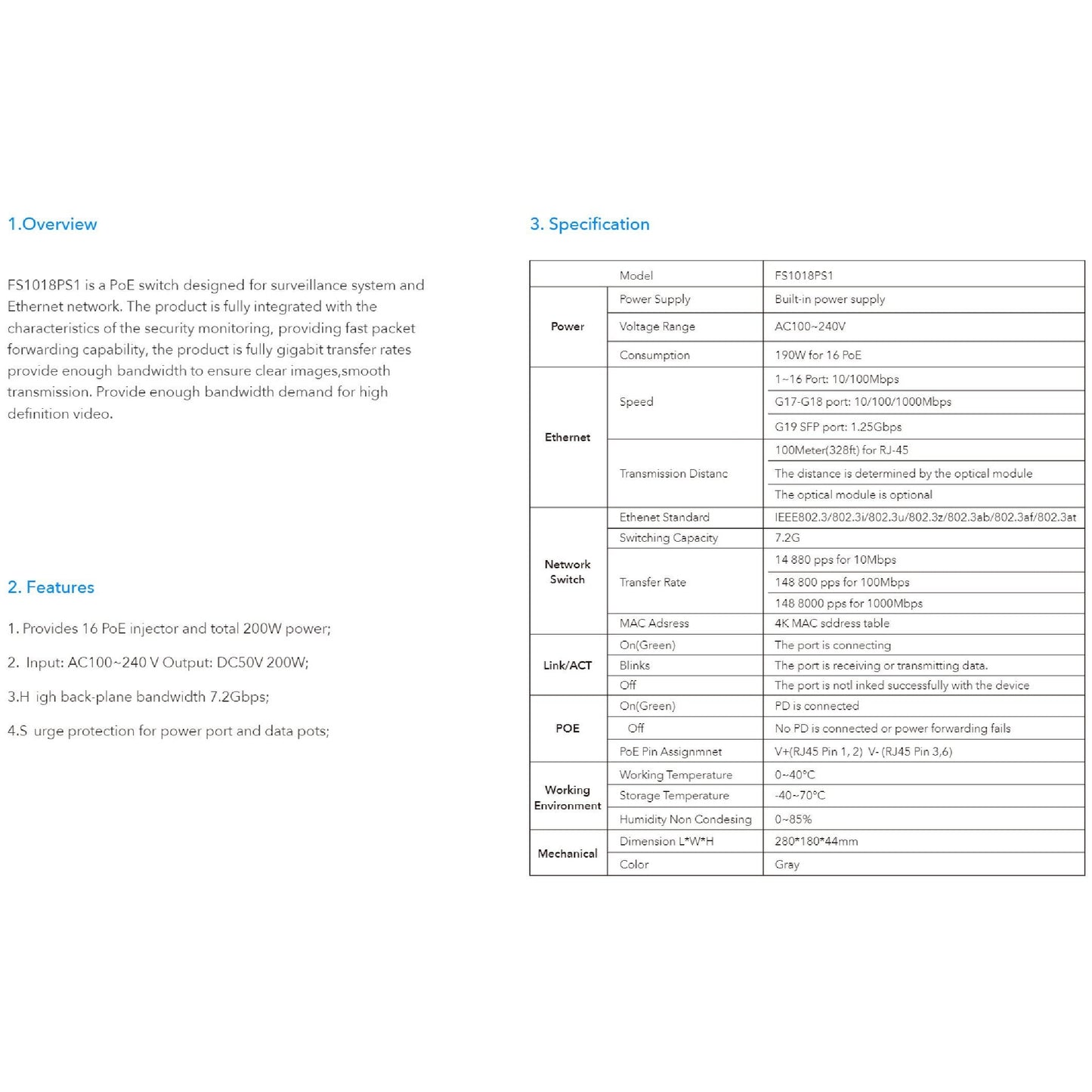

Zoom in on Data Sheet picture for more Information.

More Information
SKU CD-FS1018PS
Manufacturer Cudy
Manufacturer Product Code FS1018PS1

What's in the box
1 x Cudy 18 Port with 16 PoE 190W 2 Gigabit 1SFP Combo Switch | FS1018PS1
