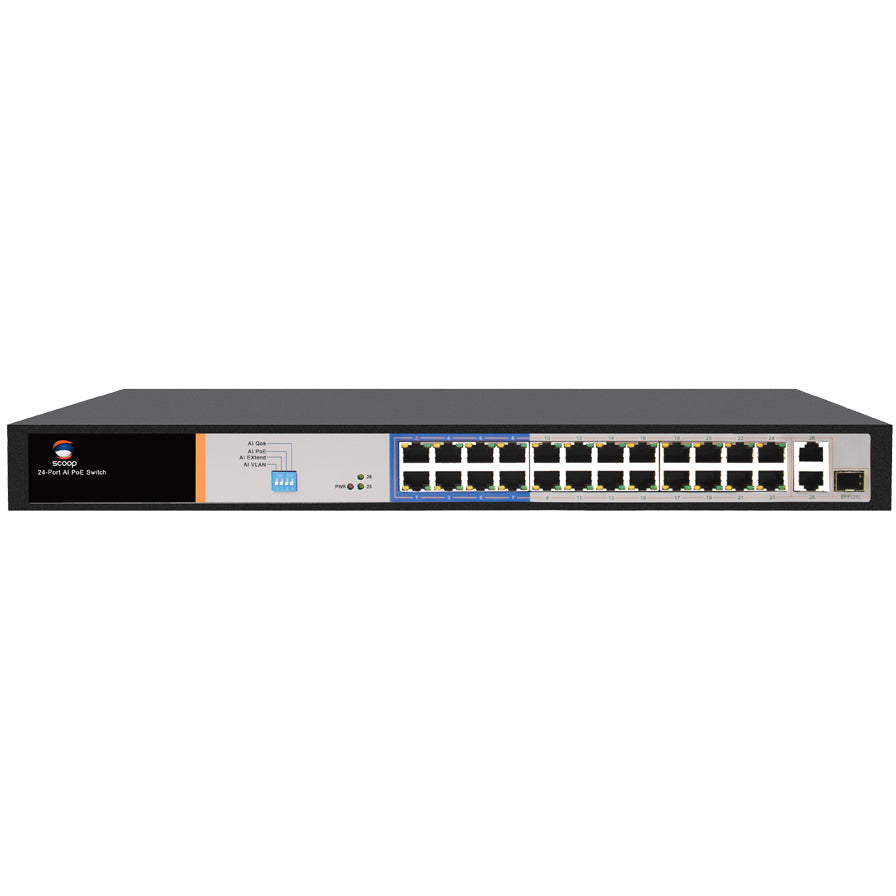

Scoop 24 Port Fast Ethernet AI PoE 250W 2 Gigabit 1SFP Switch

Scoop’s SPS-24F2G2 is an unmanaged 24 port Fast Ethernet AI PoE switch with 2x Gigabit Ethernet and 1x SFP Combo Uplink ports.

Each of these PoE ports are 802.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power.
The total PoE budget is 250W and up to a maximum of 30W per port.

The SPS-24F2G2 supports 4 working modes:
AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-24.
AI QOS: Prioritizes network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

Specifications

Ethernet Ports: 24x 10/100 ; 2x 10/100/1000 (Combo)
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 10W

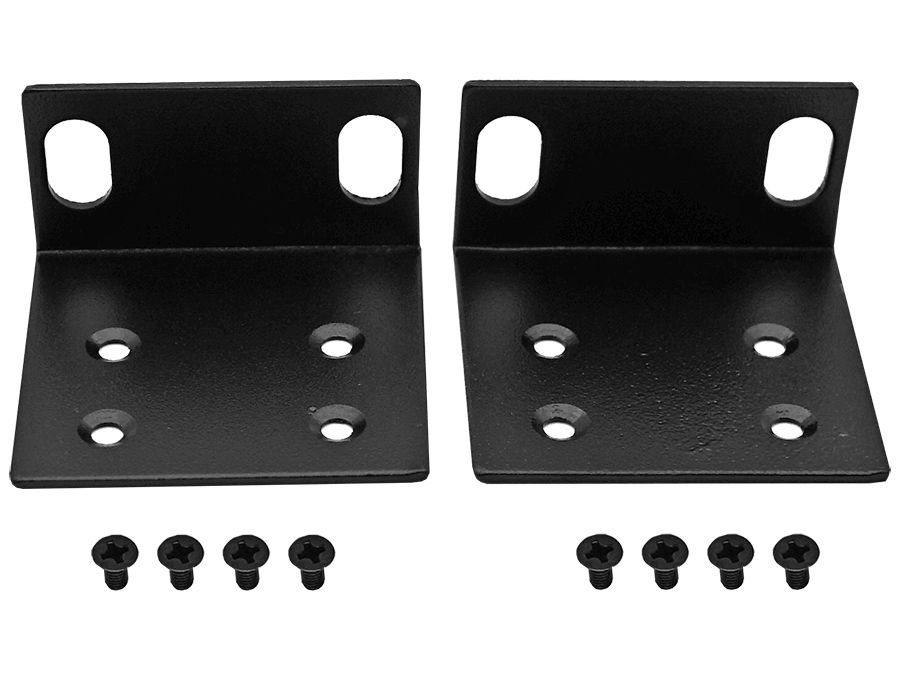

Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24

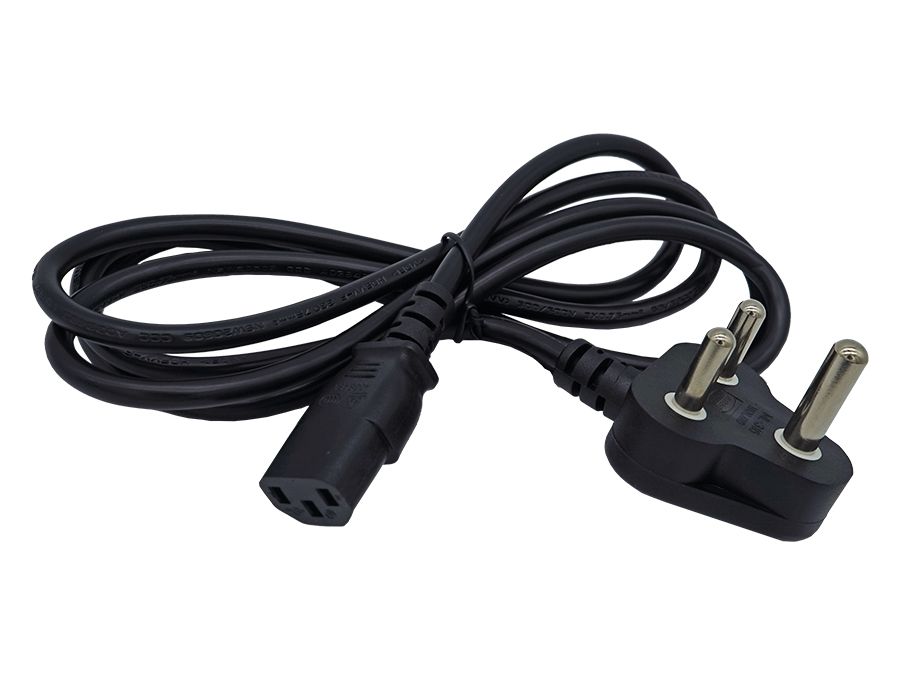

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps (Combo)
Supported Voltage Range: 100V-240V

Dimensions: 440mm x 180mm x 44mm

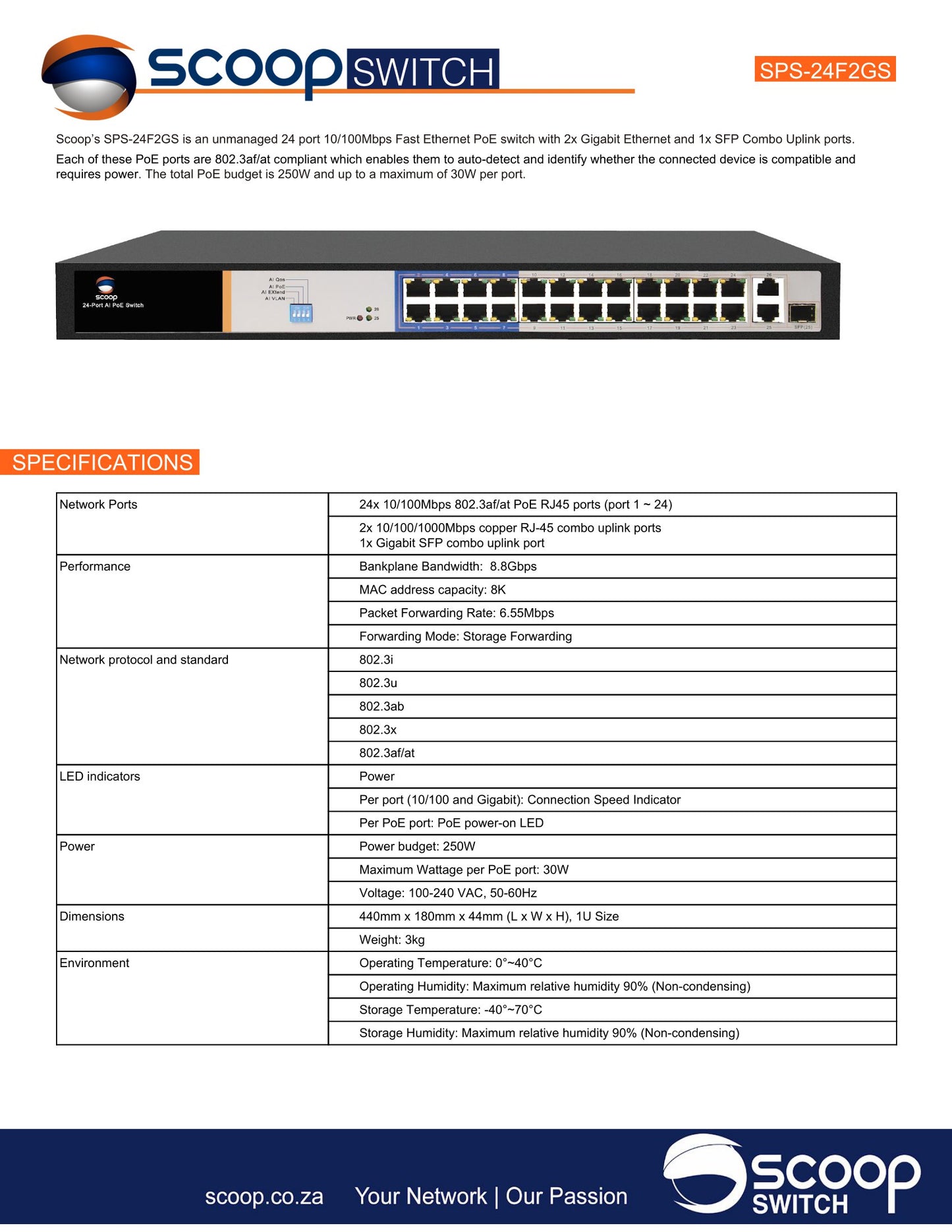

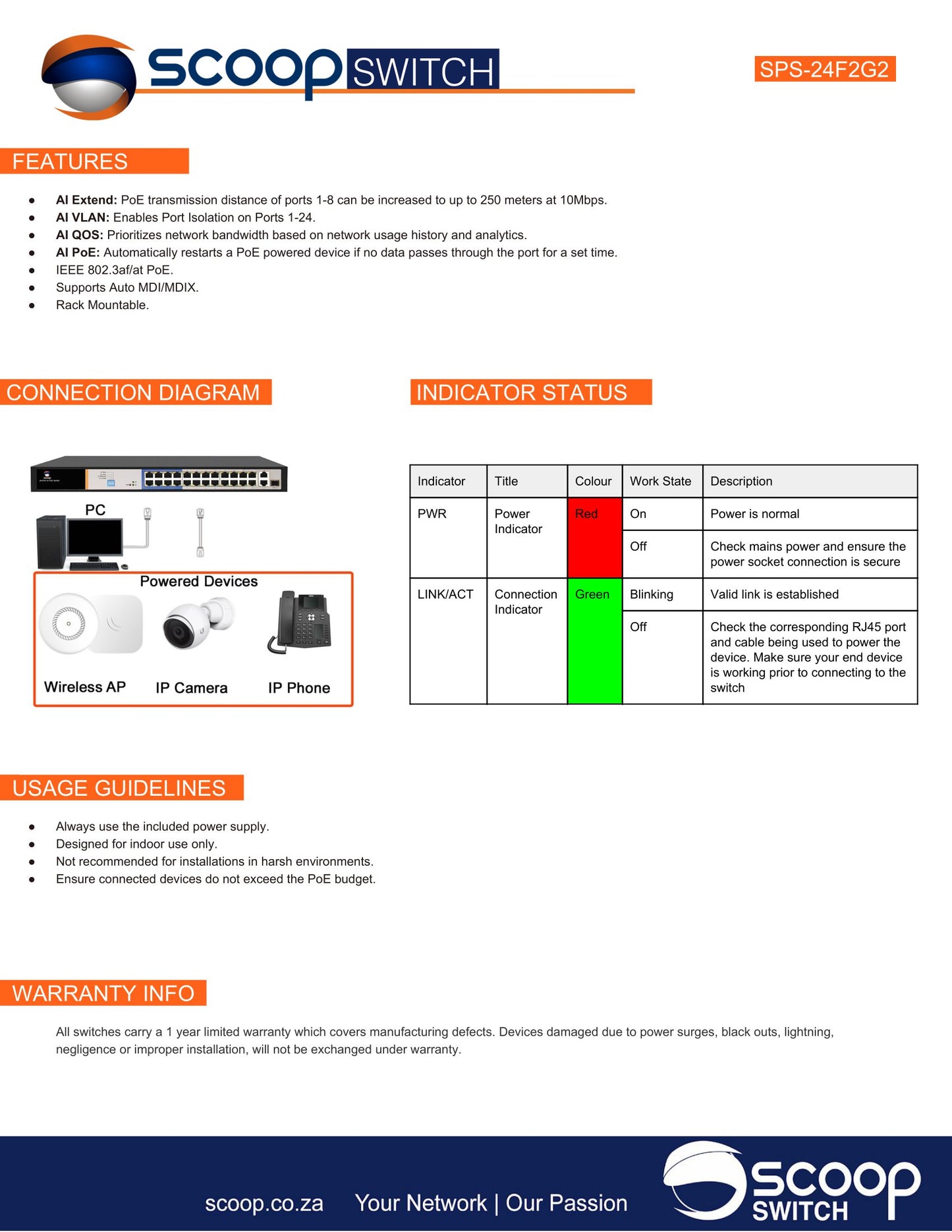

For more in-depth information, zoom in on picture of data sheet.
