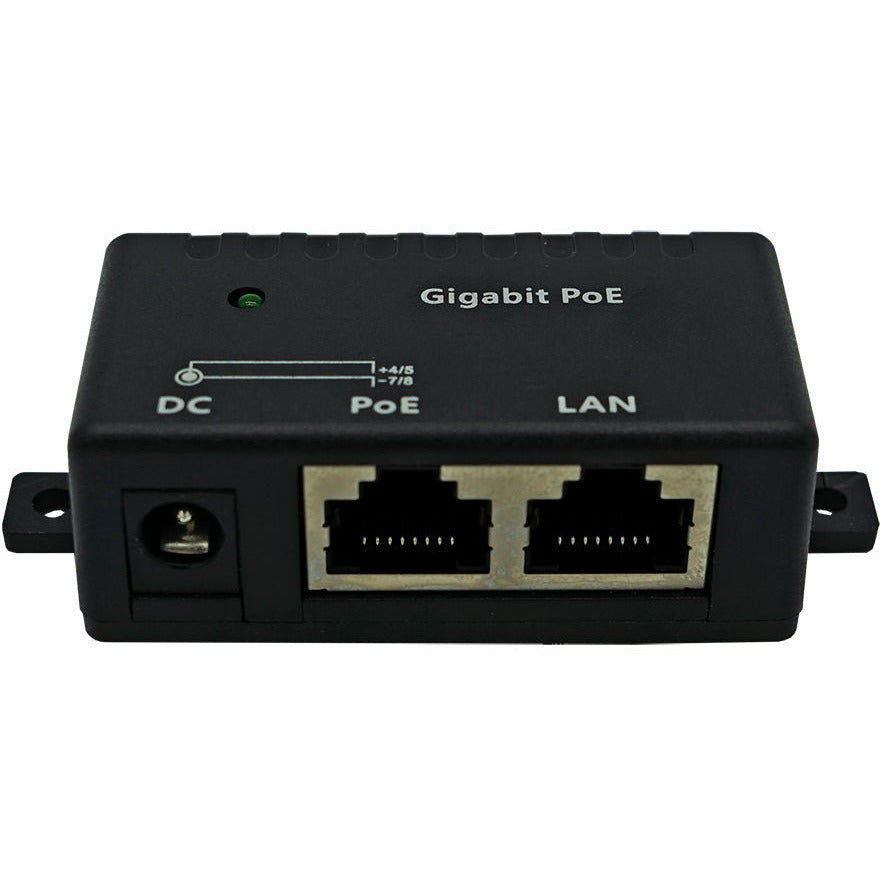

Single Port Gigabit Passive PoE Injector

Scoop's POE-GIG Gigabit PoE Injector offers passive gigabit PoE to compliant devices. Simply connect your power source and then use an Ethernet cable to connect the injector to the device via the PoE port.
The unit uses Mode B PoE and supplies power over pins 4,5 7,8.

*Note:
PSU sold separately. Use a power supply with 2.1mm DC jack size.

Specifications

Ethernet Ports: 2x 10/100/1000
Max. Current Per Port: 650mA
Operating Temperature: 0°C to 65°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 9-48V Power Supply (Not Included)
Supported Voltage Range: 9-48V

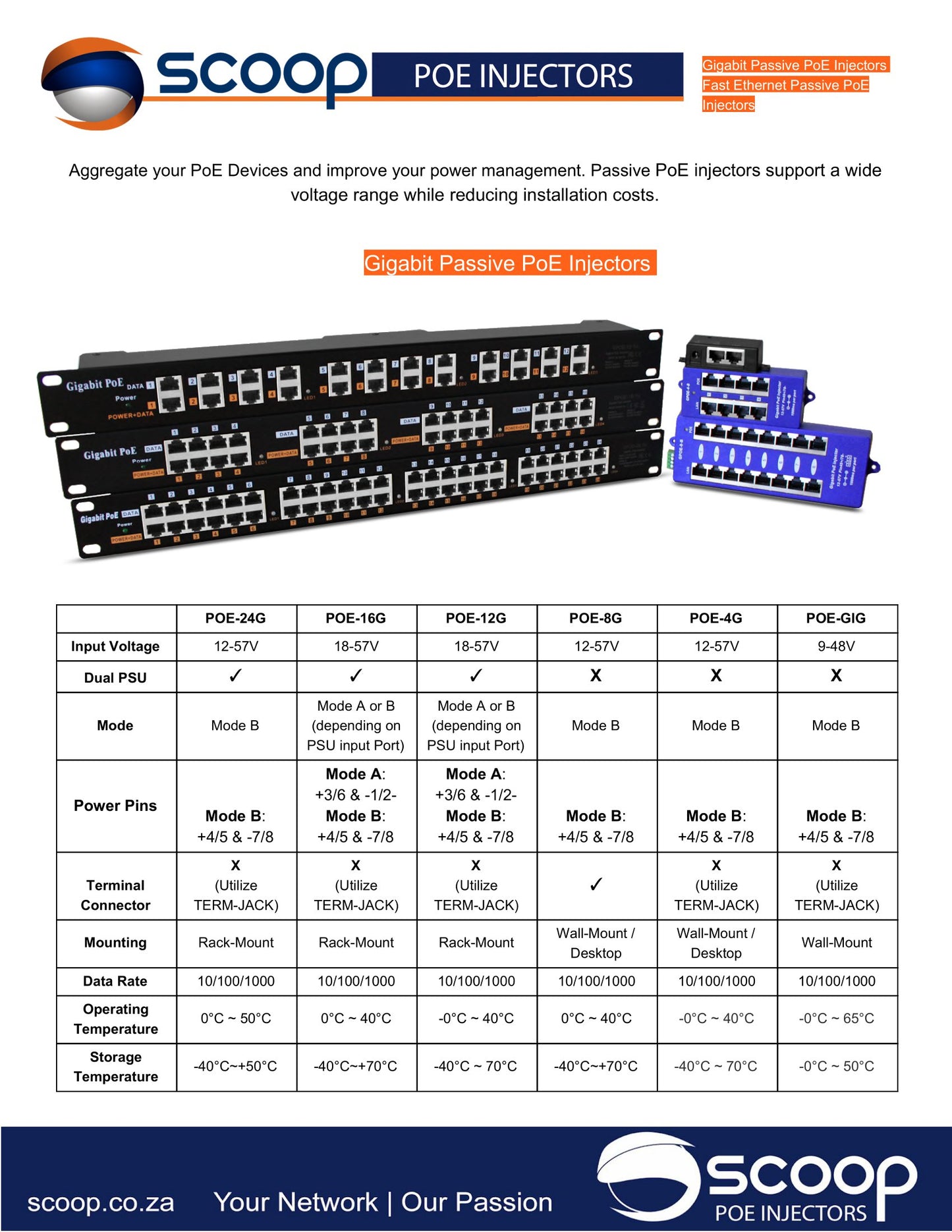

For more in-depth information, zoom in on picture of data sheet.
