Ubiquiti UniFi Dream Router 7 Tri-Band Cloud Gateway | UDR7

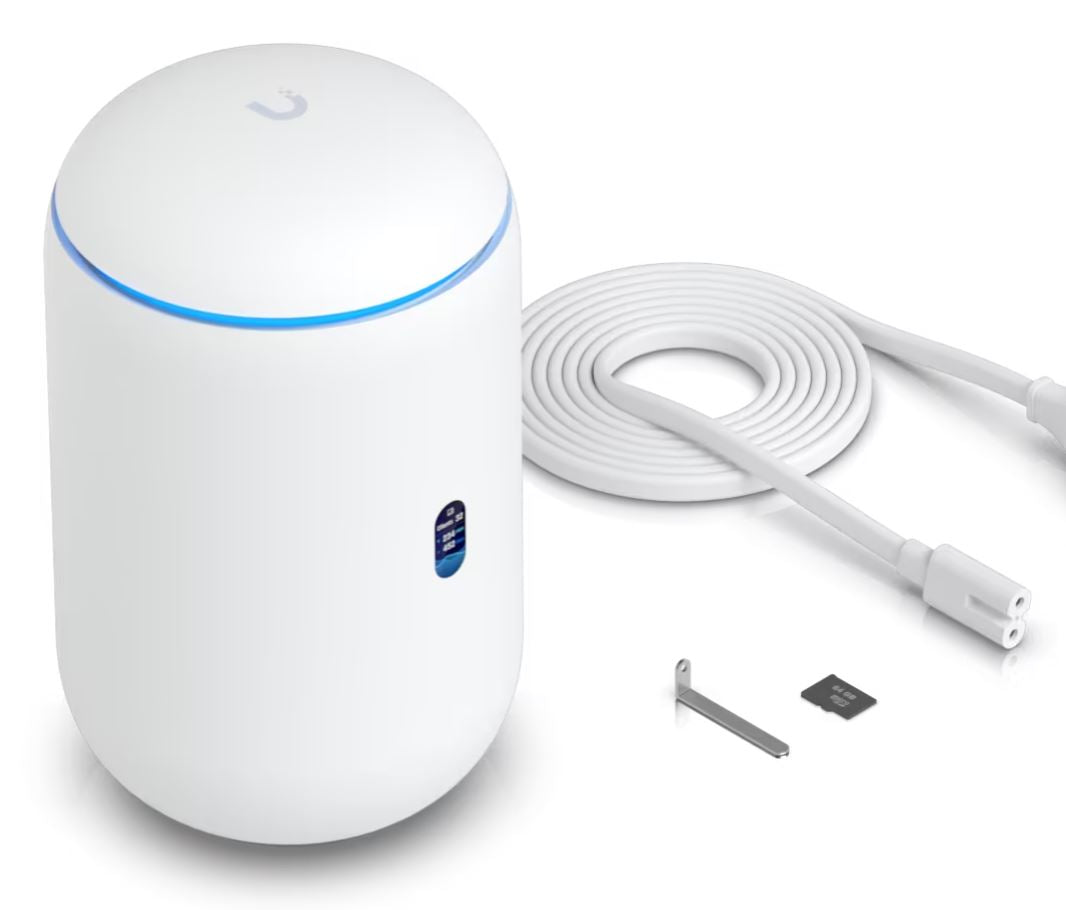

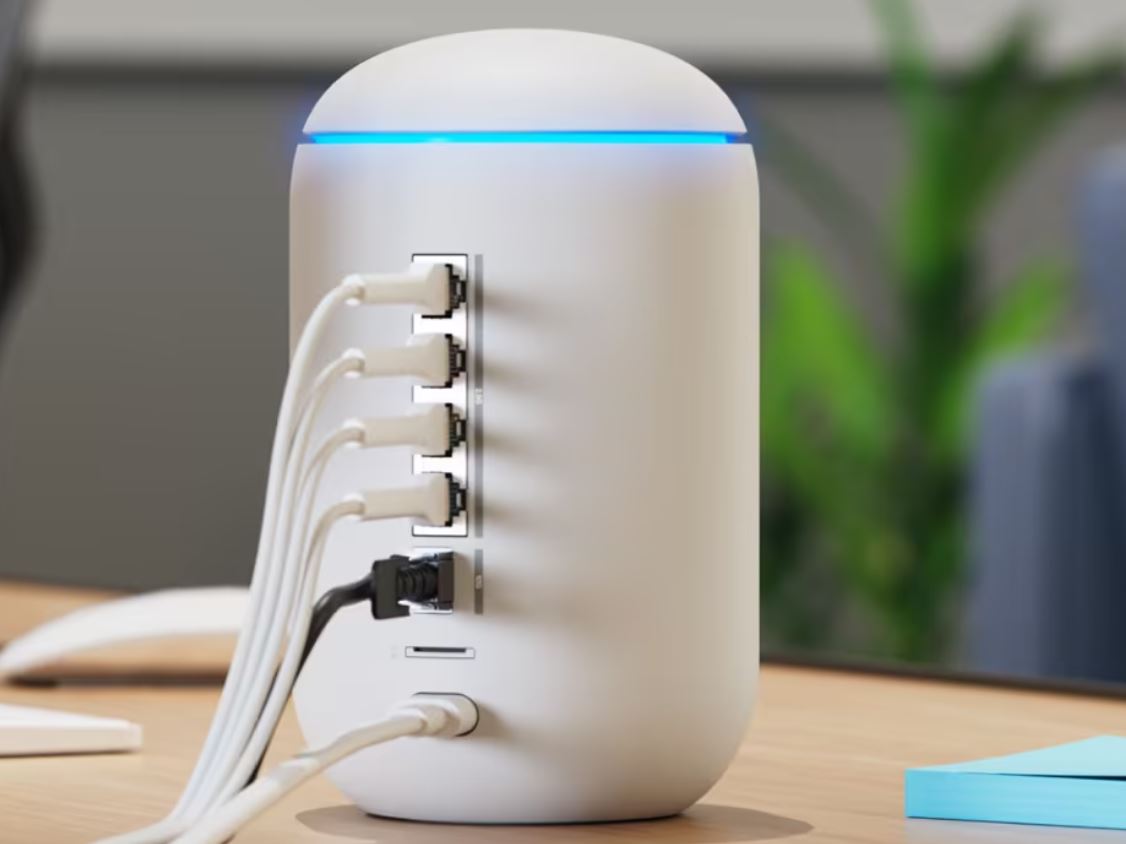

Ubiquiti's UDR7 is a desktop, Tri-Band, 10Gbps cloud gateway with integrated WiFi 7, microSD storage, and full UniFi Application Suite support. The unit features 1x 10Gbps SFP+ port, 4x 2.5Gbps Ethernet Ports, and a pre-installed 64GB microSD for UniFi Protect. It delivers an aggregate data rate of up to 10.7Gbps over its 6GHz (2x2 MU-MIMO), 5GHz (2x2 MU-MIMO), and 2.4GHz (2x2 MU-MIMO) bands and can be configured and managed with the UniFi Network Application.

SKU	UDR7
Manufacturer	Ubiquiti
Manufacturer Product Code	UDR7

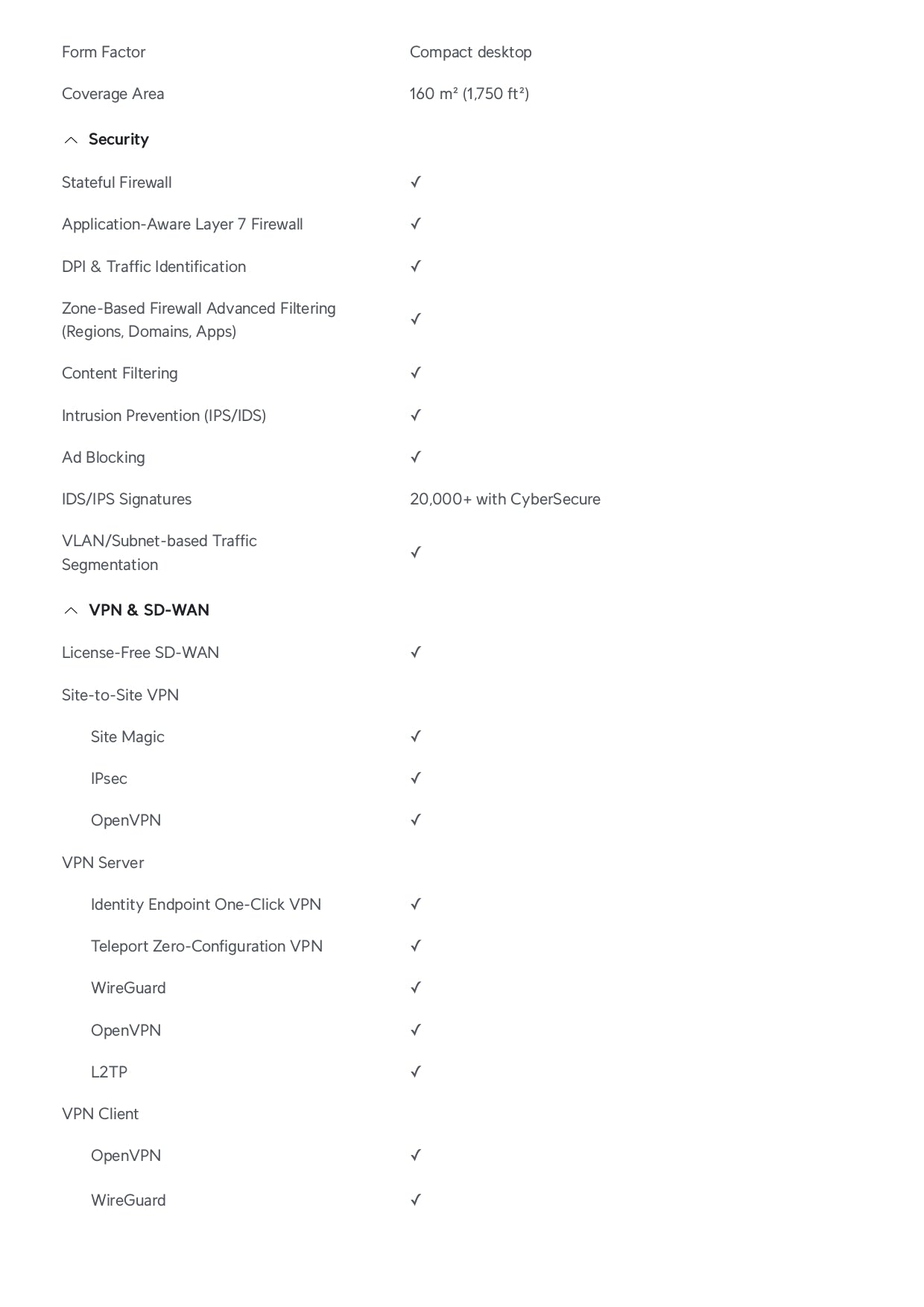

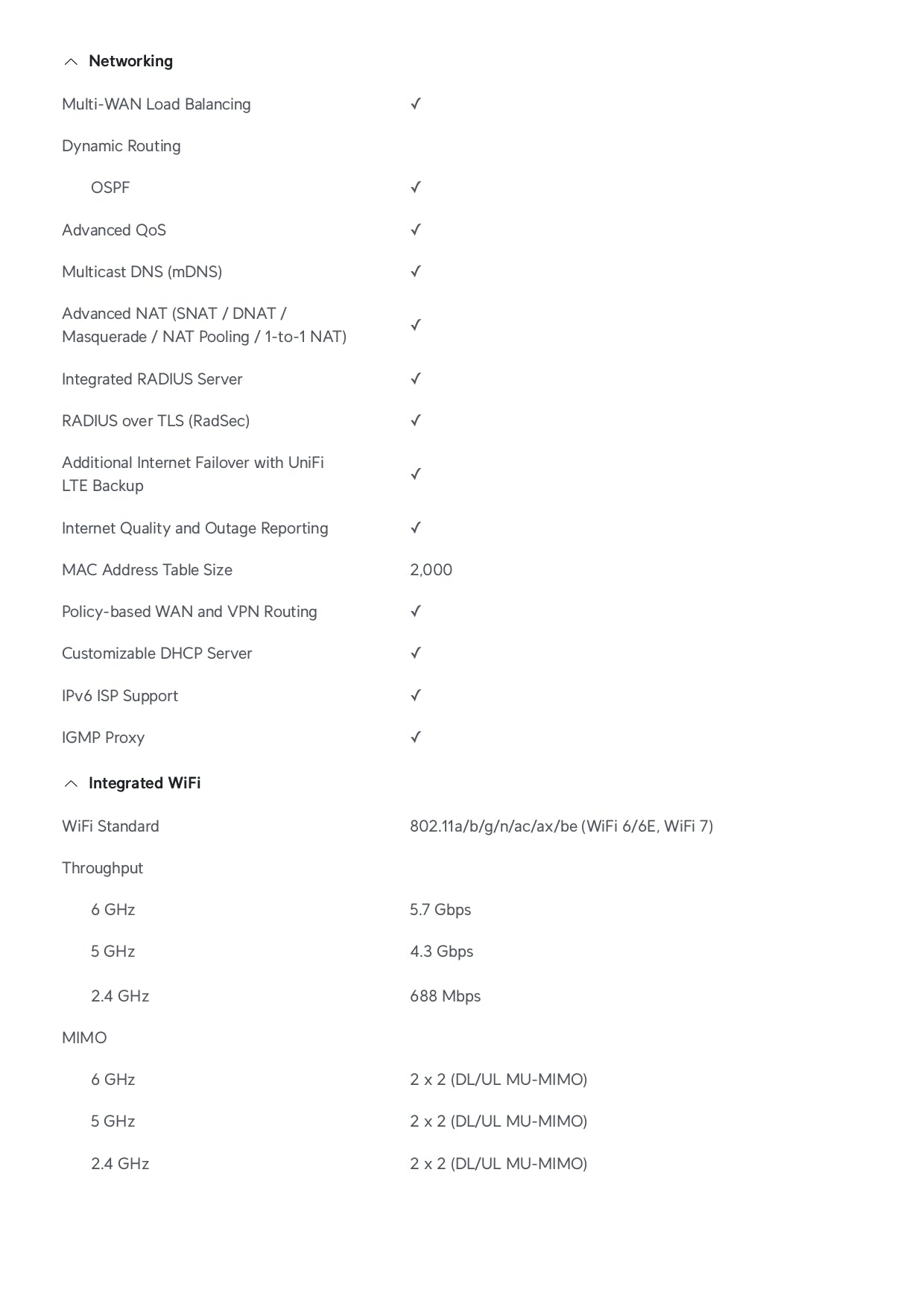

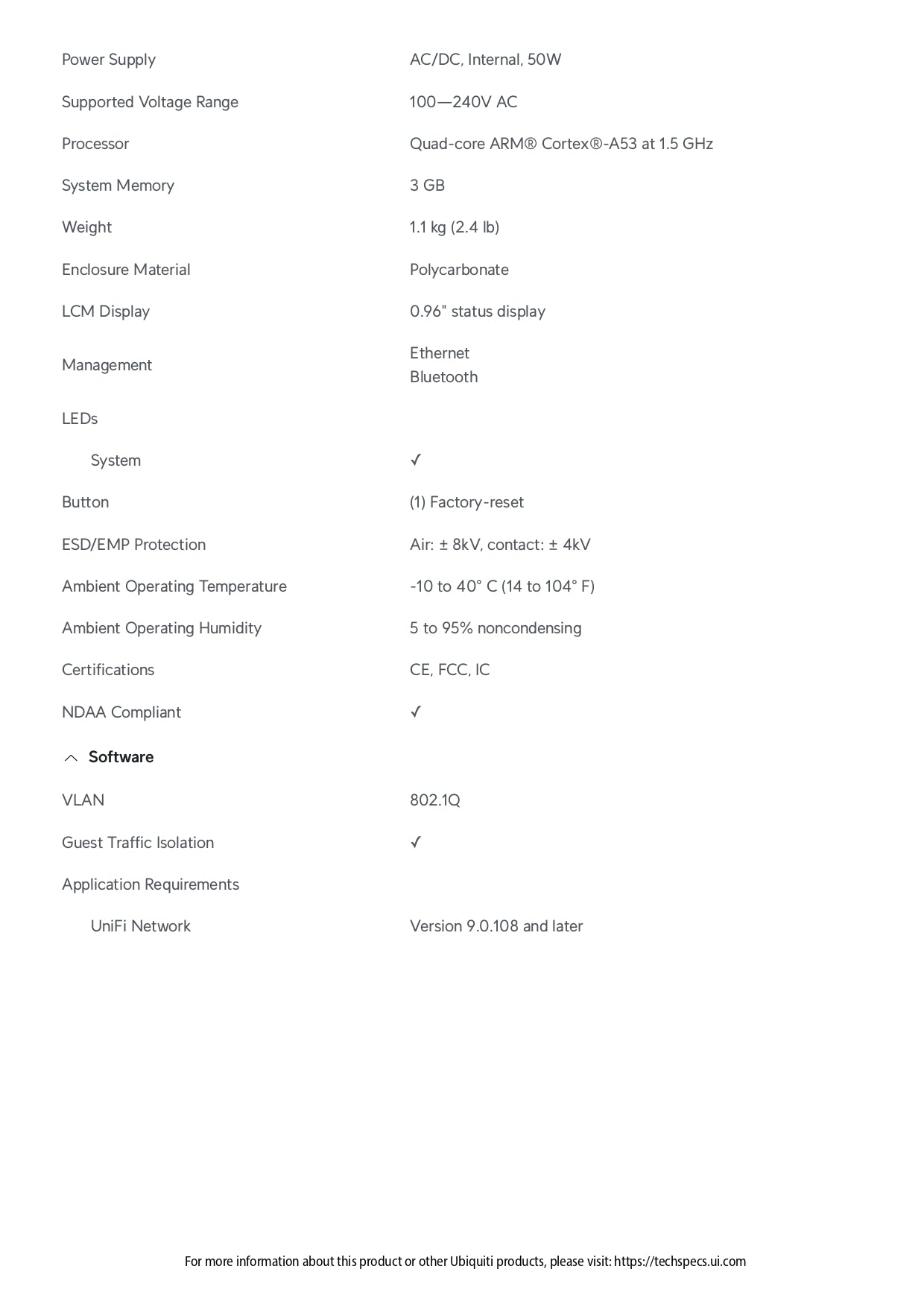

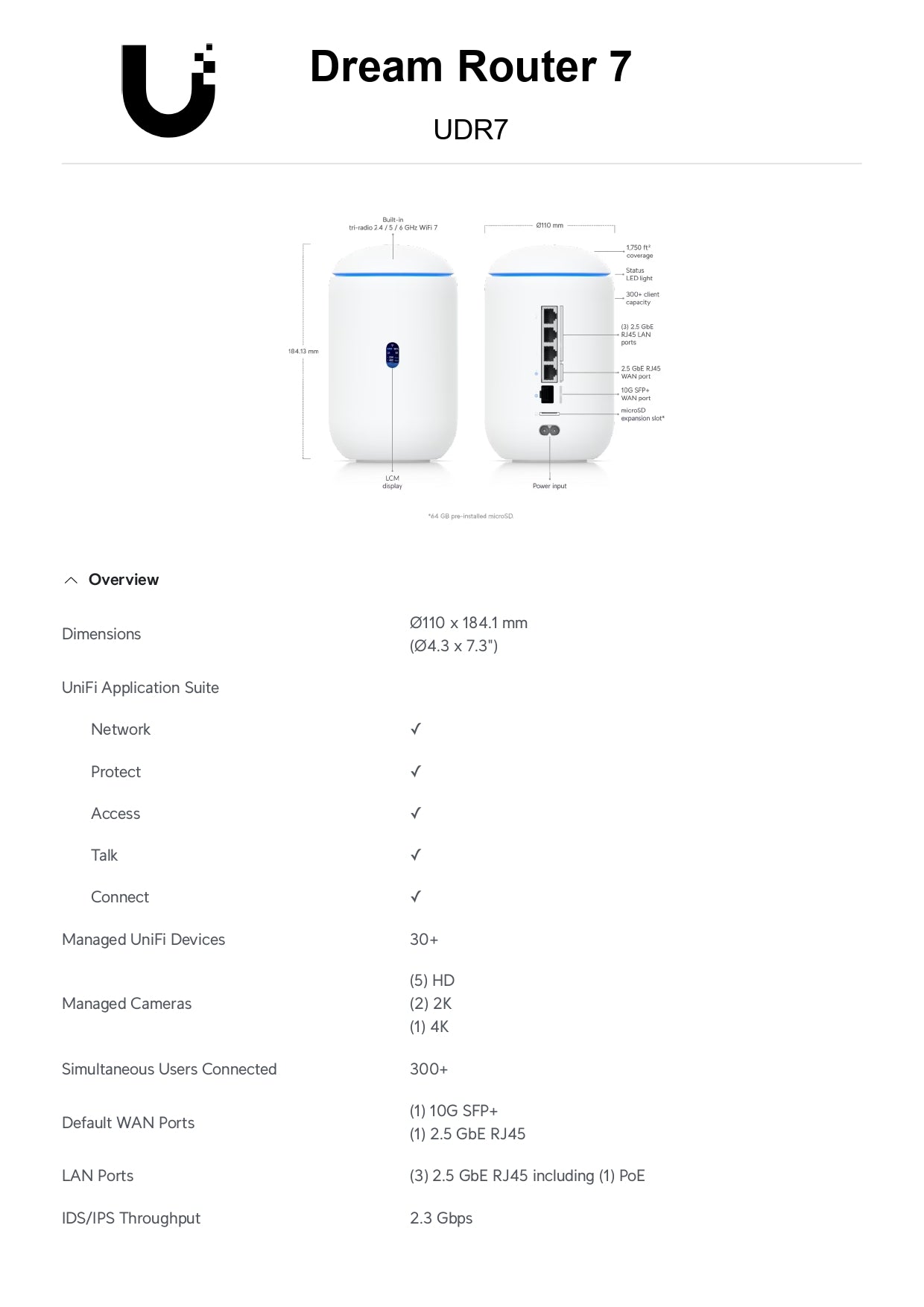

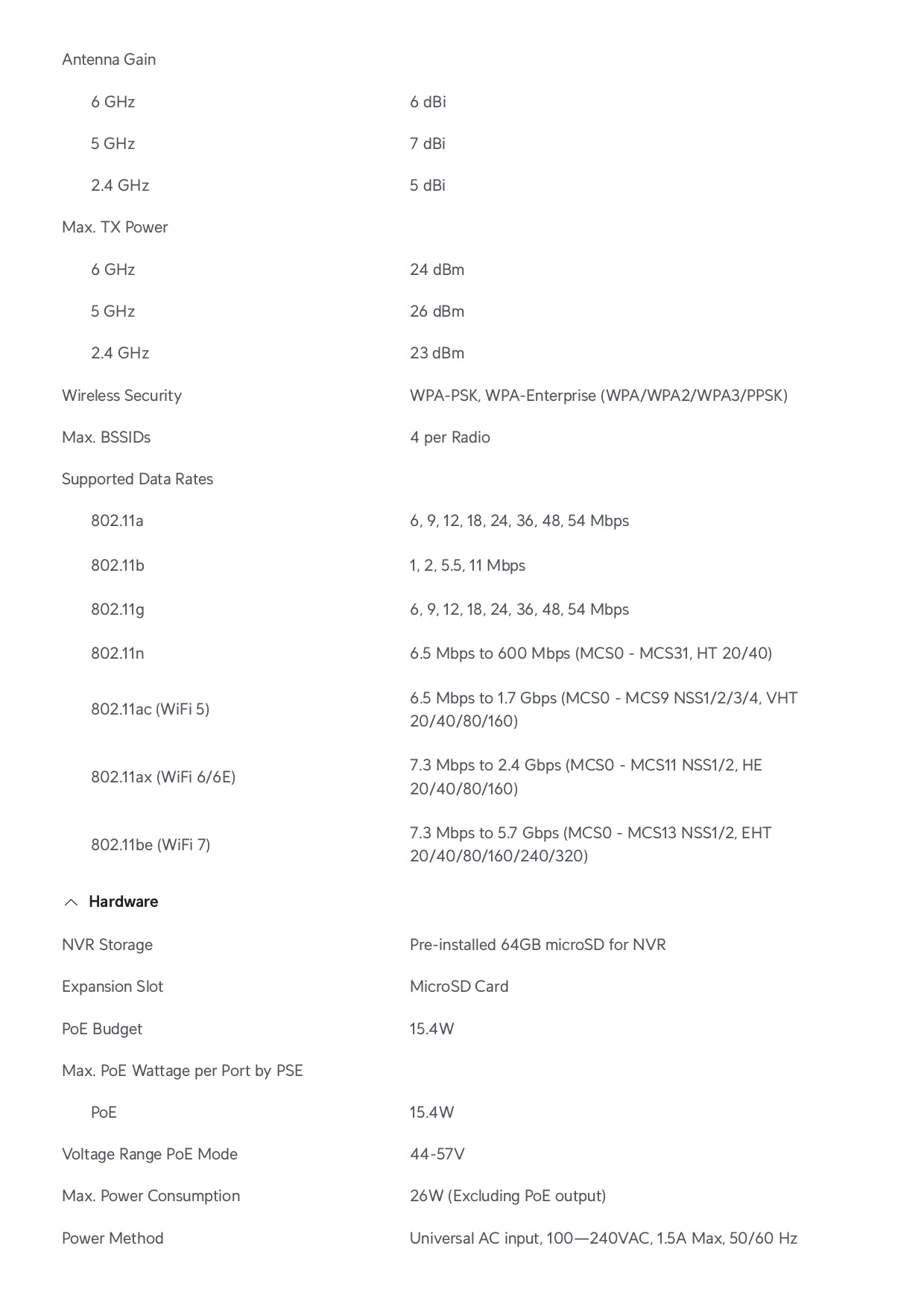

Download	Datasheet Download  Type Approval

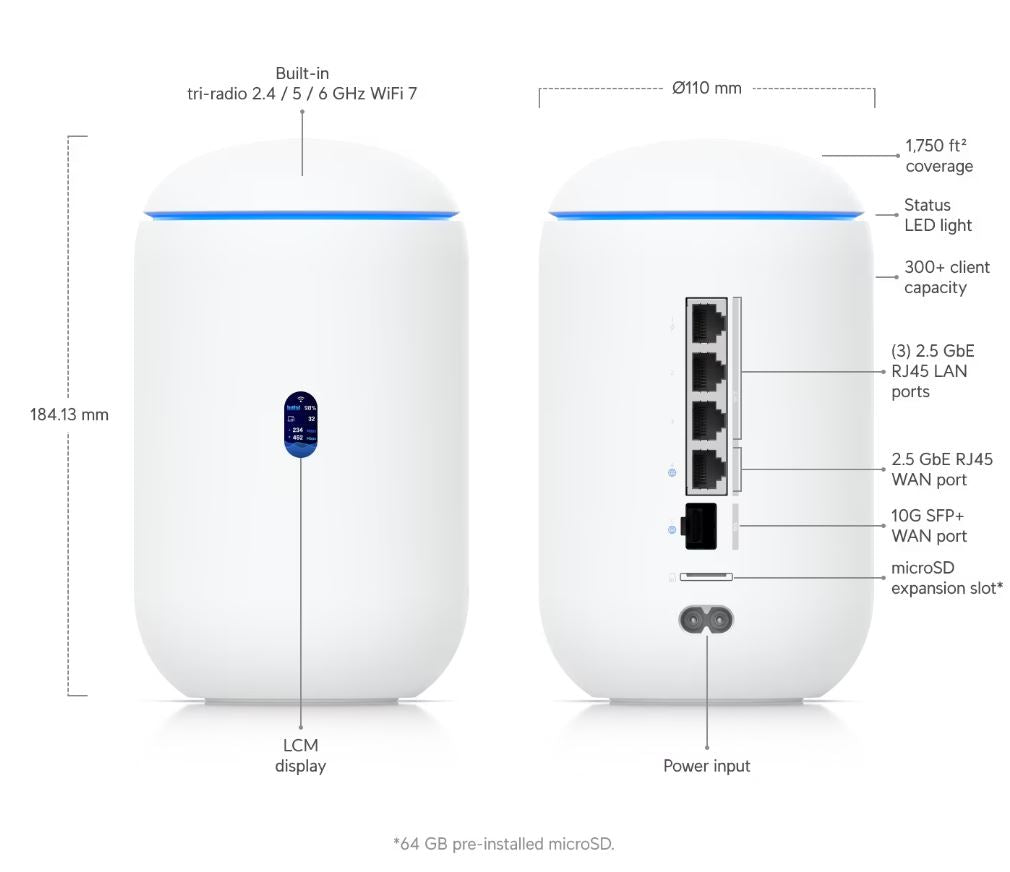

Specifications	Antenna Gain: 2.4GHz: 5dBi; 5.8GHz: 7dBi : 6GHz: 6dBi Beam-width: 360 Data Rate: 2.4GHz: 688Mbps; 5GHz: 4.3Gbps ; 6GHz: 5.7Gbps Total aggregate data rate: 10.7Gbps Ethernet Ports: 3x 10/100/1000/2500 (LAN); 1x 10/100/1000/2500 (WAN) Hardware Button: Reset Max. Power Consumption: 26W Mounting: Ceiling or Wall Mount Operating System: UniFi Operating Temperature: -10°C to 40°C PoE Input: None PoE Output: 802.3af on Port 3 Power Input: 100 - 240VAC, 1.5A Max, 50/60 Hz Serial Interface: None SFP Ports: 1x 10Gbps SFP+ (WAN) SIM Slots: None Supported Voltage Range: 100V—240V AC USB Ports: None Dimensions: Ø110 x 184.1 mm Weight: 1.1kg
