16 Port Gigabit Passive PoE Injector
16 Port Gigabit Passive PoE Injector

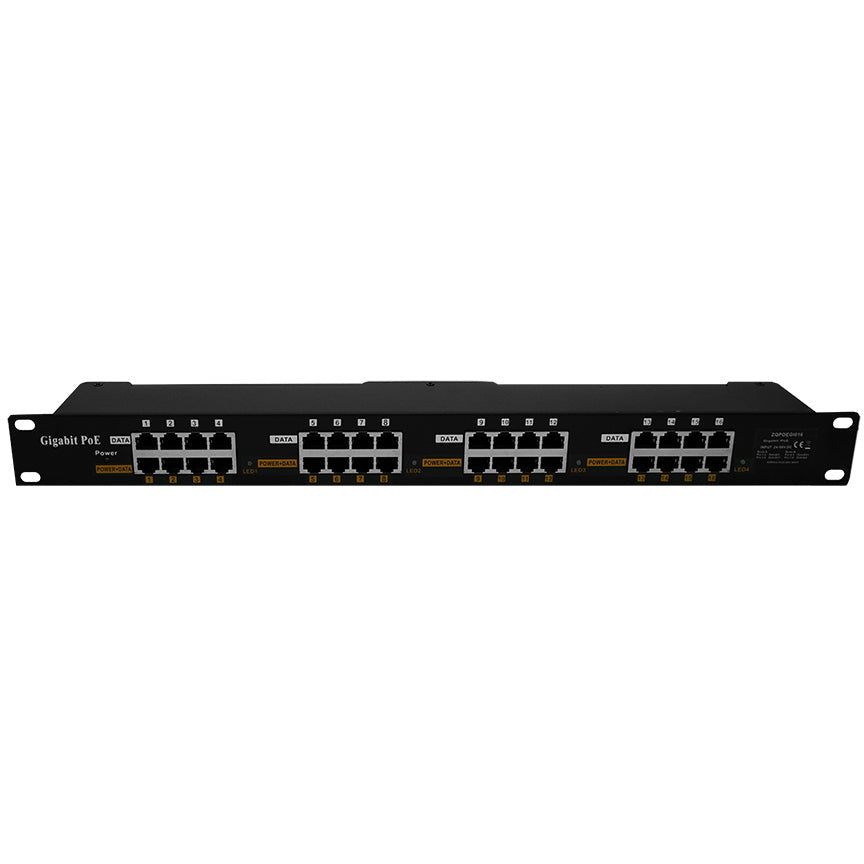

POE-16G, 16 port Gigabit PoE panel features and flexible power (DC 18 - 57V) and can be used with any Ethernet switch. The RJ45 socket delivers data and power.
Each socket provides current protection against short overflow. The configuration size of the panel is 1U (height), 19” (width) and 52mm (thickness).
PSU sold separately.
Specifications
Ethernet Ports: 32x 10/100/1000
Max. Current Per Port: 1300mA (With 2x PSU of the same Voltage)
Operating Temperature: 0°C to 40°C
PoE Mode: Mode A & B (Mid & Endspan) A:+3/6 & -1/2- B:+4/5 & -7/8
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 18-57V Power Supply (Not Included)
Supported Voltage Range: 18-57V
SKU | POE-16G |
---|
