24V Pure Sine Inverter / UPS 1,450VA, 1,200W: Black

The 24V Pure Sine Inverter 1,450VA - UPS Black: Is a device that transforms Direct Current (DC) to Alternating Current (AC) with a pure sine wave output.
It is a reliable power backup solution that provides continuous power supply in the event of a power outage, such as load shedding, as long as it is connected to a 24V battery storage solution.

The Inverter is rated at 1,450VA (1,200W approx.) and can be used with either two 12V batteries linked in series to provide 24V or a 24V battery.
The output voltage is 220V AC.

This product is a Pure Sine Inverter.
It is recommended to use a Pure Sine Wave Inverter for electronics such as LED TVs, CFL light bulbs, and inductive loads like brushless motors, as it provides a clean and stable power supply. A lot of electrical products function better on a pure sine wave.

Please note that this Inverter does NOT come with a battery, and it must be used with a 24V battery storage solution.
This Inverter is NOT compatible with Lithium batteries.

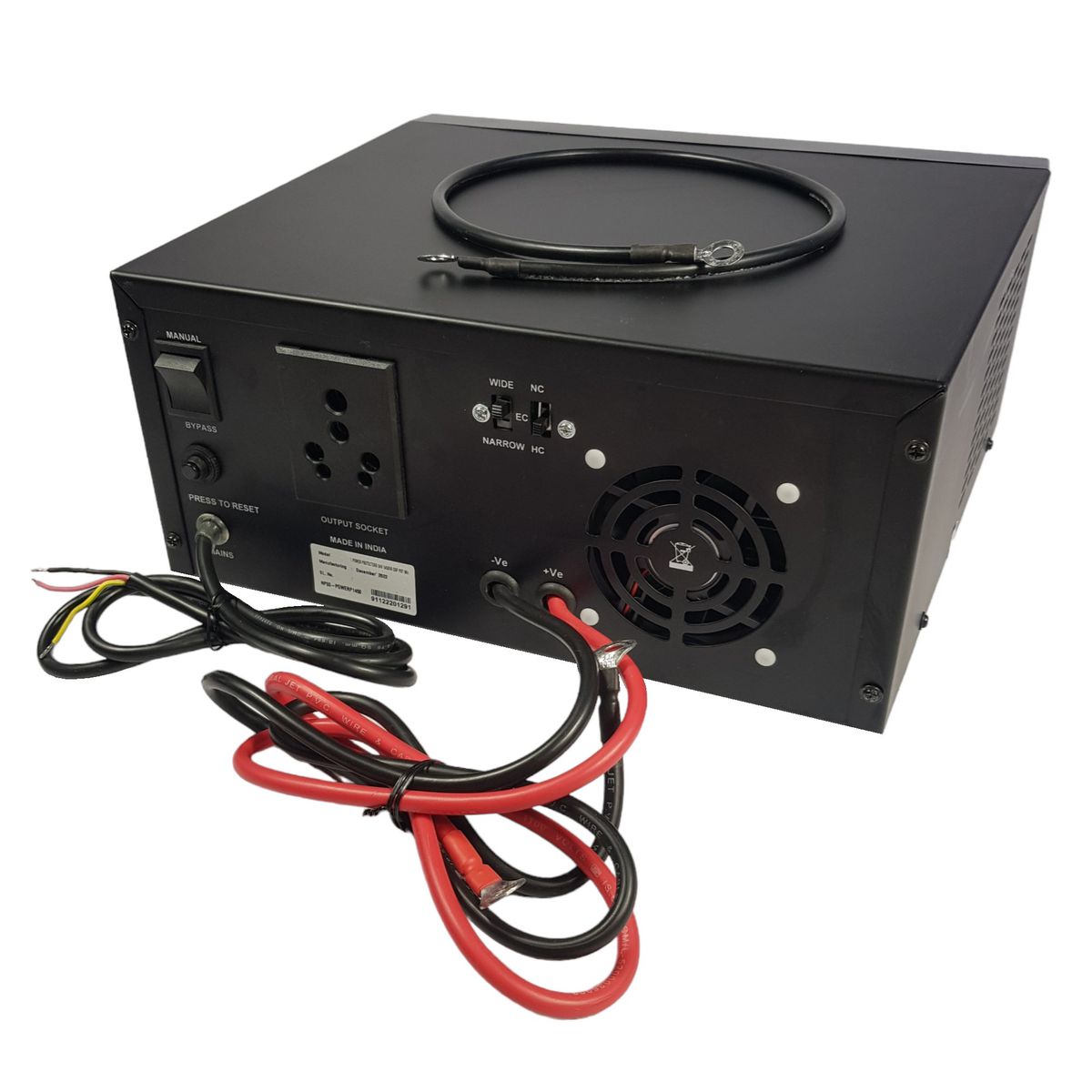

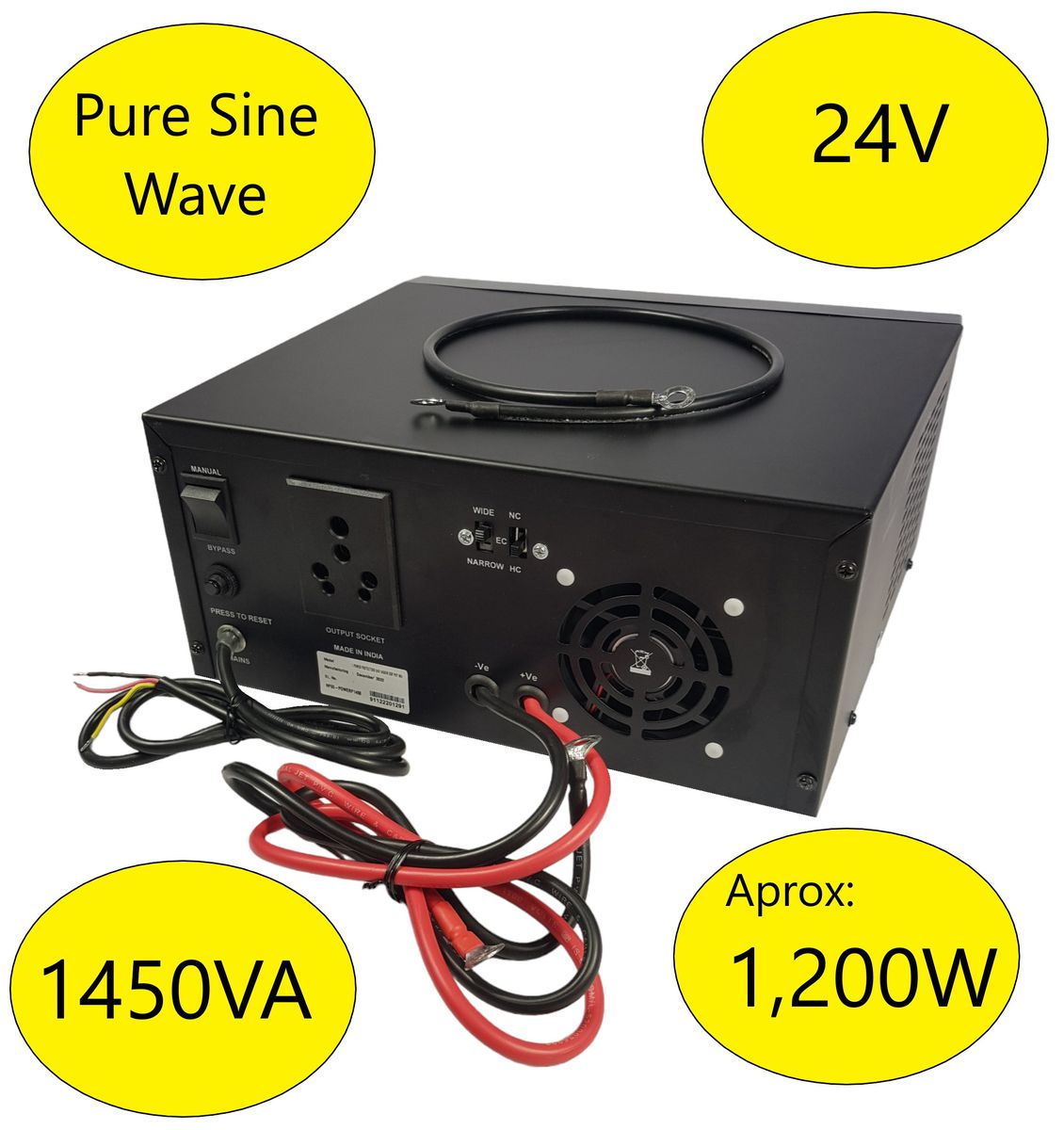

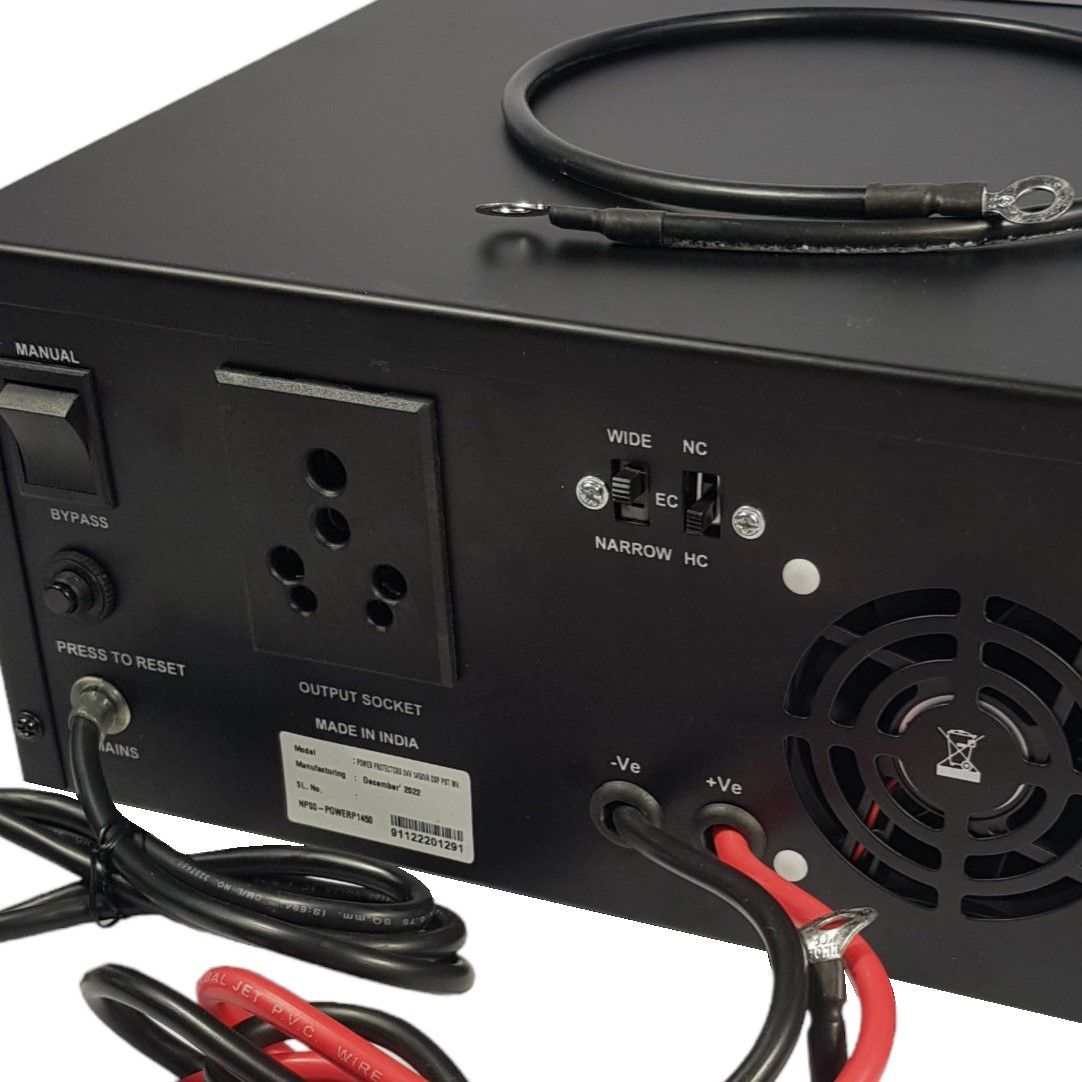

The rear panel features:

A standard South African 3-prong plug socket.
A positive lead with lug Red (take to battery - NOT included).
A negative lead with lug Black (take to battery - NOT included).
A manual bypass switch.
A cooling fan.
A power cord (Plug into 220V power source - used to charge the battery).
A selector switch for charging, and a selector switch for mode.

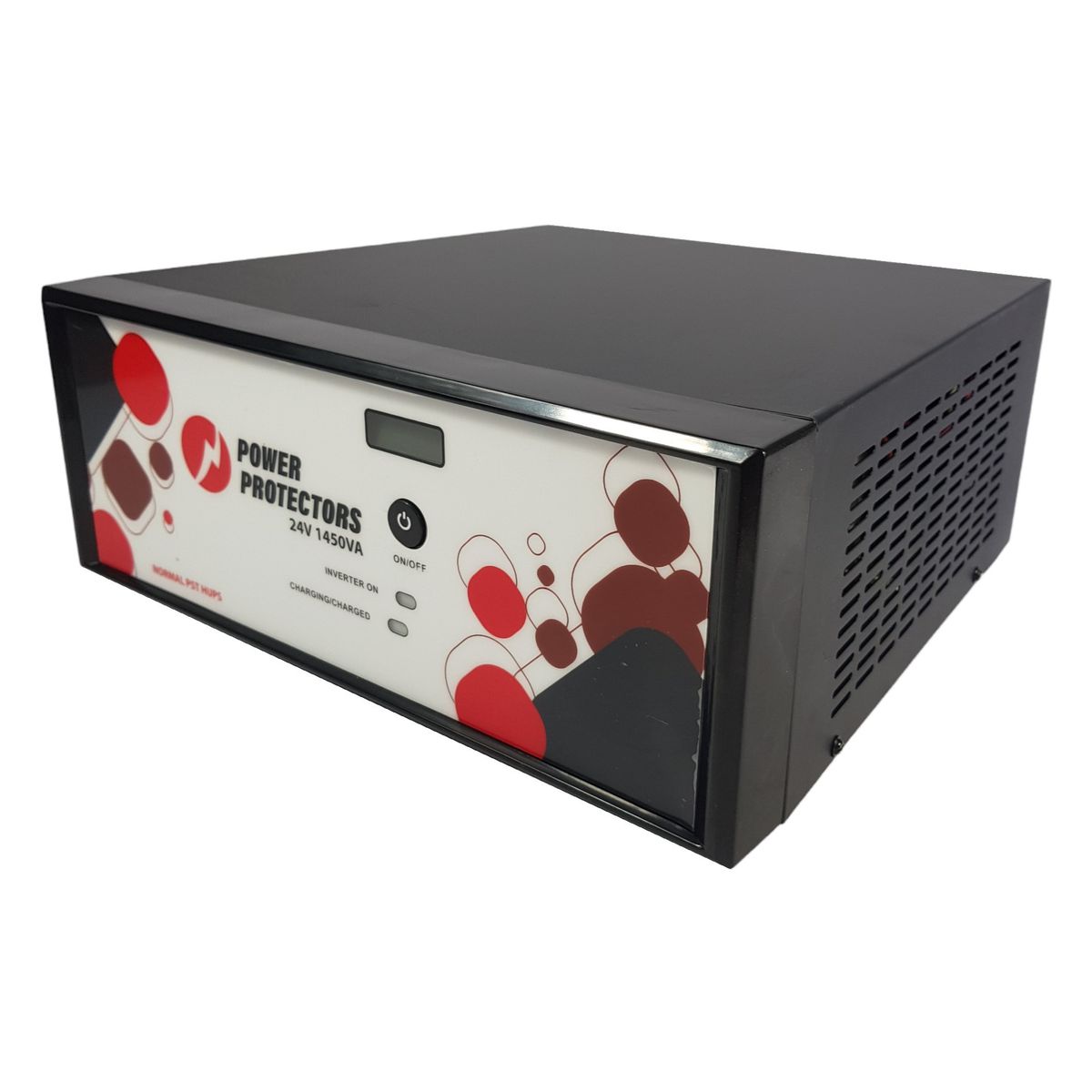

The front panel includes an LED display that shows various operations and information.

The Inverter comes with 2 spare fuses found stapled in a small bag in the included User Manual.

Specifications:

Charging Current:
• 9 +- 1A Normal Current
• 11 +- 1A Enhanced Current
• 13 +- 1A High Current

Charging Voltage:
• 28.8V +- 0.4V Boost Charging
• 27.40V +-0.4V Trickle Charging

Battery:
• Nominal Battery Voltage: 24V
• Low Battery Cut Off: 21.0V +-0.2V

Output Voltage:
• Output voltage at No Load: 220V +-7V
• Output Frequencies: 50.0 Hz+- 1Hz
• Output Waveform: Pure Sine Wave

Please note that all specifications and words in this writing are superseded by the words found on the product and enclosed with the product user manual, and are subject to change without notice.
Adhere to all safety measures, precautions, warnings, and instructions found on the product and in the enclosed product user manual.

What's in the box

1 x 24V Pure Sine Inverter / UPS 1,450VA, 1,200W: Black
