Cudy 16 Port Gigabit PoE 180W 2 Gigabit 2SFP Switch

Cudy 16 Port Gigabit PoE 180W 2 Gigabit 2SFP Switch

R 2,168.00
R 2,168.00
Sale Sold out
Tax included. Shipping calculated at checkout.

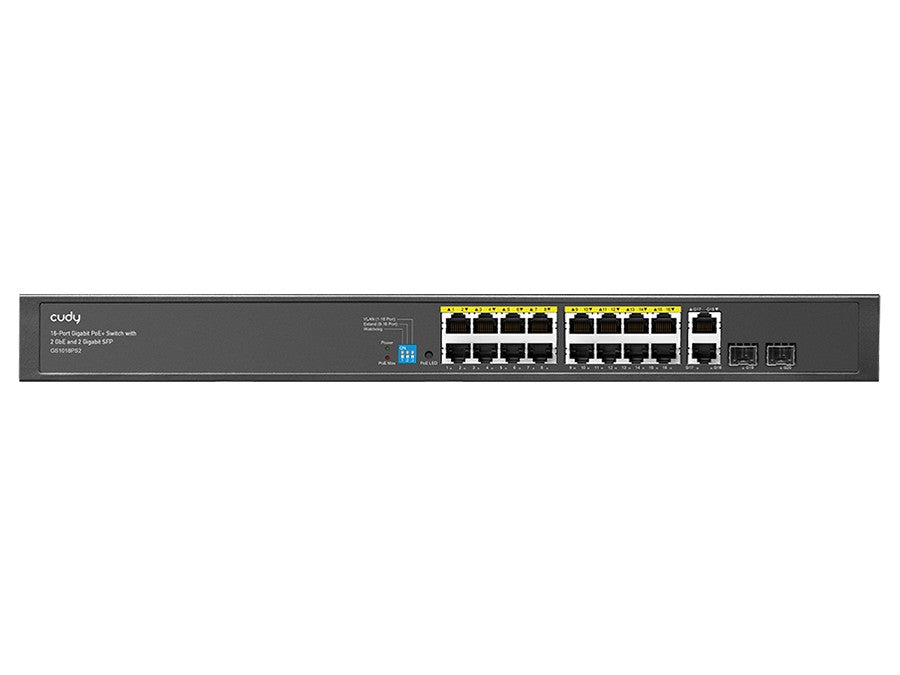

Cudy's CD-GS1018PS is a 16 Port Gigabit switch with 16x 802.3af/at PoE ports, 2x Gigabit and 2x SFP Uplink ports. The switch offers a 180W PoE budget and up to 30W per PoE port. Extender Mode increases the transmission distance on ports 9-16 to 250m at 10Mbps. The Watchdog function continuously monitors PoE connections when in Extender Mode. If an error is detected on the device, the switch immediately restarts the port. The unit features a PoE Max LED that blinks at 90% usage and stays solid at 95%. A PoE LED button lights per-port LEDs to indicate active power delivery.

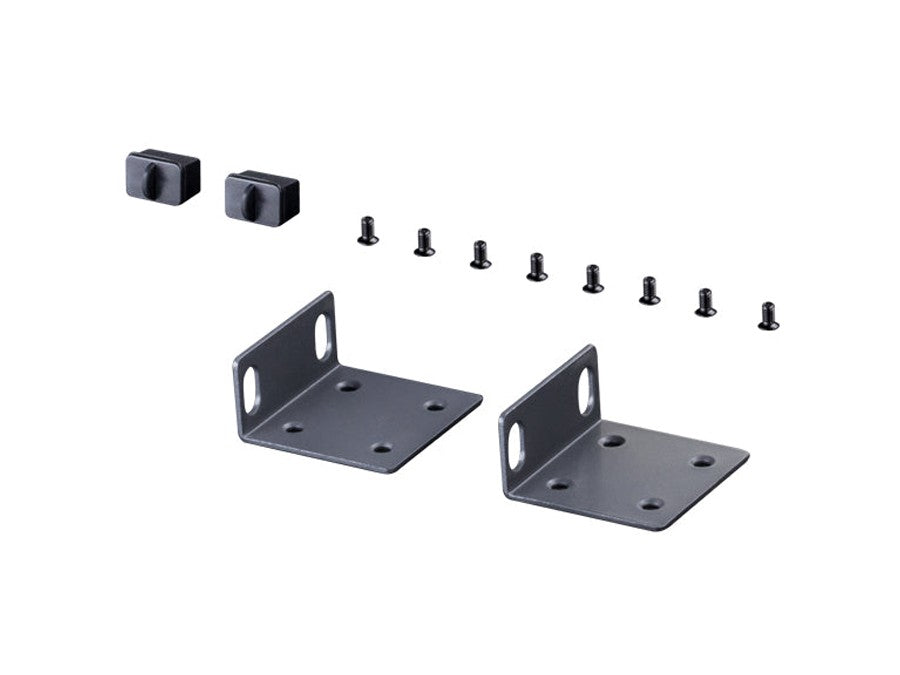

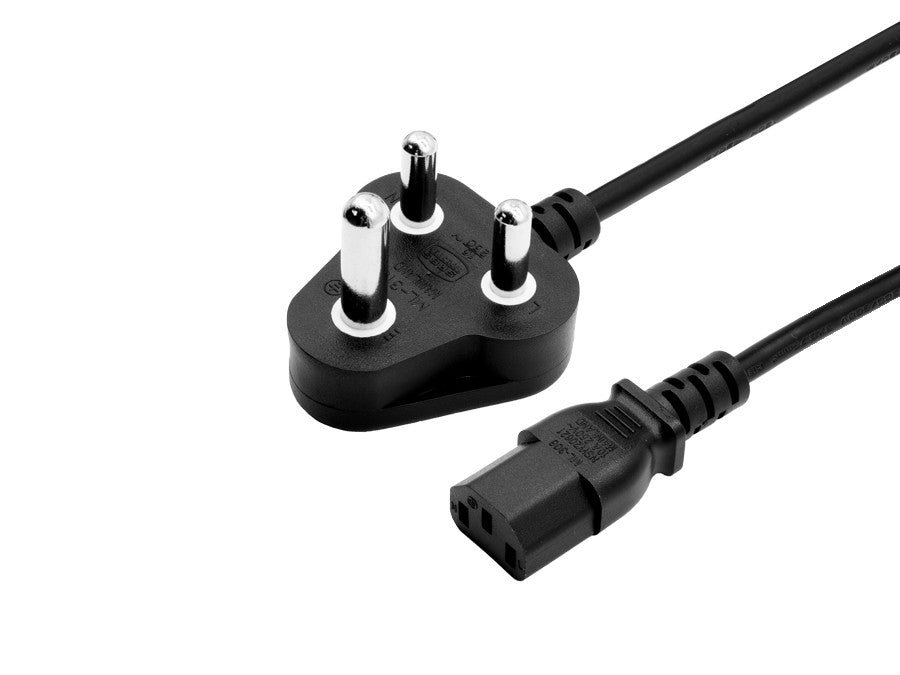

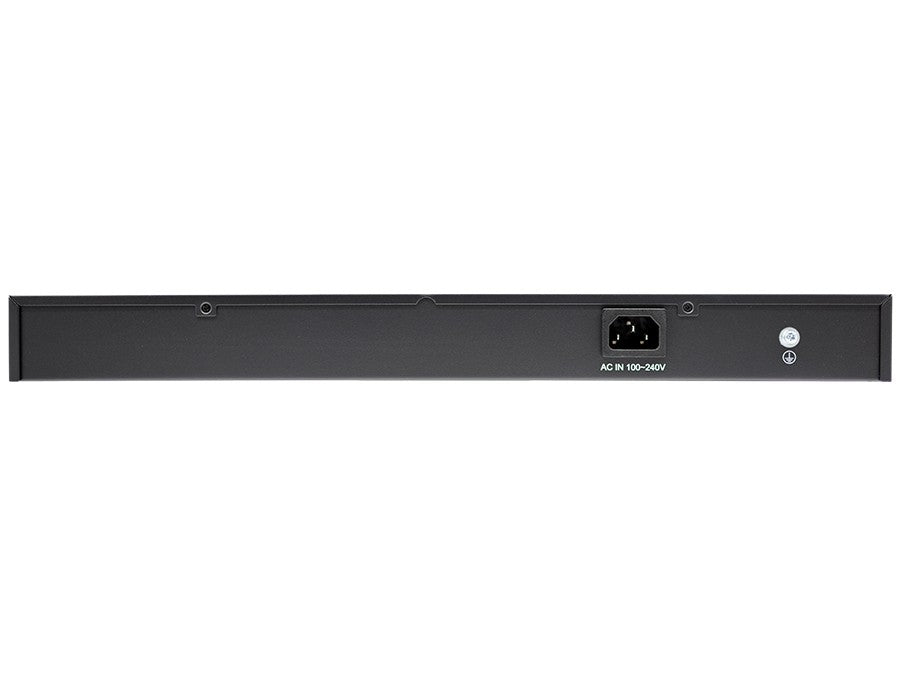

Specifications: Ethernet Ports: 18x 10/100/1000 Hardware Button: Extender ; Default Max. Power Consumption: 10W Mounting: Rack-Mount Operating System: None Operating Temperature: -10~50°C PoE Input: None PoE Output: 802.3af/at PoE on Ports 1~16 Power Input: 1x IEC Power Cord (Included) Serial Interface: None SFP Ports: 2x 1.25Gbps Supported Voltage Range: 100-240V

Dimensions: 320 x 207 x 44 mm Weight: 2.28kg

  • 16 PORT POE CONNECTIVITY: Powers up to 16 network devices directly through the Ethernet cable using 802.3af/at PoE, eliminating the need for separate power adapters on ports 1 to 16.
  • 180W POE BUDGET WITH PER-PORT CONTROL: Delivers a total PoE budget of 180W across all PoE ports, with up to 30W available per port, giving you enough headroom to run cameras, access points, and other powered devices.

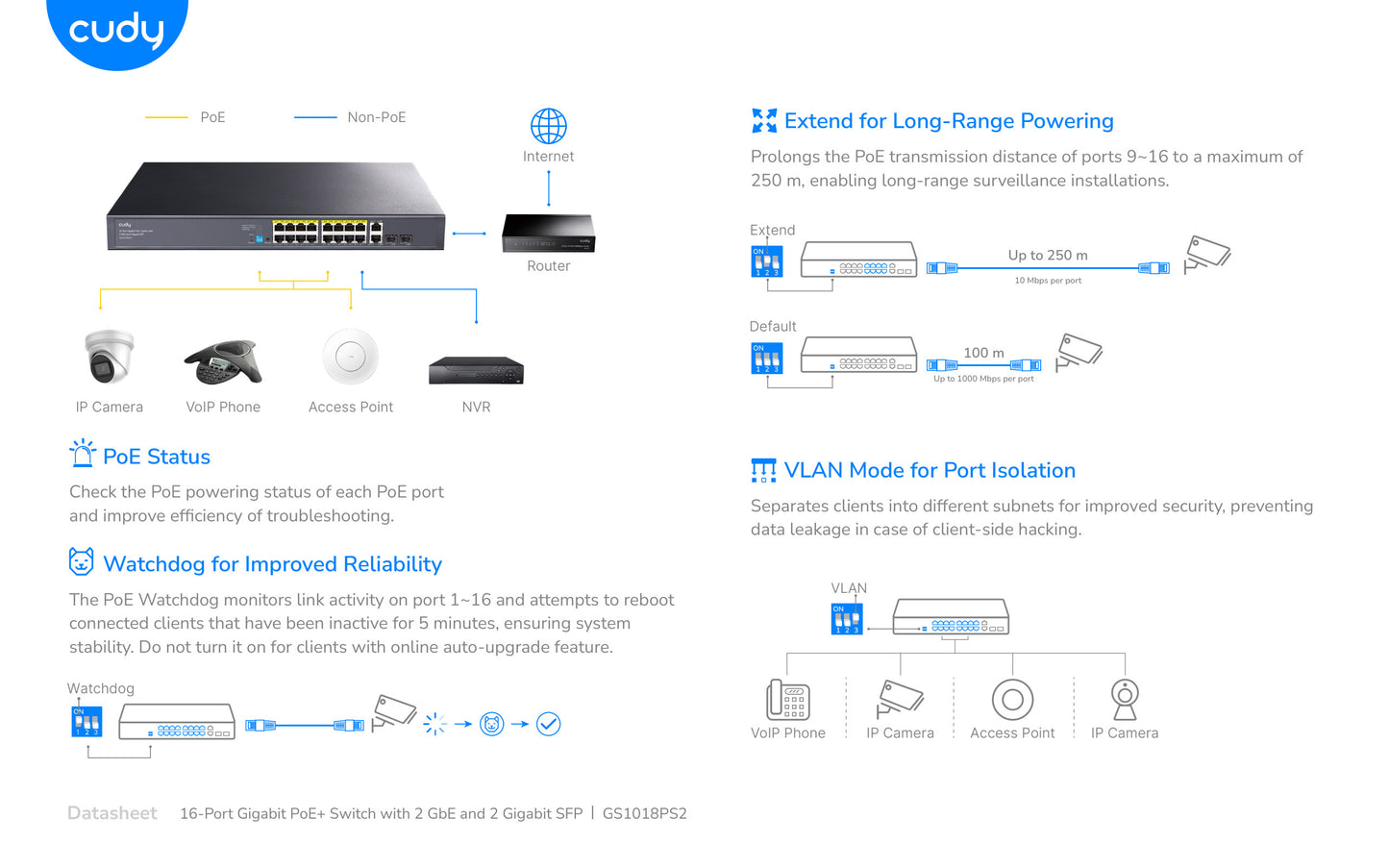

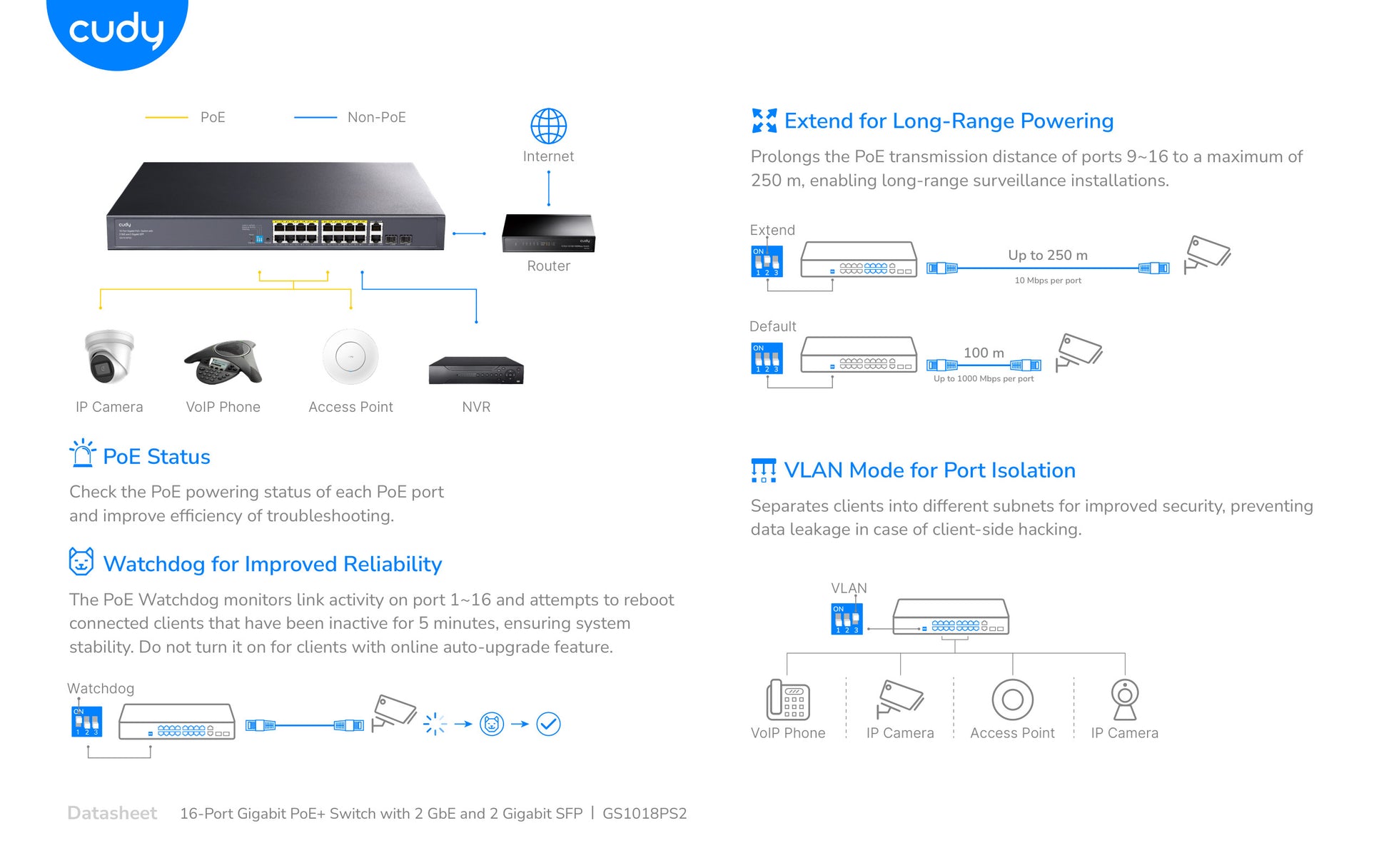

  • EXTENDED TRANSMISSION RANGE: Extender Mode on ports 9 to 16 stretches the network transmission distance up to 250m at 10Mbps, useful for reaching devices installed far from the switch.
  • AUTOMATIC WATCHDOG MONITORING: When Extender Mode is active, the built-in Watchdog function continuously monitors PoE connections and automatically restarts any port where an error is detected, reducing the need for manual intervention.
  • FLEXIBLE UPLINK OPTIONS: Includes 2 additional Gigabit Ethernet ports and 2 SFP uplink ports running at 1.25Gbps, allowing the switch to connect to your core network via copper or fibre depending on your setup.
