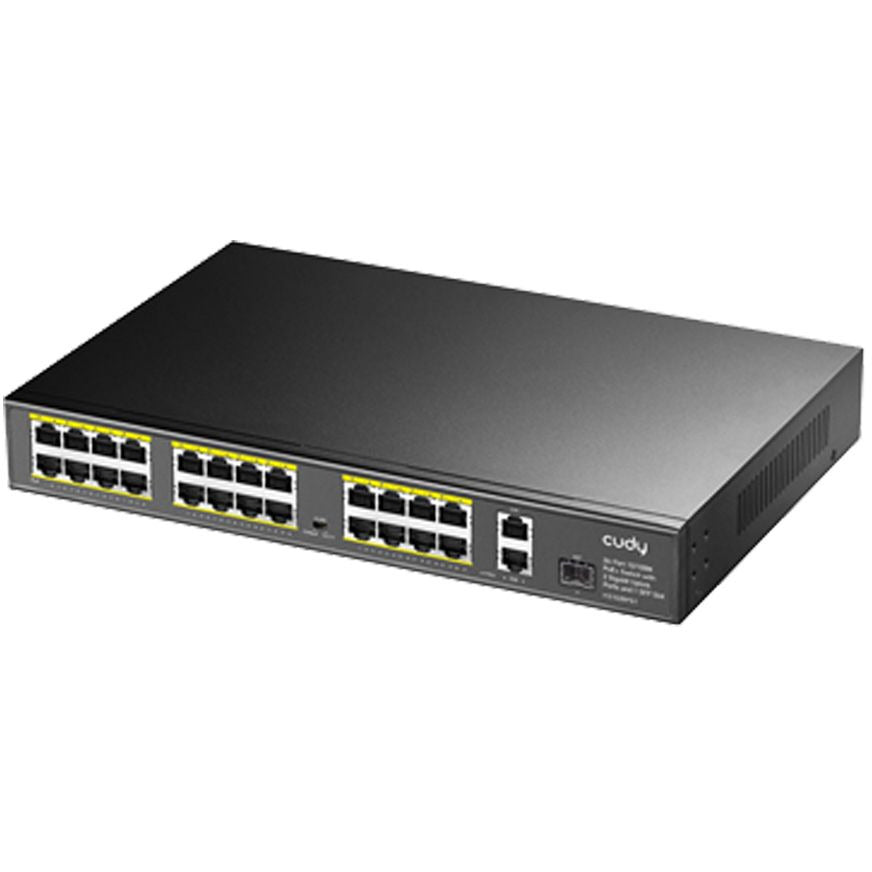

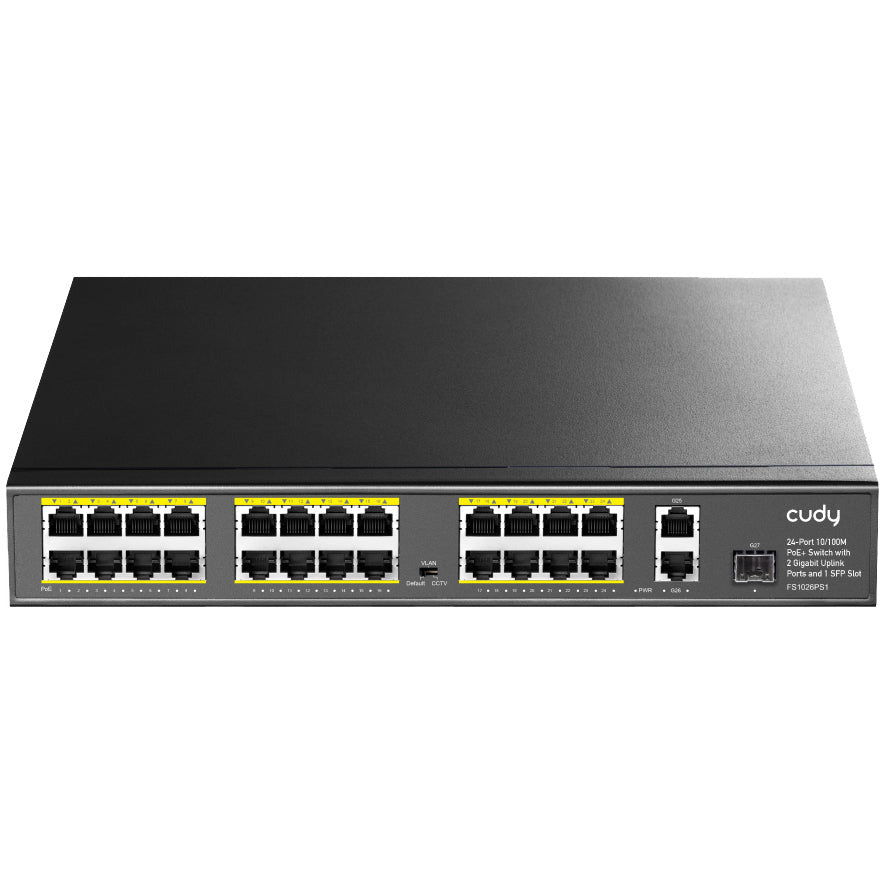

Cudy 26 Port with 24 PoE 290W 2 Gigabit 1SFP Combo Switch | FS1026PS1
Cudy's CD-FS1026PS is a 26 Port Fast Ethernet switch with 24x 802.3af/at PoE ports and 2x Gigabit, 1x SFP Combo Uplink ports.
The switch offers a 290W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-24 while Extender mode increases the transmission distance on ports 1-24 to 250m at 10Mbps.
The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.
Specifications
Ethernet Ports: 24x 10/100 ; 2x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 10W

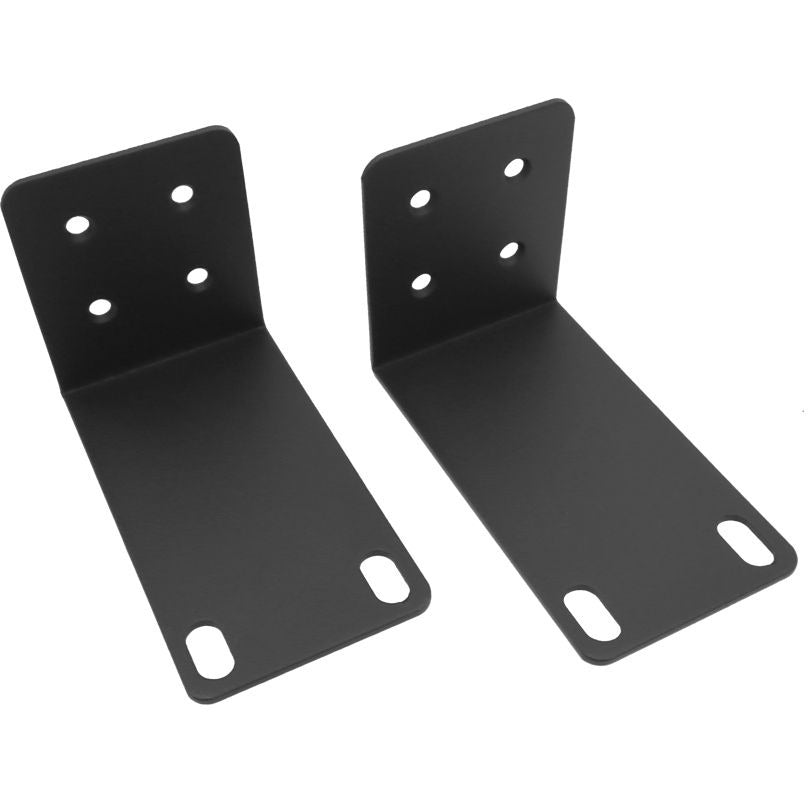

Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: -20°C to 50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24

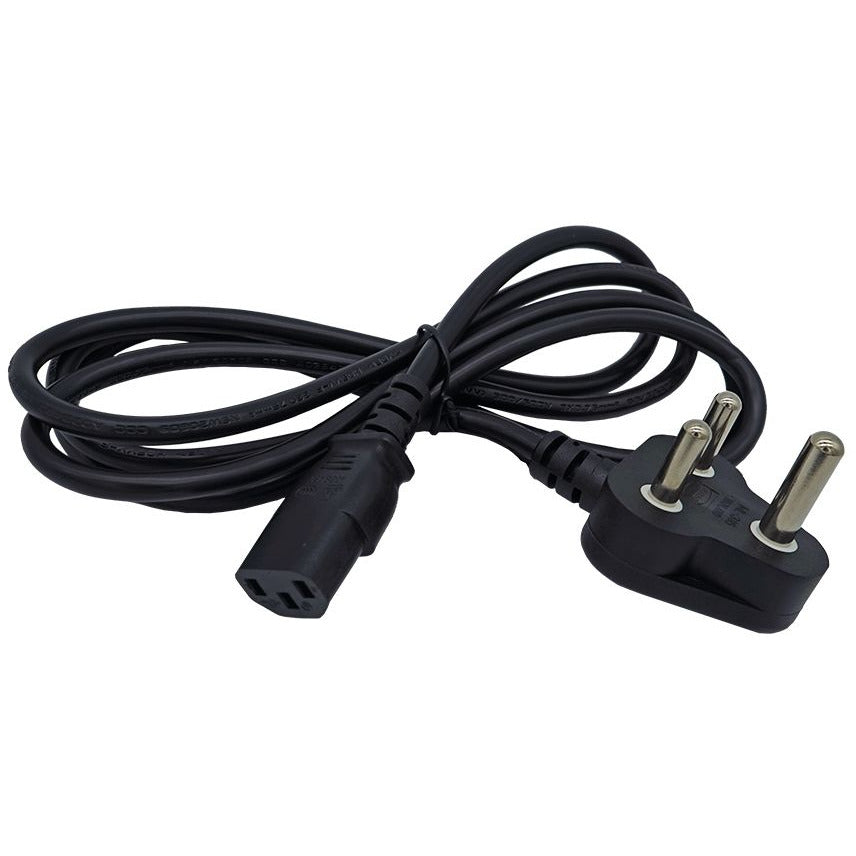

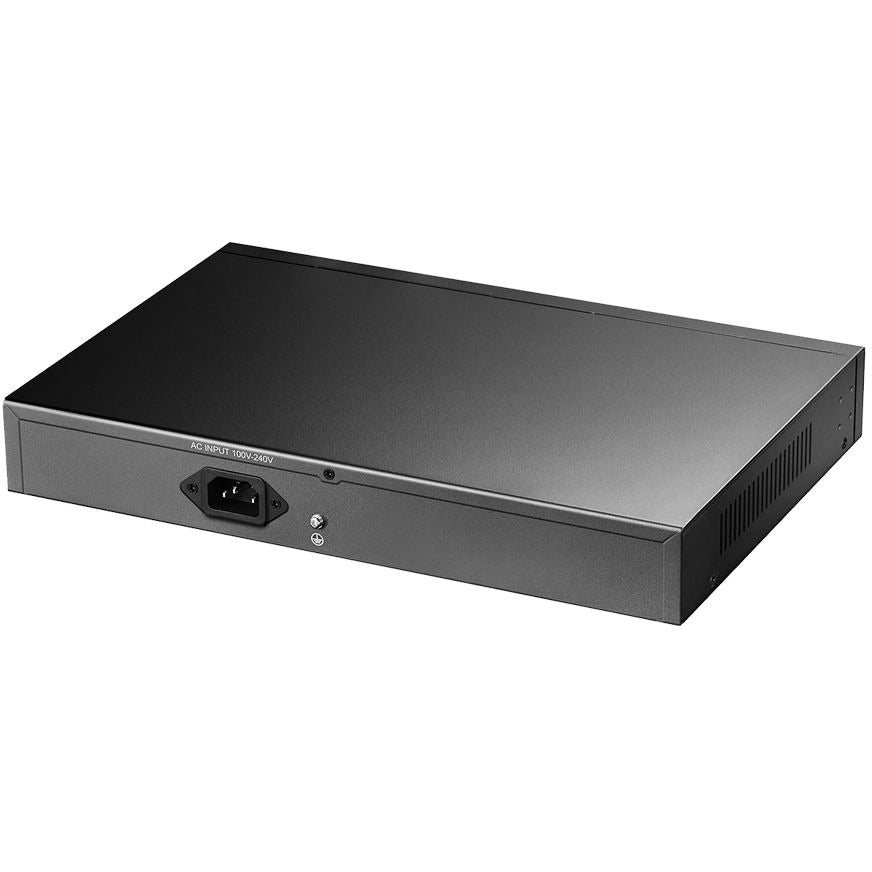

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 320 x 210 x 50mm
Weight: 1.9kg

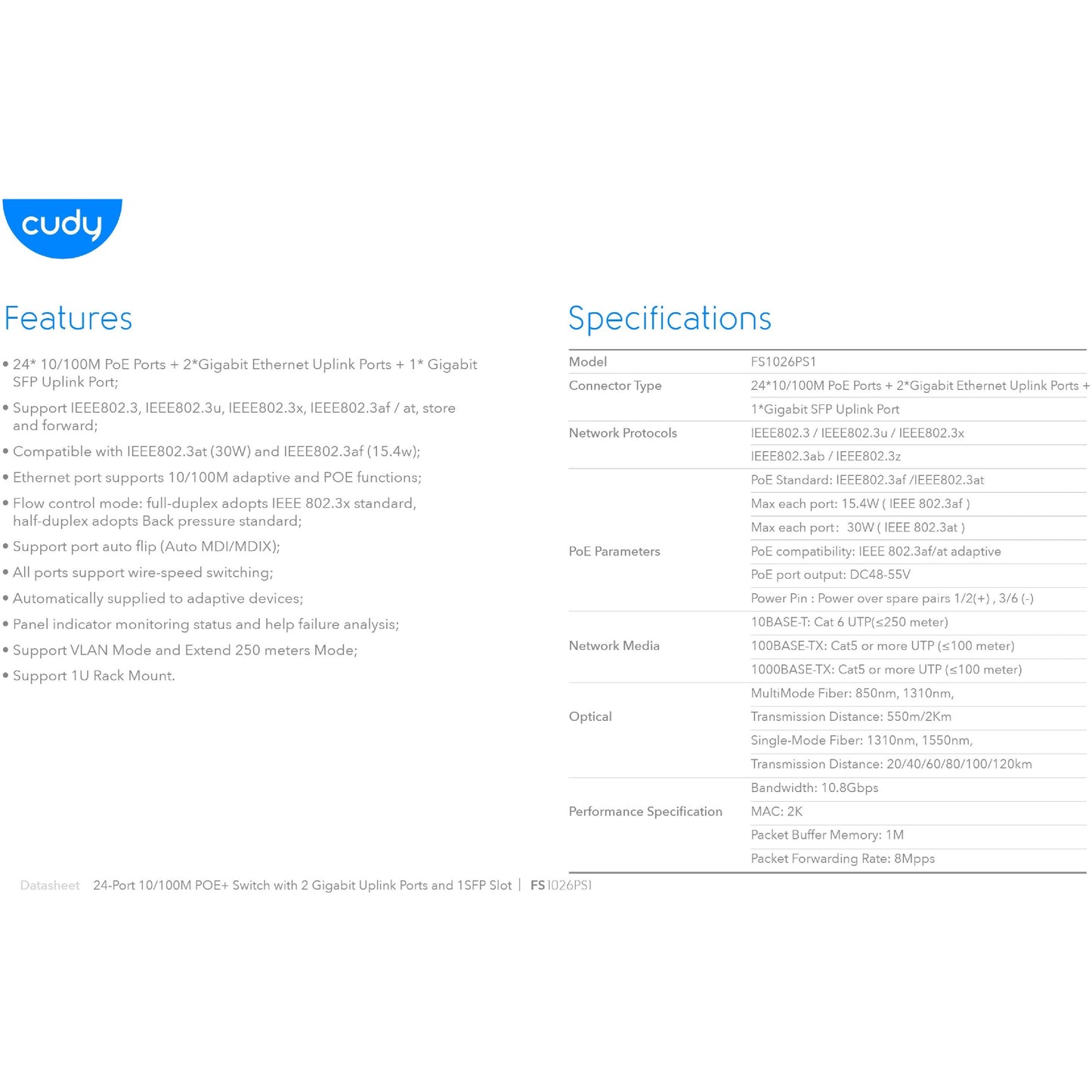

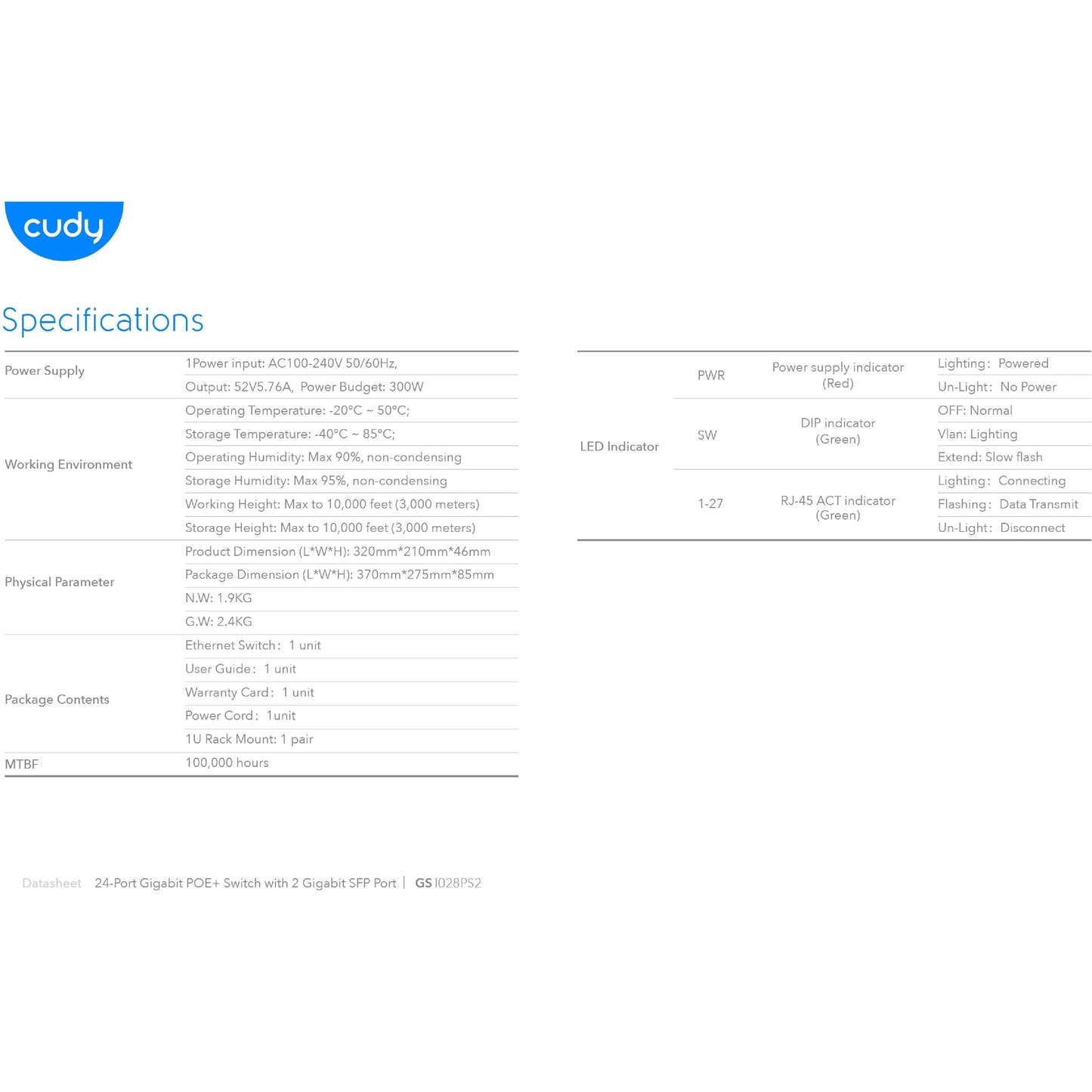

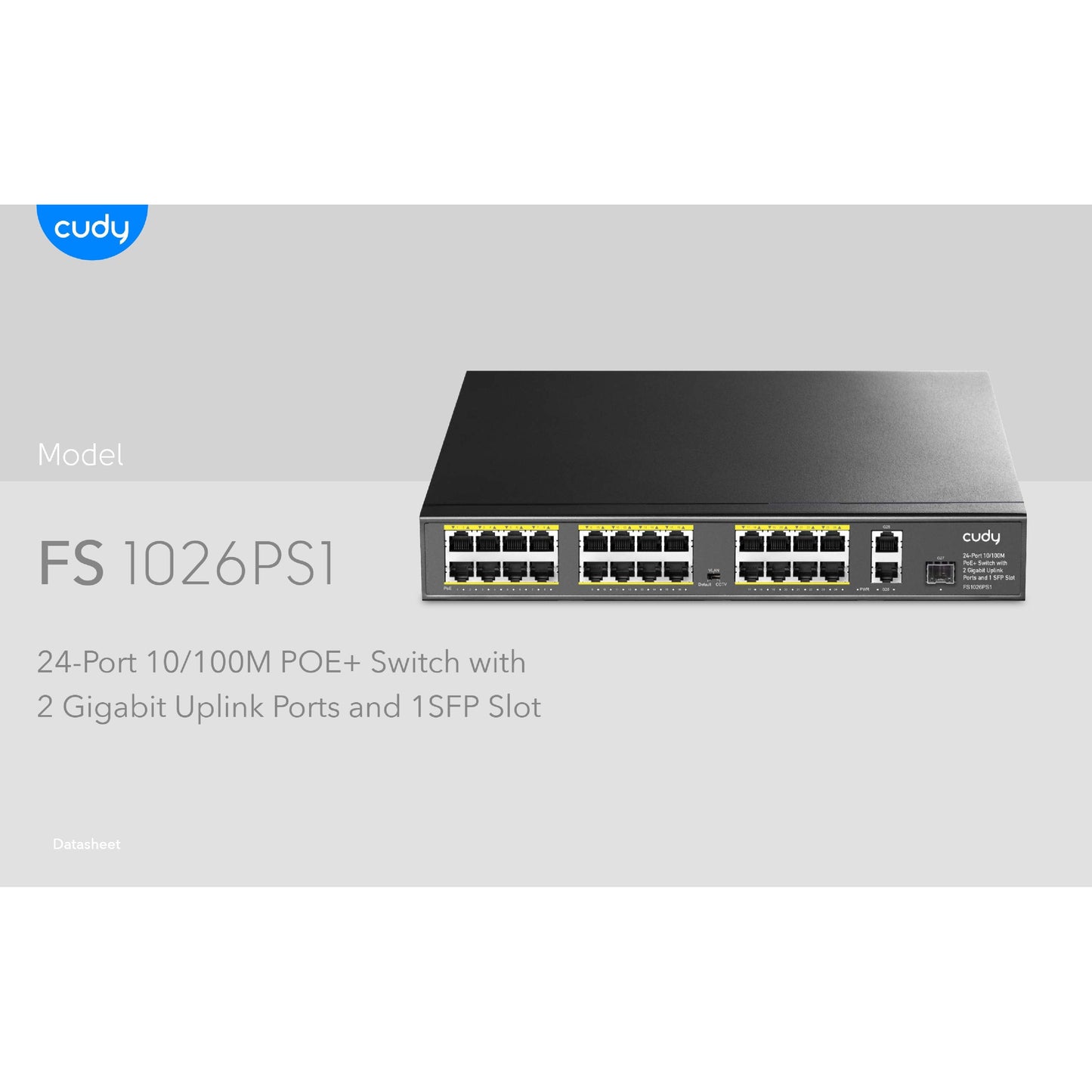

Zoom in on picture of Data Sheet for more information
More Information
SKU CD-FS1026PS
Manufacturer Cudy
Manufacturer Product Code FS1026PS1
What's in the box
1 x Cudy 26 Port with 24 PoE 290W 2 Gigabit 1SFP Combo Switch | FS1026PS1
