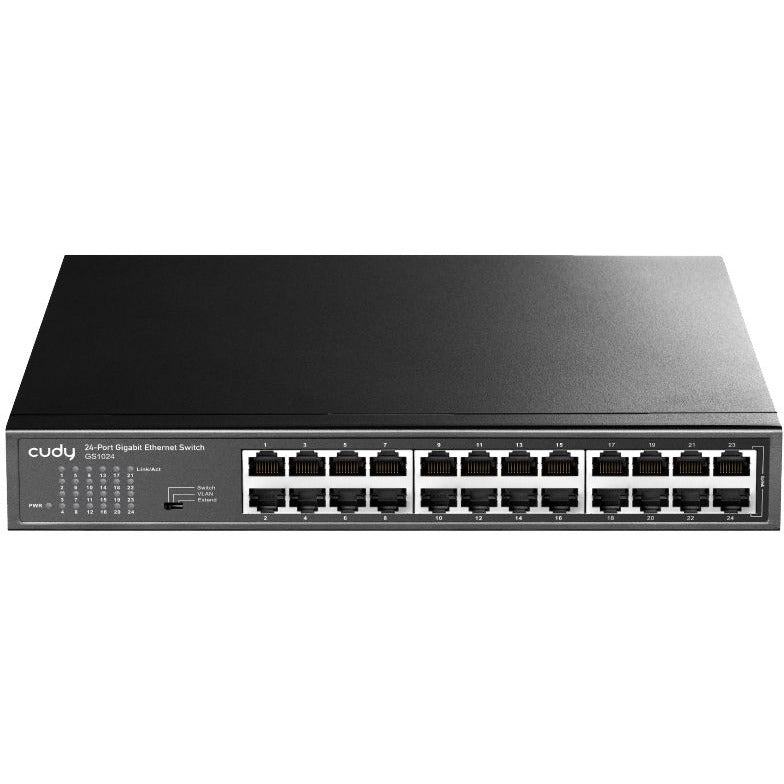

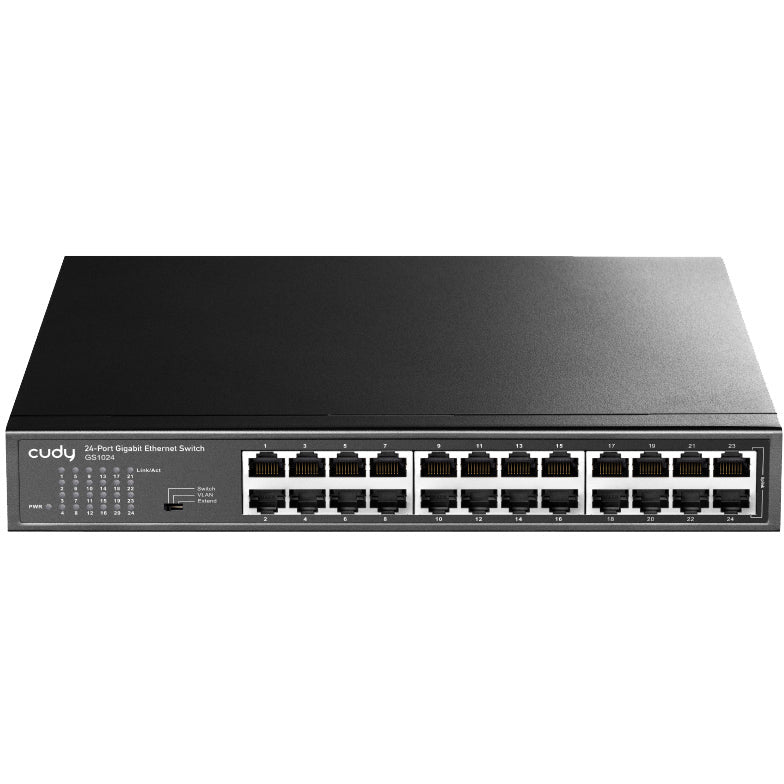

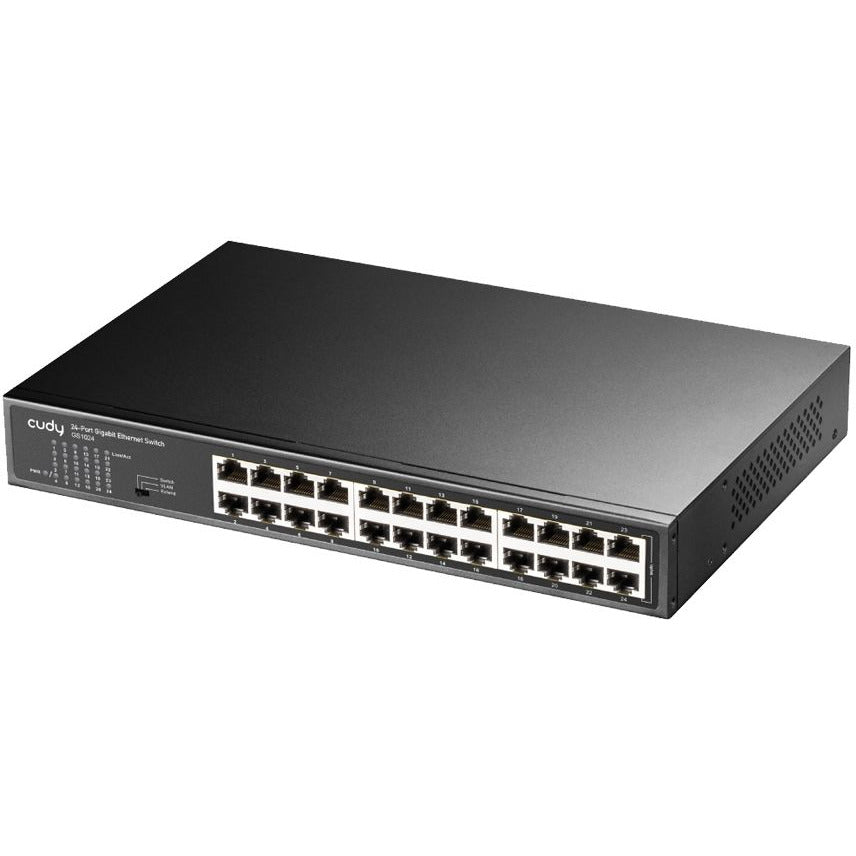

Cudy 24 Port Gigabit Rack-Mount Switch | GS1024

Cudy 24 Port Gigabit Rack-Mount Switch | GS1024

The Cudy 24-Port Gigabit Ethernet Switch is a great way to expand and manage your network. It provides a variety of installation methods for easy deployment in any environment. It supports both 11-inch rack-mounted steel cases as well as desktop installations making it very versatile. Designed for either the home or the office, this 24-port ethernet switch can easily be connected to your router, printer, monitor, PC, camera, gaming console, or access point.

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work more reliably.

The Ethernet Switch allows you to save power by up to 40%. The GS1024 uses green Ethernet technology to make your network more compatible without compromising performance. The switch automatically powers down the ports that are idle and can budget power output for different Ethernet cable lengths.

Features:
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
Non-blocking switching architecture enables full wire-speed packet forwarding and filtering
Store-and-Forward switching method
Supports 16K MAC address auto-learning and auto-aging

Specifications:
Power Supply: Built-in power supply
Voltage Range: Ac100~ 240V
Consumption: Speed: 1-24 Port: 10/100/1000Mbps
Transmission Distance: 100Meter (328ft)
Ethernet Standard: IEEE 802.3/802.3u / 802.3ab
Switching capacity: 48G
MACAddress: 8K MAC address table
VLAN (1-22Ports):
Port Isolation: Downlink designated ports are isolated from each other, and only transmit data with the uplink port.
Default:
Standard Switch: All ports communicate freely
Extend (1-22Ports):
Link Extension: The specified port speed drops to 10Mbps, max transmission distance is 250 meters.
LINK/ACT:
On: Green – The port is connecting
Blinks: / – The port is receiving or transmitting data
Off: / – The port is not linked successfully with the device
Transfer Rate:
14,880pps for 10Mbps
148,800pps for 100Mbps
148,8000pps for 100Mbps
Environment:
Operating Temperature: 0? ~ 40?
Storage Temperature: -40? ~70?
Operating Humidity: 10%~85% non-condensing
Storage humidity: 5%~85% non-condensing
Product Dimensions: 27 x 18 x 4.4 cm
WHAT’S IN THE BOX:
Cudy 24-Port Gigabit Ethernet Switch – Black x1
Power Cable x1

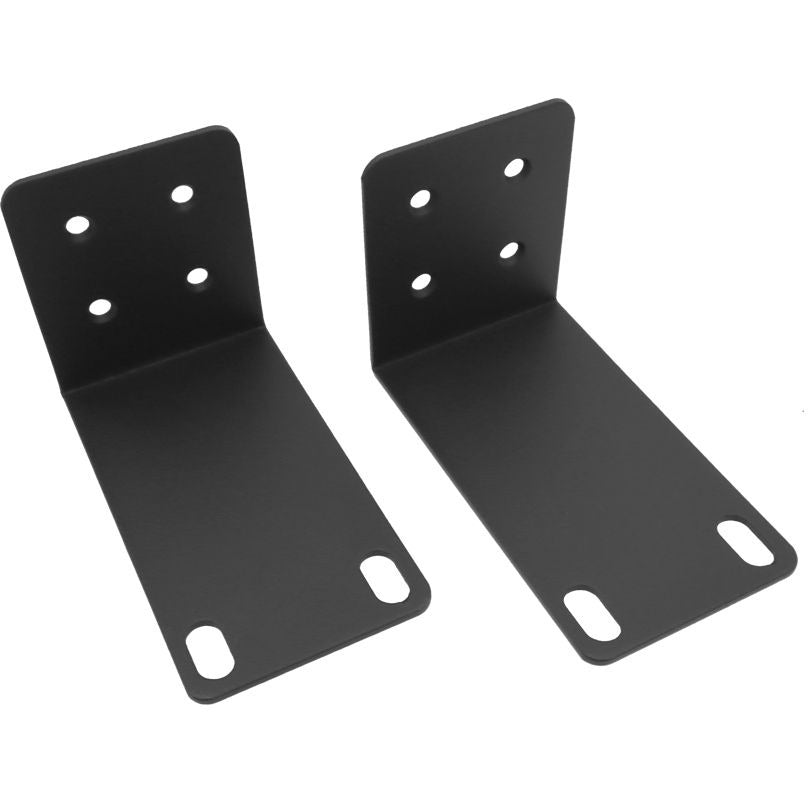

Mounting Brackets x2
Quick Start Guide x1

Cudy's CD-GS1024 is a 24-Port Gigabit Switch that supports both desktop and rack-mount options.
It features a toggle switch with VLAN, Extender, and Default modes.
In Default mode, all ports operate freely. VLAN mode enables port isolation on ports 1-22 while Extender mode increases the transmission distance on ports 1-22 to 250m at 10Mbps.

More Information
SKU CD-GS1024
Manufacturer Cudy
Manufacturer Product Code GS1024

Specifications Ethernet Ports: 24x 10/100/1000
Hardware Button: None
Max. Power Consumption: 15W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None

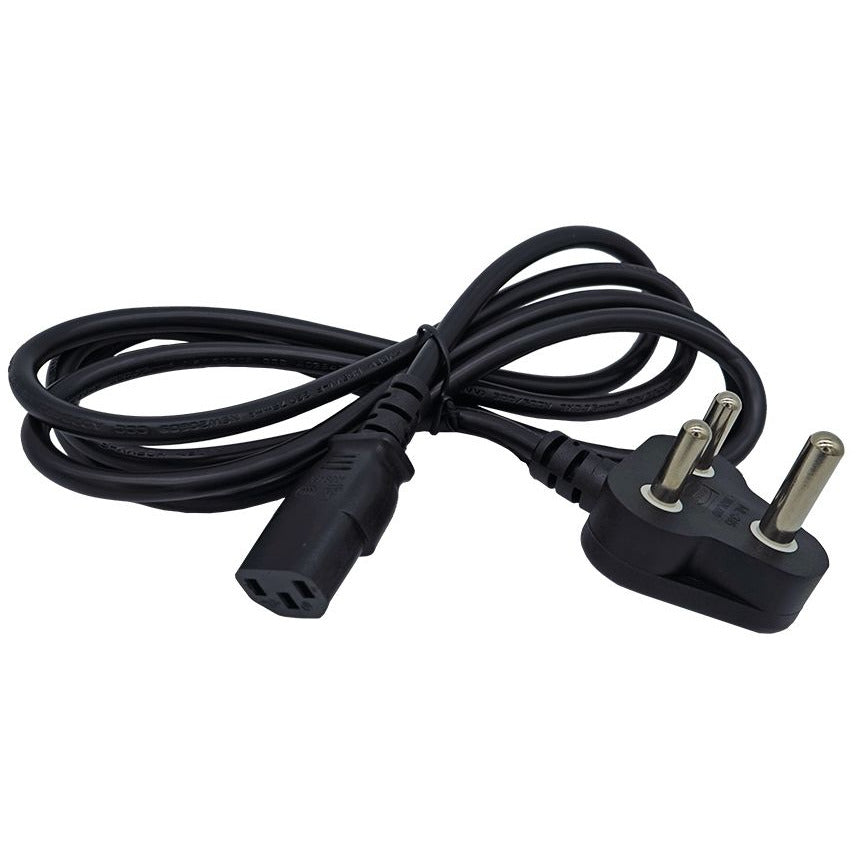

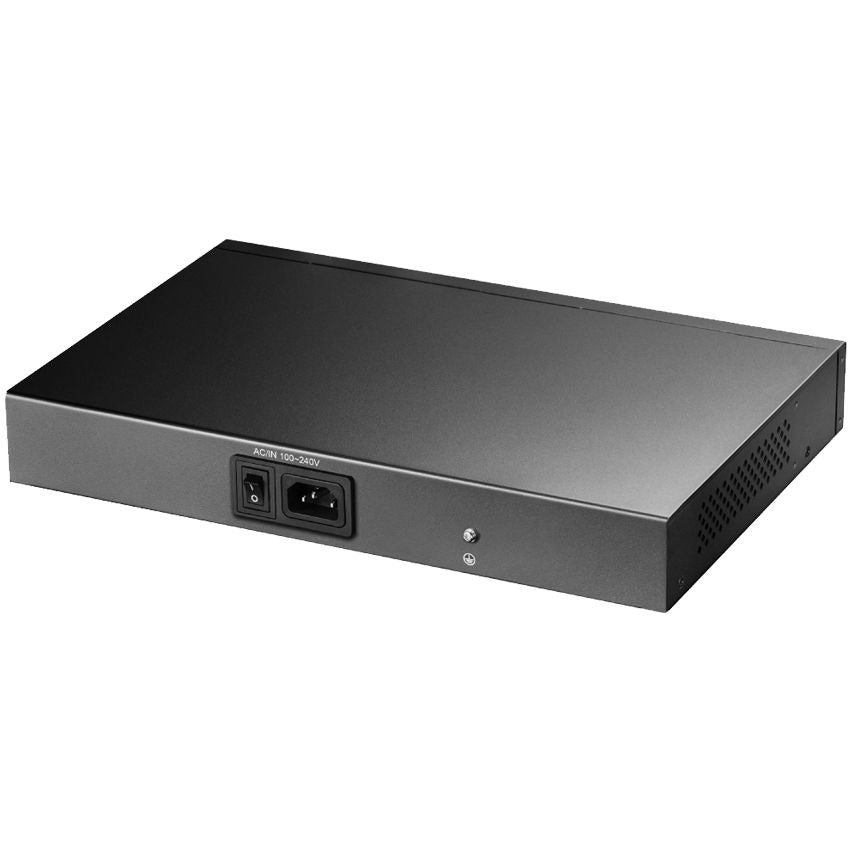

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100V-240V

Dimensions: 270 x 180 x 44mm

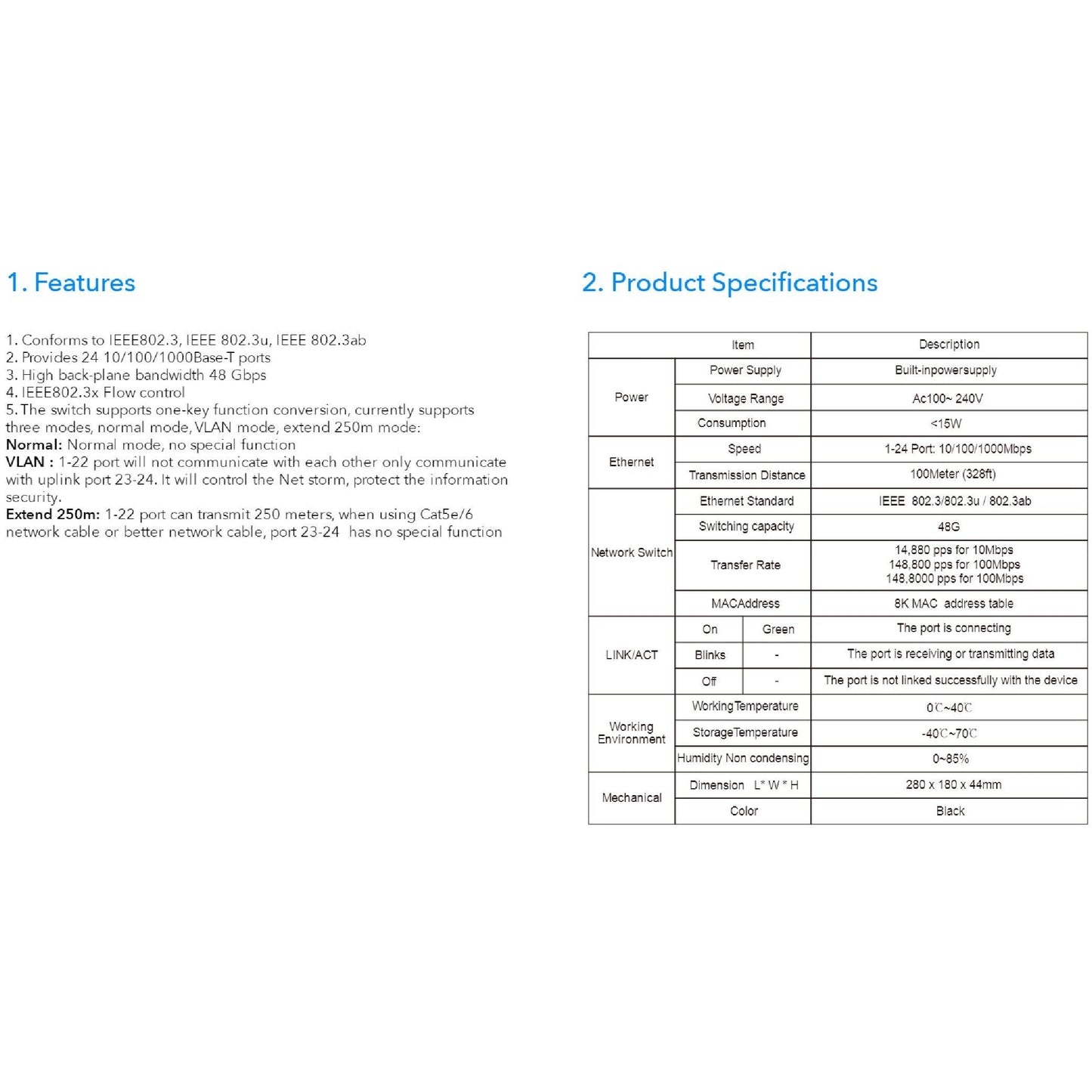

Zoom in on the picture of the datasheet for more in-depth information.

What's in the box
1 x Cudy 24 Port Gigabit Rack-Mount Switch | GS1024
