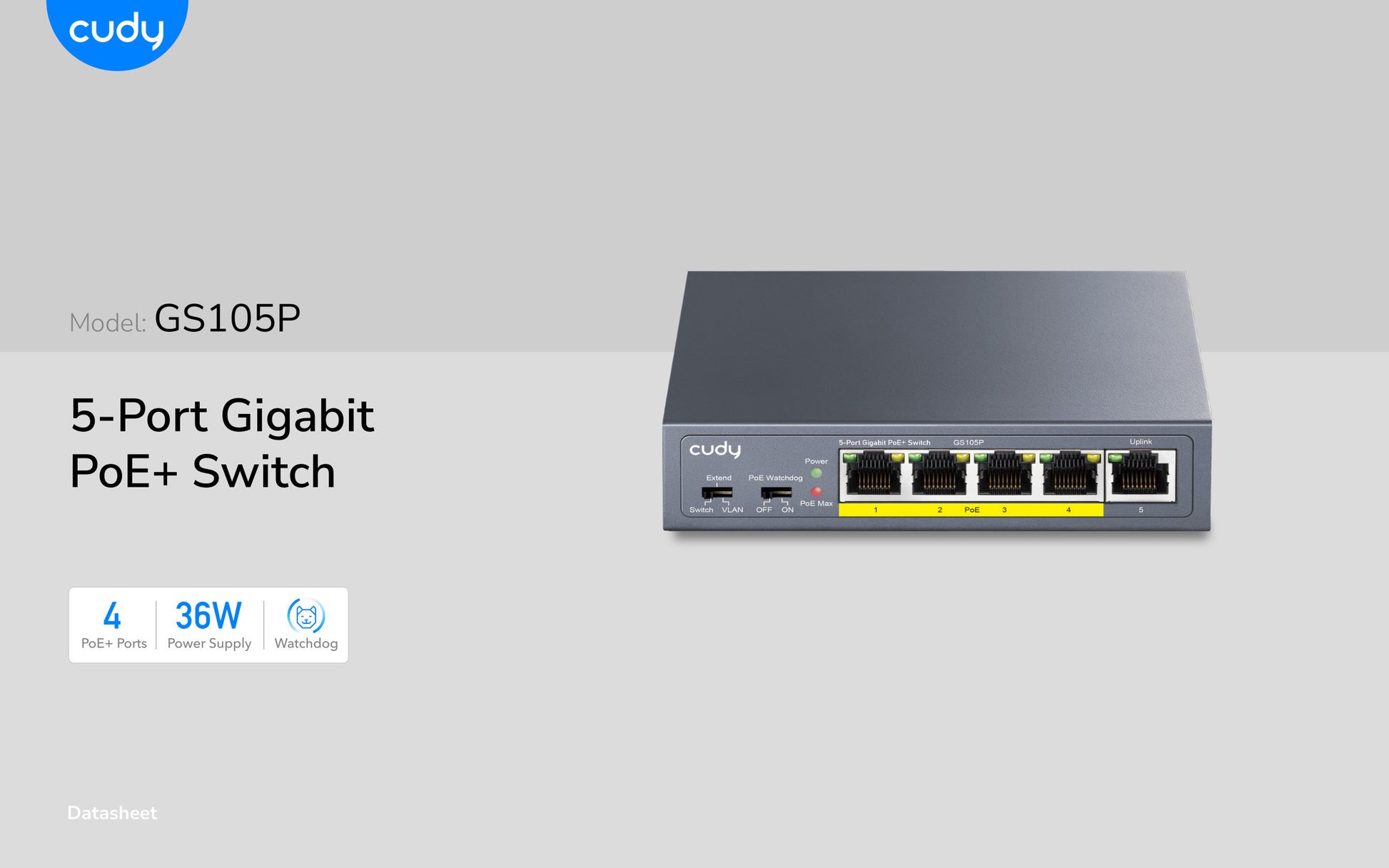

Cudy 5 Port Gigabit 4 PoE 31W Switch

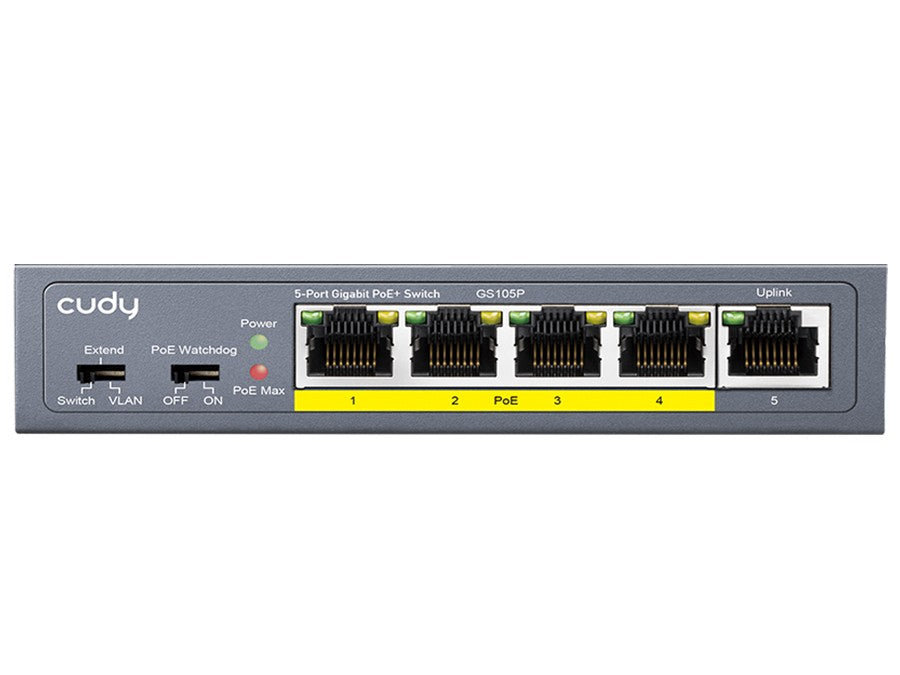

Cudy's CD-GS105P is a 5 Port Gigabit switch with 4x 802.3af/at PoE ports, 1x Gigabit Uplink port and a 31W PoE Budget. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-4, while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when enabled. If an error is detected on the device, the switch immediately restarts the port. The unit features a PoE Max LED that blinks at 90% usage and stays solid at 95%. A PoE LED button lights per-port LEDs to indicate active power delivery.

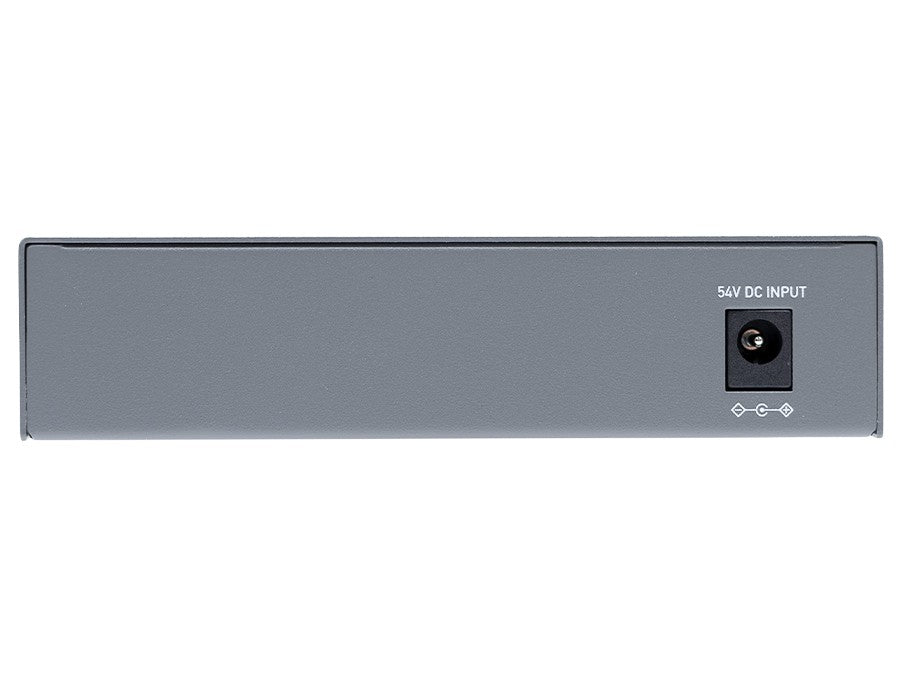

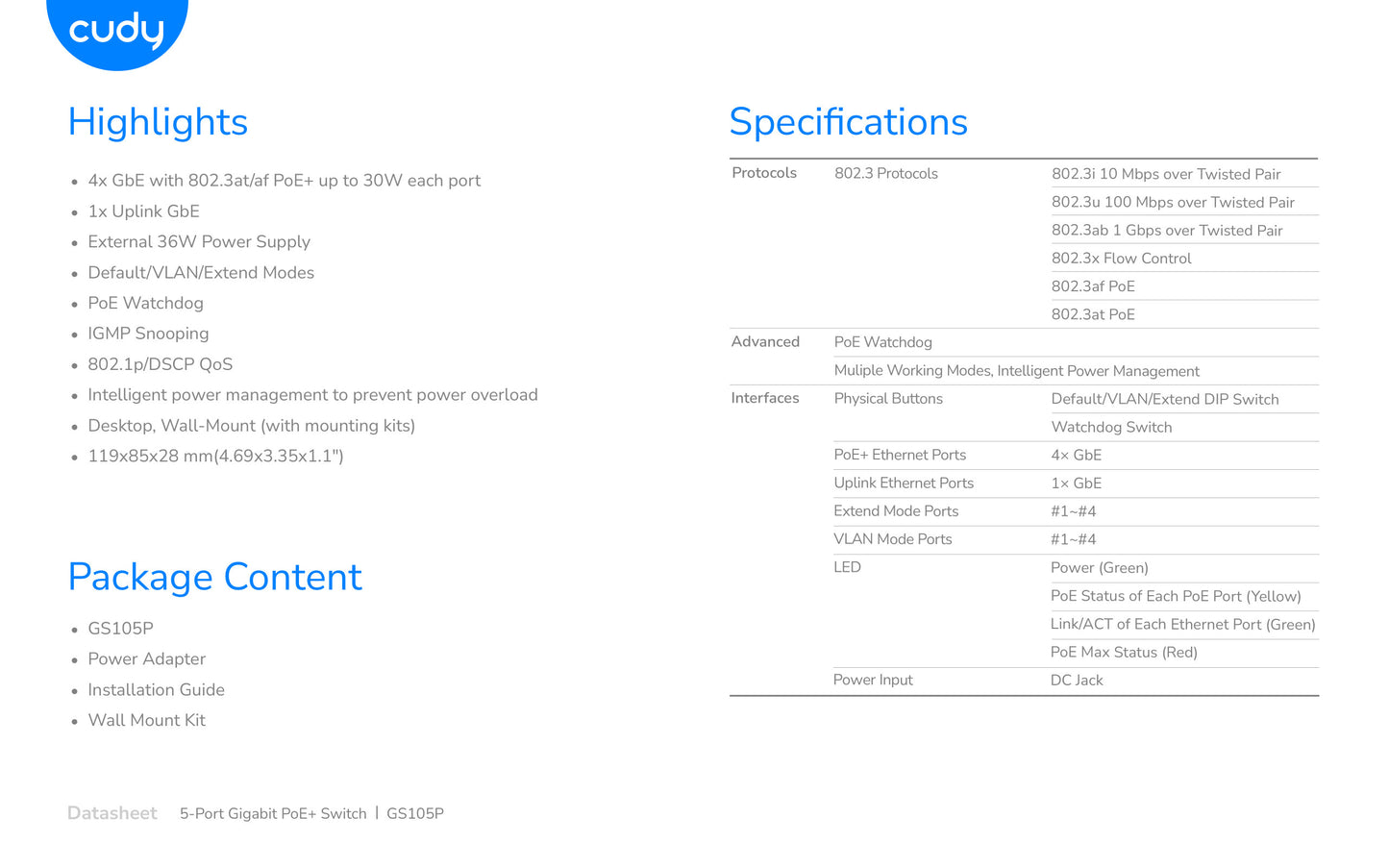

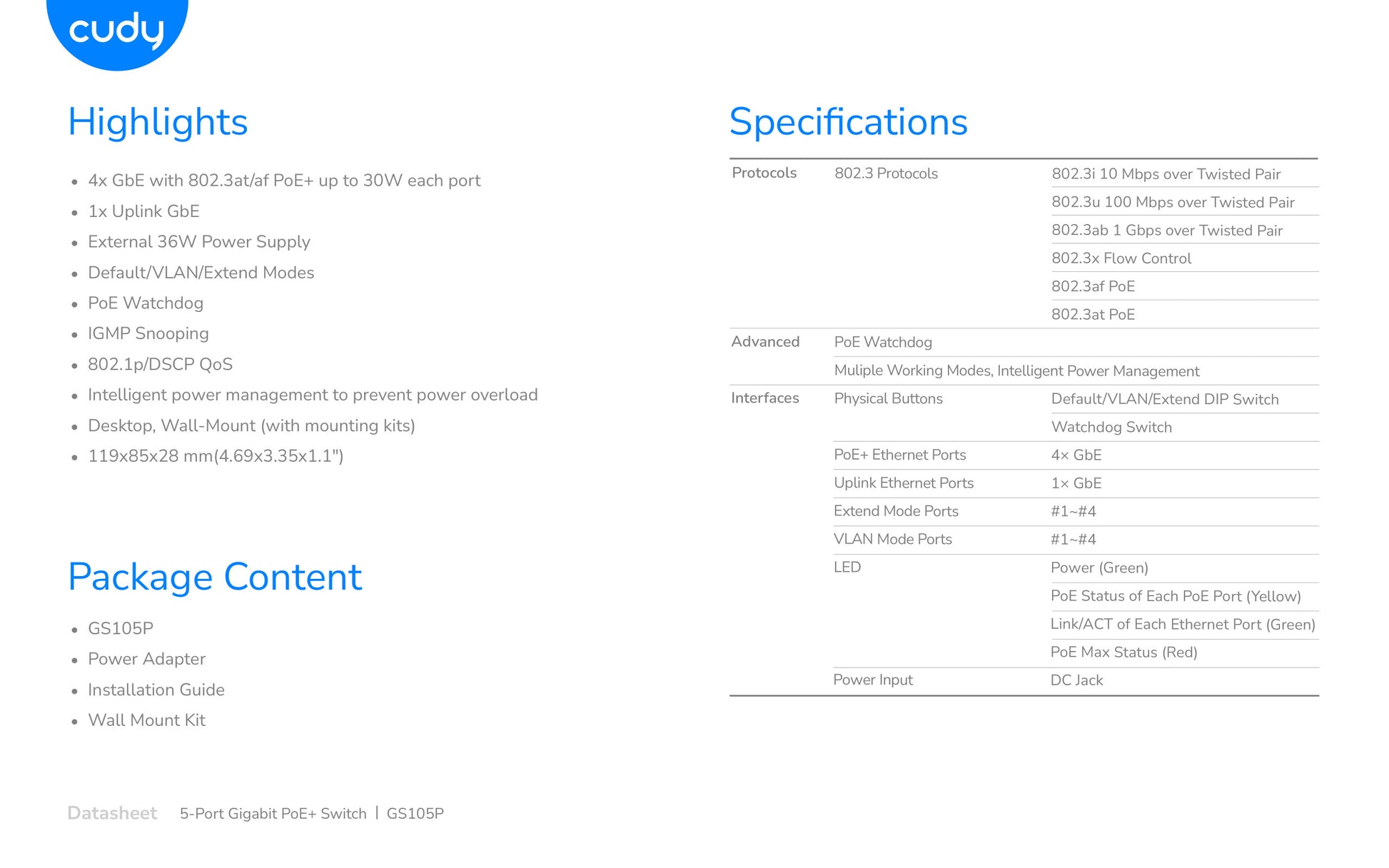

Specifications: Ethernet Ports: 5x 10/100/1000 Hardware Button: VLAN; Extender; Watchdog Max. Power Consumption: 5W Mounting: Desktop Operating System: None Operating Temperature: 0°C to 40°C PoE Input: None PoE Output: 802.3af/at PoE on Ports 1~4 Power Input: 1x 54V 0.66amp PSU (Included) Serial Interface: None SFP Ports: None Supported Voltage Range: 100-240V

Dimensions: 119 x 85 x 28mm Weight: 254g

• POE ON ALL FOUR DATA PORTS: Ports 1 to 4 support 802.3af/at PoE output, allowing you to power compatible devices such as IP cameras, access points, and VoIP phones directly through the network cable without needing separate power adapters.

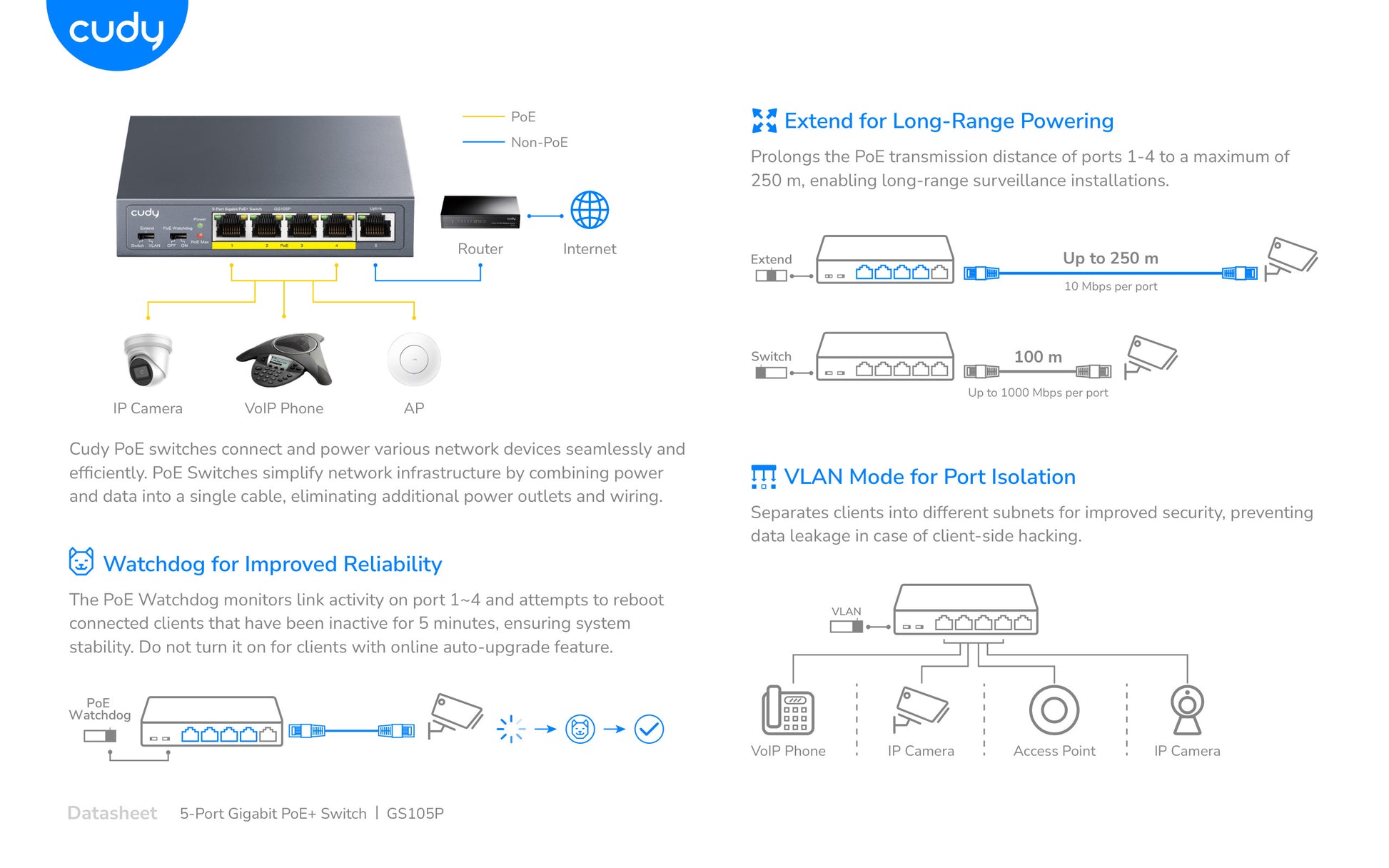

• EXTENDED TRANSMISSION RANGE: Extender mode increases the cable transmission distance on ports 1 to 4 up to 250m at 10Mbps, making this switch suitable for installations where devices are located far from the network source.
• VLAN AND PORT ISOLATION: VLAN mode isolates ports 1 to 4 from each other, helping to improve network security and reduce unwanted traffic between connected devices, all controlled via a simple hardware toggle switch.
• WATCHDOG MONITORING FOR POE DEVICES: The built-in watchdog function monitors PoE connections and automatically restarts a port if a connected device stops responding, helping to maintain uptime without manual intervention.

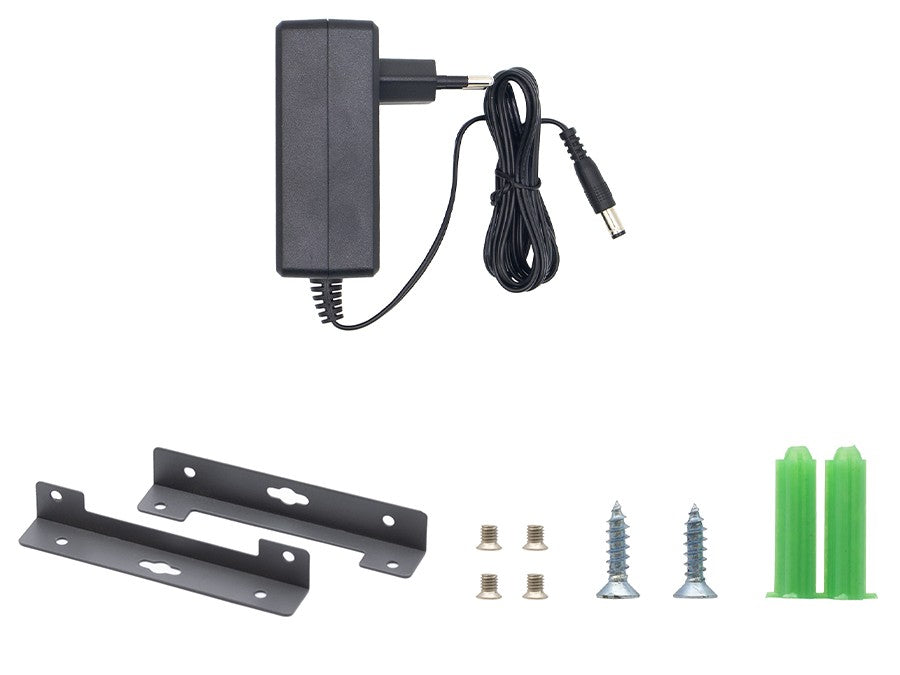

• COMPACT DESKTOP DESIGN: Measuring 119 x 85 x 28mm and weighing 254g, this switch is designed for desktop placement and includes a 54V power supply, with a total PoE budget of 31W and a maximum power consumption of 5W.
