Mr Satellite

Cudy 5 Port Gigabit Multi-WAN VPN Router | R700

Cudy 5 Port Gigabit Multi-WAN VPN Router | R700

Regular price R 621.00
Regular price Sale price R 621.00
Sale Sold out
Tax included. Shipping calculated at checkout.

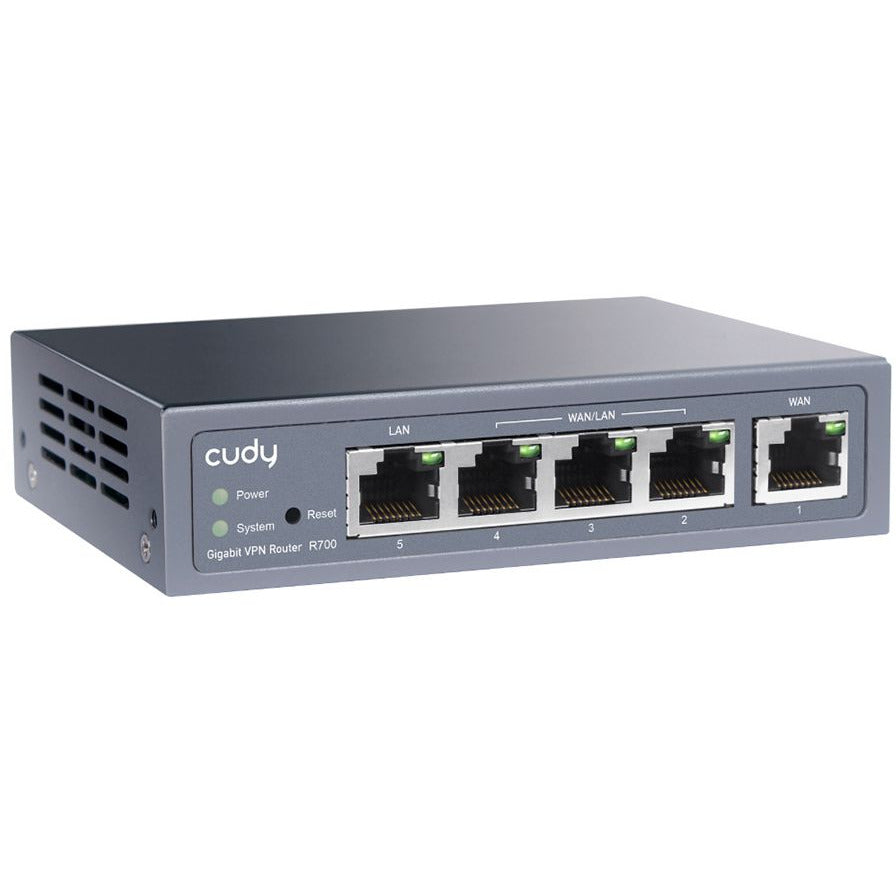

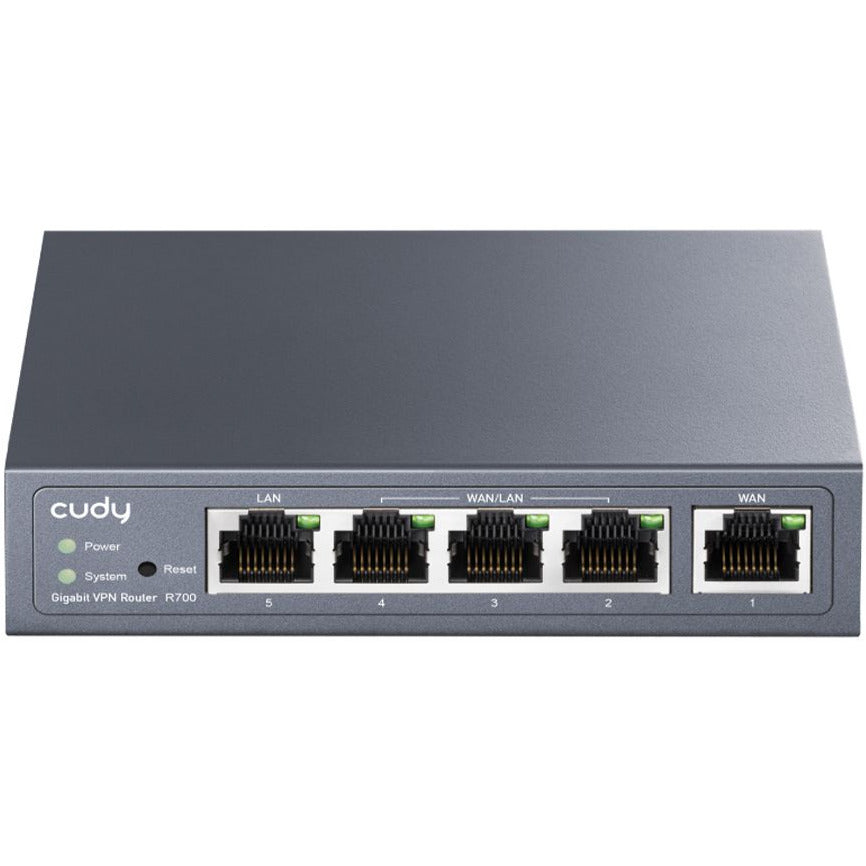

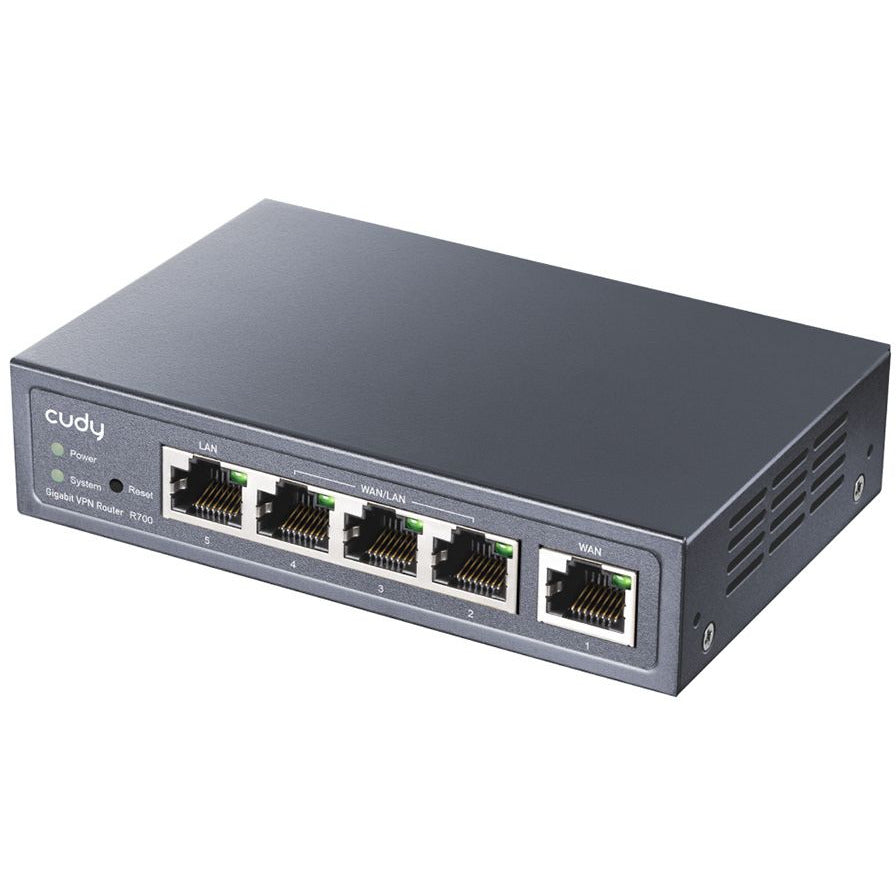

Gigabit Multi-WAN VPN Router, R700

● 1 Gigabit WAN Port
● 3 Gigabit WAN/LAN Ports
● 1 Gigabit LAN Port
● Multi-WAN Load Balancing
● PPTP/L2TP/OpenVPN/WireGuard/IPsec VPN Server
● PPTP/L2TP/OpenVPN/WireGuard/IPsec VPN Client
● Zerotier for Remote Access and build Remote Subnet
● DNS over Cloudflare/NextDNS/Google
● Abundant Security Mechanisms
● Compact and Durable Metal Casing

Cudy's CD-R700 features 5x Gigabit Ethernet Ports which are comprised of 3x LAN/WAN ports, 1x dedicated WAN and 1x LAN port. The router supports multi-WAN load balancing, flexible traffic control, DNS over TLS (DoT), various VPN server/client protocols and a variety of security mechanisms.

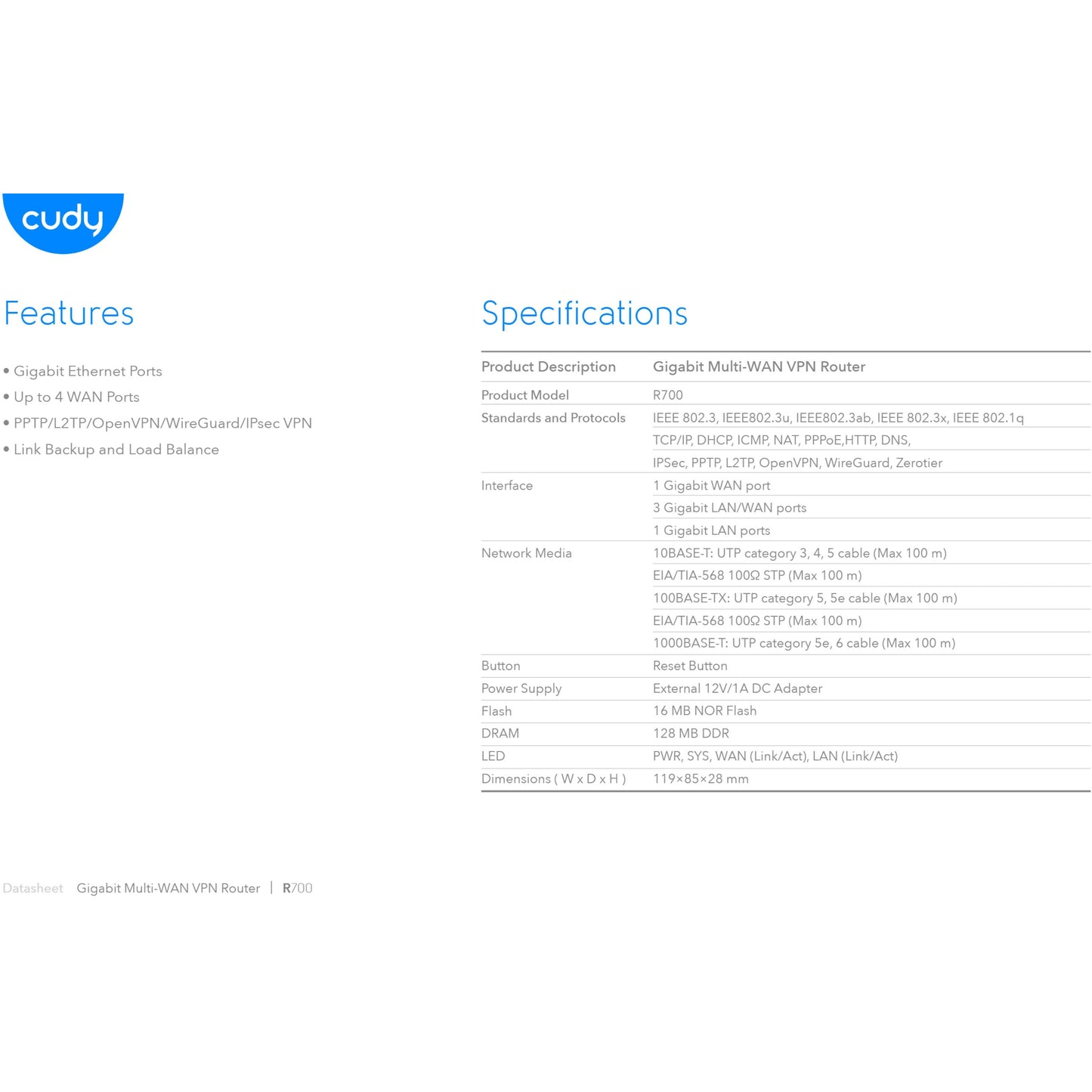

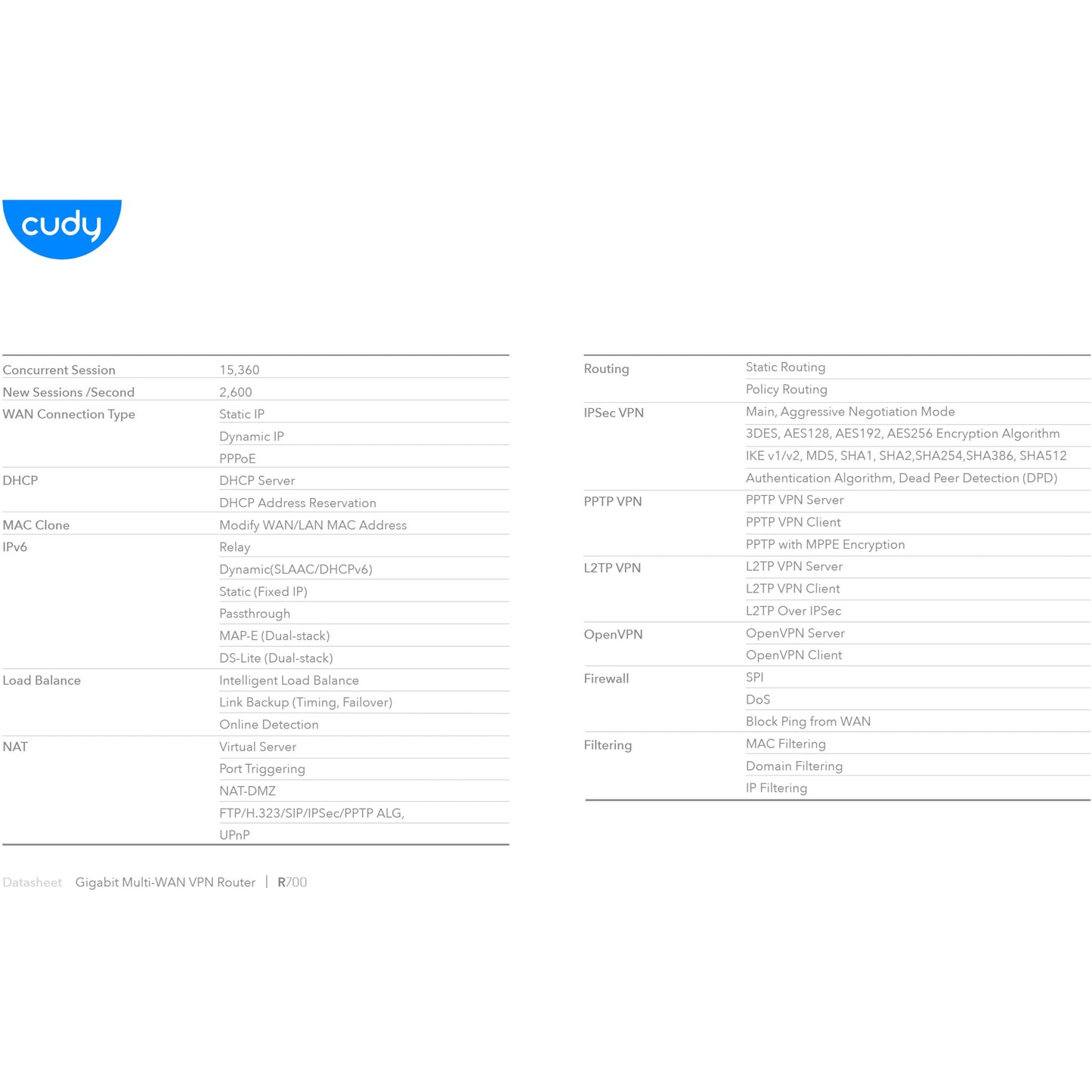

Specifications

Product Model R700
Standards and Protocols IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE,HTTP, DNS,
IPSec, PPTP, L2TP, OpenVPN, WireGuard, Zerotier

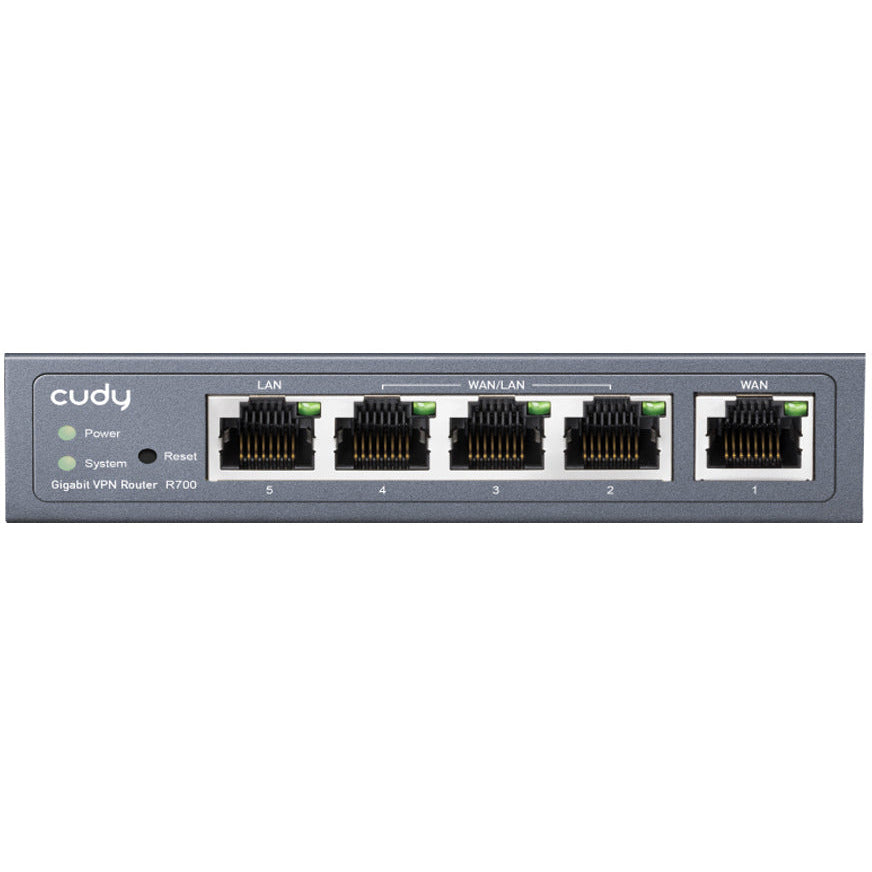

Interface 1 Gigabit WAN port
3 Gigabit LAN/WAN ports
1 Gigabit LAN ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button Reset Button

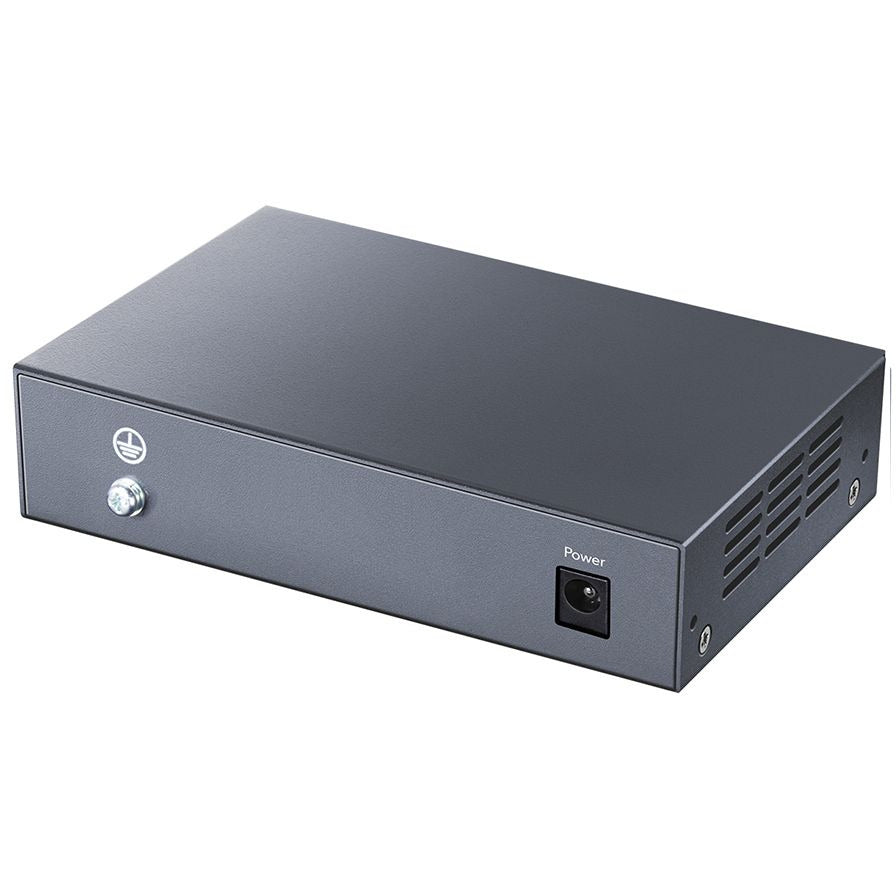

Power Supply External 12V/1A DC Adapter
Flash 16 MB NOR Flash
DRAM 128 MB DDR
LED PWR, SYS, WAN (Link/Act), LAN (Link/Act)
Dimensions ( W x D x H ) 119×85×28 mm



Flexible Traffic Control

Bandwidth Control and Session Limit enables the administrators to flexibly manage network bandwidth to optimize usage.

Internet Access Management Strategy

Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL).

Multi-Wan Load Balancing

Intelligent load balancing function distributes data streams according to the bandwidth proportion of each WAN port to raise the utilization rate of multi-line broadband allowing one device to satisfy various internet requirements.

Compact Desktop Design

Durable metal casing and desktop/wall-mounting design suited for different environments.
