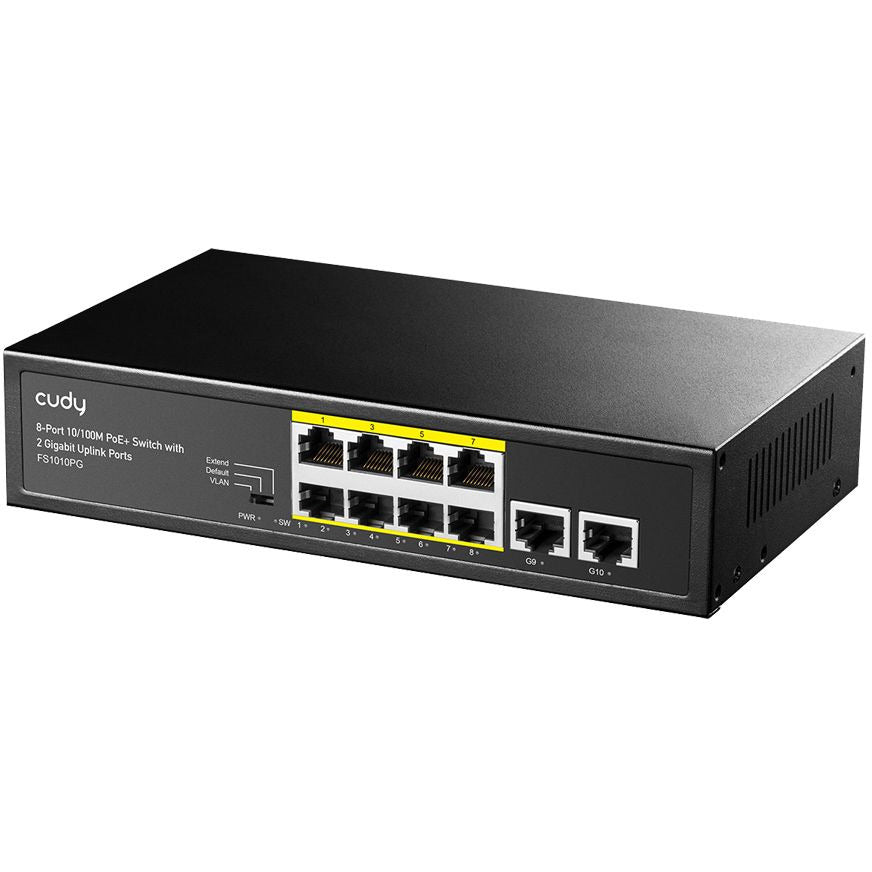

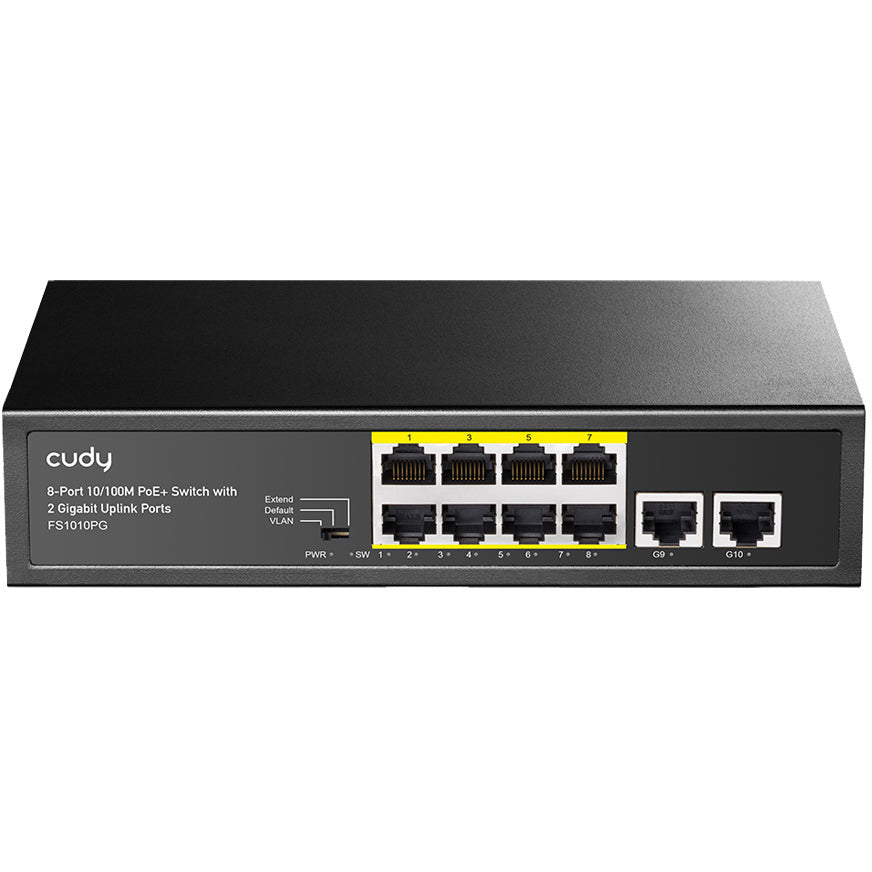

Cudy 8 Port Fast Ethernet PoE 115W 2 Gigabit Switch | FS1010PG

Cudy 10 Port with 8 Port PoE 115W 2 Gigabit Uplink Switch | FS1010PG

Cudy's CD-FS1010PG is an 8 Port Fast Ethernet switch with 8x 802.3af/at PoE ports and 2x Gigabit Uplink ports.
The switch offers a 115W PoE budget, up to 32W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-8 while Extender mode increases the transmission distance on ports 1-8 to 250m at 10Mbps.
The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.

Specifications
Ethernet Ports: 8x 10/100 ; 2x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8

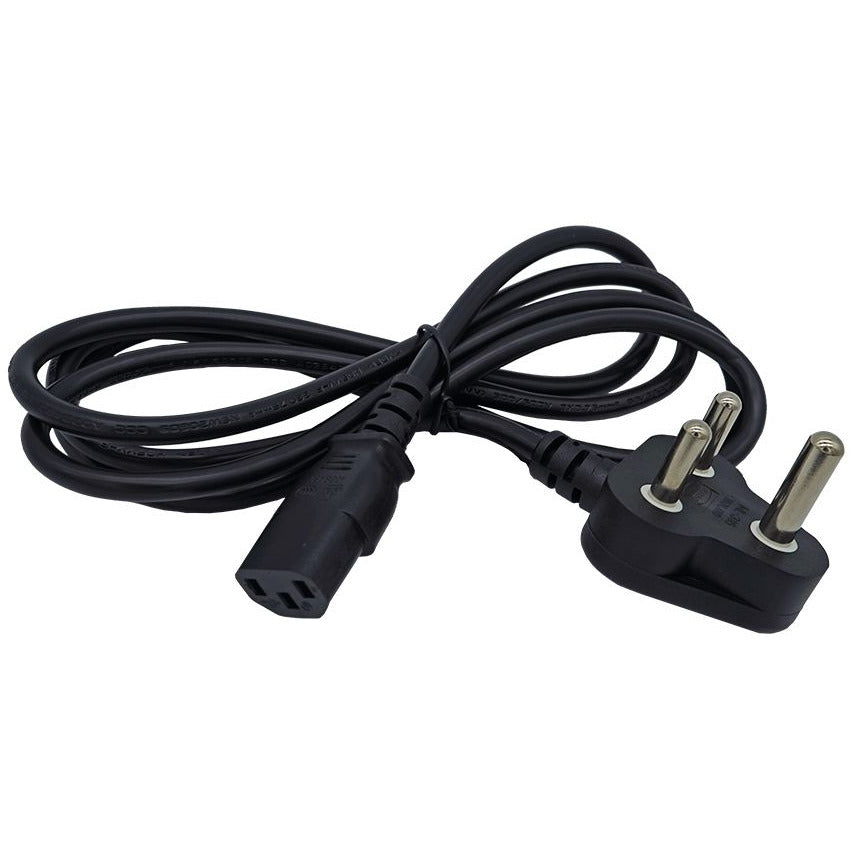

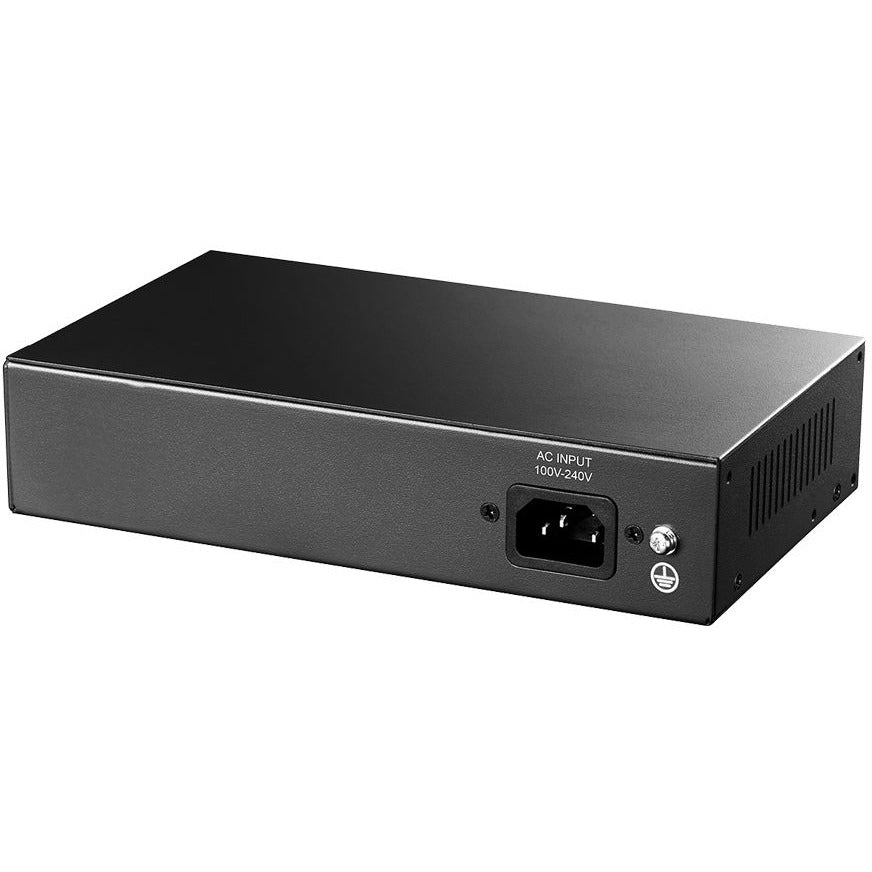

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100-240V

Dimensions: 220 x 150 x 40mm
Weight: 800g

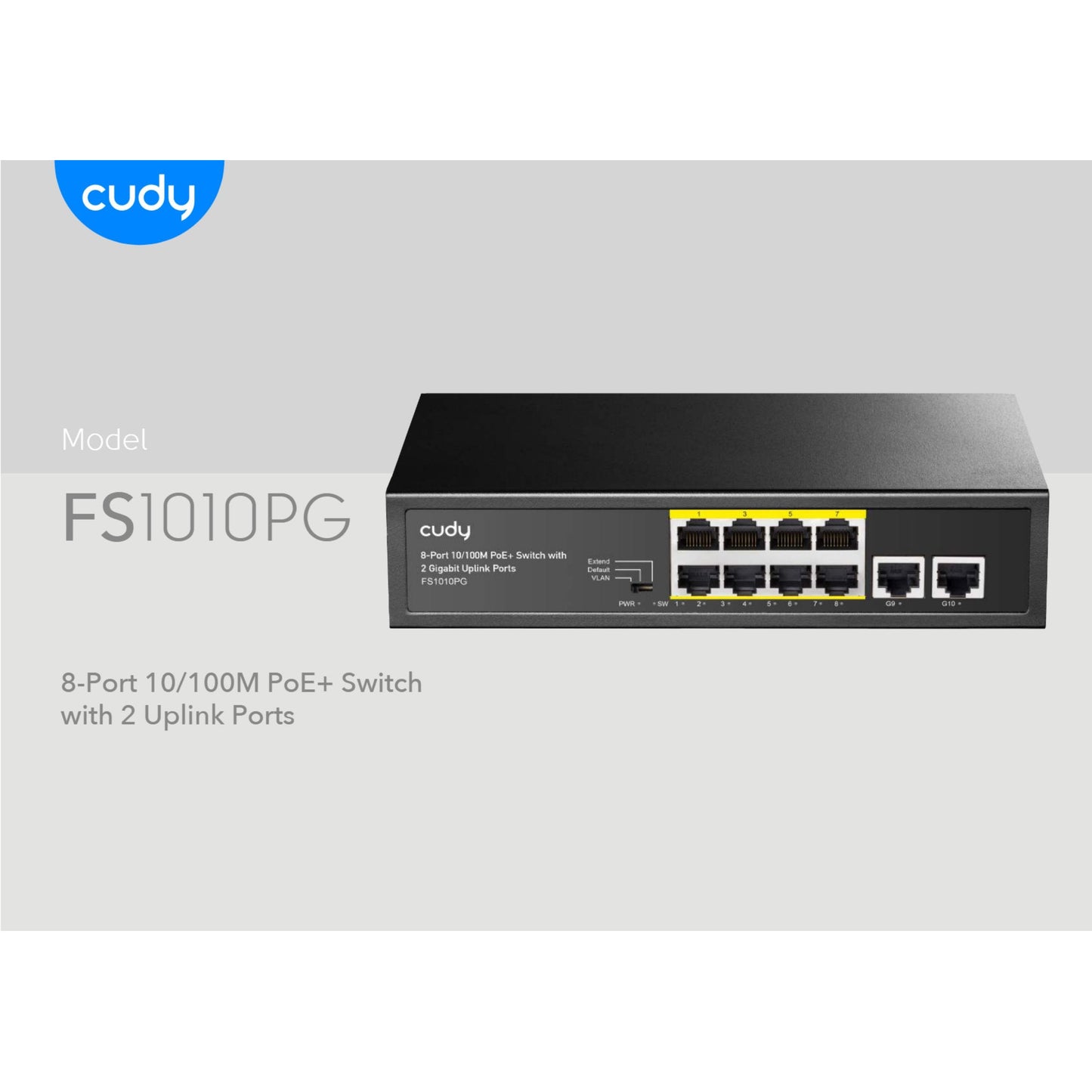

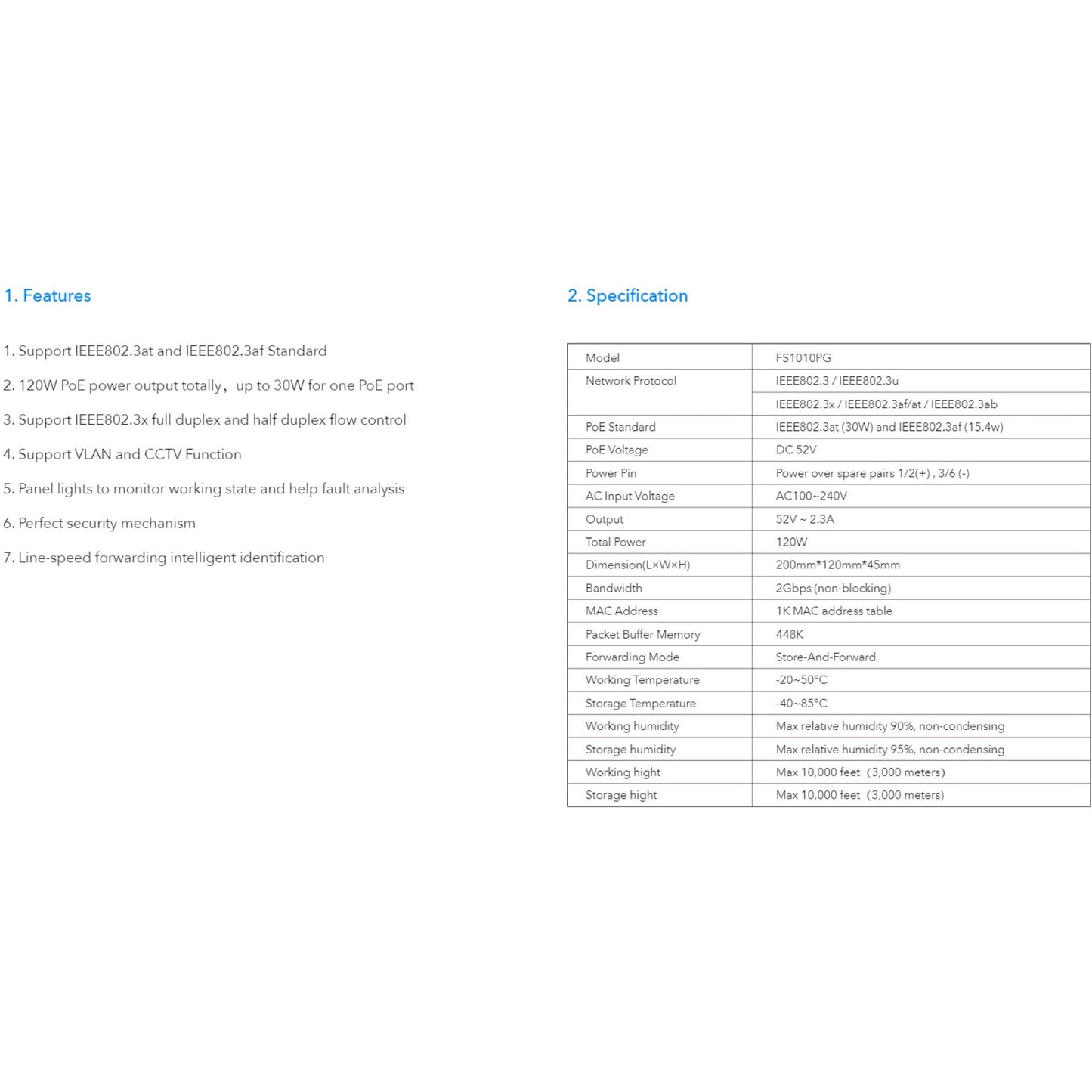

Zoom in on Data Sheet picture for more information.

SKU CD-FS1010PG
Manufacturer Cudy
Manufacturer Product Code FS1010PG

What's in the box
1 x Cudy 10 Port with 8 Port PoE 115W 2 Gigabit Uplink Switch | FS1010PG
