Cudy 8 Port Gigabit Desktop Switch | GS108D
Cudy 8 Port Gigabit Desktop Switch | GS108D
Couldn't load pickup availability

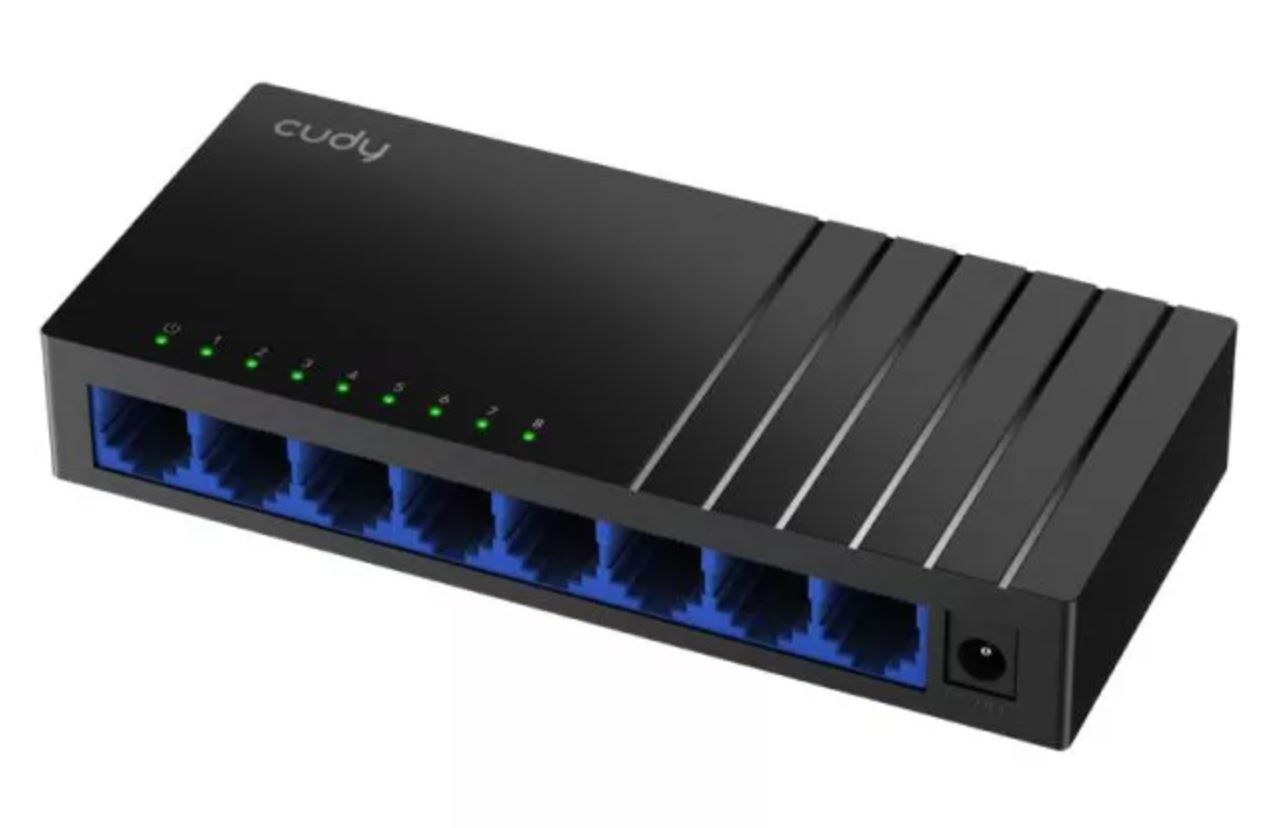

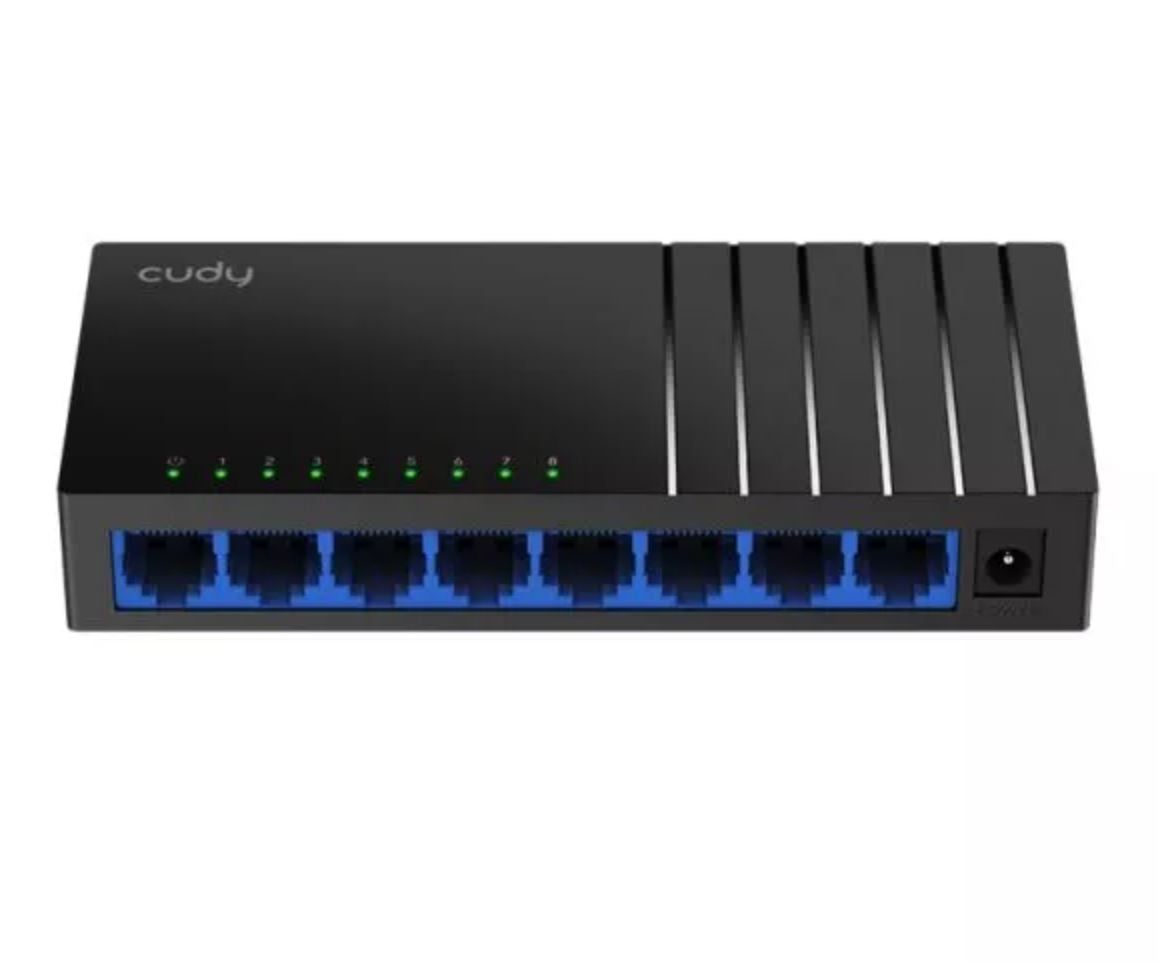

8-Port Gigabit Desktop Switch, Model: GS108D
● 8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
● IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE 802.3ab standard
● Supports MAC address auto-learning and auto-aging
● Non-blocking switching architecture enables
full wire-speed packets forwarding and filtering
● Cudy green technology saves the power up to 85%
● Plug & Play, Desktop design
Easy to Use:
Plug and play, hassle-free, no configuring is required.
Auto MDI/MDIX eliminates the need for crossover cables.
Auto-negotiation on each port detects the link speed of a network device (10/100/1000Mbps) and intelligently adjusts for compatibility and optimal performance.
High Performance
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible
with any 10/100/1000Mbps Ethernet devices. Featuring non-blocking switching architecture,
the product forwards and filters packets at full wire-speed for maximum throughput.
IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
offer increased bandwidth to alleviate network congestion, making the switch work reliably.
Gigabit Ports for Faster Speed
Increase the speed of your network with the 8-port Gigabit switch. Non-blocking, 8 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.
Smooth Online Experience
The switch connects up to 8 devices with a speed of up to 1000 Mbps. Provides you with an extremely smooth experience to enjoy a powerful, seamless, affordable and easy-to- use 1000Mbps network, ideal for multimedia, graphics, HD video and other applications that require large transfer allocation.
Energy Efficient and Power Saving
Automatically adjusts Power consumption according to the link status and cable length.This Gigabit Desktop Switch features the innovative energy-efficient technologies that can greatly expand your network capacity with much less power.
Specifications:
| Model | GS108D |
| Standards | IEEE802.3 10Base-T,IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,IEEE802.3az |
| Network Media (Cable) |
10BASE-T: UTP category 3,4,5 cable (maximum 100m) 100BASE-Tx: UTP category 5, 5e cable (maximum 100m) 1000BASE-T: UTP category 5e, 6 cable (maximum 100m) |
| Number of Ports | 8 x 10/100/1000Mbps Auto-Negotiation ports |
| LED Indication | Power, Link/Act LEDs |
| Transfer Method | Store-and-Forward |
| Switching Capacity | 16Gbps |

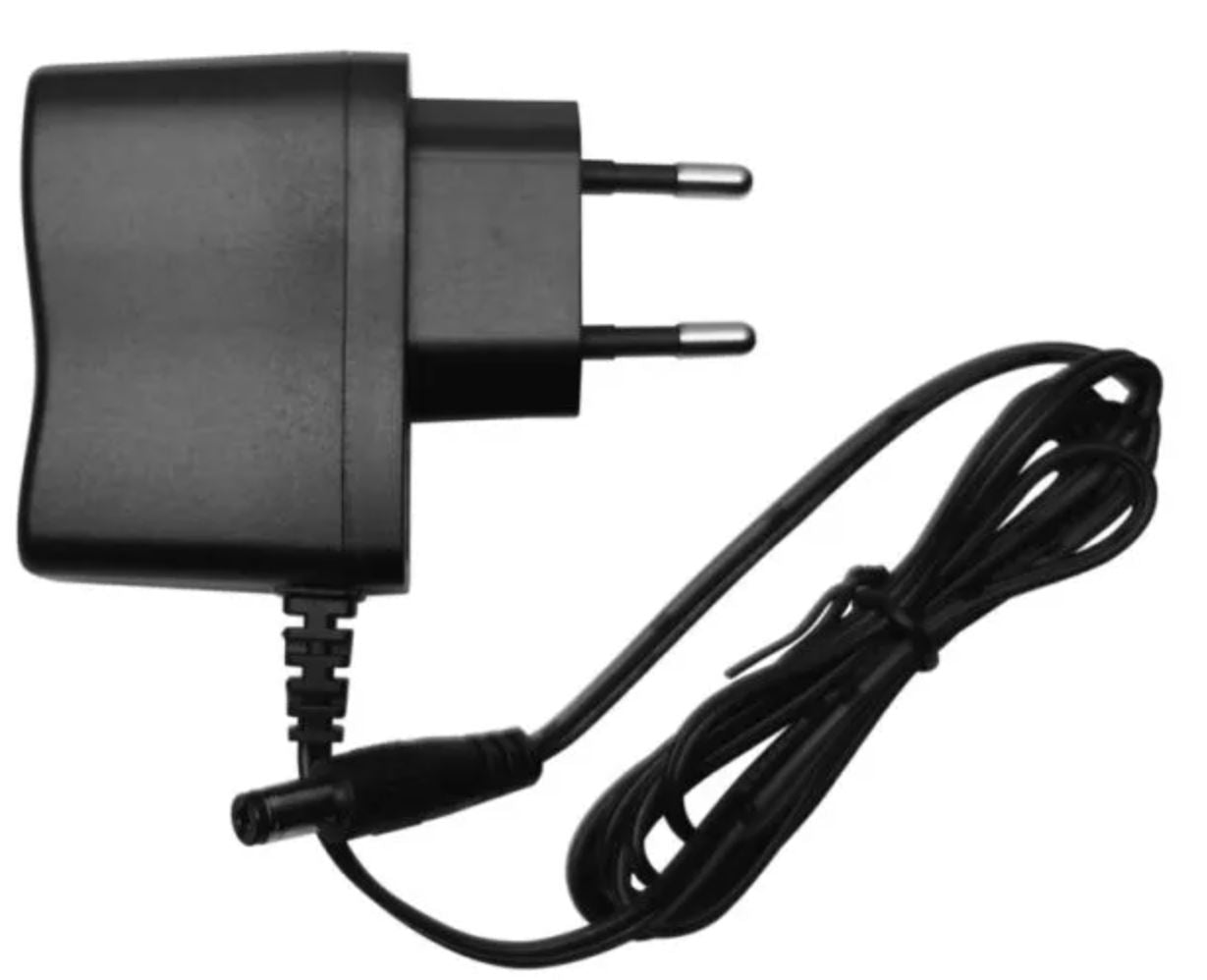

| Power Input: | DC 5V /1A(adapter) |
| Consumption | Max2.3W |
| Frame Filtering and Forward Rate |
10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps |
| Dimensions W*D*H | 143mm x 72.7mm x 26.9mm |
| Weight | 215g |
| Operating Temperatur | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Relative Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Package Contents | 1 x Power Adapter；1 x Switch；1 x User Manual |
