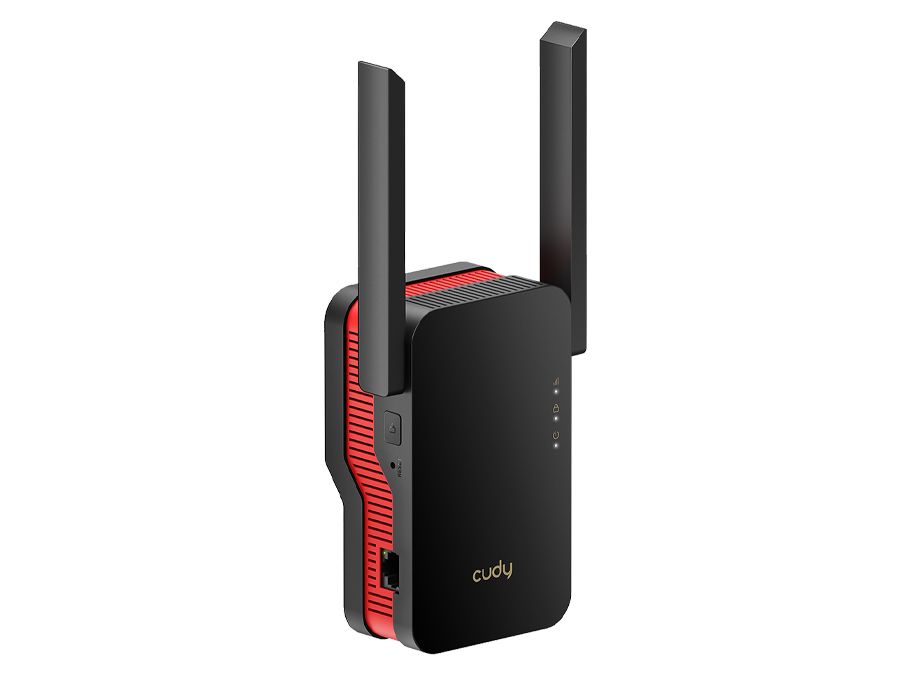

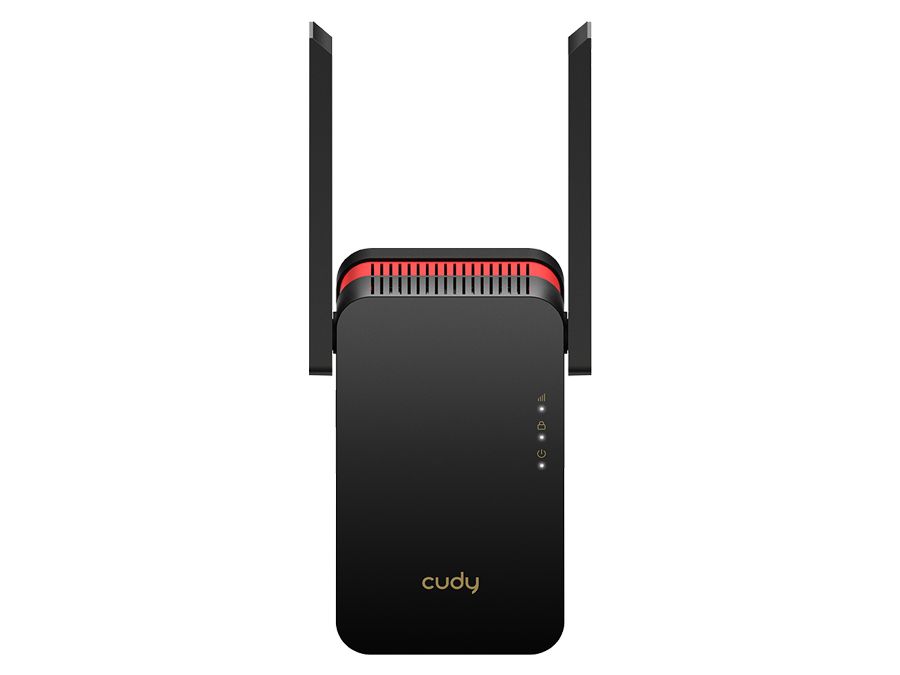

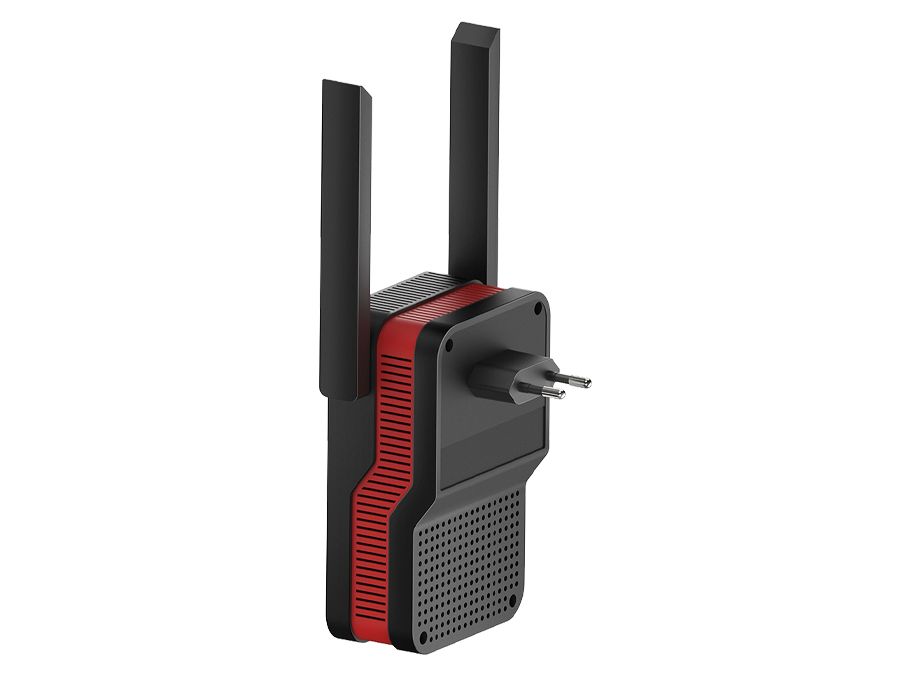

Cudy AX3000 Dual Band Wi-Fi 6 Range Extender
Cudy AX3000 Dual Band Wi-Fi 6 Range Extender
Boost the range of your existing Wi-Fi router to hard-to-reach areas with the Cudy AX3000 Dual Band Wi-Fi 6 Range Extender. It features a new Wi-Fi 6 chip with a 4-nm made process, delivering amazing powers and an impressive efficiency bump, enabling the AX3000 to maintain responsiveness and handle intensive transmission tasks such as online gaming streams and 4K live feeds.
Equipped with Wi-Fi 6, the AX3000 boasts the highest 160Mhz bandwidth and 1024-QAM to reach up to 3Gbps speeds, which is more than 2.5x faster than the last-gen AC 2 2 range extender. This high throughput allows massive amounts of data including your 4K video streaming and hopping to end devices without any throttling.
The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, transmitting a massive amount of data for multiple devices in no time. This reduces the latency and enhances Wi-Fi capacity, enabling more immersive online gaming and smoother video calling.
Features:
- Extremely Fast AX3000 Wi-Fi 6 Technology
- 1.3GHz Dual Core Cortex-A53 Processor
- OFDMA, Beamforming and MU-MIMO Supported
- Work with any standard router or gateway
- Easily expand wireless coverage at a push of the WPS button
- Gigabit Ethernet ports to connect wired devices
- External antennas for faster and more reliable Wi-Fi
- 3-in-1 Wi-Fi Extender / Access Point / Add-On mesh
- Easy Setup Assistant with multi-language support
Specifications:
- Processor: MT7981BA + MT7976CN
- Standards and Protocols: IEEE 802.11ax /IEEE 802.11ac /IEEE 802.11n/IEEE 802.11g /IEEE 802.11a/IEEE 802.11b
- Frequency: 2.4GHz & 5GHz (11ax)
Signal Rate:
- 5GHz: Up to 2402Mbps
- 2.4GHz: Up to 574Mpbs
- Wireless Security: WPA-PSK / WPA2-PSK / WPA3
- Ports: 1 10/100/1000Mbps RJ45
- Power: Direct plug-in power supply (100V-240V)
- Buttons: Reset Button / WPS Button
- Antenna: 2x External Antennas + 1x Internal Antennas
- LED Lights: Wi-Fi / WPS / Power
Environment:
- Operating Temperature: 0 ~40
- Storage Temperature: -40 ~70
- Operating Humidity: 10%~90% non-condensing
- Storage Humidit
What's in the box
1 x Cudy AX3000 Dual Band Wi-Fi 6 Range Extender - Black
1 x Quick Installation Guide
SKU | CD-RE3000 |
---|---|
Manufacturer | Cudy |
Manufacturer Product Code | RE3000 |
Download |
Datasheet Download Type Approval |
Specifications | Antenna Gain: External: 2x 3.5dBi; Internal: 2.4GHz: 1.9dBi, 5GHz: 3.1dBi Beam-width: 360° Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps Ethernet Ports: 1x 10/100/1000 Hardware Button: Reset ; Pair Max. Power Consumption: 10W Mounting: Plug Point Operating System: Cudy Operating Temperature: 0° to 40° PoE Input: None PoE Output: None Power Input: 2 Pin 5A Serial Interface: None SIM Slots: None Supported Voltage Range: 110V-240V USB Ports: None |
