Cudy Gigabit Ethernet Media Converter | MC220
Cudy Gigabit Ethernet Media Converter | MC220
Couldn't load pickup availability

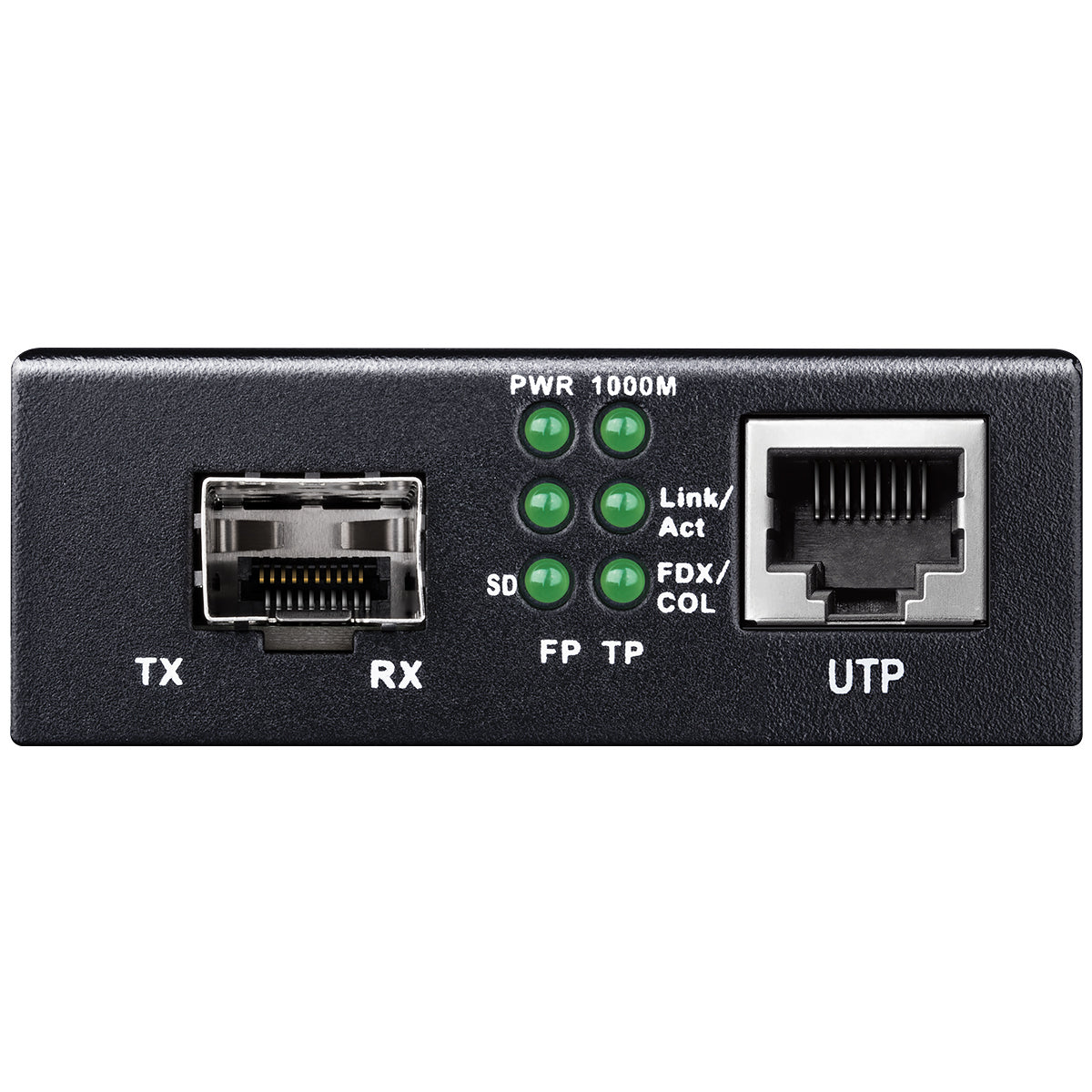

10/100/1000Mbps Ethernet Media Converter MC220 (SFP to RJ45)
● 1x 10M / 100M / 1000M RJ45 connector
● 1x SFP
● Supports full duplex and half duplex
● 2Mbit RAM for data buffer
● Supports jumbo frame size 9 KB
Description

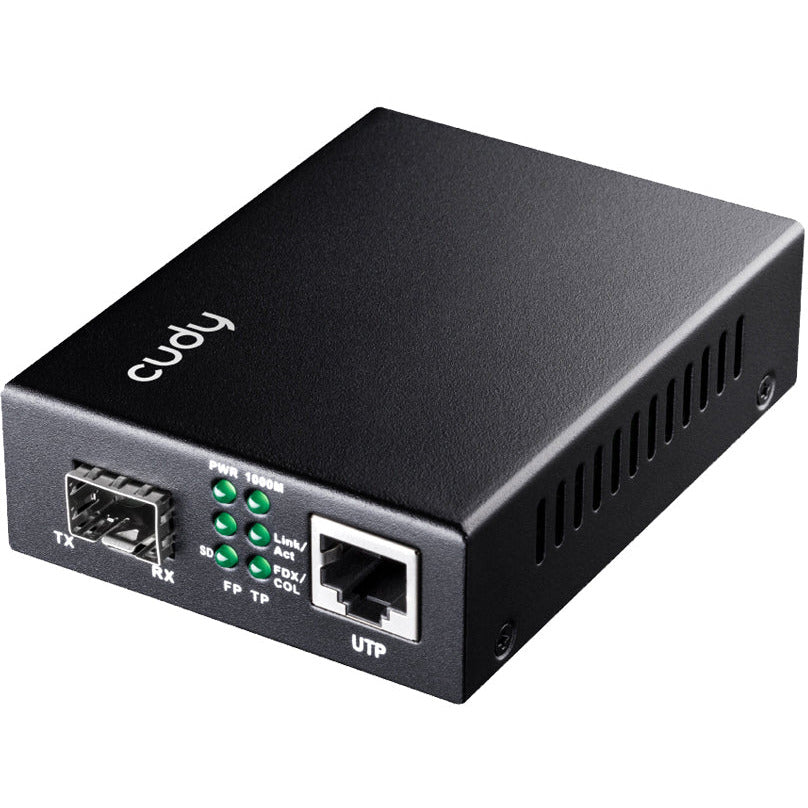

Cudy's CD-MC220 is a Gigabit Ethernet to Fibre media converter.
The unit supports both half and full duplex and includes support for jumbo frames up to 9 KB.
*Note: SFP module sold separately.and are NOT INCLUDED
More Information
SKU CD-MC220
Manufacturer Cudy
Manufacturer Product Code MC220
Specifications
Ethernet Ports: 1x 10/100/1000
Max. Power Consumption: 3W
Operating Temperature: -40 C to 70 C
PoE Input: None
PoE Output: None

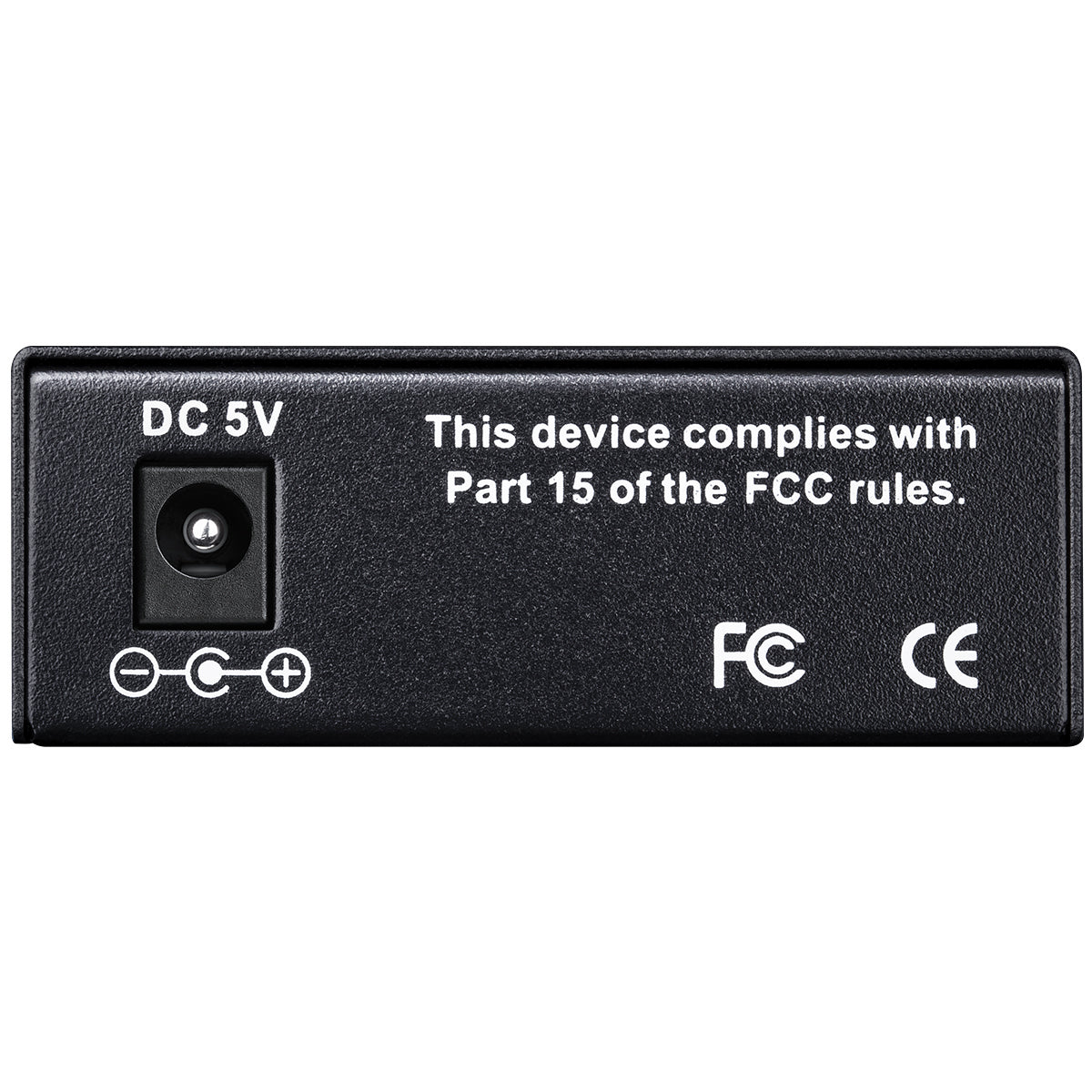

Power Input: 5V 1A Power Supply (Included)
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 5V 1A

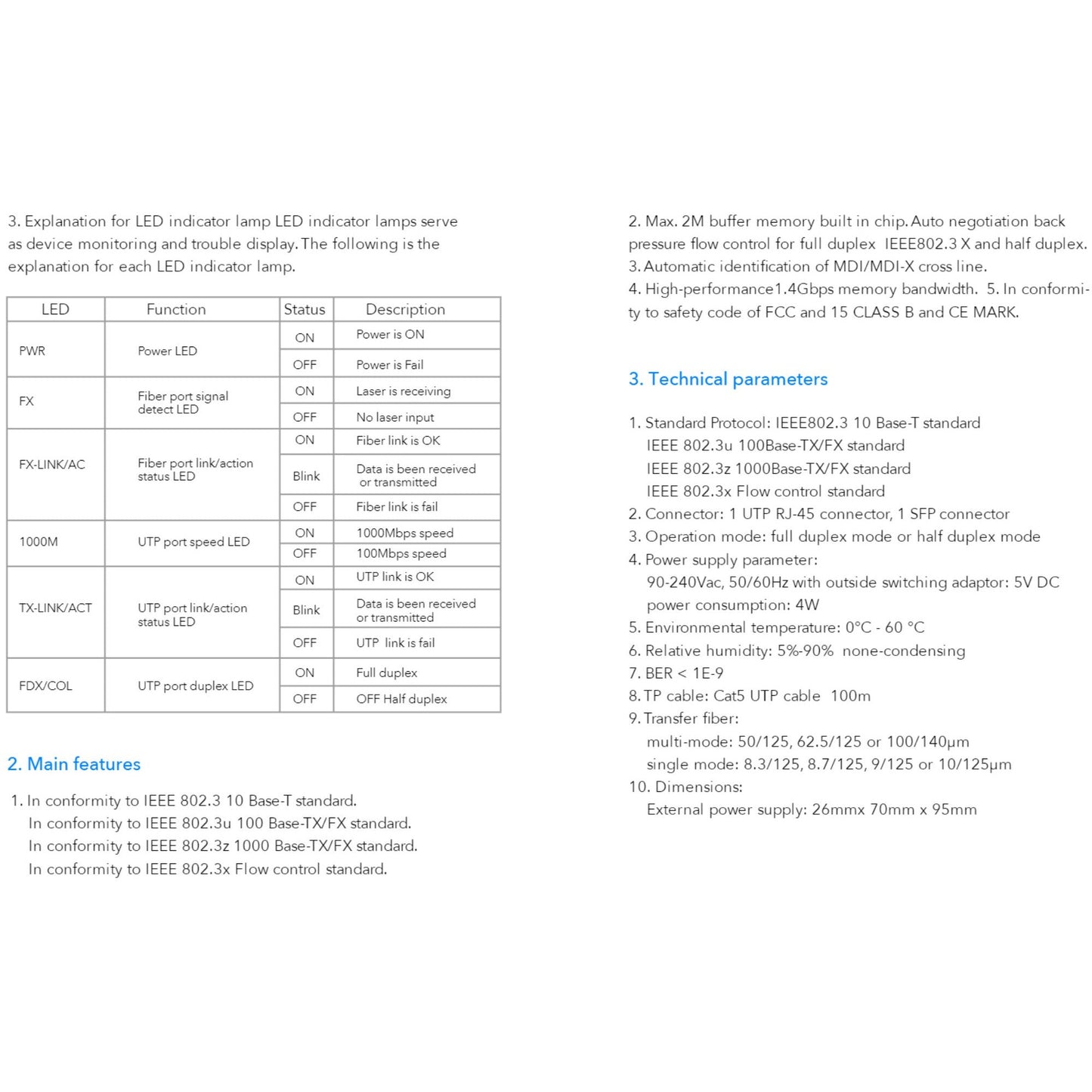

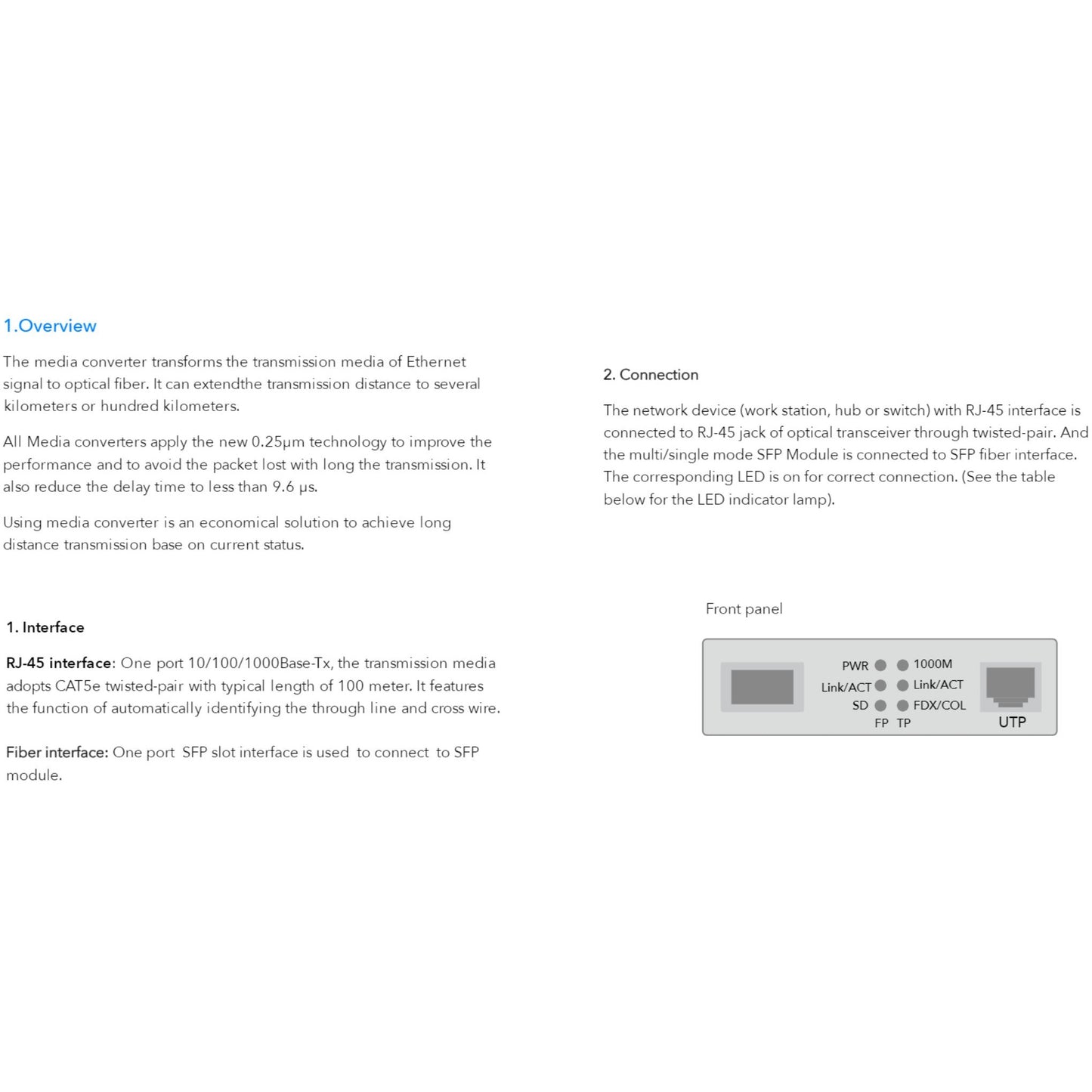

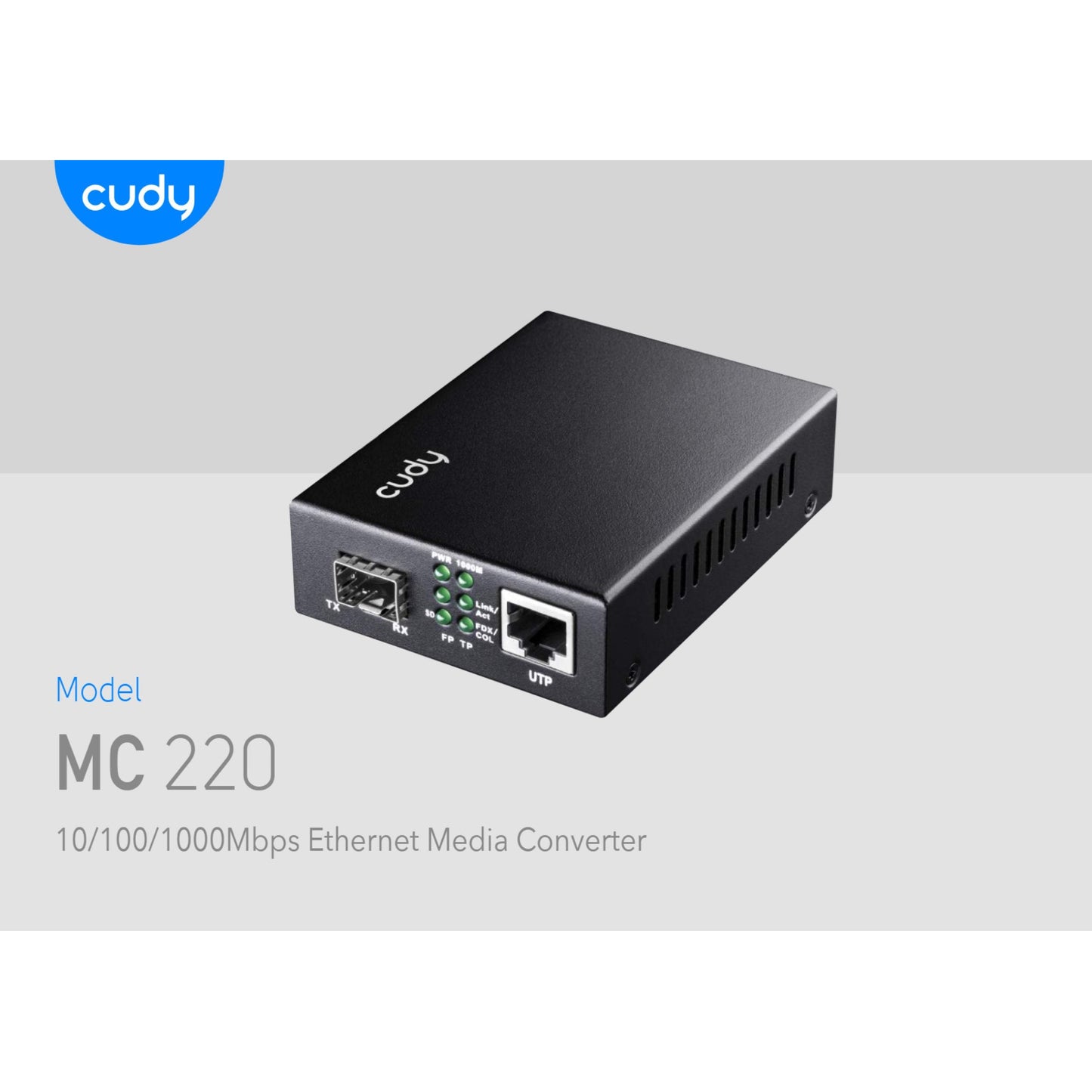

Zoom in on datasheet in pictures fore more in-depth information.
What's in the box
1 x Cudy Gigabit Ethernet Media Converter | MC220
1 x 5V 1A Power Supply
Specifications:
| PN |
TX nm |
RX nm |
PTX dBm |
SEN dBm |
Overload dBm |
Distance Km |
Loss dB/km |
Connector |
| MC100GMA-05 | 850 | 850 | -8~-3 | ≤-19 | ≥-3 | 0.55 | 2.5 | MM Dual SC |
| MC100GMA-2 | 1310 | 1310 | -8~-3 | ≤-20 | ≥-3 | 0.55 | 0.4 | |
| MC100GSA-10 | 1310 | 1310 | -8~-3 | ≤-24 | ≥-3 | 10 | 0.4 | SM Dual SC |
| MC100GSA-20 | 1310 | 1310 | -8~-3 | ≤-24 | ≥-3 | 20 | 0.4 | |
| MC100GSA-40 | 1550 | 1550 | -5~0 | ≤-24 | ≥-3 | 40 | 0.25 | |
| MC100GSA-60A | 1550 | 1550 | -5~0 | ≤-24 | ≥-3 | 60 | 0.25 | |
| MC100GSB-10A | 1310 | 1550 | -8~-3 | ≤-24 | ≥-3 | 10 | 0.4 | SM BIDI SC |
| MC100GSB-10B | 1550 | 1310 | -8~-3 | ≤-24 | ≥-3 | 10 | 0.25 | |
| MC100GSB-20A | 1310 | 1550 | -8~-3 | ≤-24 | ≥-3 | 20 | 0.4 | |
| MC100GSB-20B | 1550 | 1310 | -8~-3 | ≤-24 | ≥-3 | 20 | 0.25 | |
| MC100GSB-40A | 1310 | 1550 | -5~0 | ≤-24 | ≥-3 | 40 | 0.4 | |
| MC100GSB-40B | 1550 | 1310 | -5~0 | ≤-24 | ≥-3 | 40 | 0.25 | |
| MC100GSB-60A | 1310 | 1550 | -2~+3 | ≤-24 | ≥-3 | 60 | 0.4 | |
| MC100GSB-60B | 1550 | 1310 | -5~0 | ≤-24 | ≥-3 | 60 | 0.25 |
