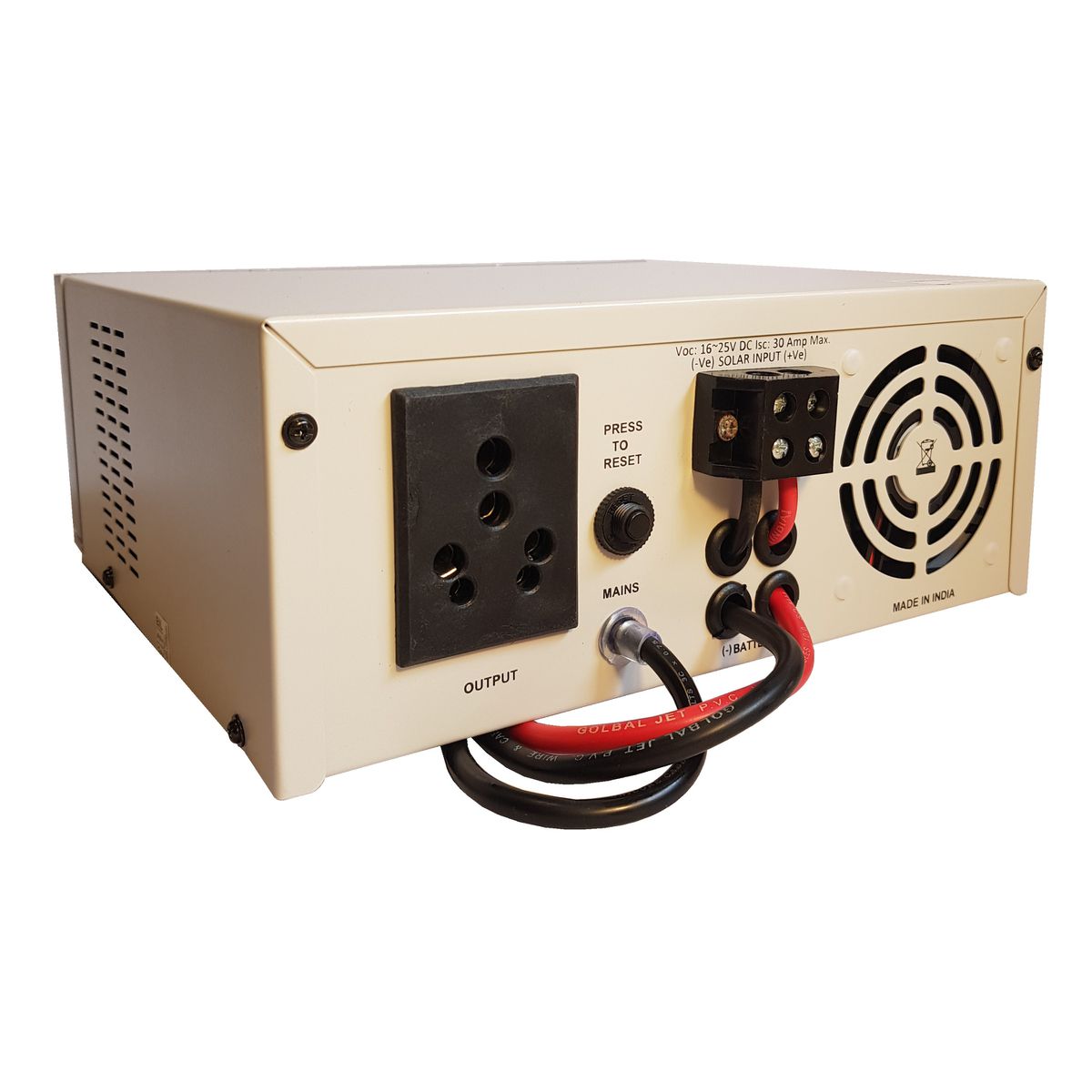

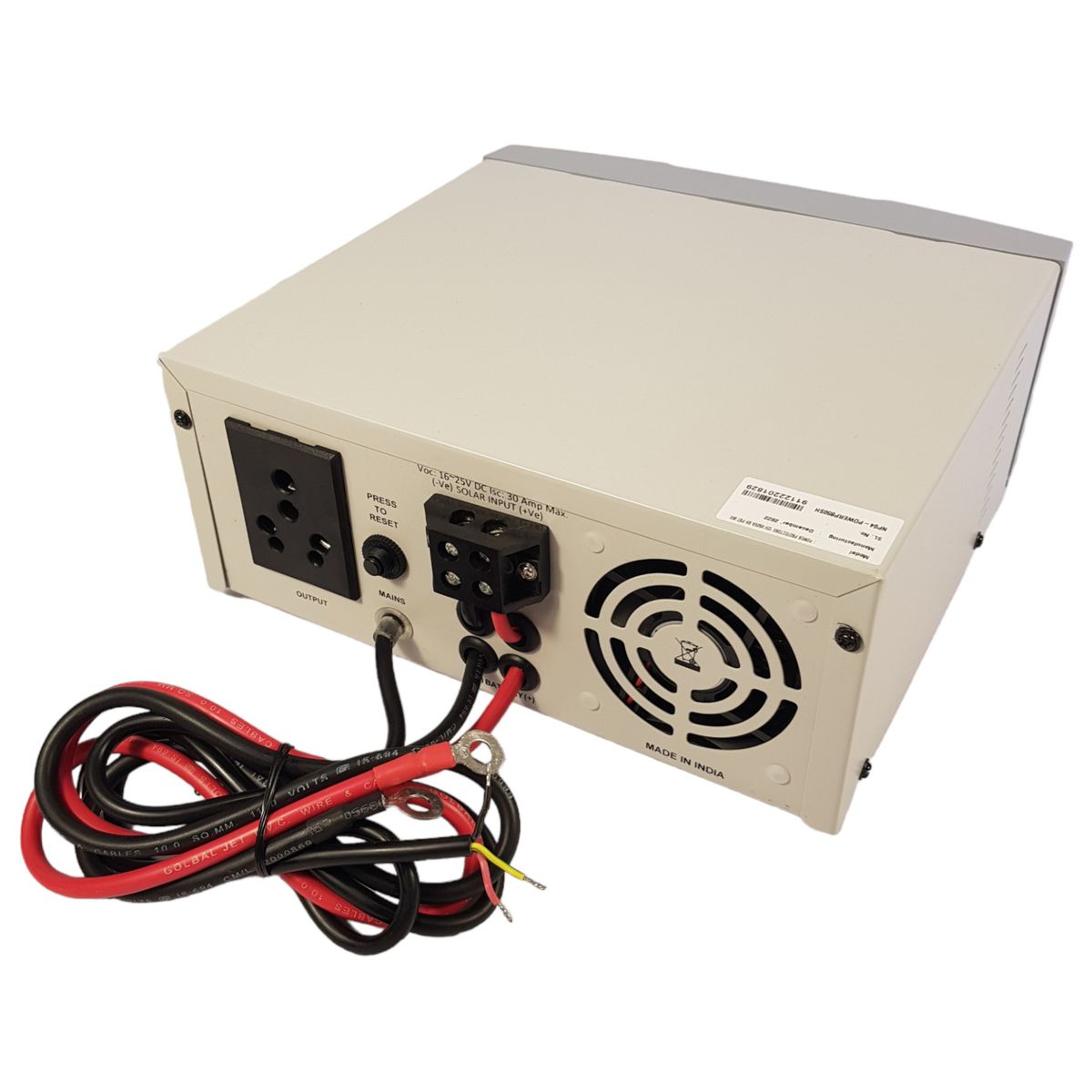

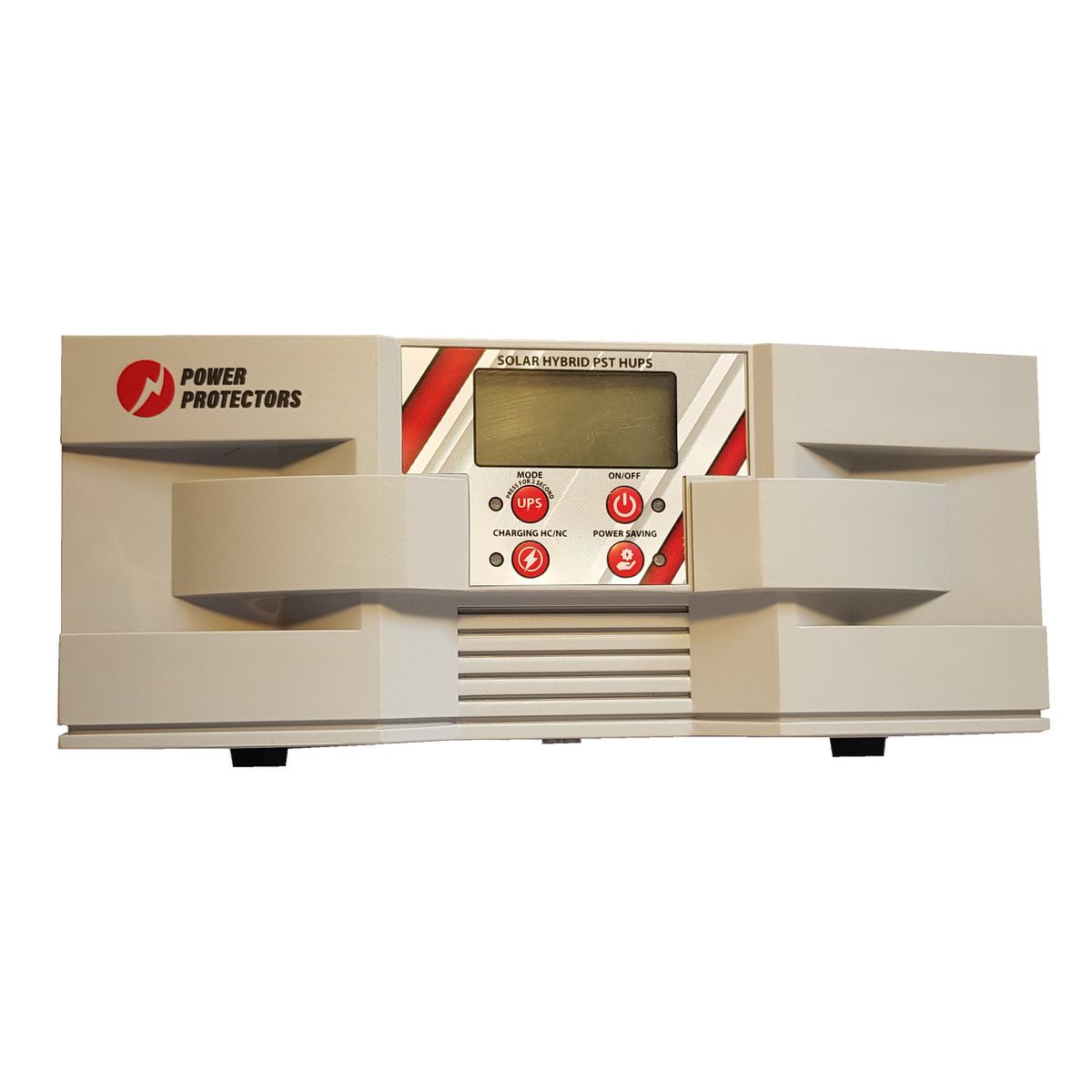

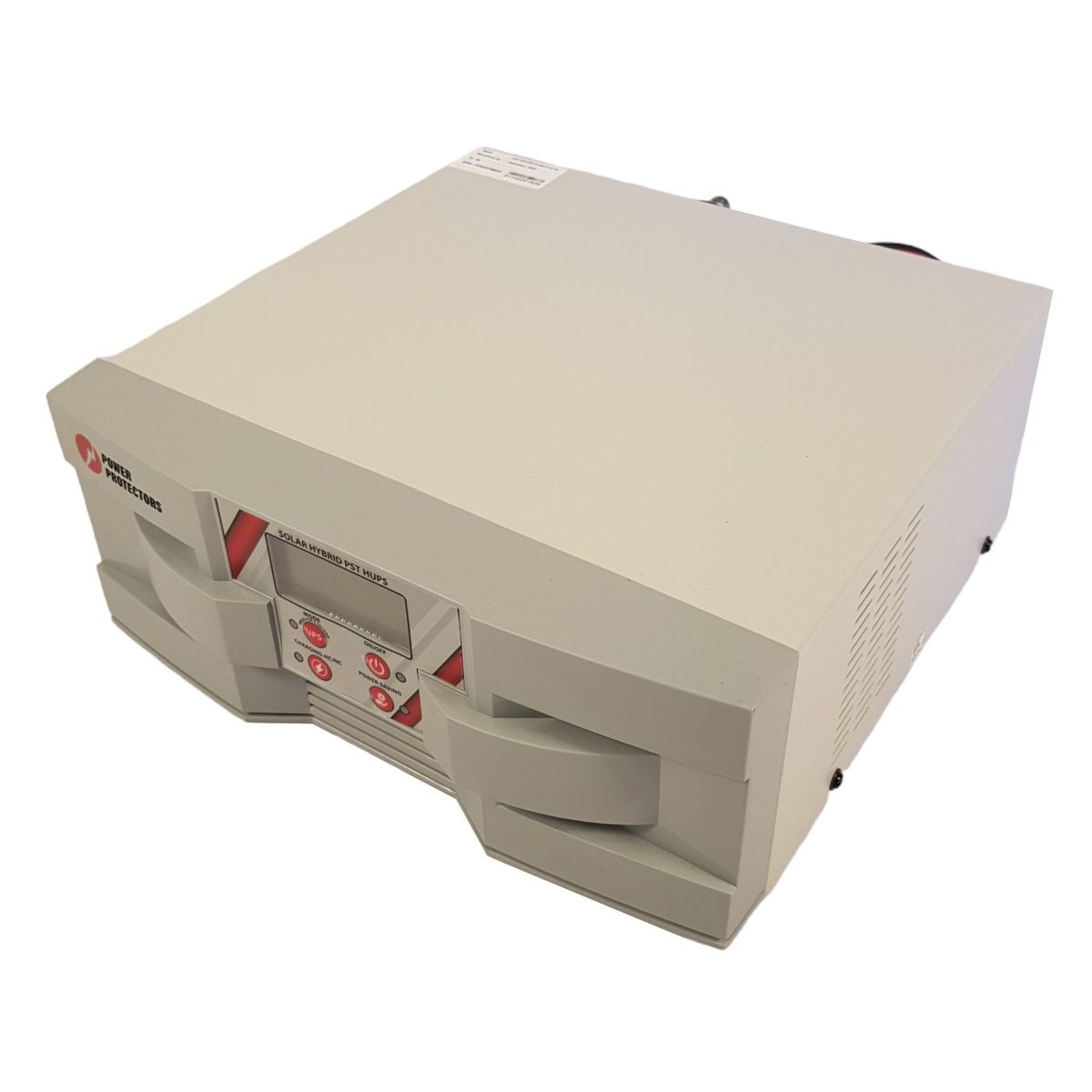

Inverter: Pure Sine Wave, Solar Hybrid Inverter, 850VA, 12V

Inverter:

Pure Sine Wave, Solar Hybrid Inverter, 850Va, 12V

Do you really need a pure sine wave inverter?
Pure Sine Wave Inverters are Preferred for Many Electronics
Pure sine wave output is generally needed for newer LED TVs, CFL light bulbs, and inductive loads like brush-less motors. Clocks and audio equipment will behave much better on a pure sine wave.

The Inverter must be connected to a 12V battery to work properly.
BATTERY NOT INCLUDED.

Compatible with:

12V Lead acid batteries (use with mains only)
12V AGM batteries (use with mains or / and solar)
12V Gel batteries (use with mains or / and solar)
Not compatible with Lithium ion battery

You may charge the battery with either mains (220V) or solar panels or both.

KEY FEATURES:

Pure Sine Wave
Can be charged by both Solar and Mains.
12V
850VA

Features:

Pure Sine Wave Solar Hybrid UPS
Wide Mains Voltage Range for Battery Charging ie: 90V - 300V
Automatic Battery Charging Management Module.
Great Power Saving
Multi Colour LCD Display
Ability to Run output load exclusively through Solar Power.
Dual intelligent mode of charging - with priority to solar.
No Humming Noise
Can operate Solar & Mains.
Solar Hybrid PST HUPS.

Technical Specifications:

Model: 850VA/900
Output Wave Shape: Pure Sine Wave
Nominal Battery Voltage: 12V
No Load Output Voltage @ Nominal Battery Voltage:220V +- 7V
Output Frequency: 50Hz +- 7V
Maximum No Load Battery Current: Total Harmonic Distortion (THD)@ Leaner Load: Battery Low Pre Alarm: 10.8V +- 0.2V per battery
Battery Low Cut OFF: 10.5V +- 0.2V per battery

MAINS MODE

Maximum Charging Current (HC) +- 1A: 17A
Maximum Charging Current (NC) +- 1A: 12A
Mains low Voltage Charging facility: Availible
Battery Boost Charging Voltage: 14.4V +-0.2V per battery
Battery Float Charging Voltage: 13.7V +-0.2V per battery

WIDE MODE (Mains Mode)

Mains Input Voltage Range: 90V to 300V +- 10V
Change Over Time (Mains to Back-up): < 40msec
Change Over Time (Back-up to Mains): < 10msec

NARROW MODE (Mains Mode)

Mains Input Voltage Range: 180V to 270V +- 10V
Change Over Time (Mains to Back-up): < 10msec
Change Over Time (Back-up to Mains): < 10msec

SOLAR MODE

Rating of Solar Charge Controller 30A 12V
Maximum Charging by Solar (+-2A): 30A
Solar Input Range (Voc): 16V-25V
Recommended Solar Input: 450W
Efficiency of Solar Charge Controller: >= 95%
Charge Sharing Option: Availible
Type pf Solar Charge Controller True Hybrid

More Info found in paperwork that comes with product.
Expect errors.

Adhere to all instructions found on the product and the included with product paperwork.

What's in the box

1 x Inverter: Pure Sine Wave, Solar Hybrid Inverter, 850VA, 12V
