MikroTik 7 Gigabit 1x 2.5Gbps 1SFP+ 4 Core PoE Router | RB5009UPr+S+IN
MikroTik 7 Gigabit 1x 2.5Gbps 1SFP+ 4 Core PoE Router | RB5009UPr+S+IN

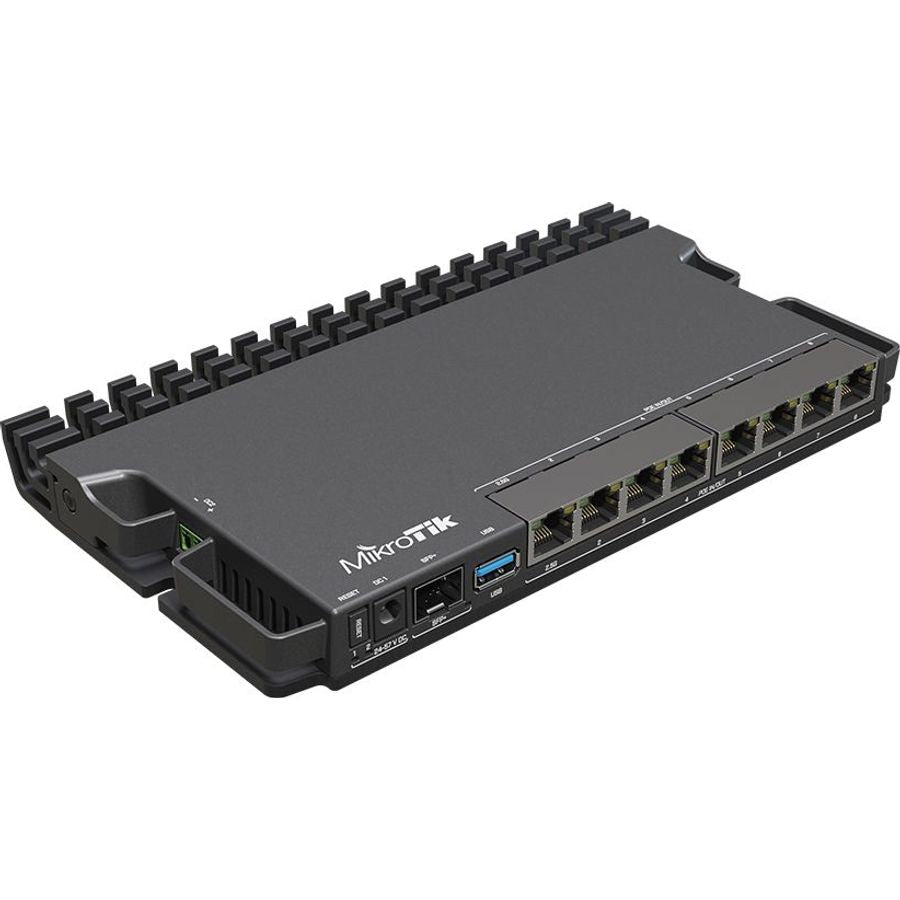

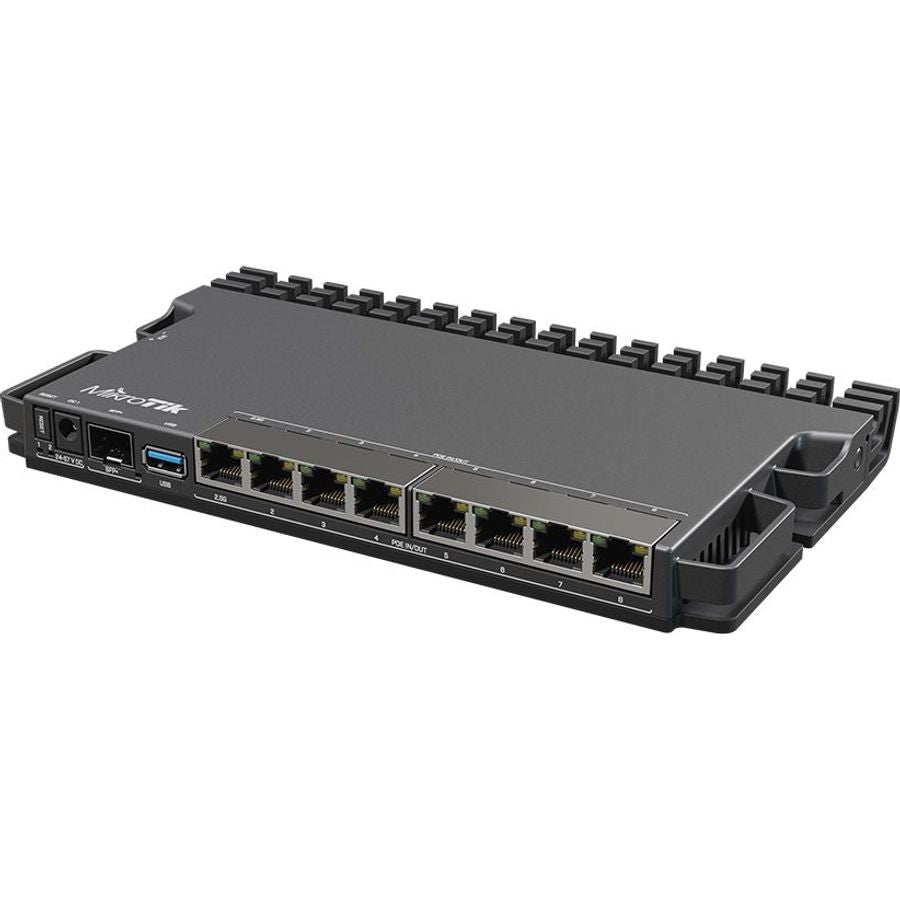

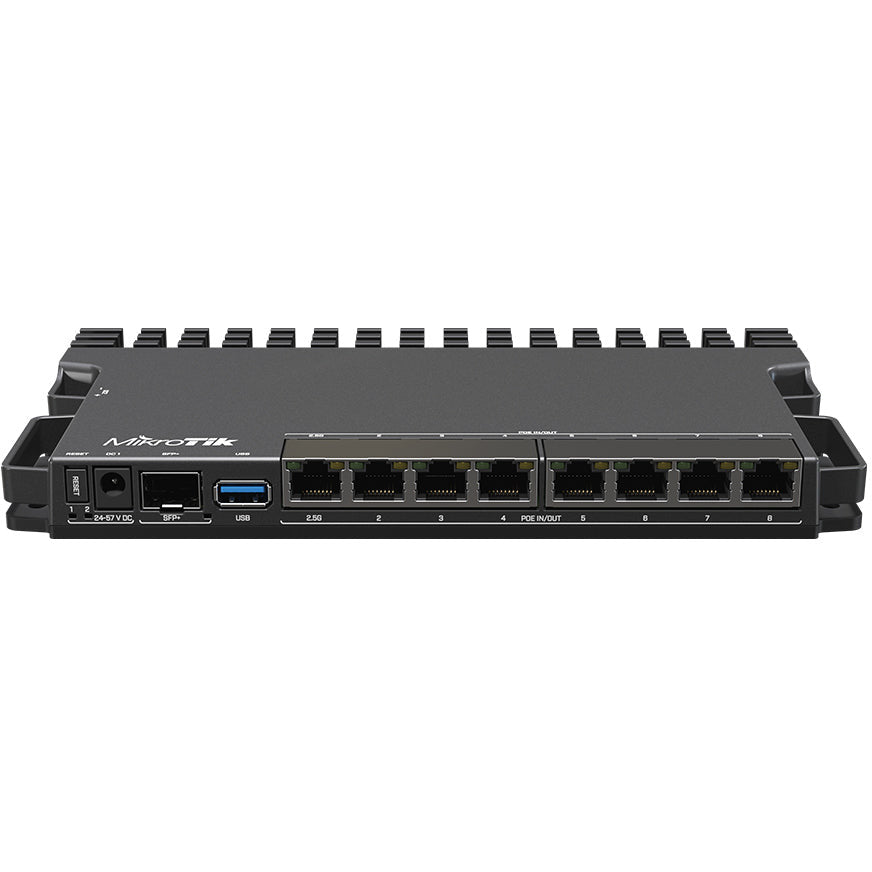

MikroTik's RB-5009UPSIN is a 4-core, heavy-duty, desktop router featuring 7x Gigabit Ethernet Ports, 1x 2.5Gbps Ethernet port, 1x 10Gbps SFP+ port and a full-sized USB 3.0 slot.
The unit also features PoE-in & PoE-out on all eight Ethernet ports with up to 25W per port.
It provides power redundancy and is powered by either Passive PoE, DC Jack or 2-pin DC terminal and can be easily rack-mounted when paired with the RB-5009RMKIT.
Specifications
Ethernet Ports: 7x 10/100/1000 ; 1x 2.5Gbps
Hardware Button: Reset
Max. Power Consumption: 15W
Mounting: Desktop (Can be rack-mounted with the RB-5009RMKIT)
Operating System: RouterOS v7 only (Level 5 Licence)
Operating Temperature: -40°C to 60°C
PoE Input: 44V-57V (802.3af/at Endspan on Port 1) (Midspan Passive PoE on Ports 2-8)
PoE Output: PoE Passthrough on Ports 1-8

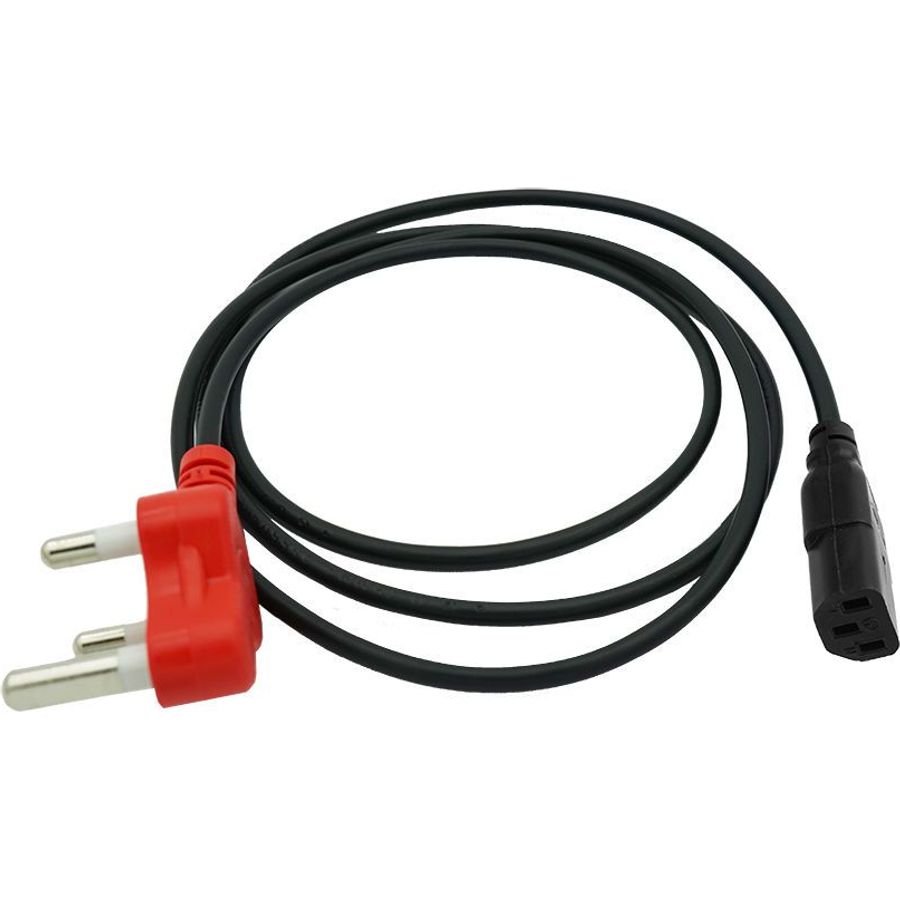

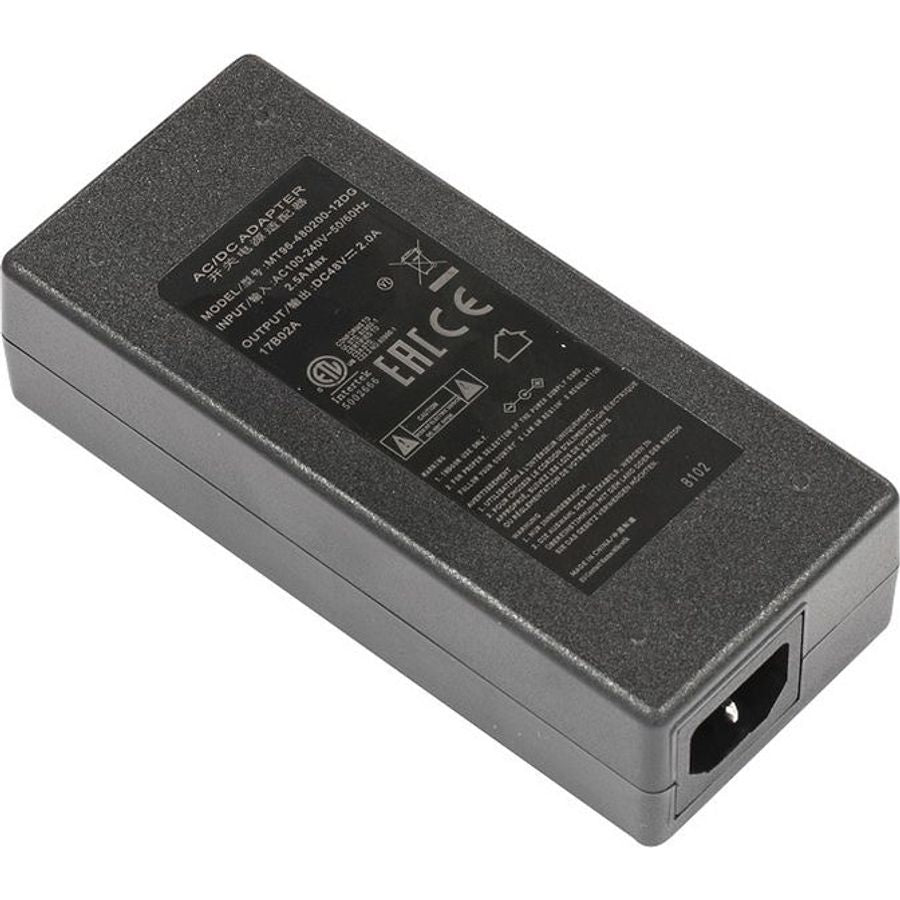

Power Input: 48V 2A Power Supply (Included)
Processor: 4 Core 1.4GHz 88F7040 ARM 64bit
Serial Interface: None
SFP Ports: 1x 10Gbps
Supported Voltage Range: 24-57V (PoE) 24-57V (DC Jack) 24-57 (2-pin terminal)
System Memory: 1GB
USB Ports: 1x USB 3.0

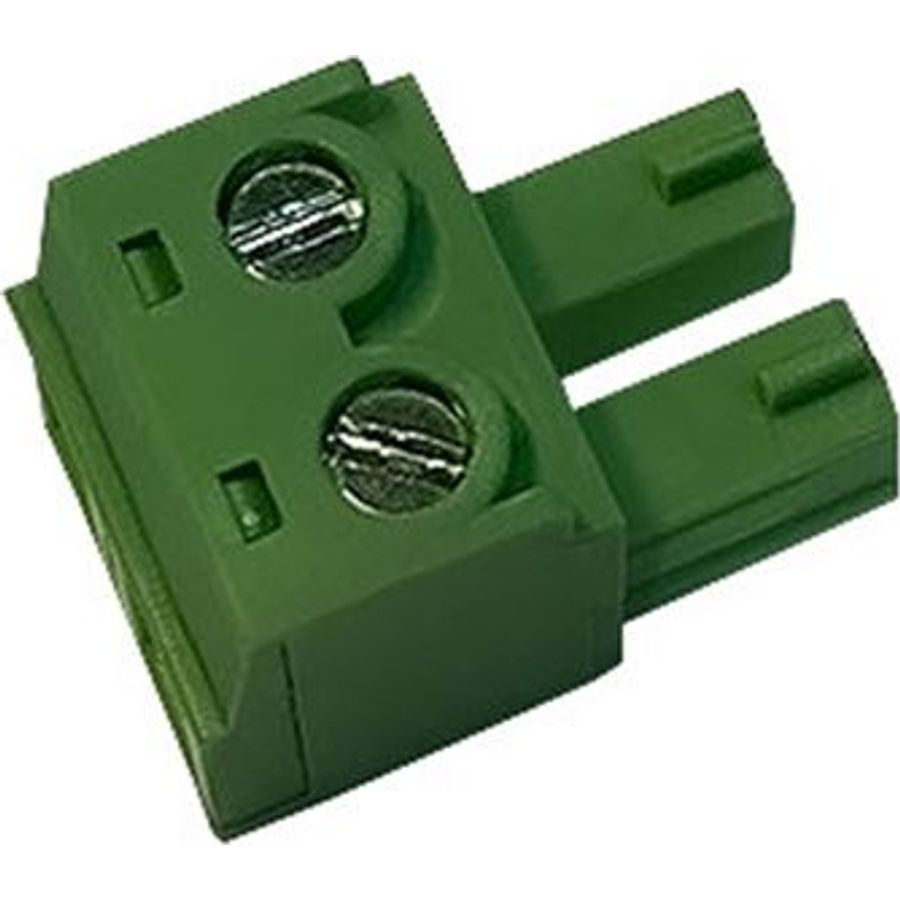

Other: 1x 2-Pin Terminal Connection
Dimensions: 220 x 125 x 22 mm

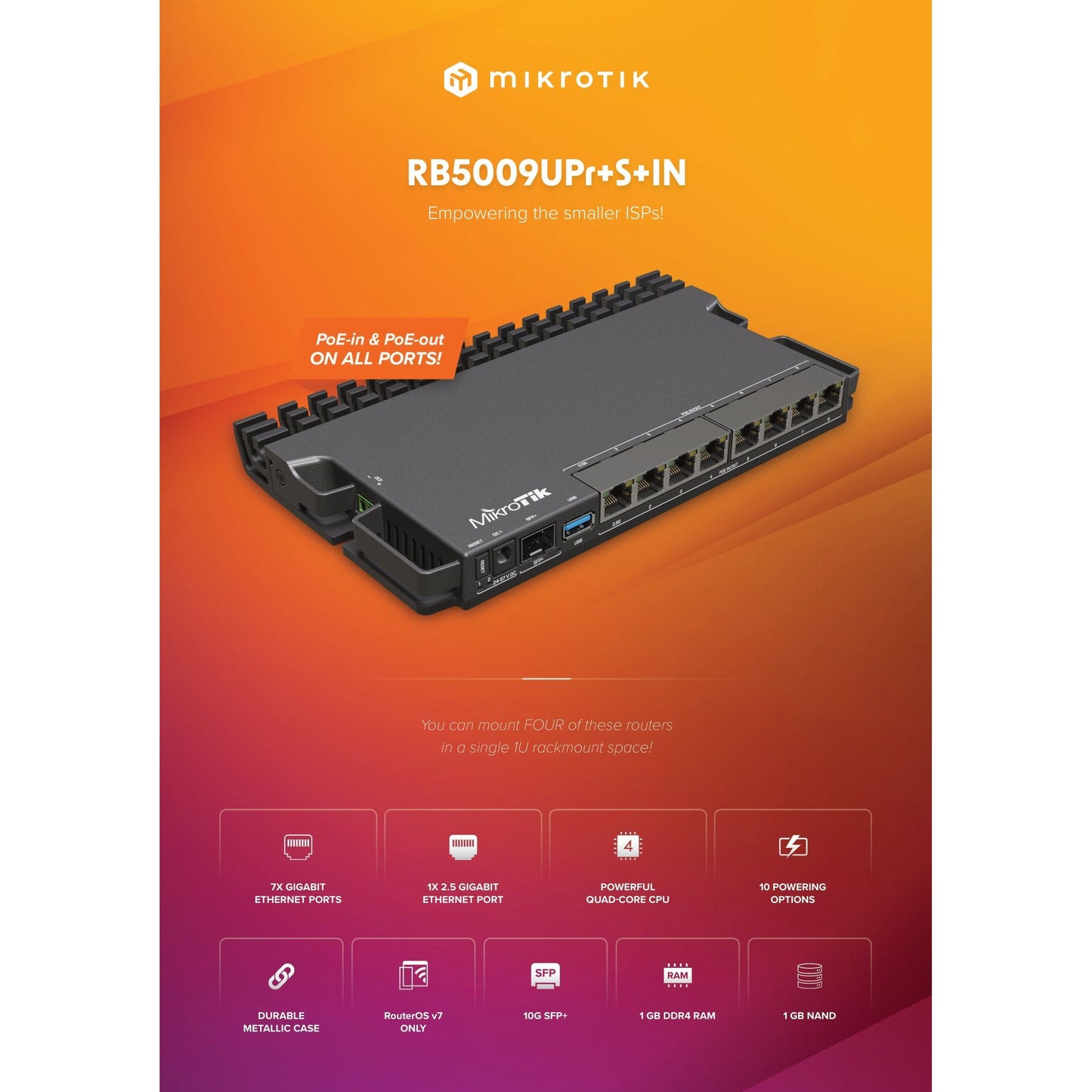

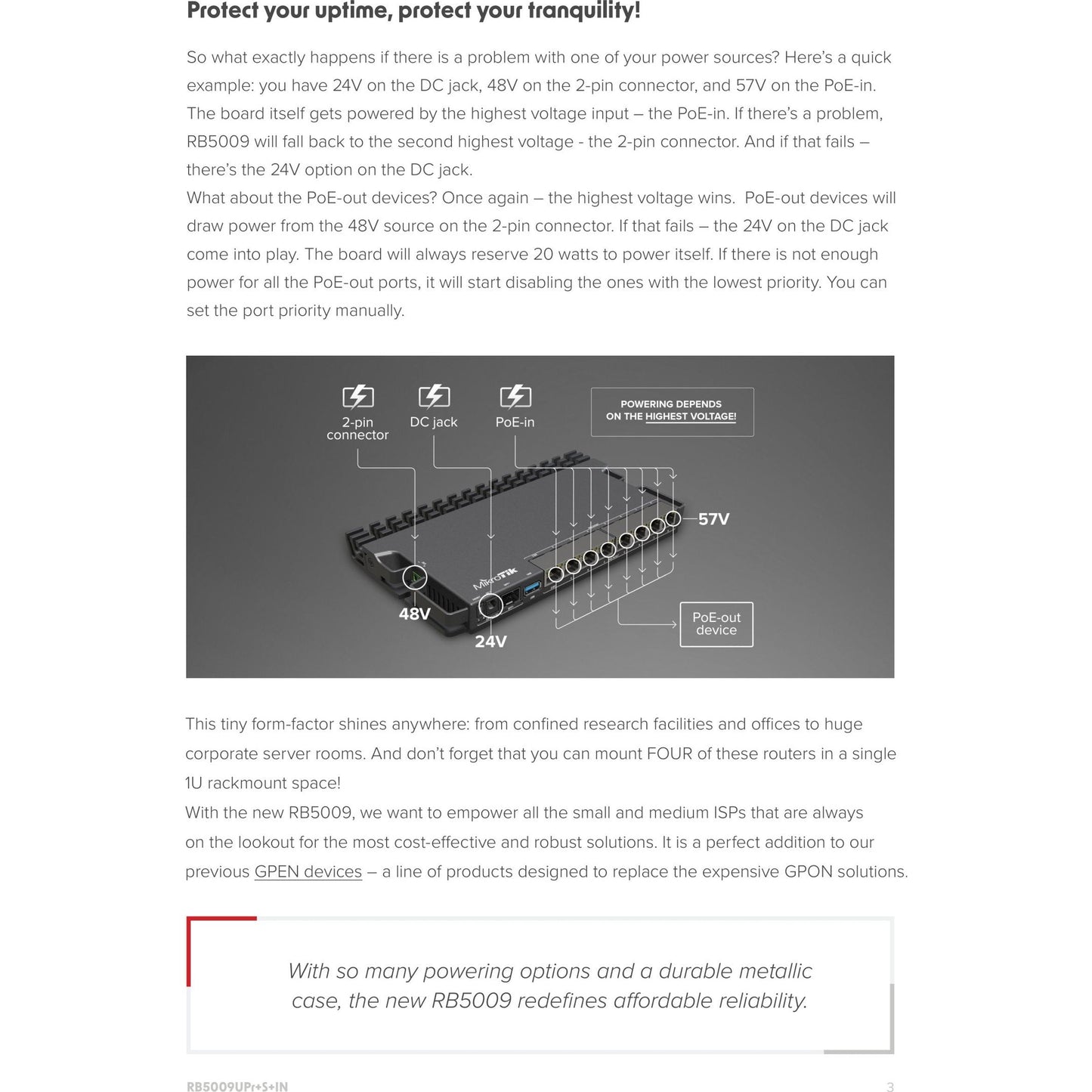

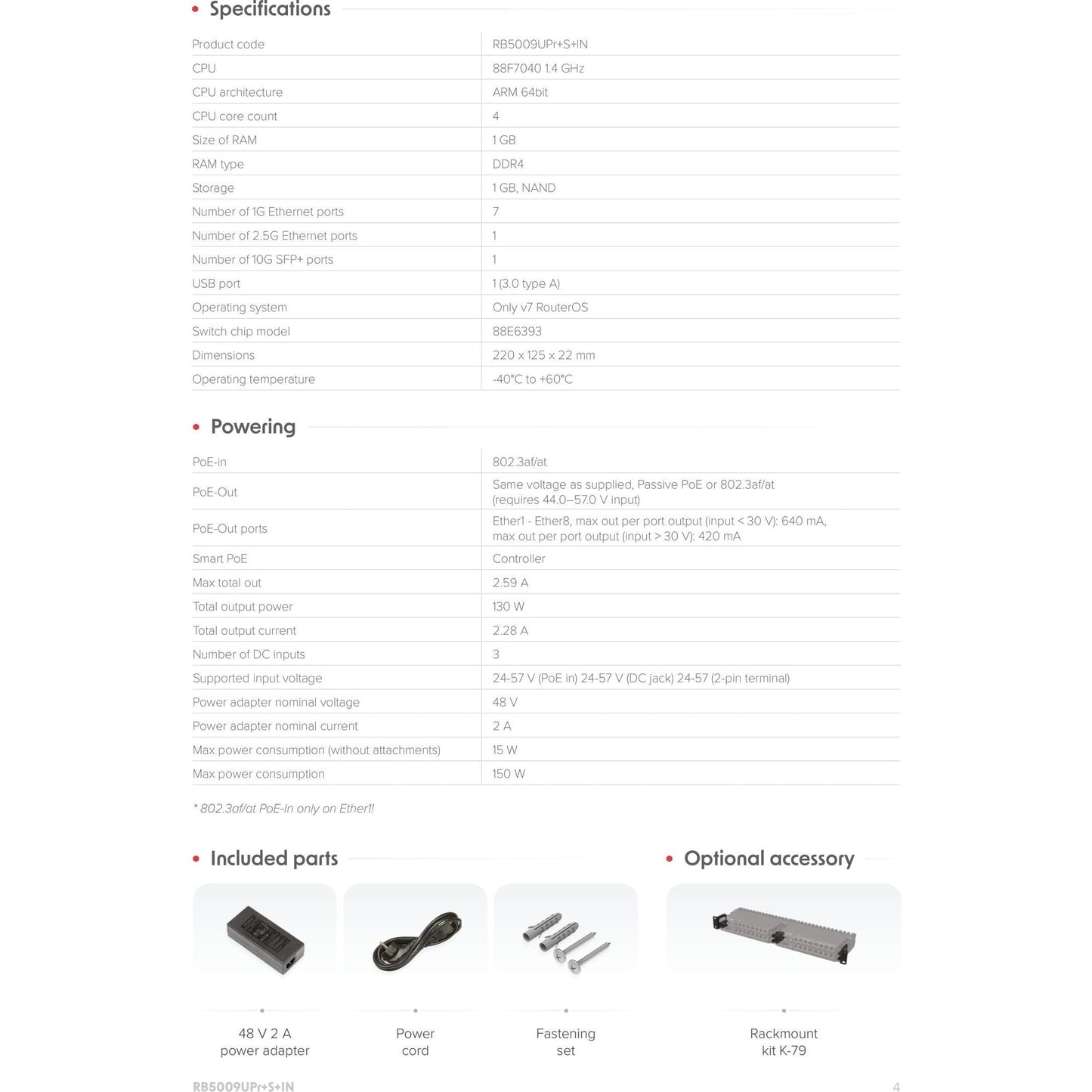

For more in-depth information, zoom in on picture of data sheet.
SKU | RB-5009UPSIN |
---|---|
Manufacturer | MikroTik |
Manufacturer Product Code | RB5009UPr+S+IN |
