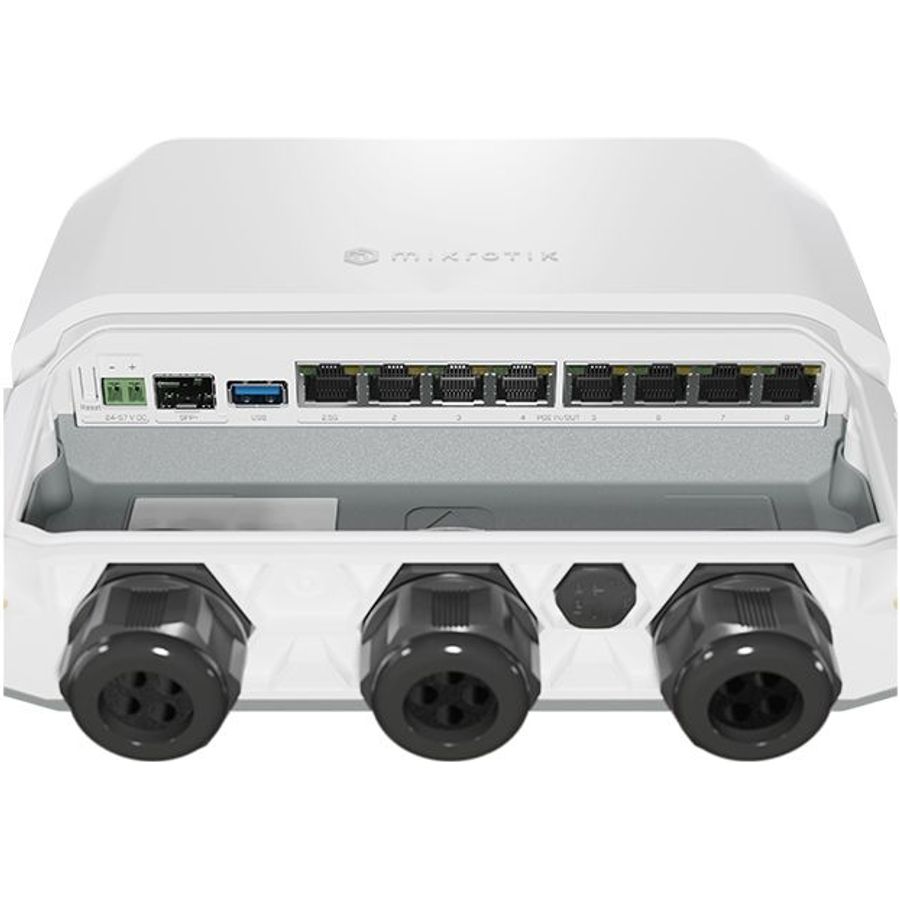

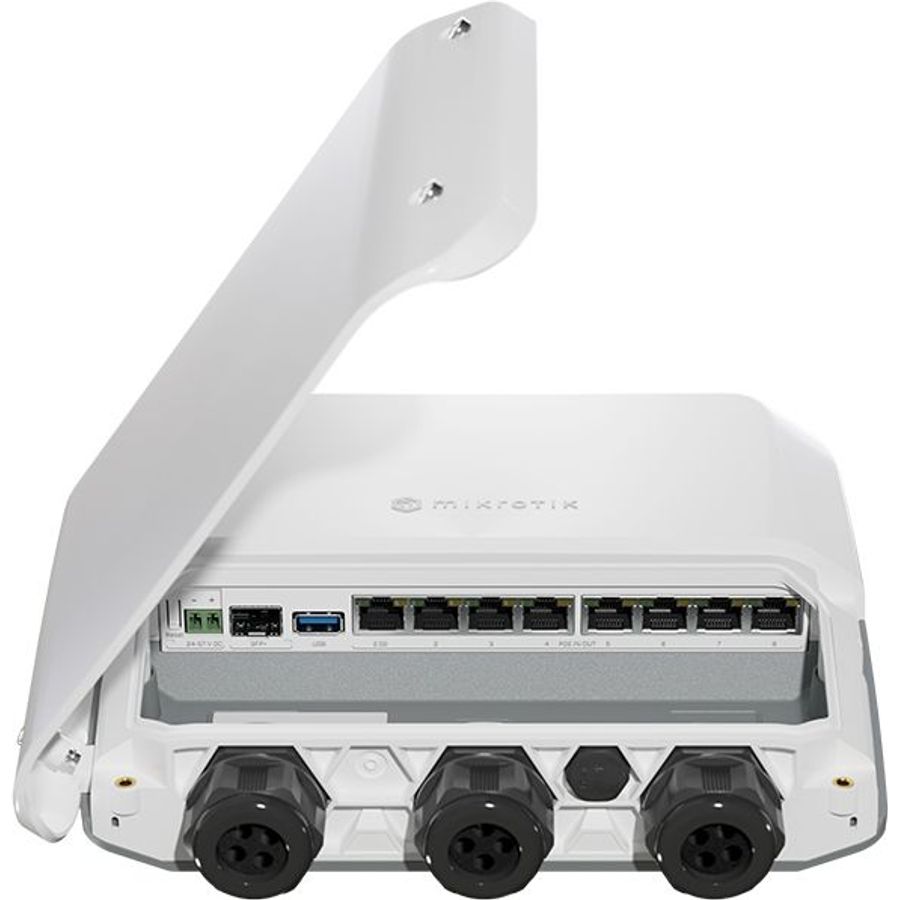

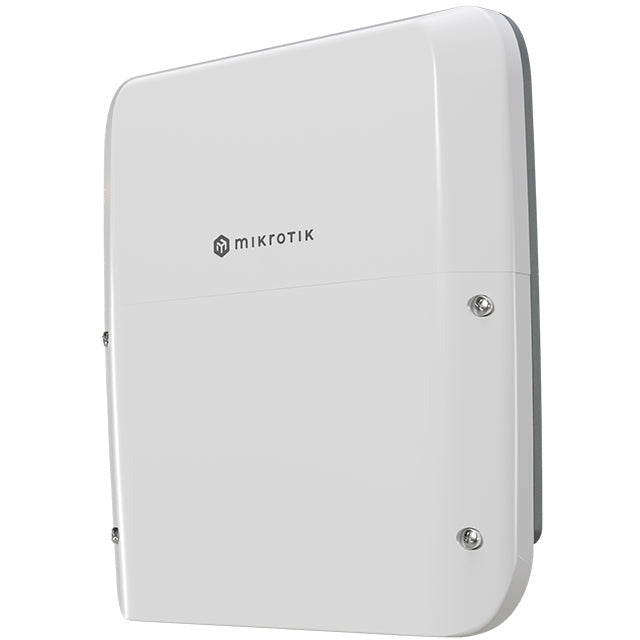

MikroTik 7 Port Gigabit 1x 2.5Gbps 1SFP+ 4 Core Outdoor PoE Router | RB5009UPr+S+OUT
MikroTik 7 Port Gigabit 1x 2.5Gbps 1SFP+ 4 Core Outdoor PoE Router | RB5009UPr+S+OUT
The unit also features PoE-in & PoE-out on all eight Ethernet ports with up to 25W per port, providing power redundancy using either Passive PoE-In or the 2-pin DC terminal.
Specifications
Ethernet Ports: 7x 10/100/1000 ; 1x 2.5Gbps
Hardware Button: Reset
Max. Power Consumption: 15W

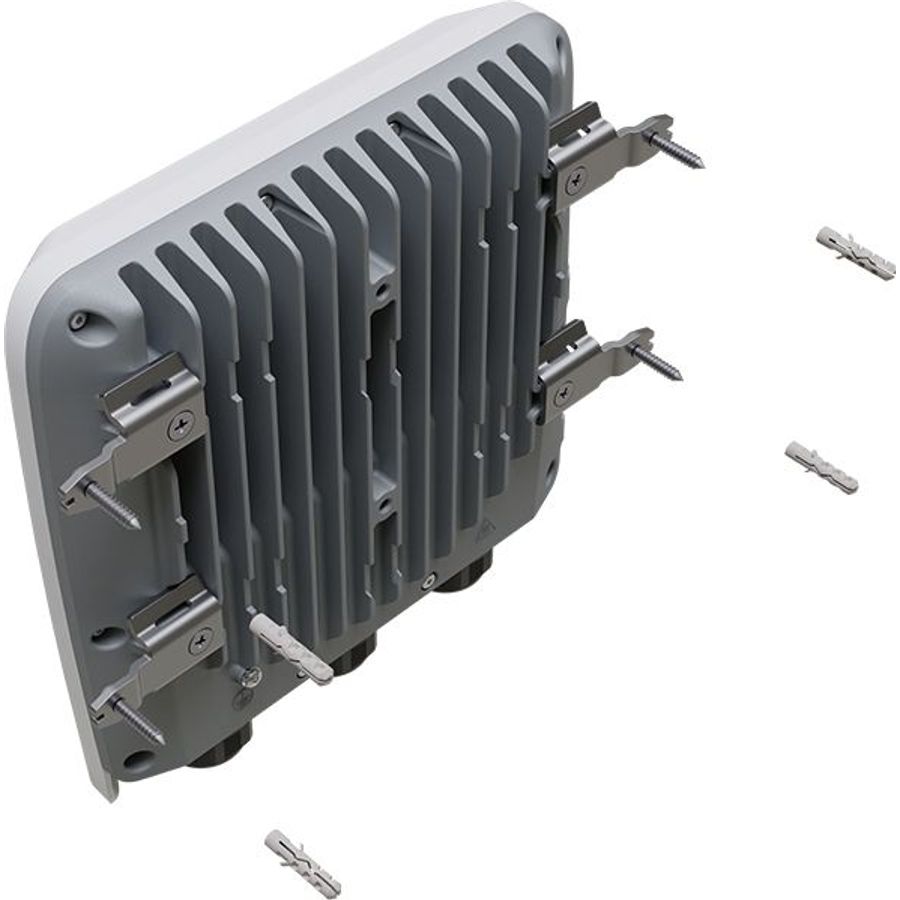

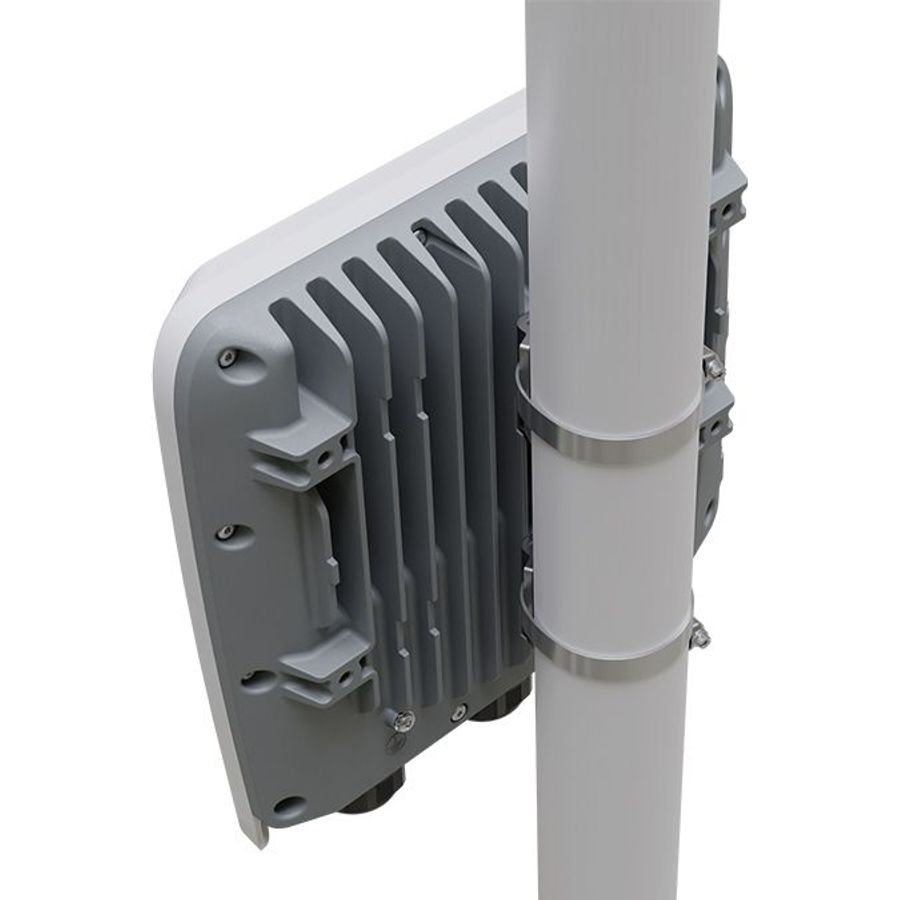

Mounting: Pole Mount
Operating System: RouterOS v7 only (Level 5 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 24V-57V on Ports 1-8
PoE Output: PoE Passthrough on Ports 1-8
Power Input: 24-57V PoE or 2-pin Terminal
Processor: 4 Core 1.4GHz 88F7040 ARM 64bit
Serial Interface: None
SFP Ports: 1x 10Gbps
Supported Voltage Range: 24-57V
System Memory: 1GB
USB Ports: 1x USB 3.0
Other: 1x 2-Pin Terminal Connection
Dimensions: 220 x 125 x 22 mm

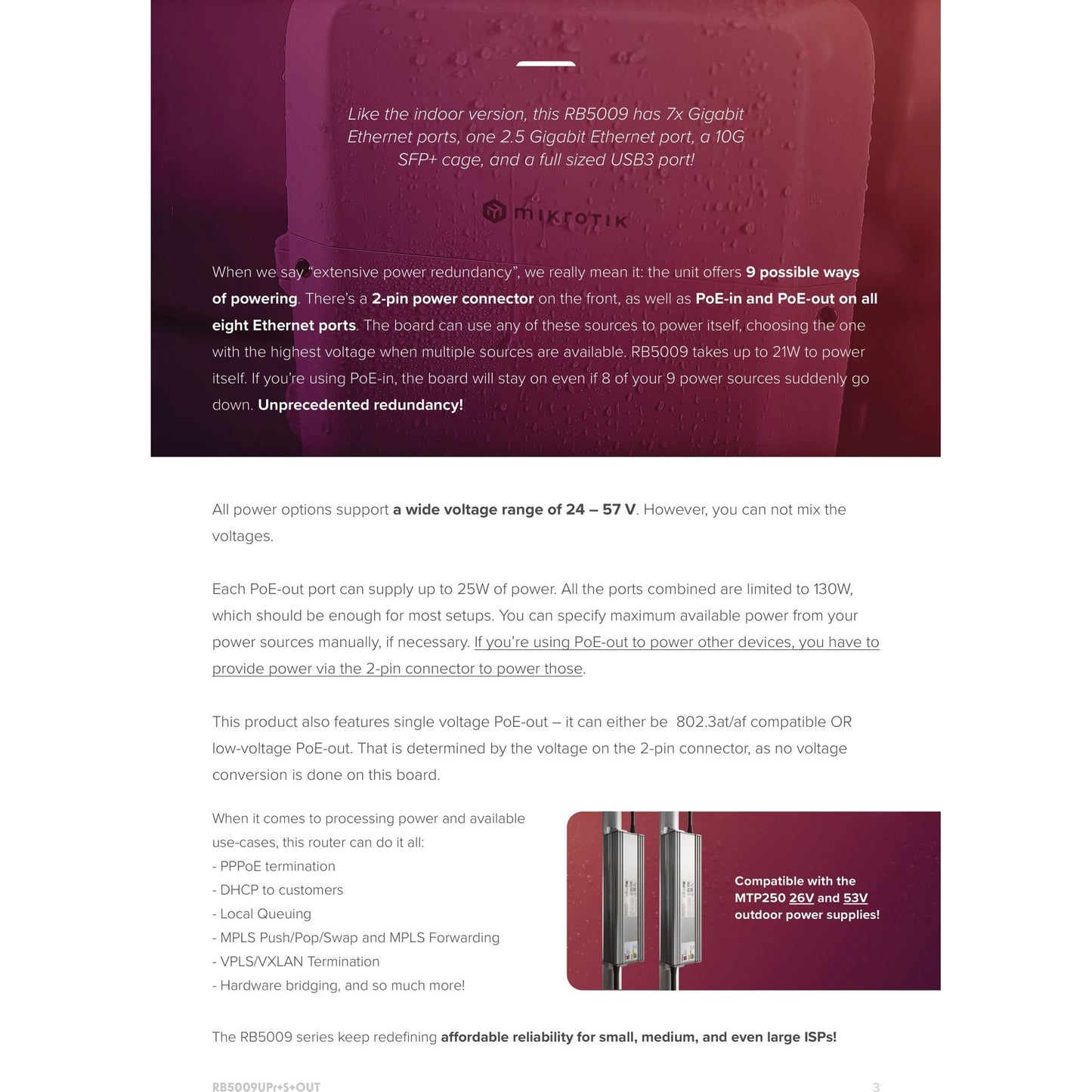

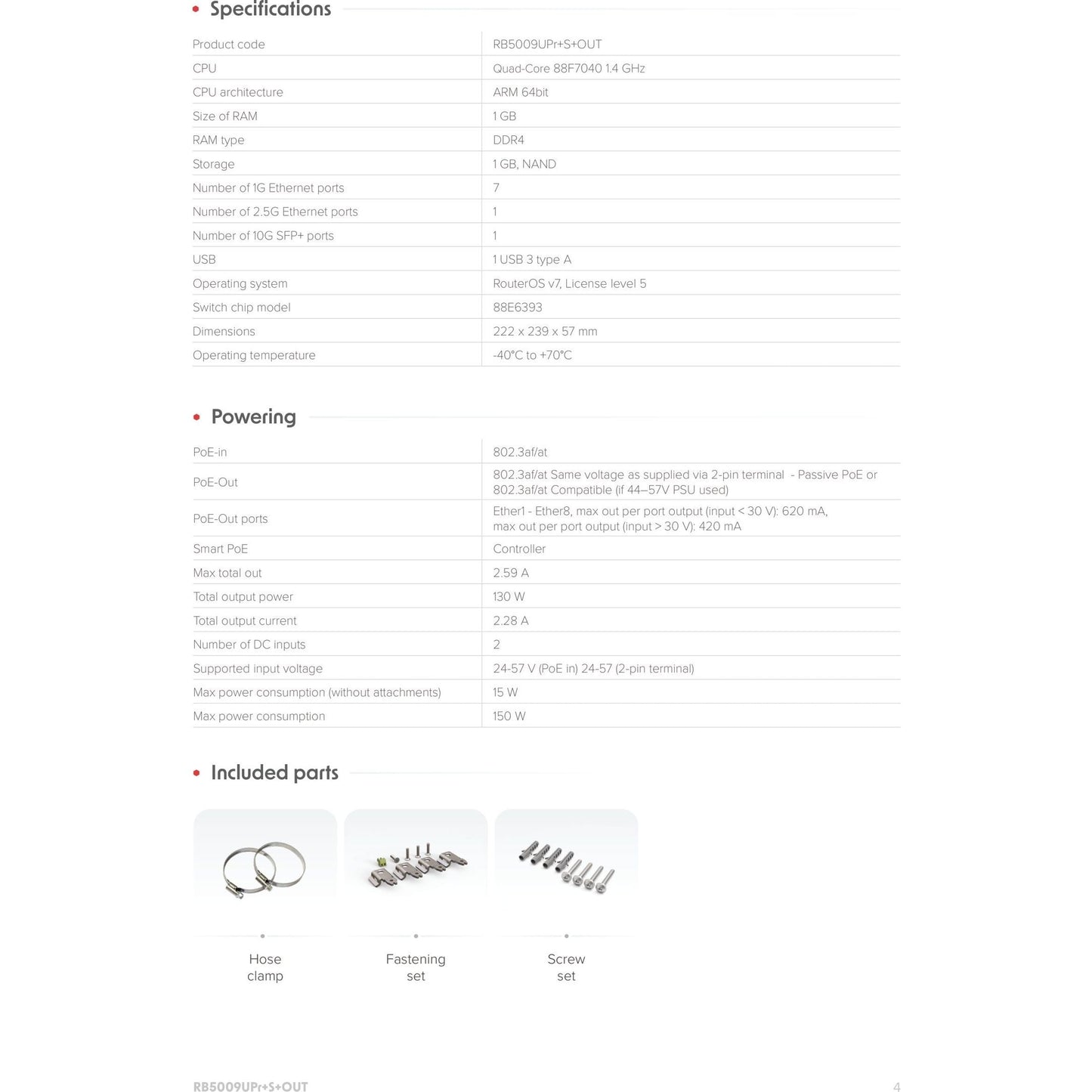

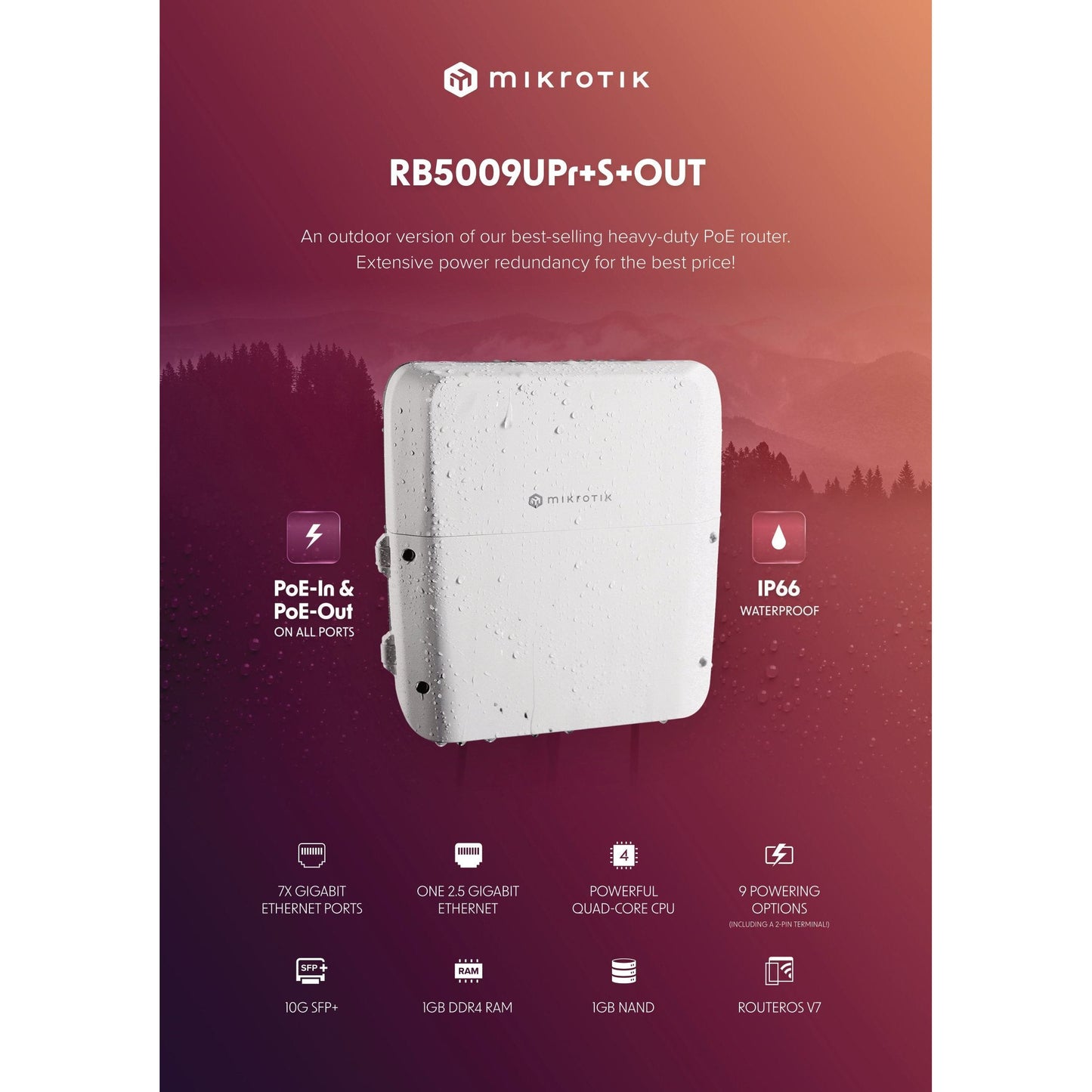

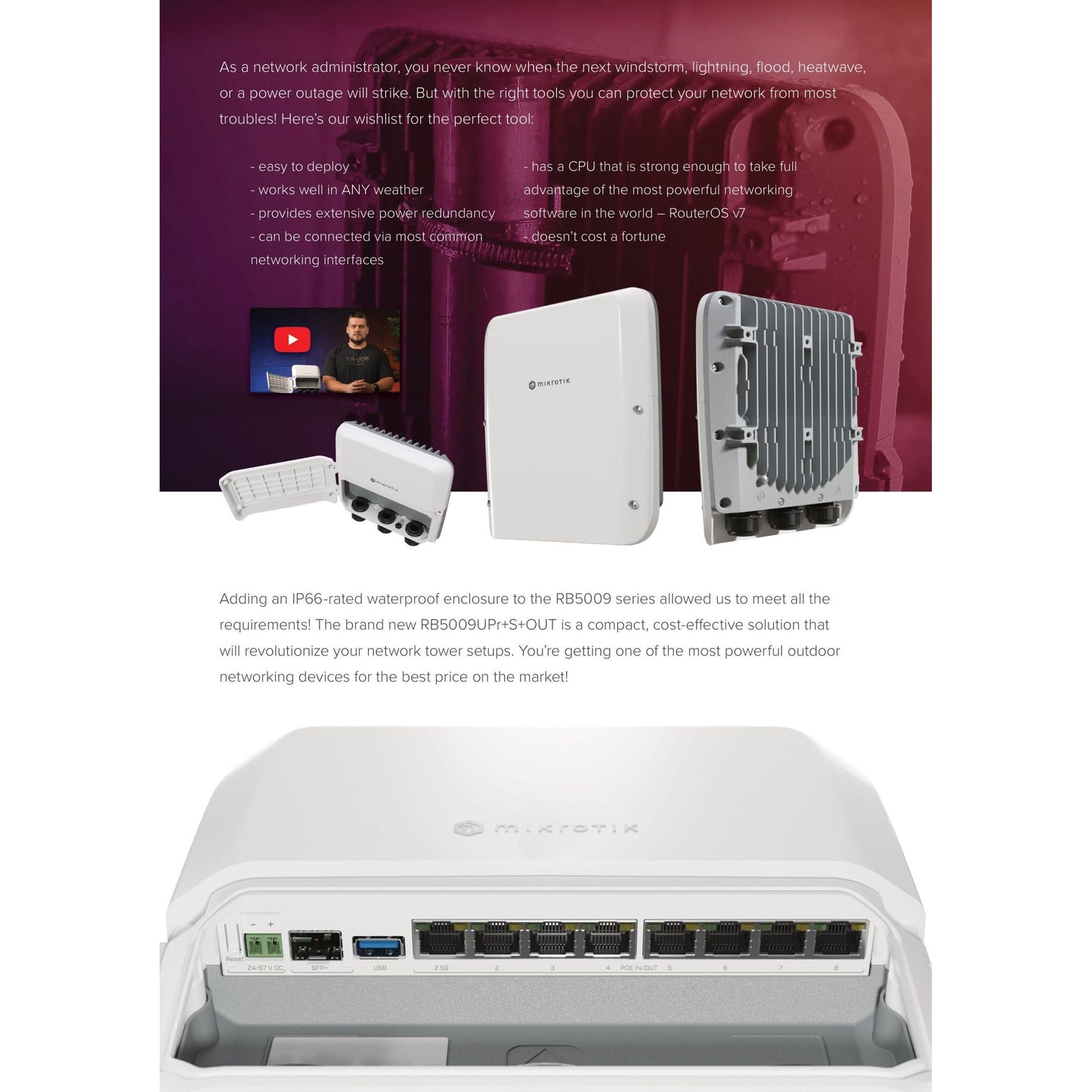

For more in-depth information, zoom in on picture of data sheet.
SKU | RB-5009UPSO |
---|---|
Manufacturer | MikroTik |
Manufacturer Product Code | RB5009UPr+S+OUT |
