MikroTik BaseBox 5 Gigabit USB WiFi Router | RB912UAG-5HPnD-OUT
MikroTik BaseBox 5 Gigabit USB WiFi Router | RB912UAG-5HPnD-OUT

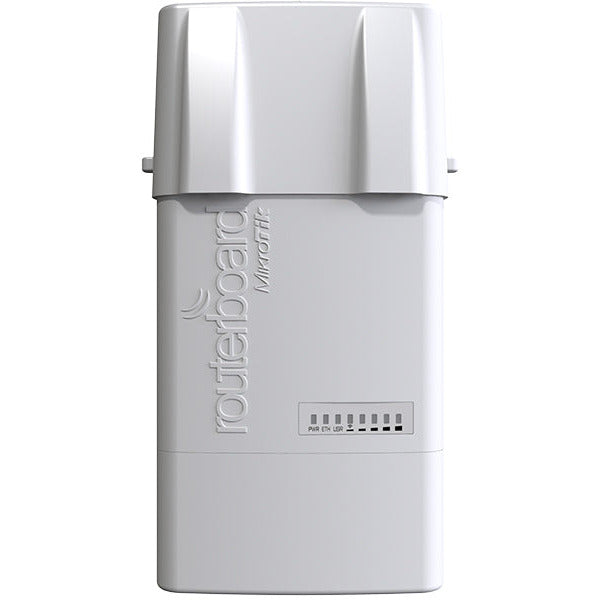

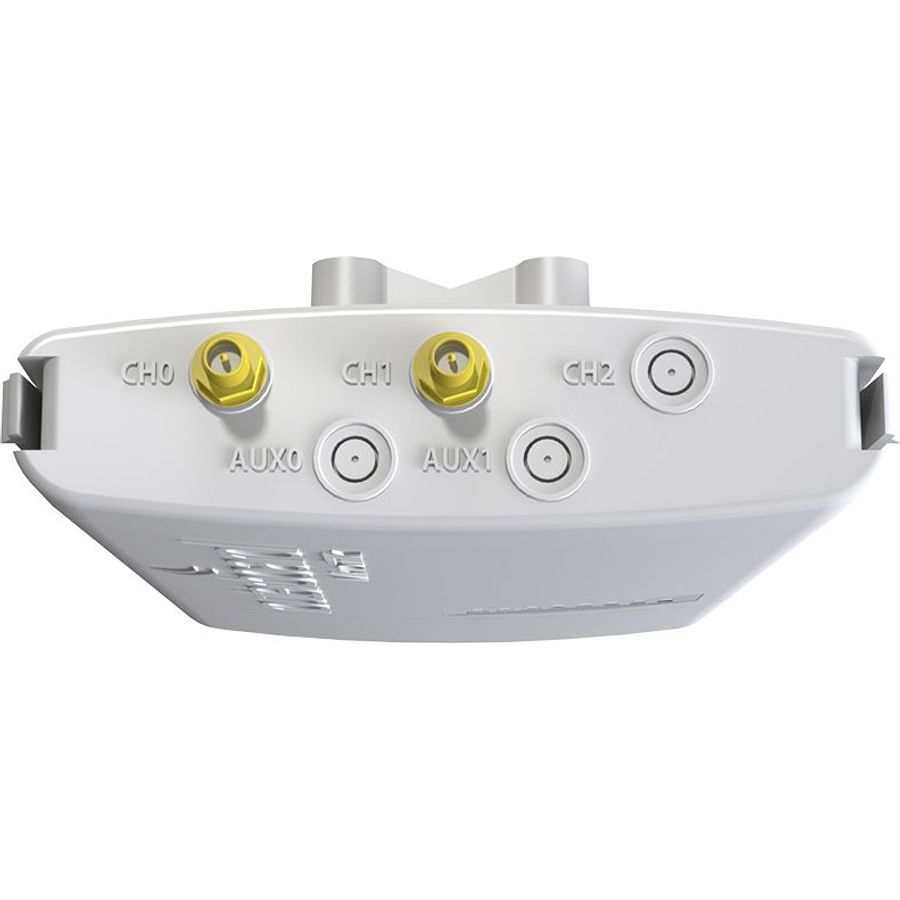

MikroTik's RB-BASEBOX5 is an outdoor enclosure, fit with two SMA connectors for antennas, and a cable hood for protection against moisture.
Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual-band device.
Compatible with ANT-D530PA, a 5GHz, 30dBi dish antenna, also by MikroTik
The case can be opened with one hand, and is protected against the elements. USB, Ethernet, and a Grounding wire exits are provided on the bottom, behind a protective door.

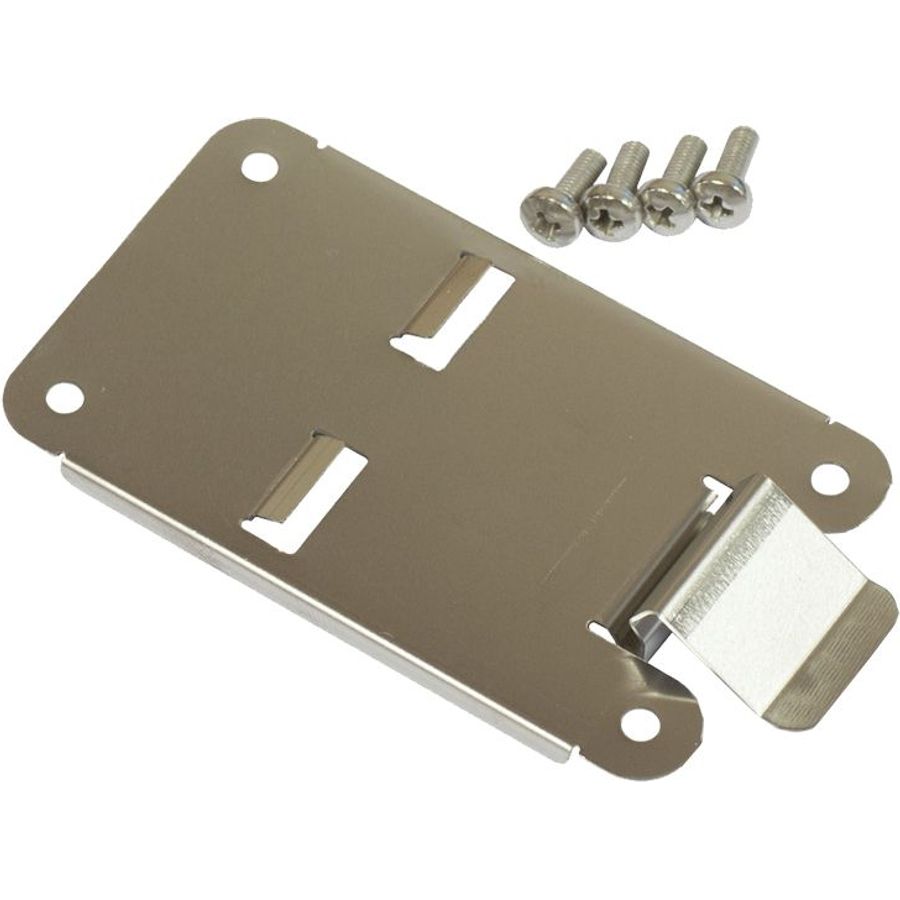

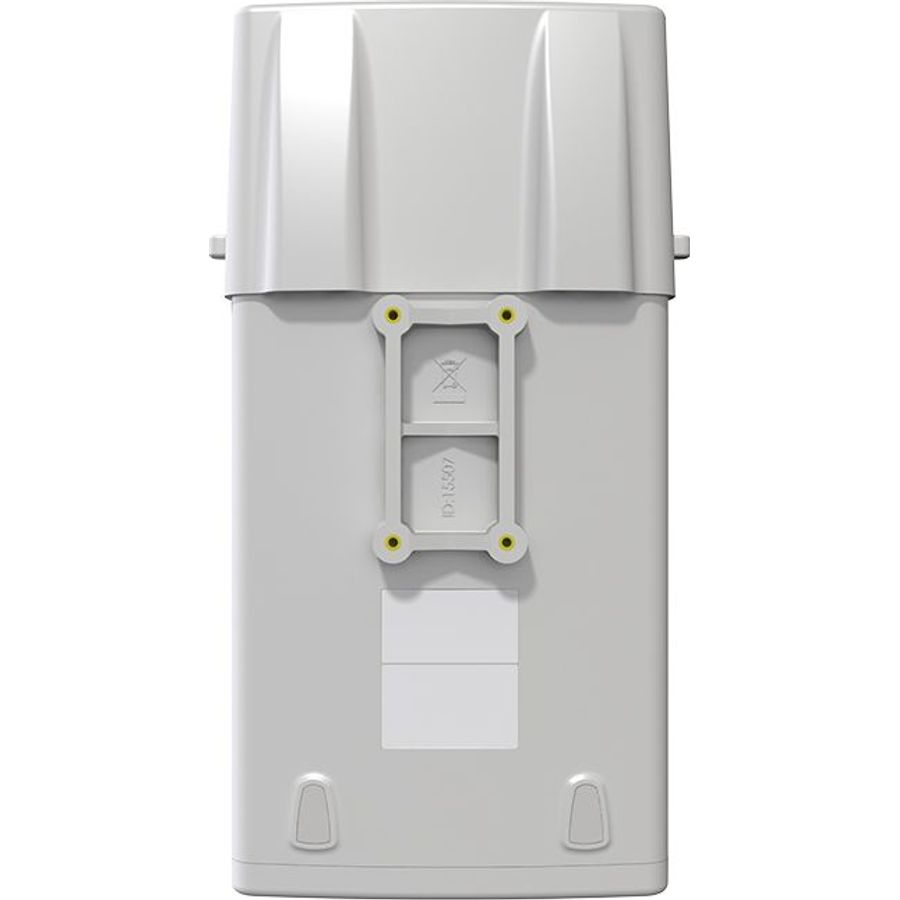

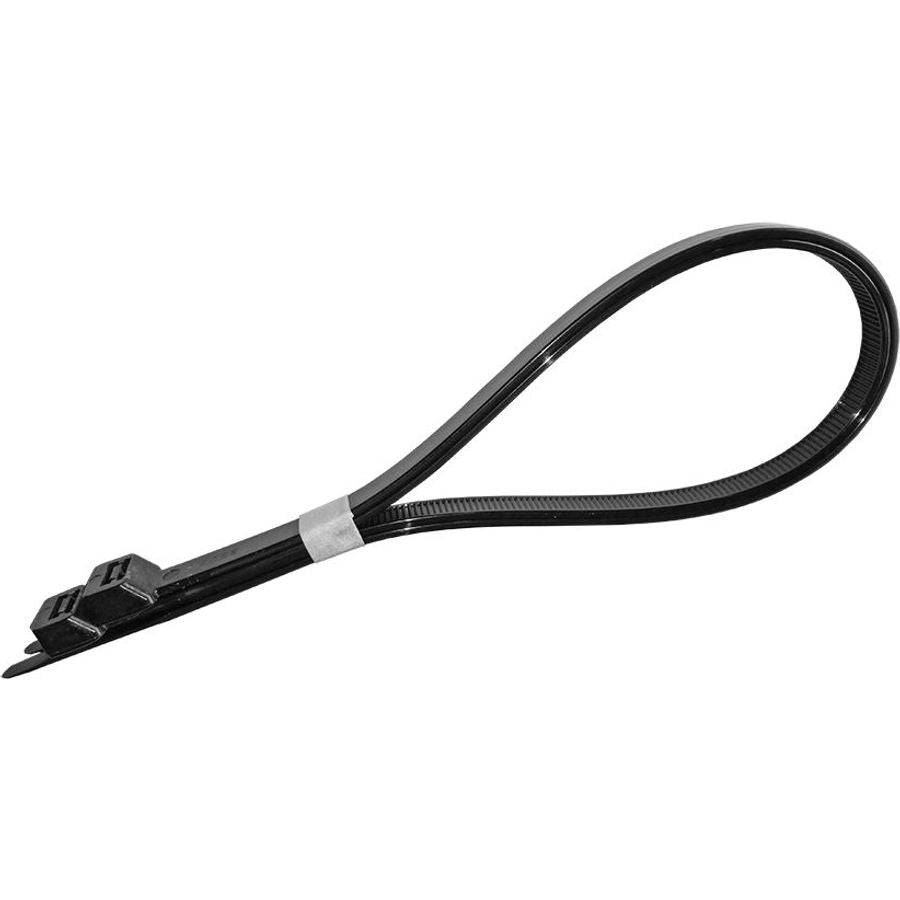

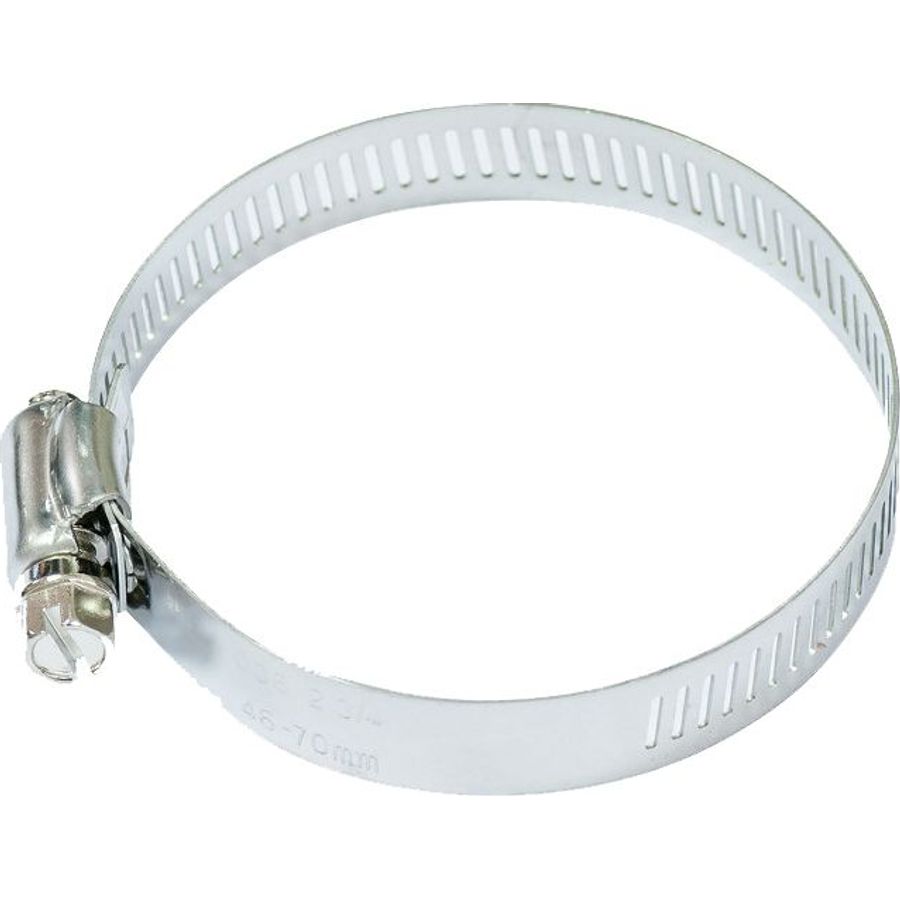

It comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided.

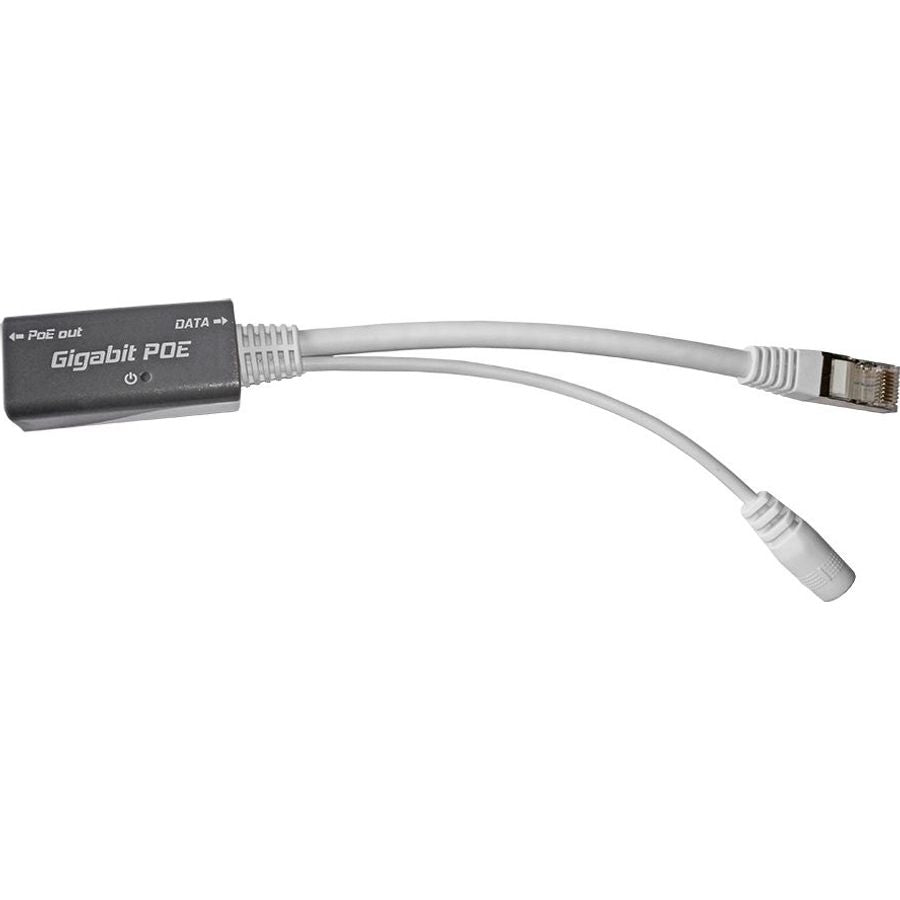

Package also includes a PoE injector and power supply unit.
Specifications
Antenna Gain: Antenna Dependent (2x SMA RP Female)
Beam-width: Antenna Dependent
Data Rate: 5GHz 300Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 14W
Mounting: Pole Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: None

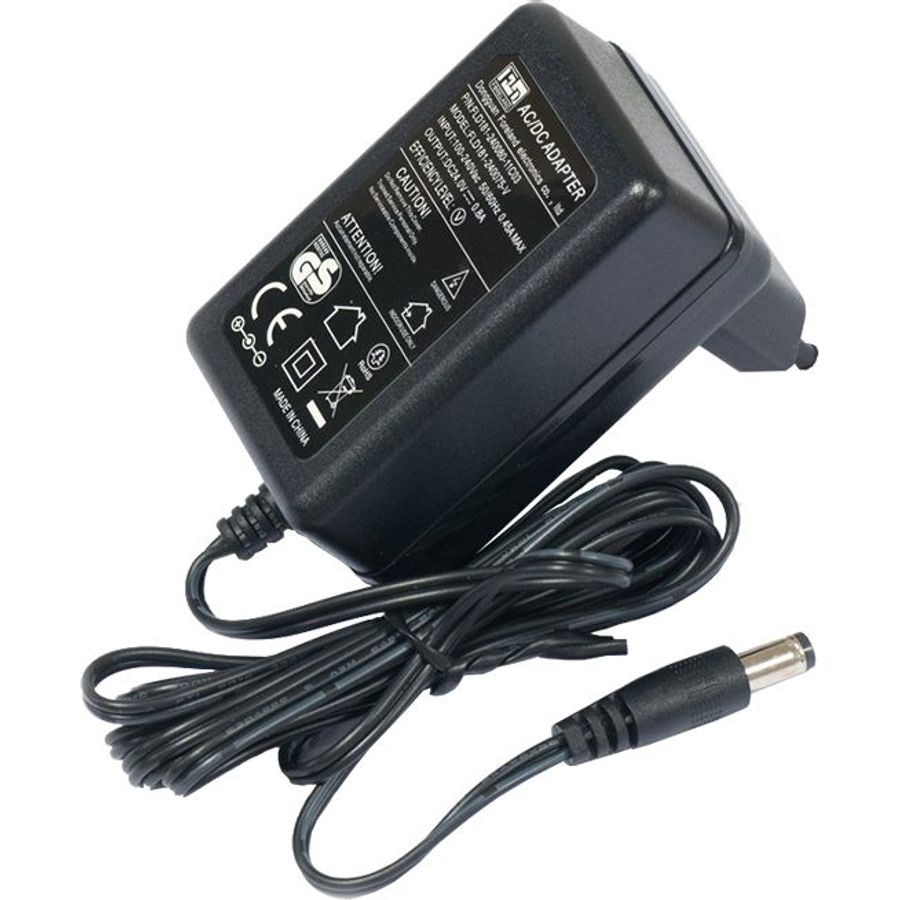

Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Mini SIM) Requires 3G miniPCI-e card
Supported Voltage Range: 8V-30V
USB Ports: 1x USB 2.0
Other: 1x MiniPCI-e Slot
Dimensions: 246 x 135 x 50mm

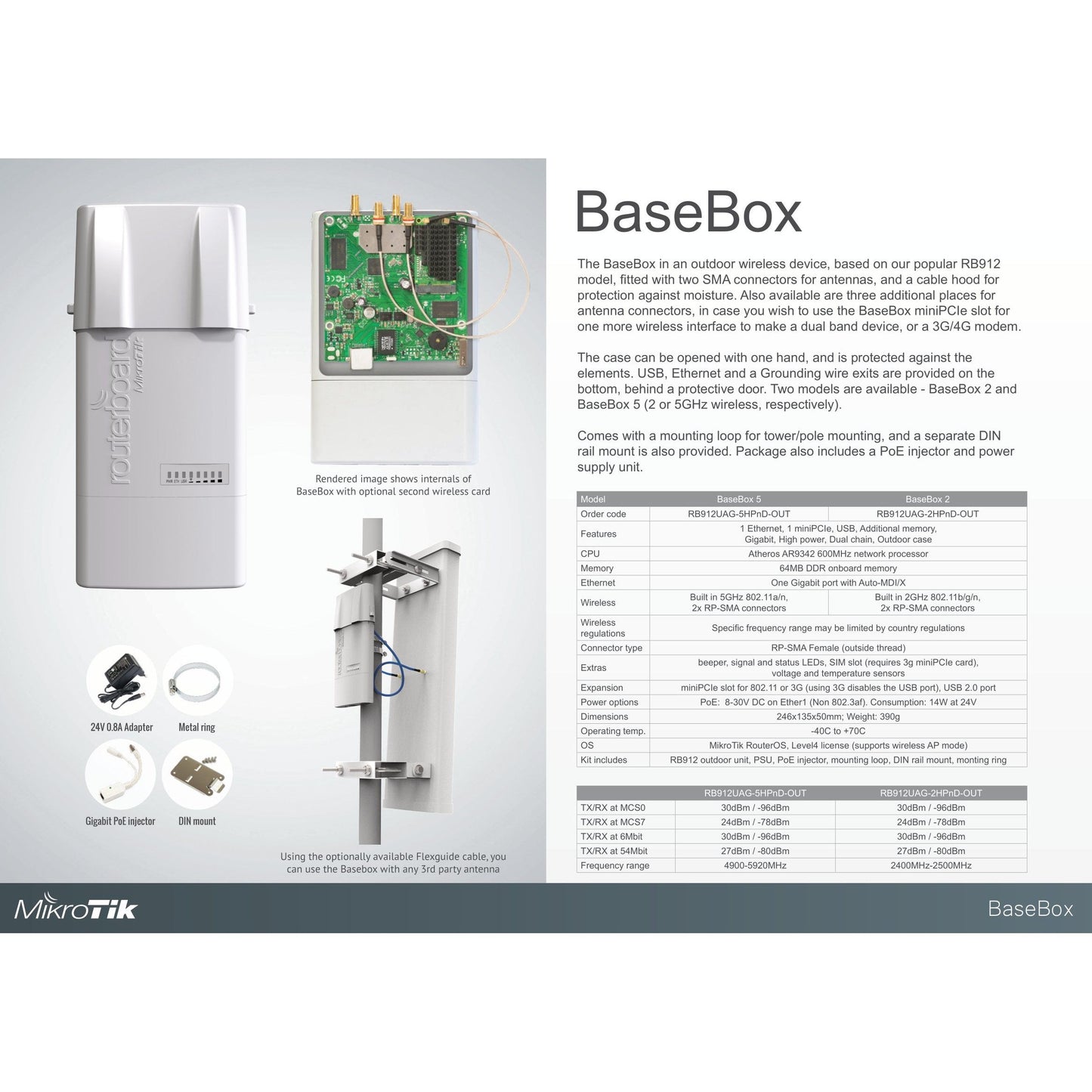

For more in-depth information, zoom in on picture of data sheet.
SKU | RB-BASEBOX5 |
---|---|
Manufacturer | MikroTik |
Manufacturer Product Code | RB912UAG-5HPnD-OUT |
