MikroTik hEX S 5 Port Gigabit 1SFP Desktop Router| RB760iGS
MikroTik hEX S 5 Port Gigabit 1SFP Desktop Router| RB760iGS

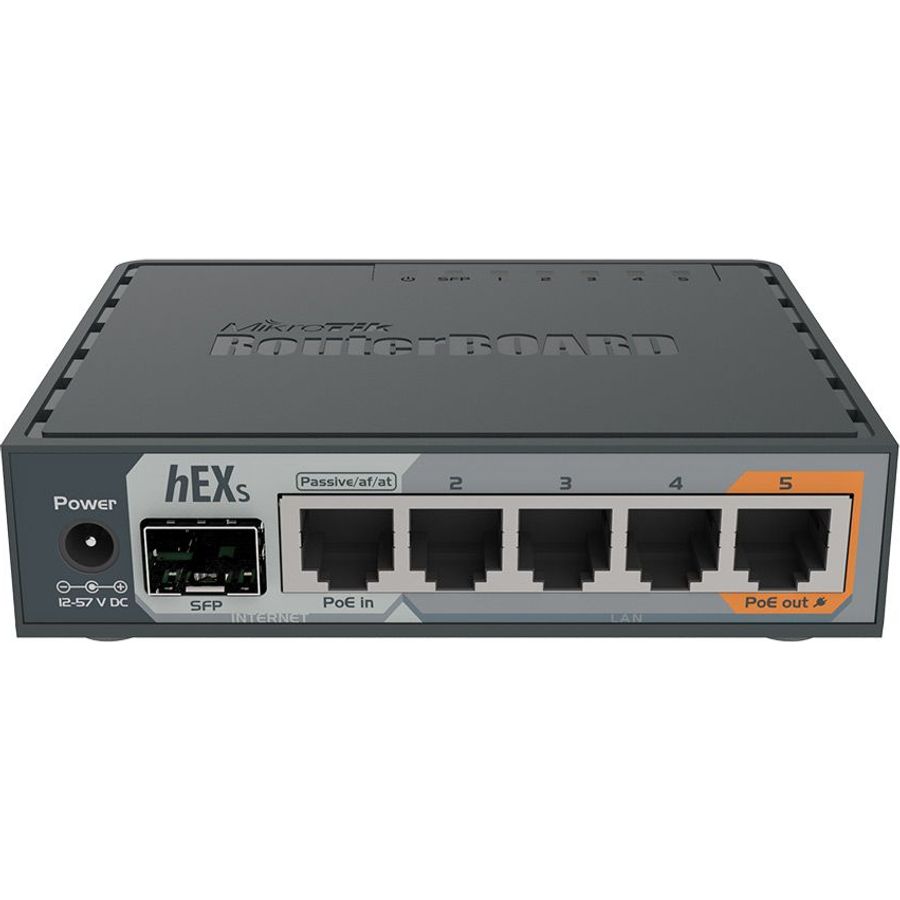

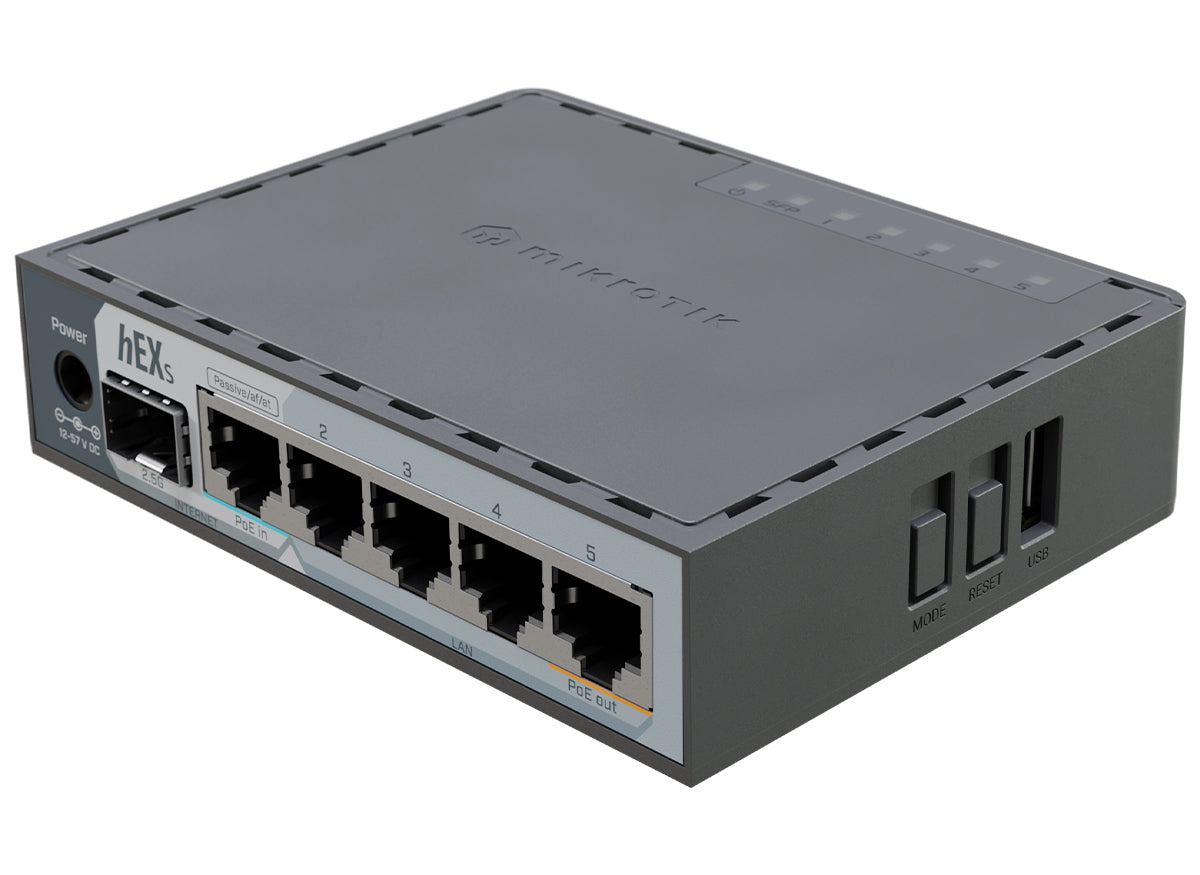

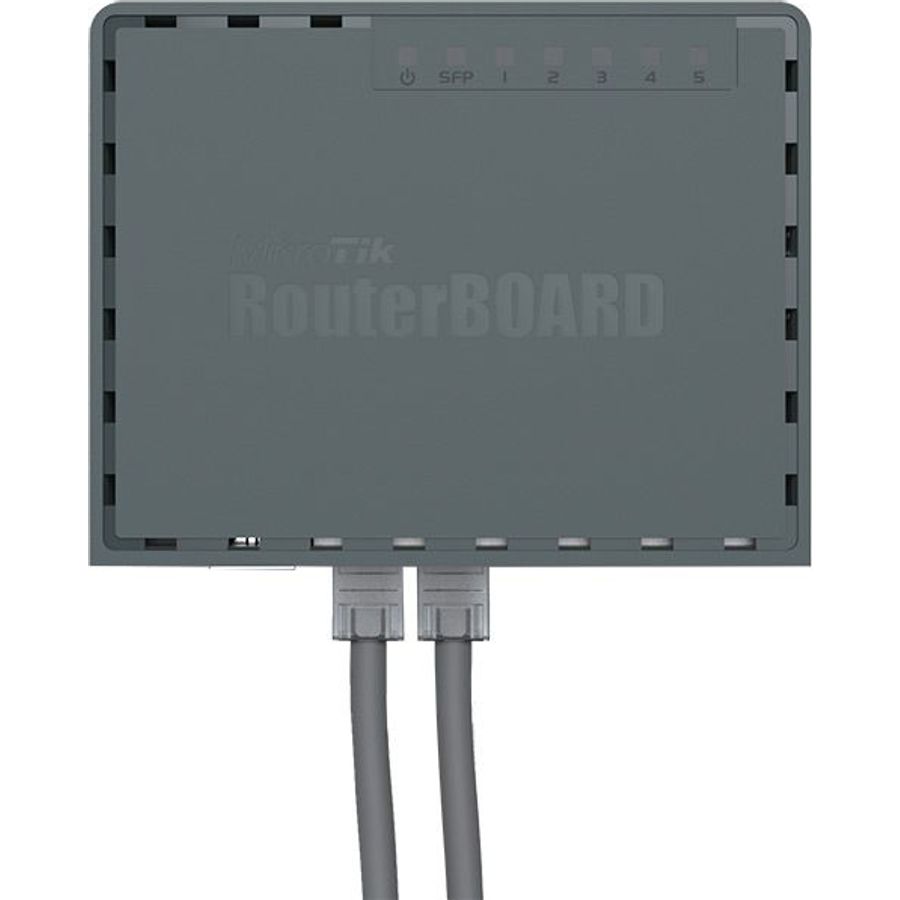

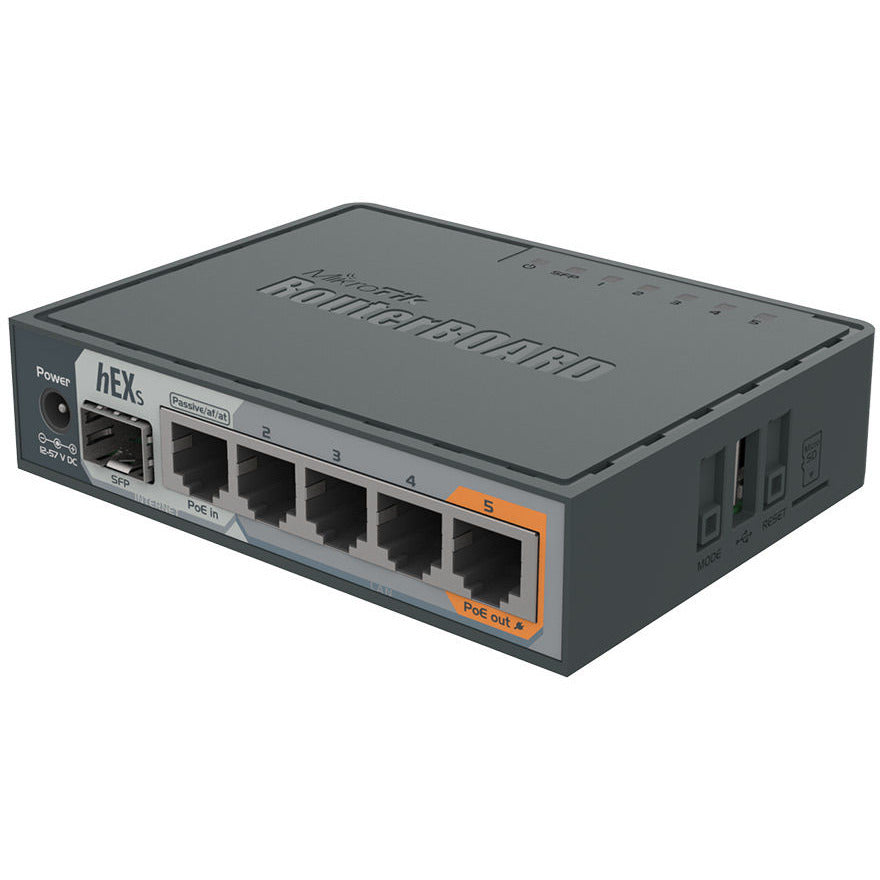

MikroTik's RB-HEXS is a five port Gigabit Ethernet router for locations where wireless connectivity is not required.
Compared to the RB-HEX, the RB-HEXS also features an SFP port and PoE output on the last port.
It is small and easy to use but comes with a very powerful dual-core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports.

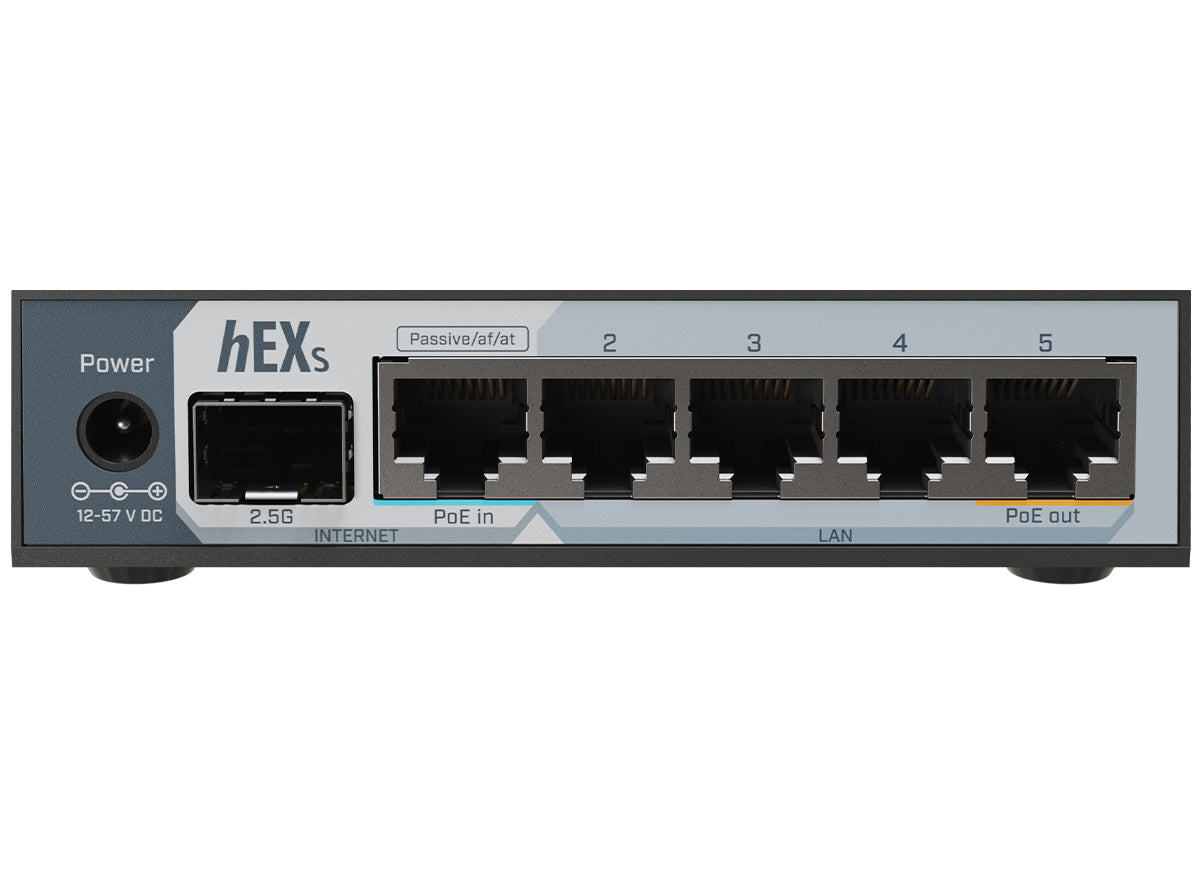

The device has a USB 2.0, PoE output on Ethernet port 5 and a 1.25G SFP cage.
Specifications
Ethernet Ports: 5x 10/100/1000
Hardware Button: Rest
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at)
PoE Output: 12V-57V Passive PoE, 802.3af/at on Port 5

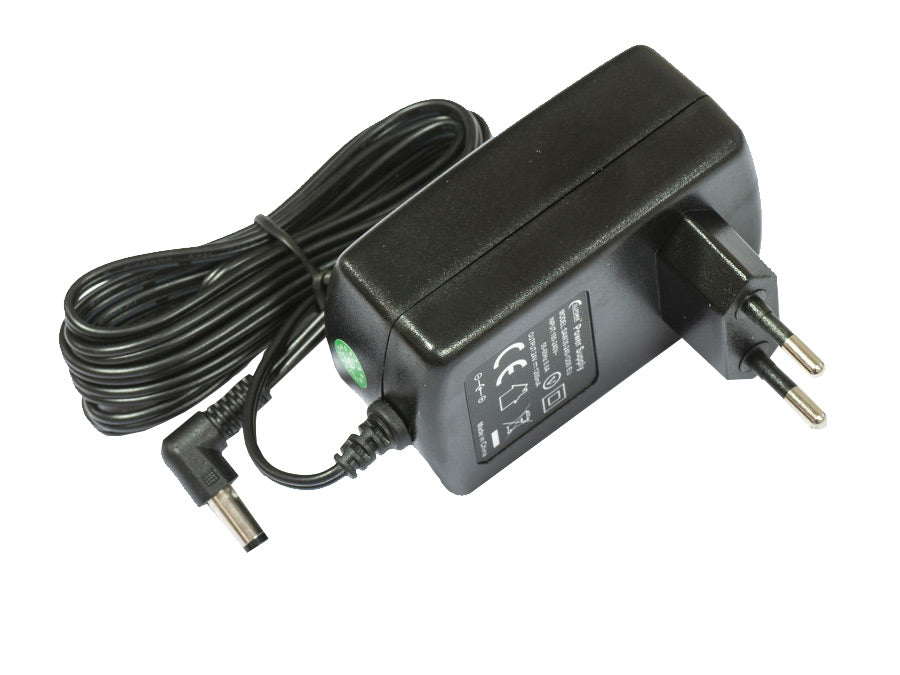

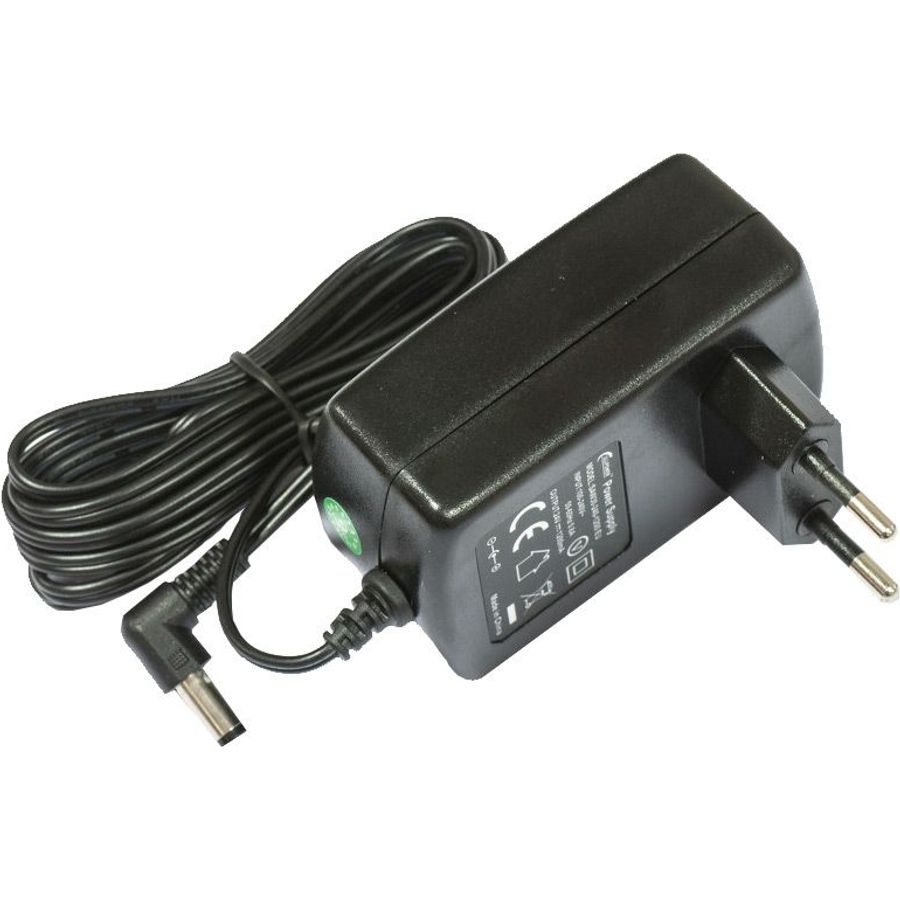

Power Input: 24V 1.2A Power Supply (Included)
Processor: 2 Core 880MHz, MT7621A
Serial Interface: None
SFP Ports: 1x 1.25Mbps
Supported Voltage Range: 12V-57V
System Memory: 256MB
USB Ports: 1x USB 2.0
Other: 1x microSD Memory Card Slot
Dimensions: 113 x 89 x 28mm

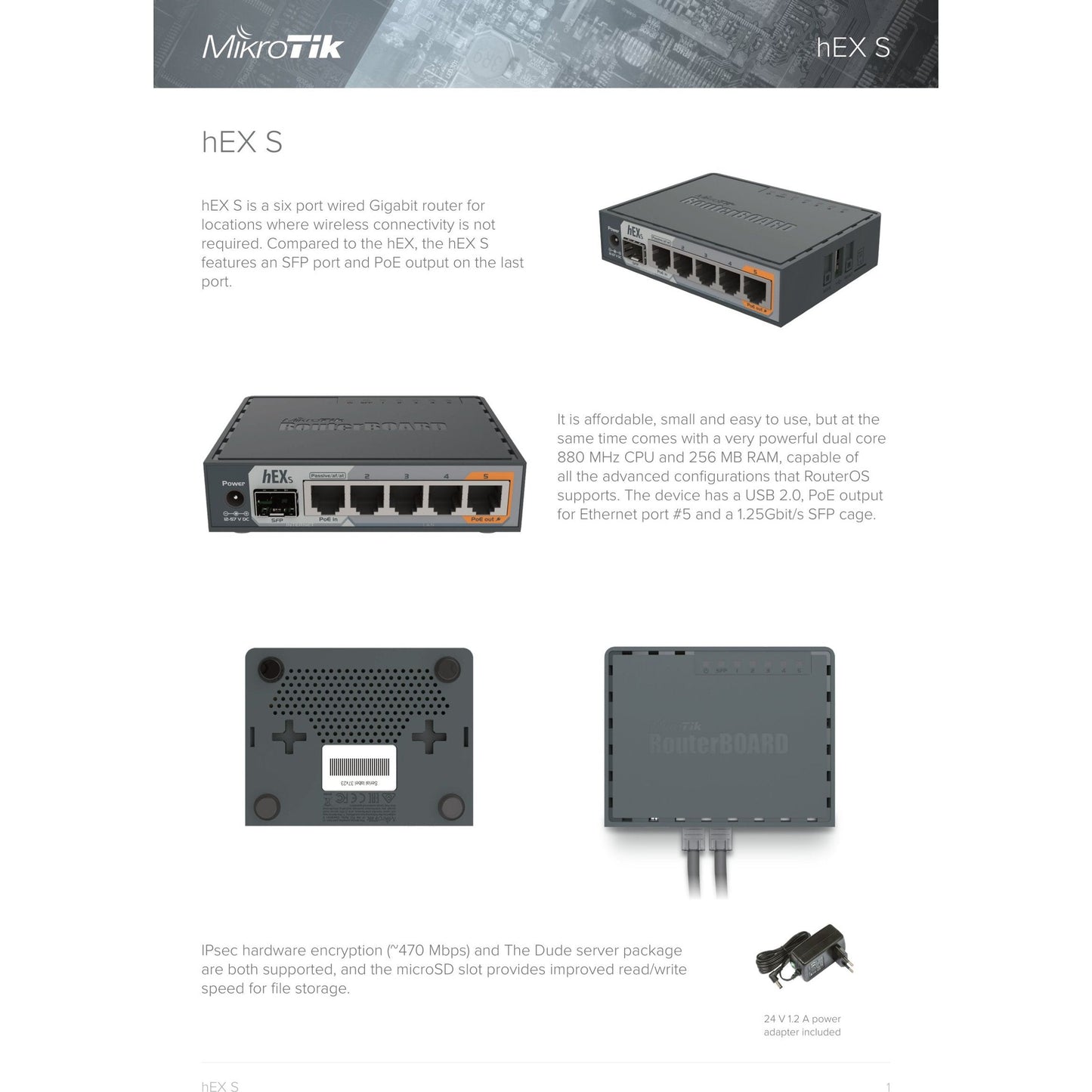

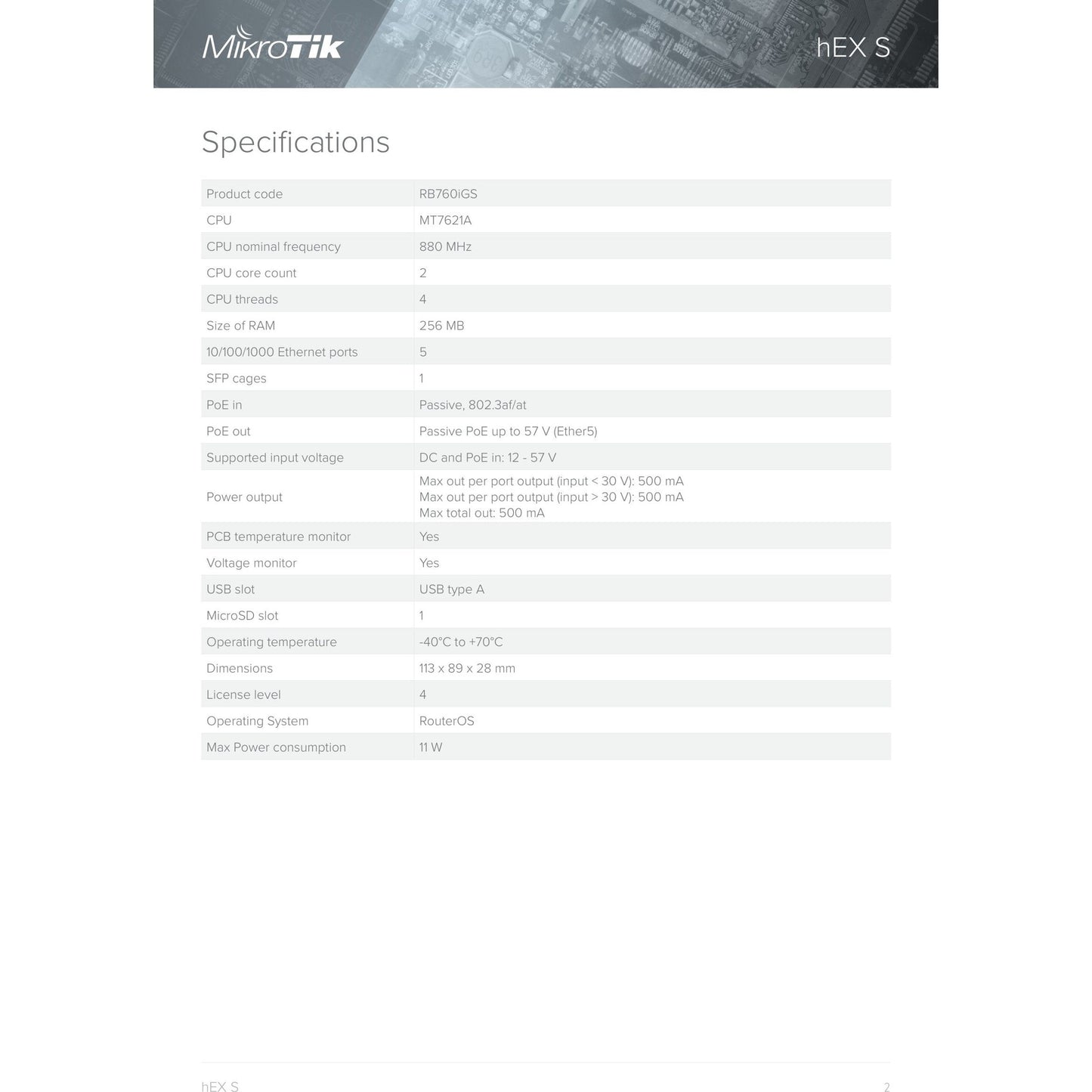

For more in-depth information, zoom in on picture of data sheet.
SKU | RB-HEXS |
---|---|
Manufacturer | MikroTik |
Manufacturer Product Code | RB760iGS |
