MikroTik LtAP Mini LTE Kit Dual SIM and GPS Router | RB912R-2nD-LTm&R11e-LTE

MikroTik LtAP Mini LTE Kit Dual SIM and GPS Router | RB912R-2nD-LTm&R11e-LTE

Regular price R 3,581.00
Regular price Sale price R 3,581.00
Sale Sold out
Tax included. Shipping calculated at checkout.

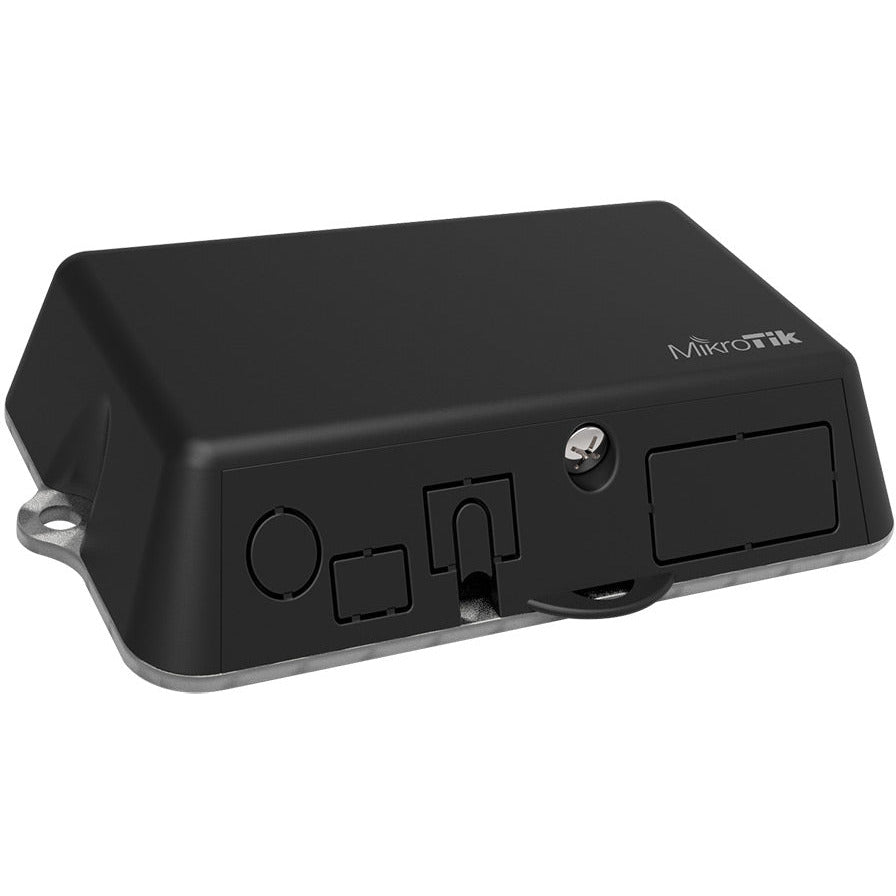

MikroTik's RB-LTAP is a small weatherproof wireless access point with integrated LTE antennas and a miniPCI-e slot.

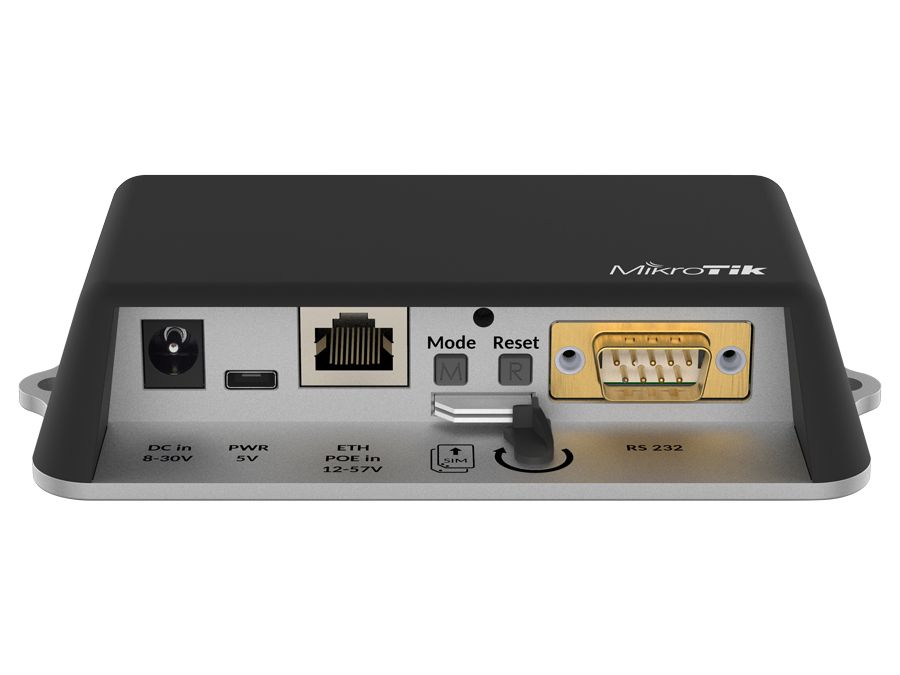

The LTAP mini has one 10/100 Ethernet LAN port for your wired devices and an RS232 serial port gives you console access for debugging.

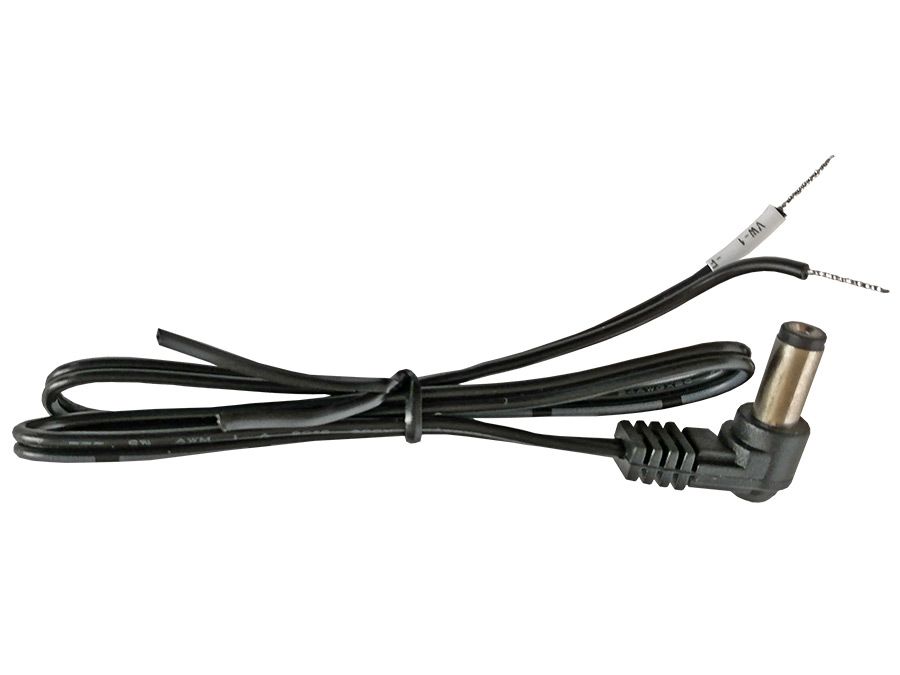

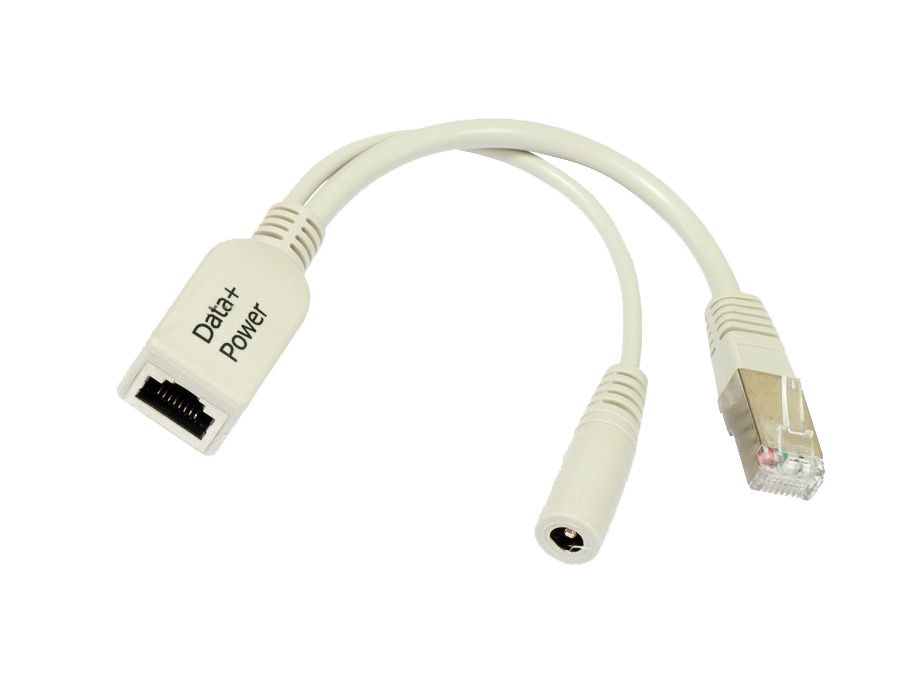

The unit has several powering options: 8-30V via the DC Jack, Passive and 803.3af PoE via the Ethernet port or power it up using the 5V microUSB.

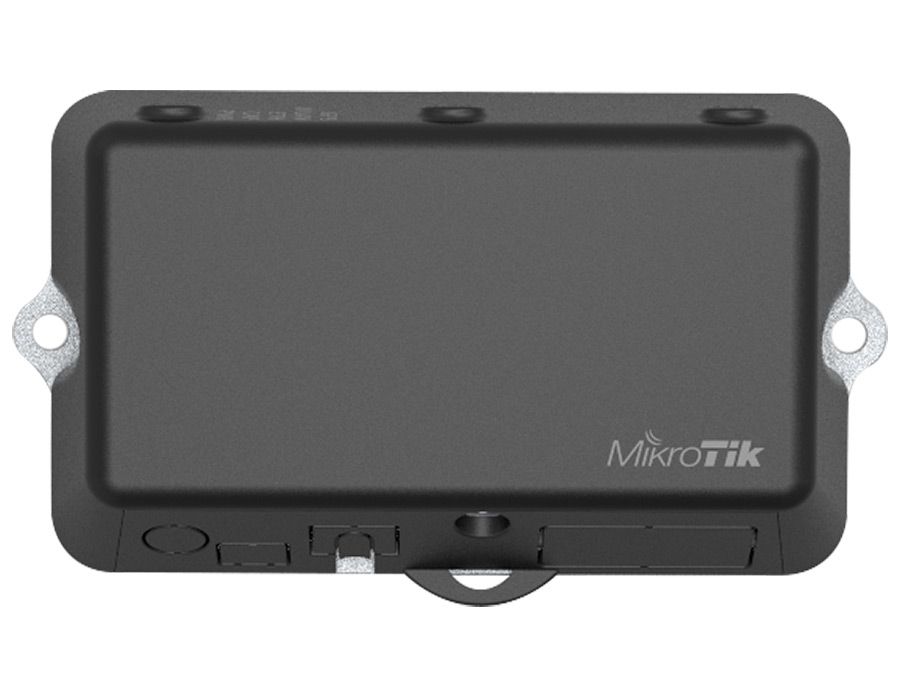

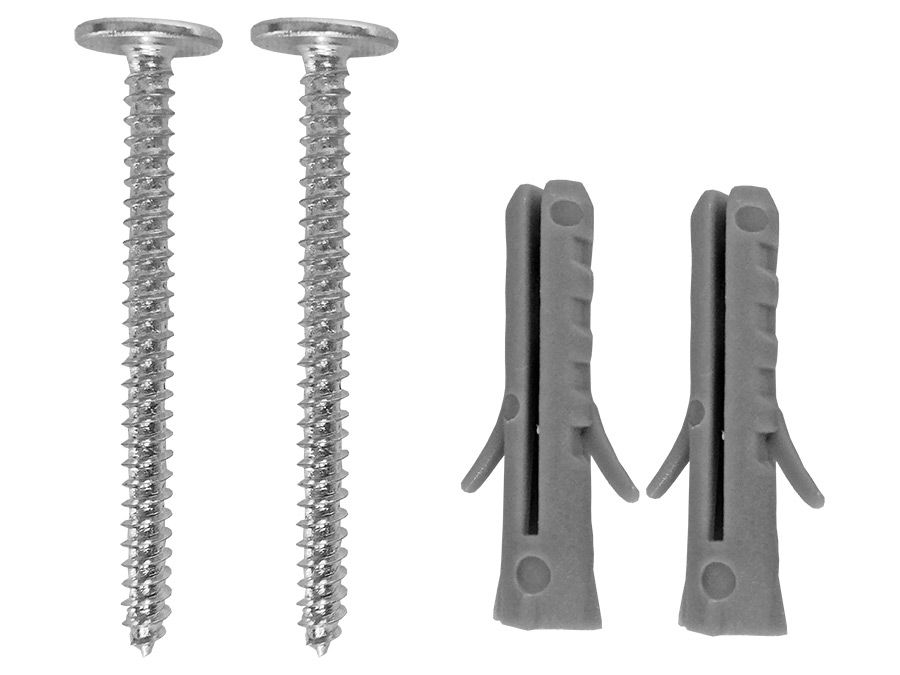

LTAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built-in GPS module to track the location of your vehicle in real-time.

Combine this with ANT-MLTE to improve signal and performance or RB-GPS for use as a tracking solution.


Antenna Gain: LTE: 3.5dBi (with UFL connector); Wireless: 1.5dBi
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink ; Wireless: 2.4GHz 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset; Mode
Max. Power Consumption: 9W
Mounting: Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 10V-57V (Passive PoE and 802.3af/at)
PoE Output: None

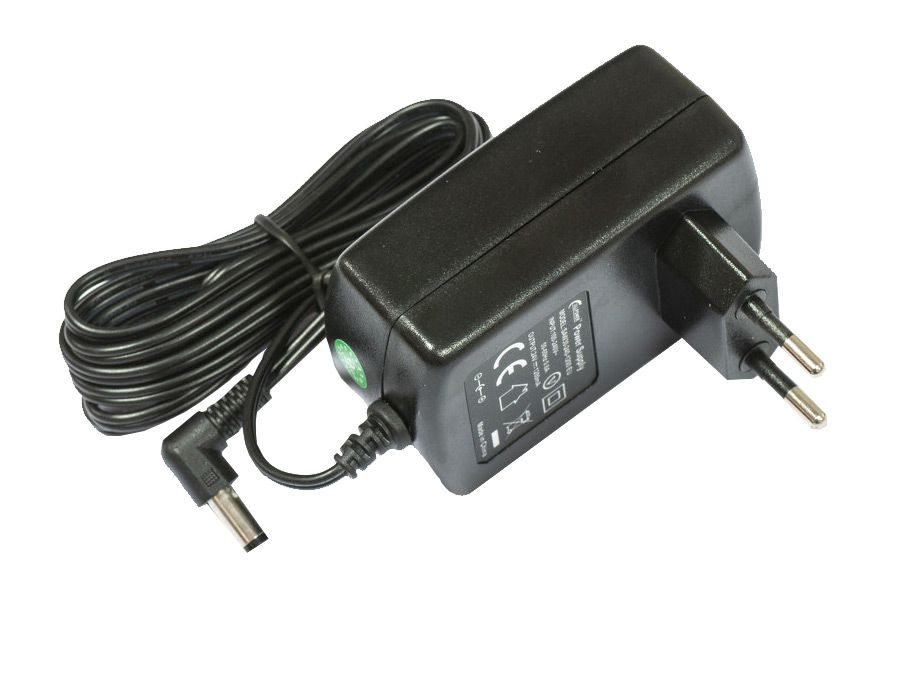

Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: 1x RS232
SIM Slots: 2 Mini SIM slots
Supported Voltage Range: PoE in: 10V-57V (Passive PoE and 802.3af/at with unshielded cable) DC jack: 8V-30V or Micro USB: 5V
USB Ports: None

Dimensions: 139 x 77 x 28.5mm

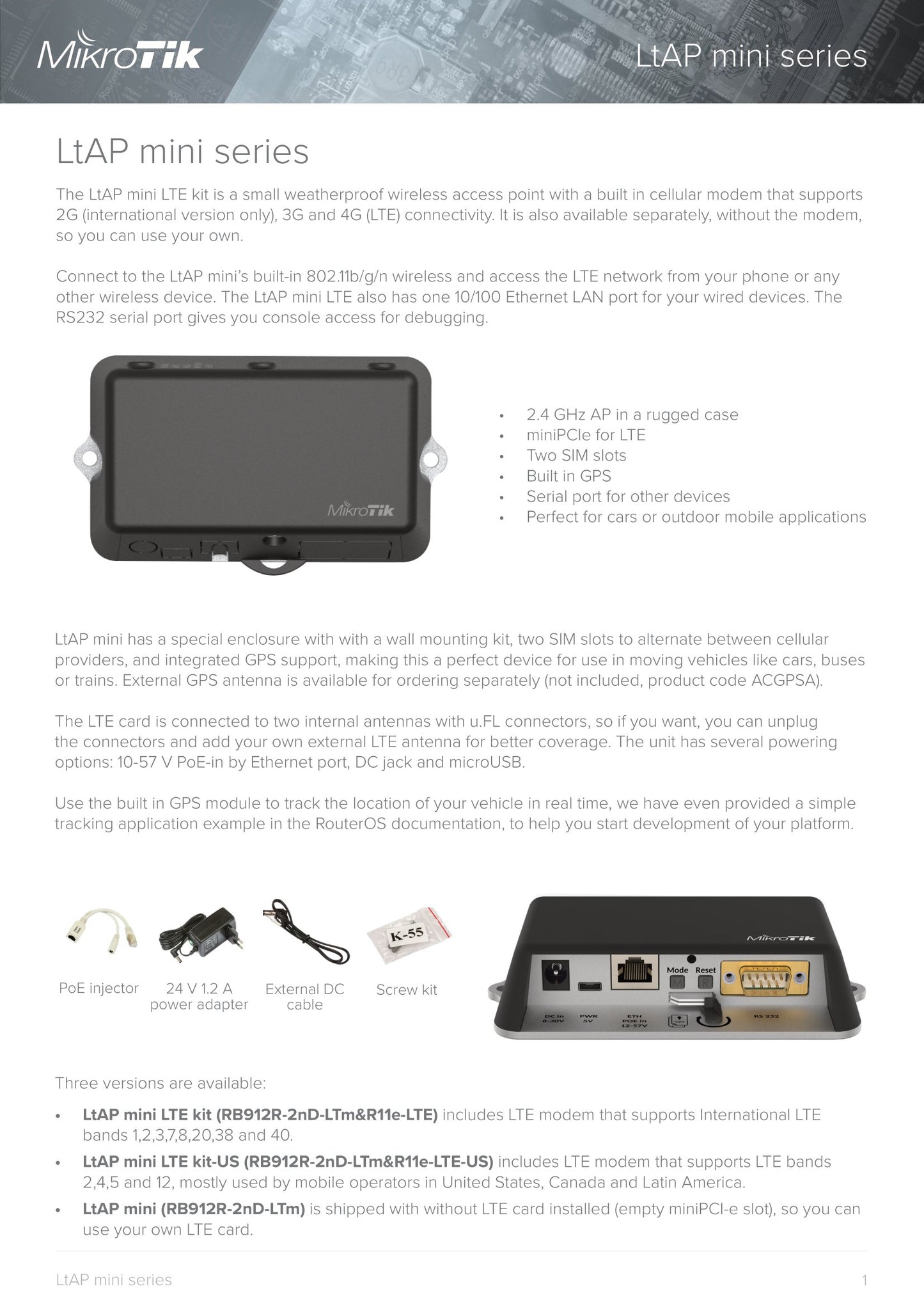

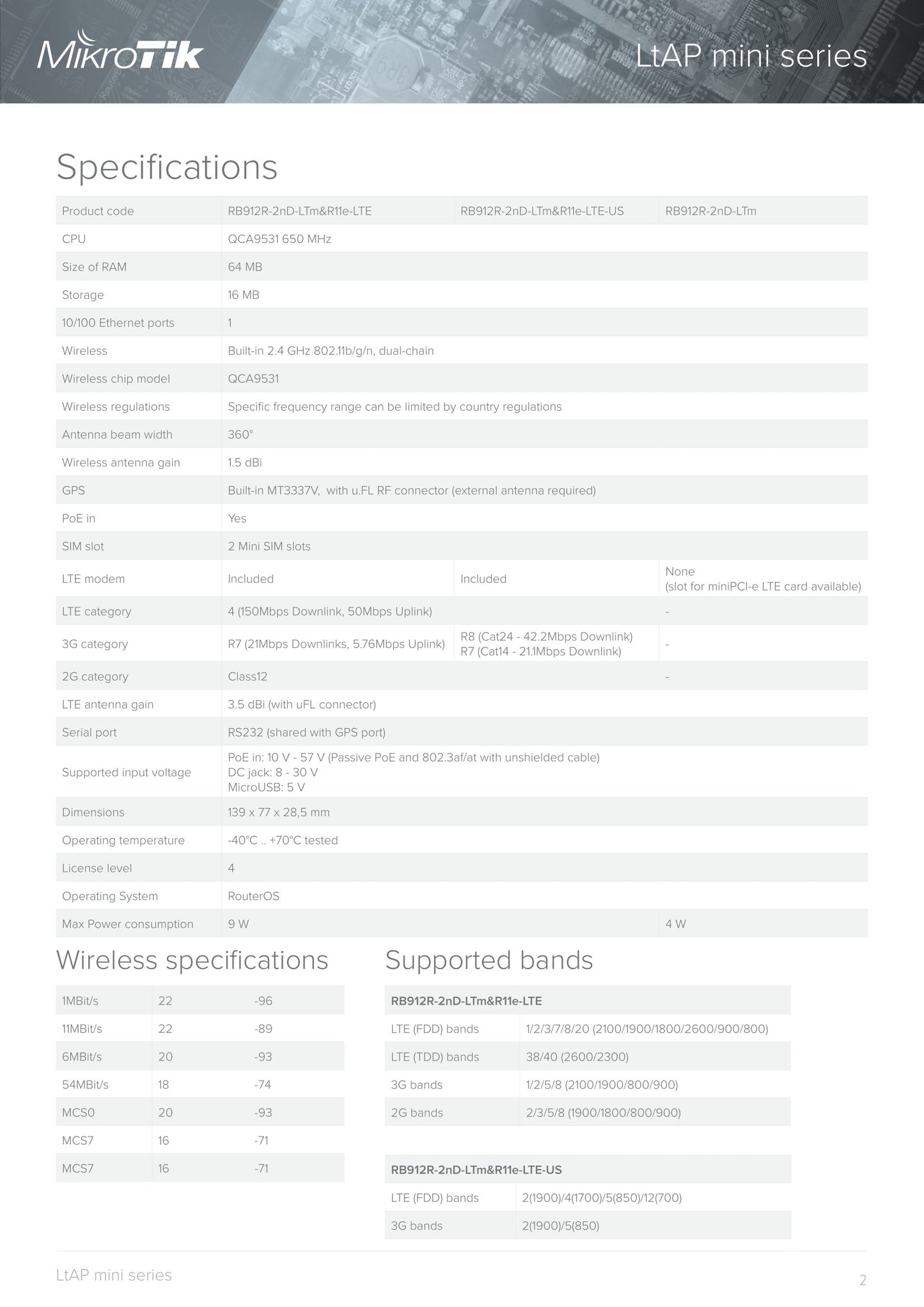

For more in-depth information, zoom in on picture of data sheet.

Manufacturer MikroTik
Manufacturer Product Code RB912R-2nD-LTm&R11e-LTE
