MikroTik netPower 16P 16 PoE Output 2 SFP+ Outdoor Switch | CRS318-16P-2S+OUT
MikroTik netPower 16P 16 PoE Output 2 SFP+ Outdoor Switch | CRS318-16P-2S+OUT

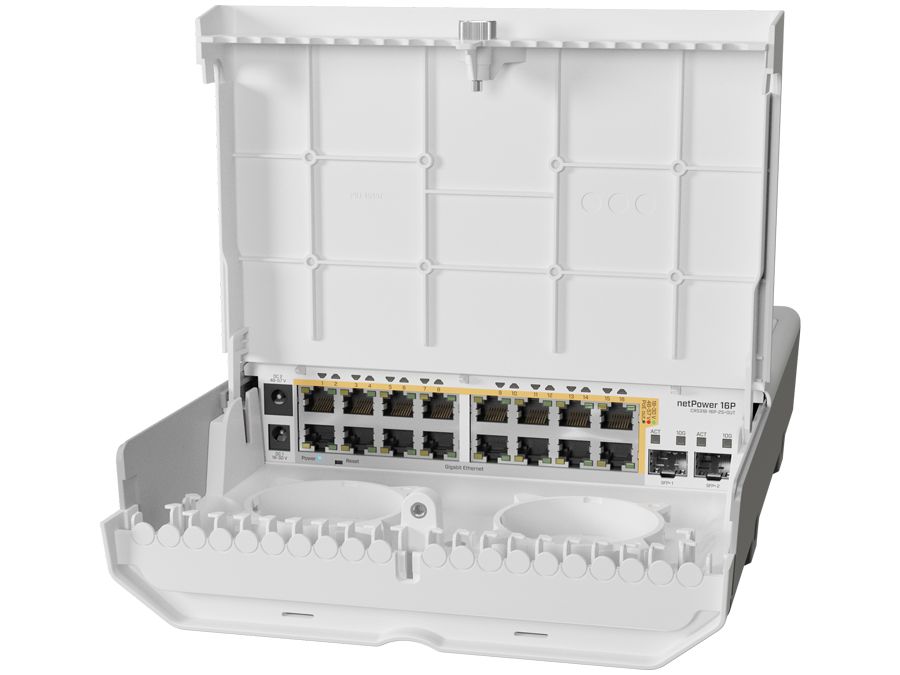

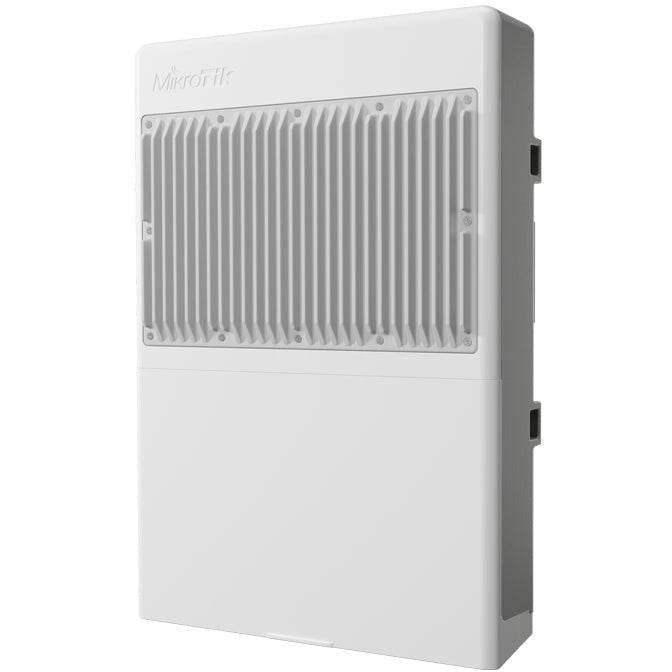

MikroTik's RB-NETPOWER16P is an outdoor 18 port switch.

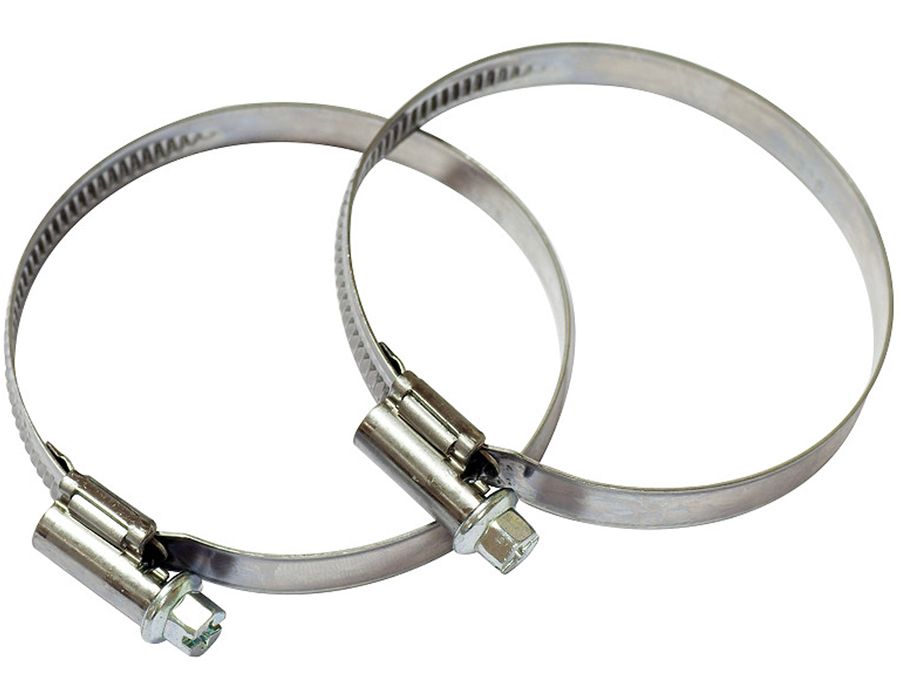

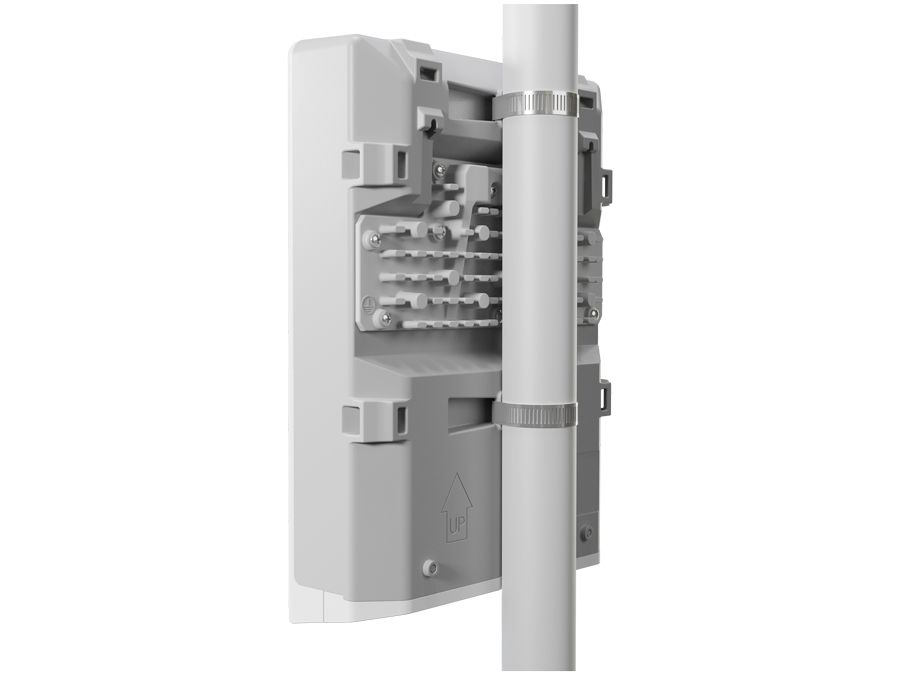

It has 16x Gigabit Ethernet Ports, with PoE-out, and 2x SFP+ ports for 10G fibre uplinks. The sturdy and compact design allows this switch to be mounted in various environments, from damp attics and shafts to towers, masts and poles with the included hose clamps.
This product does not support voltage conversion but rather makes use of separate 24V and 48V input power supplies.
The netPower will automatically select the correct PoE standard and voltage based on the devices connected to each port.
This can also be configured manually on the product interface.
*Note:
A power supply is not included with this product and must be purchased separately.
Specifications
Ethernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Pole-Mount
Operating System: RouterOS Level 5 License
Operating Temperature: -40°C to 70°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 16
Power Input: 2x DC Jacks (18V-30V or 48V-57V)
Processor: 98DX226S
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 18V-30V or 48V-57V
System Memory: 16MB
USB Ports: None
Dimensions: 303 x 212 x 78mm

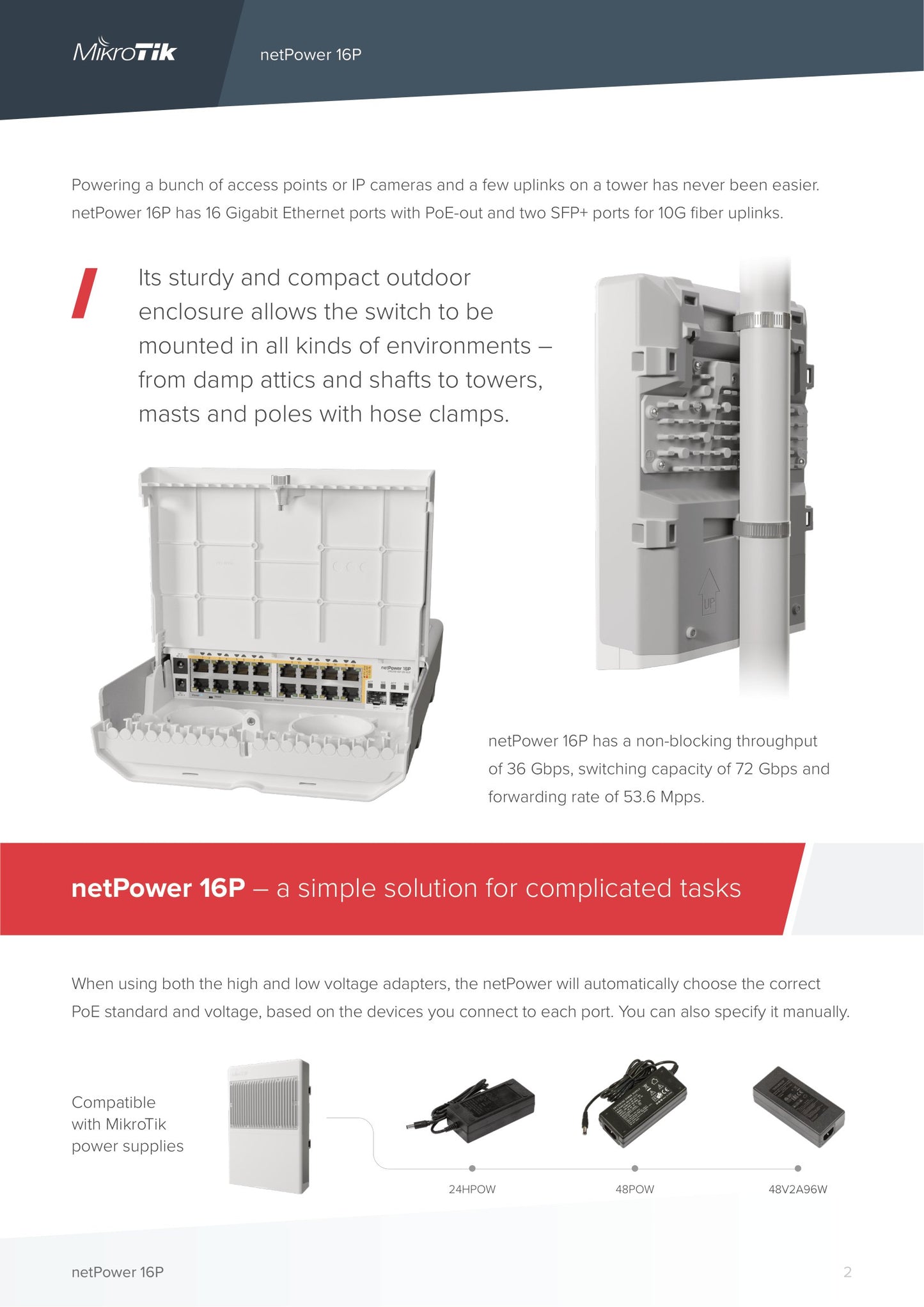

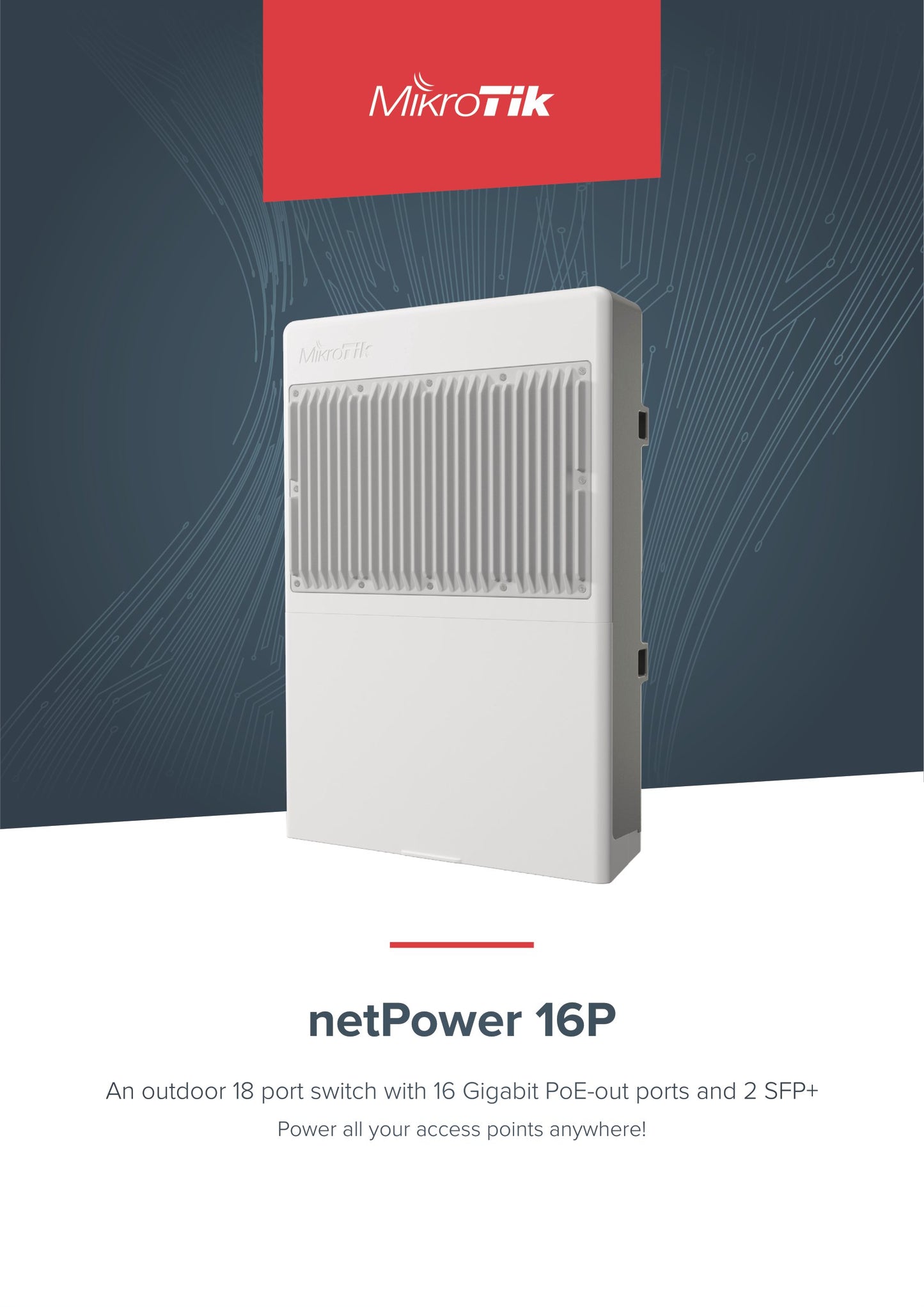

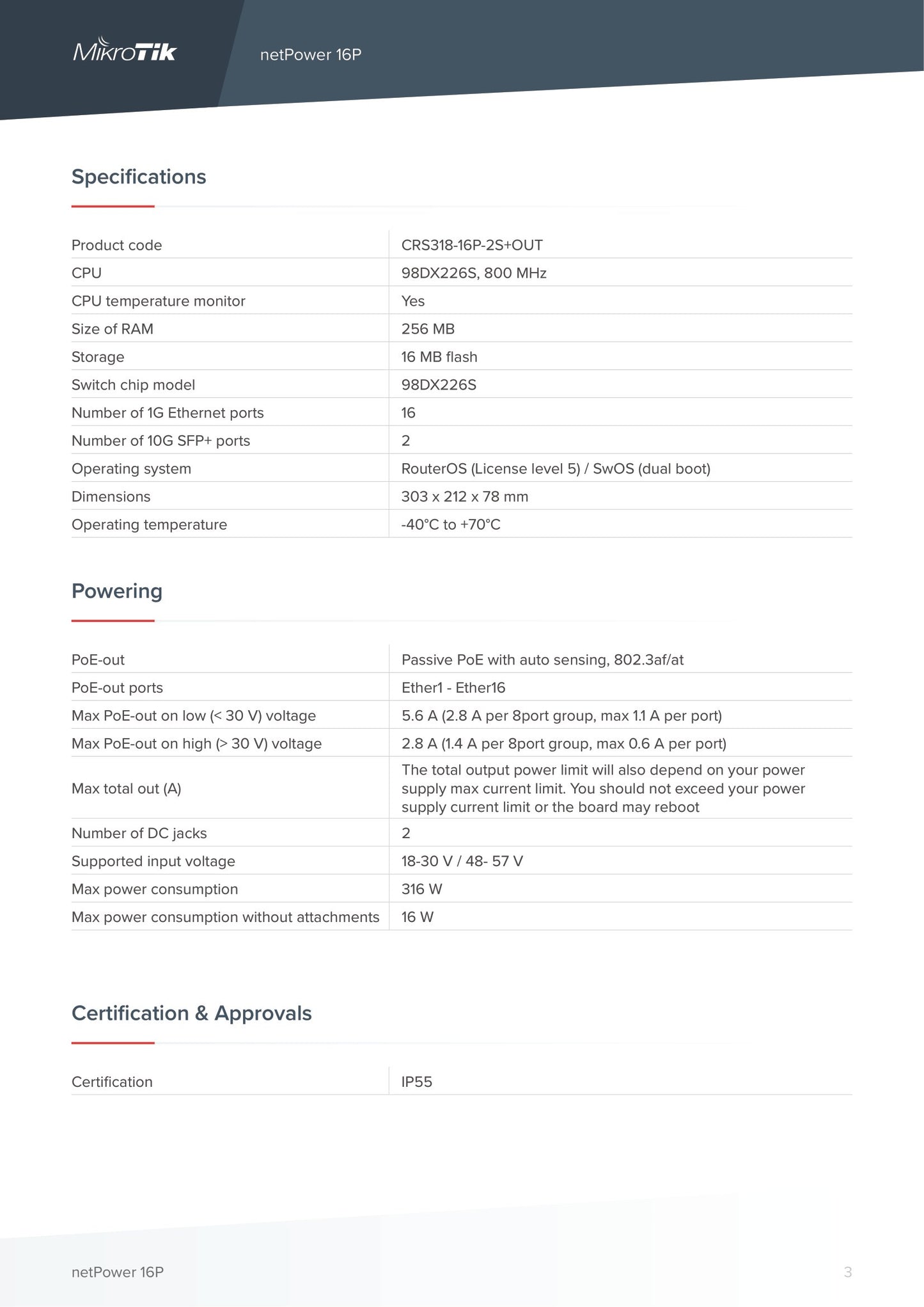

For more in-depth information, zoom in on picture of data sheet.
SKU | RB-NETPOWER16P |
---|---|
Manufacturer | MikroTik |
Manufacturer Product Code | CRS318-16P-2S+OUT |
