MikroTik QuickMount Pro for Light Head Grid | QMP-LHG

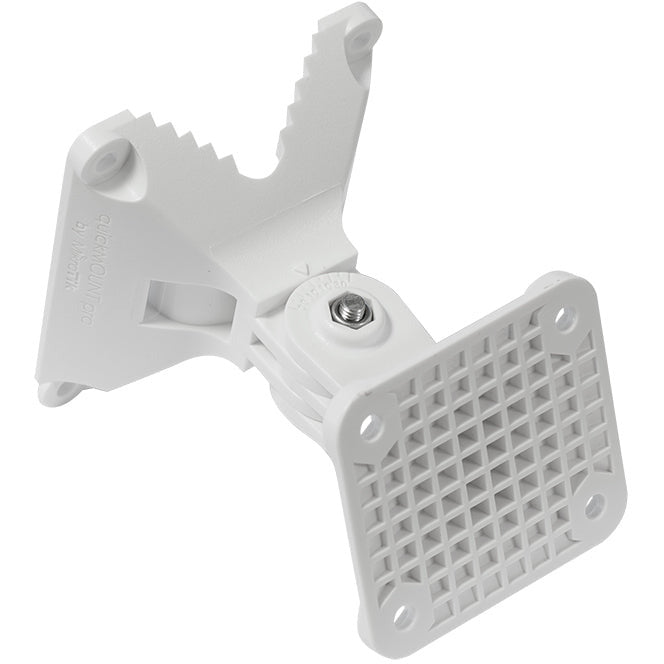

MikroTik's RB-QMP is an advanced wall mount adapter for MikroTik's LHG antennas.

You can mount it on the wall or use it as an adapter from a large diameter pole to a small-sized antenna mounting clip to ensure reliable fitment.

The quickMOUNT pro makes it possible to adjust an antenna within 140° in both, horizontal and vertical planes.
With the quickMOUNT pro it is possible to set a perfectly aligned antenna using an integrated graduated scale.
The quickMOUNT is very durable due to its special plastic composite material - anvilNITE (TM).

Specifications

Antenna Weight (Max): 1.5kg
Compatible MikroTik Devices: LHG Series
Tube Diameter: No pole-mount attachment included
Maximum Mast Diameter (Mount Attachment): 65mm
Maximum Wind Load: 100N

Dimensions: 95 x 88 x 112mm; 74 x 81mm (mounting hole pattern)

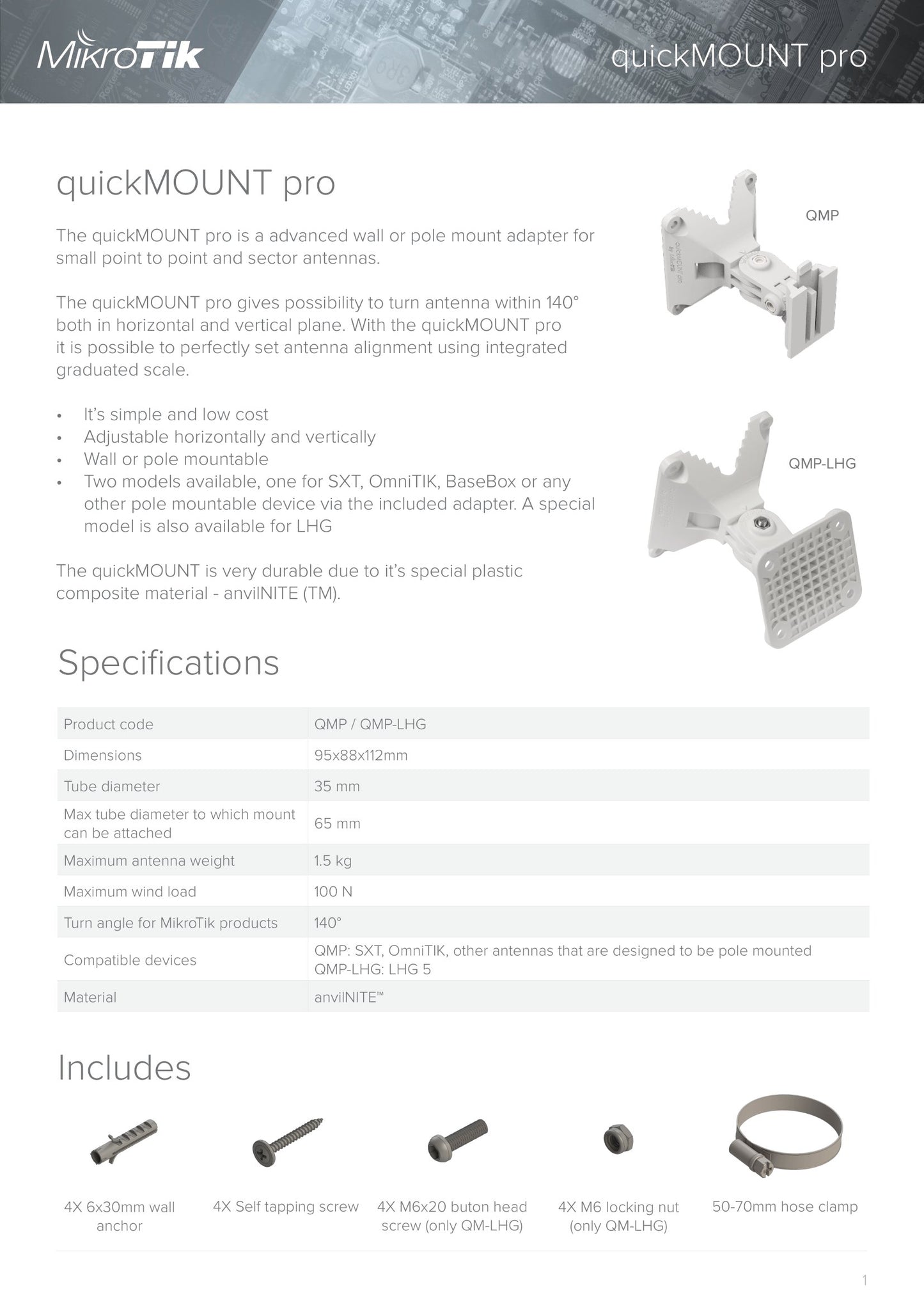

For more in-depth information, zoom in on picture of data sheet.
