Scoop 10 Port Gigabit 8 AI PoE 96W Switch
Scoop 10 Port Gigabit 8 AI PoE 96W Switch

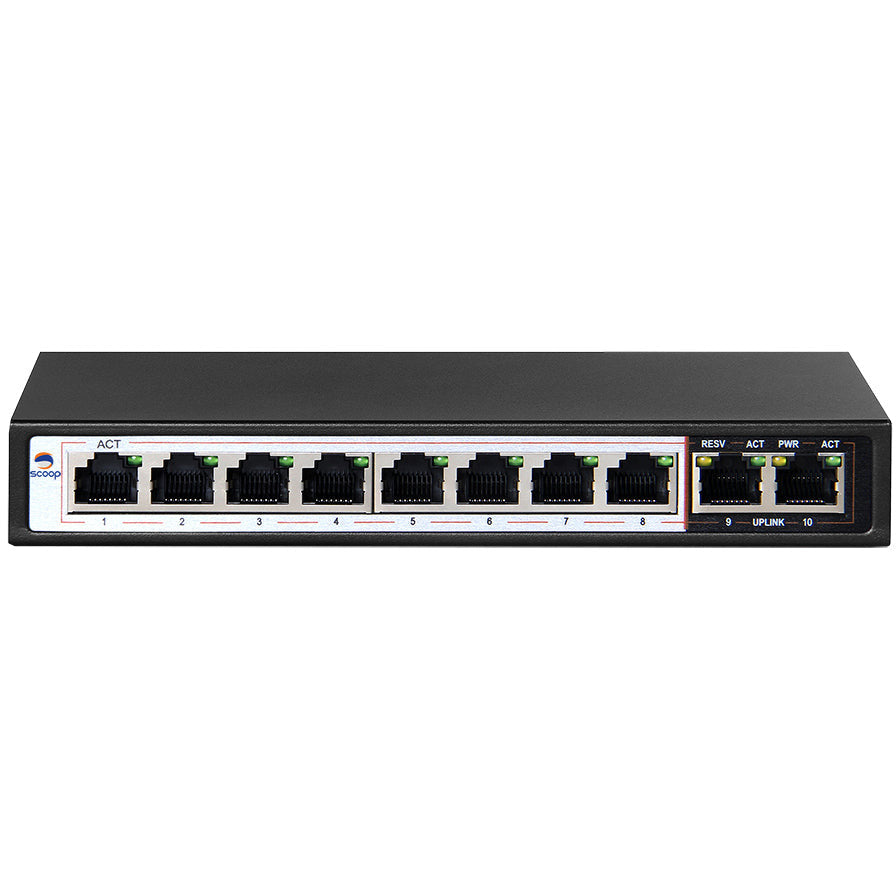

Scoop's SPS-8G2G is an unmanaged 8 port Gigabit Ethernet AI PoE switch with 2x Gigabit Ethernet Uplink Ports.
Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power.
Total maximum PoE budget is 96W and the maximum budget per port is 36W.
The SPS-8G2G supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on Port 1-8.
AI Extend Mode: Transmission distance of ports 1-8 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
AI QOS: Priorities network bandwidth based on network usage history & analytics.
Specifications

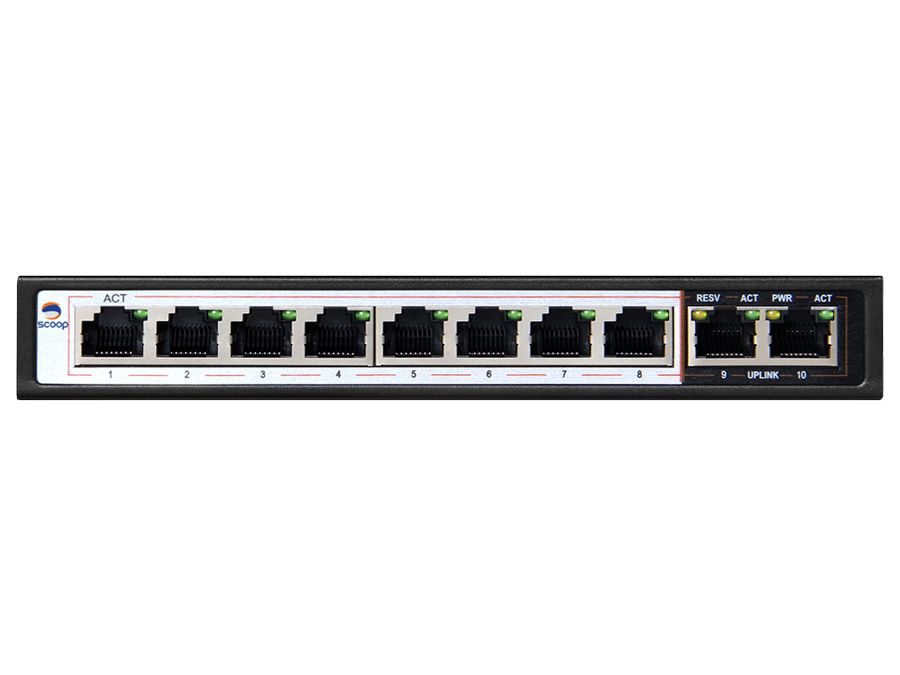

Ethernet Ports: 10x 10/100/1000

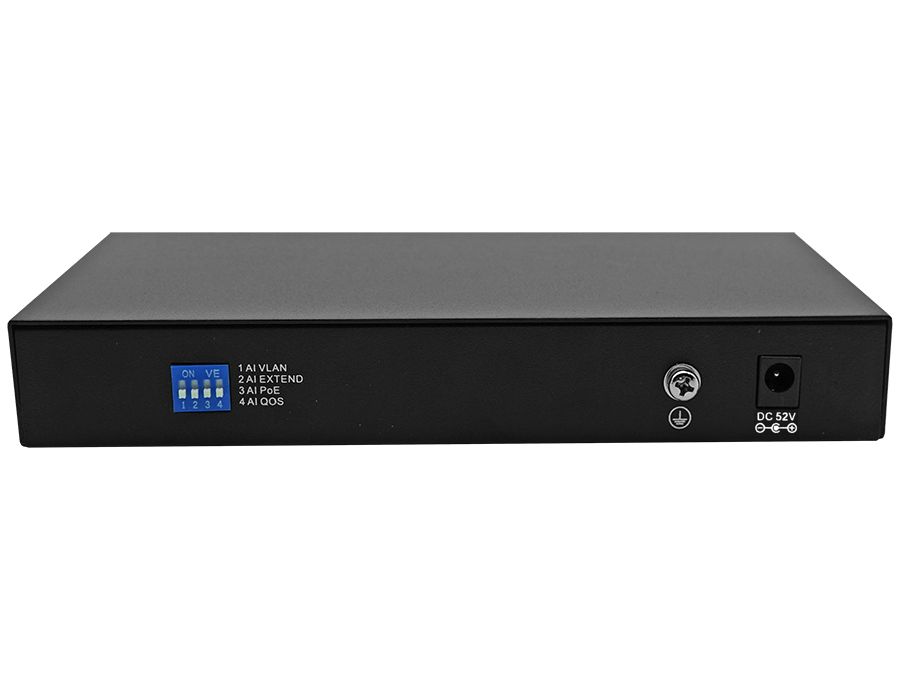

Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8

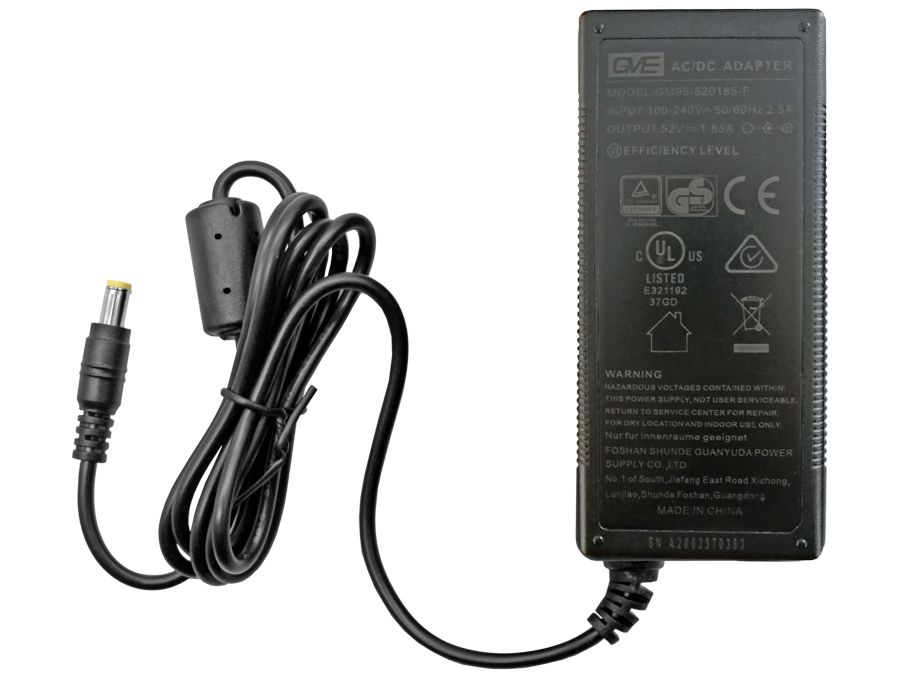

Power Input: 52V 1.85A Power Adapter (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 52V
Dimensions: 184 x 94 x 27mm

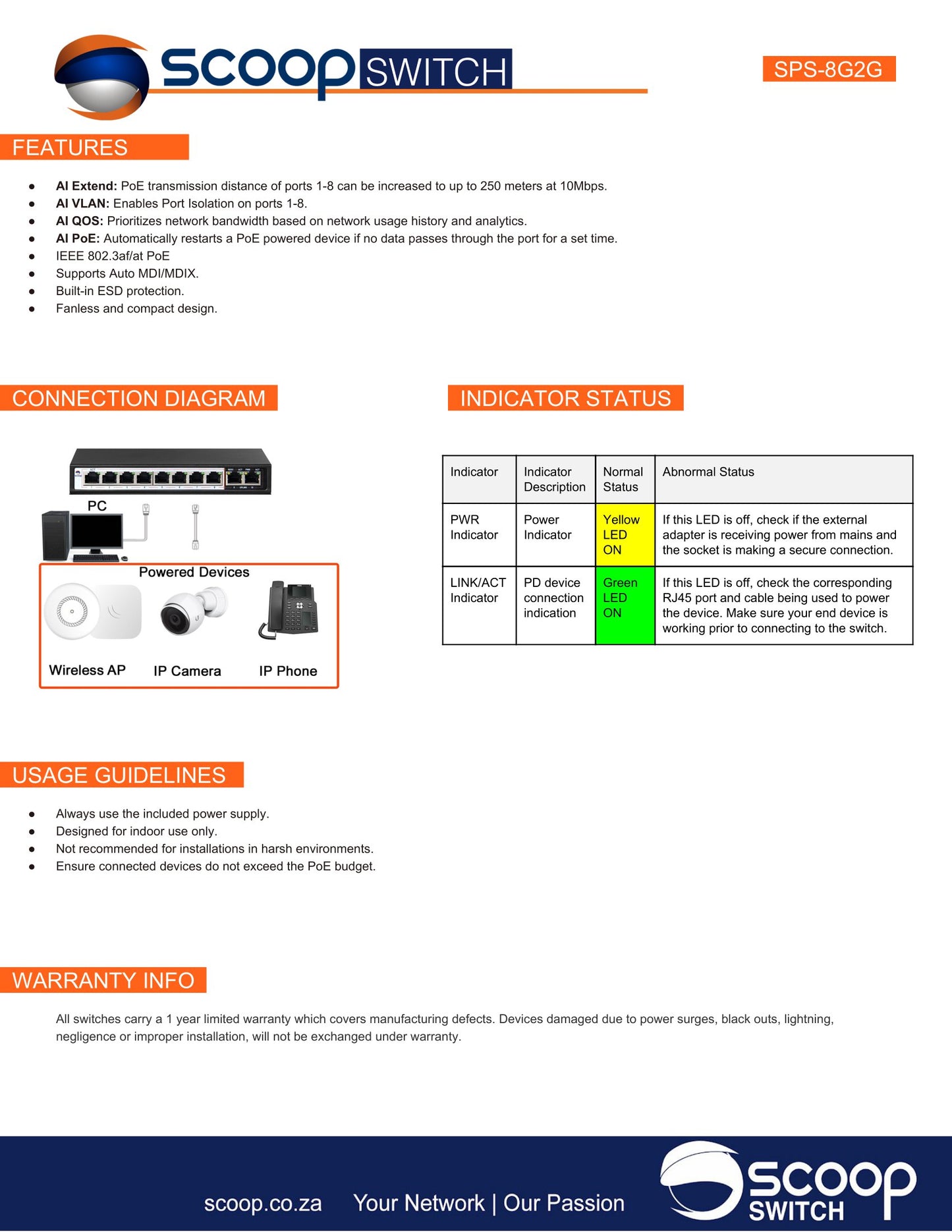

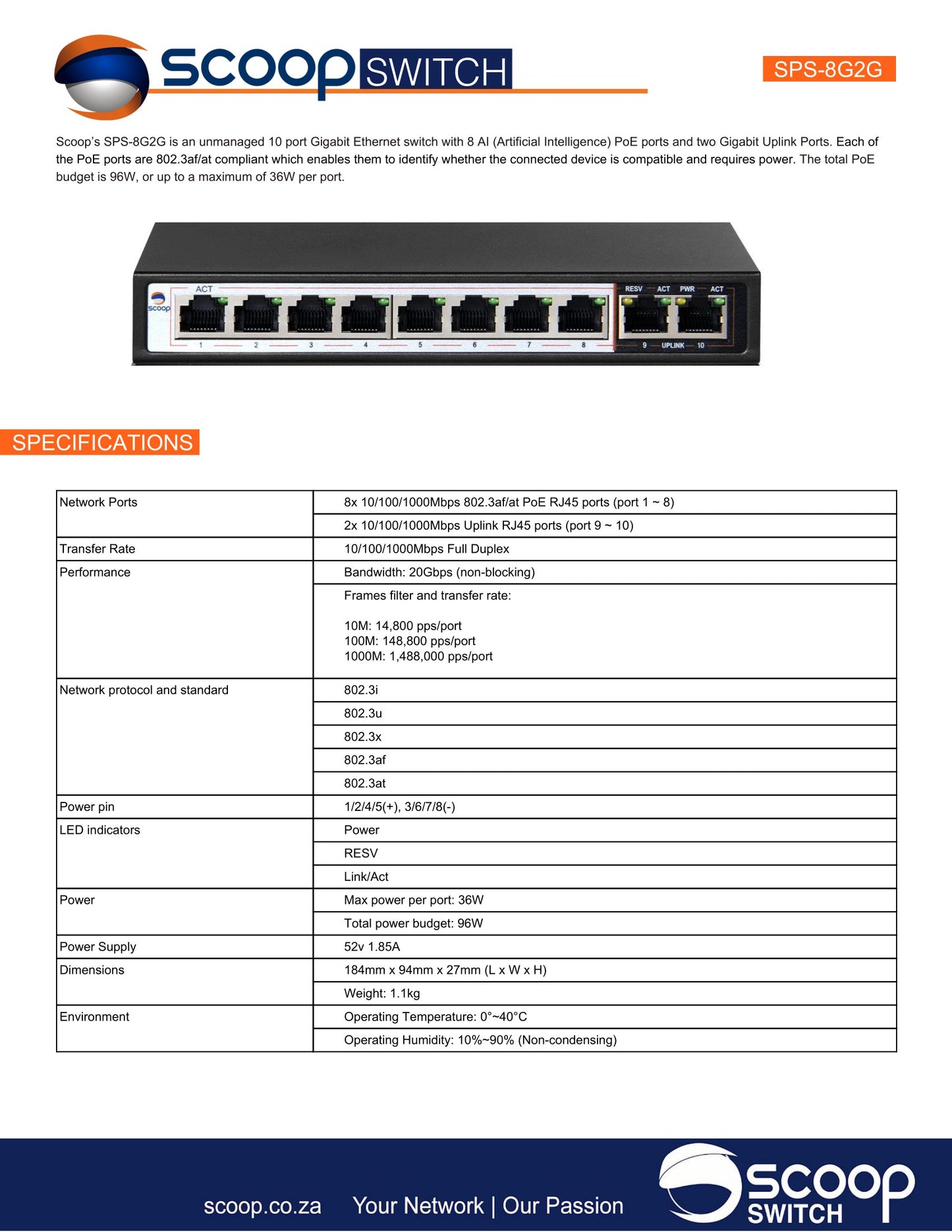

For more in-depth information, zoom in on picture of data sheet.
SKU | SPS-8G2G |
---|---|
Manufacturer | Scoop |
