Scoop 42U 800mm Deep Outdoor Cabinet with 4 fans
Scoop 42U 800mm Deep Outdoor Cabinet with 4 fans

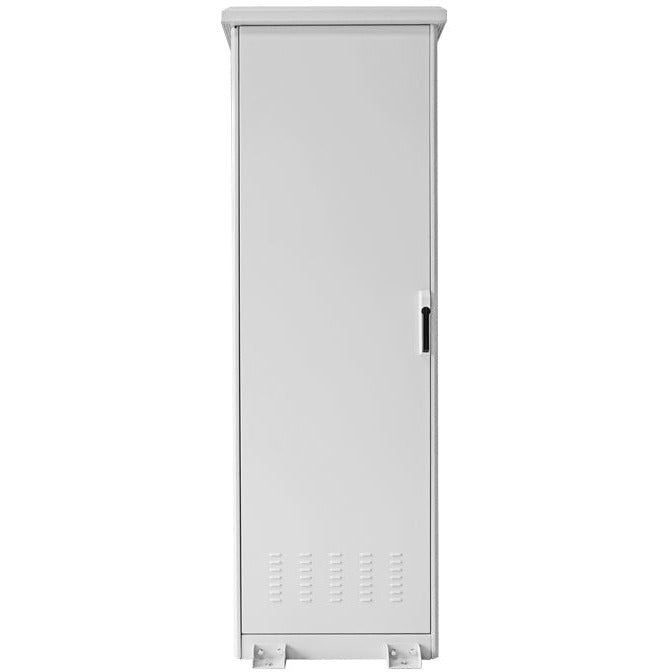

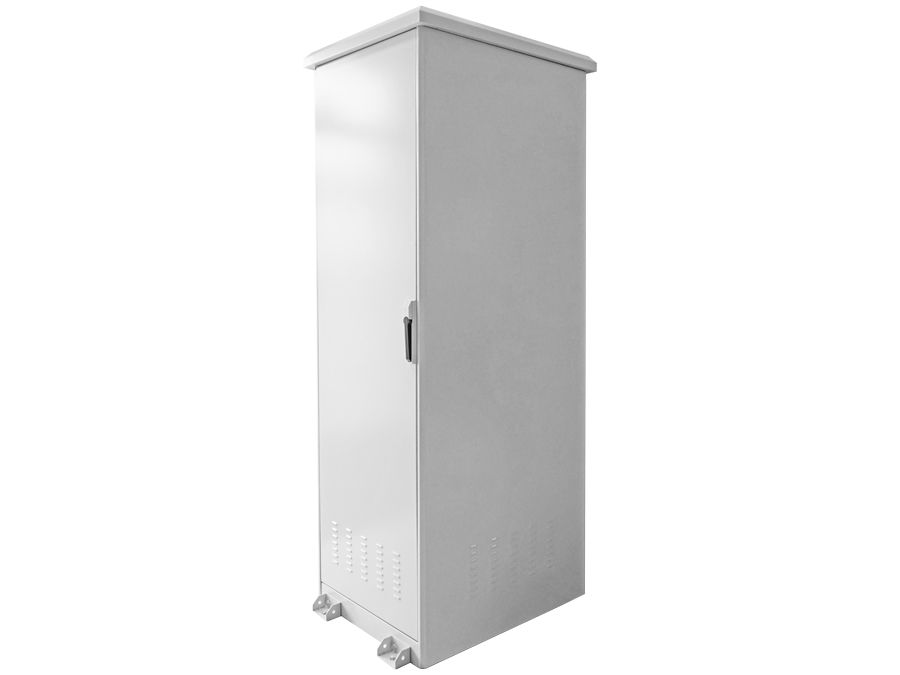

Scoop's CAB-42UO is manufactured from electro-galvanized cold rolled steel and is phosphate & powder-coated to protect against water corrosion.

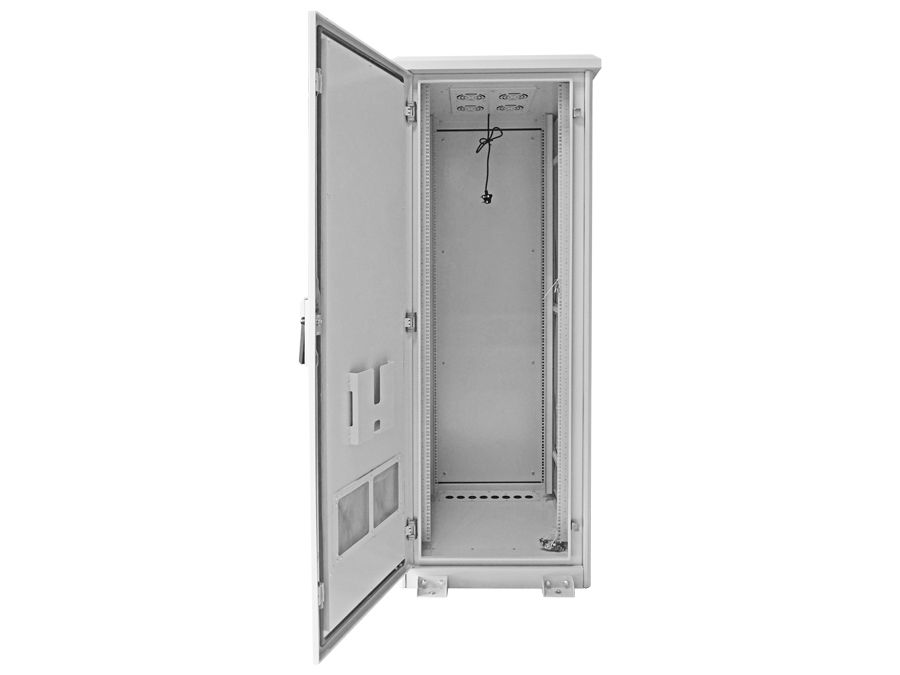

This unit has a solid front door with additional foam rubber padding to ensure a water-and-dust-tight seal when closed.

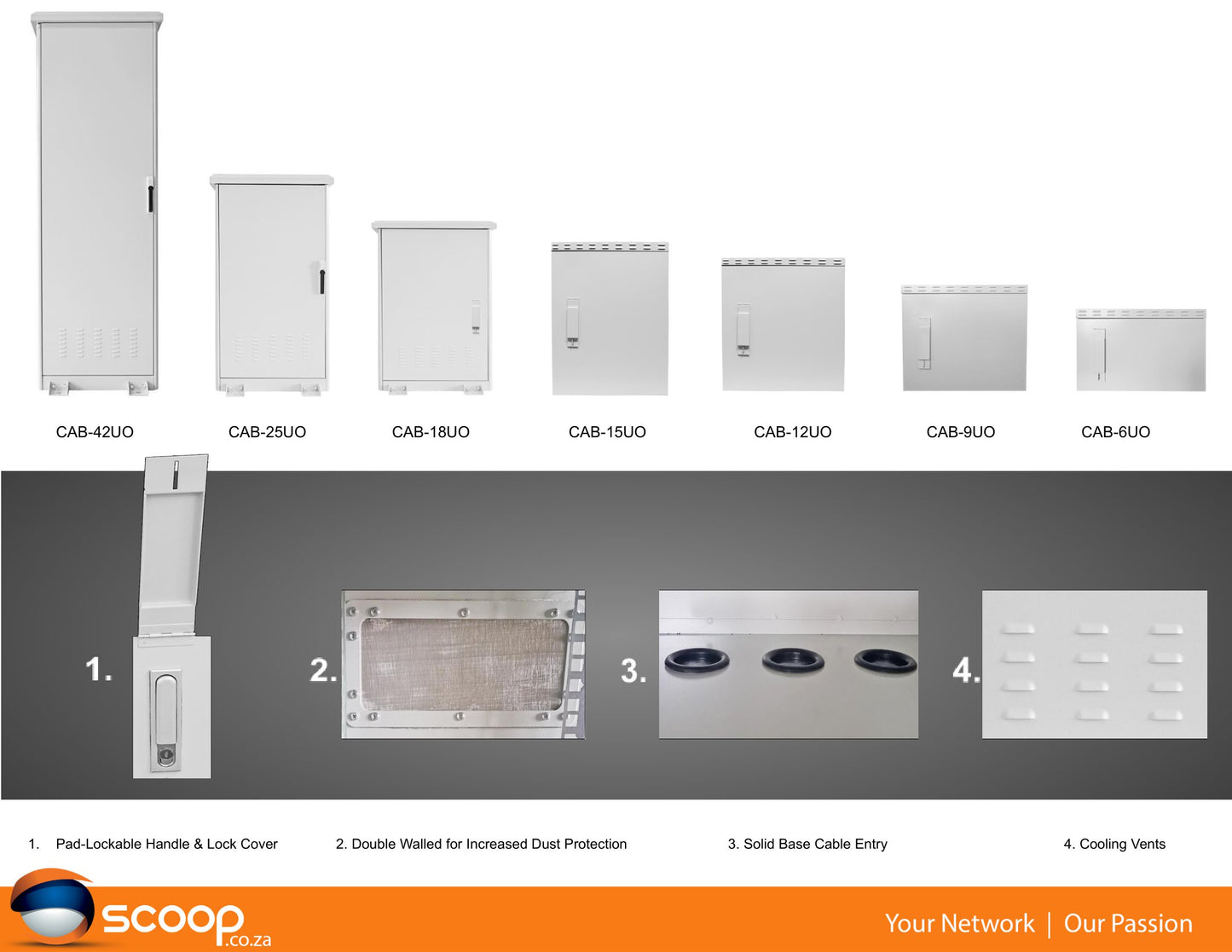

The vents on the front door, as well as side panels, have an additional metal mesh filter set into a double wall on the inside, adding to the dust resistance and cooling of the cabinet.
The cabinet has 4x ceiling mounted fans that pull the hot air into the roof and out of the cabinet via the vents to keep the equipment inside the cabinet cool.
The side vents further aid in the cooling of internal devices. Rubber glands allow for incoming cables from below.
The cabinet can be bolted to the floor to ensure that no intruders are able to move the cabinet from it's intended location.
*Note:
Supplied Assembled.
Specifications
Assembly: Supplied Assembled
Fans: 4
Material: Electro-Galvanised; Mild Steel; Powder-Coated
Mounting: Free Standing
Number of Glands: 8
Rating: Outdoor Weatherproof
Tray Compatibility: CAB-T300; CAB-T350*; CAB-T550*
* Requires upright adjustment
Dimensions: 2040 x 655 x 800mm (L x W x D)
Weight: 187.40kg
Volumetric Weight: 383.70kg

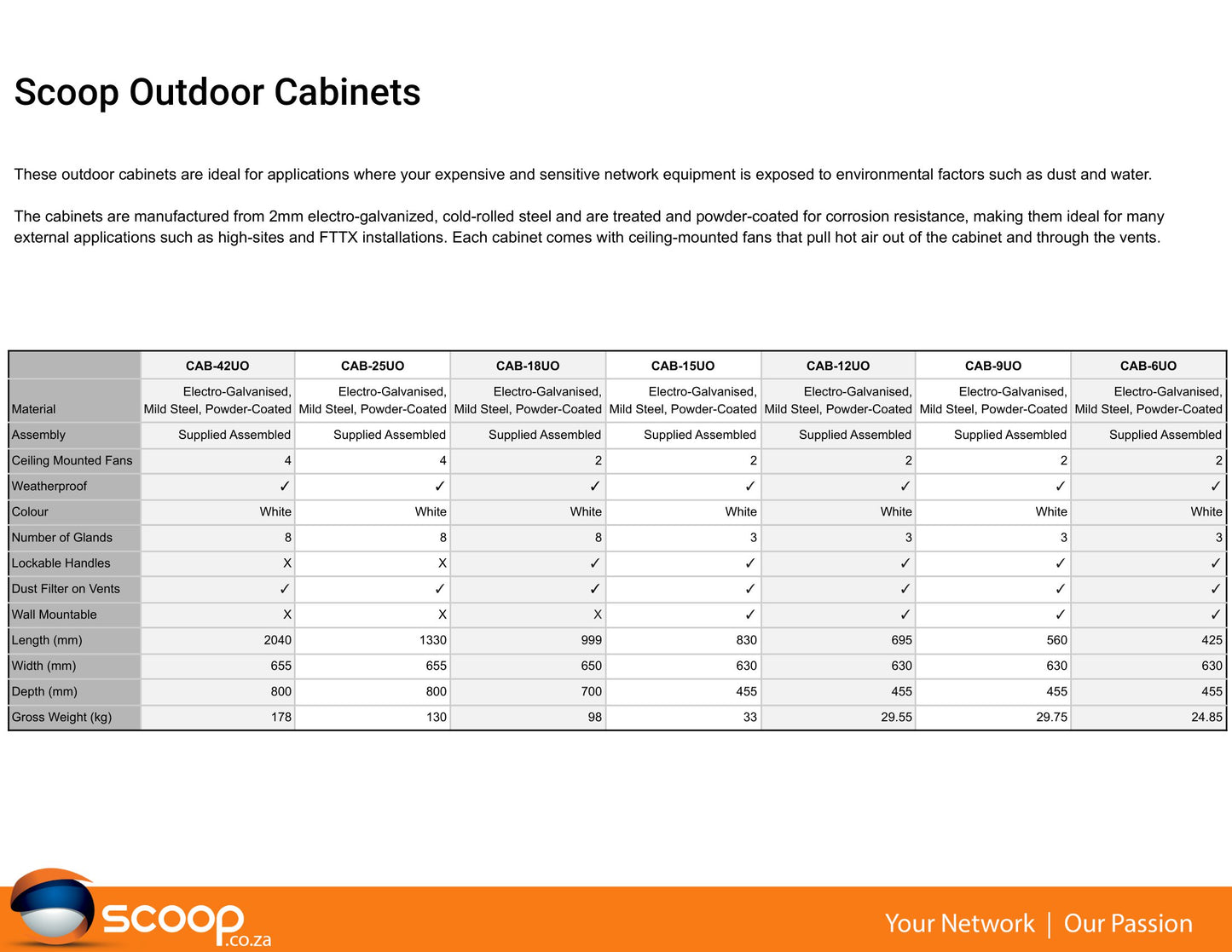

For more in-depth information, zoom in on picture of data sheet.
SKU | CAB-42UO |
---|---|
Manufacturer | Scoop |
