Mr Satellite

Scoop 6 Port Fast Ethernet 4 AI PoE 60W Switch

Scoop 6 Port Fast Ethernet 4 AI PoE 60W Switch

Regular price R 591.00
Regular price Sale price R 591.00
Sale Sold out
Tax included. Shipping calculated at checkout.

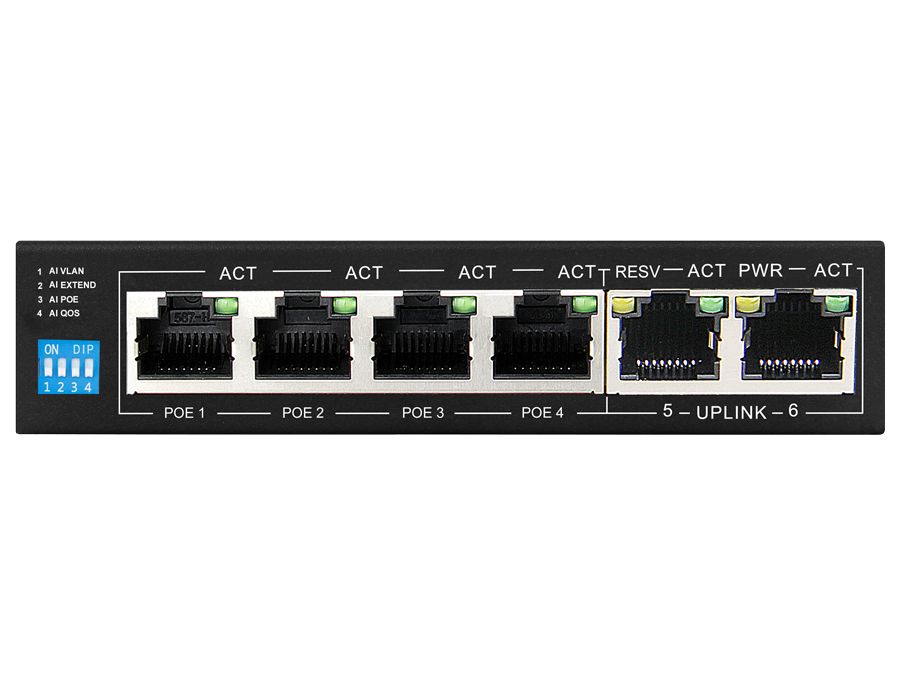

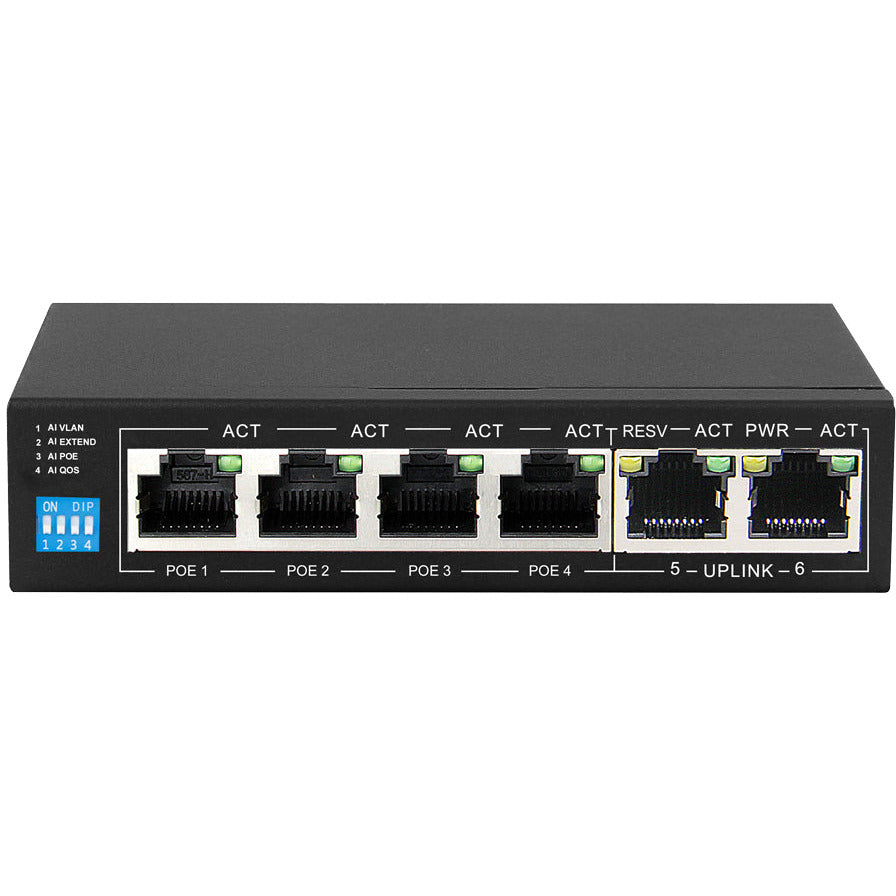

Scoops SPS-4F2F is an unmanaged 4 port Fast Ethernet AI PoE switch with 2x Fast Ethernet uplink ports.

Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power.
Total maximum PoE budget is 60W and the maximum budget per port is 36W.


The SPS-4F2F supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on port 1-4.
AI Extend Mode: Transmission distance of ports 1-4 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
AI QOS: Priorities network bandwidth based on network usage history & analytics.

Specifications

Ethernet Ports: 6x 10/100
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 3W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4

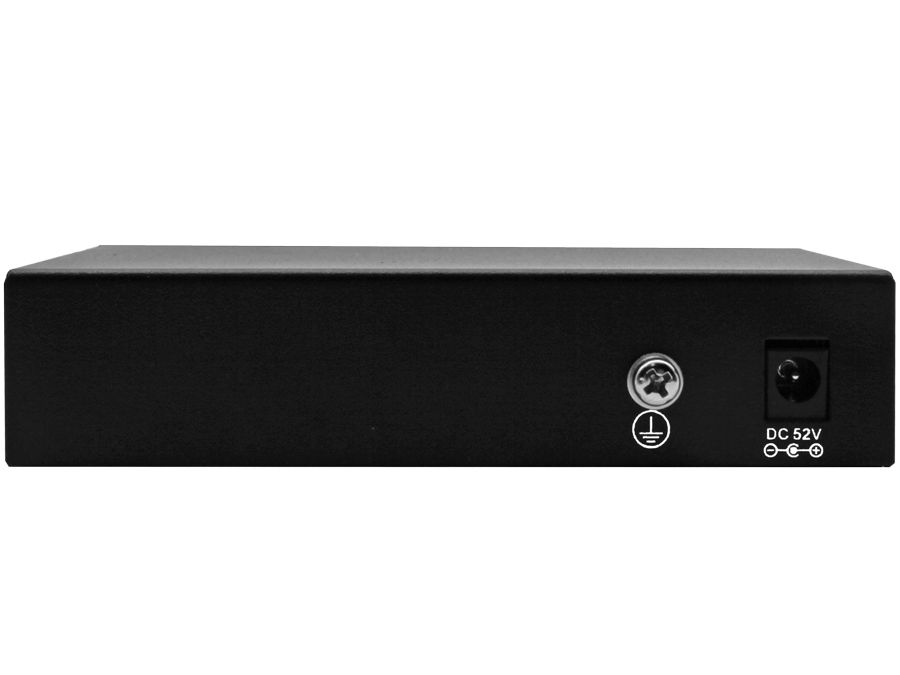

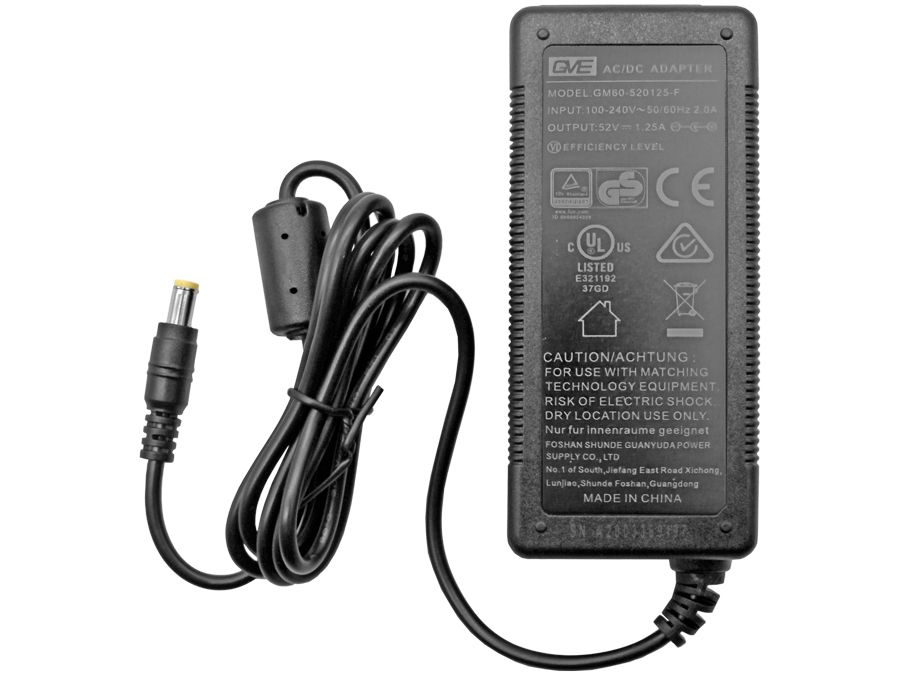

Power Input: 52V 1.15A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 52V

Dimensions: 125 x 75 x 27mm

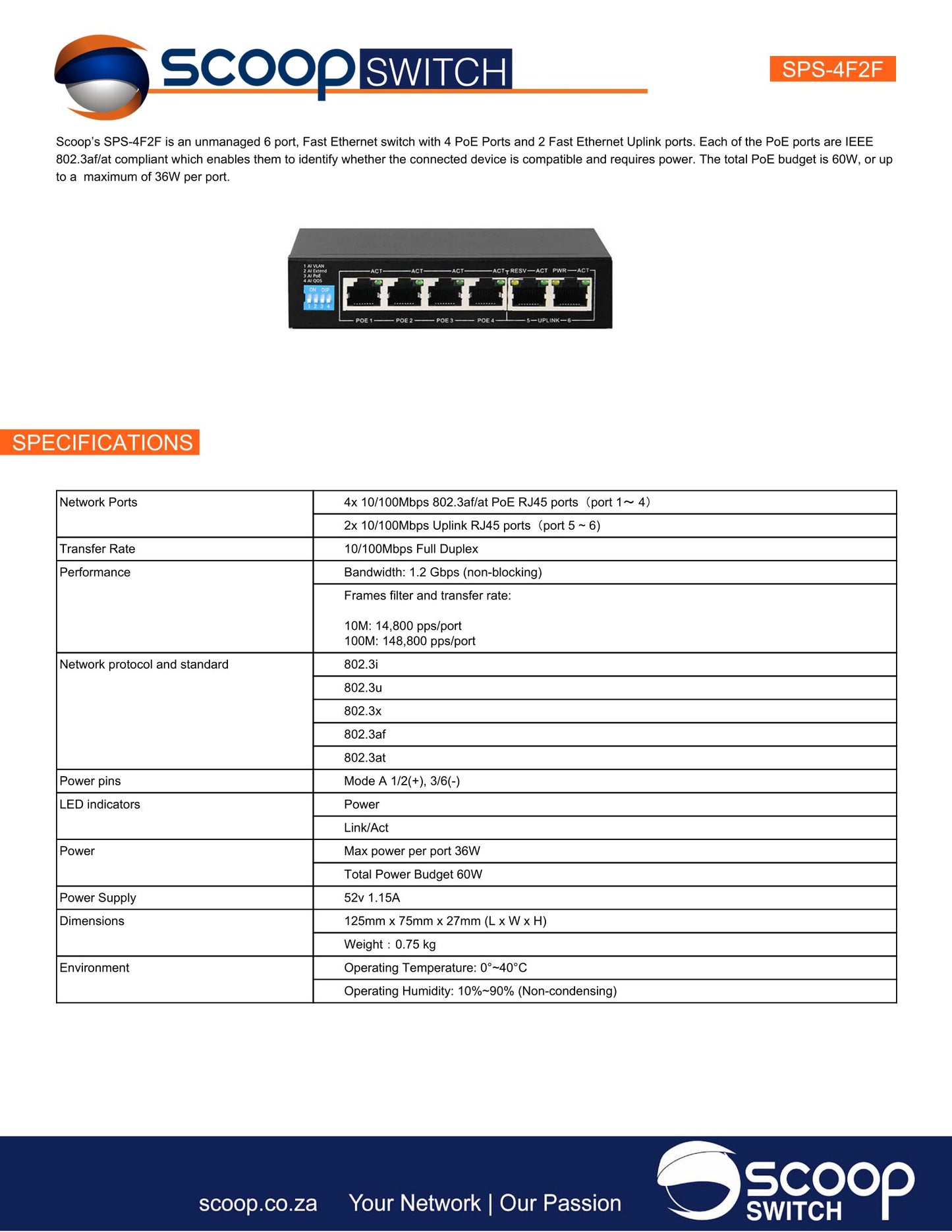

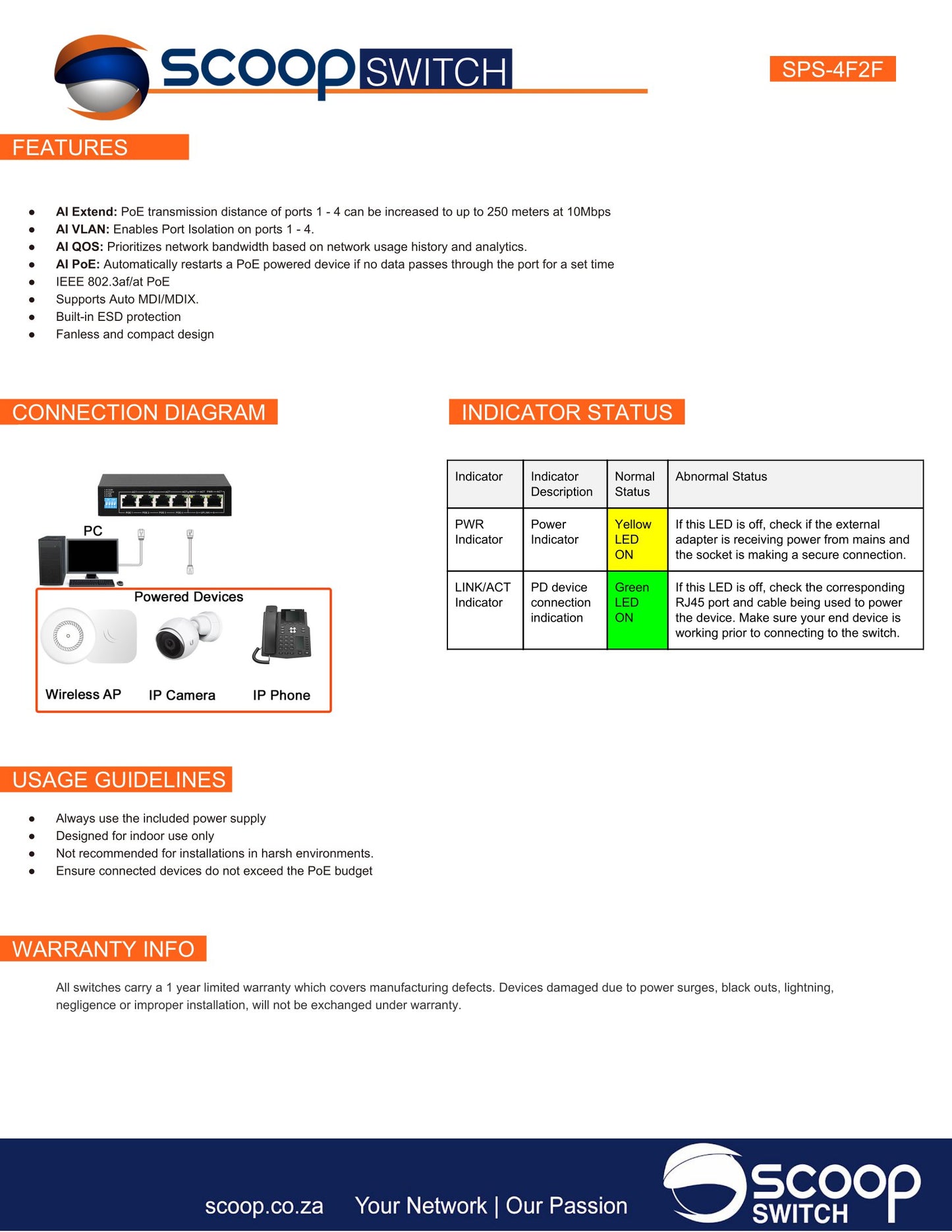

For more in-depth information, zoom in on picture of data sheet.


SKU SPS-4F2F
Manufacturer Scoop
