Scoop 8 Port Gigabit AI PoE 96W 2SFP Switch
Scoop 8 Port Gigabit AI PoE 96W 2SFP Switch

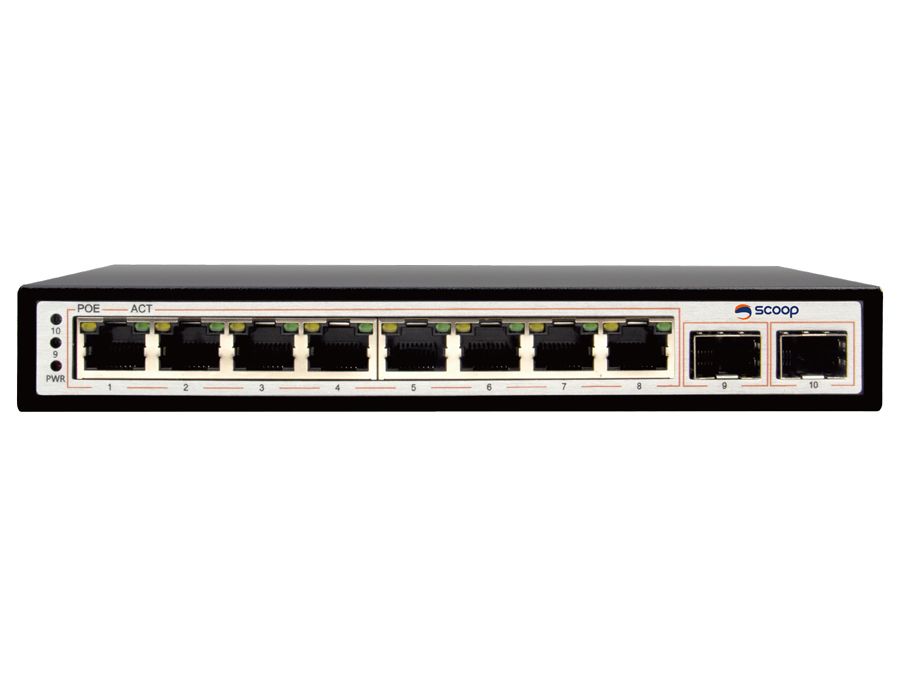

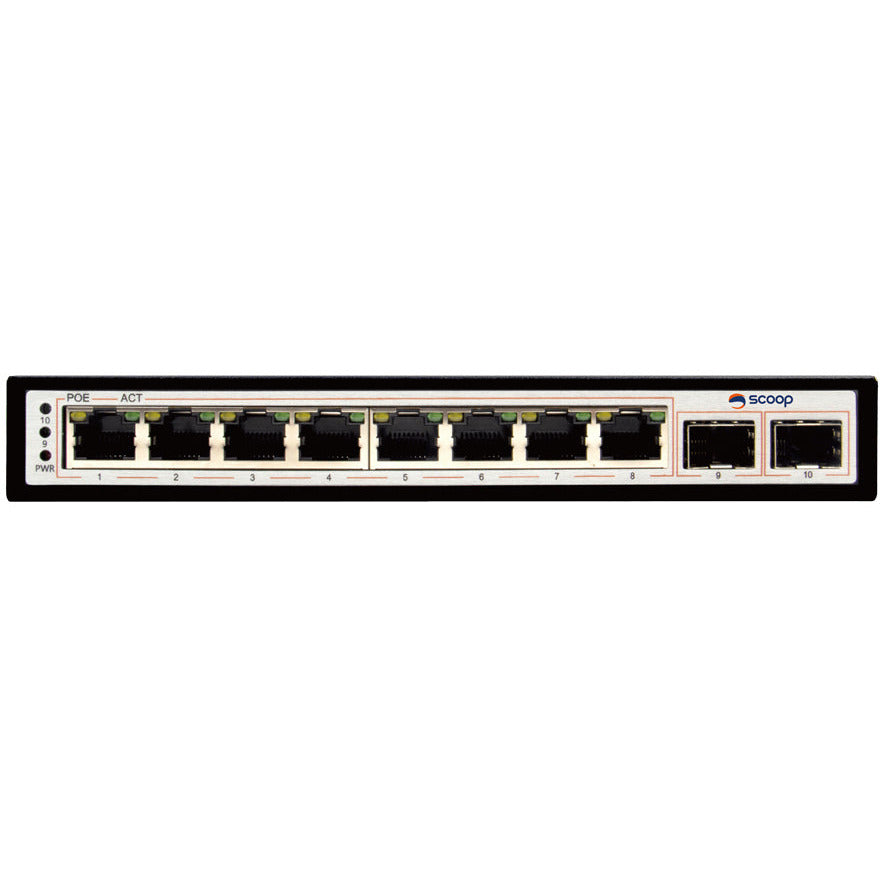

Scoop’s SPS-8G2S is an unmanaged 8 port Gigabit Ethernet AI PoE switch, with 2 x 1.25Gbps SFP Uplink Ports.
Each of these PoE ports are IEEE 802.3af/at compliant which enables them to identify whether the connected device is compatible and requires power. The total PoE budget is 96W, or up to a maximum of 36W per port.
The SPS-8G2S supports 4 working modes:
AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 meters at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-8.
AI QoS: Prioritizes network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
Specifications
Ethernet Ports: 8x 10/100/1000

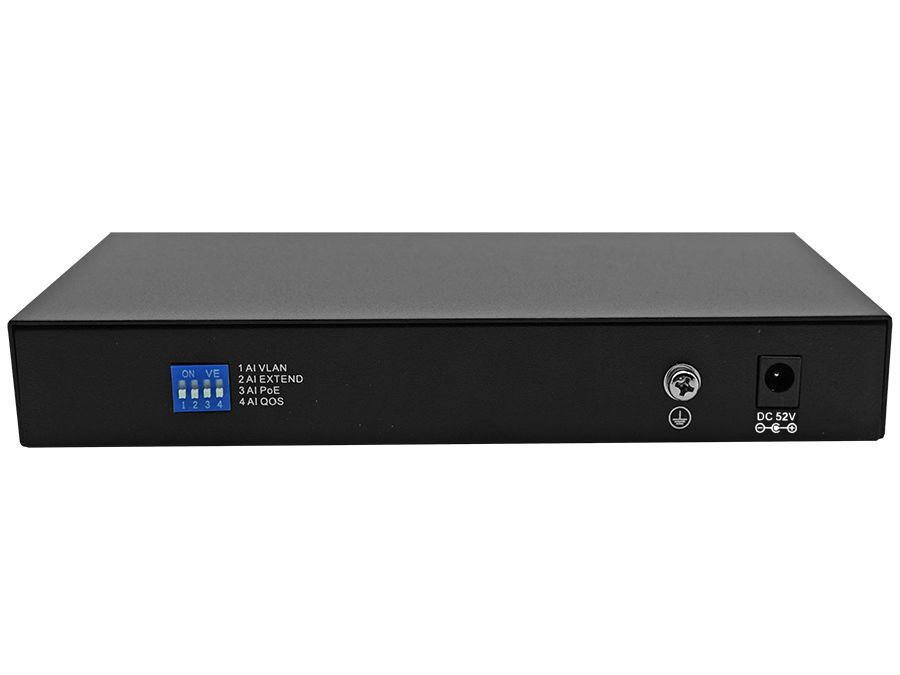

Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8

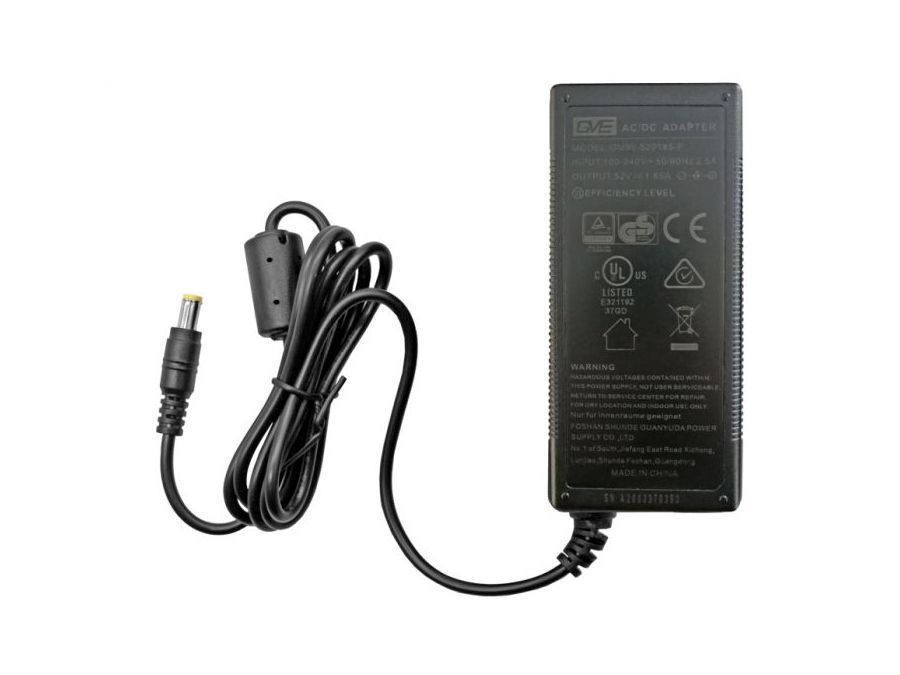

Power Input: 52V 1.85A Power Adapter (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps Ports
Supported Voltage Range: 52V
Dimensions: 185mm x 95mm x 28mm
Weight: 0.95kg

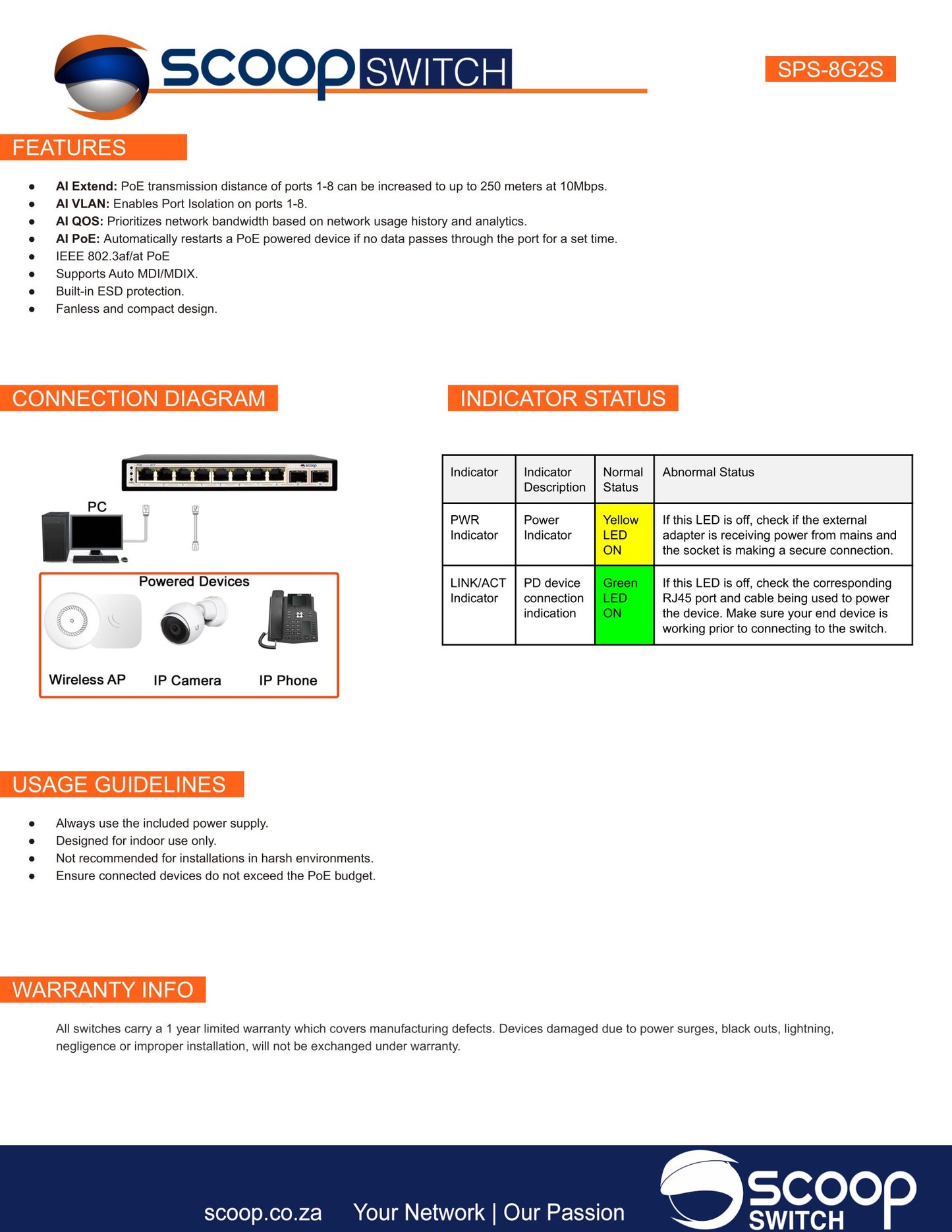

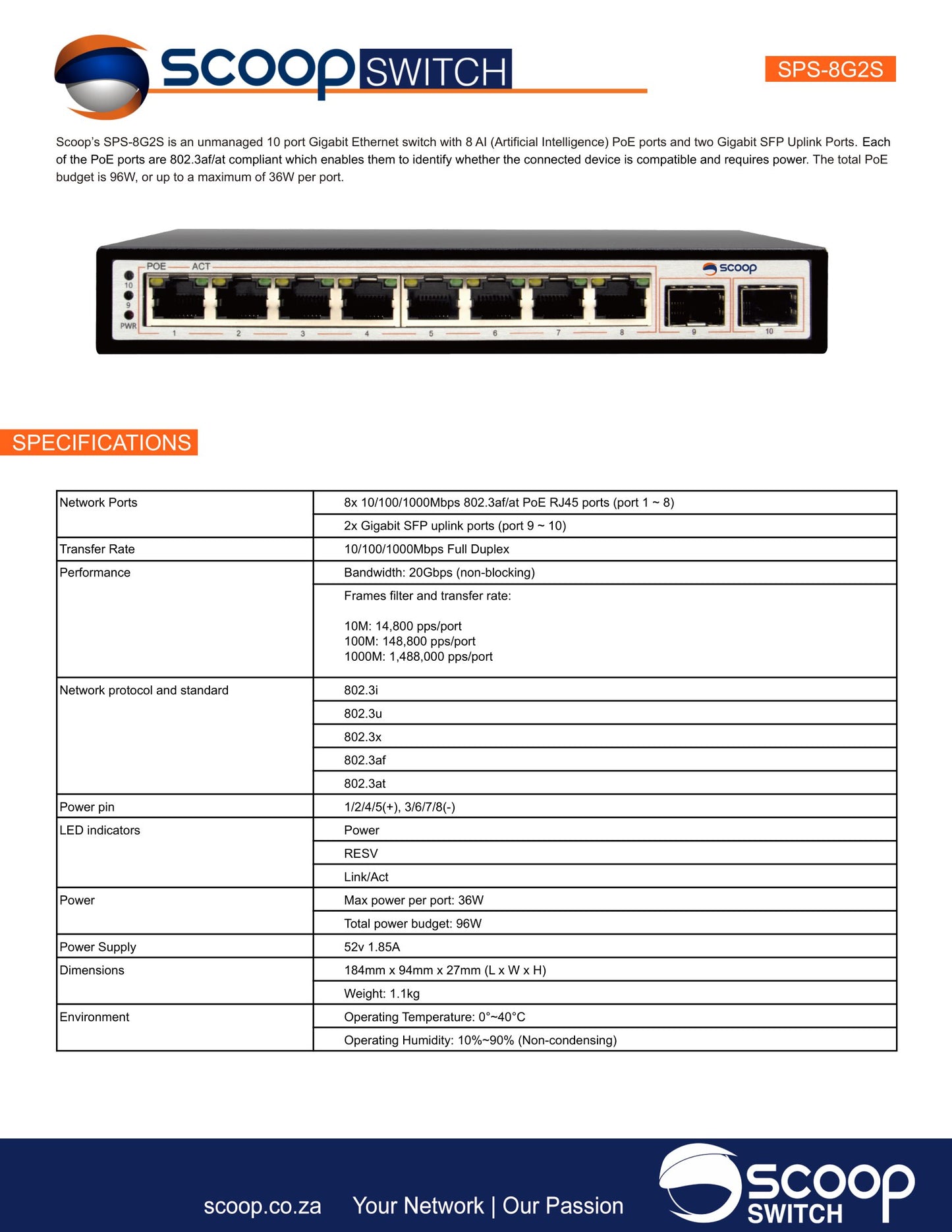

For more in-depth information, zoom in on picture of data sheet.
SKU | SPS-8G2S |
---|---|
Manufacturer | Scoop |
