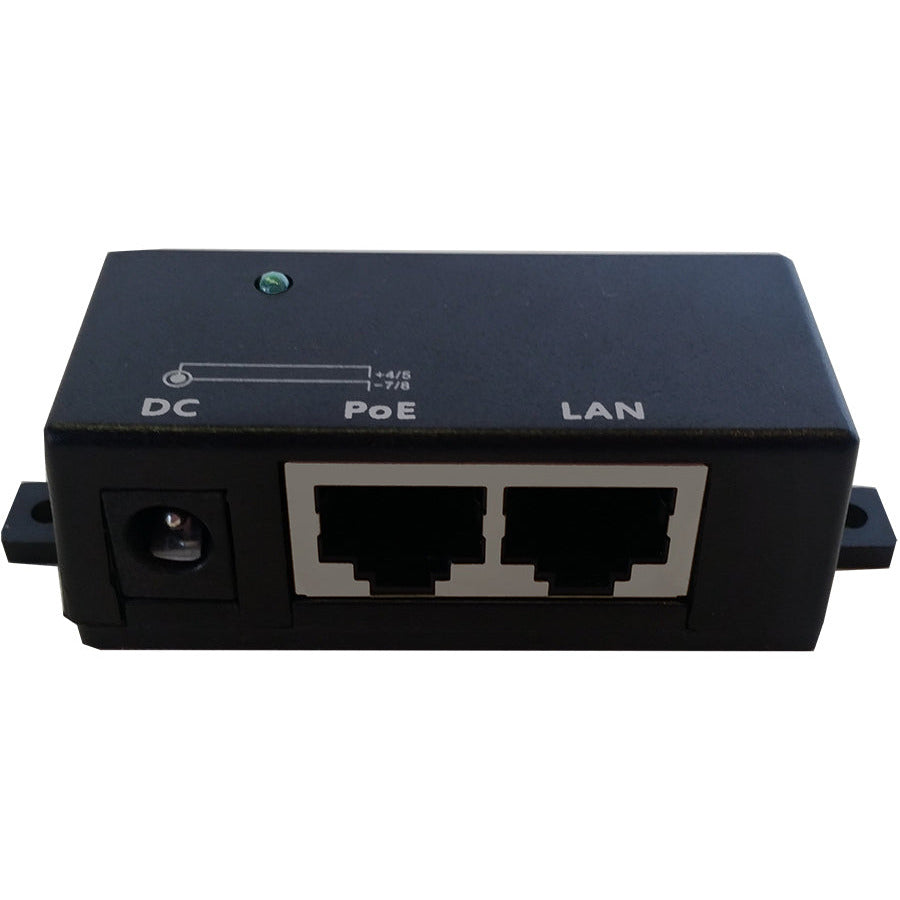

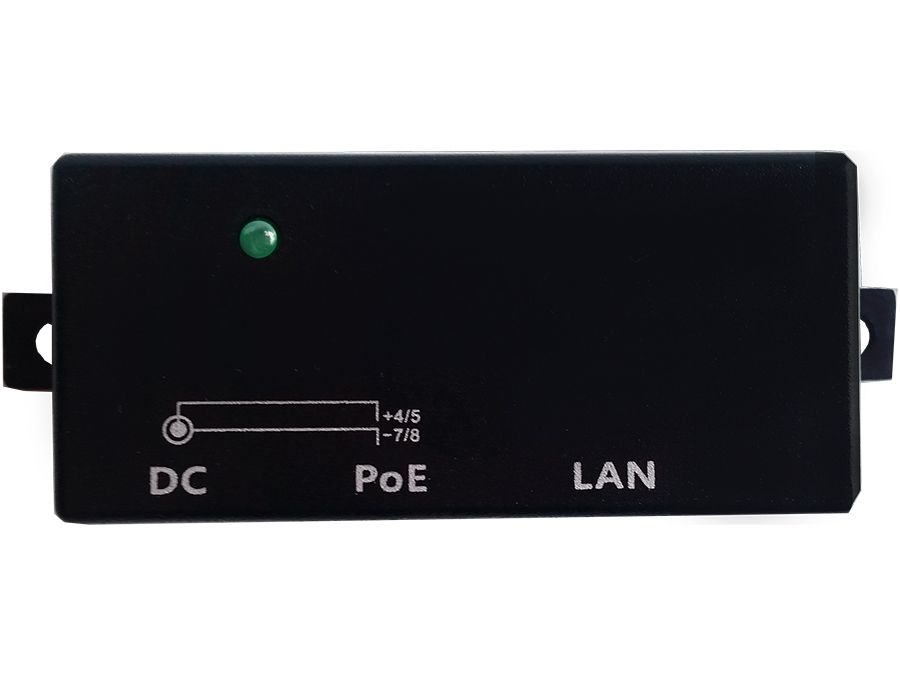

Single Port Fast Ethernet Passive PoE Injector

Scoop's POE, Power over Ethernet (PoE) Passive Injector delivers both data and electrical power to passive PoE devices using a single Ethernet cable.

The POE supports Fast Ethernet Passive PoE-enabled devices, PIN 1/2/3/6 for Data and PIN 4/5/7/8 for Power. It can be wall-mounted.

Please note there is no power supply included with the Injector, we recommend powering with our range of Power supplies

Specifications

Ethernet Ports: 2x 10/100
Max. Current Per Port: 650mA
Operating Temperature: 0°C to 40°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 9-48V Power Supply (Not Included)
Supported Voltage Range: 9-48V

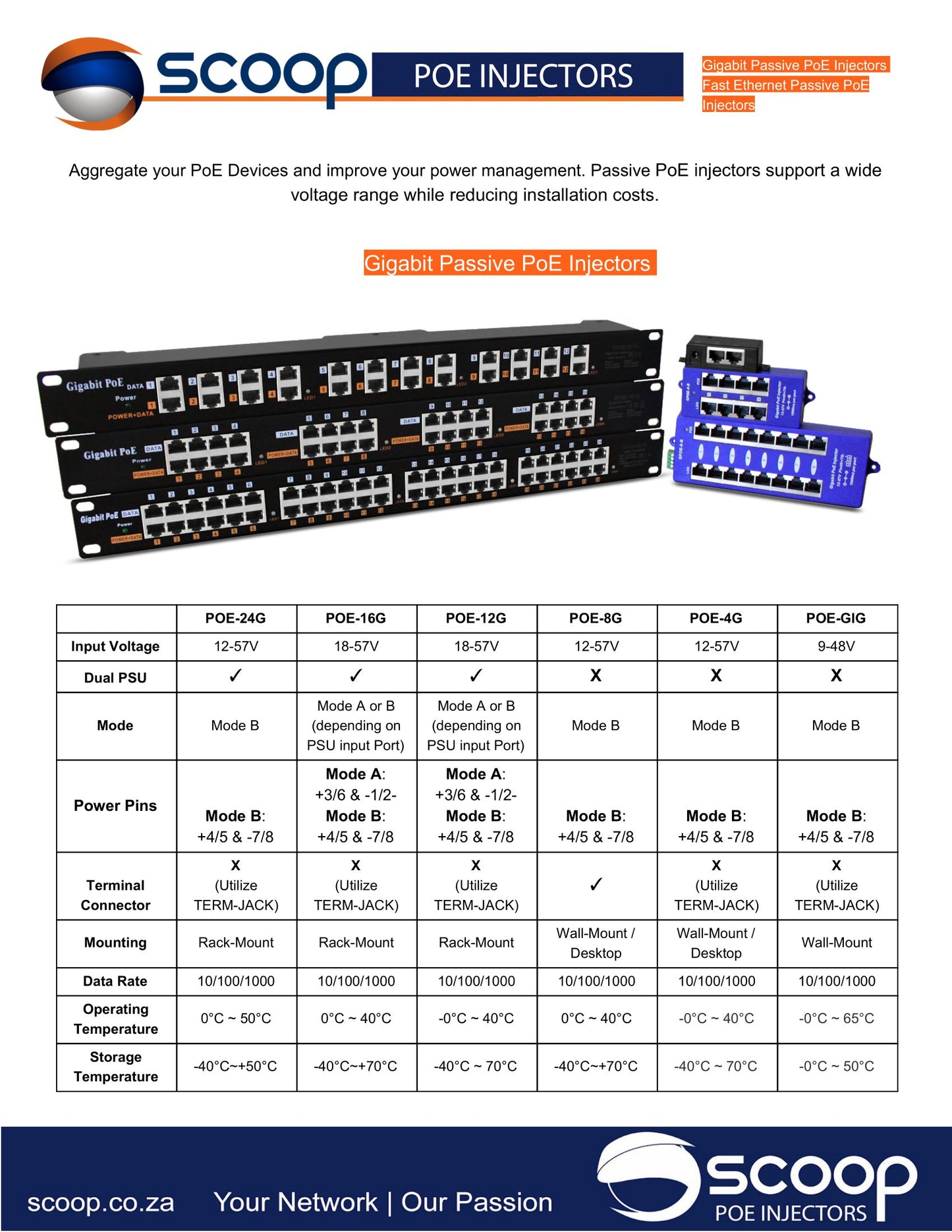

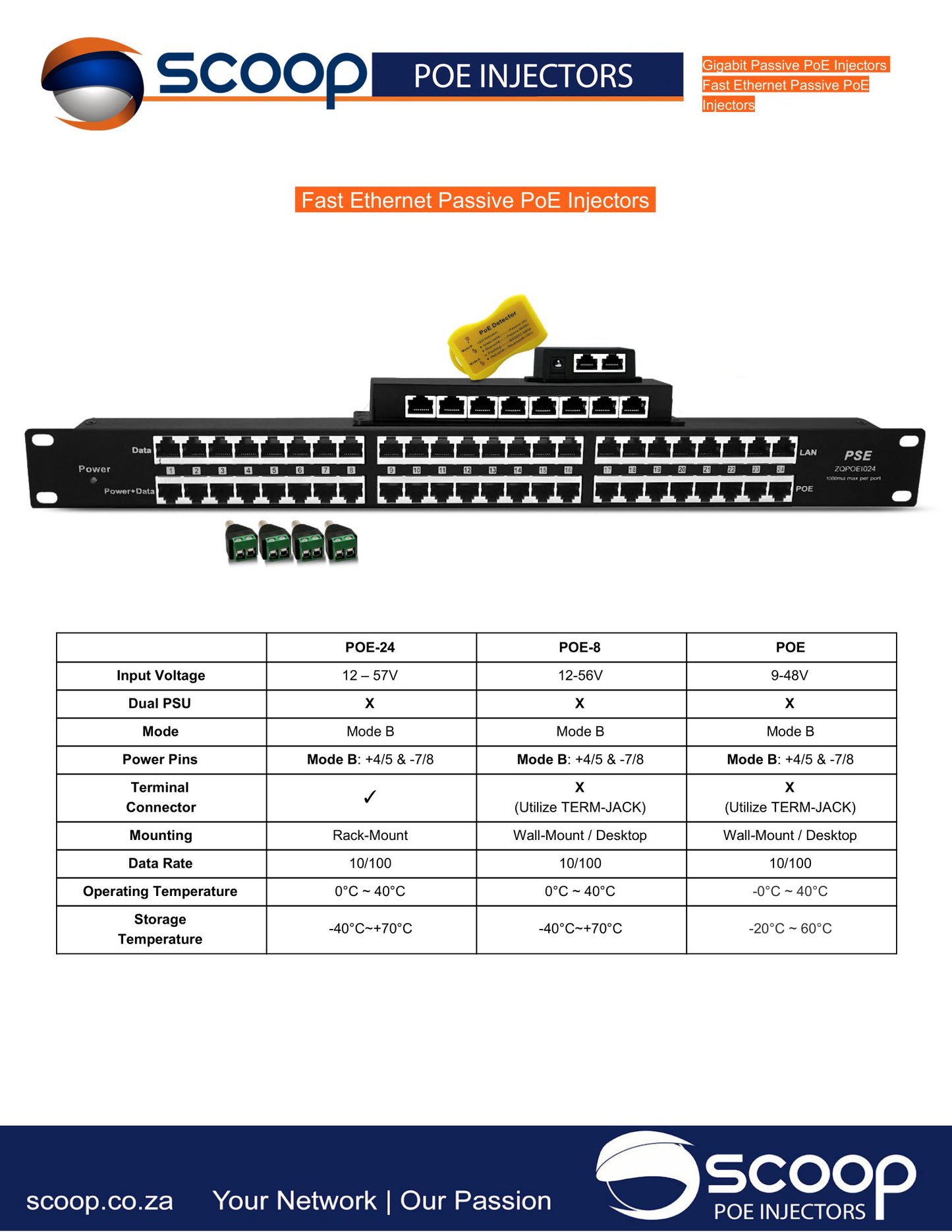

For more in-depth information, zoom in on picture of data sheet.
