Ubiquiti 10G Multi-WAN UniFi Cloud Gateway Fiber with M.2 SSD Tray

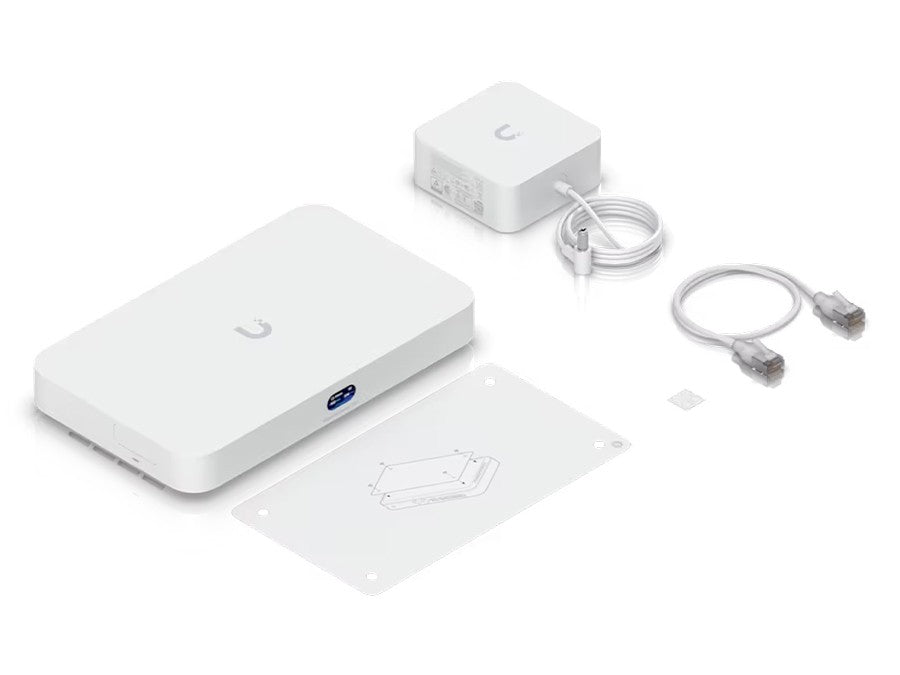

Ubiquiti's UCG-FIBER-TRAY is a desktop 10Gbps dual-WAN UniFi Cloud Gateway with selectable NVR storage via SSD up to 2TB and an included M.2 SSD Tray. The unit runs the complete UniFi application suite for full-stack network management and features 1x 10Gbps WAN port, 4x 2.5Gbps LAN Ports, one with 802.3at (PoE+) PoE output, as well as 2x SFP+ ports.

It can be configured and managed with the UniFi Network Application.

*Note: This version of the UCG-FIBER includes an M.2 SSD Tray. SSD not included.

Specifications: Ethernet Ports: 4x 10/100/1000/2500 (LAN); 1x 10/100/1000/10000 (WAN) Hardware Button: Reset Max. Power Consumption: 29.4W Mounting: Desktop Operating System: UniFi OS Operating Temperature: 0°C to 40°C PoE Input: None PoE Output: 802.3at (PoE+) on Port 4 Power Input: 54V 1.1A Power Adapter (Included) Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz Serial Interface: None SFP Ports: 2 x SFP+ (1x WAN; 1 x LAN) Supported Voltage Range: 50-57V System Memory: 3GB USB Ports: None

Dimensions: 212.8 x 127.6 x 30 mm Weight: 675g

• MULTI-WAN 10G FIBER GATEWAY: Supports dual-WAN connectivity with one 10Gbps RJ45 WAN port and one SFP+ WAN port, giving network administrators flexible, high-speed internet uplink options in a compact desktop unit.
• FULL UNIFI NETWORK MANAGEMENT: Runs UniFi OS and the complete UniFi application suite, allowing centralised full-stack network management and configuration through the UniFi Network Application.

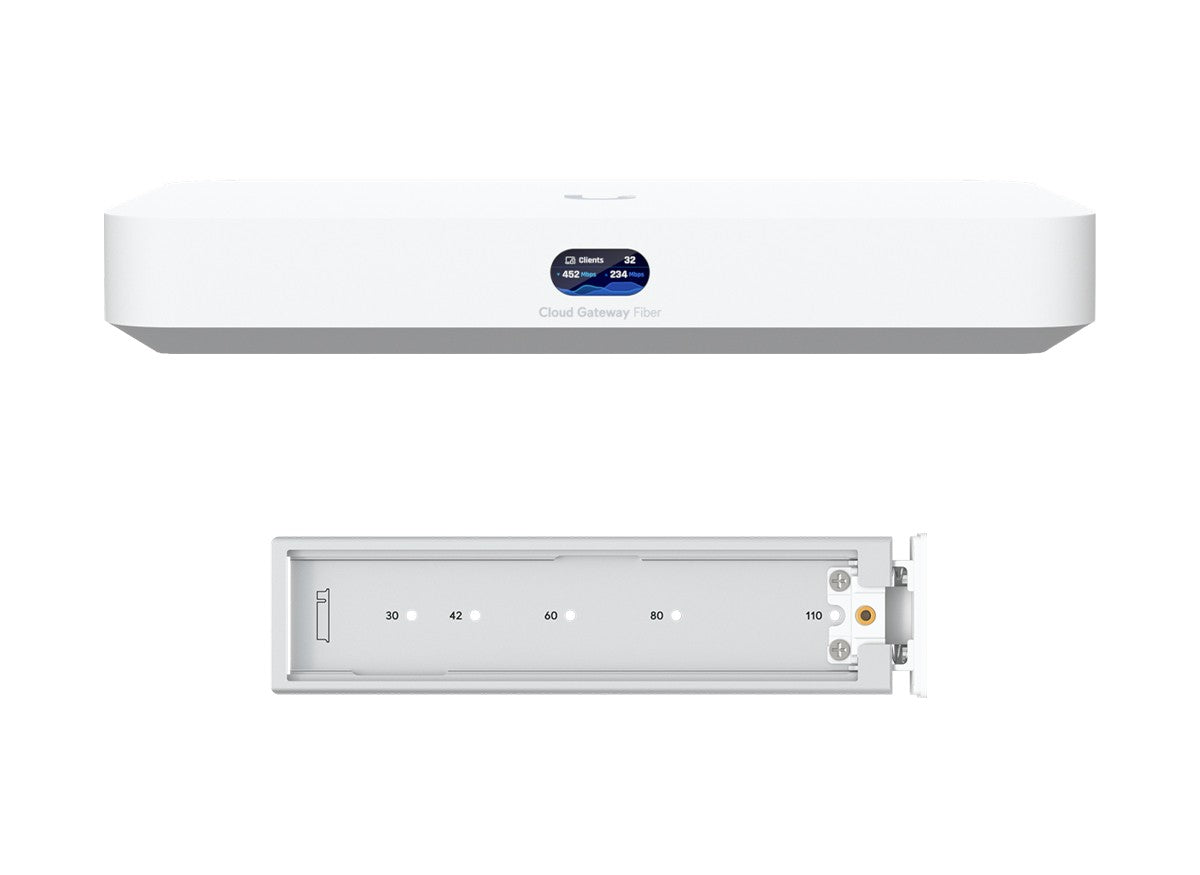

• FLEXIBLE NVR STORAGE EXPANSION: Includes an M.2 SSD Tray supporting selectable NVR storage via SSD up to 2TB, enabling optional on-device video recording storage without requiring an external NVR. SSD is not included.
• POE OUTPUT AND MULTI-SPEED LAN PORTS: Features four 2.5Gbps LAN ports plus one SFP+ LAN port, with 802.3at PoE+ output on Port 4 allowing direct powering of compatible PoE devices without a separate switch.
• POWERFUL QUAD-CORE PROCESSOR WITH AMPLE MEMORY: Powered by a quad-core ARM Cortex-A73 processor running at 2.2GHz with 3GB of system memory, supporting demanding network workloads in a desktop form factor weighing 675g.
