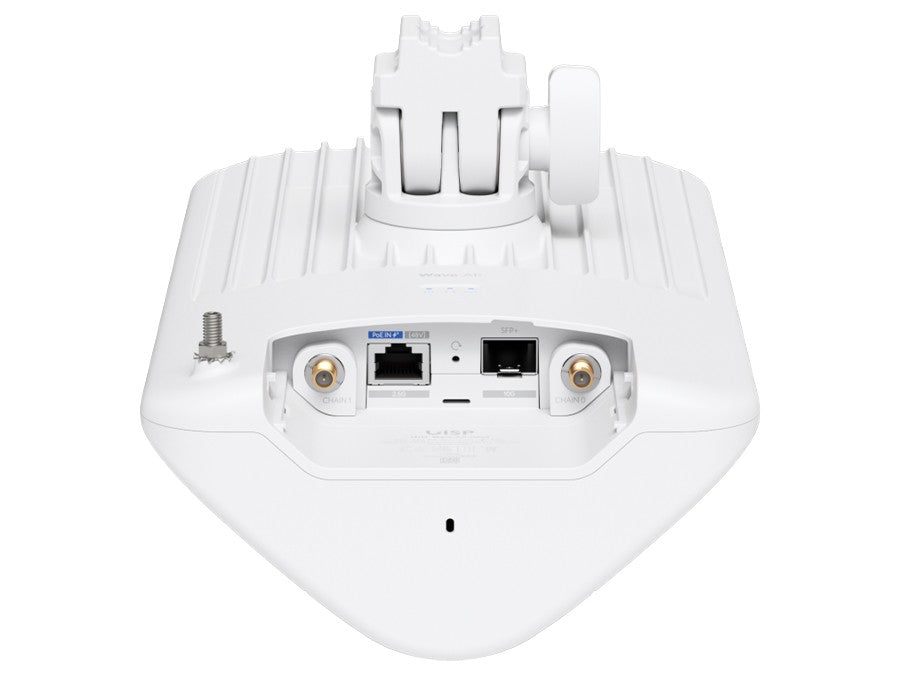

Ubiquiti UISP 60GHz/5GHz 90° PtMP Wave Access Point Gen2

Ubiquiti's WAVE-APG2 is a UISP 60GHz Point-to-MultiPoint 90° Access Point featuring 5GHz failover, 1x 10Gbps SFP+ Port, 1x 2.5Gbps Ethernet Port and an integrated GPS antenna. Utilising 60GHz point-to-multipoint technology, it can connect up to 31 stations with a total throughput of 5.4Gbps at distances of up to 6 km with a WAVE-PRO or WAVE-LR, up to 4 km with a WAVE-NANO, and 0.9km with a WAVE-PICO. The dedicated Bluetooth radio allows for easy setup via the UISP network management platform.

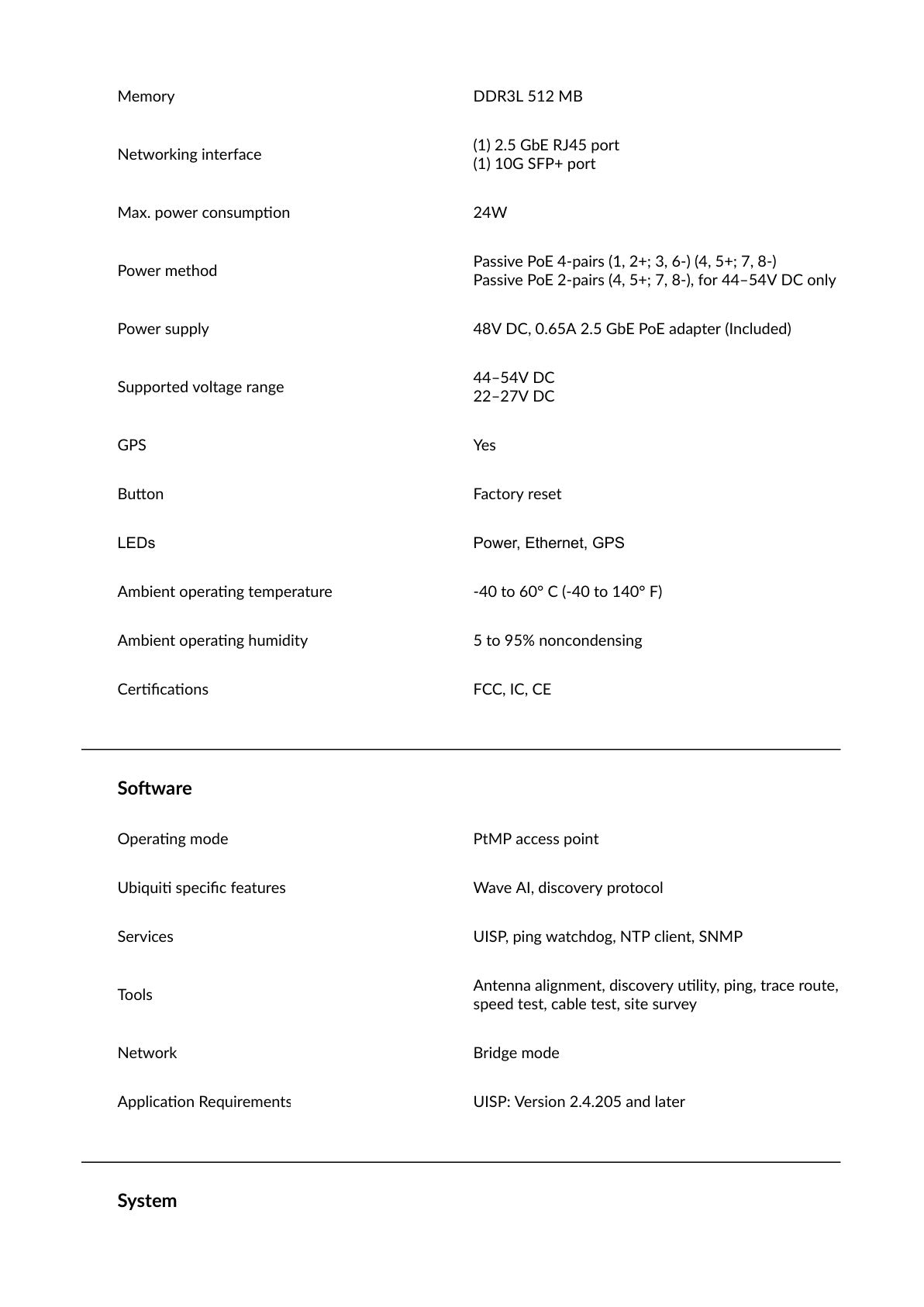

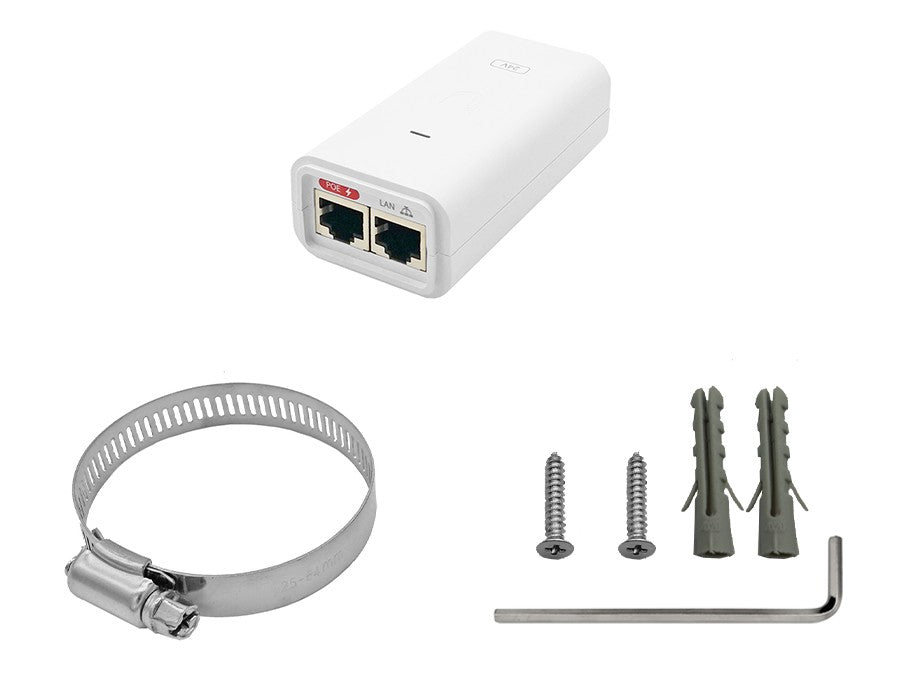

Specifications: Antenna Gain: 60GHz: 20dBi ; 5GHz: 13dBi Beamwidth: 60GHz/5GHz: 90° Data Rate: 60GHz: Up to 5.4Gbps ; 5GHz: 1200Mbps Ethernet Ports: 1x 2.5Gbps Hardware Button: Reset Max. Power Consumption: 24W Mounting: Pole-Mount Operating System: airOS Operating Temperature: -40°C to 60°C PoE Input: 24V or 48V Passive PoE PoE Output: None Power Input: 48V 0.65A 2.5GbE PoE Injector (Included) Serial Interface: None SIM Slots: None Supported Voltage Range: 44–54V or 22–27V USB Ports: None Other: 1x SFP+

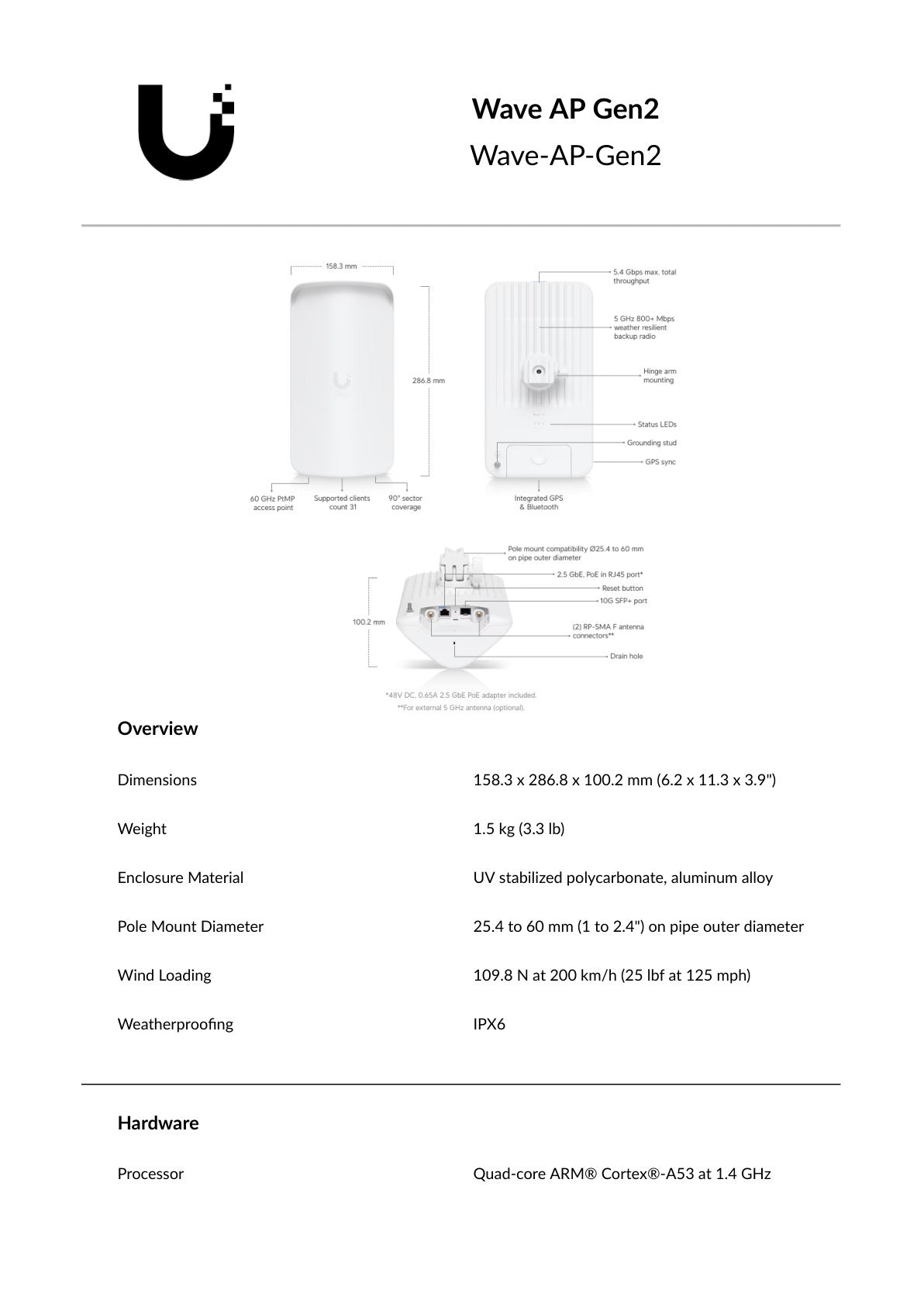

Dimensions: 158.3 x 286.8 x 100.2 mm Weight: 1.5kg

• 60GHZ POINT-TO-MULTIPOINT CONNECTIVITY: Connects up to 31 stations with a total throughput of 5.4Gbps, making it suited for deploying high-capacity wireless networks across multiple locations from a single access point.
• 5GHZ FAILOVER: Built-in 5GHz radio with 1200Mbps data rate automatically provides a fallback connection, helping maintain network continuity if the primary 60GHz link is interrupted.
• HIGH-SPEED WIRED INTERFACES: Includes a 10Gbps SFP+ port and a 2.5Gbps Ethernet port, giving installers flexible backhaul options to match existing network infrastructure without requiring additional adapters.
• EXTENDED OPERATING RANGE: Supports links of up to 6km with compatible WAVE-PRO or WAVE-LR stations, allowing operators to cover large areas with fewer access points installed.
• WIDE TEMPERATURE TOLERANCE AND SIMPLE MOUNTING: Rated for operation from -40C to 60C and designed for pole mounting, making it suitable for outdoor deployments in demanding environments. Setup is assisted via Bluetooth and the UISP management platform.
