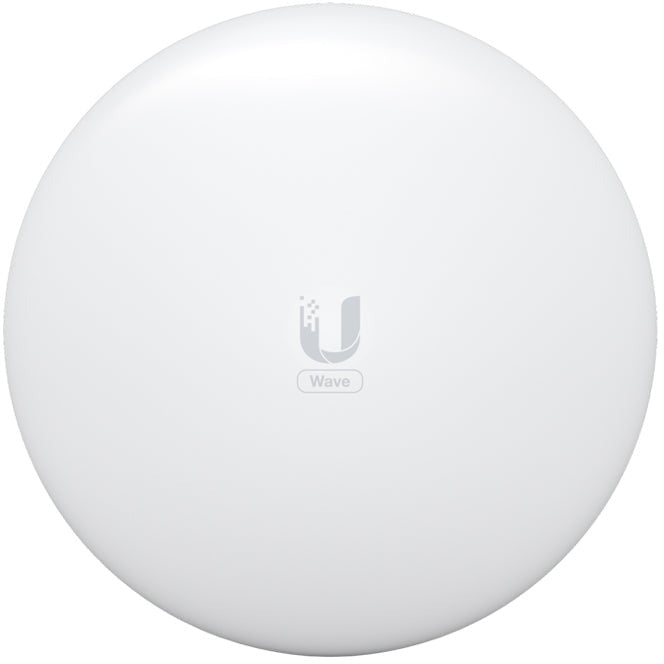

Ubiquiti UISP 60GHz/5GHz Long Range PtMP CPE | WAVE-LR

Ubiquiti UISP 60GHz/5GHz Long Range PtMP CPE | WAVE-LR

Regular price R 9,195.00
Regular price Sale price R 9,195.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti’s WAVE-LR is a UISP 60GHz Point-to-MultiPoint Long Range CPE featuring 5GHz failover, 1x Gigabit Ethernet Port and an integrated GPS antenna.
Utilizing 60GHz PtMP technology, this CPE can be paired with the WAVE-AP with a total throughput of up to 2Gbps at a distance of up to 8km.

The dedicated Bluetooth radio allows for easy set-up via the UISP mobile app and network management platform.


Antenna Gain: 60GHz: 46dBi ; 5.8GHz: 22dBi
Beamwidth: 60GHz: 1.1° ; 5GHz: 10°
Data Rate: 60GHz: Up to 2Gbps ; 5.8GHz: 1200Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W

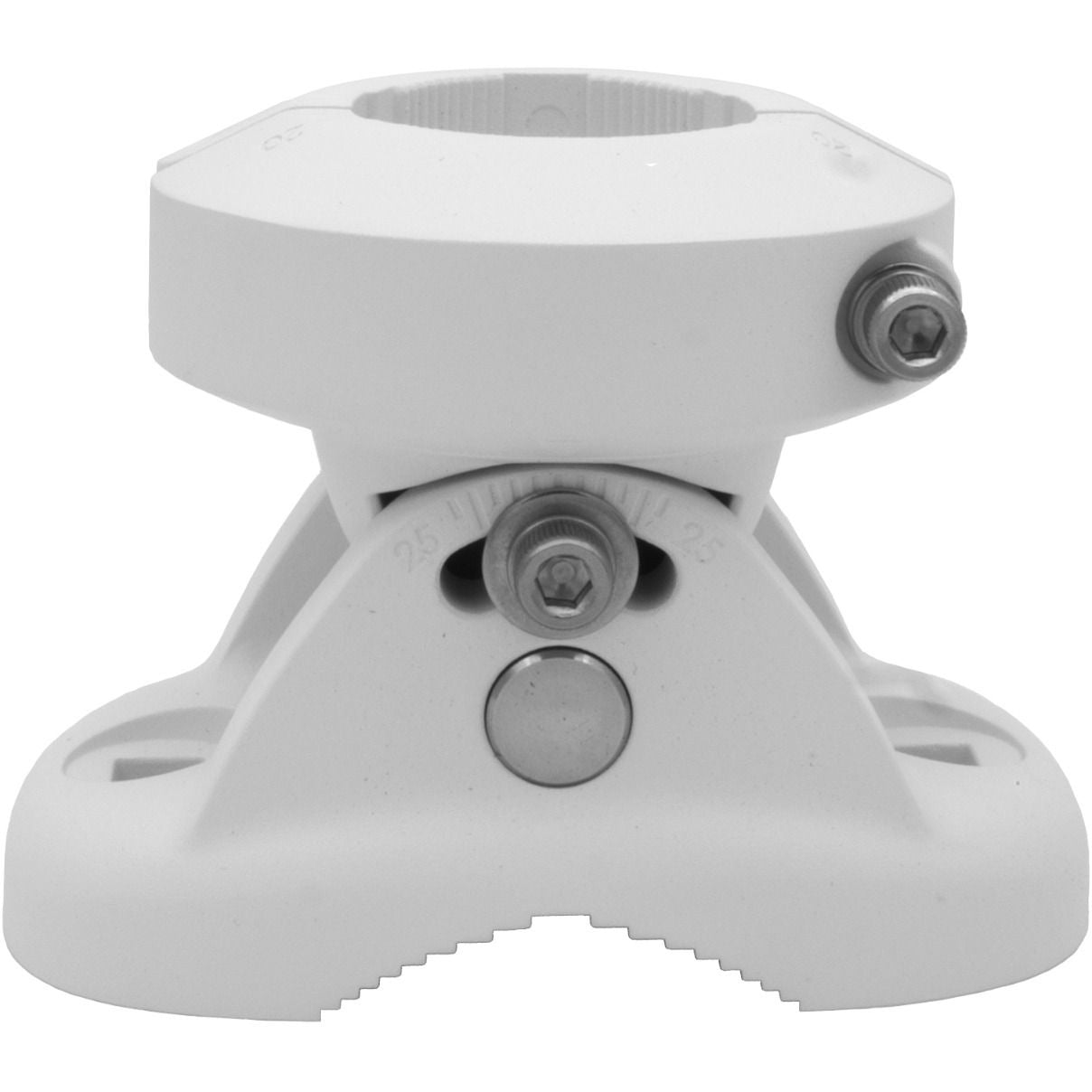

Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V or 48V Passive PoE
PoE Output: None
Power Input: 48V 0.65A Gigabit PoE Injector (included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V or 48V
USB Ports: None

Dimensions: Ø424.4 x 166.2mm
Weight: 2.59kg

For more in-depth information, zoom in on picture of data sheet.

Manufacturer Ubiquiti
Manufacturer Product Code WAVE-LR
