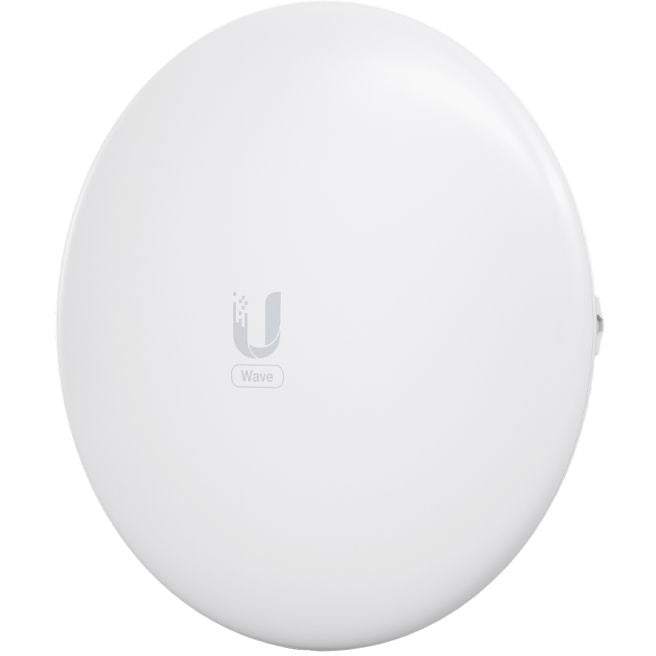

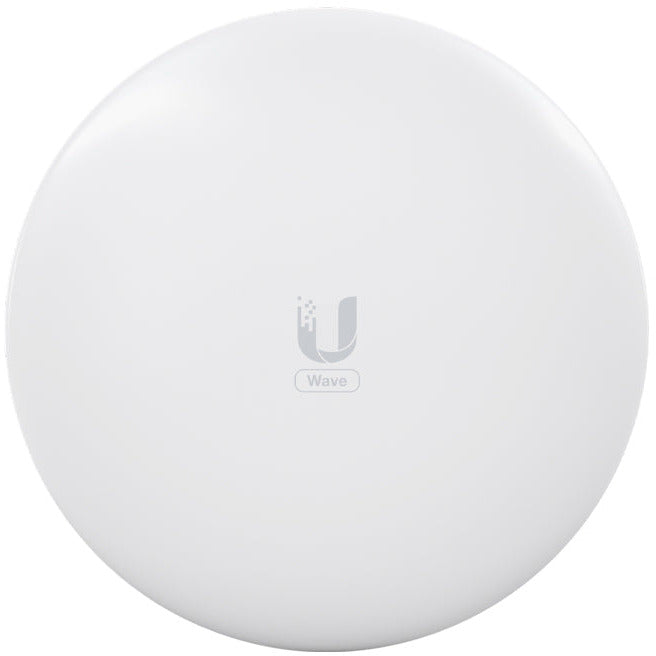

Ubiquiti’s WAVE-NANO is a UISP 60GHz Point-to-MultiPoint CPE featuring 5GHz failover, 1x Gigabit Ethernet Port and an integrated GPS antenna.
Utilizing 60GHz PtMP technology, this CPE can be paired with the WAVE-AP with a total throughput of up to 2Gbps at a distance of up to 5km.
The dedicated Bluetooth radio allows for easy set-up via the UISP mobile app and network management platform.
Specifications
Antenna Gain: 60GHz: 41dBi ; 5.8GHz: 19dBi
Beamwidth: 60GHz: 1° ; 5GHz: 17°
Data Rate: 60GHz: Up to 2Gbps ; 5.8GHz: 1200Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W

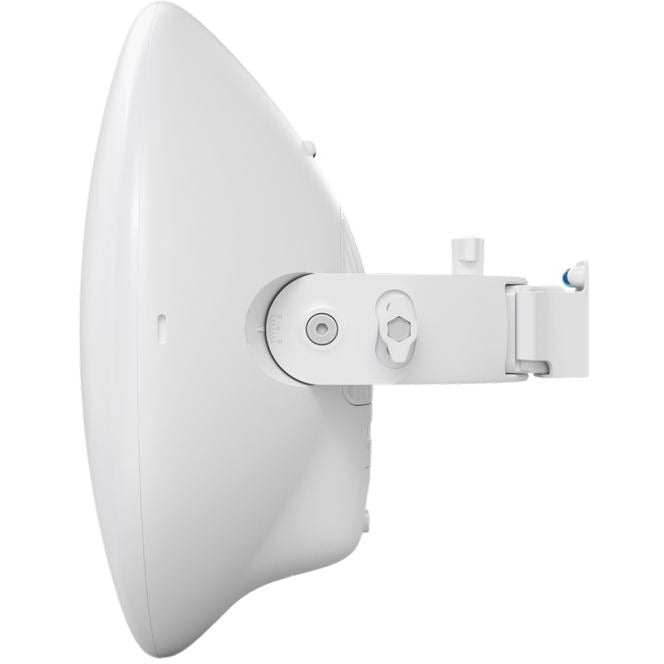

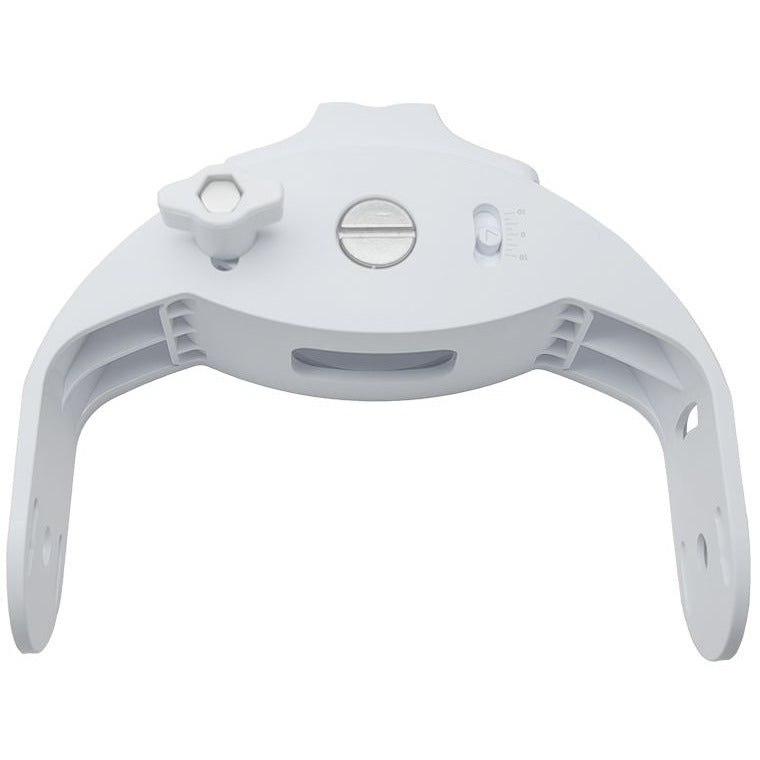

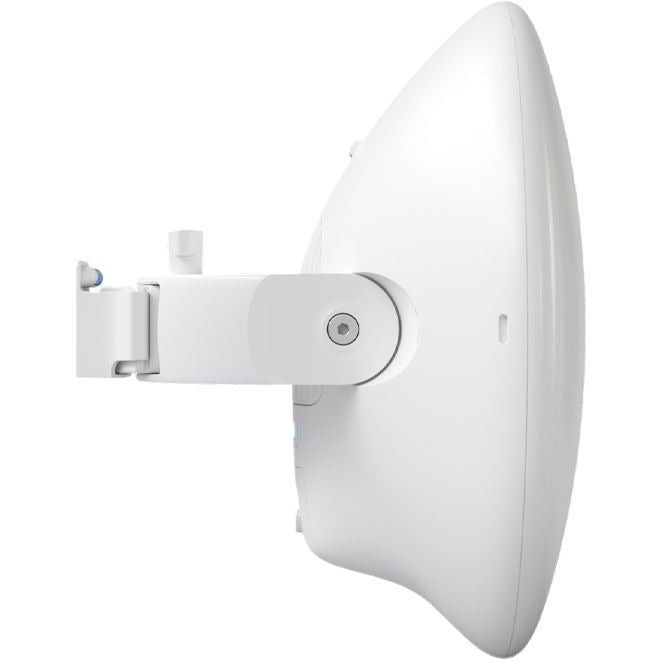

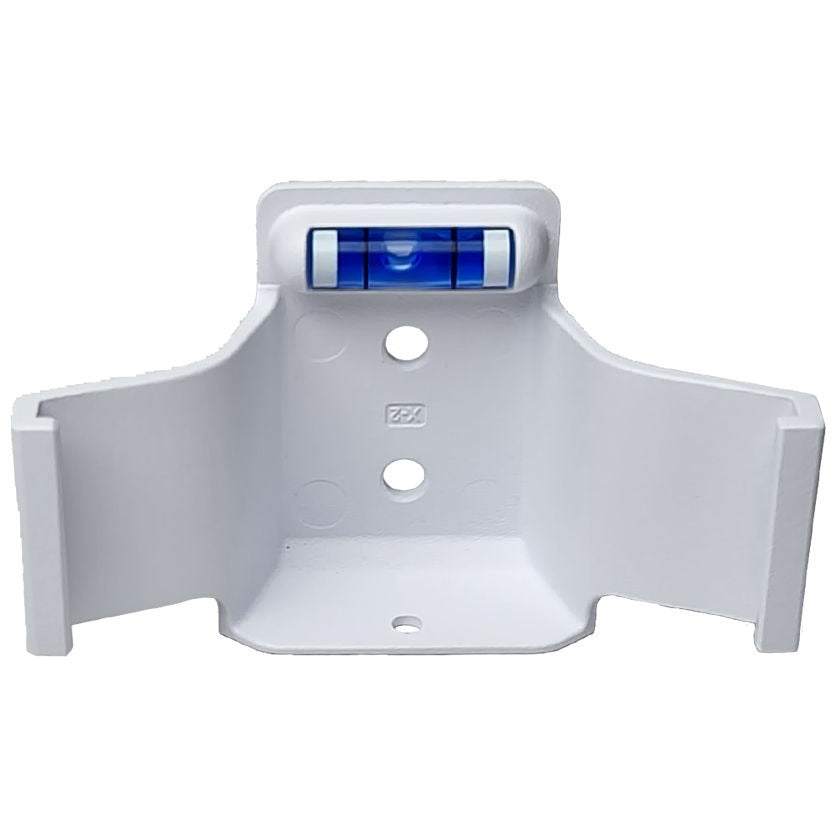

Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V or 48V Passive PoE
PoE Output: None

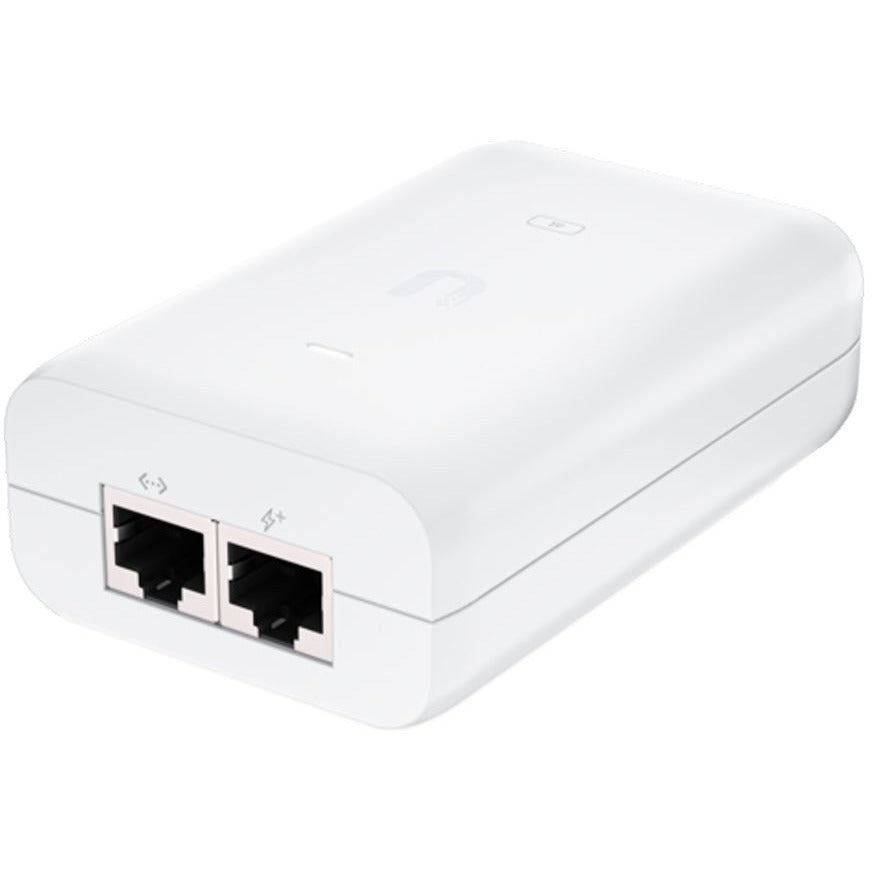

Power Input: 48V 0.65A Gigabit PoE Injector (included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V or 48V
USB Ports: None
Dimensions: Ø256.5 x 113.5 mm
Weight: 1.2kg

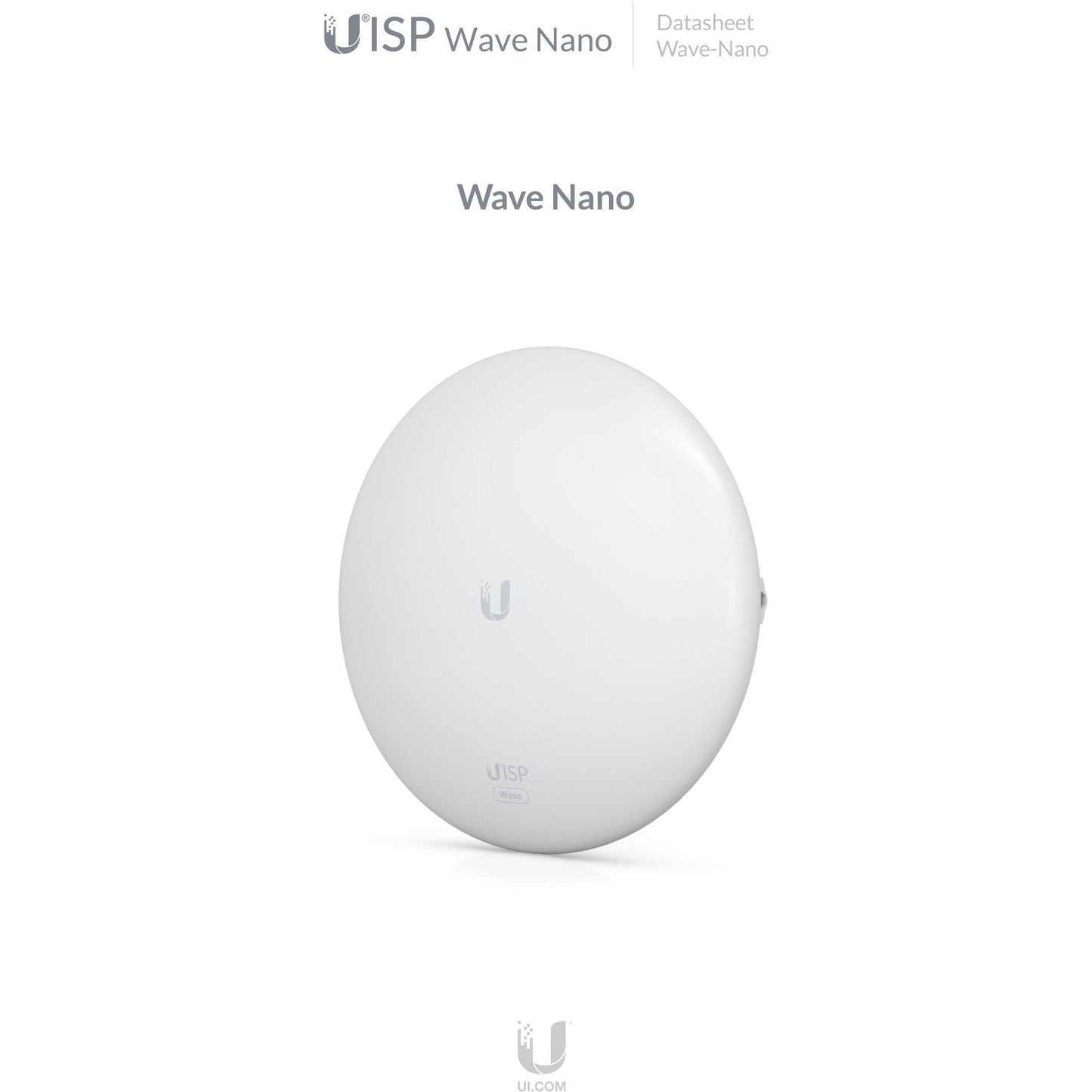

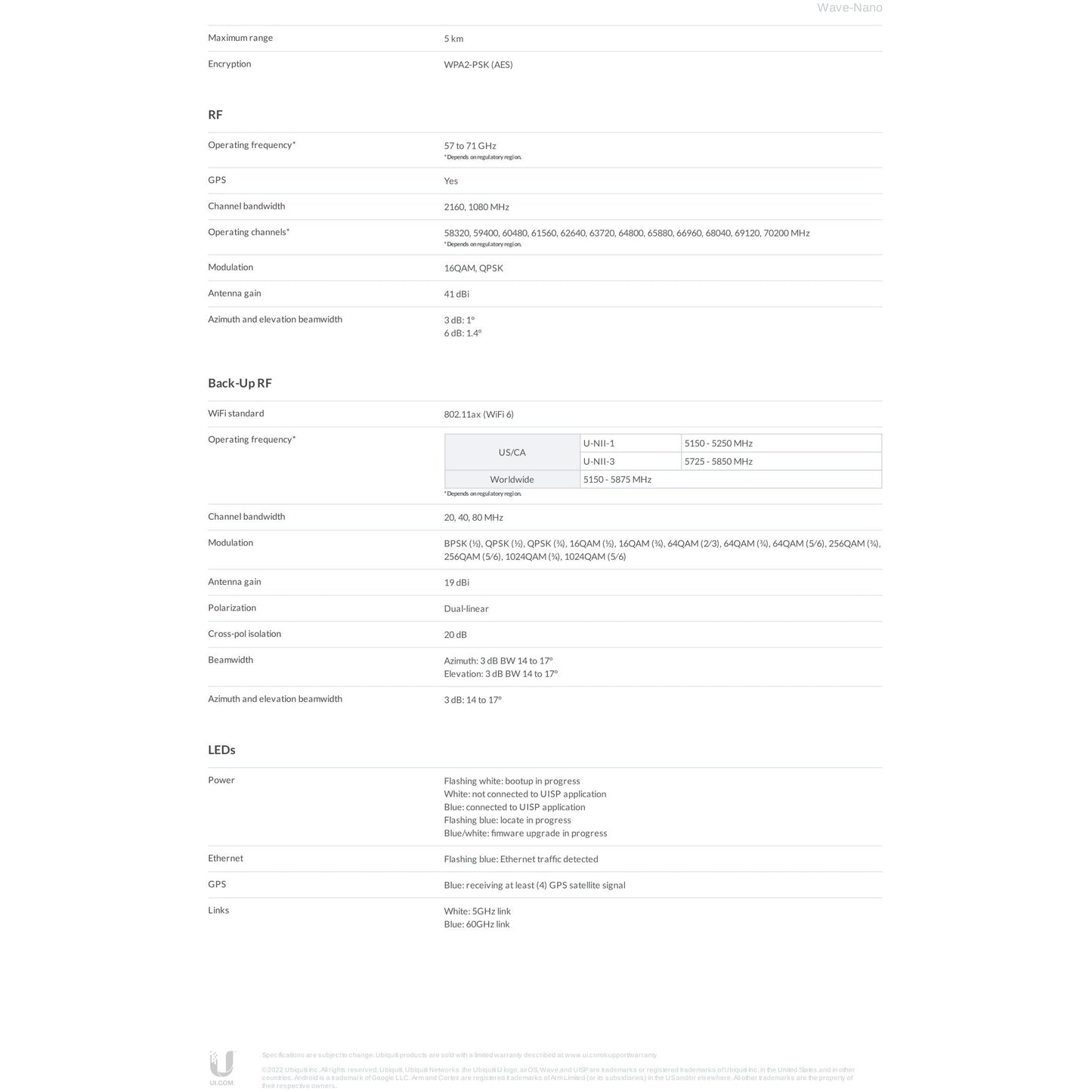

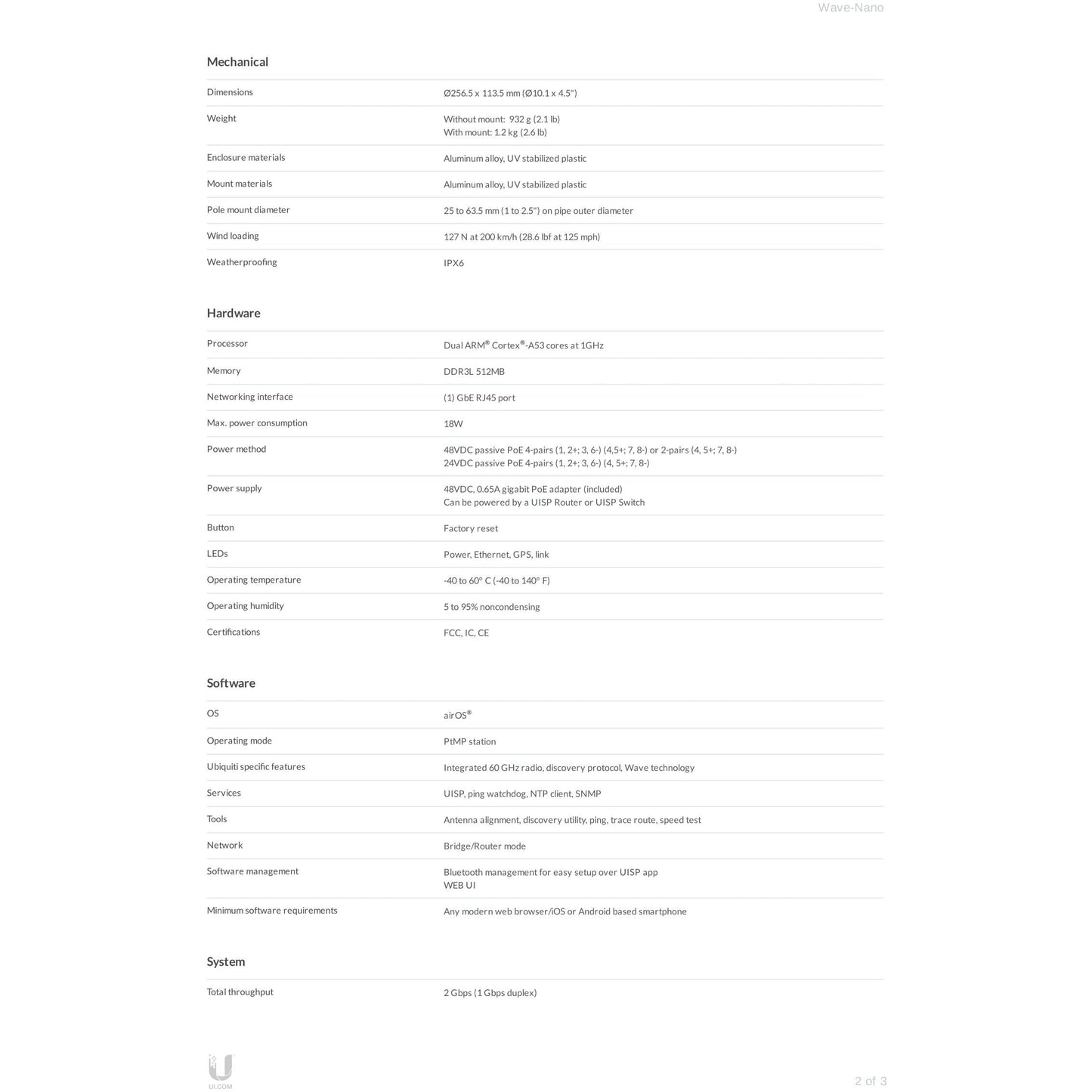

For more in-depth information, zoom in on picture of data sheet.
SKU | WAVE-NANO |
---|---|
Manufacturer | Ubiquiti |
Manufacturer Product Code | WAVE-NANO |
