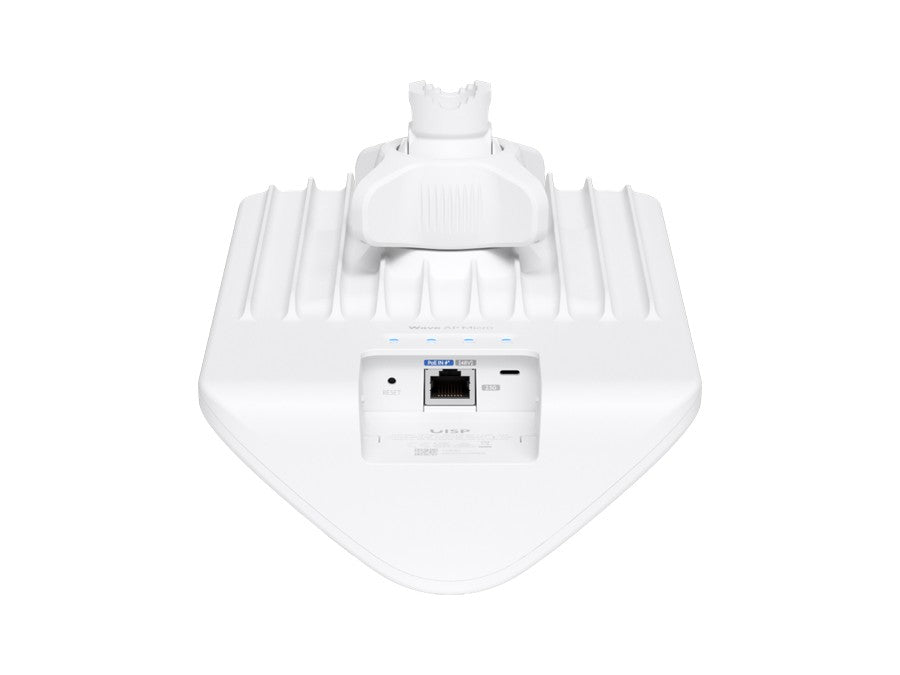

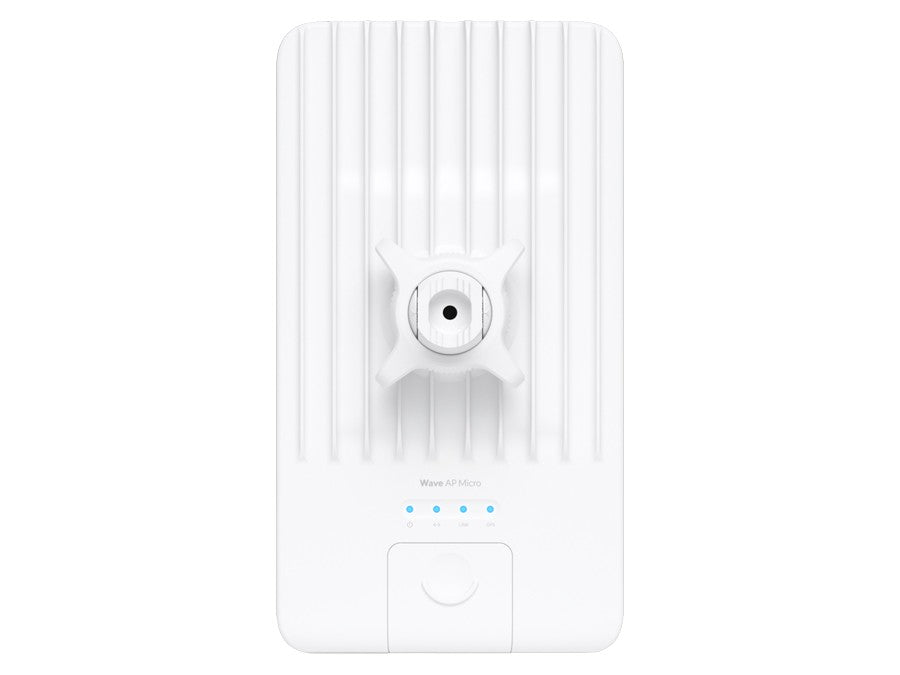

Ubiquiti UISP 60GHz/5GHz PtMP Wave Access Point Micro

Ubiquiti's WAVE-APM is a UISP 60GHz Point-to-MultiPoint Access Point featuring 5GHz failover, 1x 2.5Gbps Ethernet Port and an integrated GPS antenna. Utilising 60GHz point-to-multipoint technology, it can connect up to 15 stations with a total throughput of 5Gbps at distances of up to 900m when paired with the WAVE-PICO, 4km when paired with the WAVE-NANO, and 6km when paired with the WAVE-LR. Mount up to 4x WAVE-APM using the WAVE-MM mounting for full 360° coverage.

The dedicated Bluetooth radio allows for easy set-up via the UISP network management platform.

Specifications: Antenna Gain: 60GHz: 20dBi ; 5.8GHz: 13.5dBi Beamwidth: 60GHz/5GHz: 90° Data Rate: 60GHz: Up to 5.4Gbps ; 5.8GHz: 800Mbps Ethernet Ports: 1x 2.5Gbps Hardware Button: Reset Max. Power Consumption: 24W Mounting: Pole-Mount, or WAVE-MM for 360° coverage Operating System: airOS Operating Temperature: -40°C to 60°C PoE Input: 24V or 48V Passive PoE PoE Output: None Power Input: 48V 0.65A 2.5GbE PoE Injector (included) Serial Interface: None SIM Slots: None Supported Voltage Range: 44–54V or 22–27V USB Ports: None

Dimensions: 284 x 156 x 76 mm Weight: 1.3kg

• 60GHz POINT-TO-MULTIPOINT CONNECTIVITY: Connects up to 15 stations with a total throughput of 5Gbps, making it suited for deploying high-capacity wireless networks across multiple locations from a single access point.
• FLEXIBLE LONG-RANGE COVERAGE: Supports distances of up to 900m with the WAVE-PICO, 4km with the WAVE-NANO, and 6km with the WAVE-LR, giving network installers options to scale coverage based on site requirements.
• 5GHz FAILOVER AND DUAL-BAND RELIABILITY: Includes a 5.8GHz radio with up to 800Mbps data rate that serves as a failover link, helping maintain connectivity if the primary 60GHz link is interrupted.
• 360-DEGREE COVERAGE OPTION: Up to four WAVE-APM units can be mounted together using the WAVE-MM mounting bracket to achieve full 360-degree coverage, reducing the number of separate installations needed on a site.
• EASY SETUP AND WIDE TEMPERATURE TOLERANCE: The integrated Bluetooth radio enables straightforward configuration via the UISP platform, and the unit operates in temperatures from -40C to 60C, supporting deployment in demanding outdoor environments.
