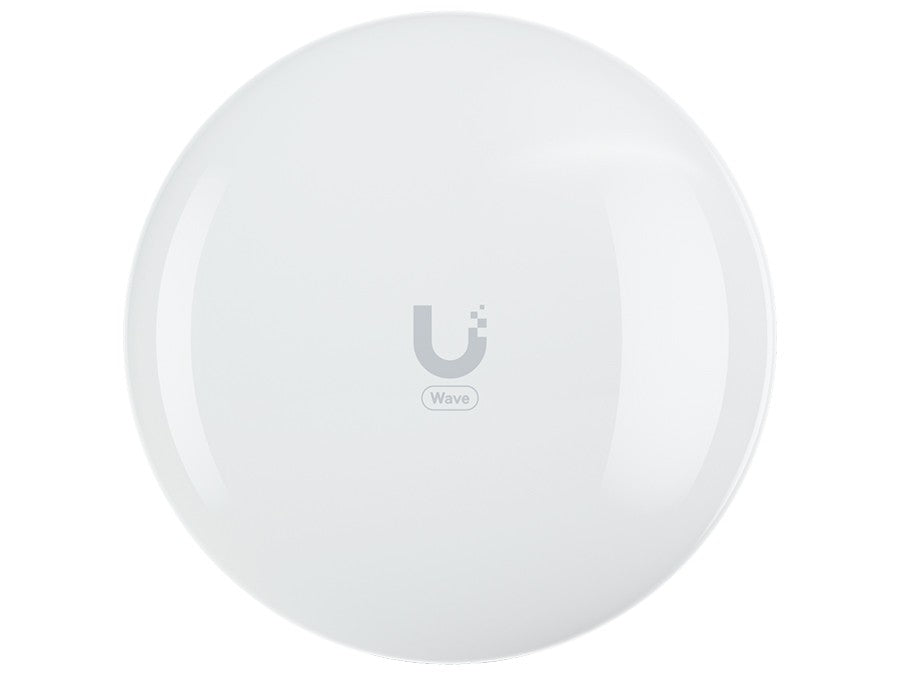

Ubiquiti UISP 60GHz/5GHz Wave Pico Radio

Ubiquiti's WAVE-PICO is a 60GHz radio system with an integrated high-gain antenna, and a WiFi 6, 5GHz backup radio. It features Wave technology with true duplex gigabit performance PtP links up to 3km. In PtMP mode, it can be used as a CPE and paired with the WAVE-AP (up to 1.3km) or WAVE-APM (900m) with a total throughput of up to 2Gbps.

Also included is a built-in Bluetooth management radio for easy setup via the UISP network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas.

*Note: For PtP links, firmware v.3.2.0 or later is required.

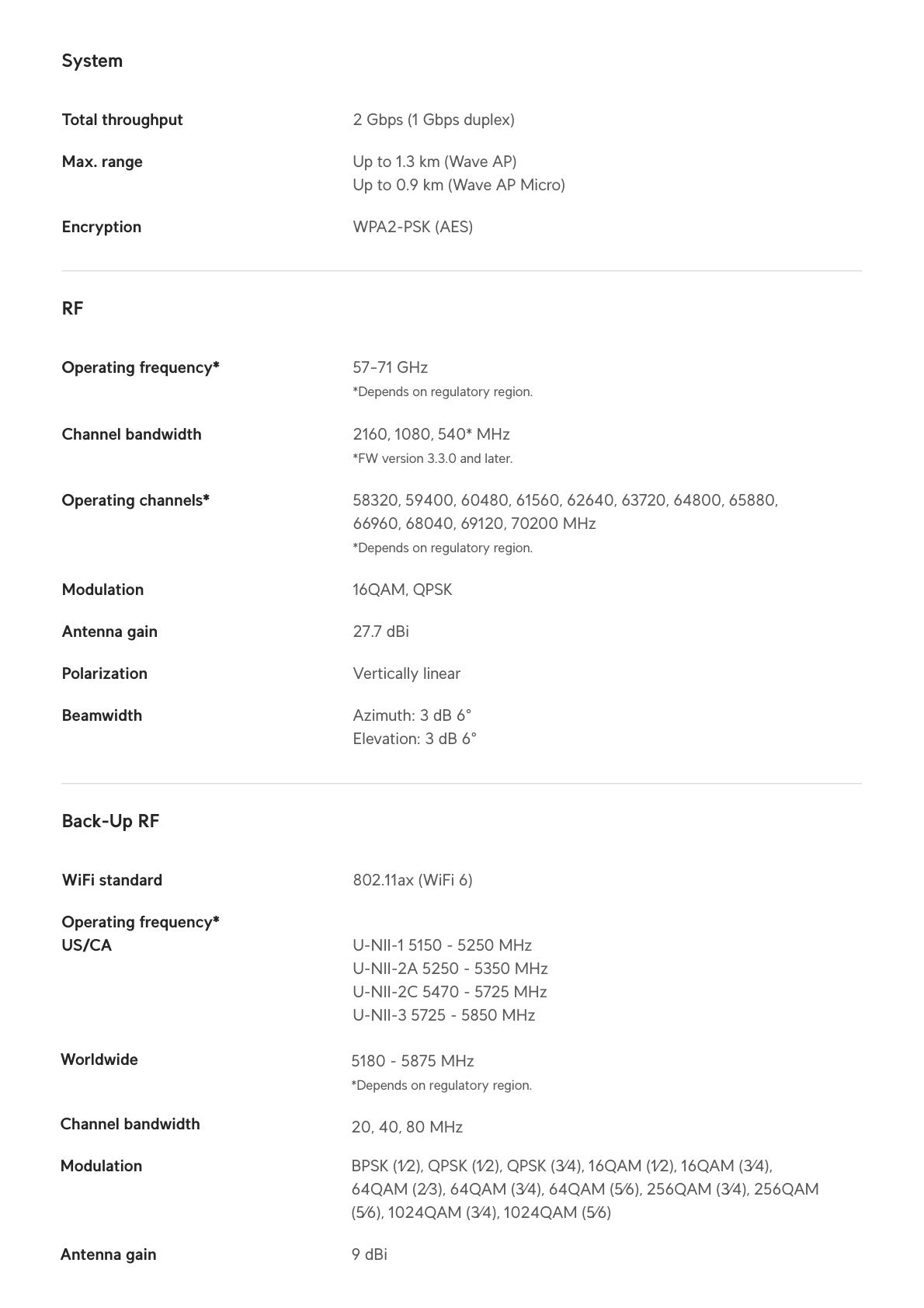

Specifications: Antenna Gain: 60GHz: 27.7dBi ; 5.8GHz: 9dBi Beamwidth: 60GHz: 6° ; 5GHz: 50° Data Rate: 60GHz: Up to 2Gbps ; 5.8GHz: 800Mbps Ethernet Ports: 1x 10/100/1000 Hardware Button: Reset Max. Power Consumption: 10W Mounting: Pole-Mount Operating System: airOS Operating Temperature: -40°C to 60°C PoE Input: 24V or 48V Passive PoE PoE Output: None Power Input: 48V 0.5A, Gigabit PoE Injector (Included) Serial Interface: None SFP Ports: None SIM Slots: None Supported Voltage Range: 44–54V or 22–27V Passive PoE USB Ports: None

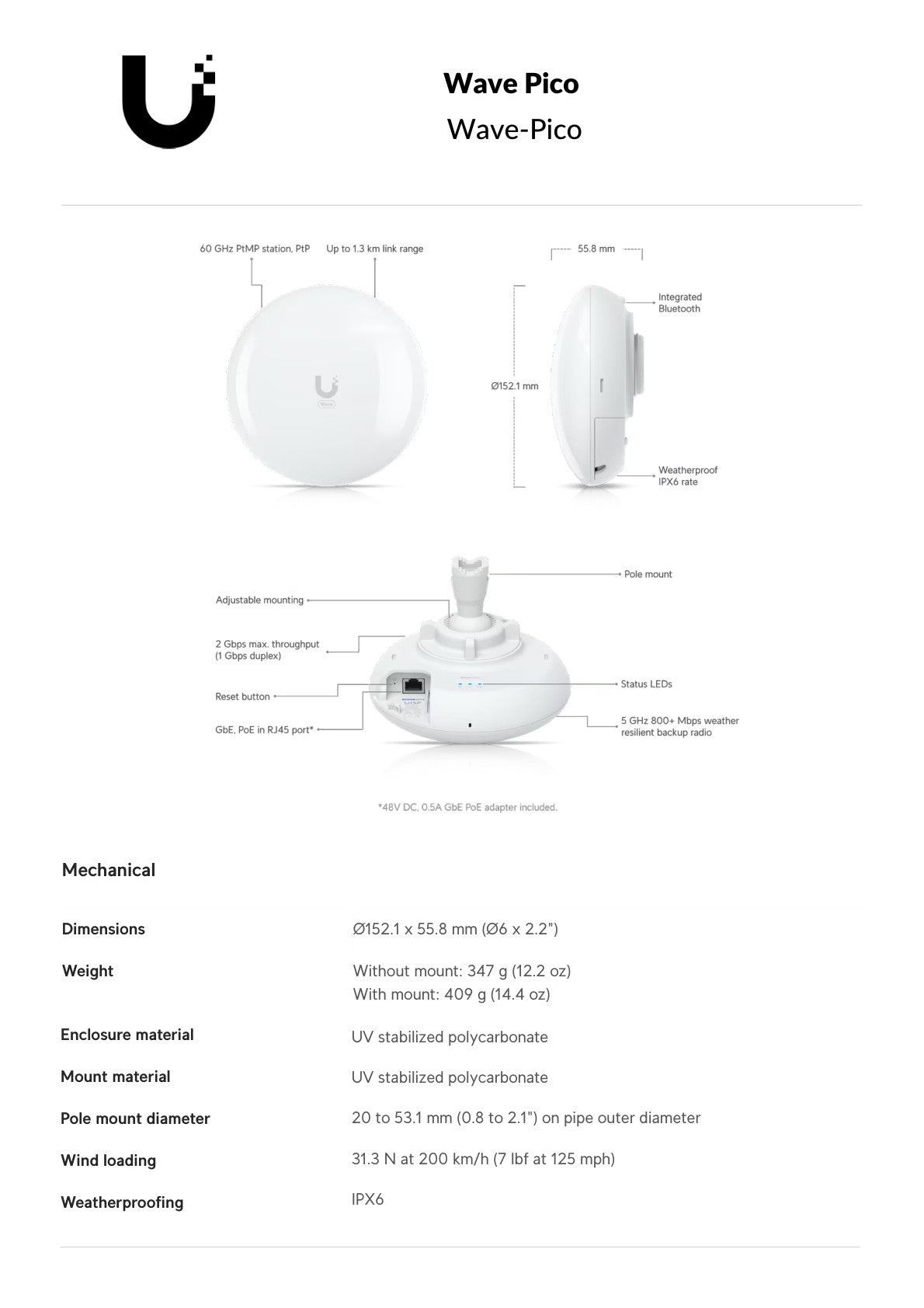

Dimensions: Ø152.1 x 55.8 mm Weight: 347g

• 60GHZ POINT-TO-POINT PERFORMANCE: Delivers true duplex gigabit connectivity with data rates up to 2Gbps over 60GHz, supporting PtP links of up to 3km, making it suitable for high-demand wireless backhaul applications.
• 5GHZ BACKUP RADIO: Includes an integrated WiFi 6, 5GHz radio with speeds up to 800Mbps, providing a reliable fallback connection if the primary 60GHz link is interrupted.
• FLEXIBLE DEPLOYMENT OPTIONS: Works in both PtP and PtMP modes, and can function as a CPE when paired with the WAVE-AP (up to 1.3km) or WAVE-APM (up to 900m), with total throughput reaching up to 2Gbps.
• BUILT-IN BLUETOOTH MANAGEMENT: Features an integrated Bluetooth radio for straightforward device setup and configuration through the UISP network management platform, reducing the time and effort needed during installation.
• EASY ANTENNA ALIGNMENT: Comes with an included alignment tool to help accurately and reliably position the antenna, along with pole-mount hardware and support for 24V or 48V Passive PoE with a 48V Gigabit PoE injector included.
