Ubiquiti UISP airFiber 11GHz Dish Radio and Duplexer Kit | AF11-Complete-LB

Ubiquiti UISP airFiber 11GHz Dish Radio and Duplexer Kit | AF11-Complete-LB

Regular price R 45,740.00
Regular price Sale price R 45,740.00
Sale Sold out
Tax included. Shipping calculated at checkout.

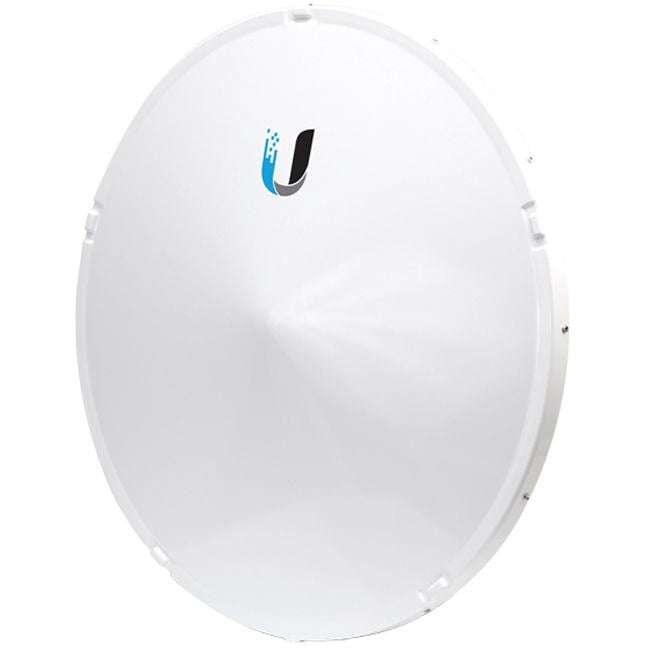

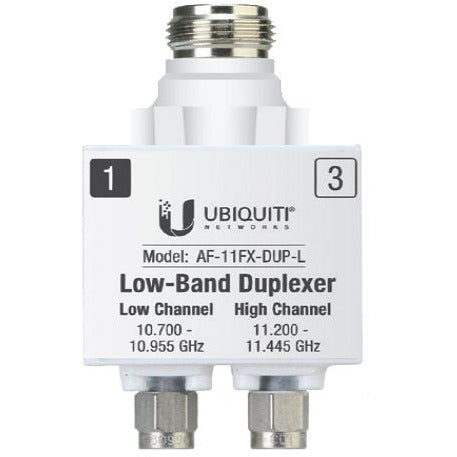

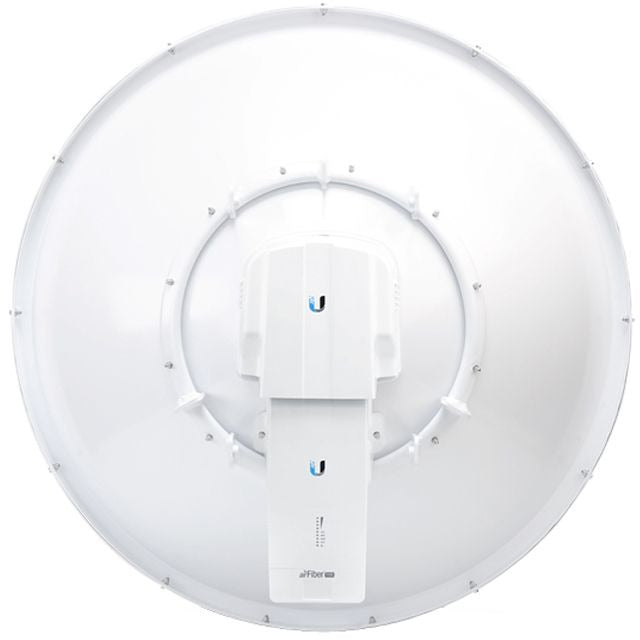

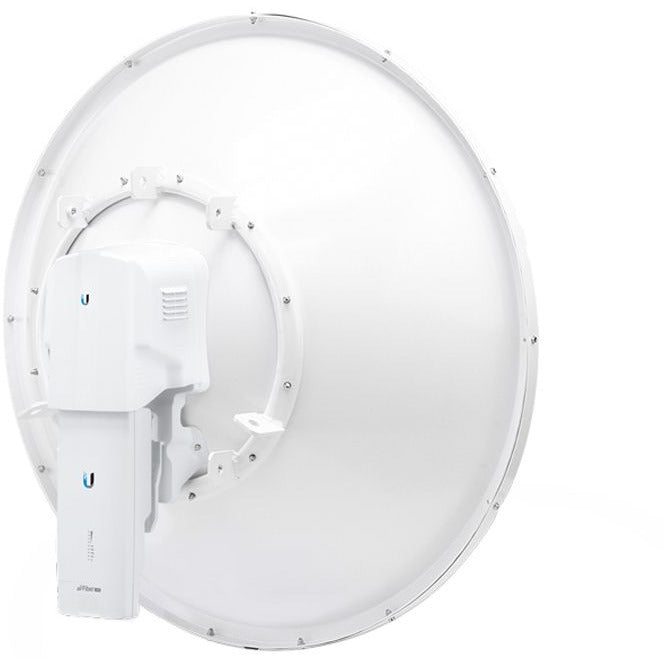

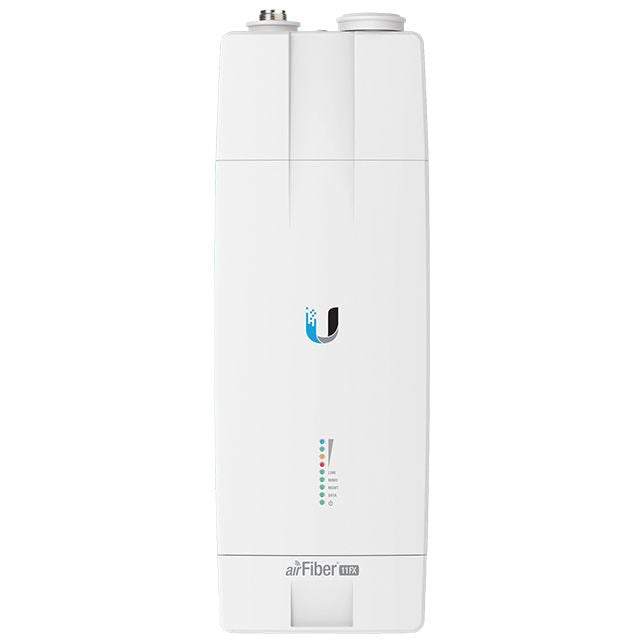

Ubiquiti's AF-11KIT includes an AF-11 radio, an AF-11G35 35dBi dish antenna and an AF-DUPL single low band duplexer. Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band.
Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications.
It offers superior long-range performance and high throughput.

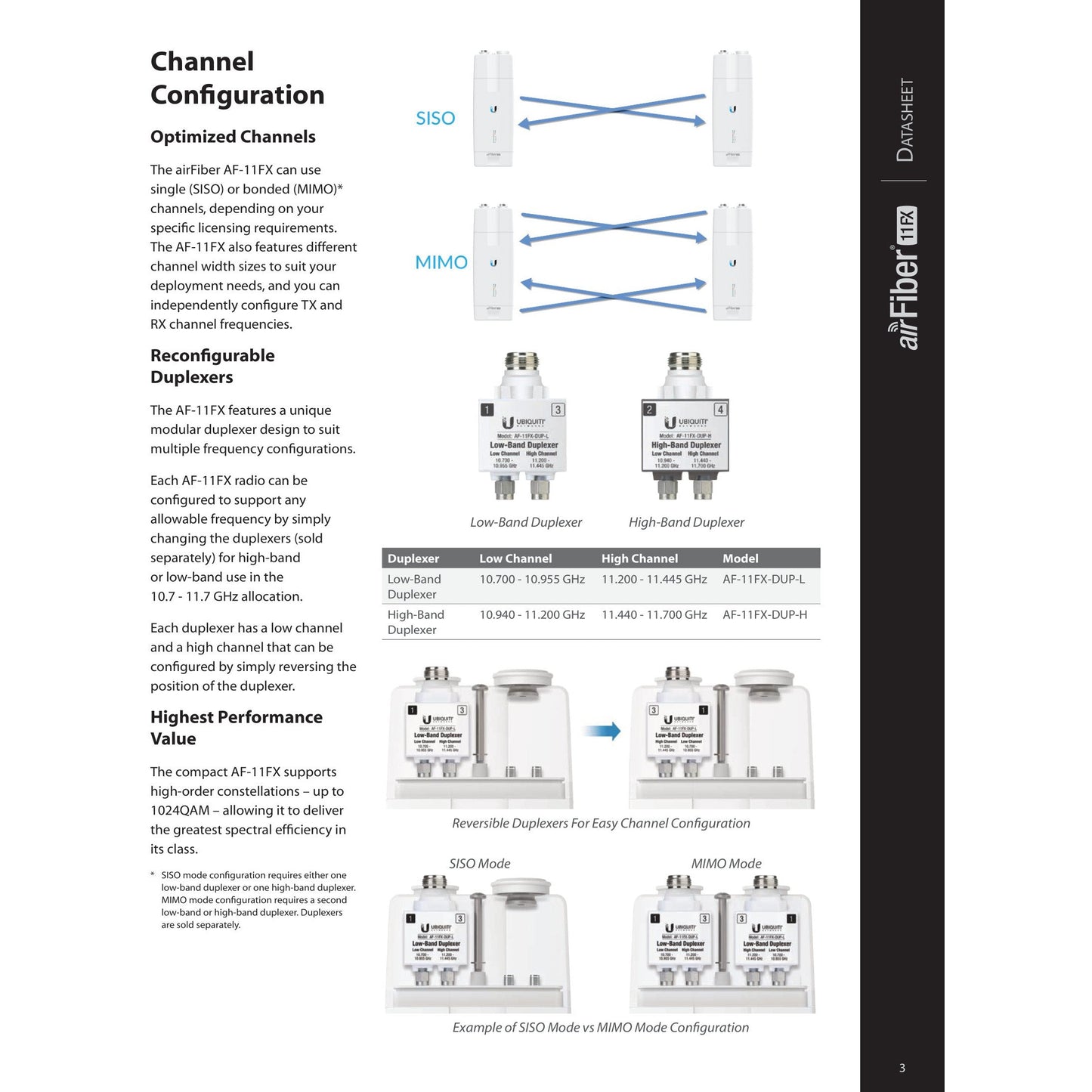

The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements.
It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently.
Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link.
This device is managed via the UISP mobile app and network management platform.

*Note: Kit includes Antenna and Duplexer.

Specifications

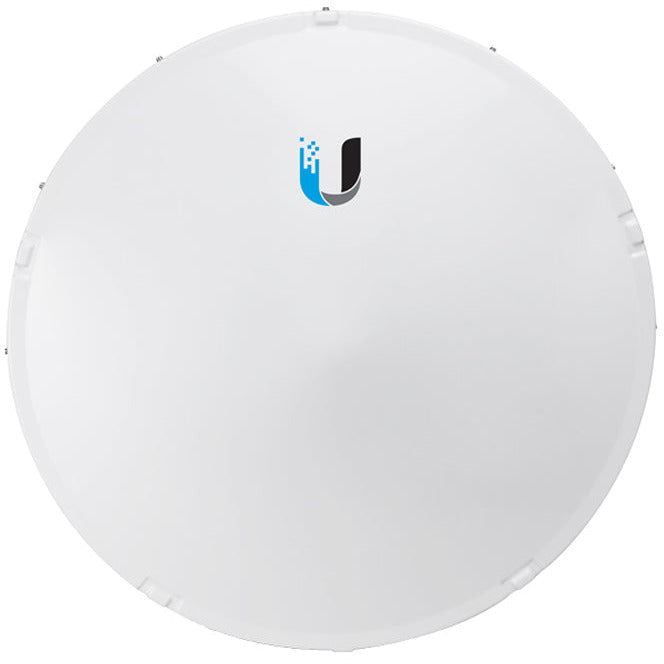

Antenna Gain: 35dBi
Beam-width: 2.5°
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data: 10/100/1000 ; Management: 10/100
Hardware Button: Reset
Max. Power Consumption: 36W

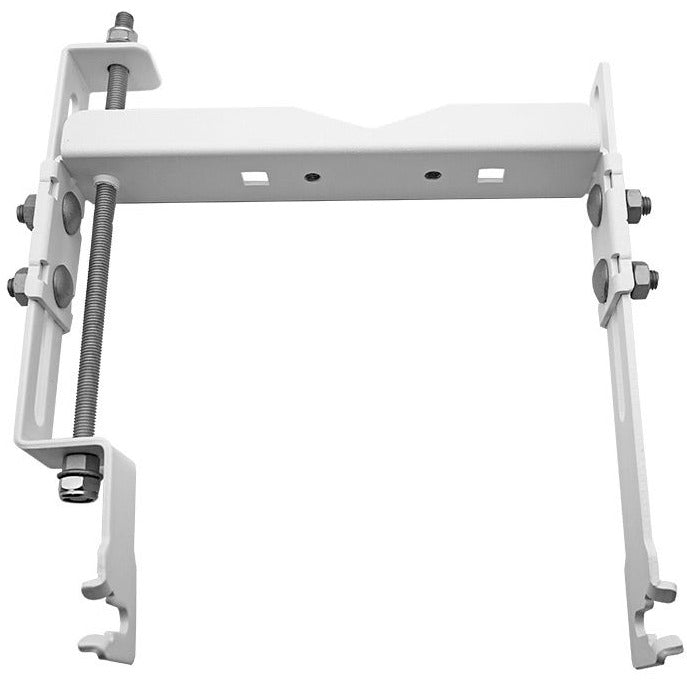

Mounting: Antenna: Pole-Mount Radio: Antenna or Pole-Mount
Operating System: airMAX ac
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None

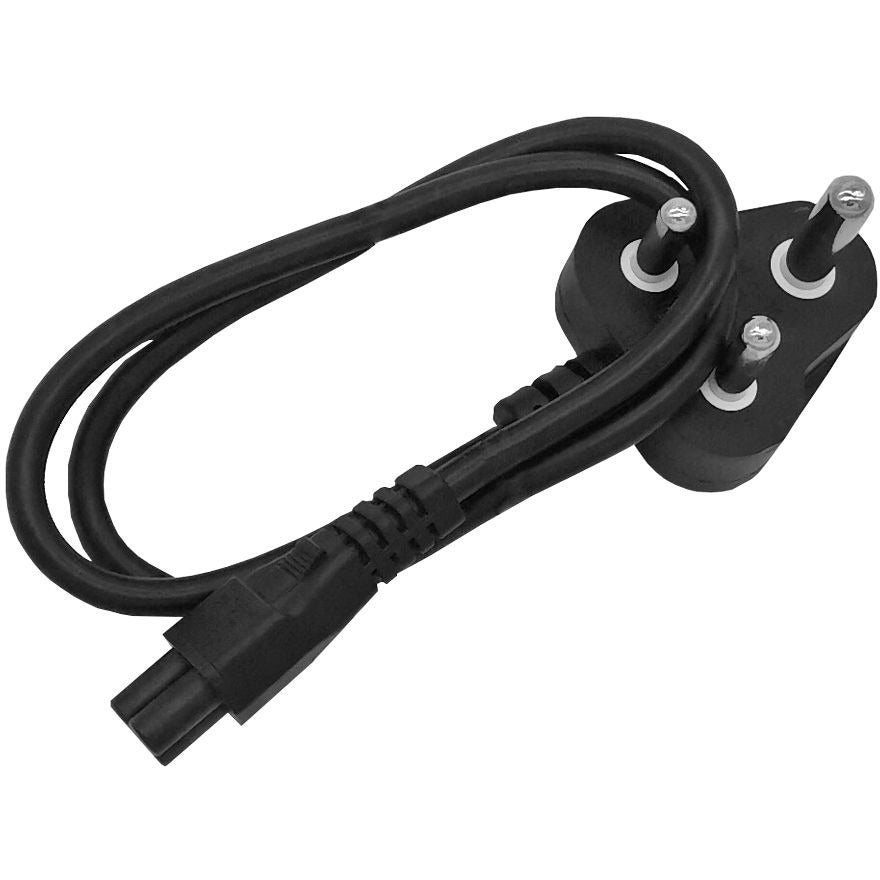

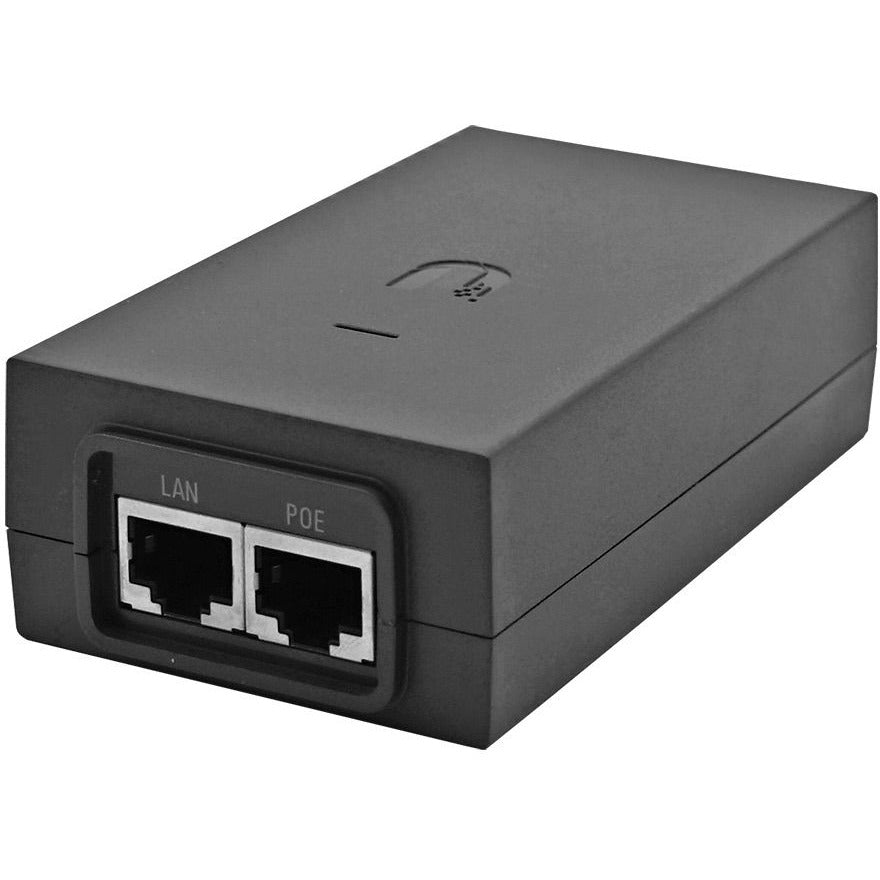

Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: Antenna: ø 811 x 460mm Radio: 327 x 112 x 86mm
Weight: Antenna: 11.85kg Radio: 2.260kg

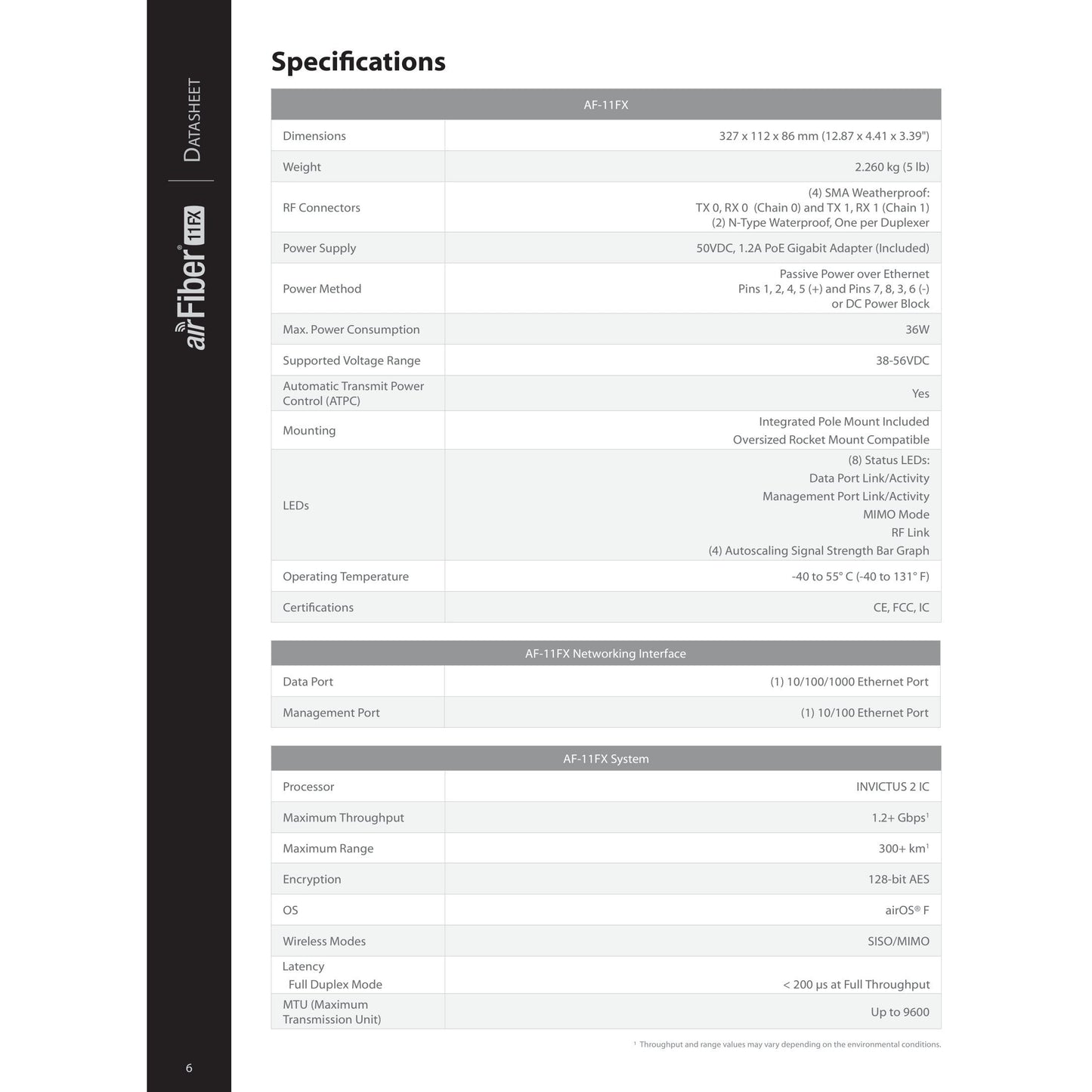

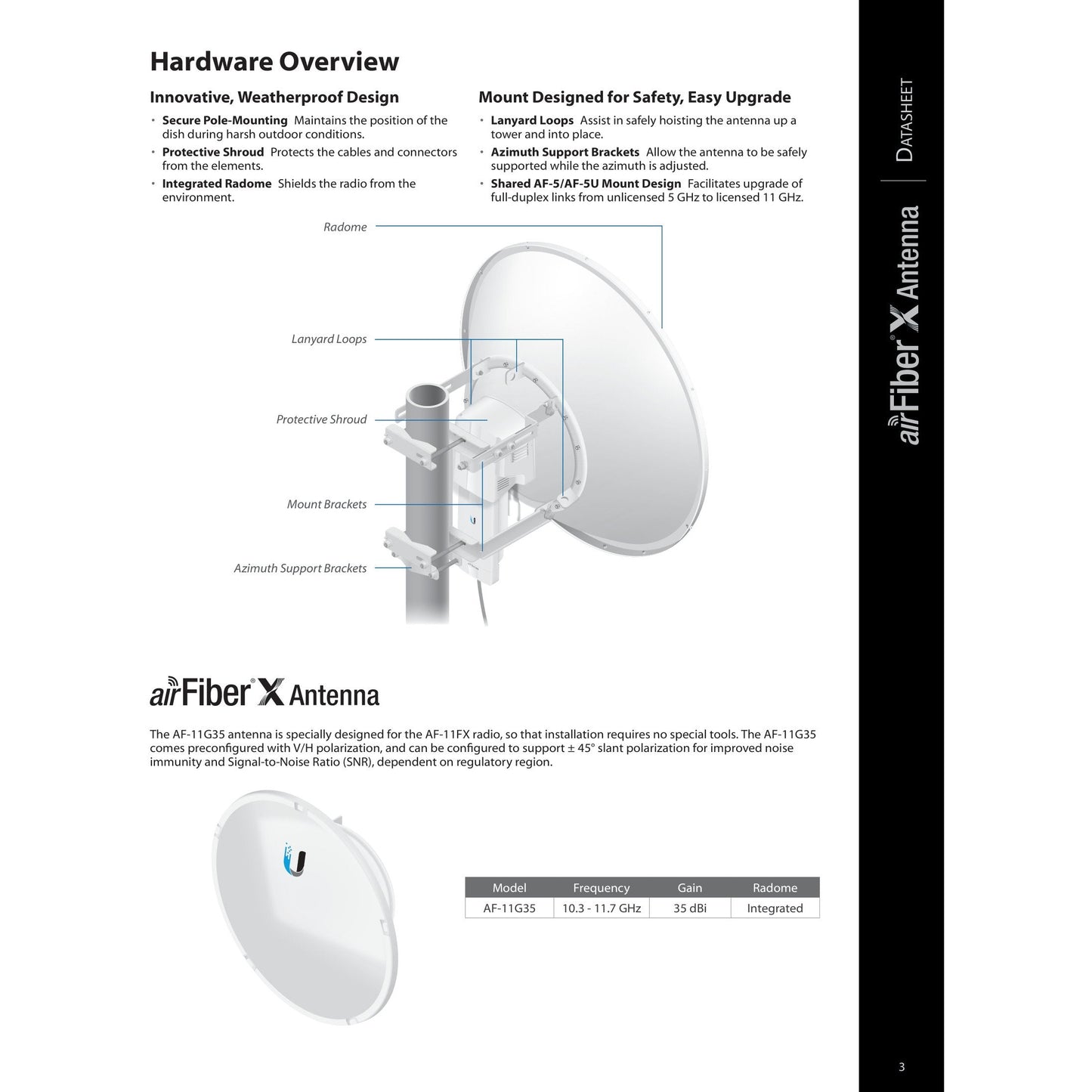

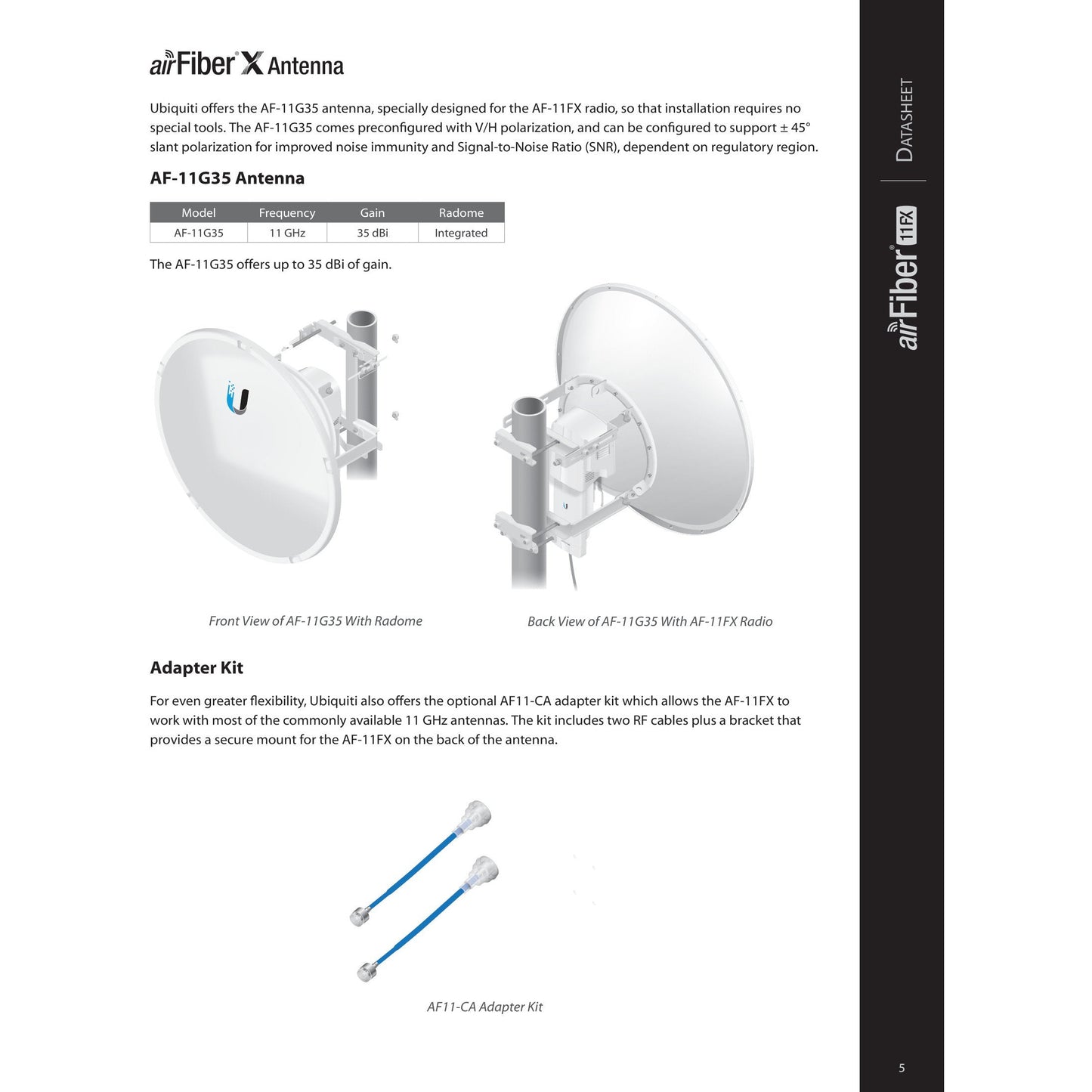

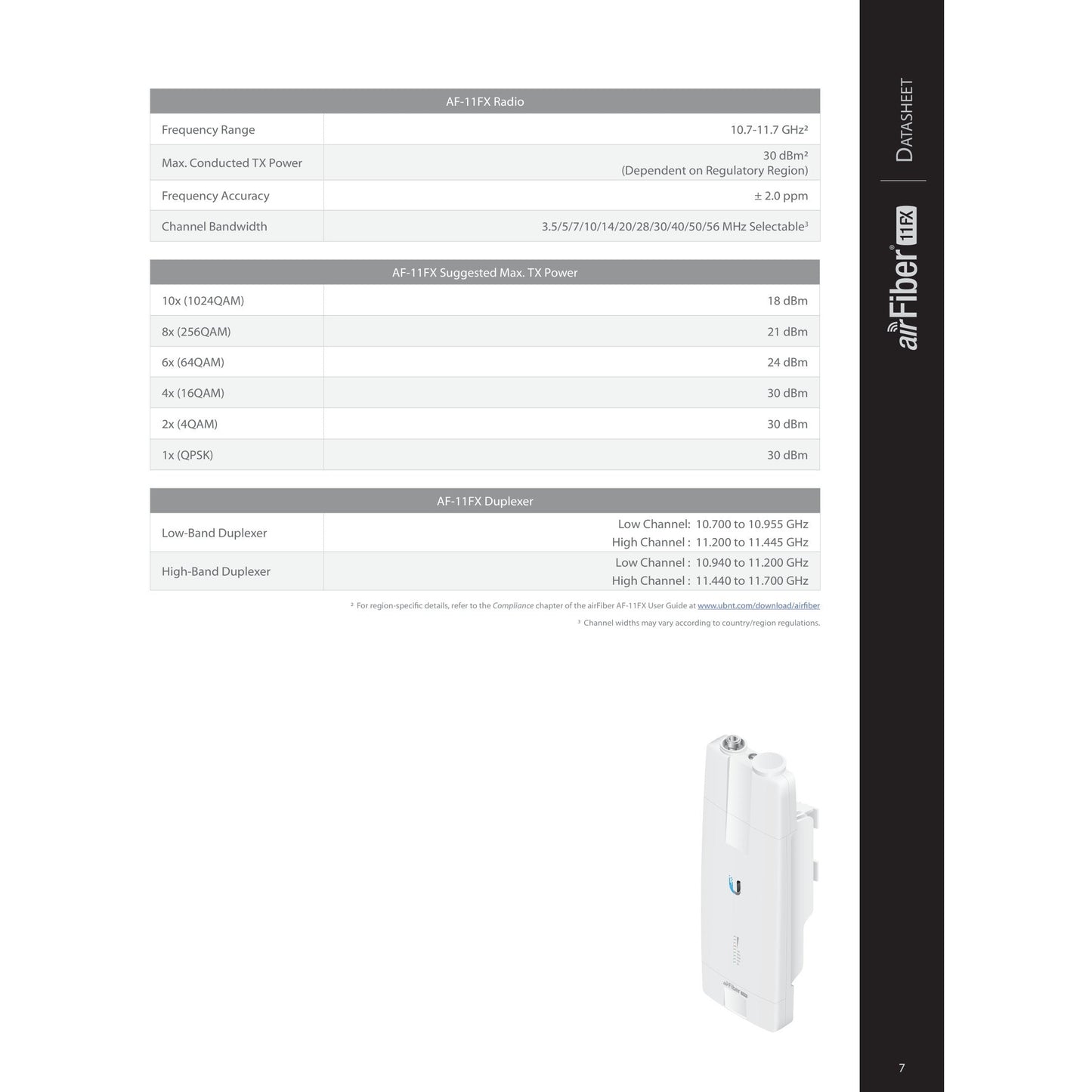

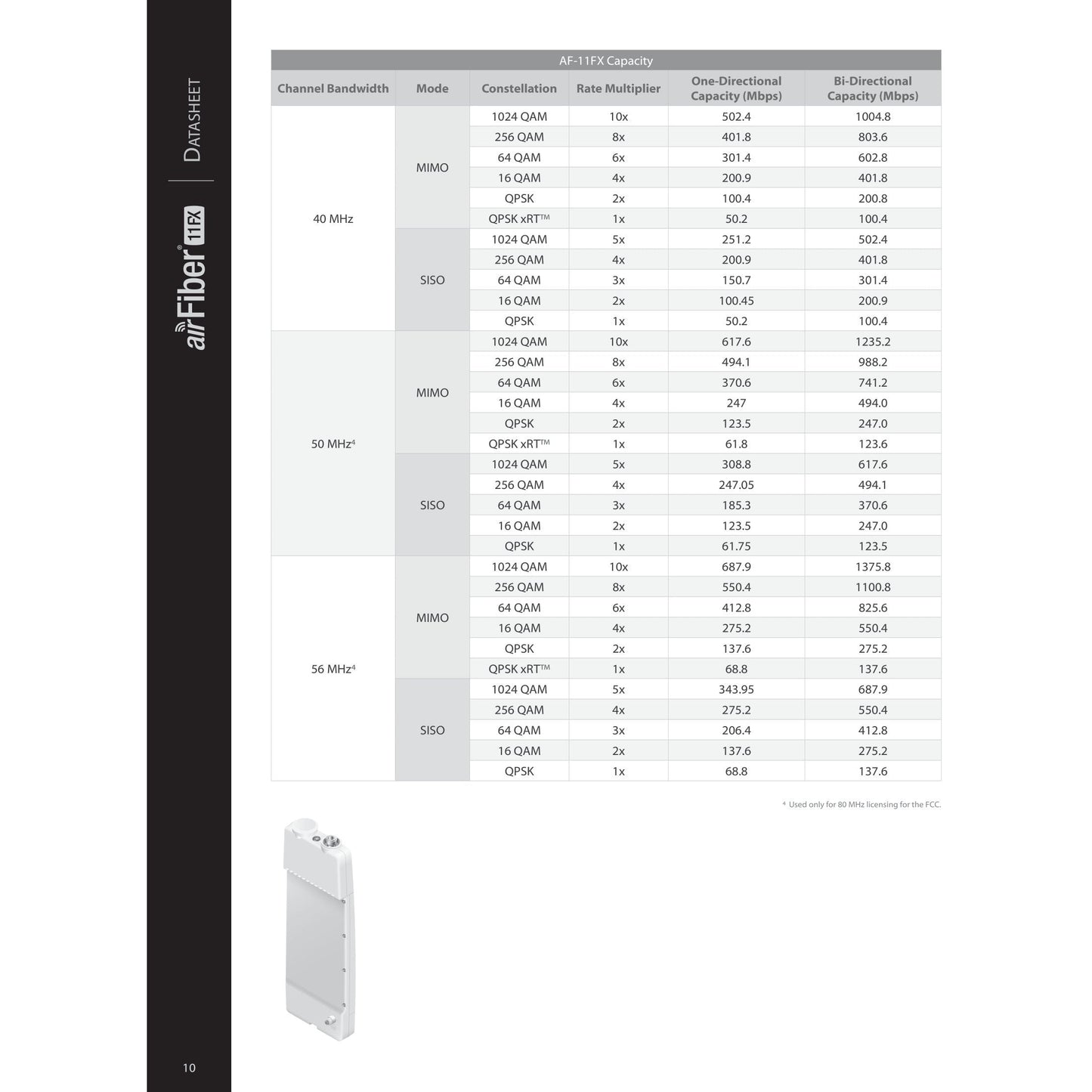

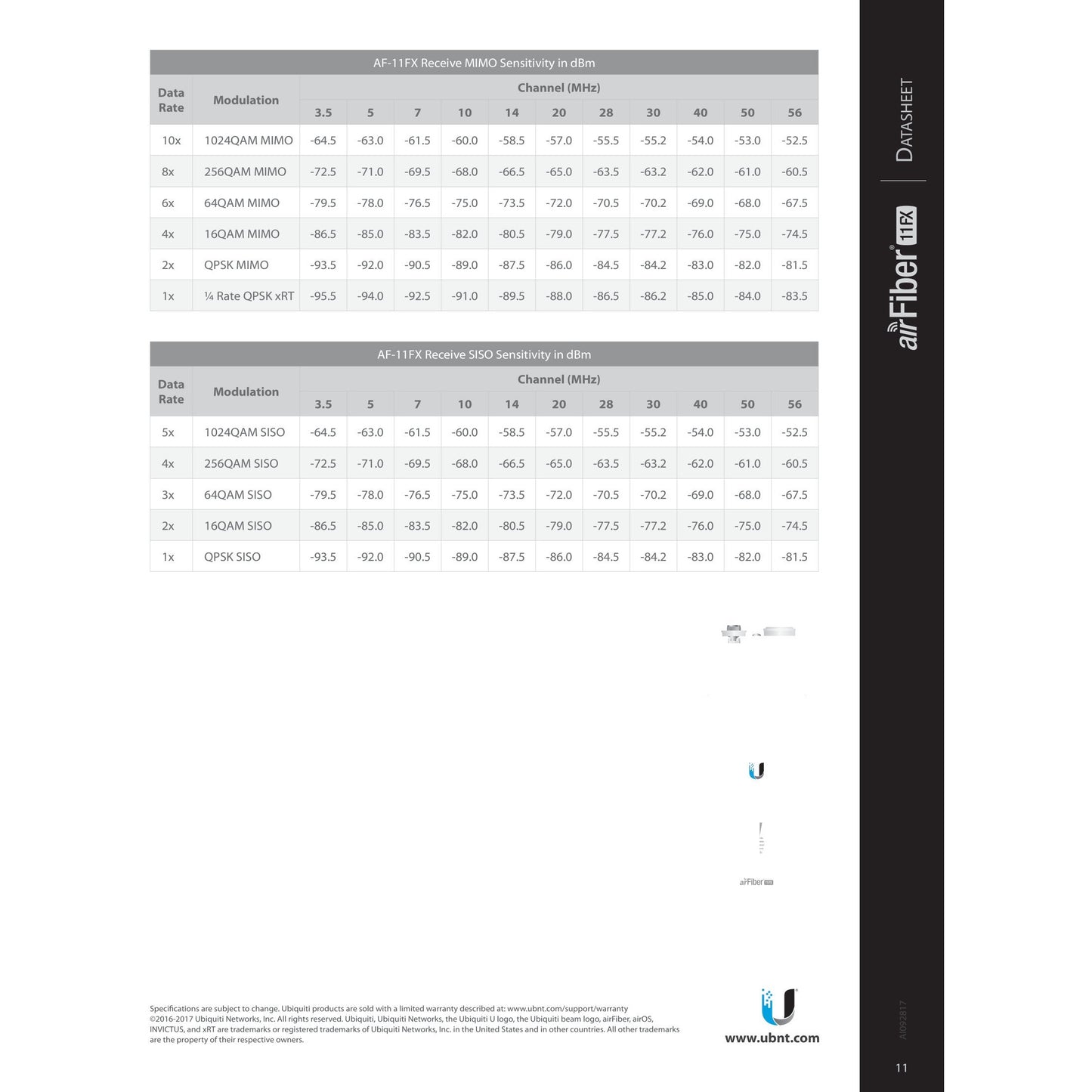

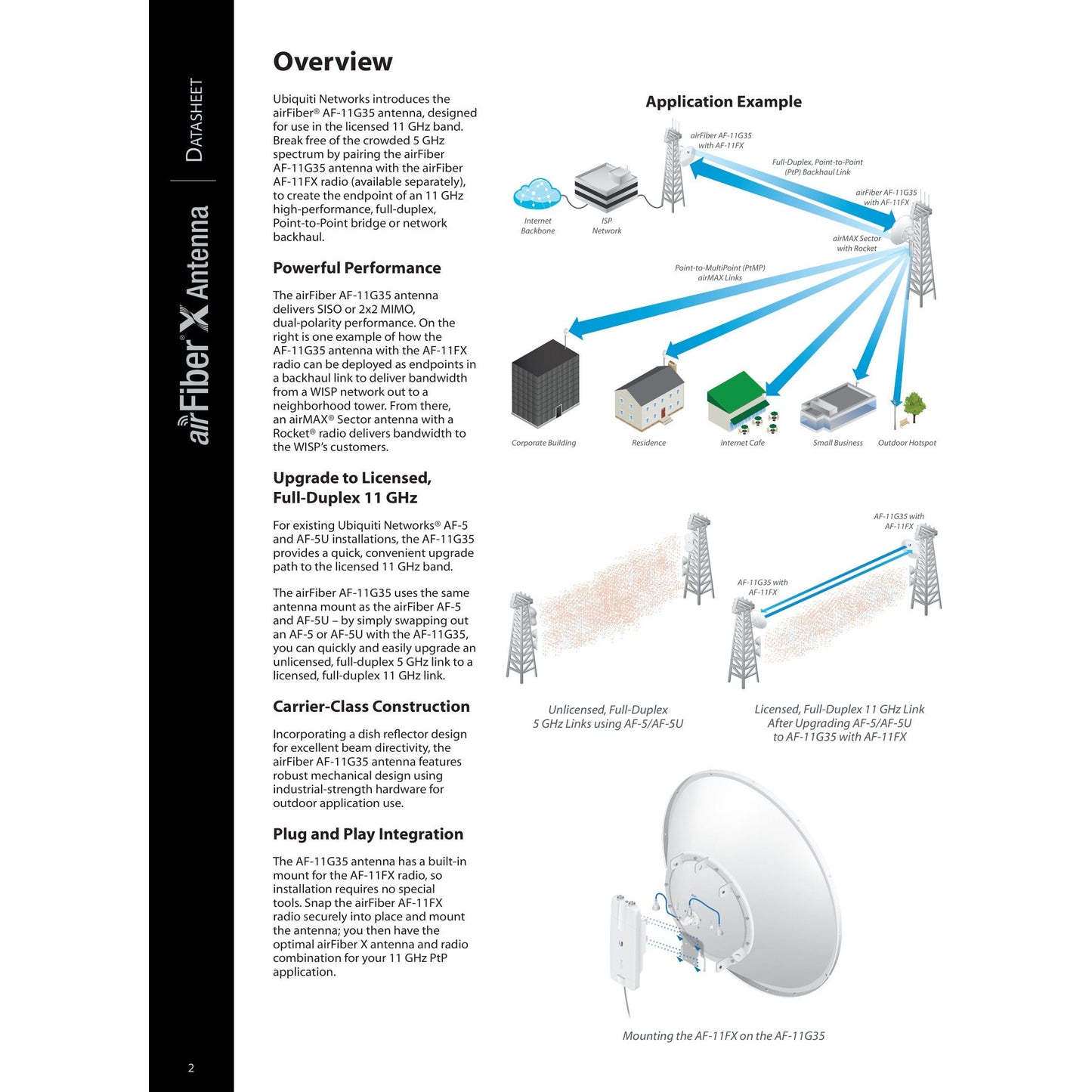

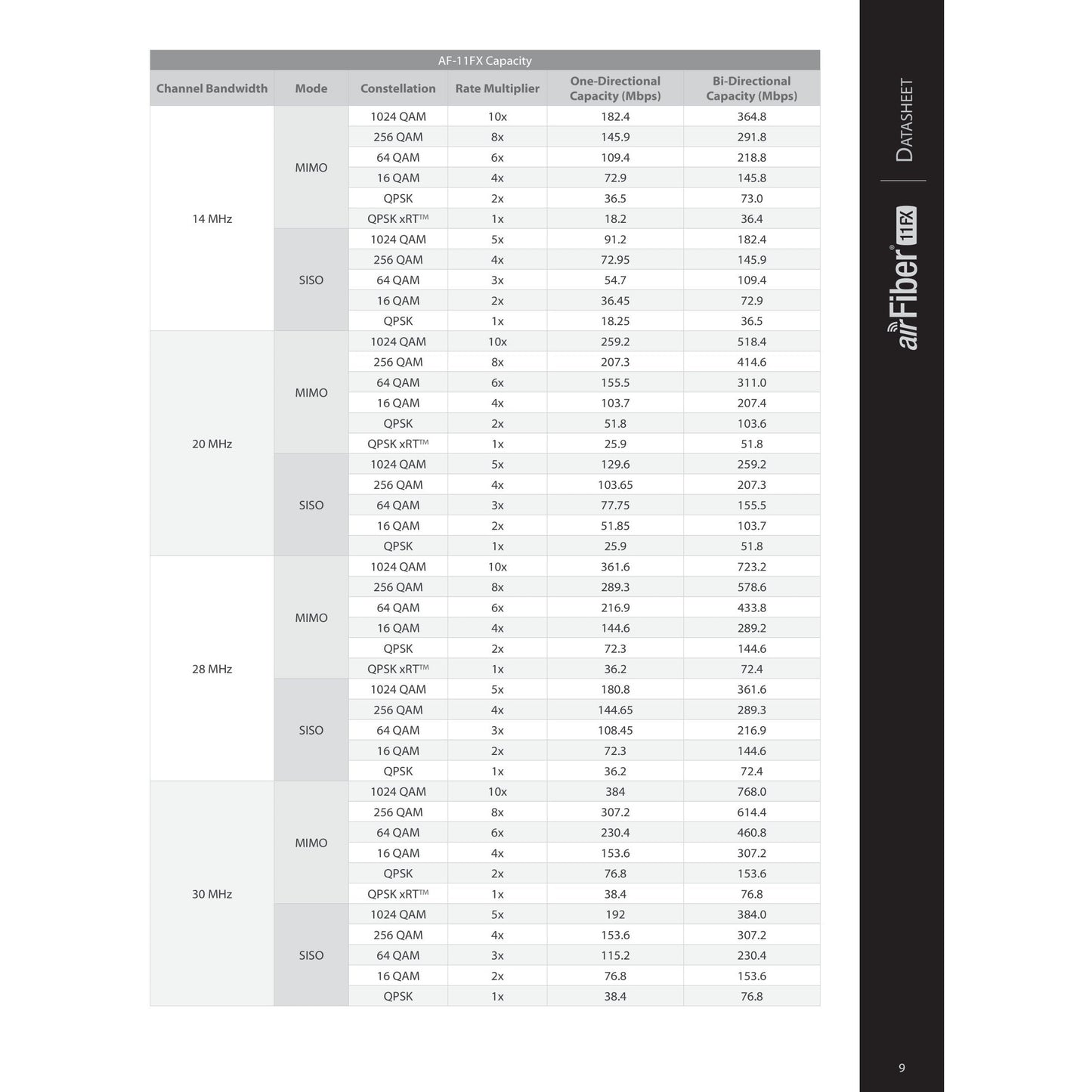

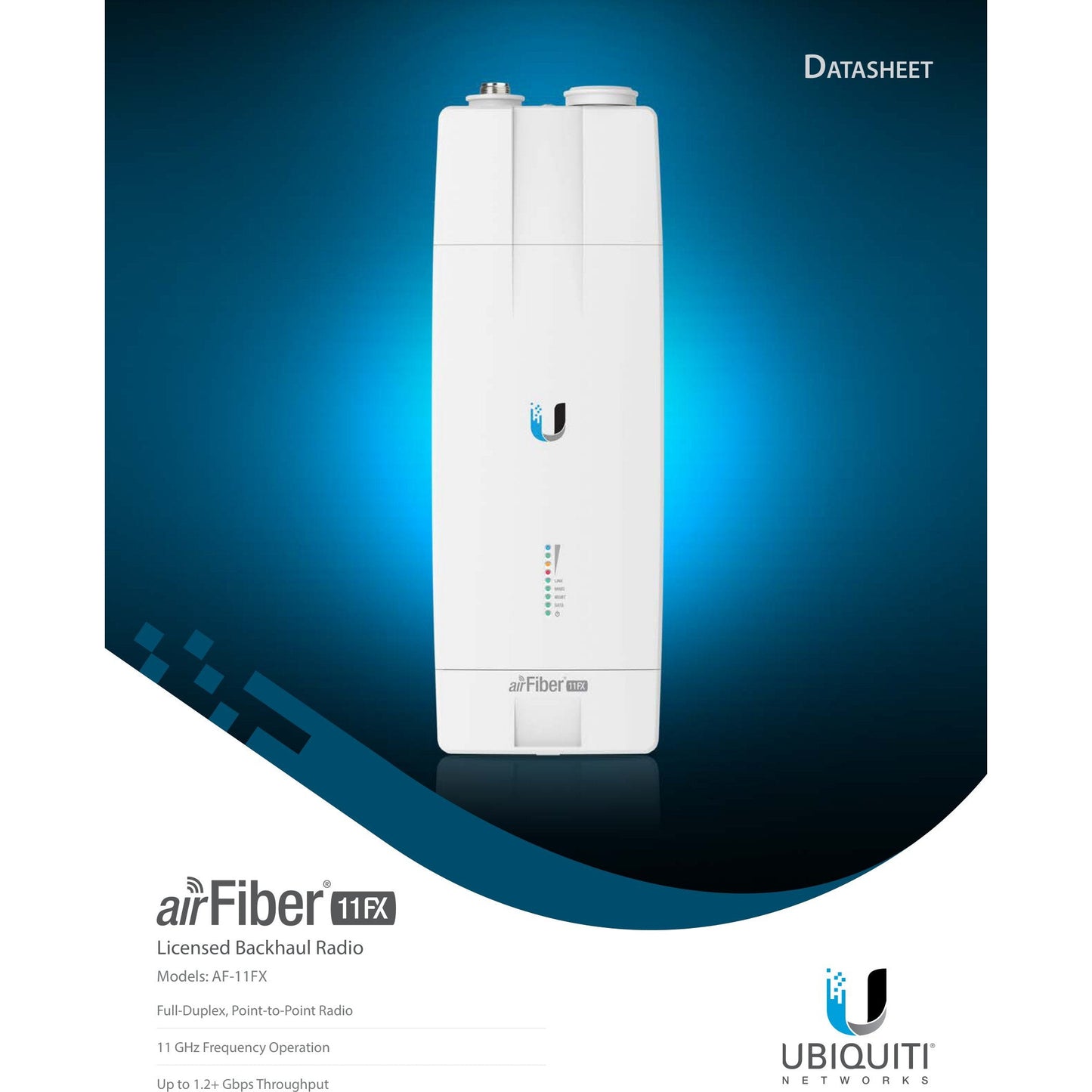

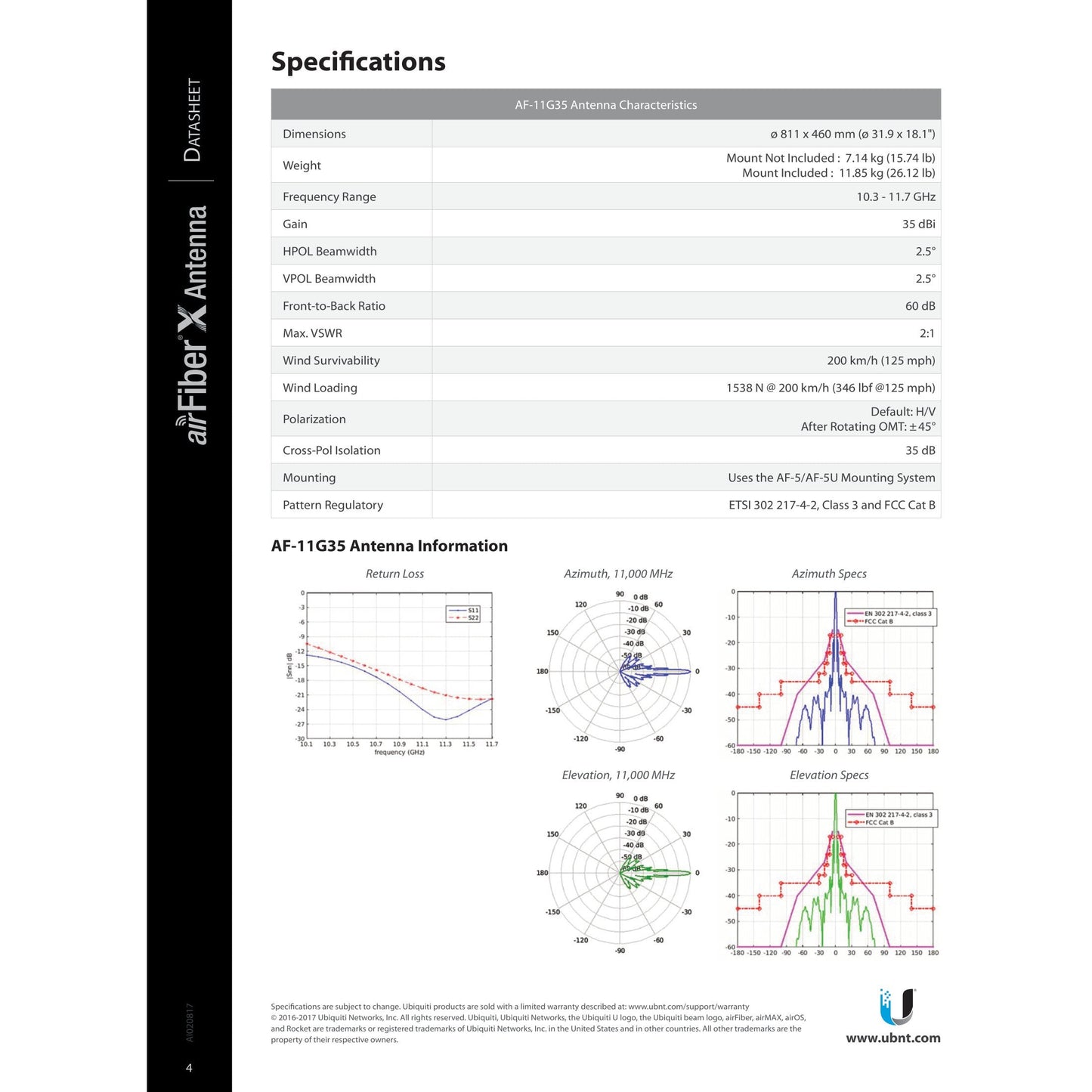

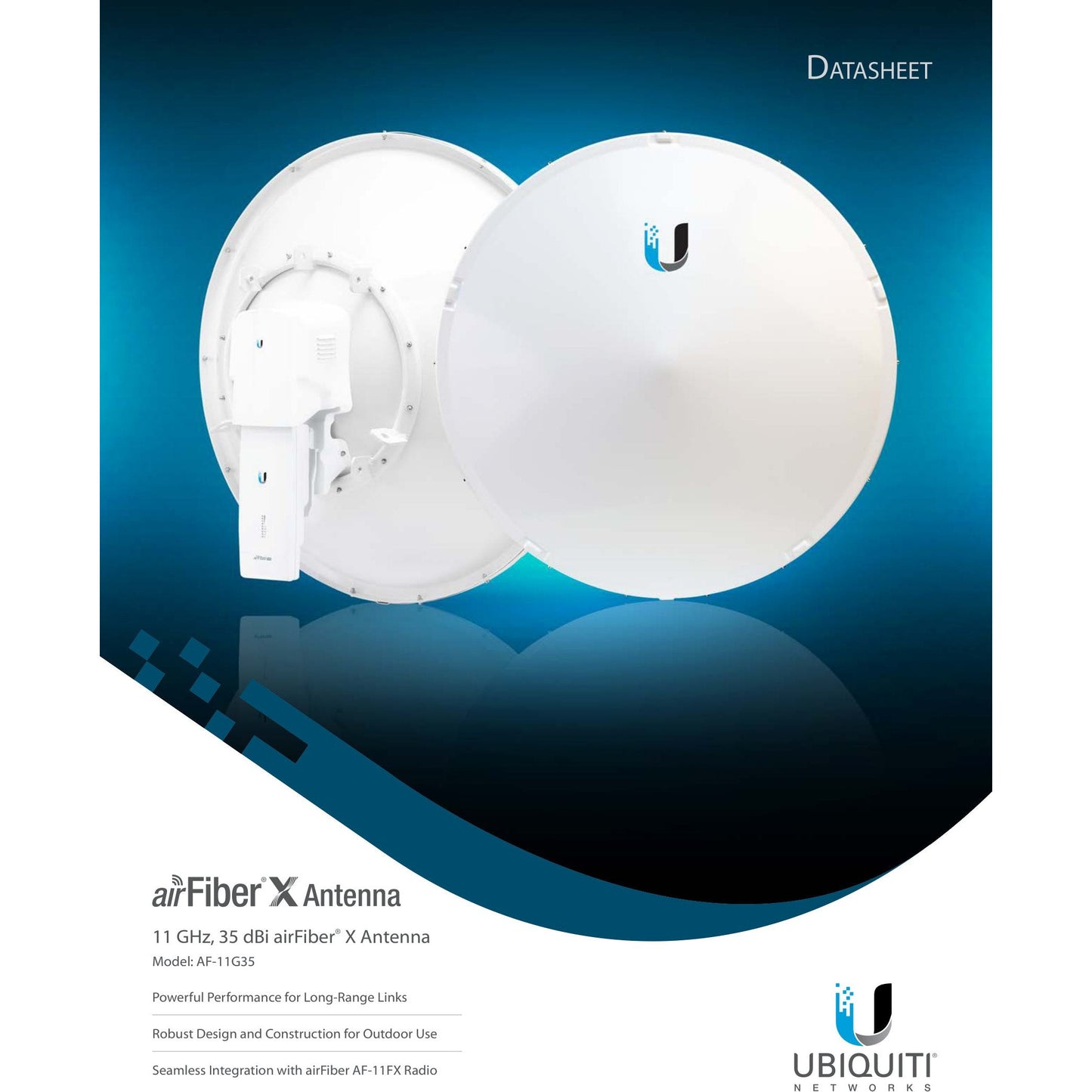

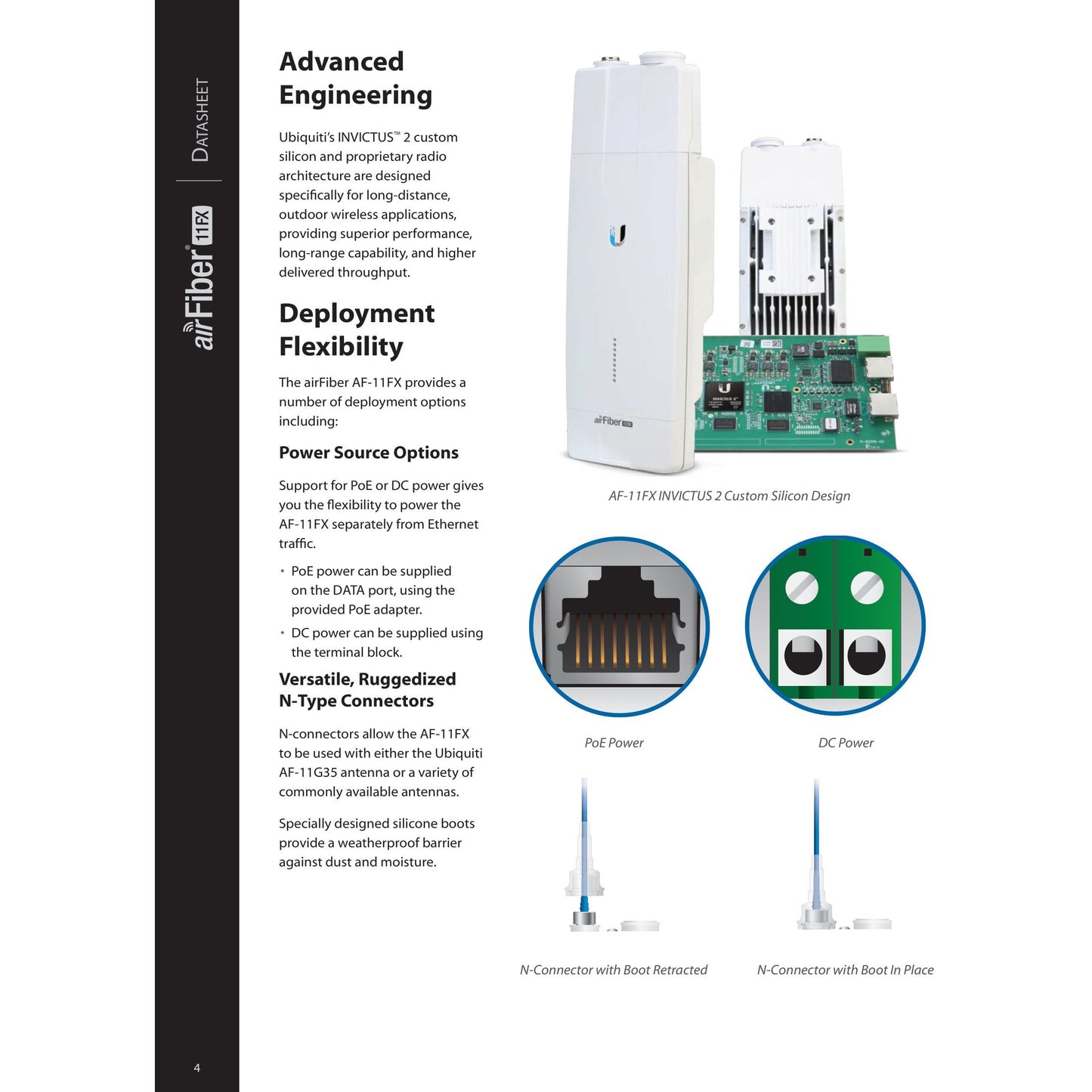

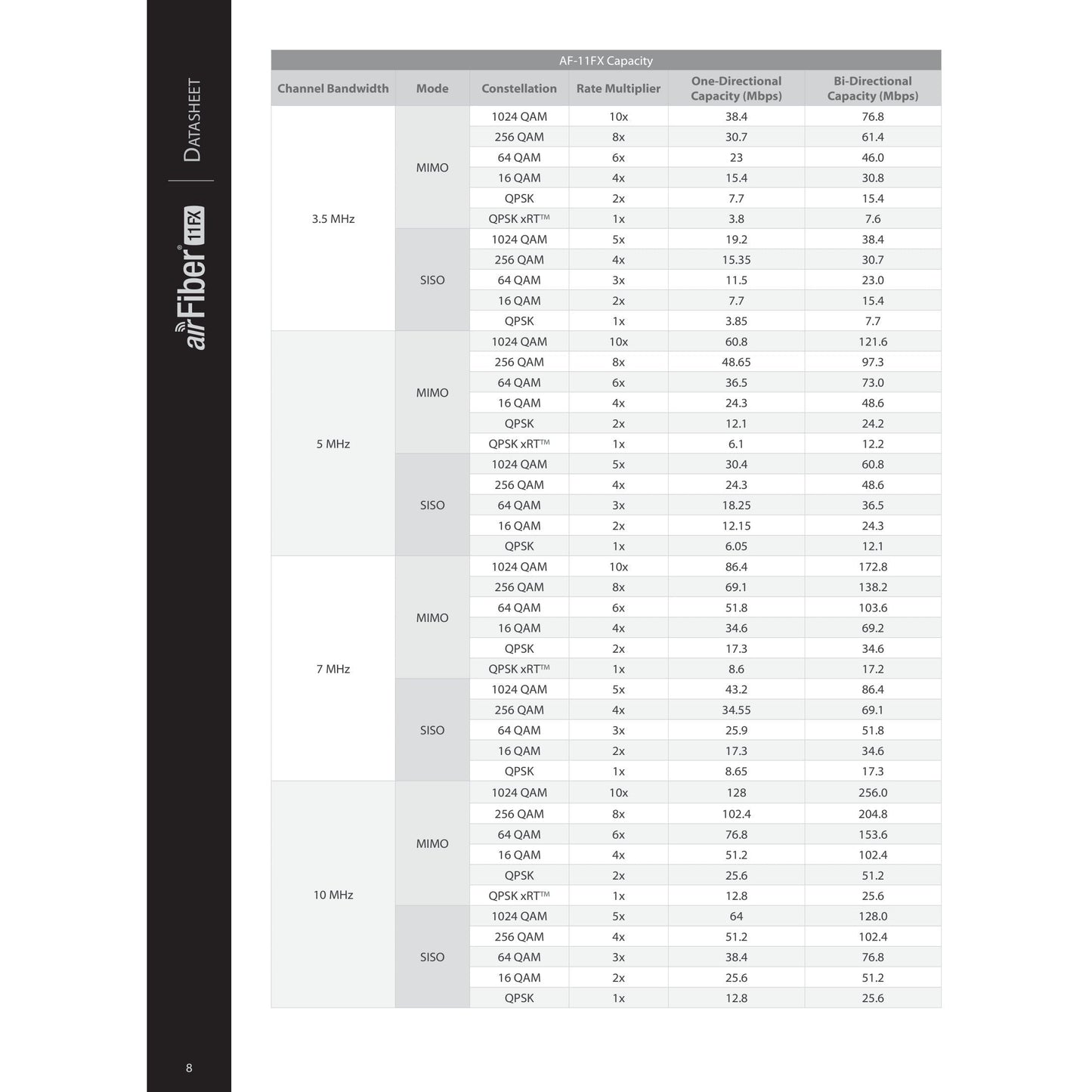

For more in-depth information, zoom in on picture of data sheet.

SKU AF-11KIT
Manufacturer Ubiquiti
Manufacturer Product Code AF11-Complete-LB
