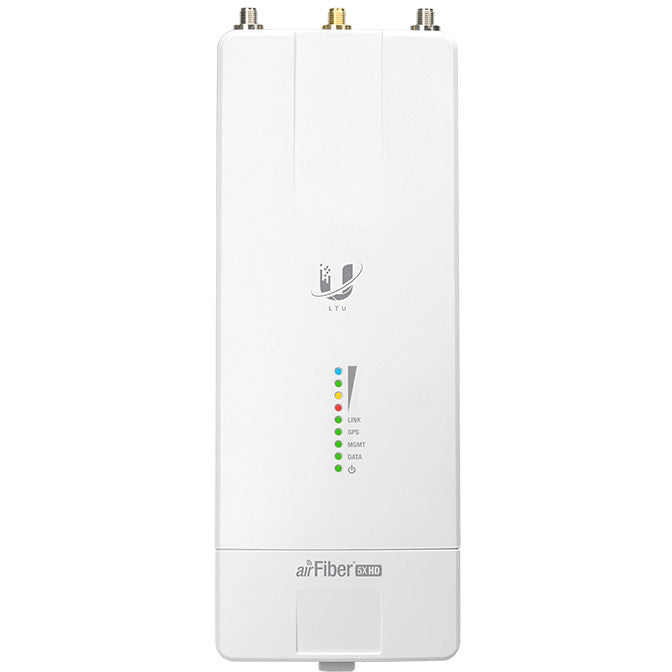

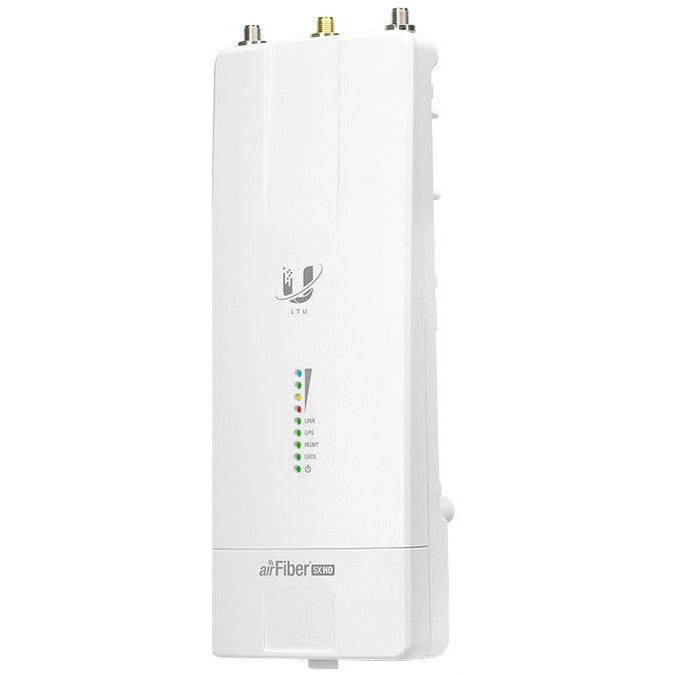

Ubiquiti UISP airFiber 5XHD 5GHz Radio | AF-5XHD

Ubiquiti UISP airFiber 5XHD 5GHz Radio | AF-5XHD

Regular price R 11,176.00
Regular price Sale price R 11,176.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti's AF-5XHD is designed for use in the 5GHz frequency band offering channel bandwidths of up to 100MHz, GPS synchronization and uses airOS LTU, manageable via UISP.
The AF-5XHD is designed to work with Ubiquiti® airFiber X slant-polarized antennas for improved noise immunity and signal-to-noise ratio but is also compatible with other dish antennas in the Ubiquiti range.
This device is managed via the UISP mobile app and network management platform.

*Note:
Antenna not included. The AF-5XHD only functions in PtP (master or slave) mode and therefore is not suitable for PtMP installations. The AF-5XHD is not backwards compatible with the AF5X.

Specifications

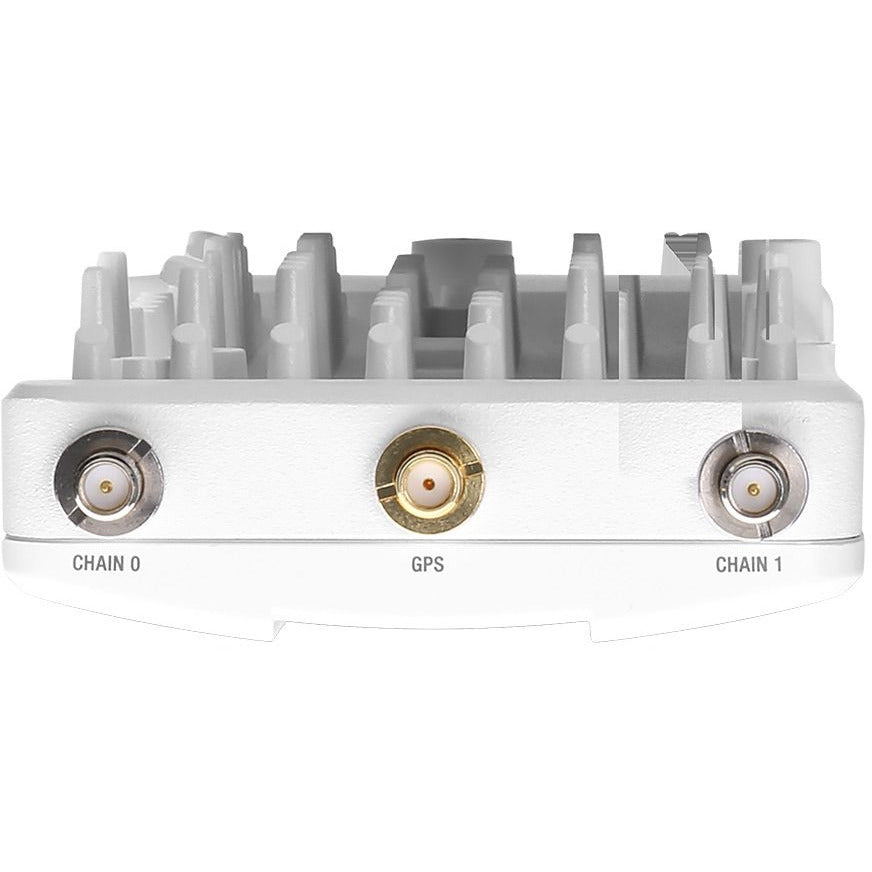

Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 1.34 Gbps

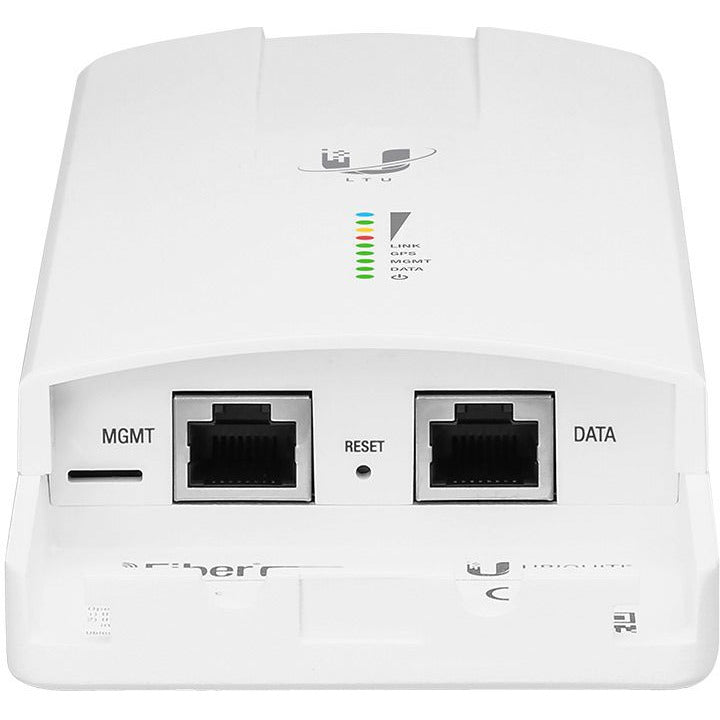

Ethernet Ports: Data - 1x 10/100/1000 ; Management – 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W-12W

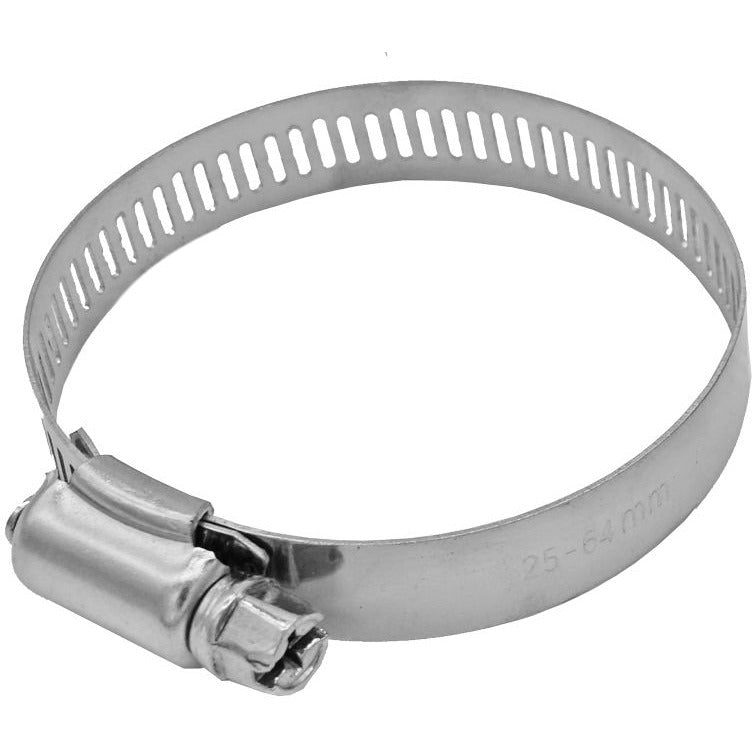

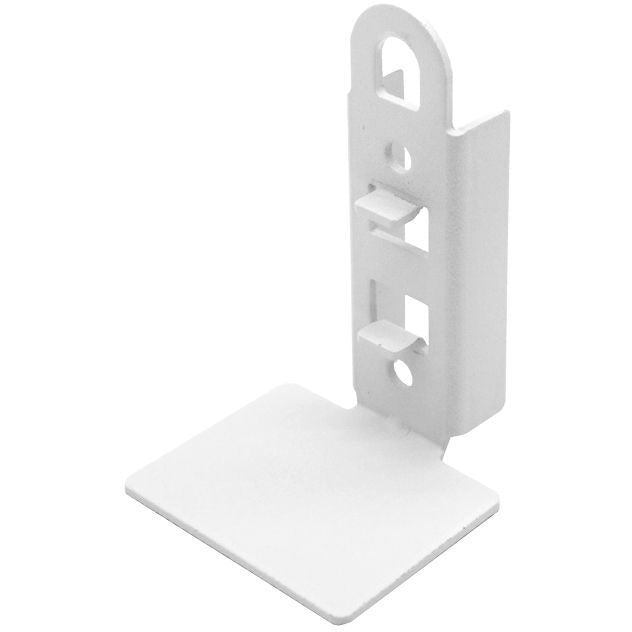

Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None

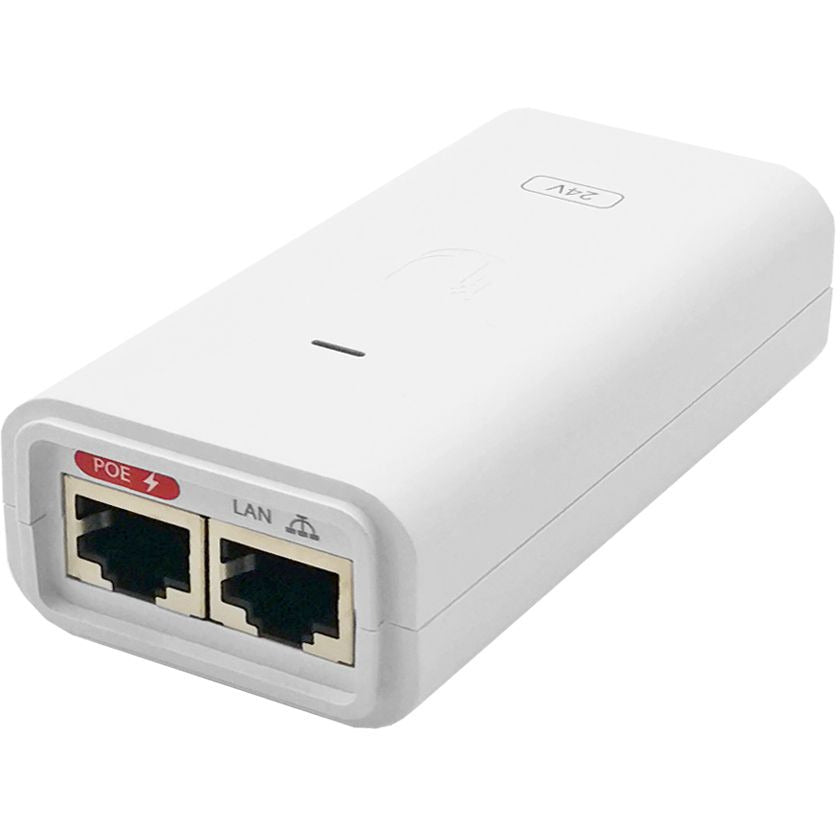

Power Input: 24V; 1A Gigabit PoE Injector (Included)
Serial Interface: Bluetooth V4.0
SIM Slots: None
Supported Voltage Range: 18V-54V
USB Ports: None

Dimensions: 224 x 82 x 48mm
Weight: 0.35kg

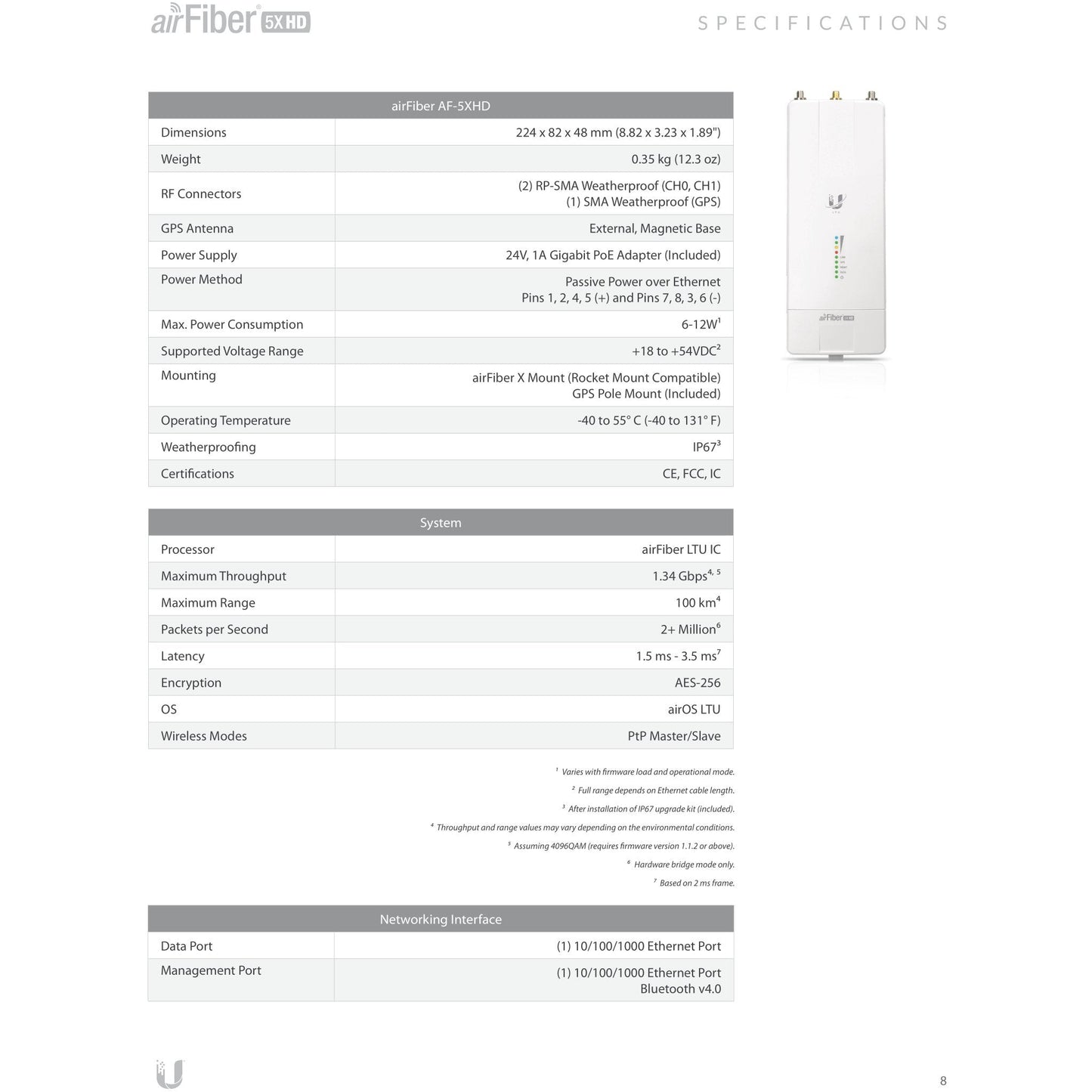

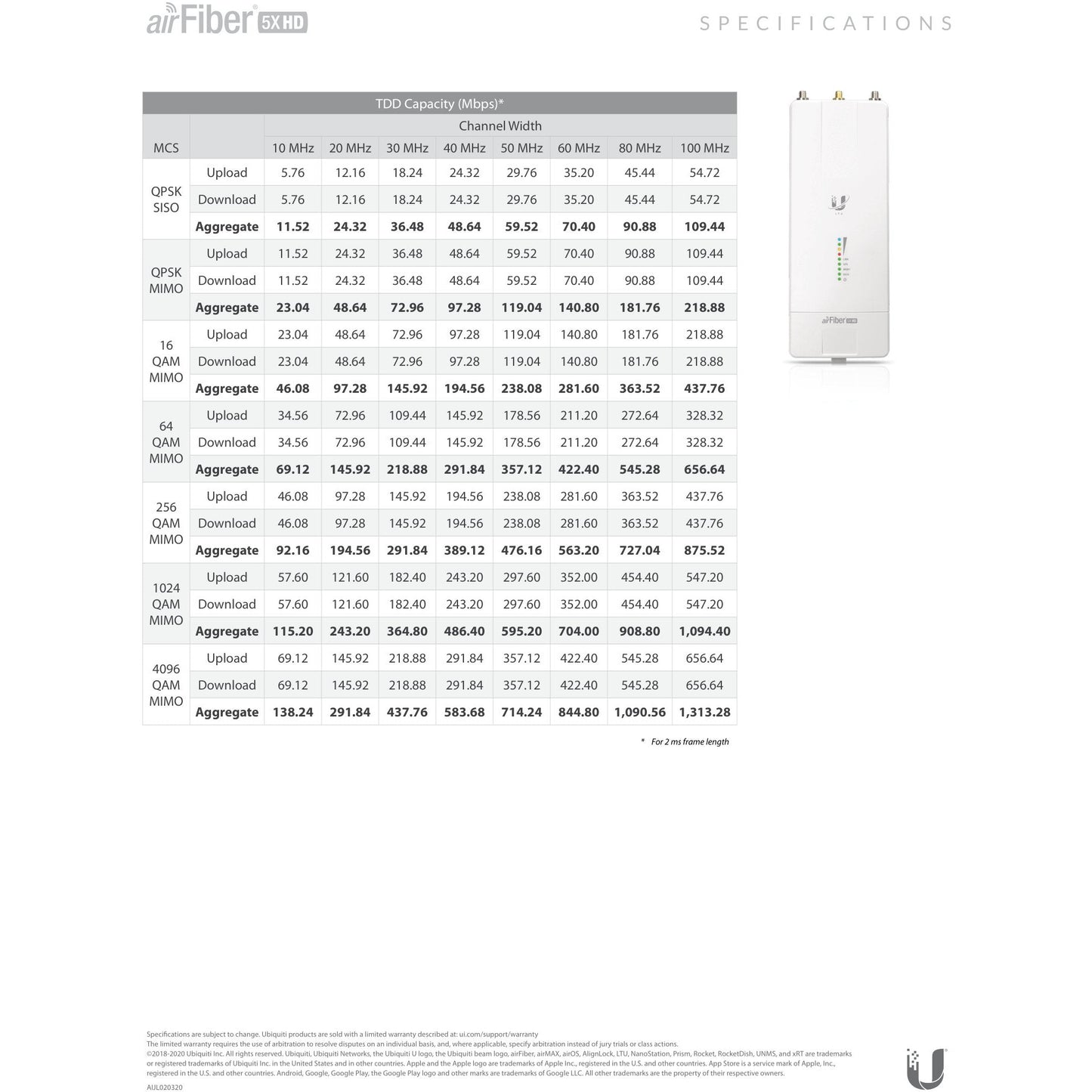

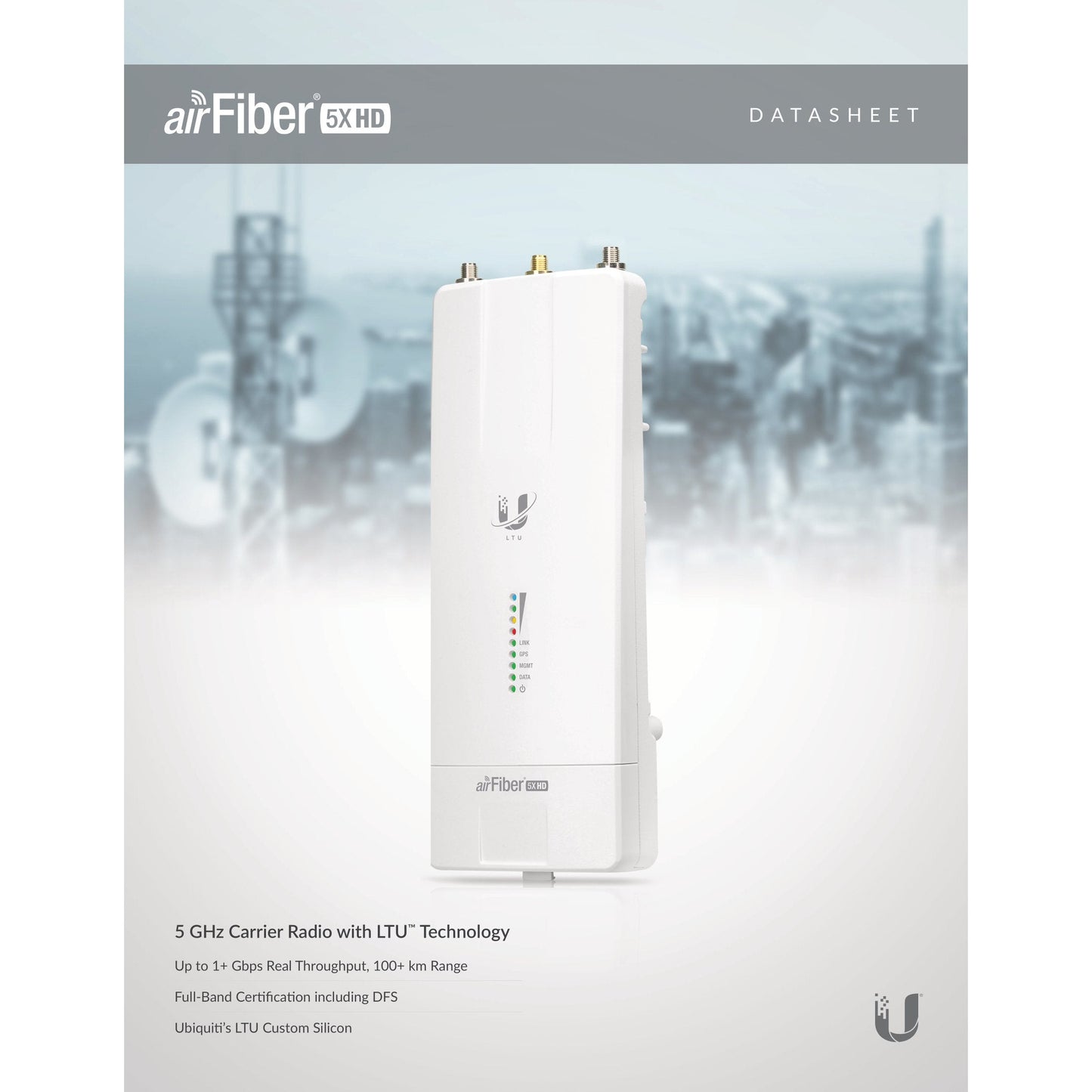

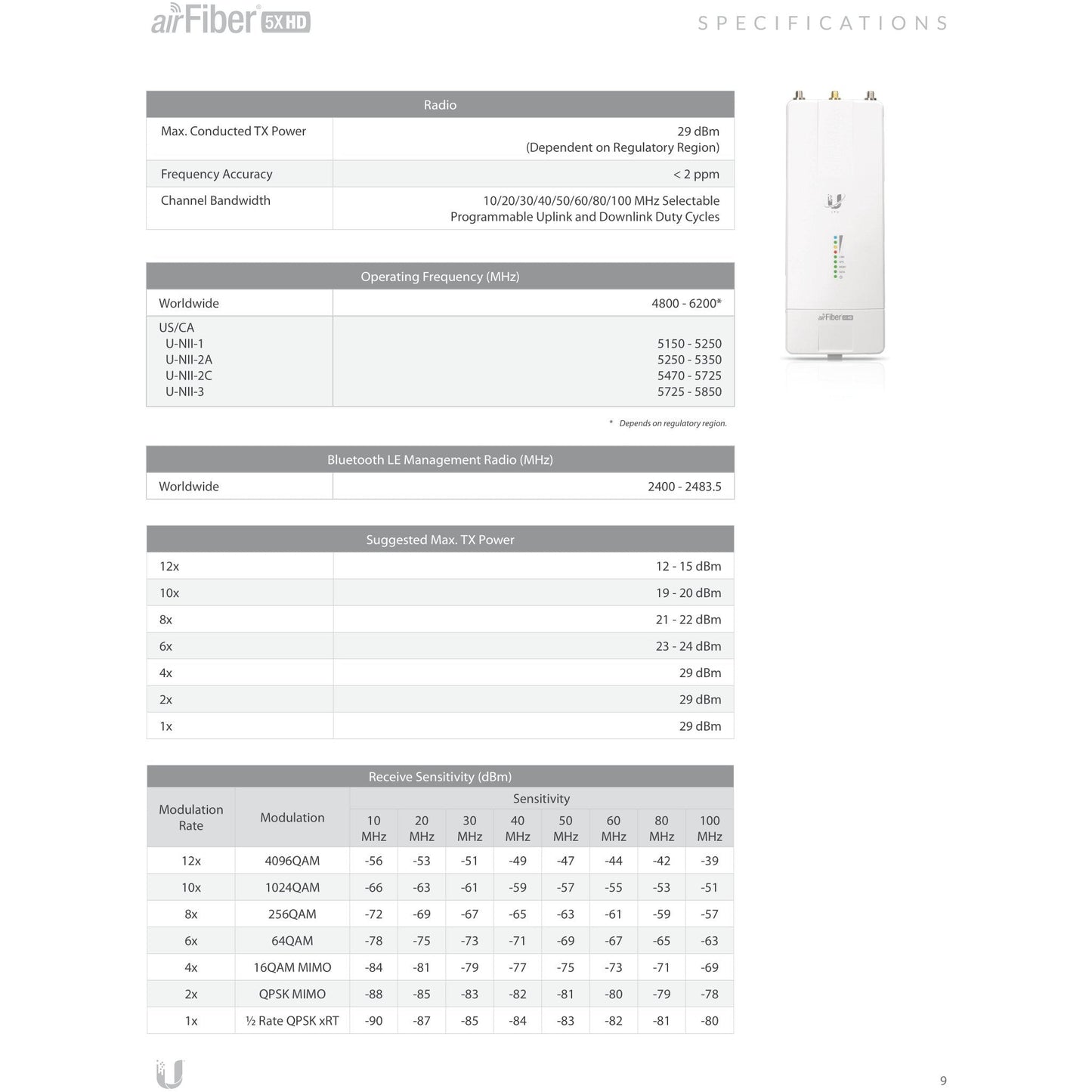

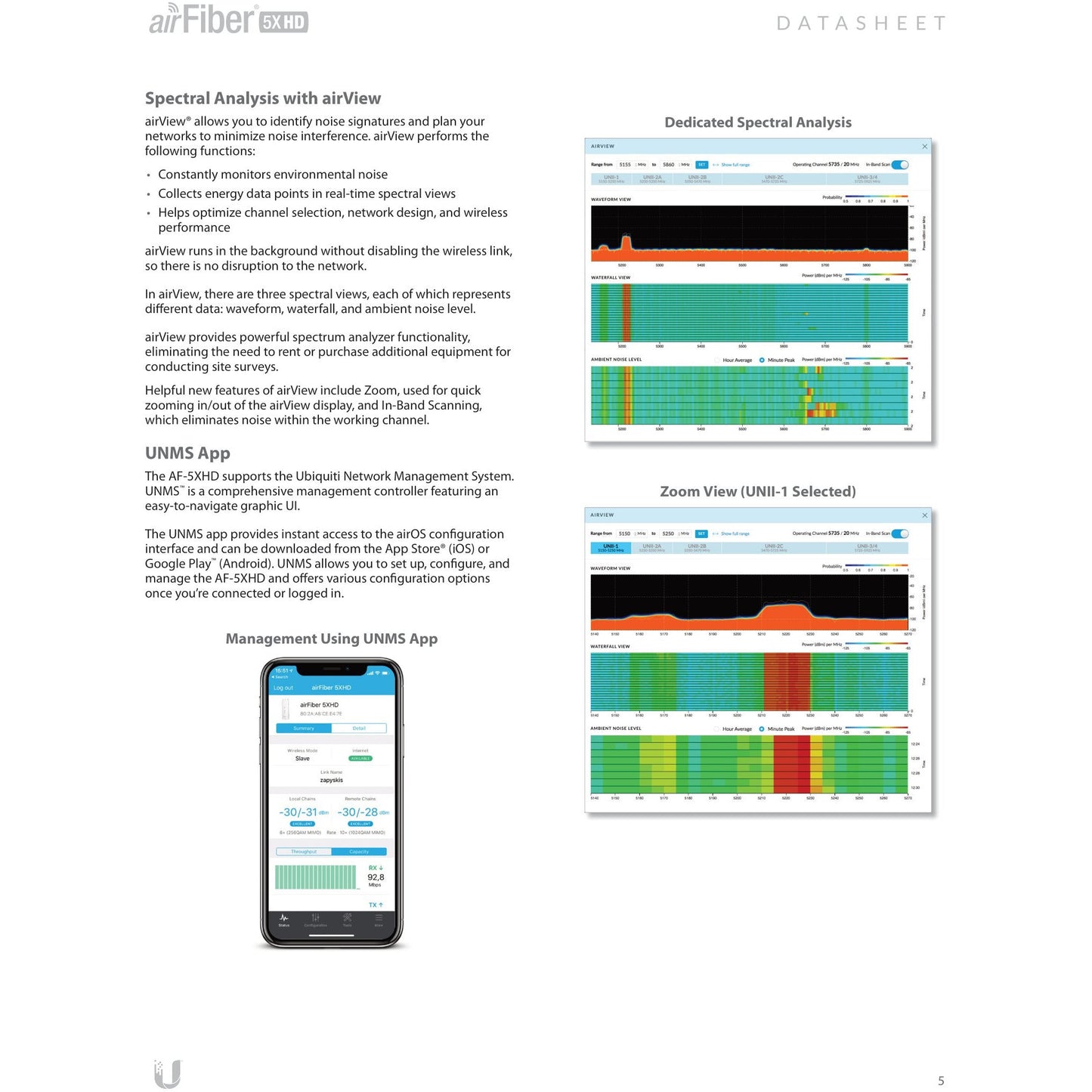

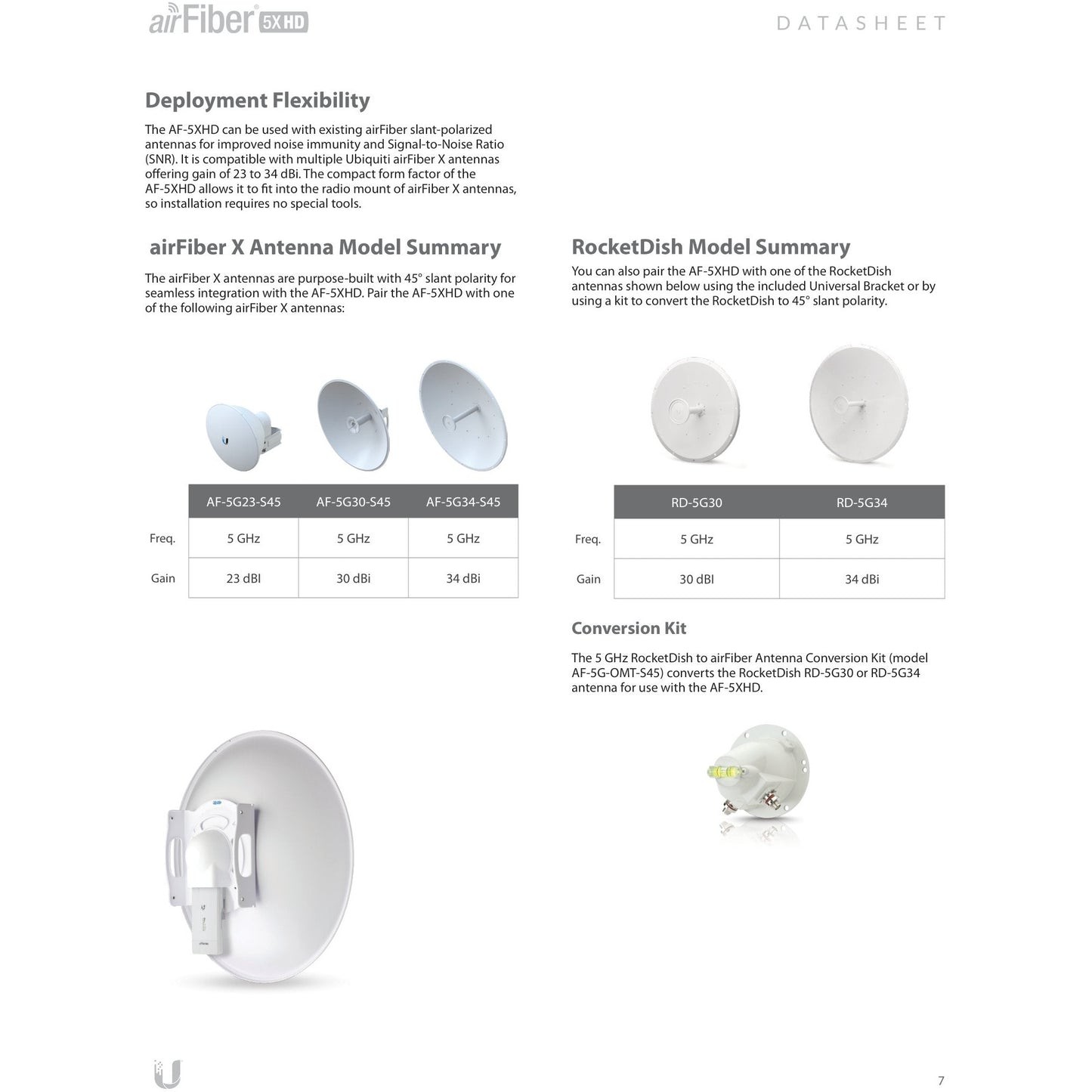

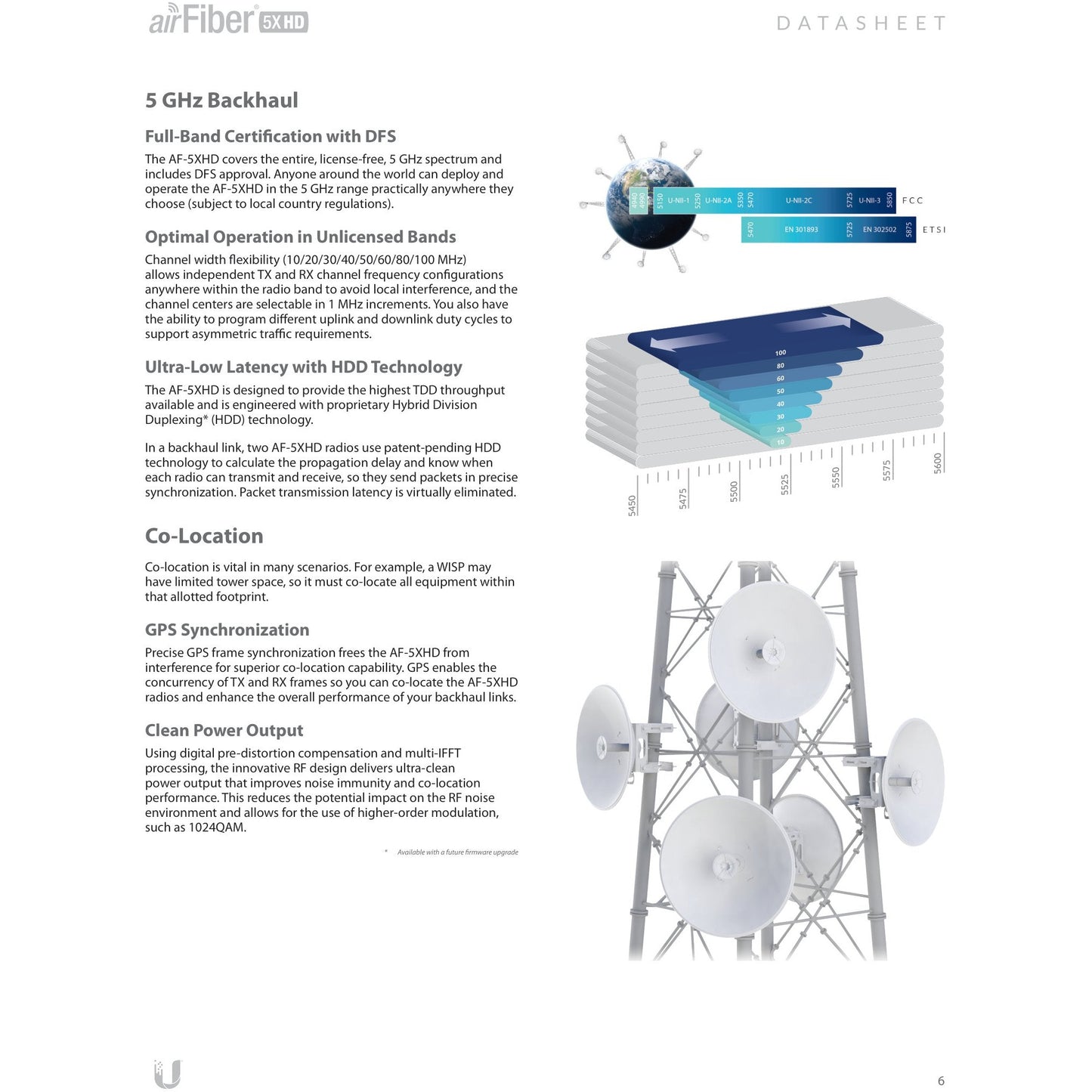

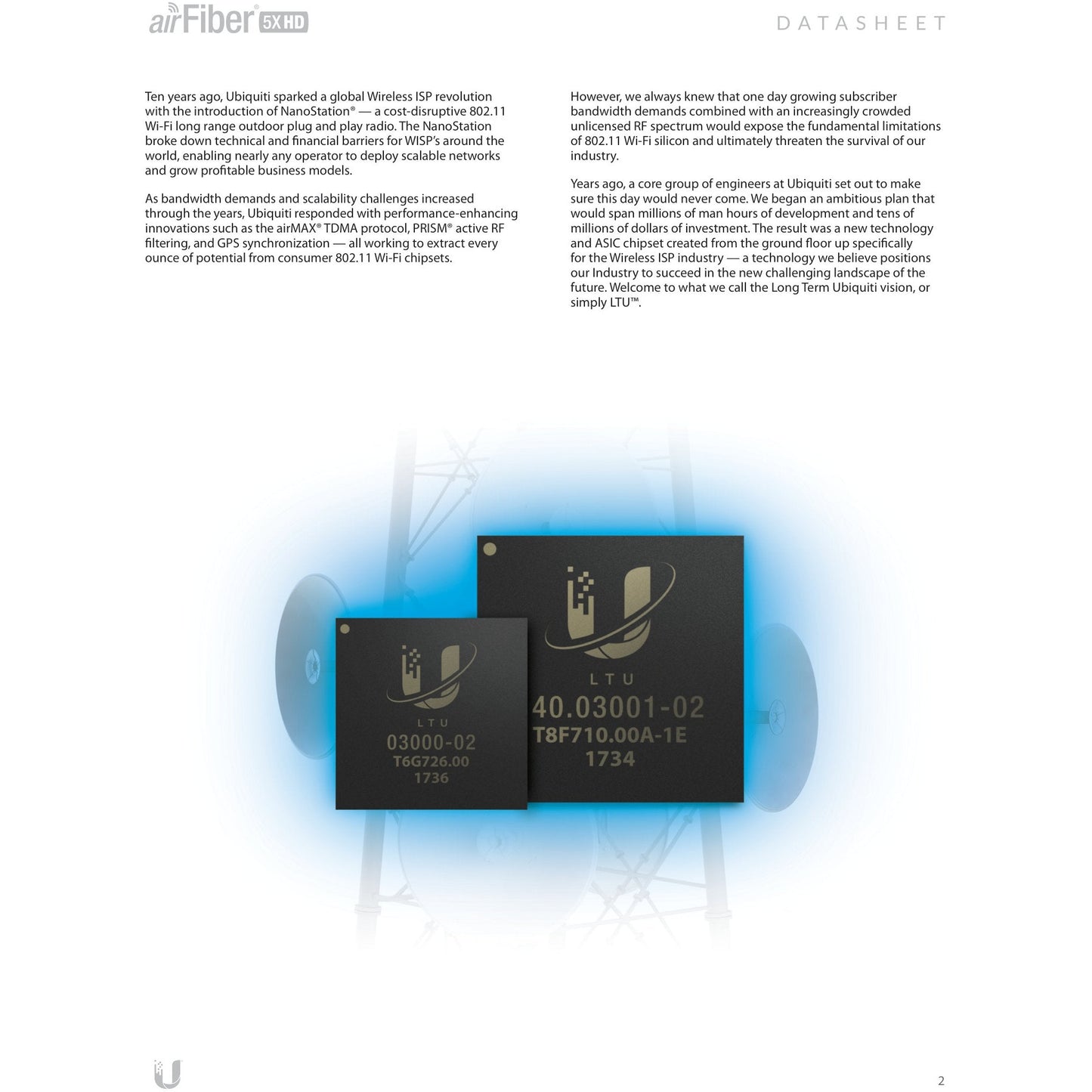

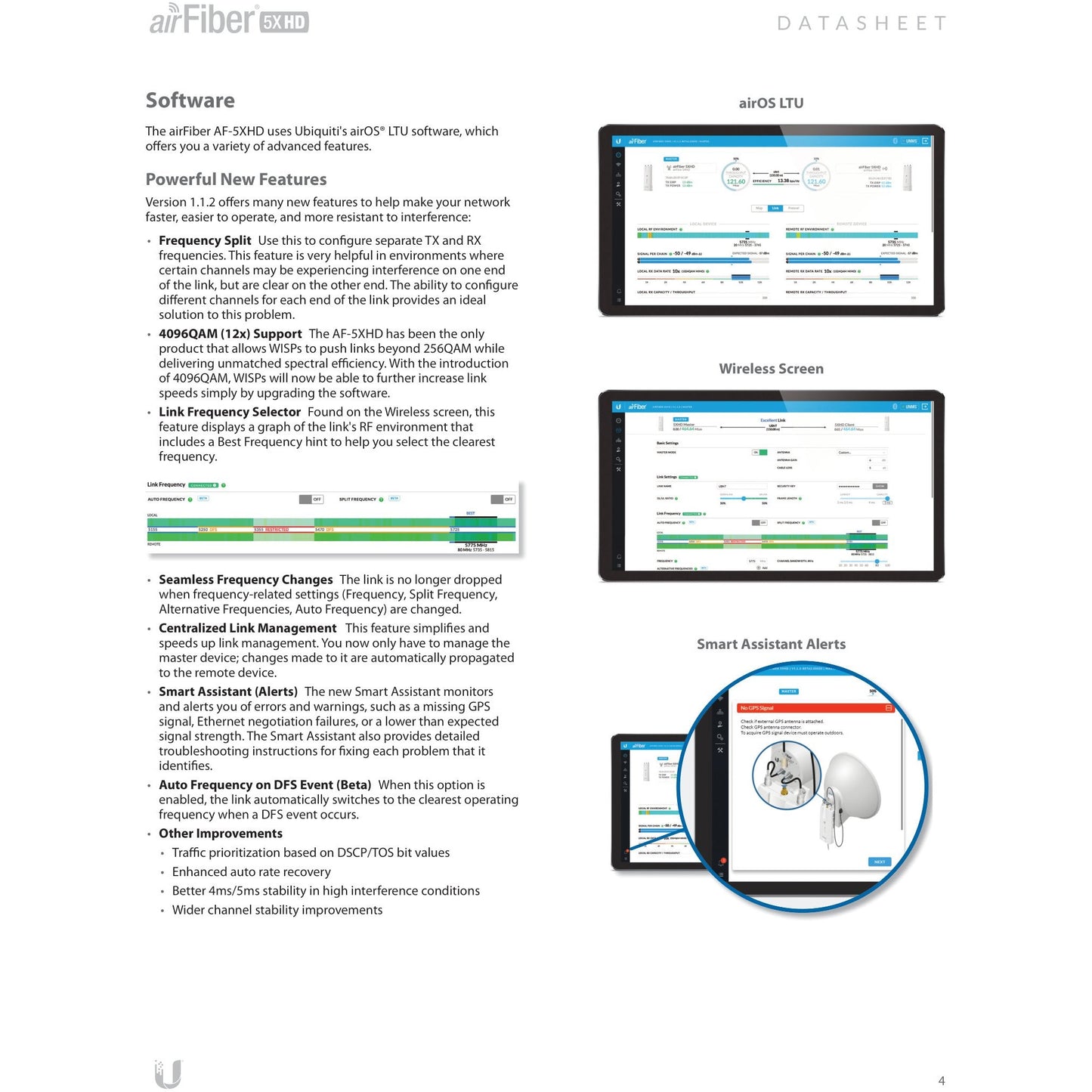

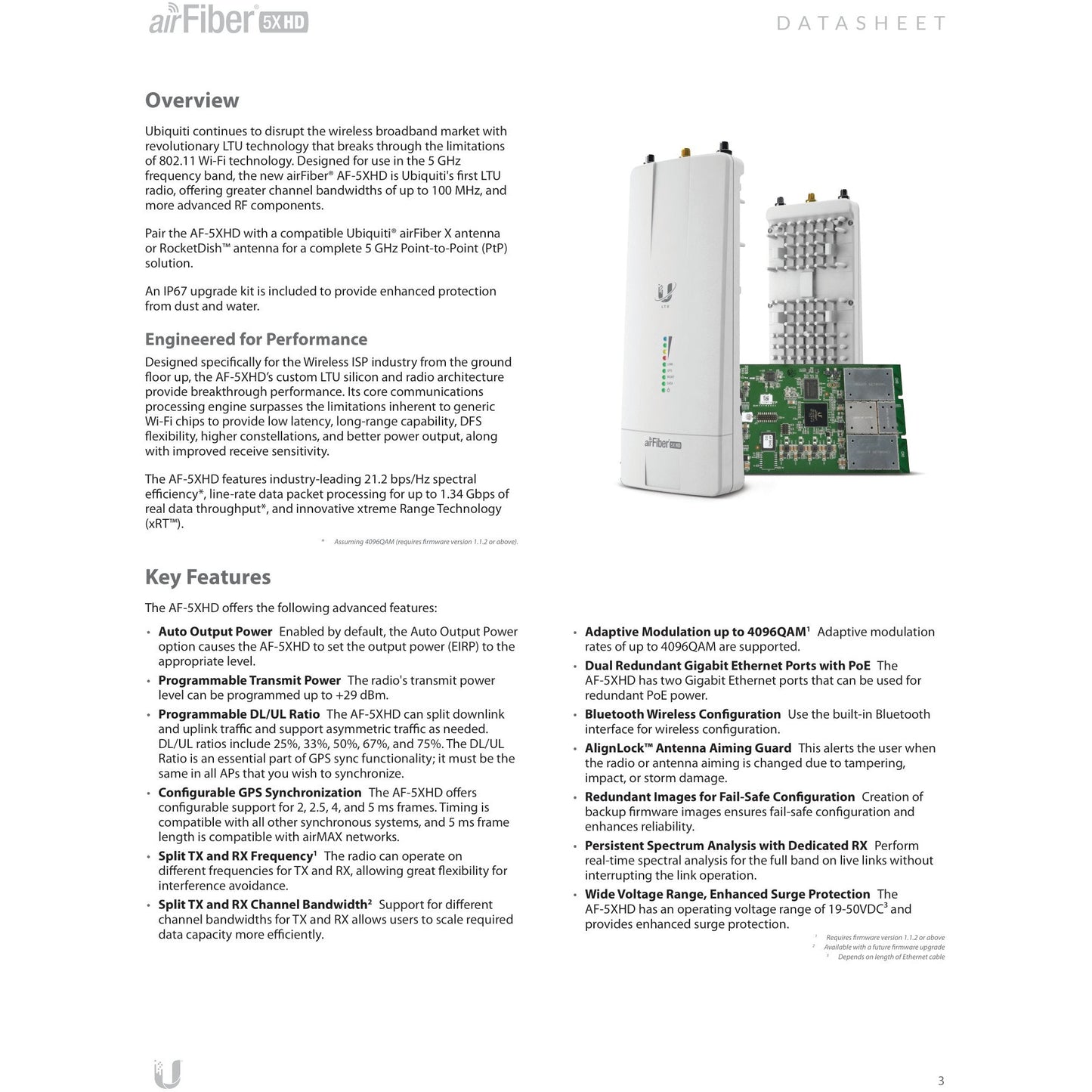

For more in-depth information, zoom in on picture of data sheet.

SKU AF-5XHD
Manufacturer Ubiquiti
Manufacturer Product Code AF-5XHD
