Ubiquiti UISP airMAX IsoStation AC 5GHz 14dBi Horn Radio | IS-5AC
Ubiquiti UISP airMAX IsoStation AC 5GHz 14dBi Horn Radio | IS-5AC

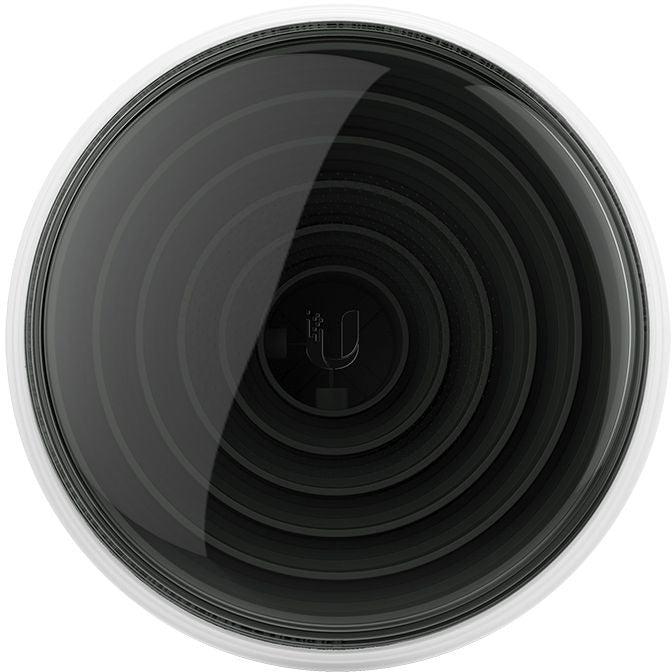

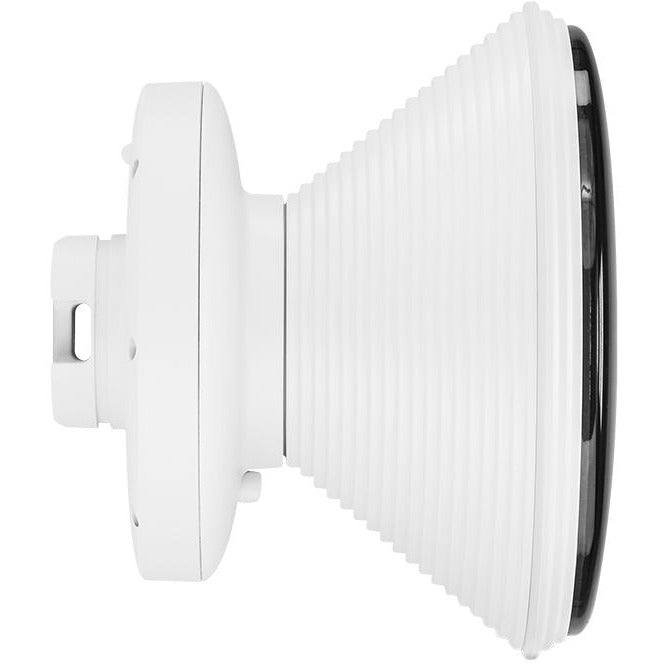

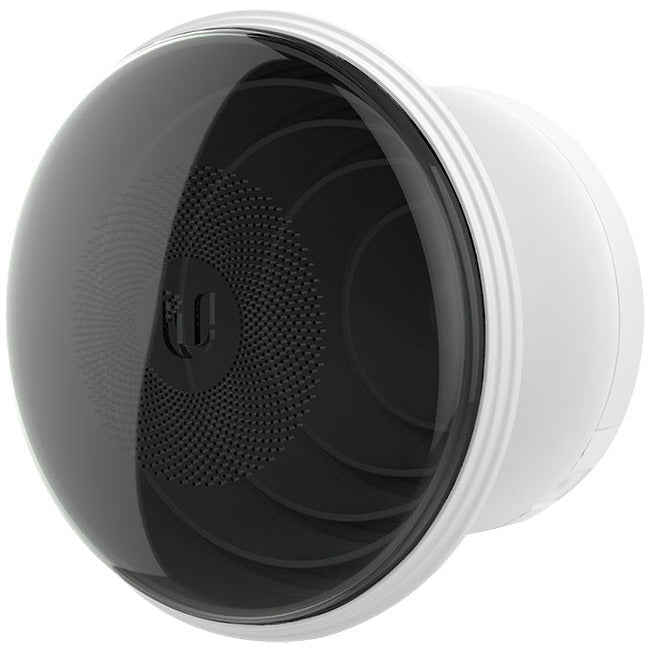

Ubiquiti's ISO-514AC is a shielded airMAX ac 5GHz radio with a 14dBi, 45° symmetrical horn antenna.
It can be used as a PtMP (point to multipoint) access point in high-interference environments and is easily co-located due to its small size.
It can also be used as a short-range CPE (client premises equipment).

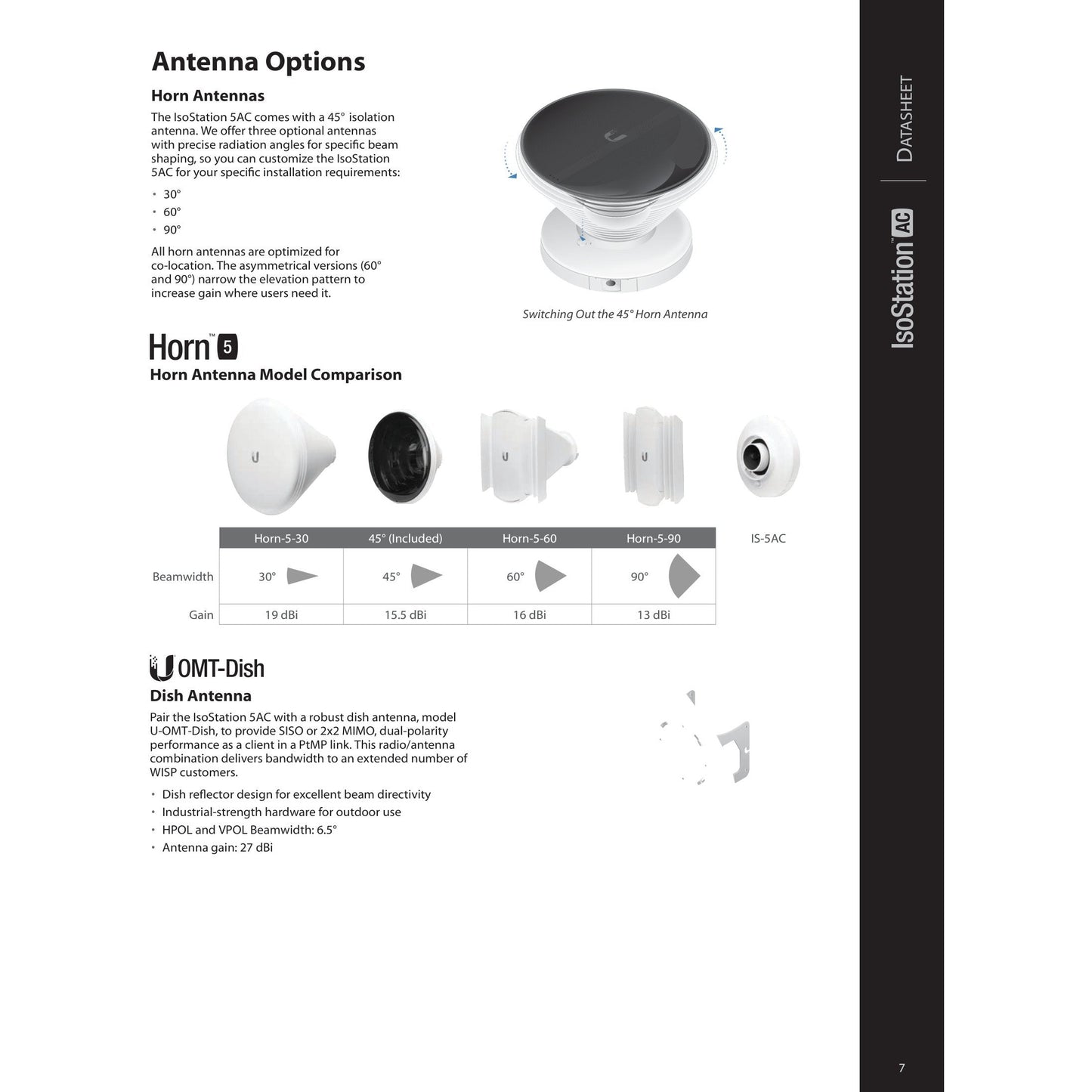

The antenna can be interchanged with any of the other horn antennas from Ubiquiti's range (sold separately).

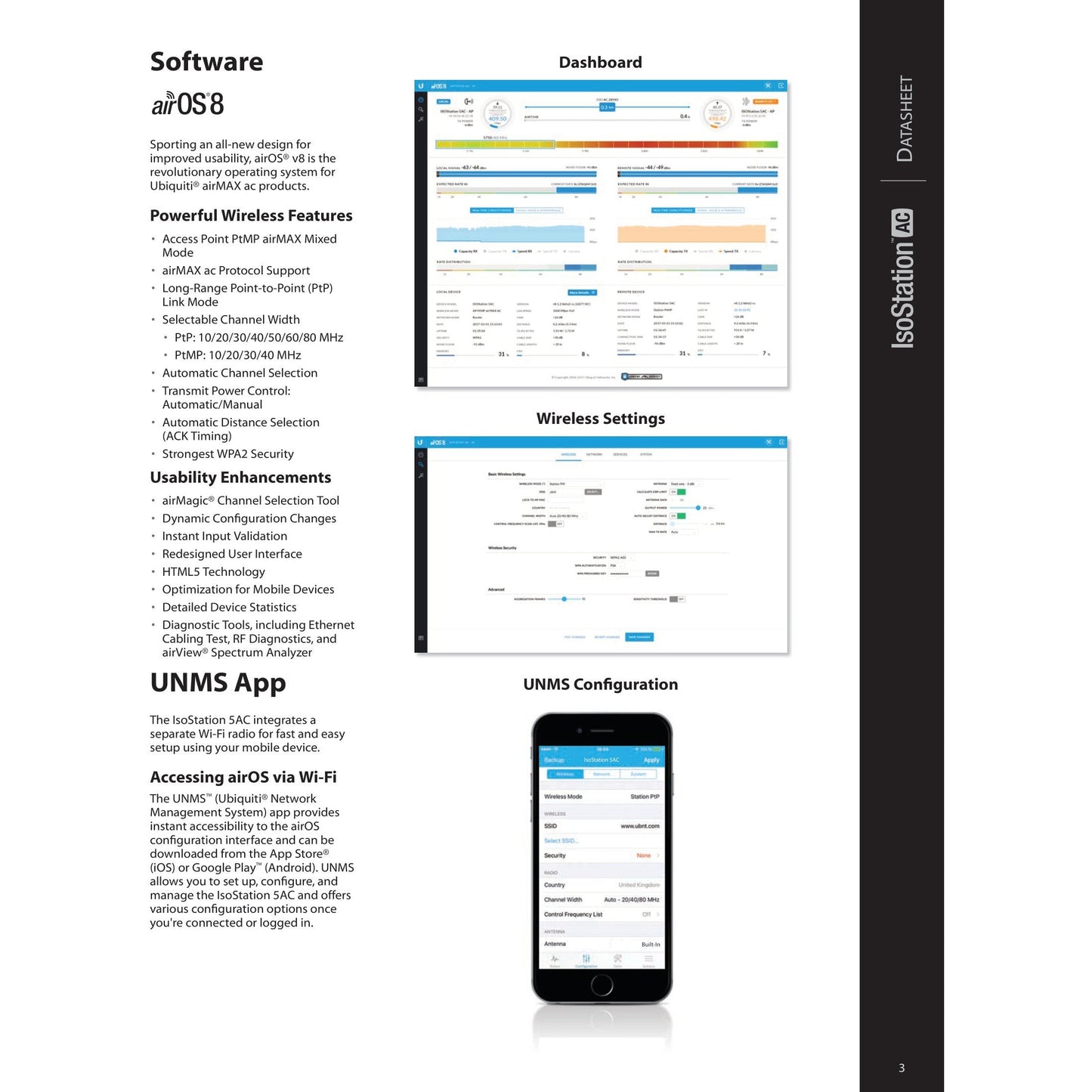

The dedicated 2.4GHz management radio allows for easy set-up via the UISP mobile app and network management platform.
The IsoStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain.
Providing high throughput and an innovative form factor, the IsoStation 5AC is versatile and cost-effective to deploy.
The IsoStation 5AC comes with a 45° isolation antenna.

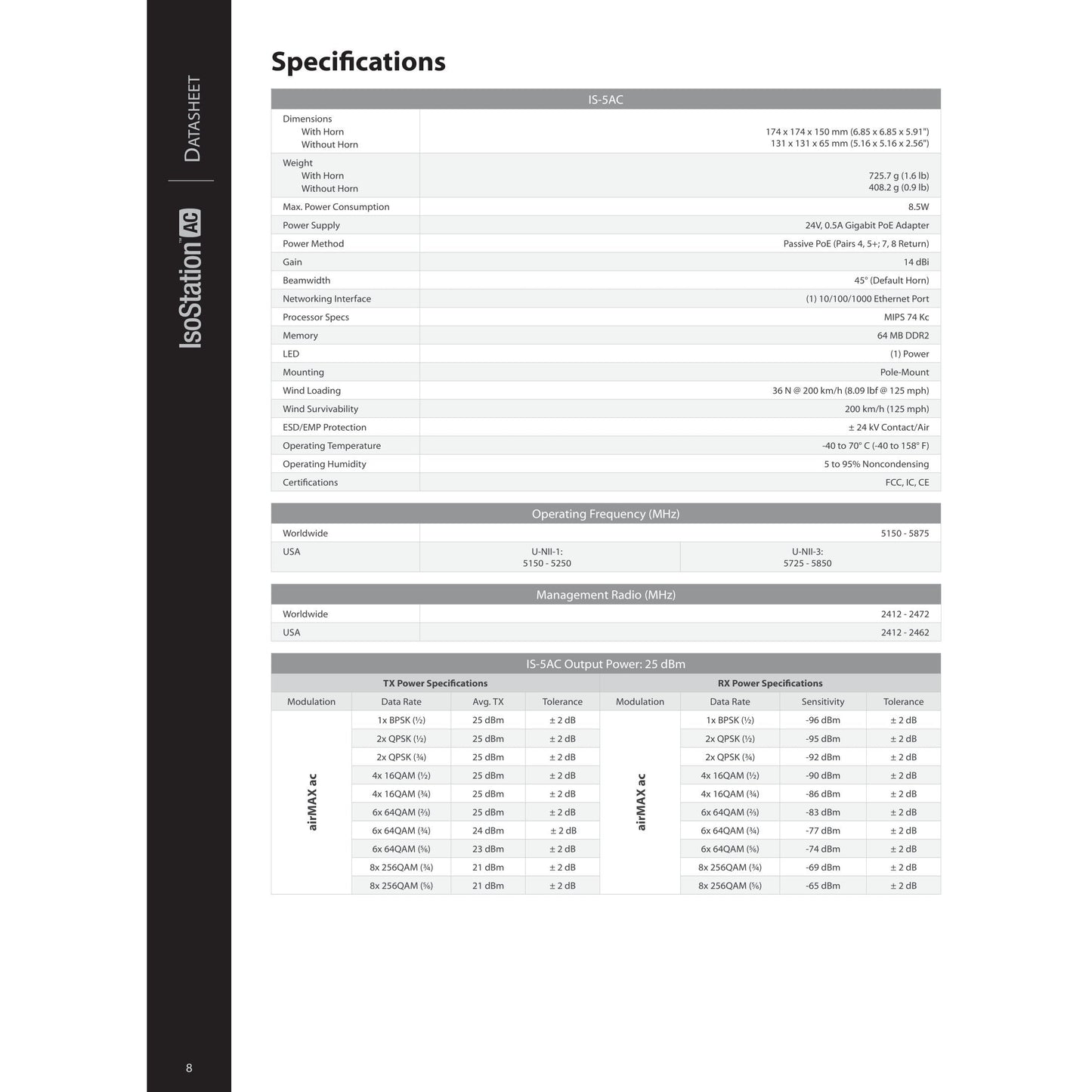

Specifications
Antenna Gain: 14dBi
Beam-width: 45°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None

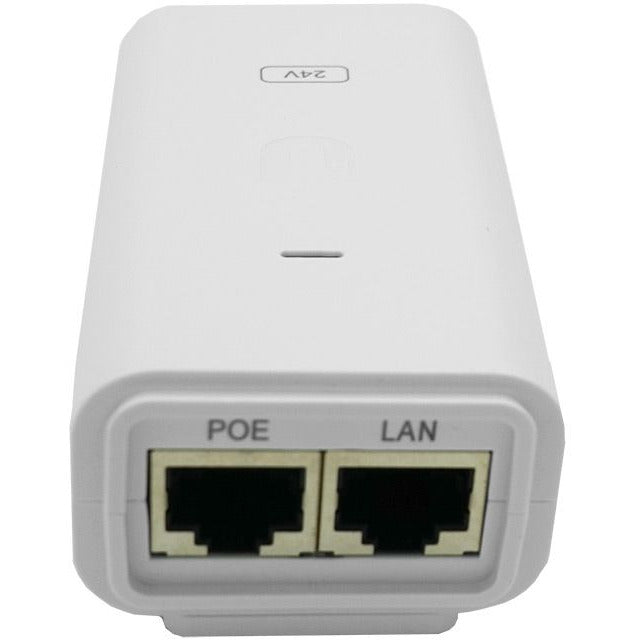

Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20-26V
USB Ports: None
Dimensions: 174 x 174 x 150mm
Weight: 725.7g

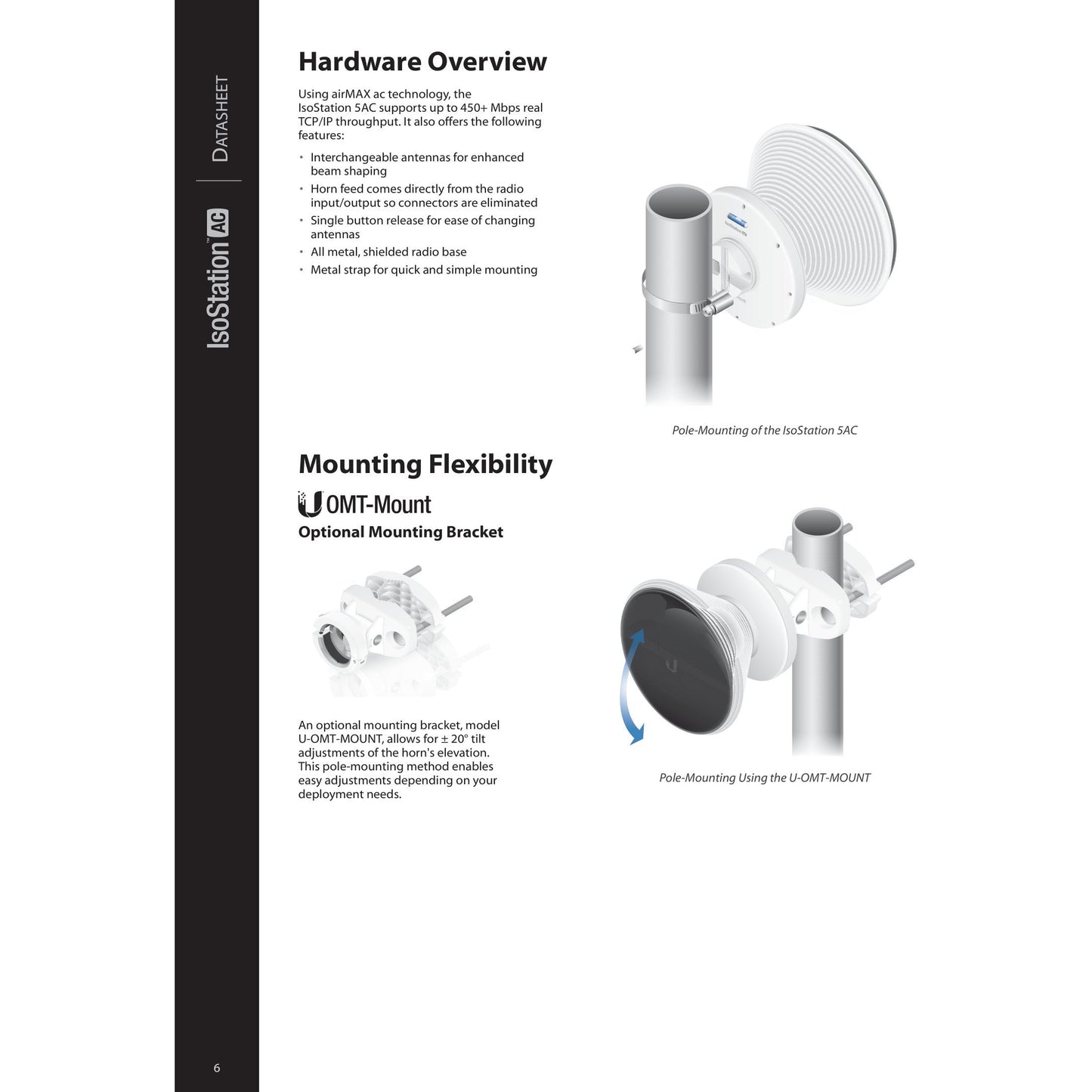

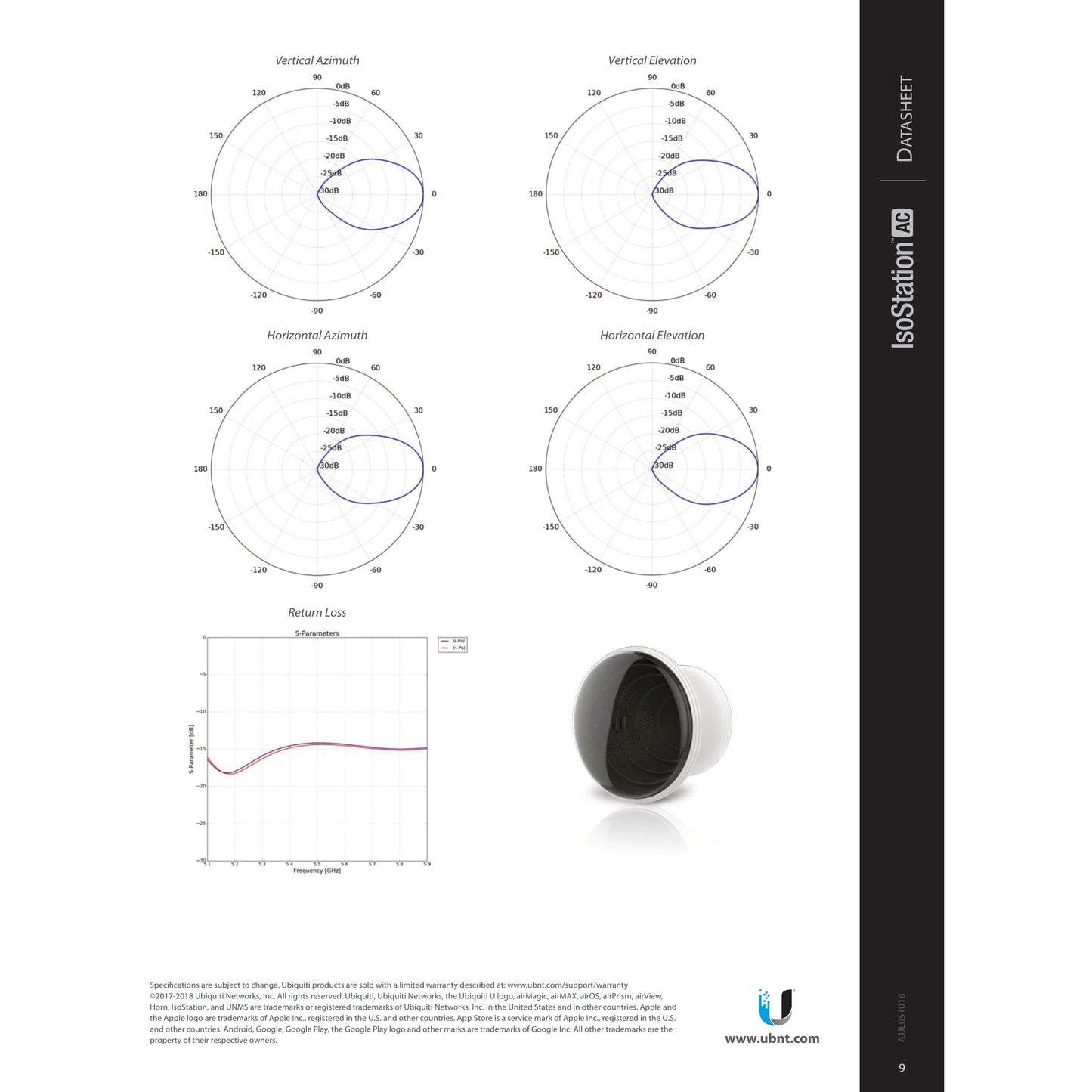

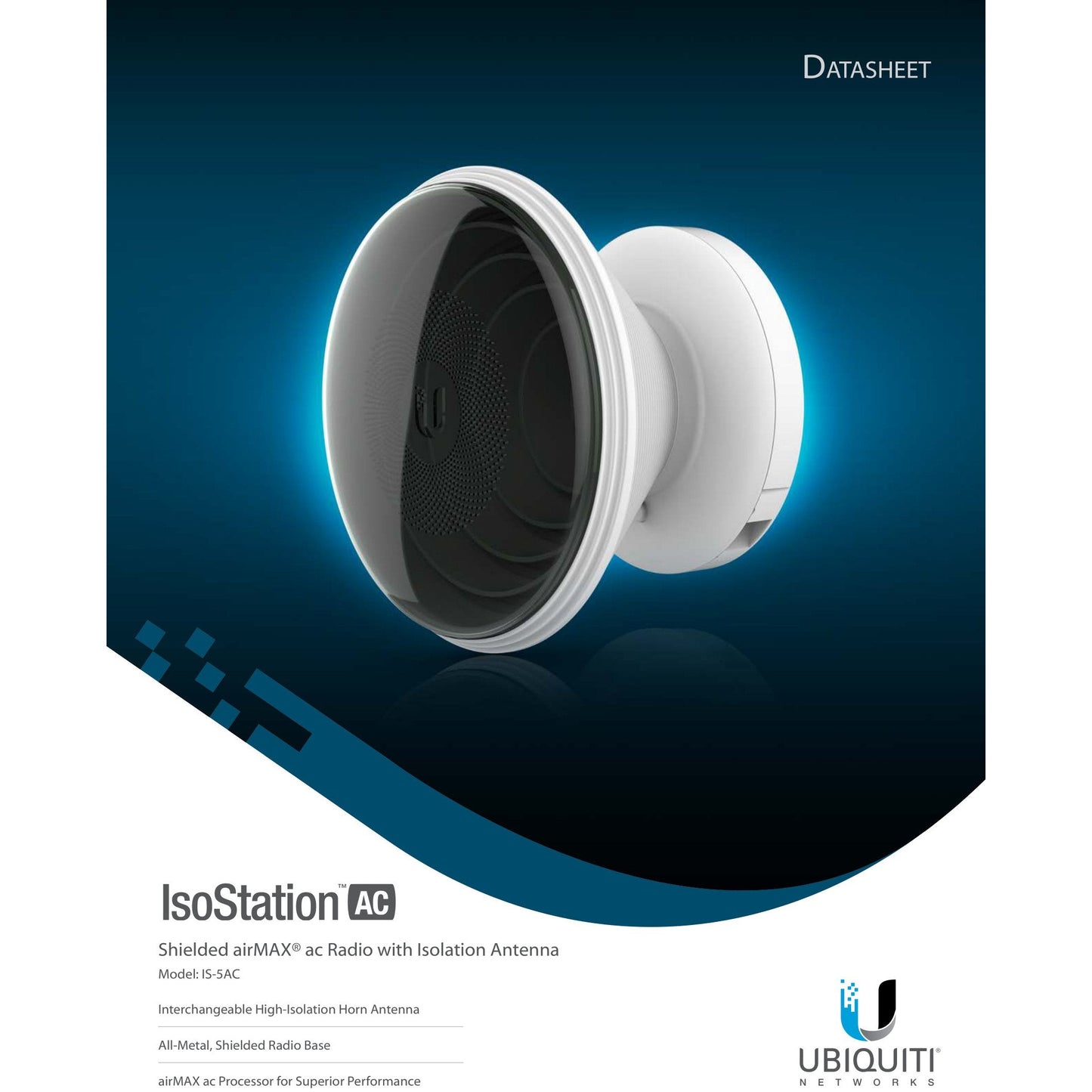

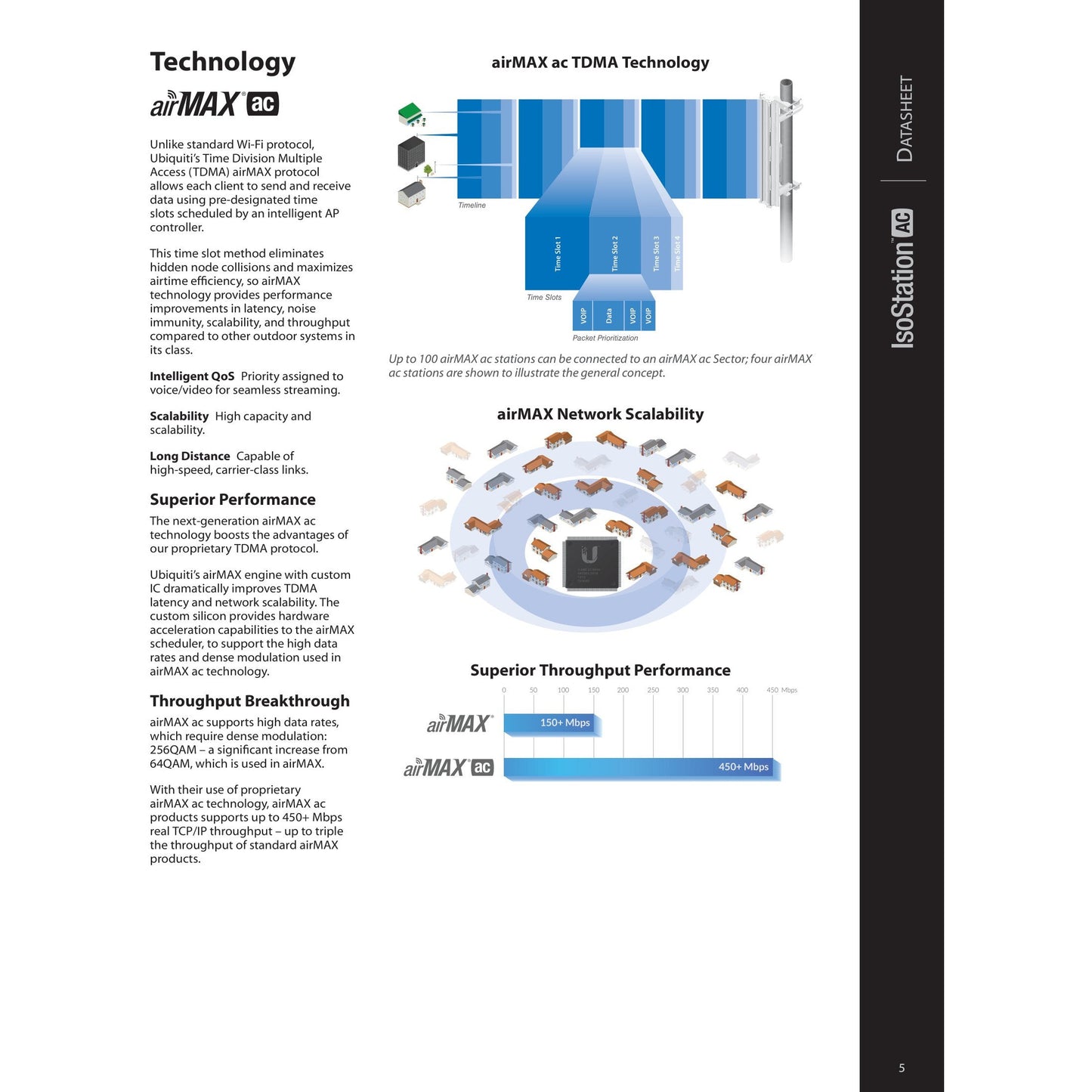

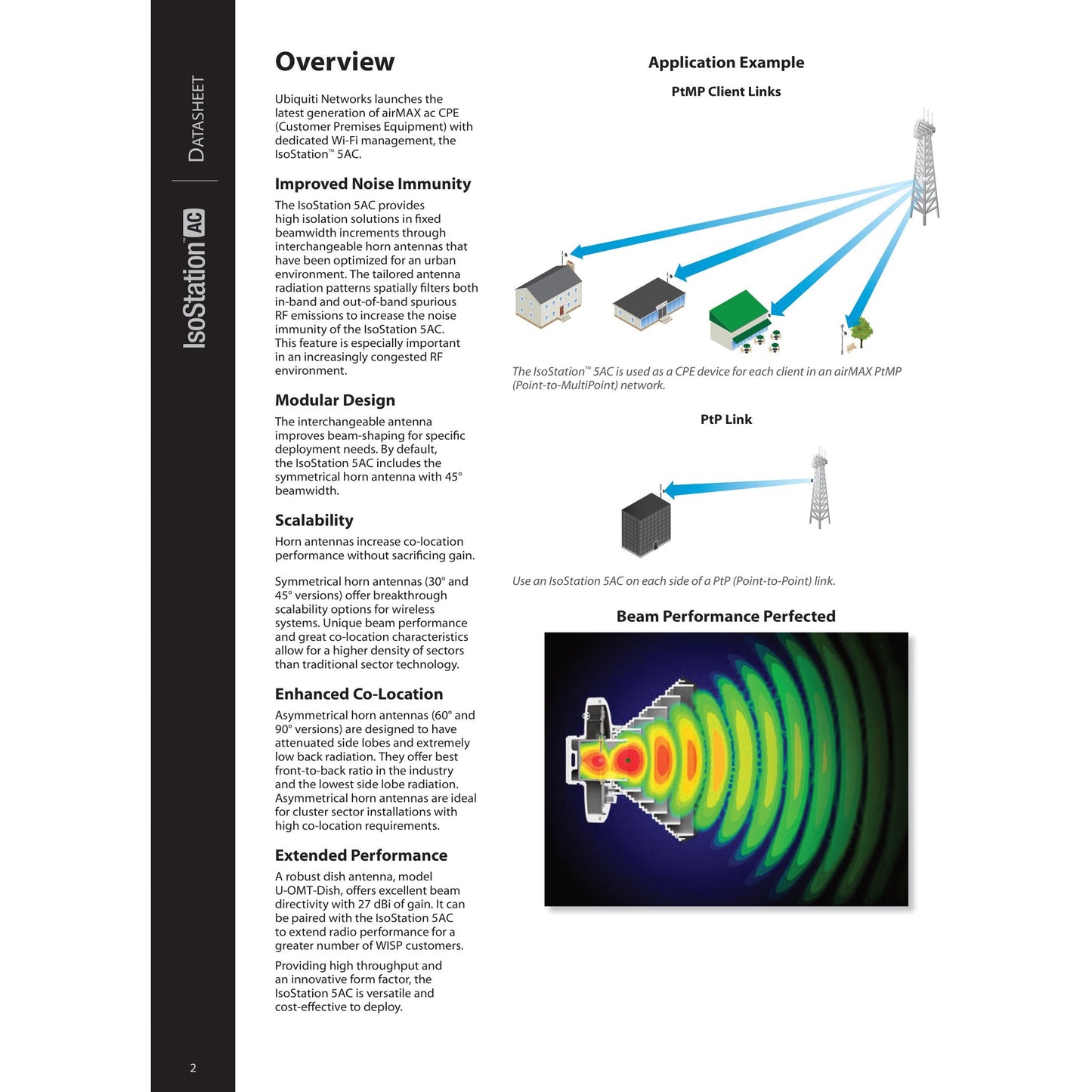

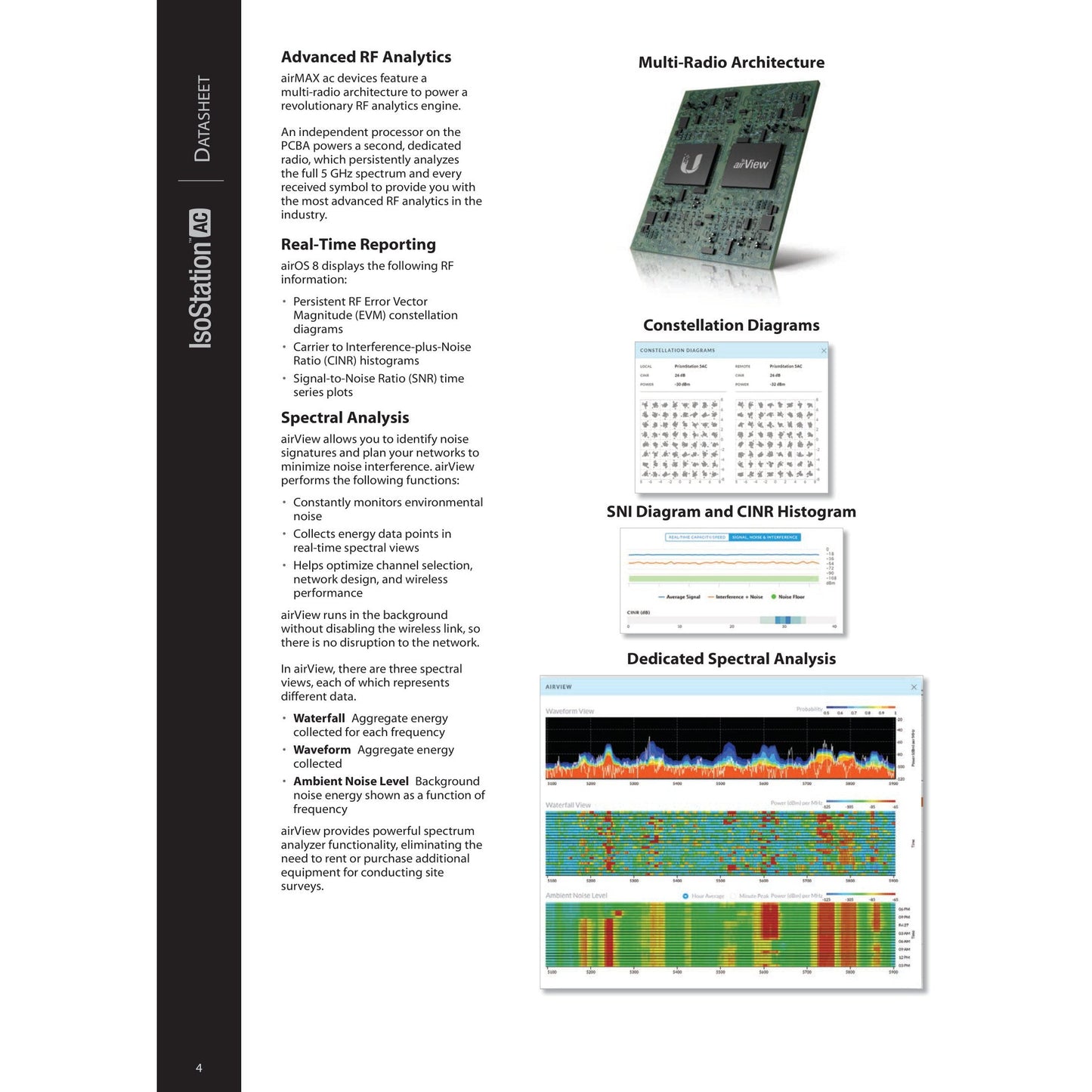

For more in-depth information, zoom in on picture of data sheet.
SKU | ISO-514AC |
---|---|
Manufacturer | Ubiquiti |
Manufacturer Product Code | IS-5AC |
