Ubiquiti UISP airMAX Rocket Prism AC 2GHz Radio | R2AC-PRISM
Ubiquiti UISP airMAX Rocket Prism AC 2GHz Radio | R2AC-PRISM

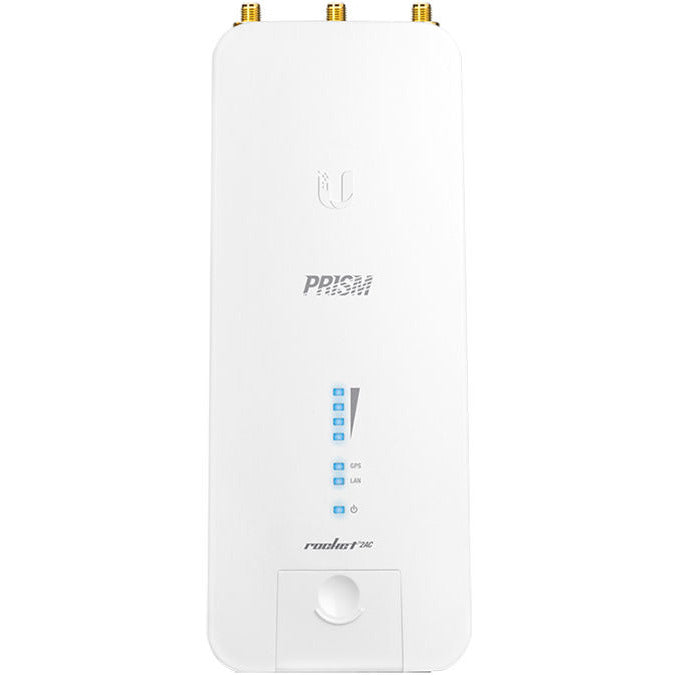

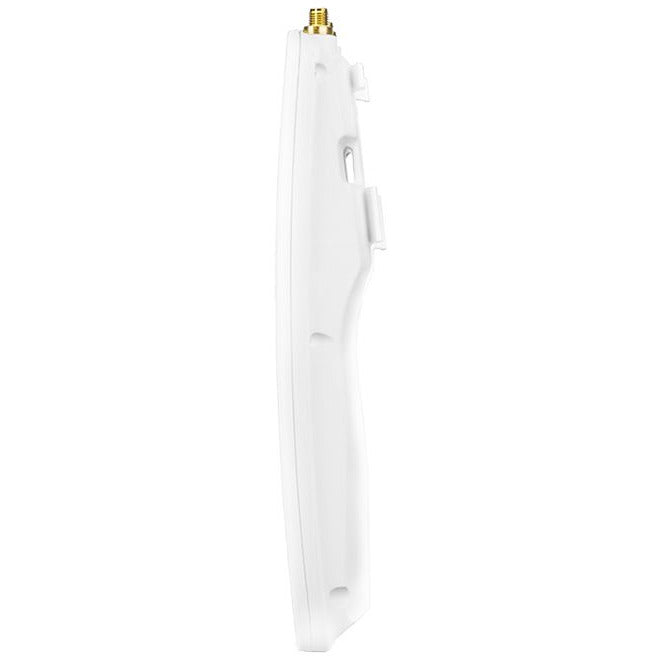

Ubiquiti's R2AC-PRISMG2 airMAX ac 2GHz radio without antennae.

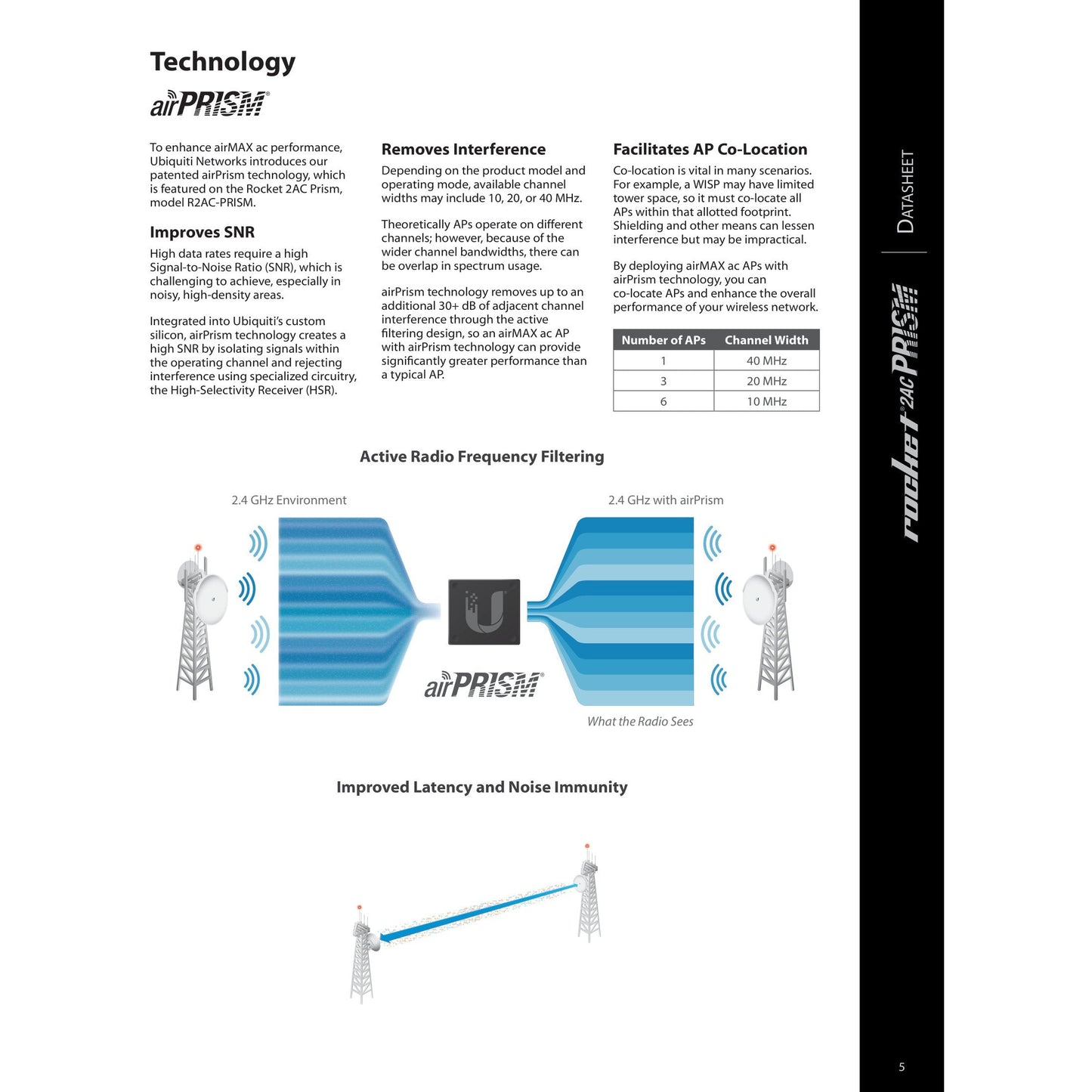

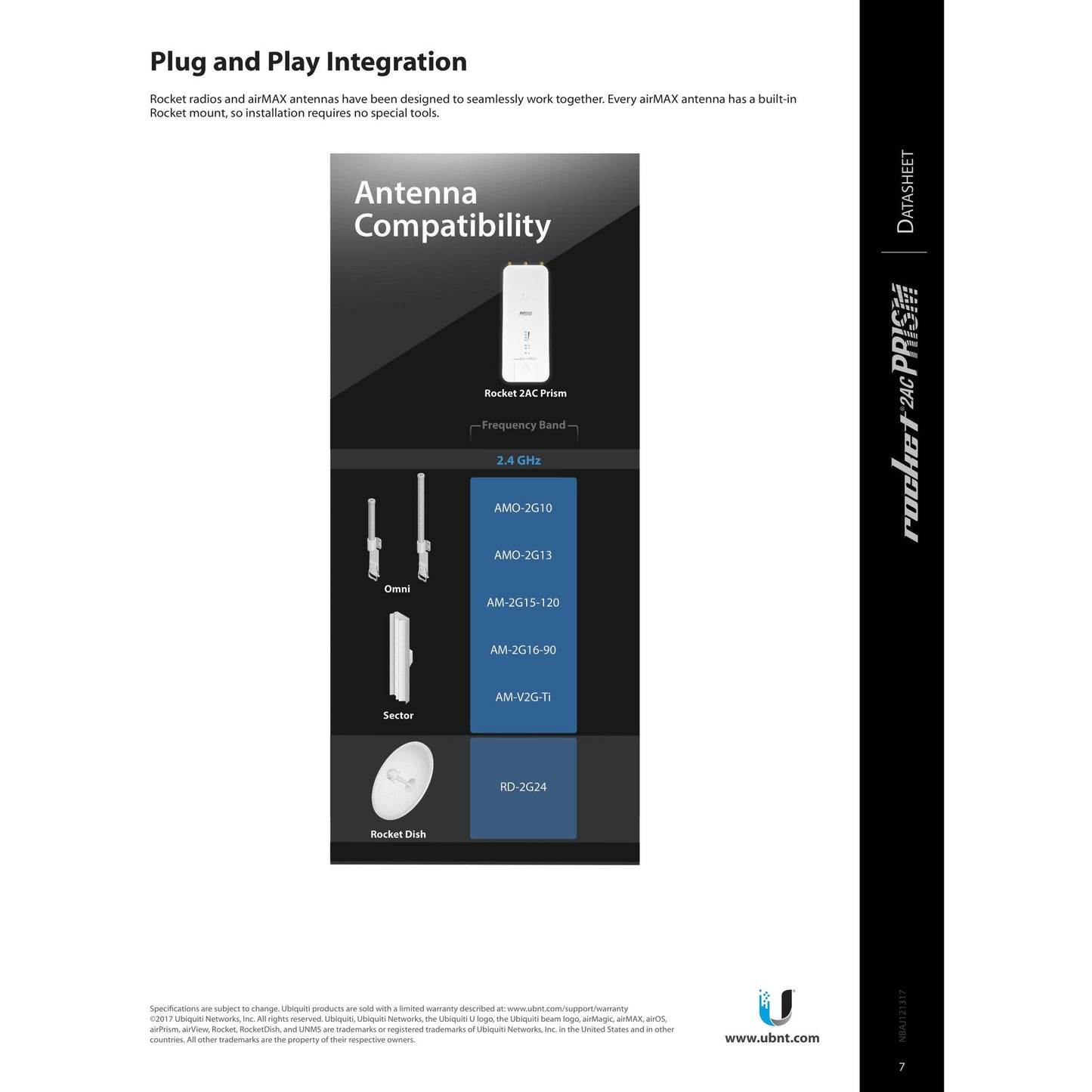

Featuring airPrism technology which significantly reduces adjacent channel interference and is designed to work with Ubiquiti's wide range of antennas (sold separately).
It can be used as PtMP (point to multipoint) access point in high interference environments or for high-performance, long-range PtP (point to point) links.

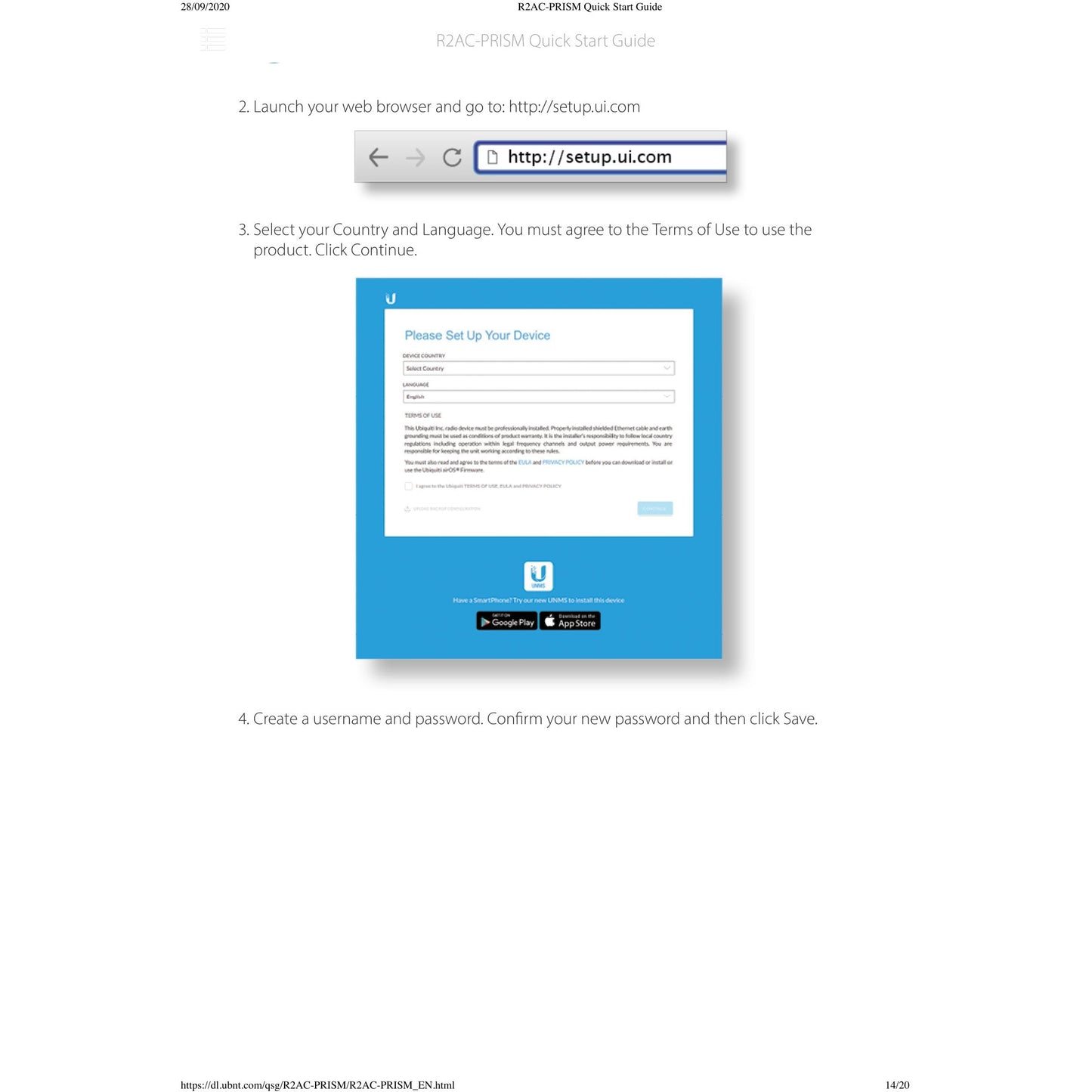

The dedicated 2.4GHz management radio allows for easy set-up via the UISP mobile app and network management platform.
*Note:
Antenna not included.
Specifications

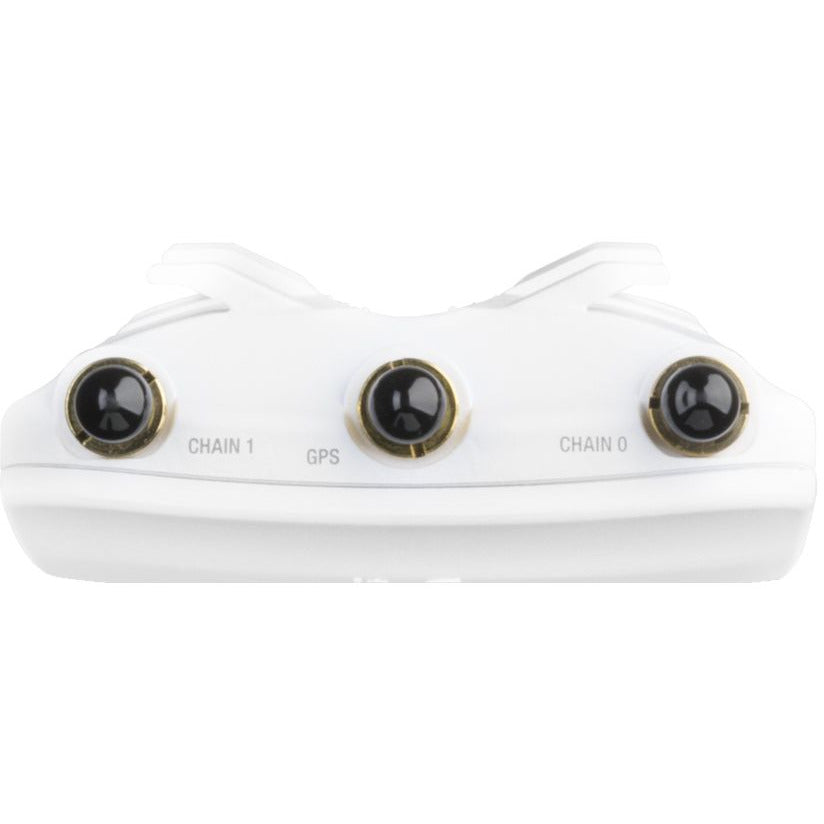

Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 600Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9.5W

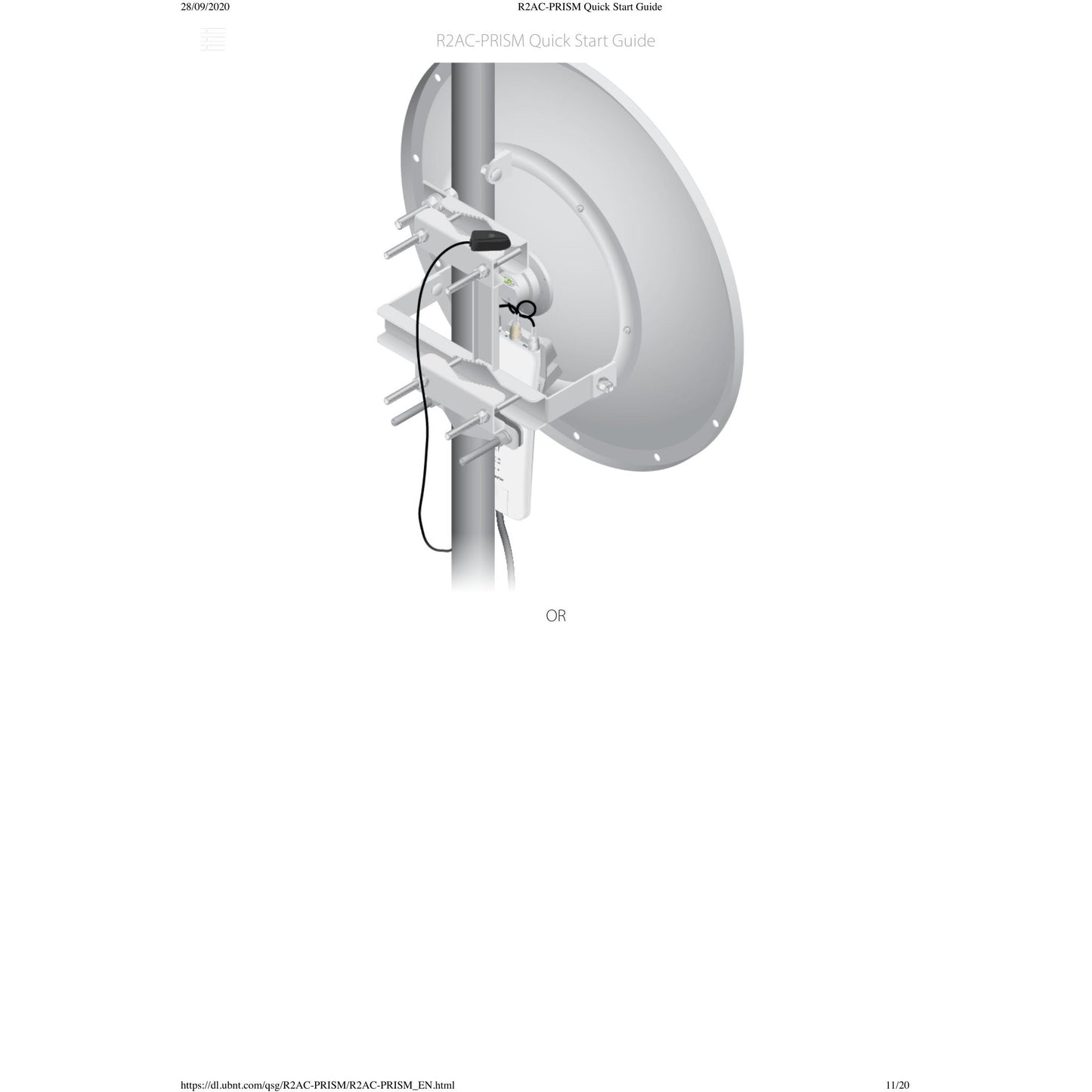

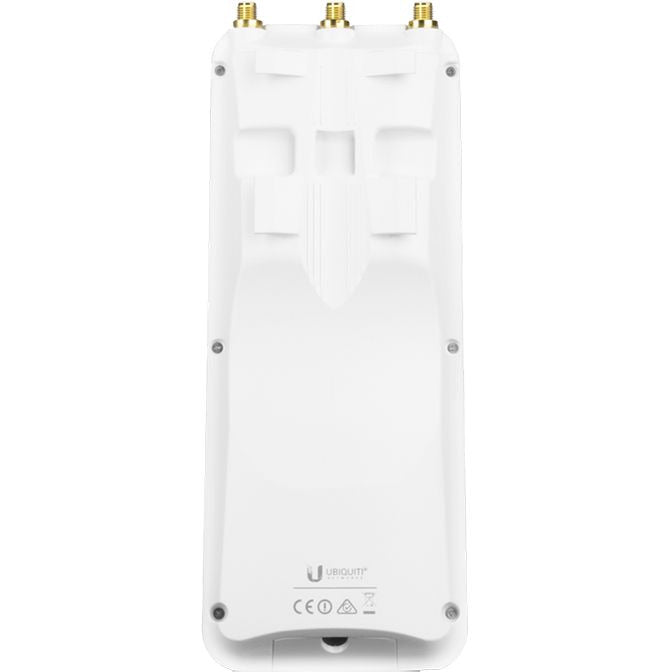

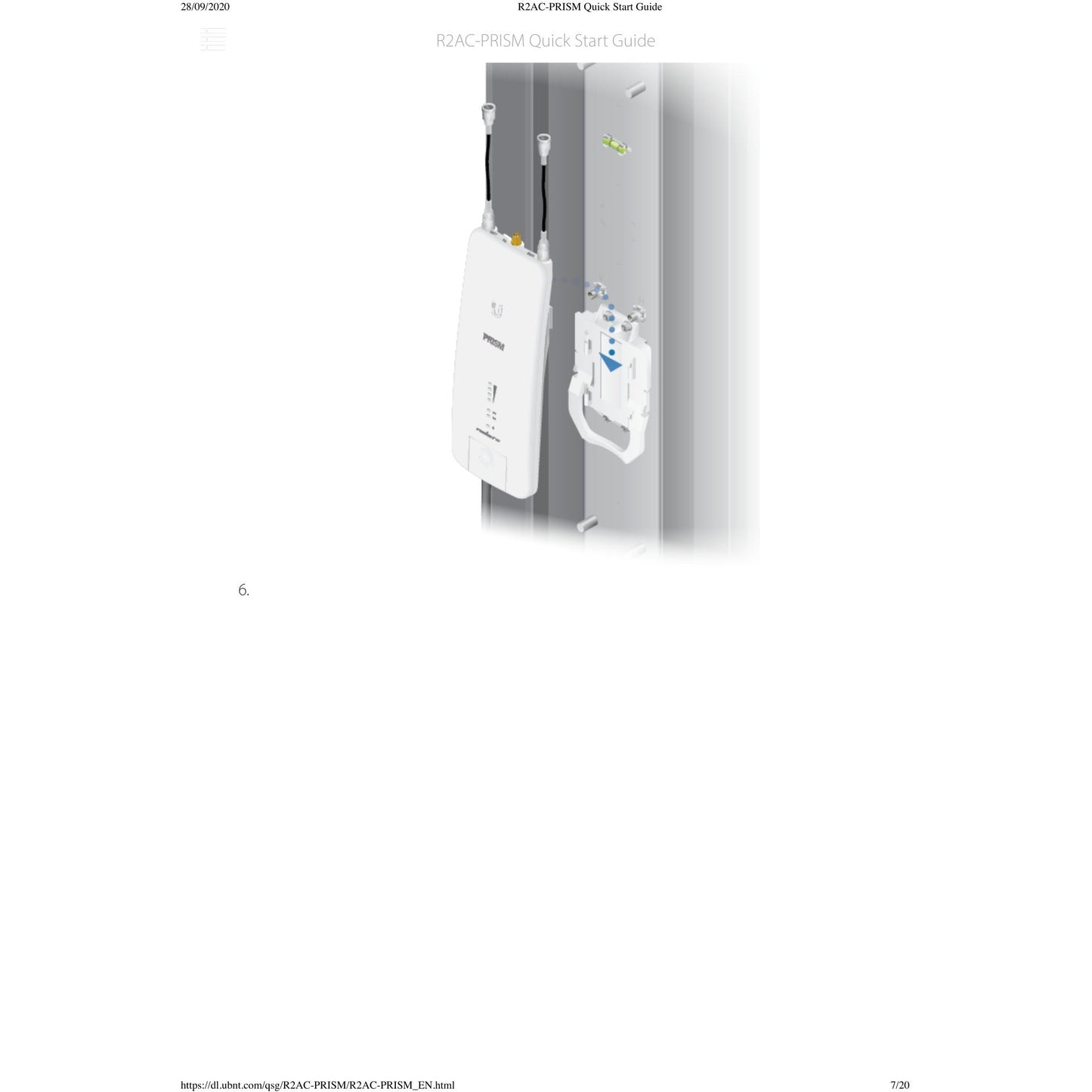

Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None

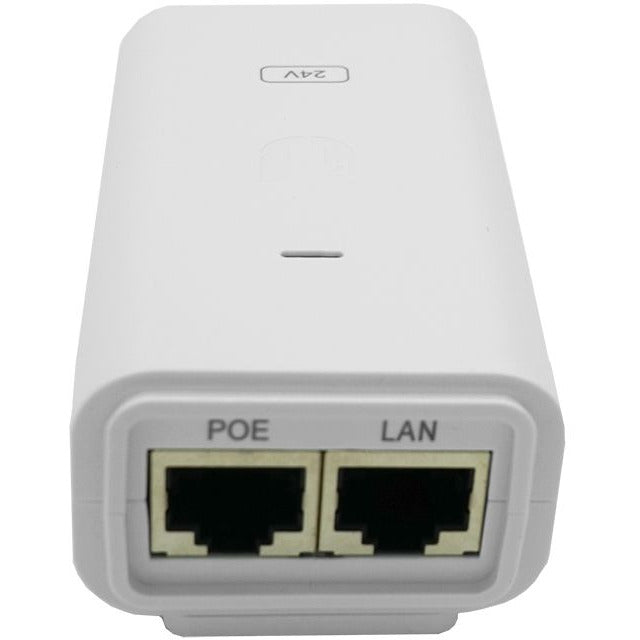

Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-26V
USB Ports: None
Dimensions: 88 x 40 x 230mm
Weight: 440g

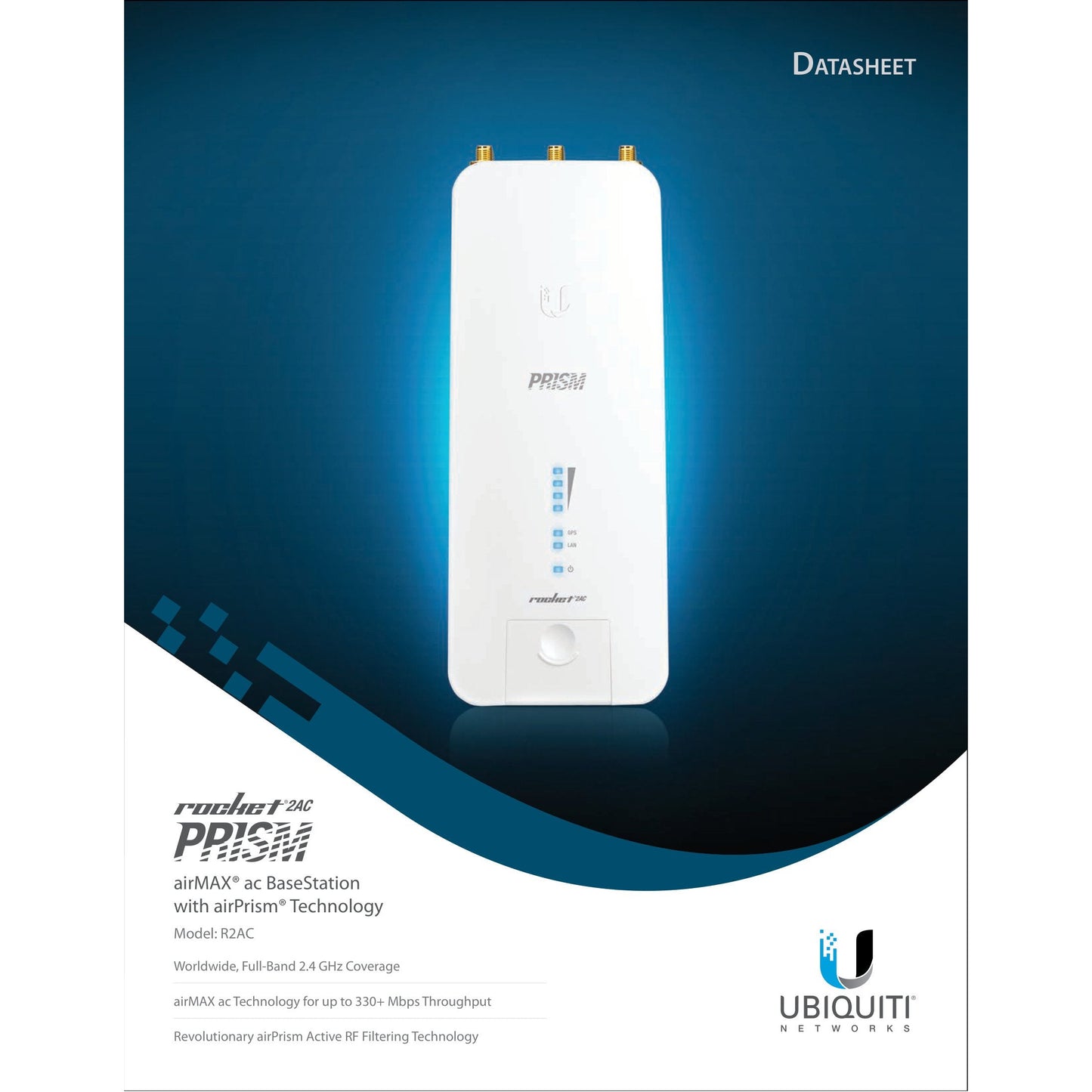

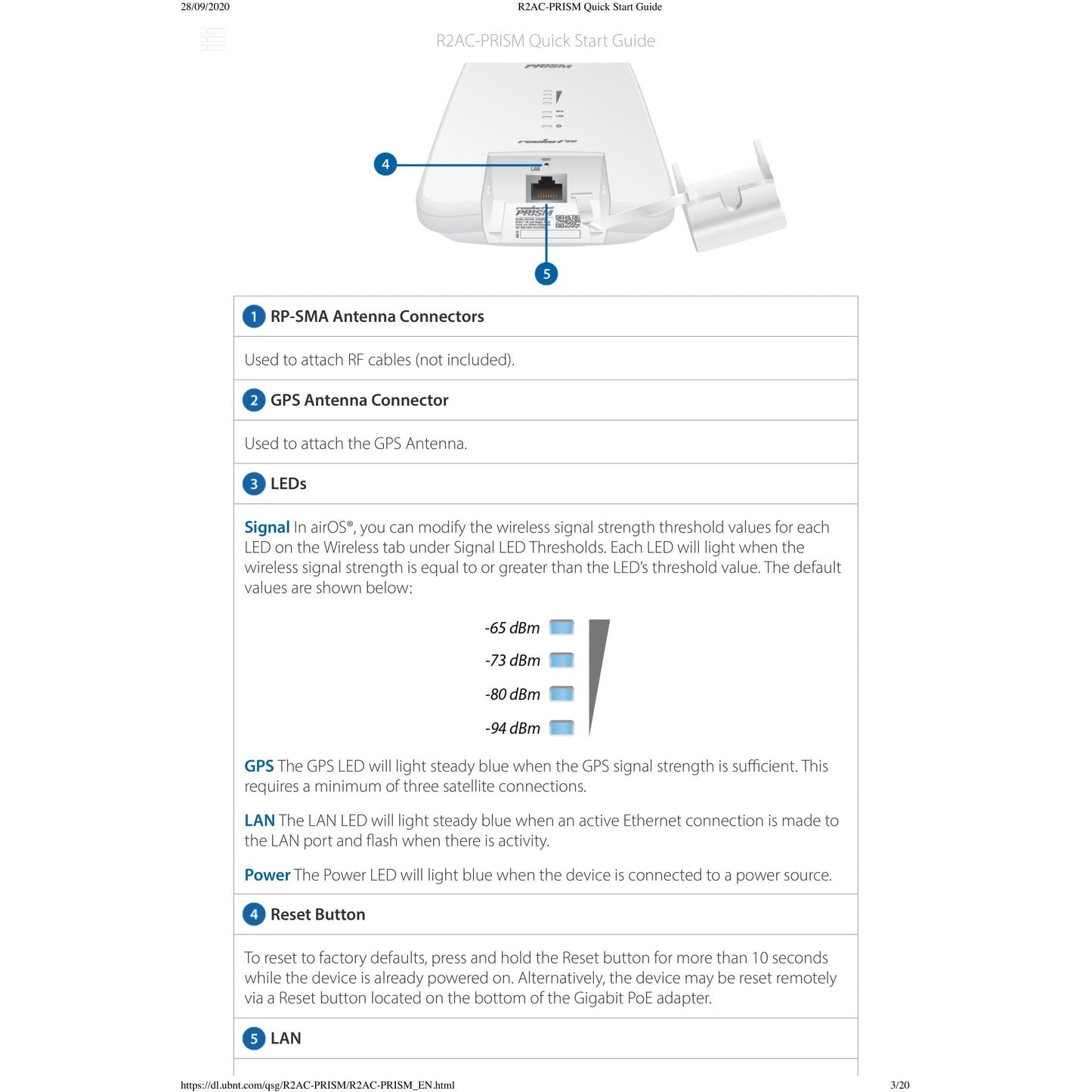

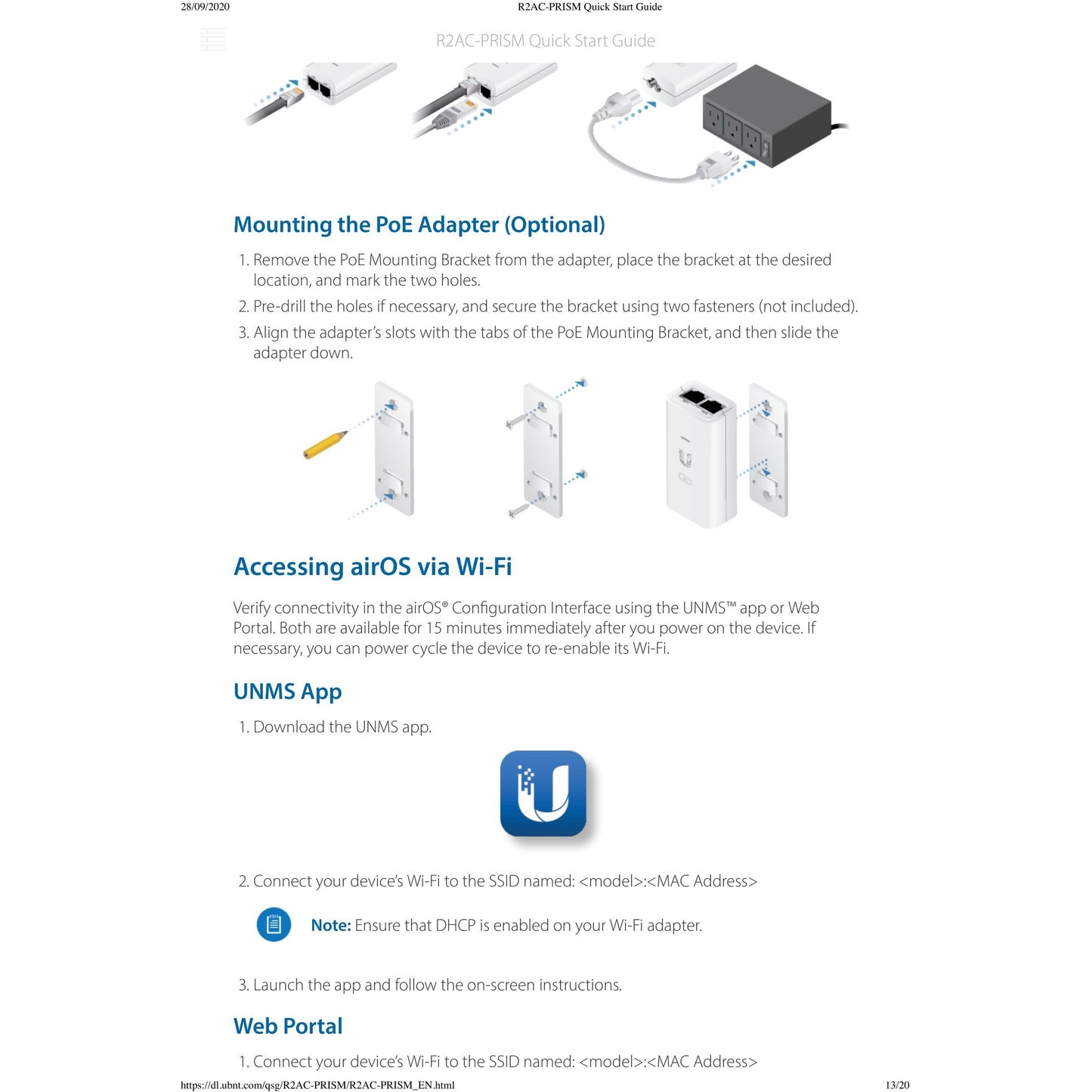

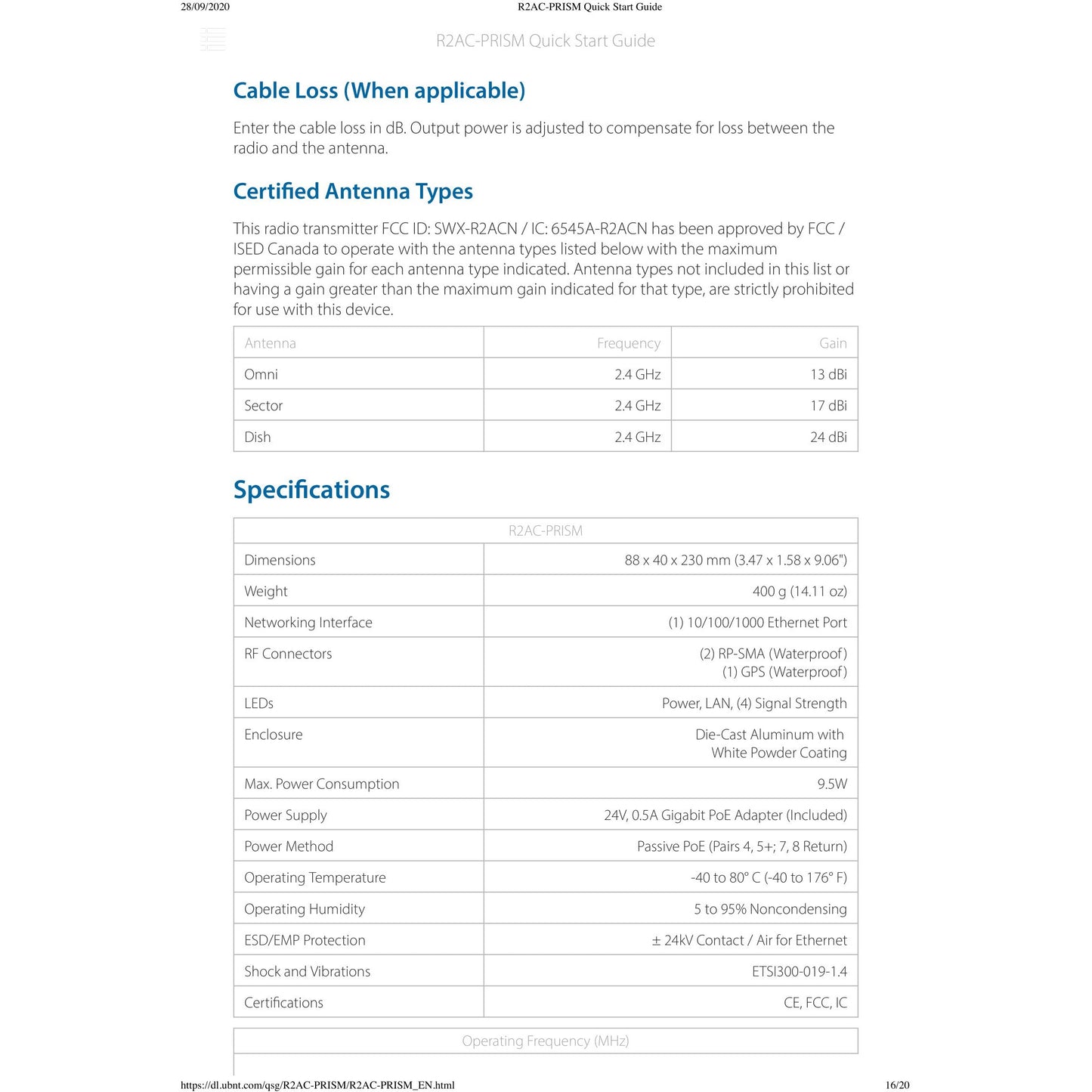

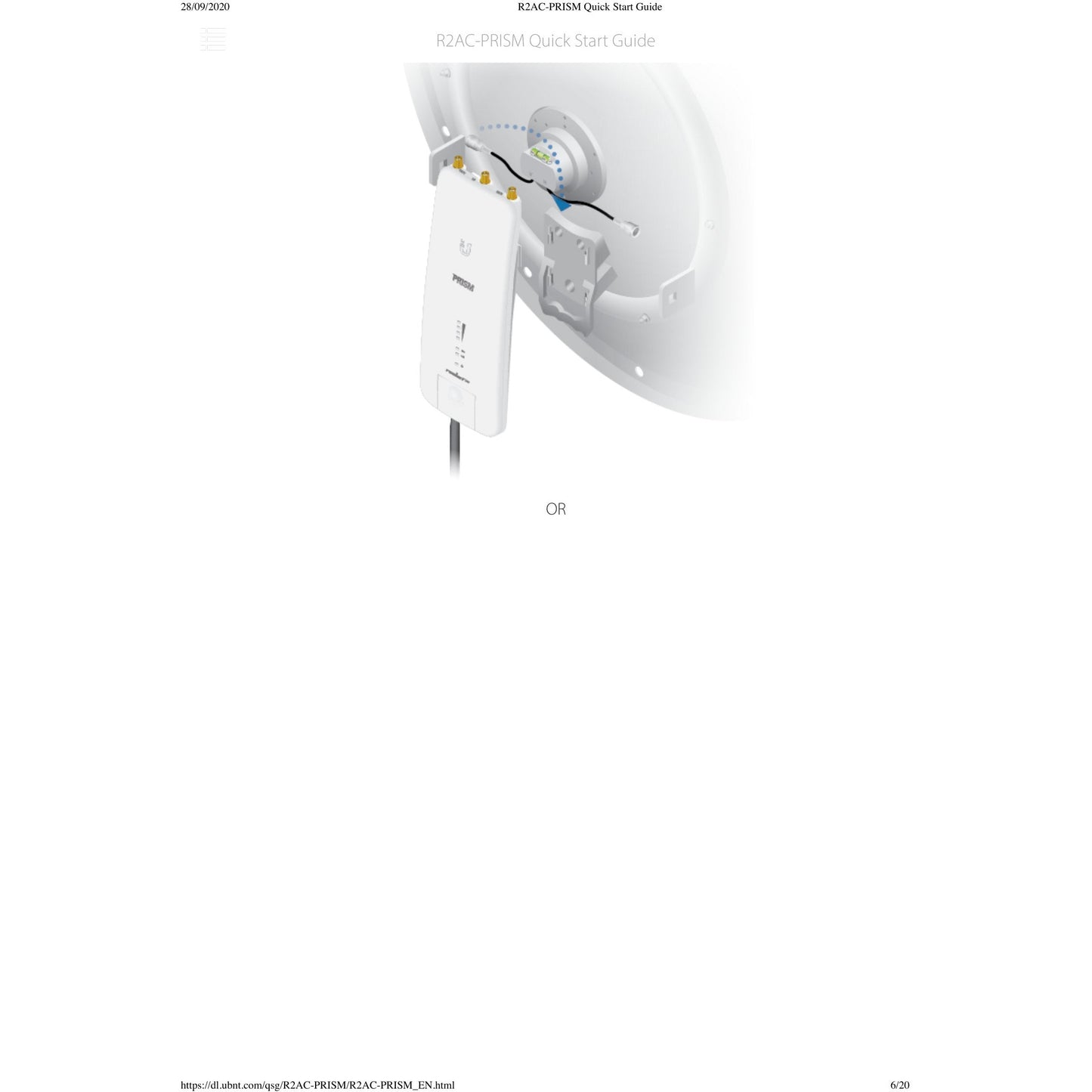

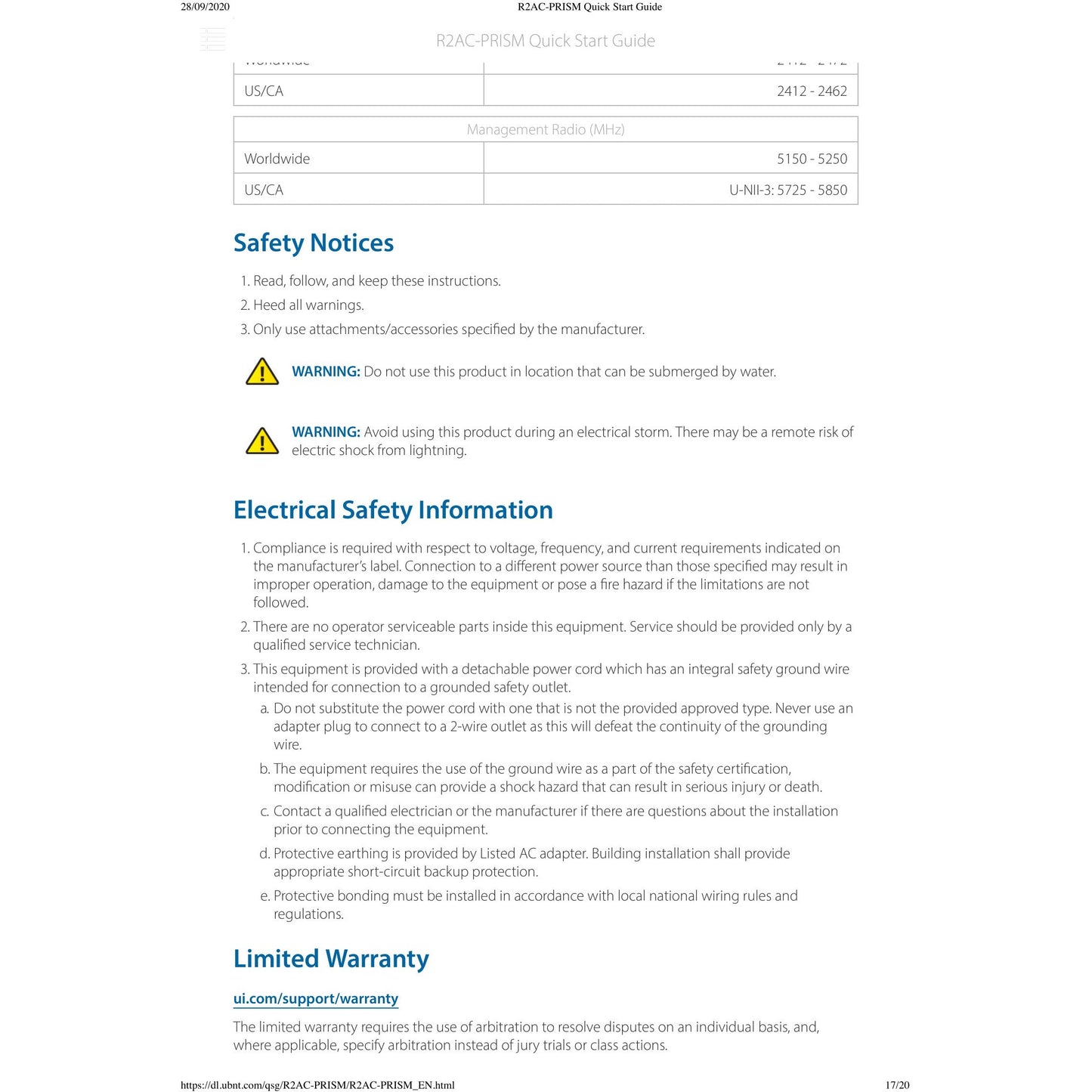

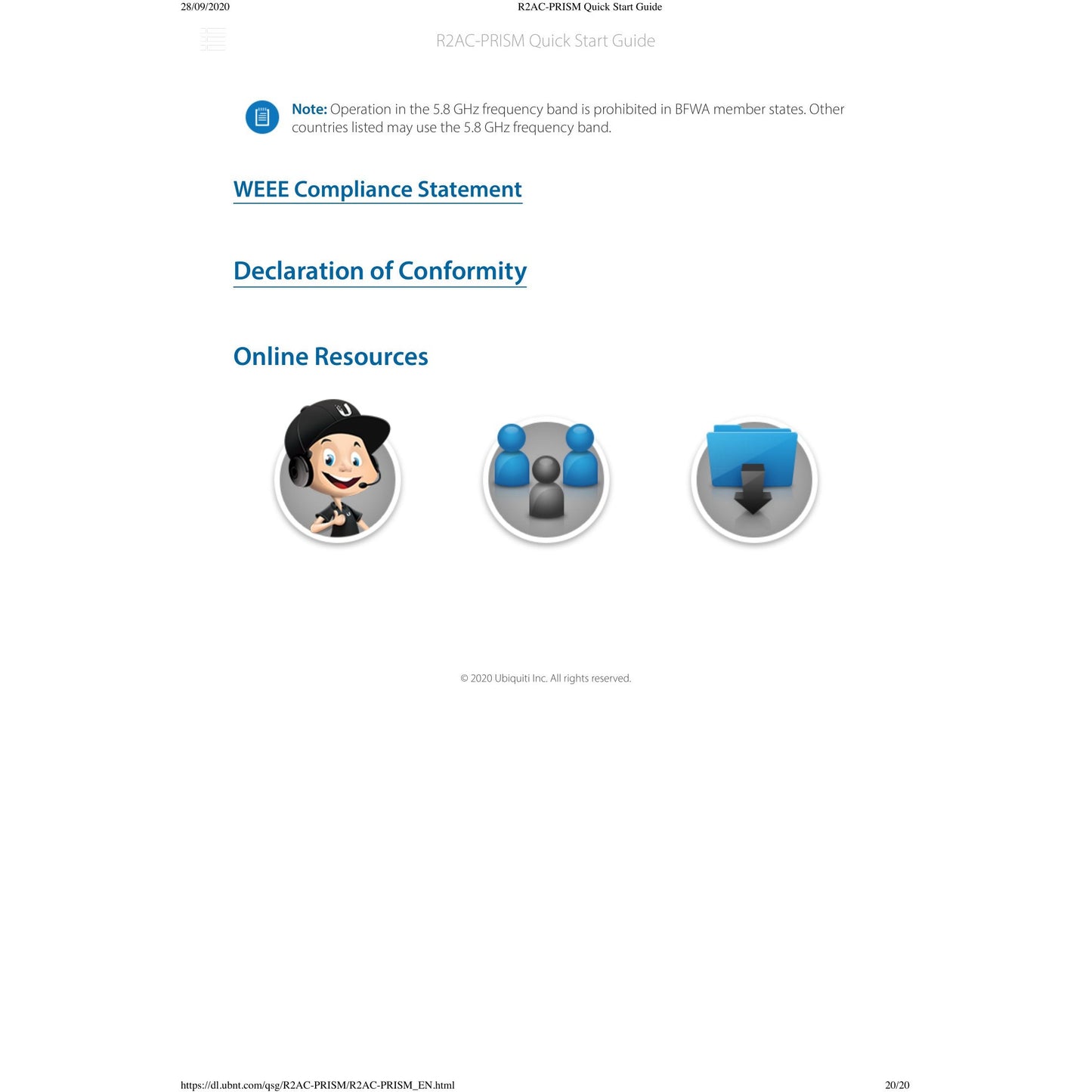

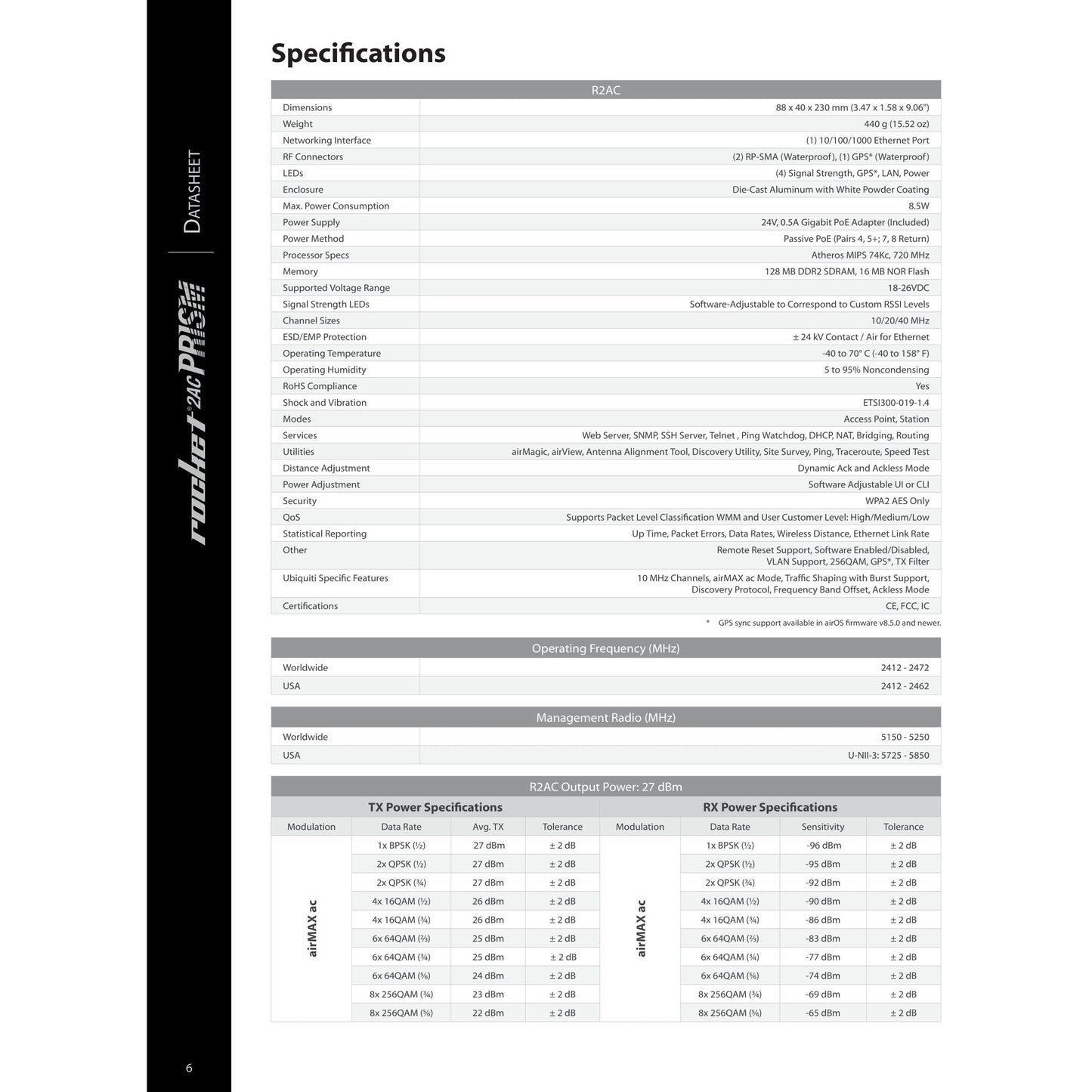

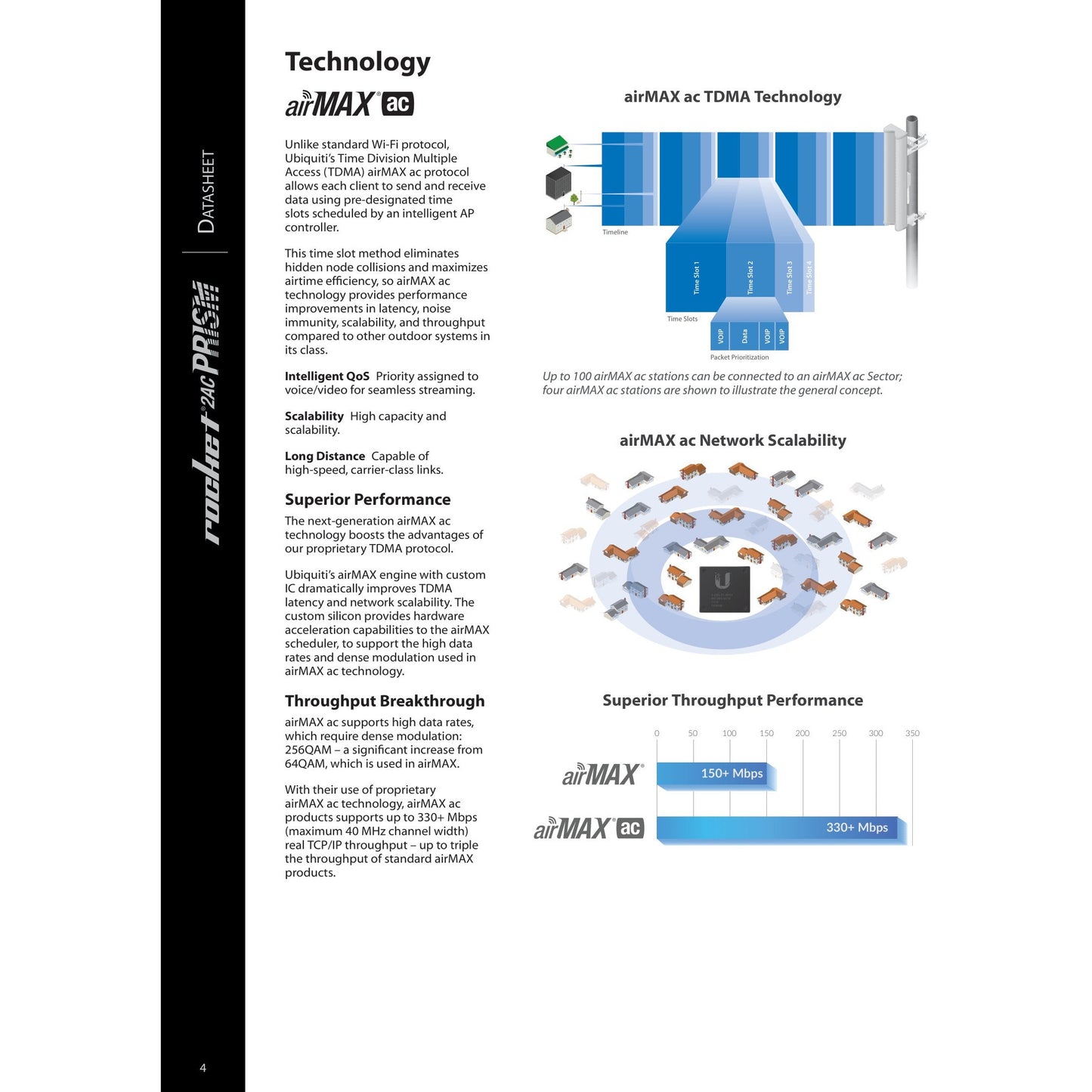

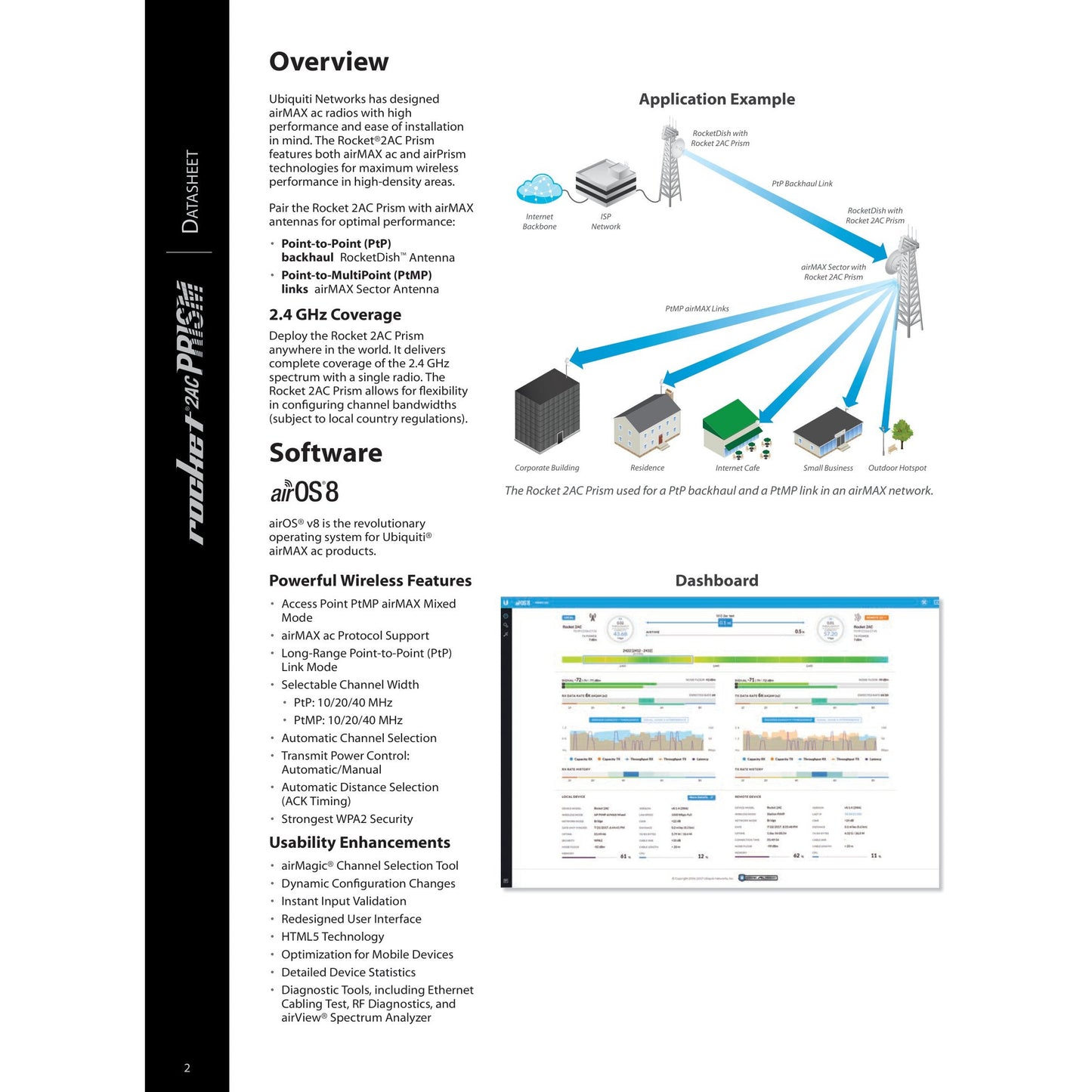

For more in-depth information, zoom in on picture of data sheet.
SKU | R2AC-PRISMG2 |
---|---|
Manufacturer | Ubiquiti |
Manufacturer Product Code | R2AC-PRISM |
