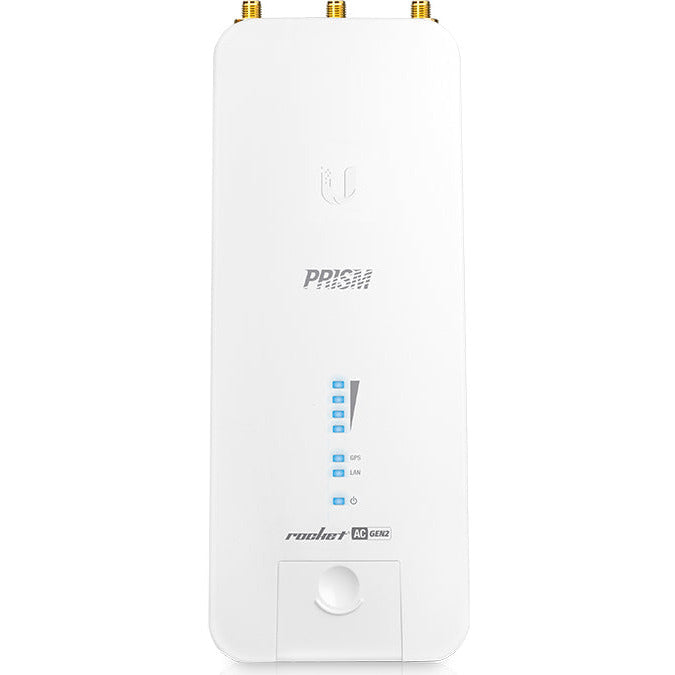

Ubiquiti UISP airMAX Rocket Prism AC 5GHz Radio | RP-5AC-Gen2
Ubiquiti UISP airMAX Rocket Prism AC 5GHz Radio | RP-5AC-Gen2

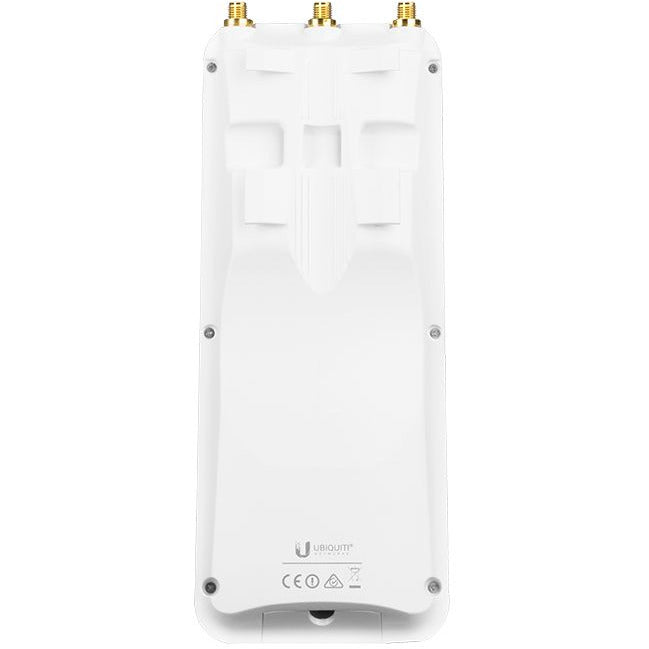

Ubiquiti’s R5AC-PRISMG2 is an airMAX ac 5GHz radio featuring airPrism technology.

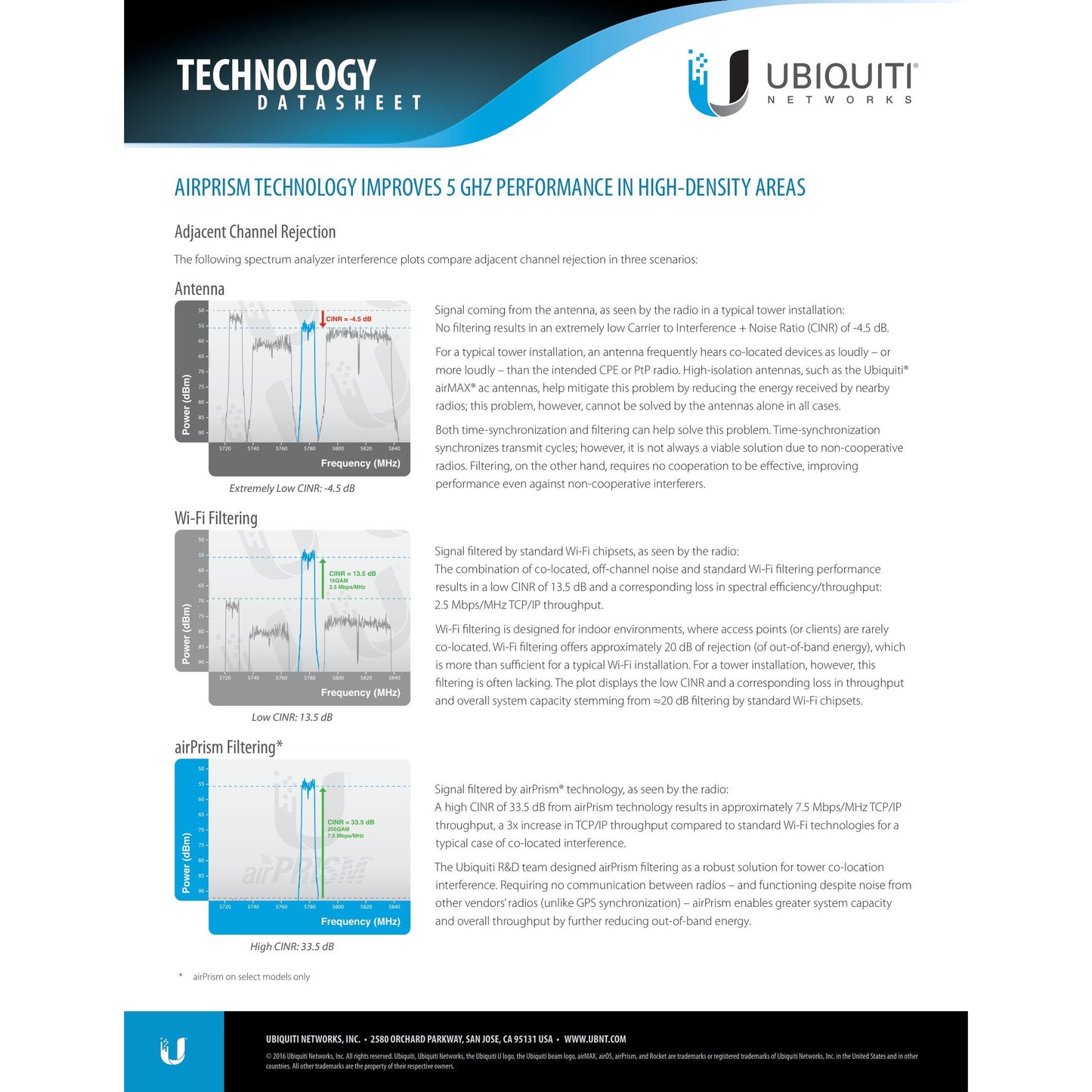

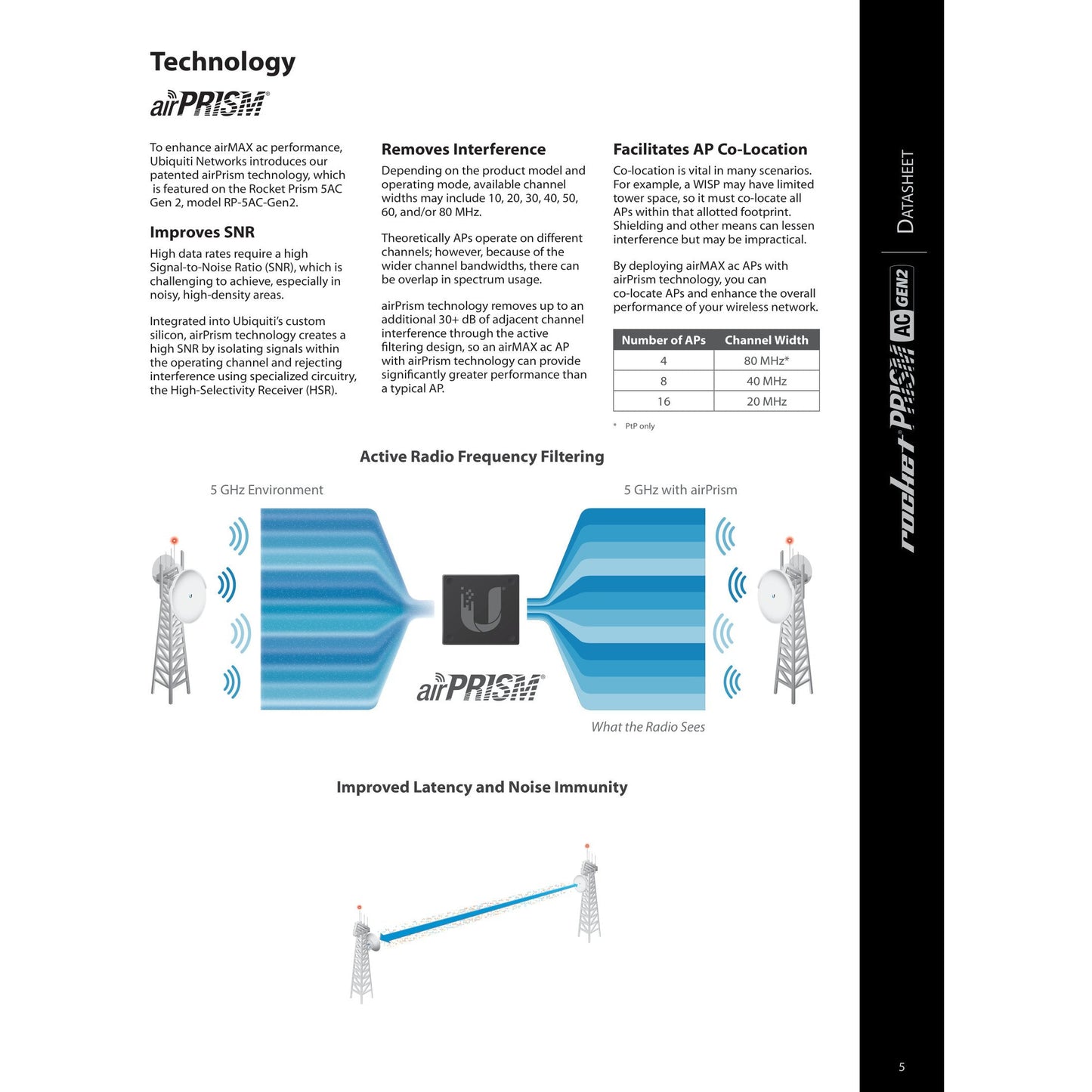

The airPrism significantly reduces adjacent channel interference and is designed to work with Ubiquiti’s wide range of antennas.
It can be used as PtMP (point-to-multipoint) access point in high interference environments or for high-performance, long-range PtP (point-to-point) links.

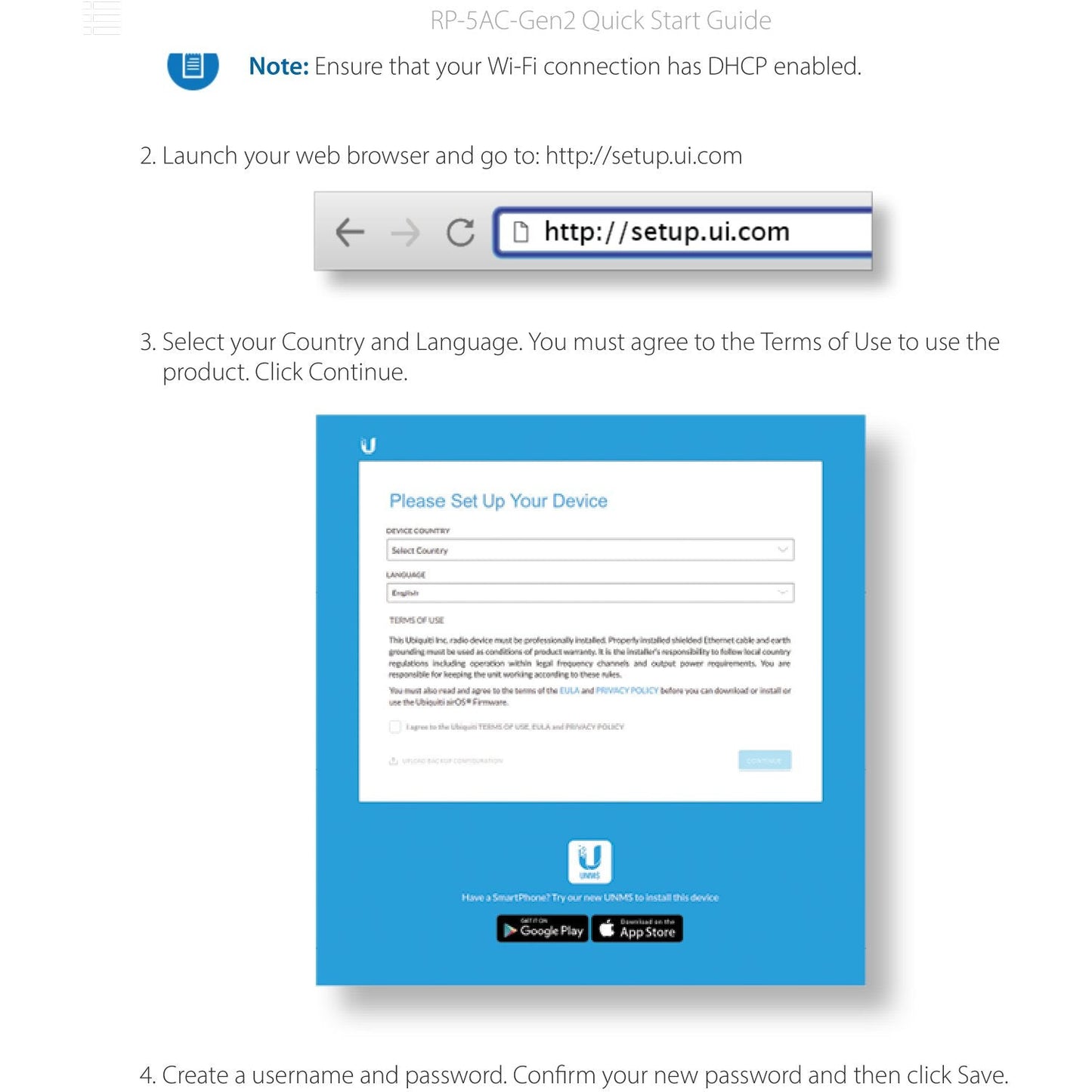

The dedicated 2.4GHz management radio allows for easy set-up via the UISP mobile app and network management platform.
*Note:
Antenna not included.

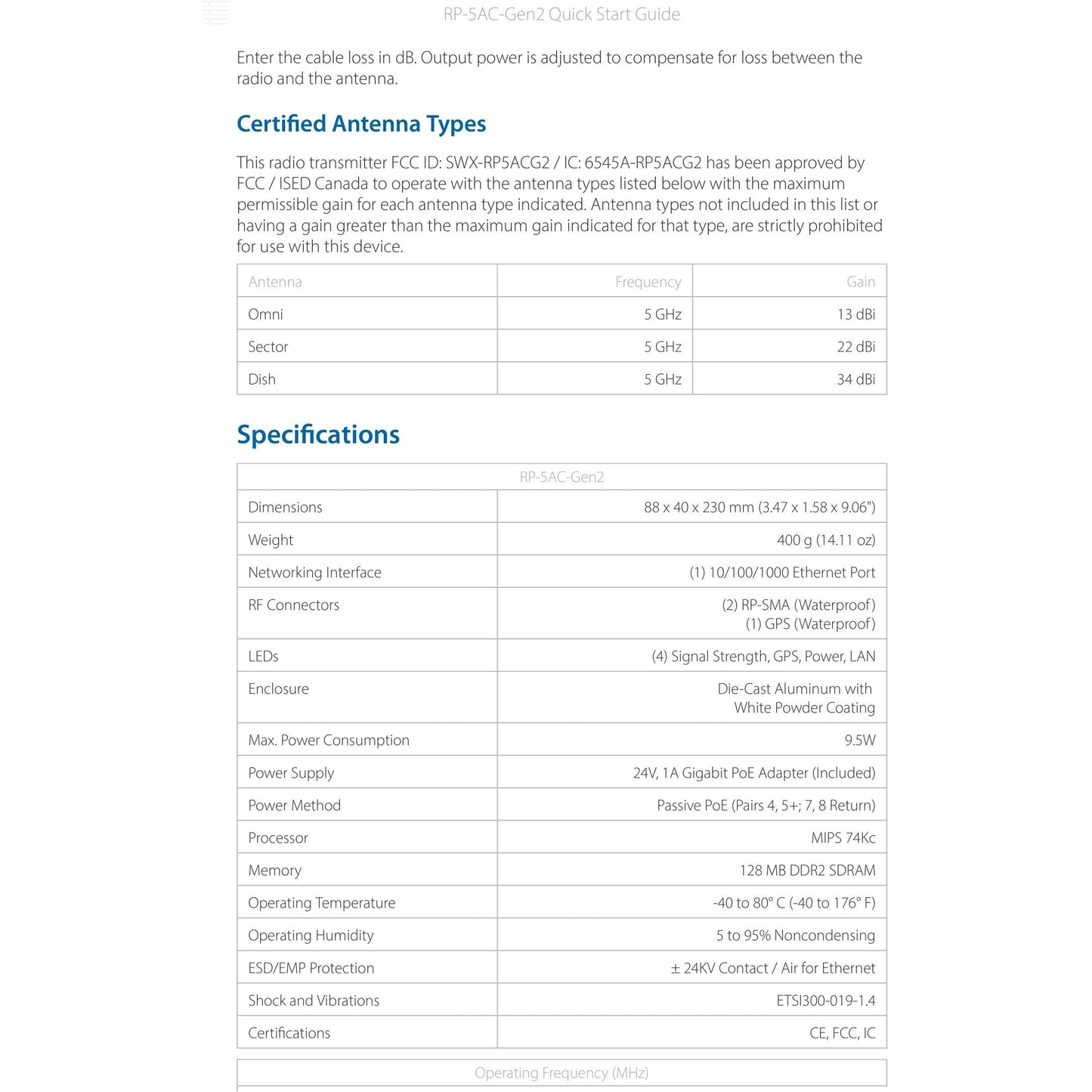

Specifications

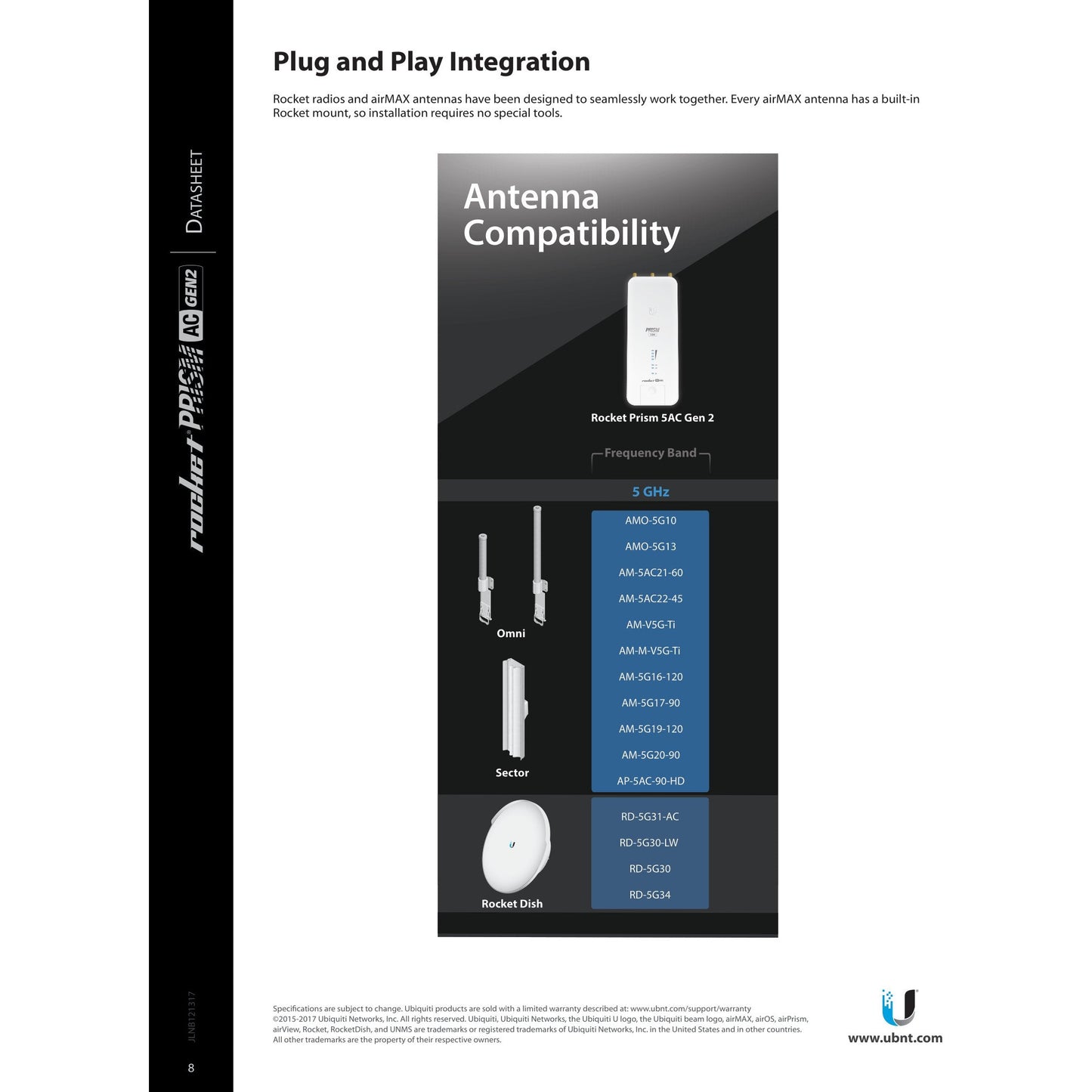

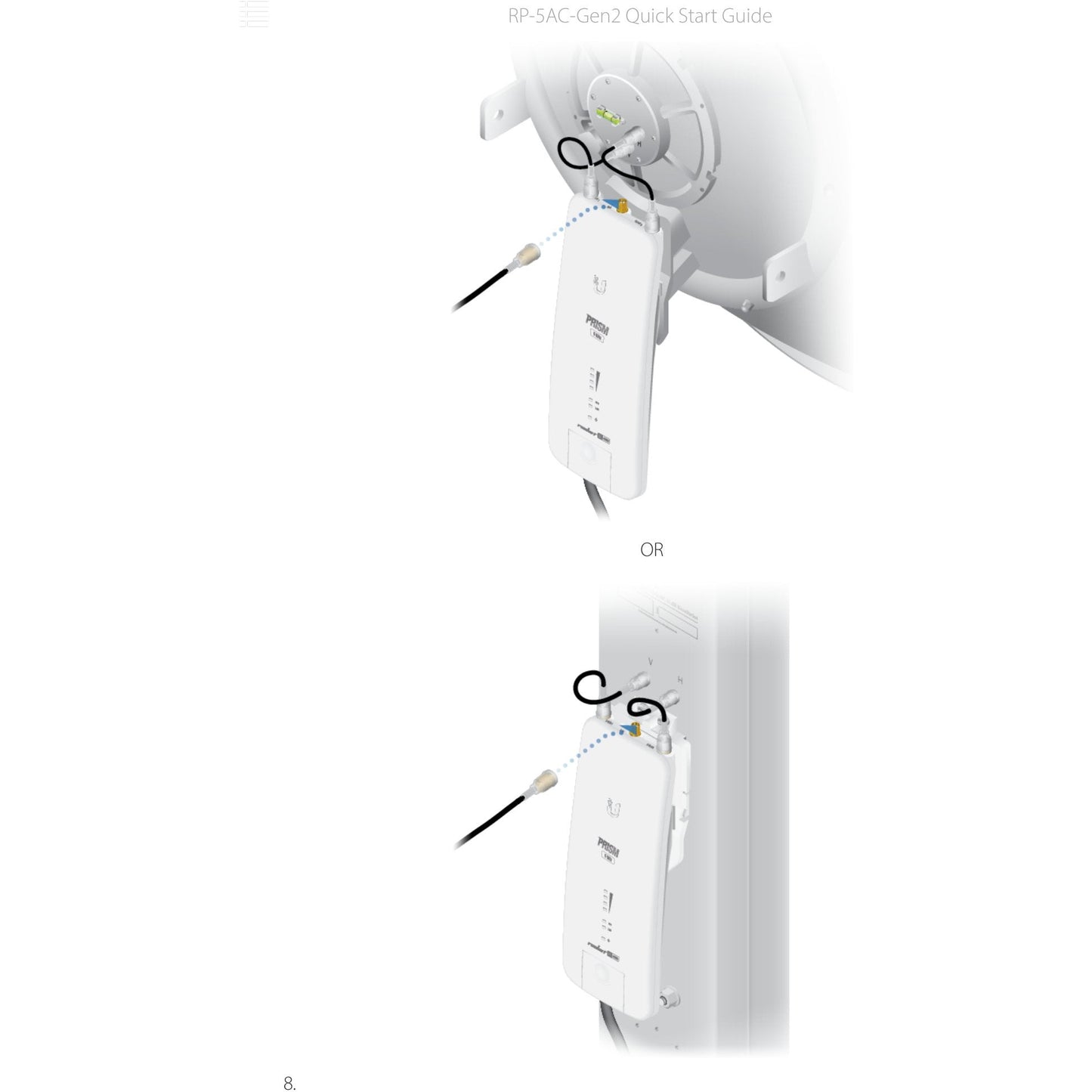

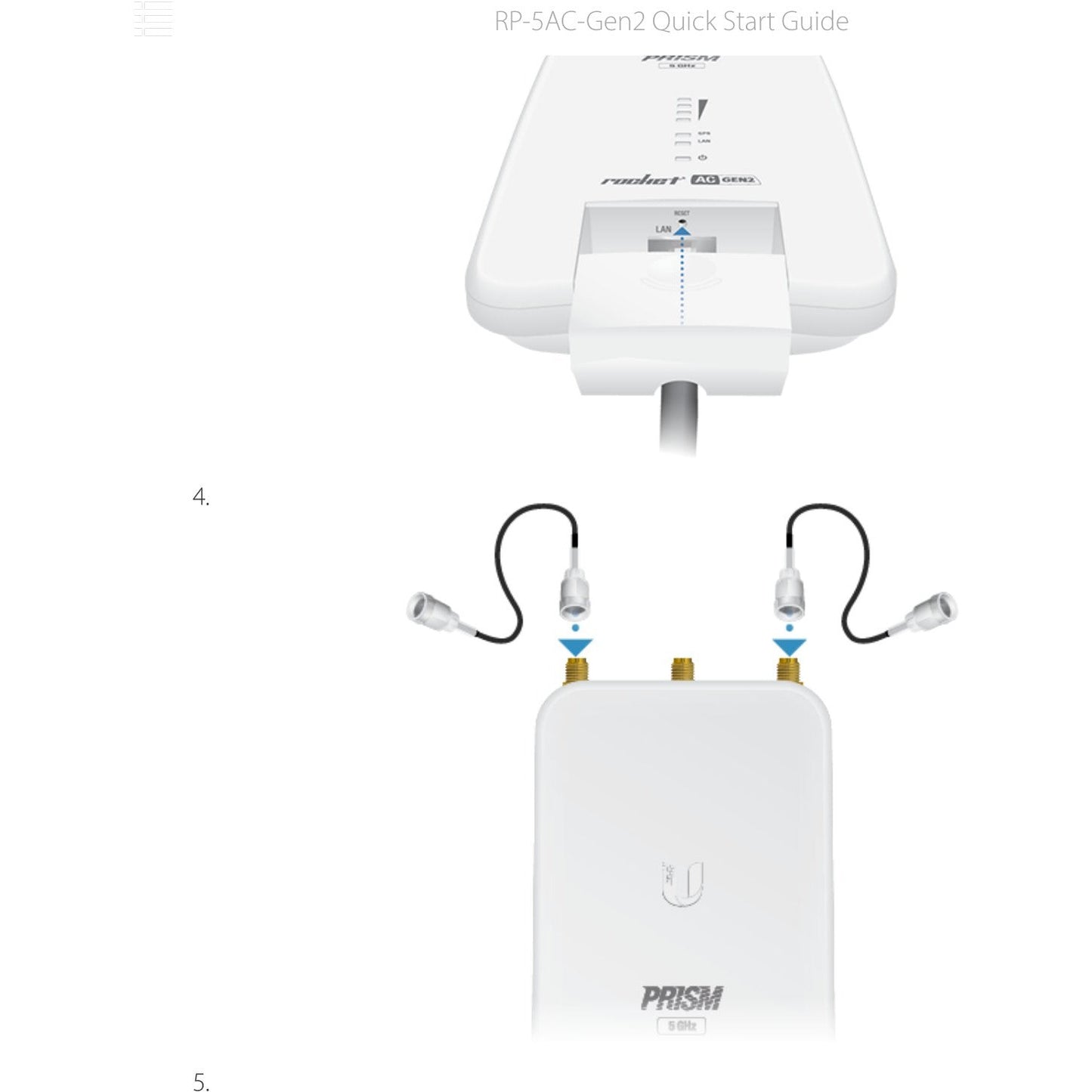

Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 867Mbps

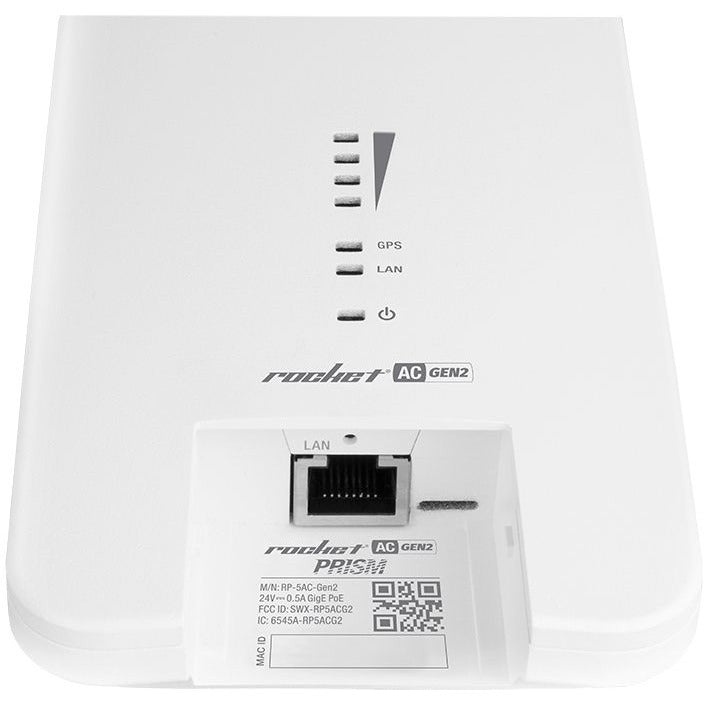

Ethernet Ports: 1x 10/100/1000

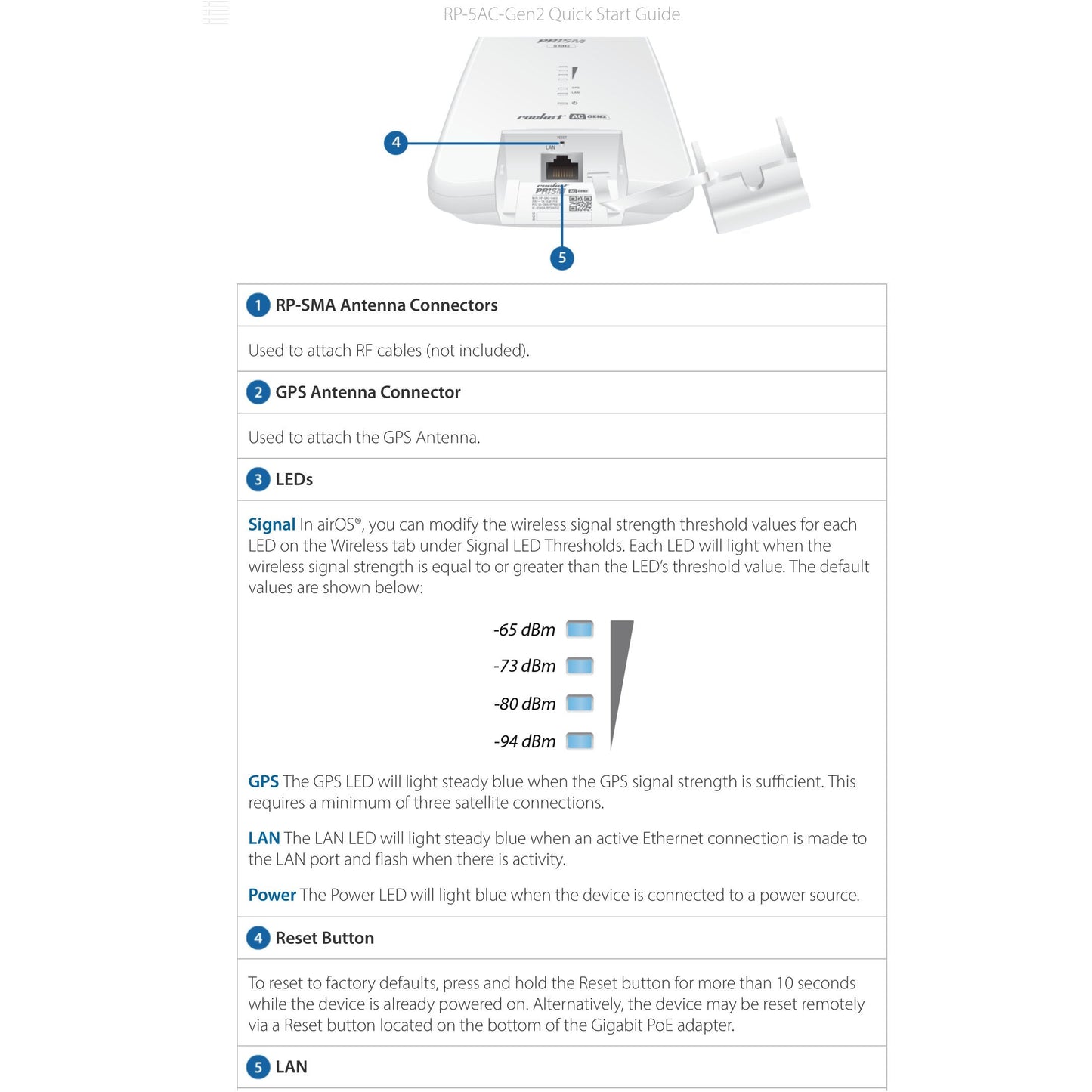

Hardware Button: Reset
Max. Power Consumption: 9.5W

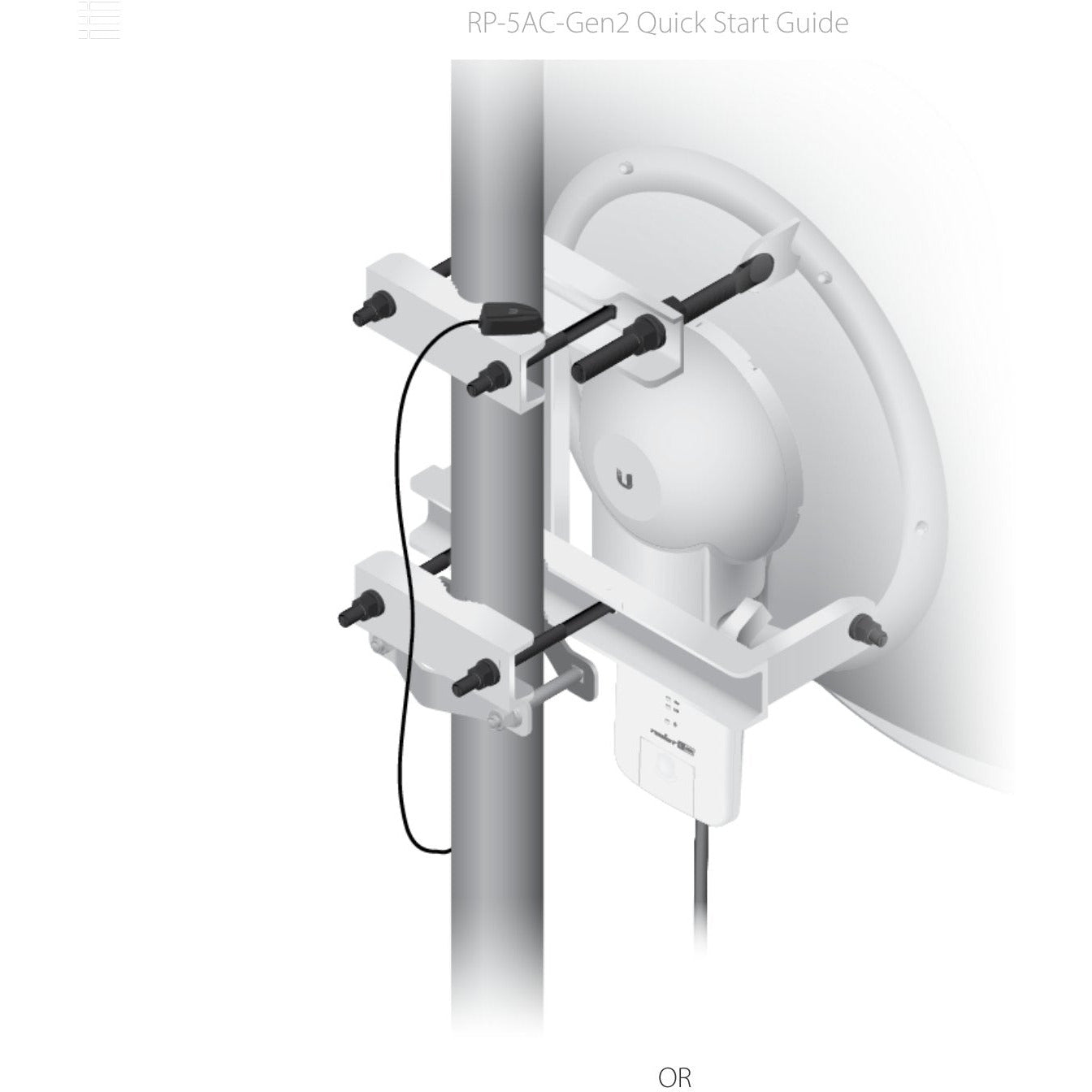

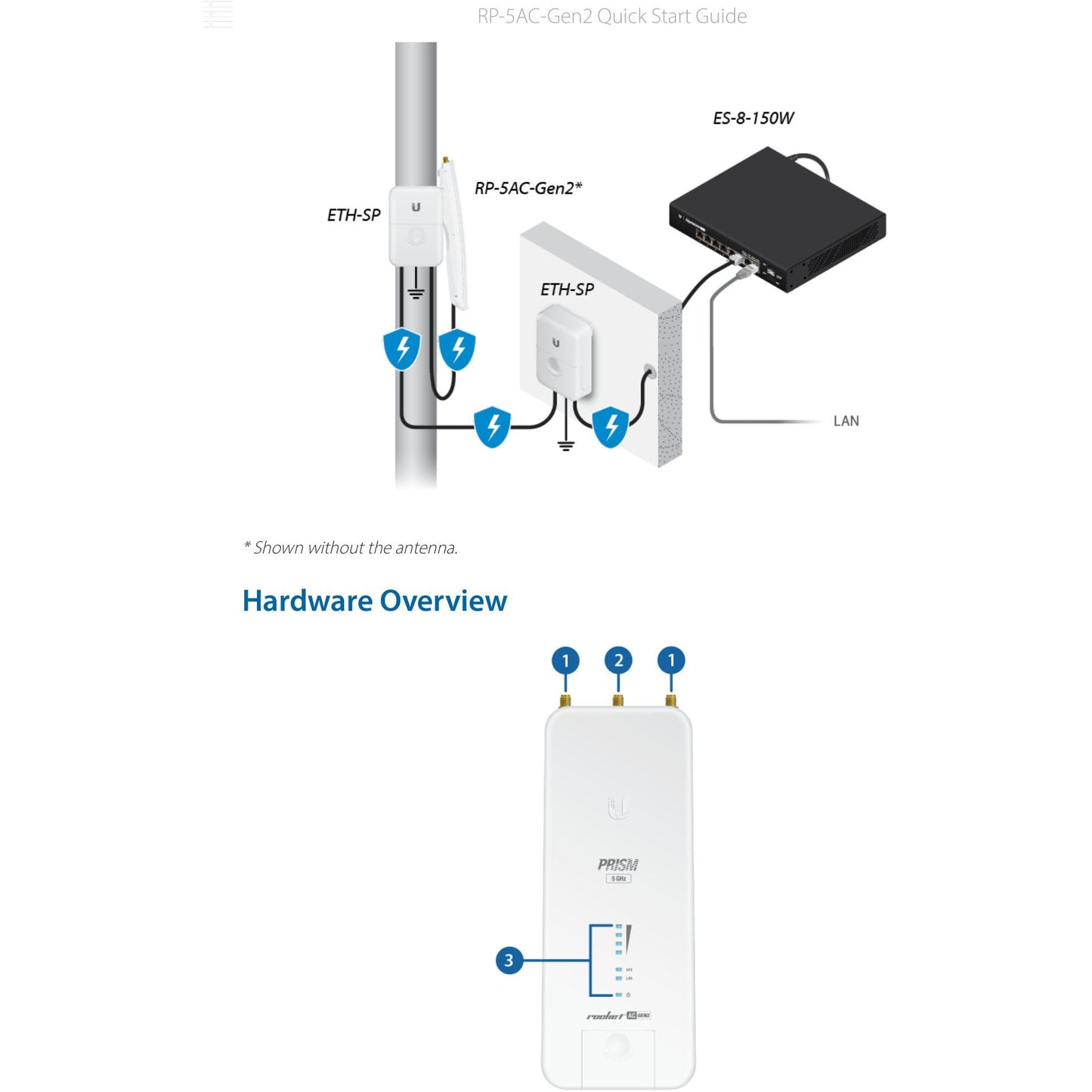

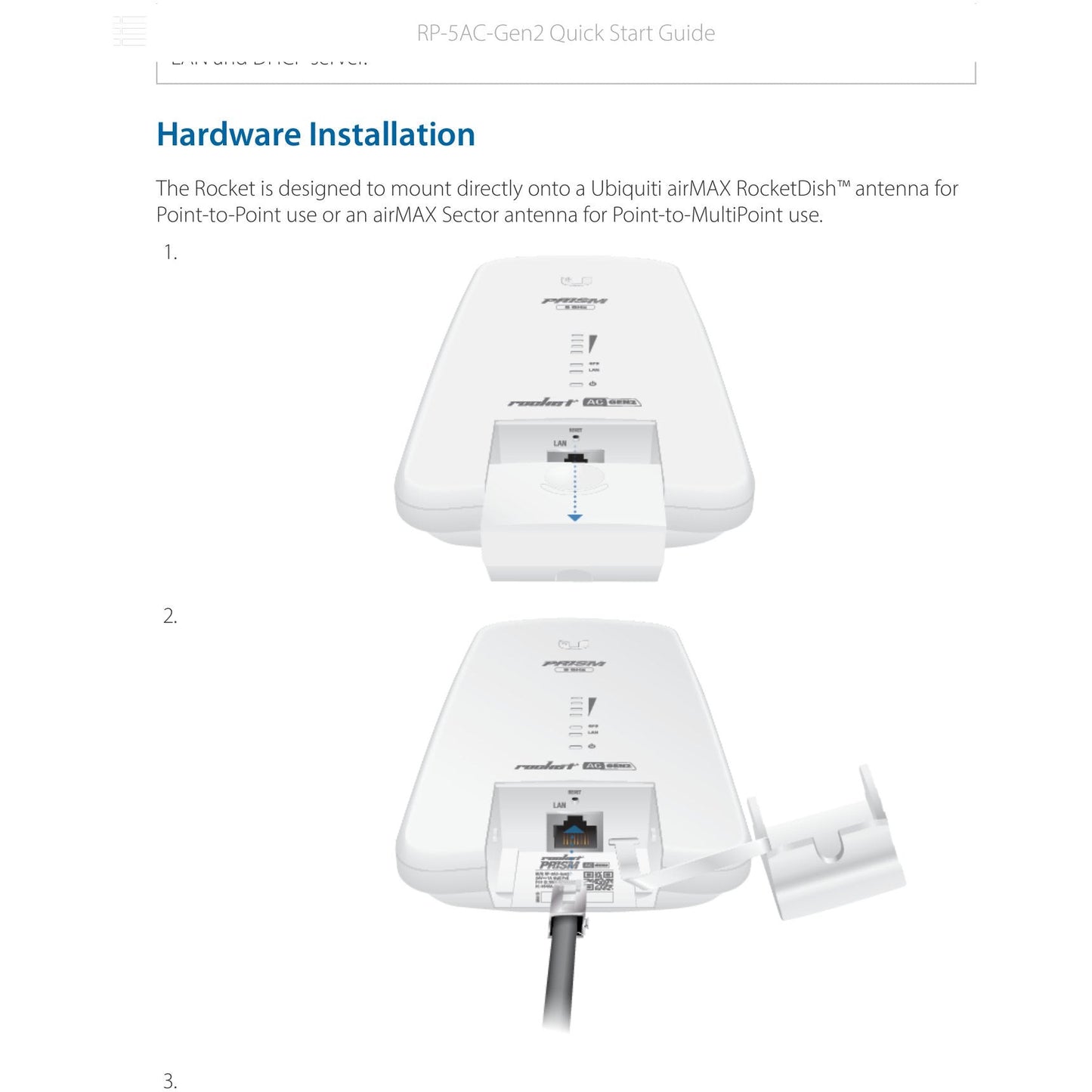

Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 80°C
PoE Input: 24V Passive PoE
PoE Output: None

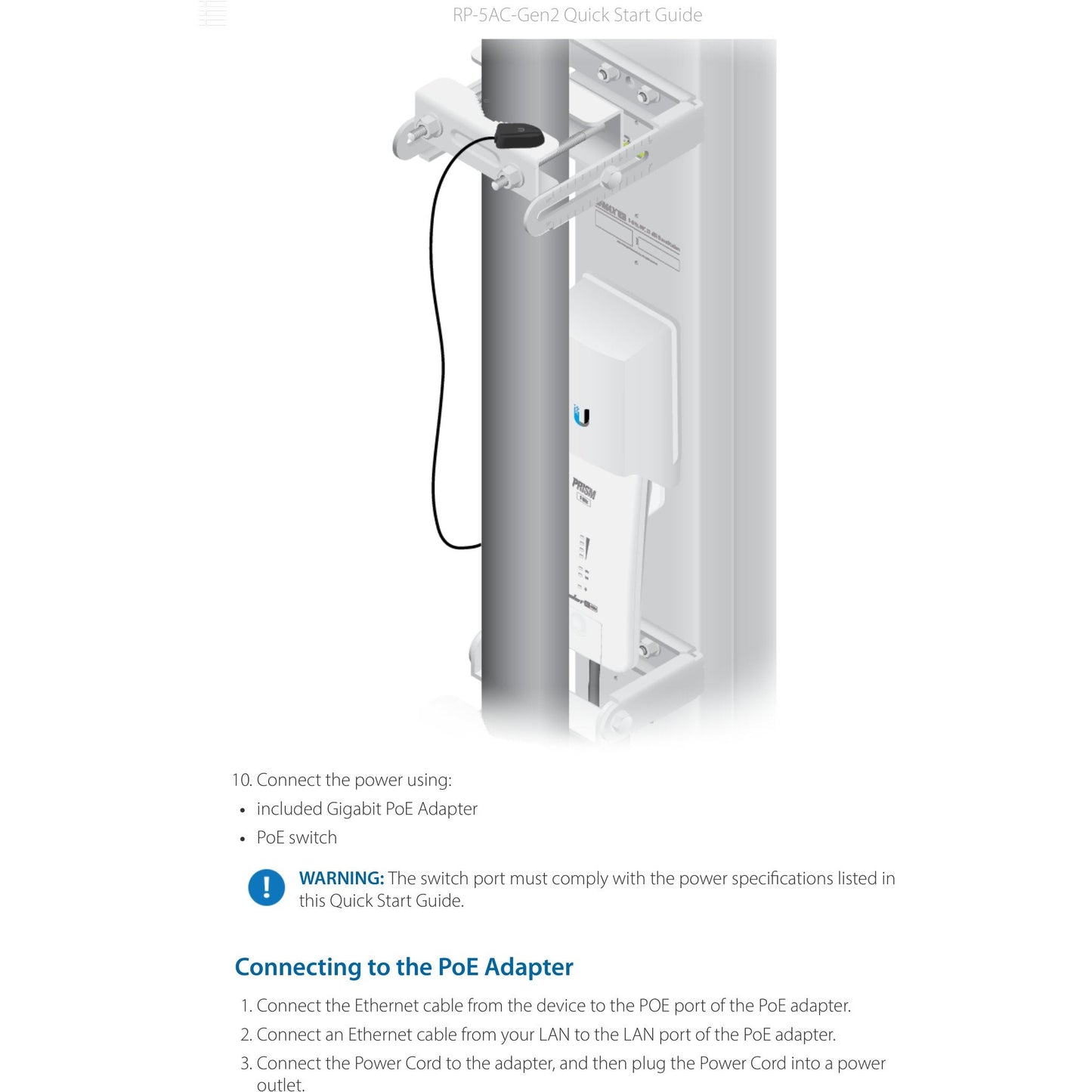

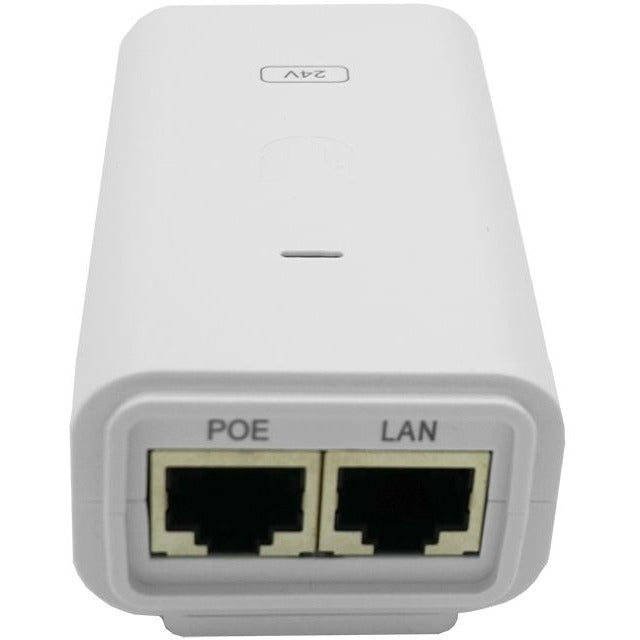

Power Input: 24V 1A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-26V
USB Ports: None
Dimensions: 88 x 40 x 230mm
Weight: 400g

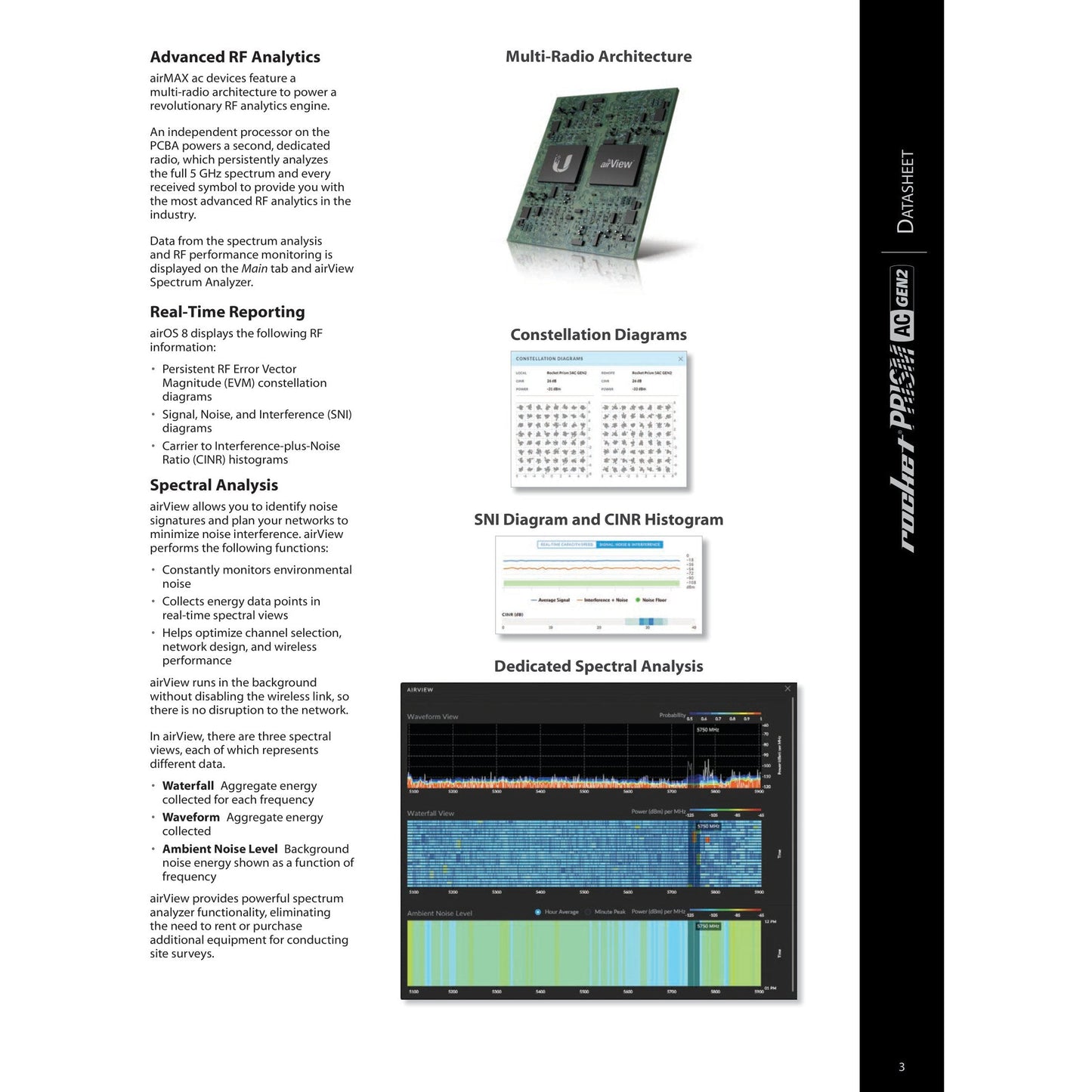

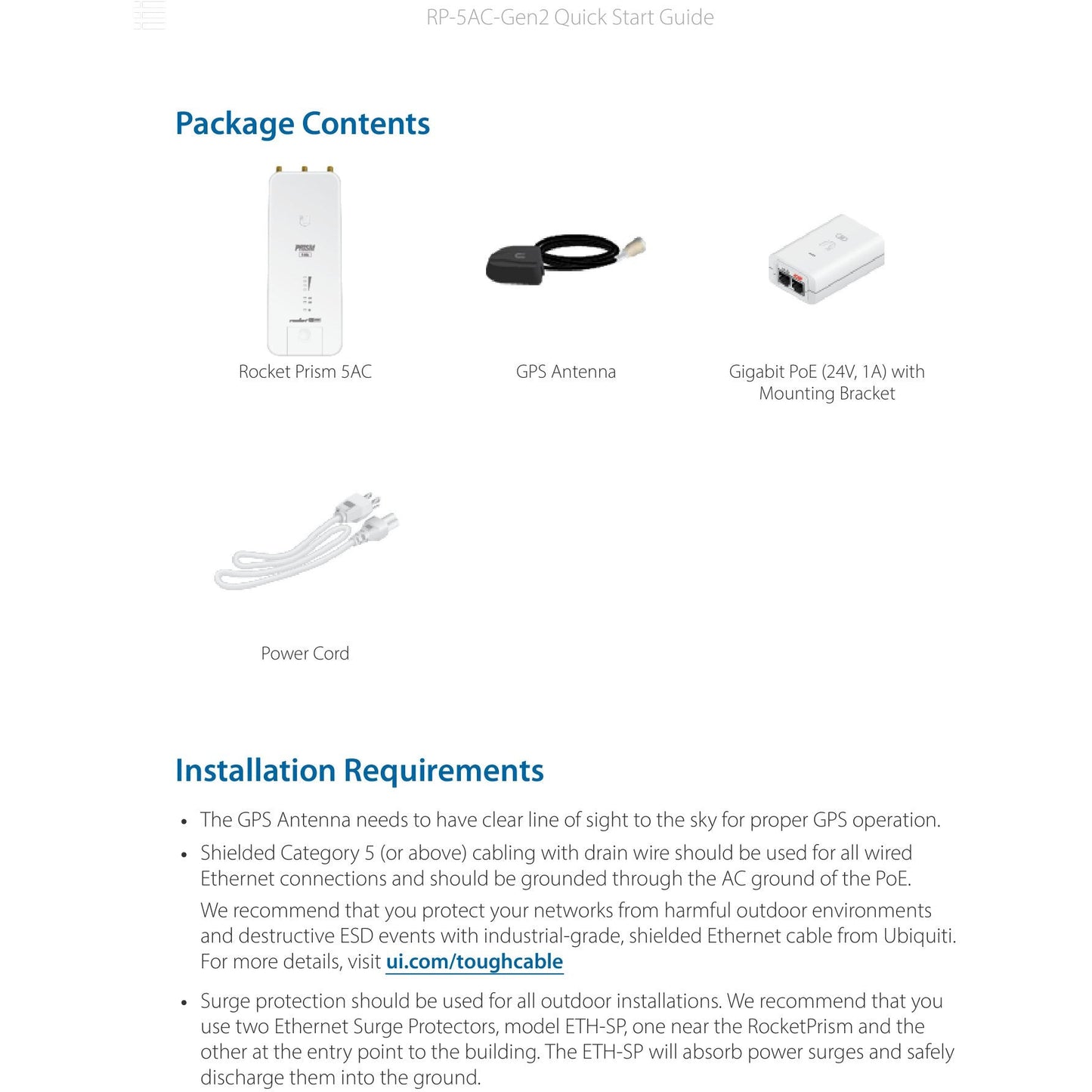

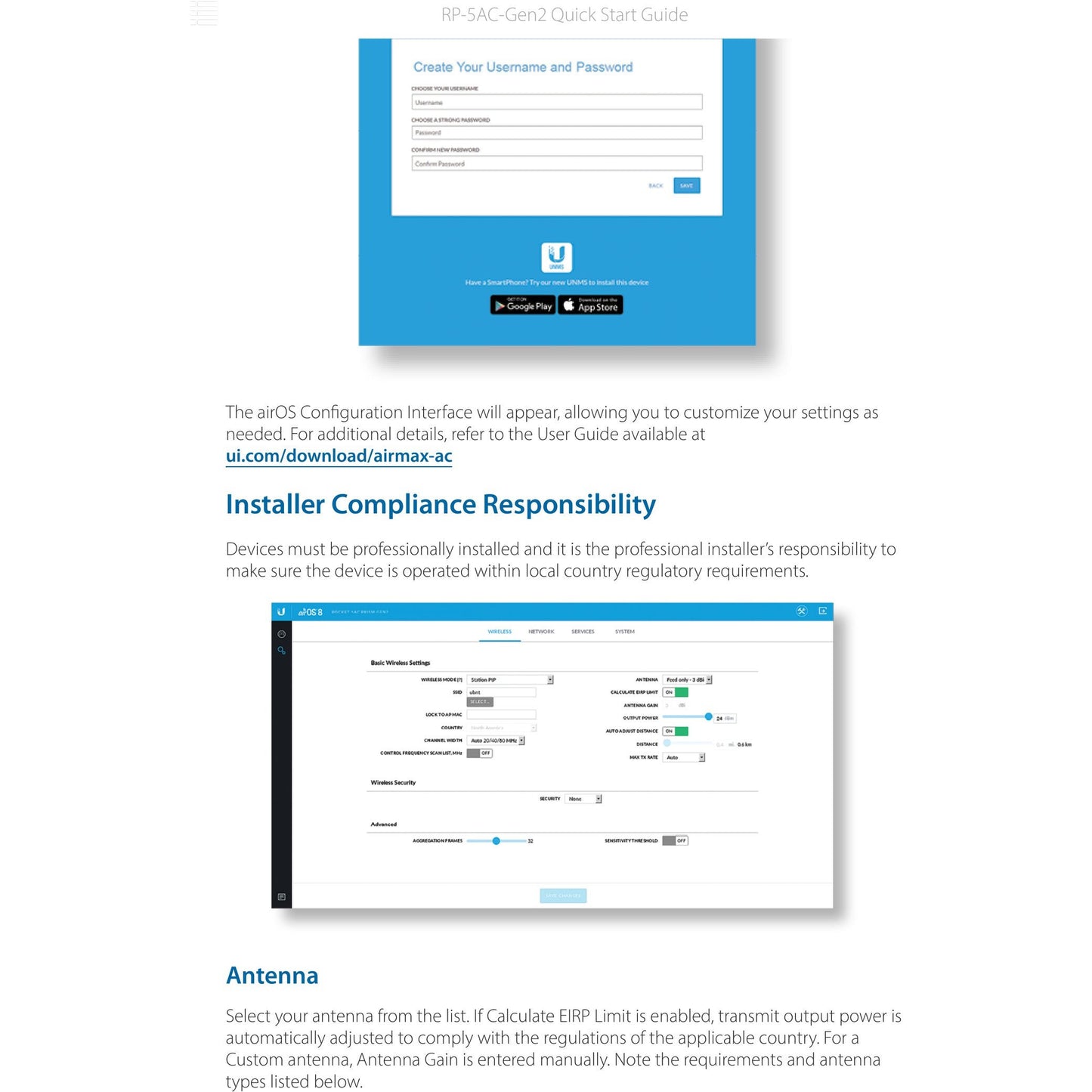

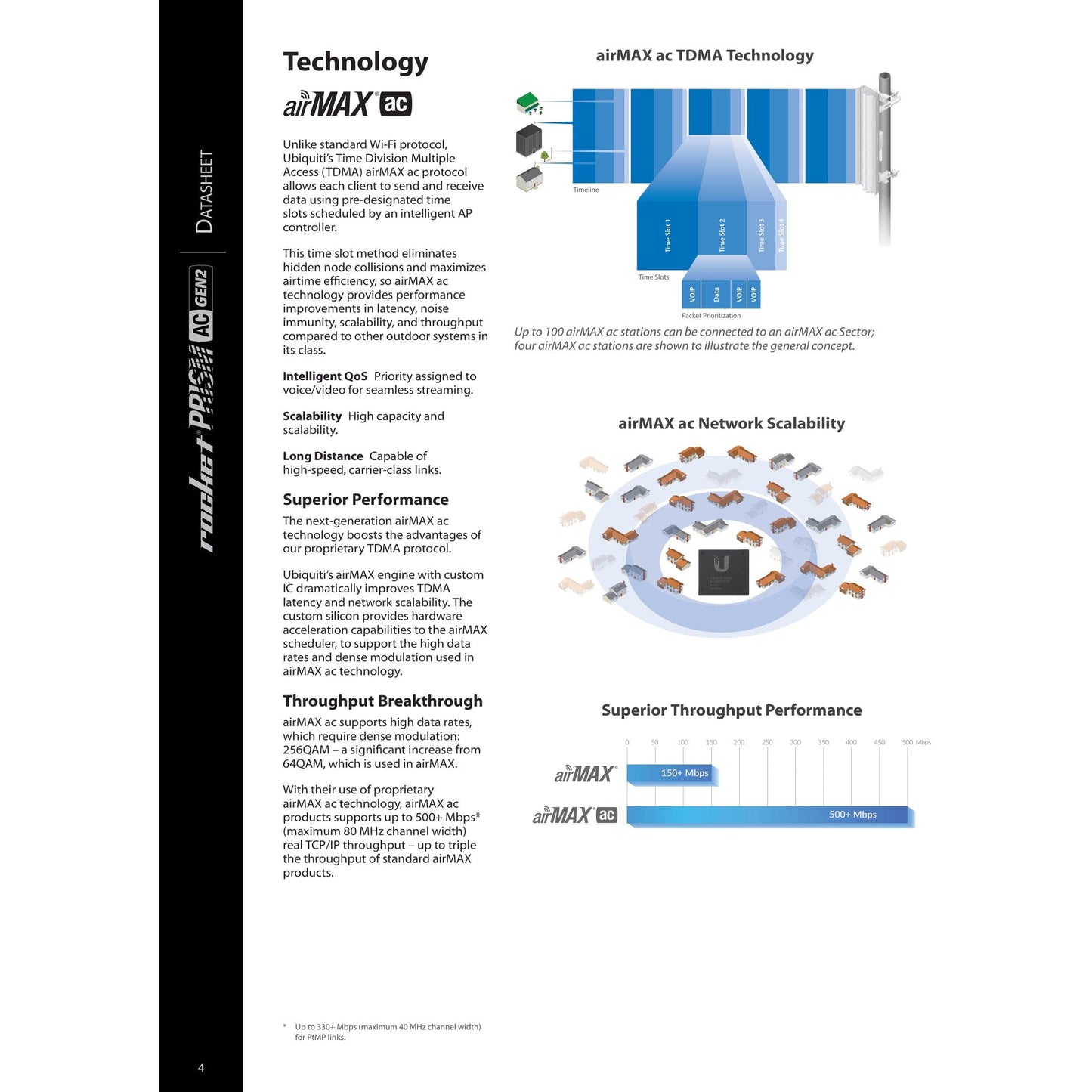

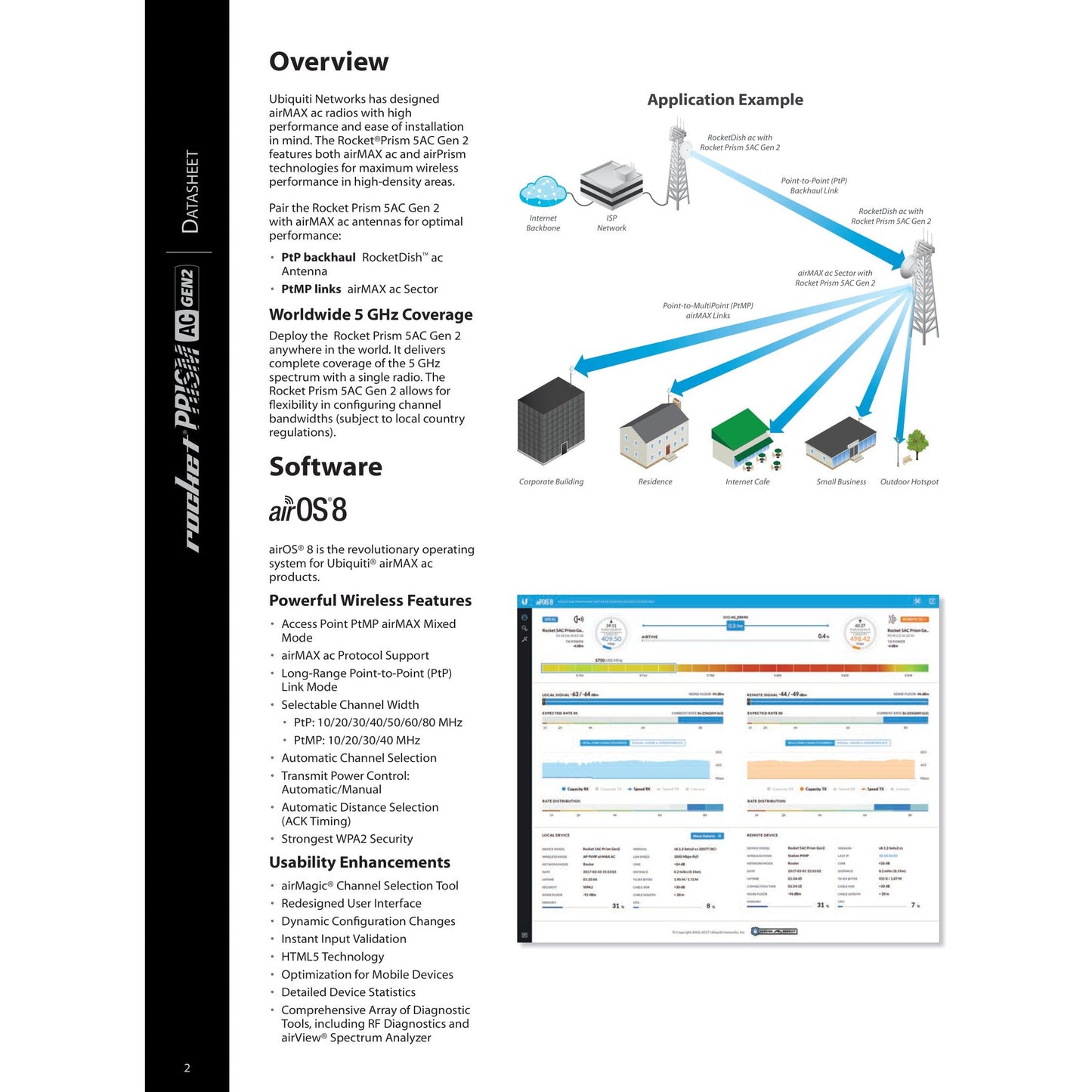

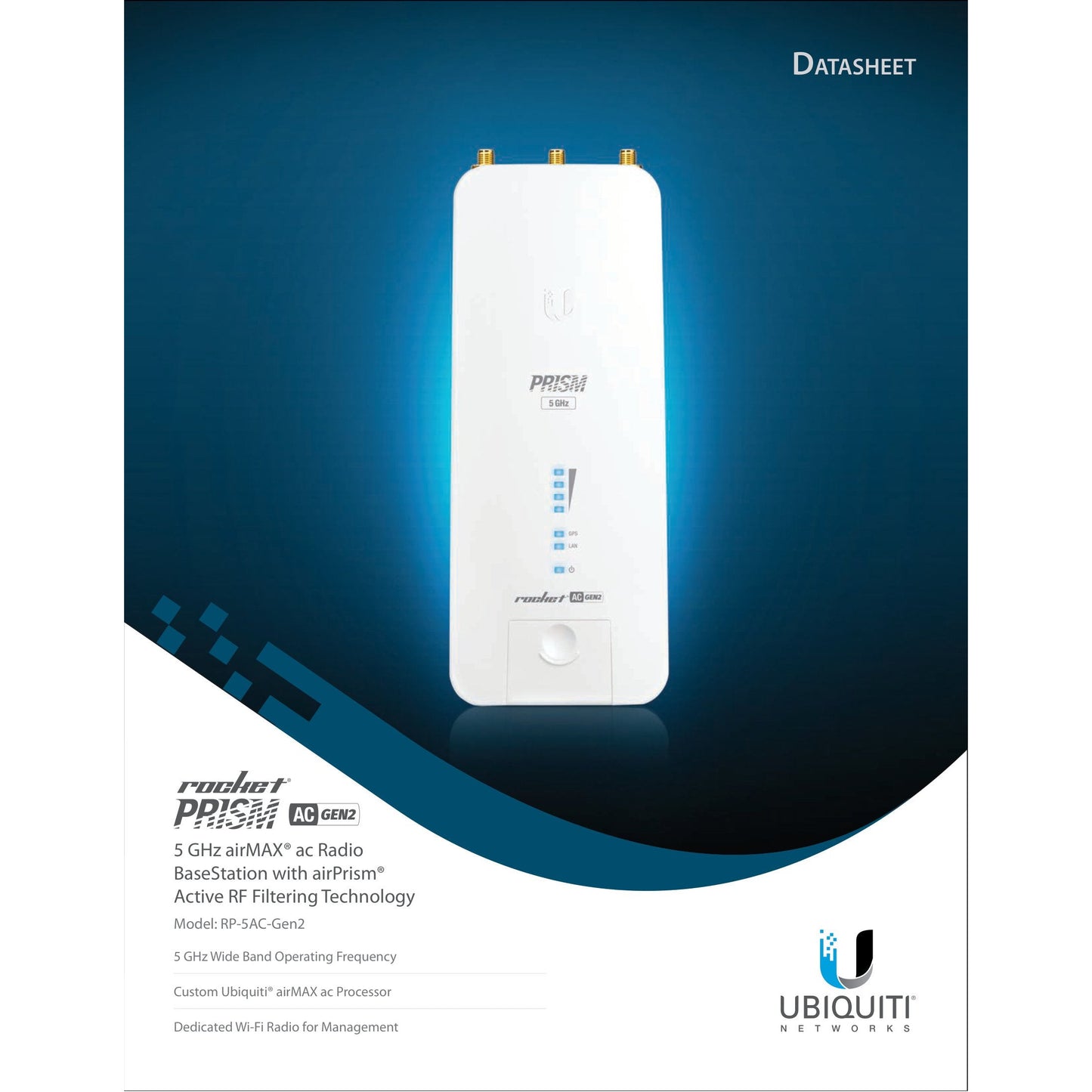

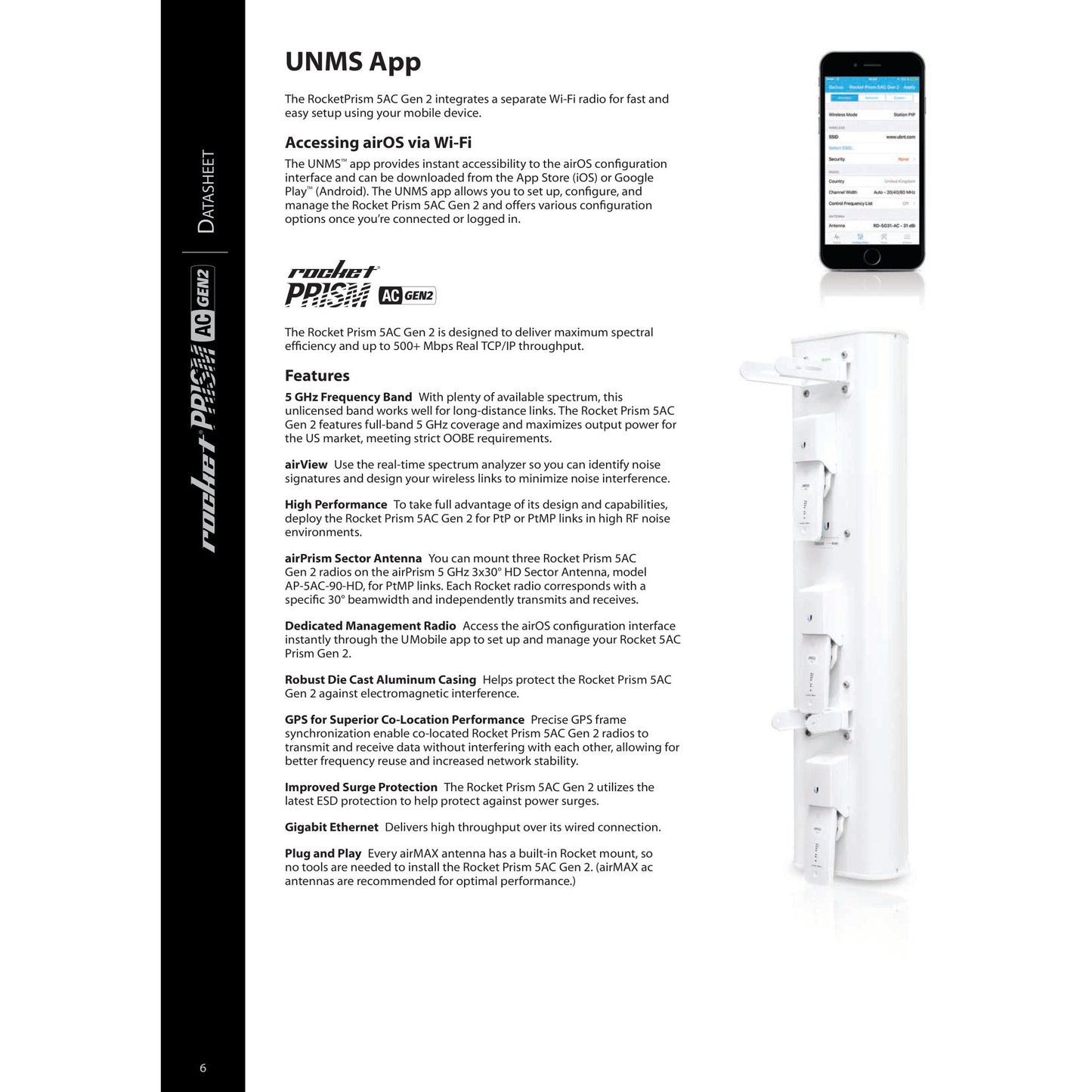

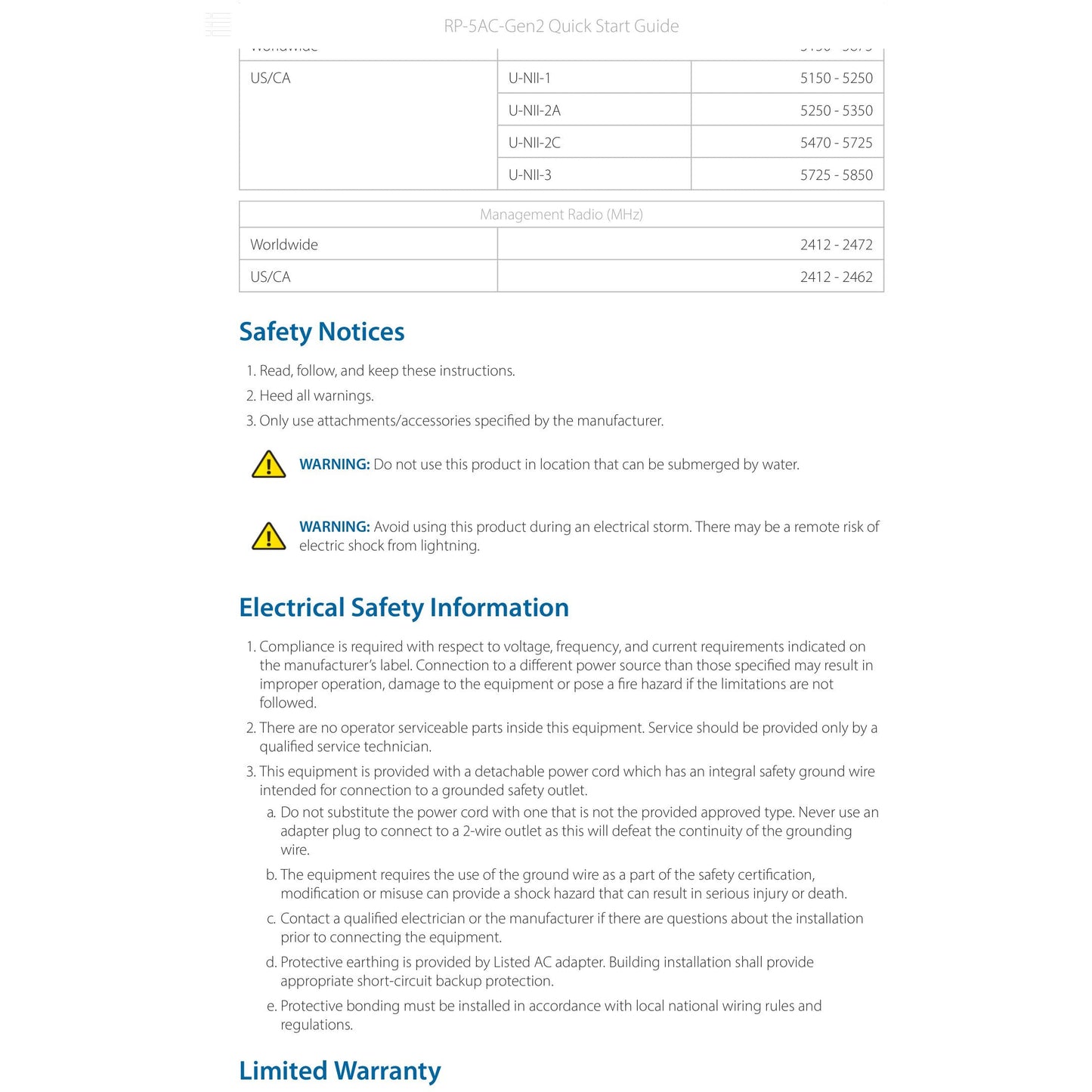

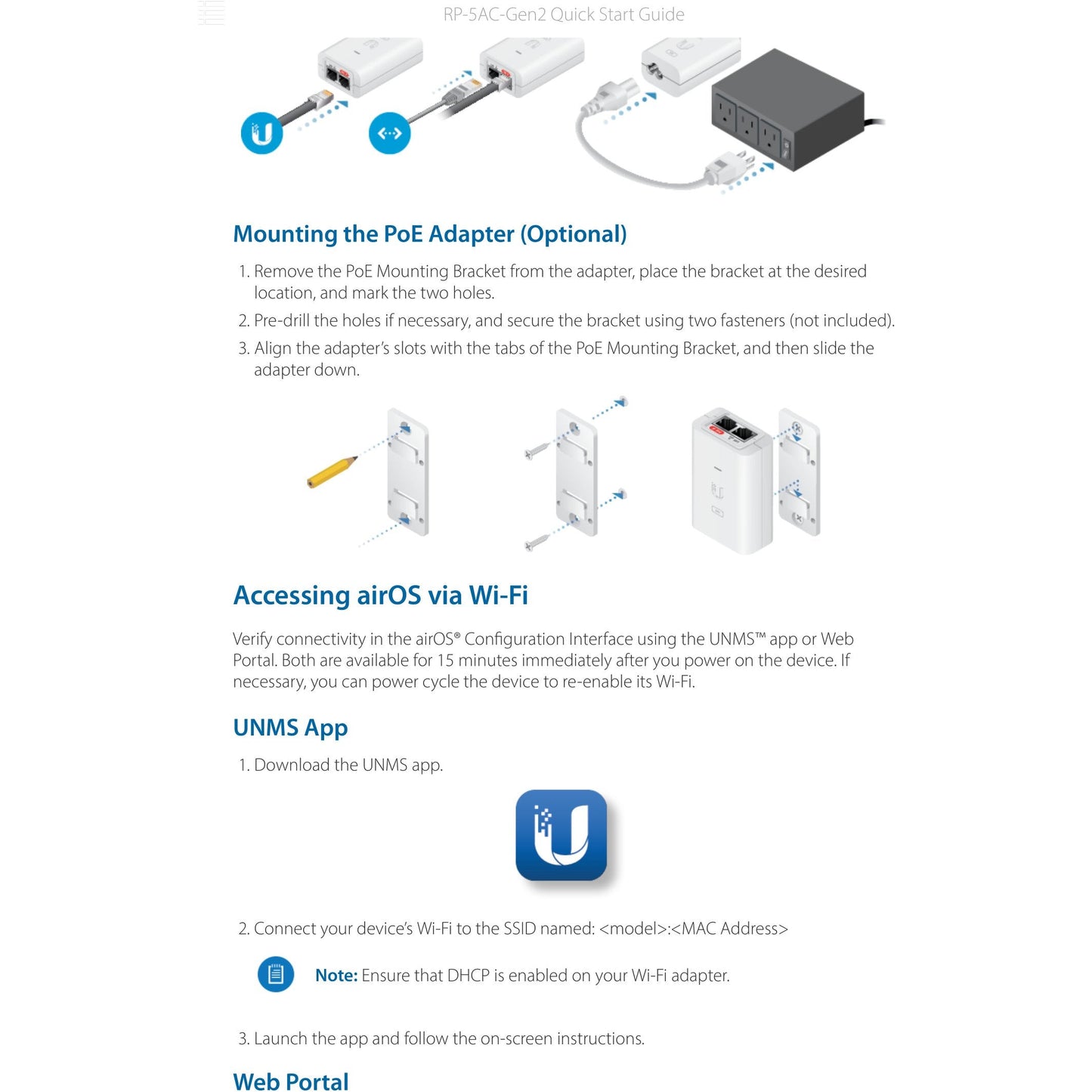

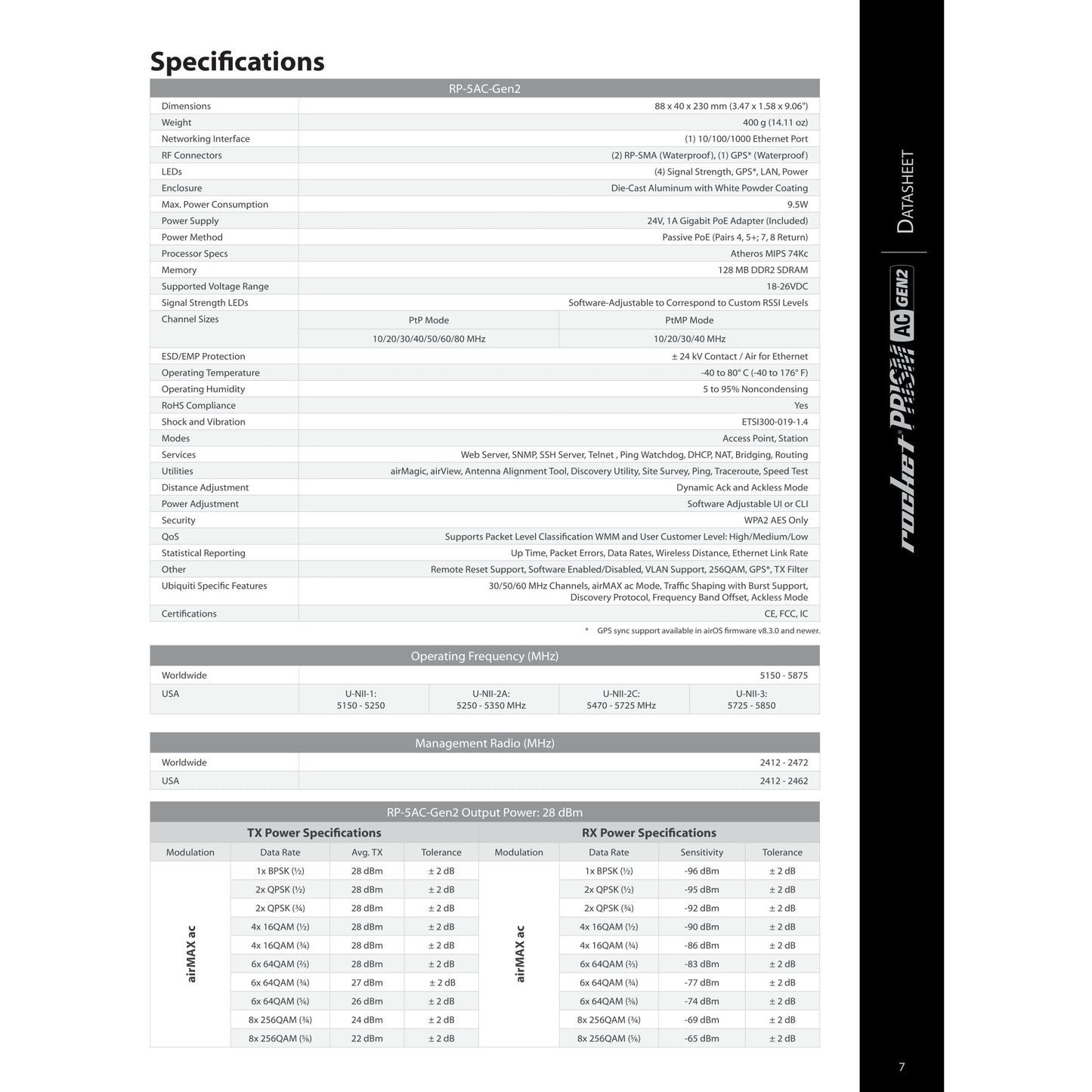

For more in-depth information, zoom in on picture of data sheet.
SKU | R5AC-PRISMG2 |
---|---|
Manufacturer | Ubiquiti |
Manufacturer Product Code | RP-5AC-GEN2 |
