Ubiquiti UISP Console 9 Port Gigabit 2SFP+ | UISP-CONSOLE
Ubiquiti UISP Console 9 Port Gigabit 2SFP+ | UISP-CONSOLE

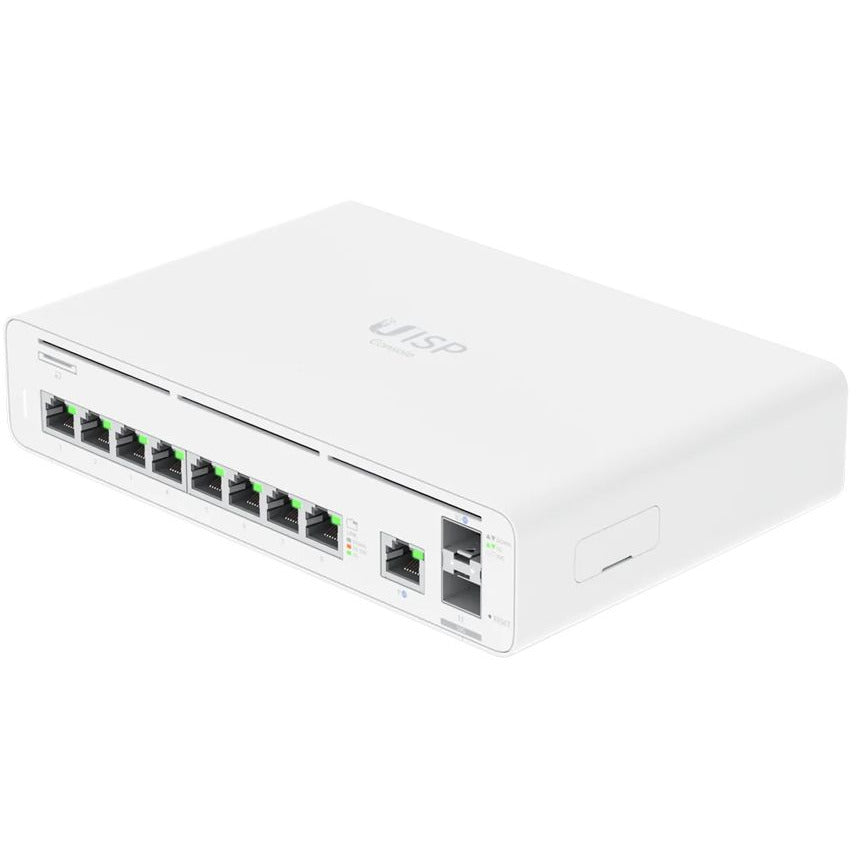

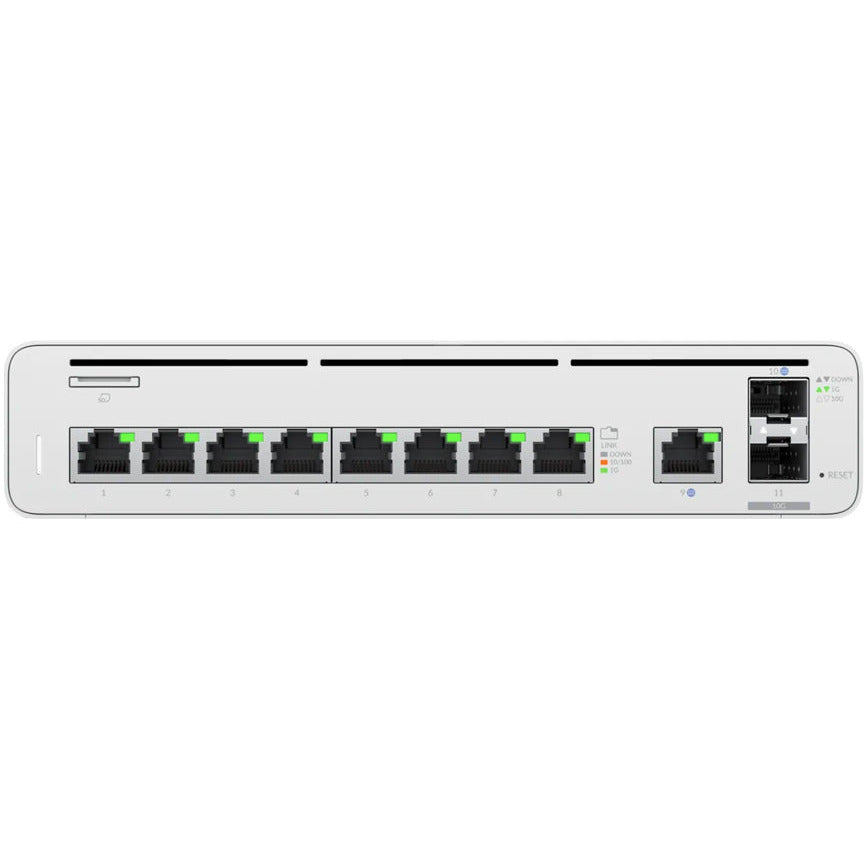

Ubiquiti's UISP-CON is a UISP Console with the pre-installed UISP application which features a built-in switch with 8x Gigabit Ethernet Ports and 1x 10Gbps SFP+ Port.

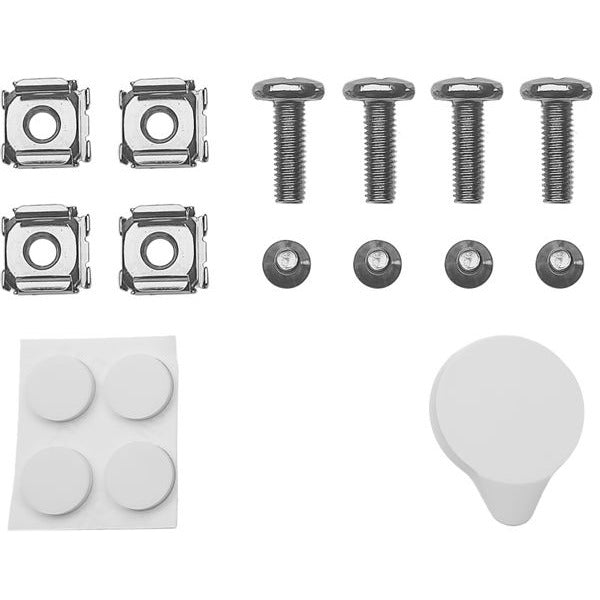

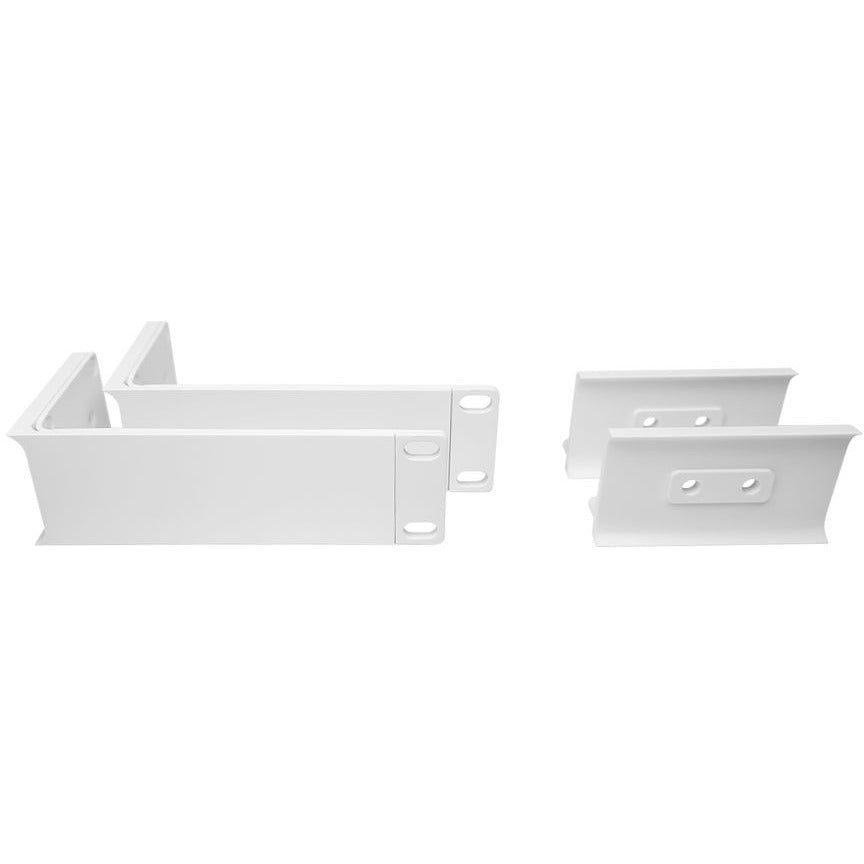

It also offers 1x 10Gbps SFP+ and 1x Gigabit Ethernet WAN connections and can be wall or rack mounted with the included kit.
Specifications
Ethernet Ports: 8x 10/100/1000 (LAN) 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop, Wall or Rack-Mount
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: None

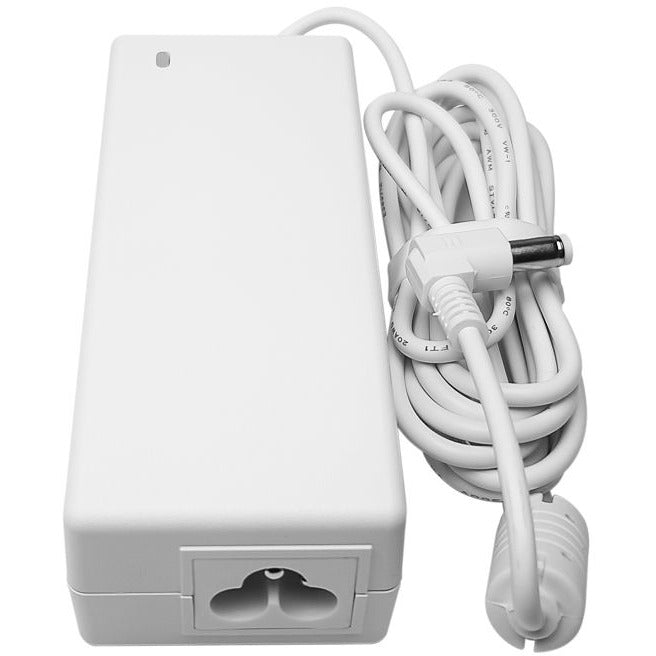

Power Input: 24V 2.5A power supply (Included)
Processor: Quad-Core 1.7 GHz ARM® Cortex®-A57
Serial Interface: None
SFP Ports: 1x 10Gbps (LAN) 1x 10Gbps (WAN)
Supported Voltage Range: 24-28V
System Memory: 4 GB DDR4
USB Ports: None
Other: 1x MicroSD card slot
Dimensions: 210.4 x 140.2 x 43.7 mm
Weight: 1.5kg

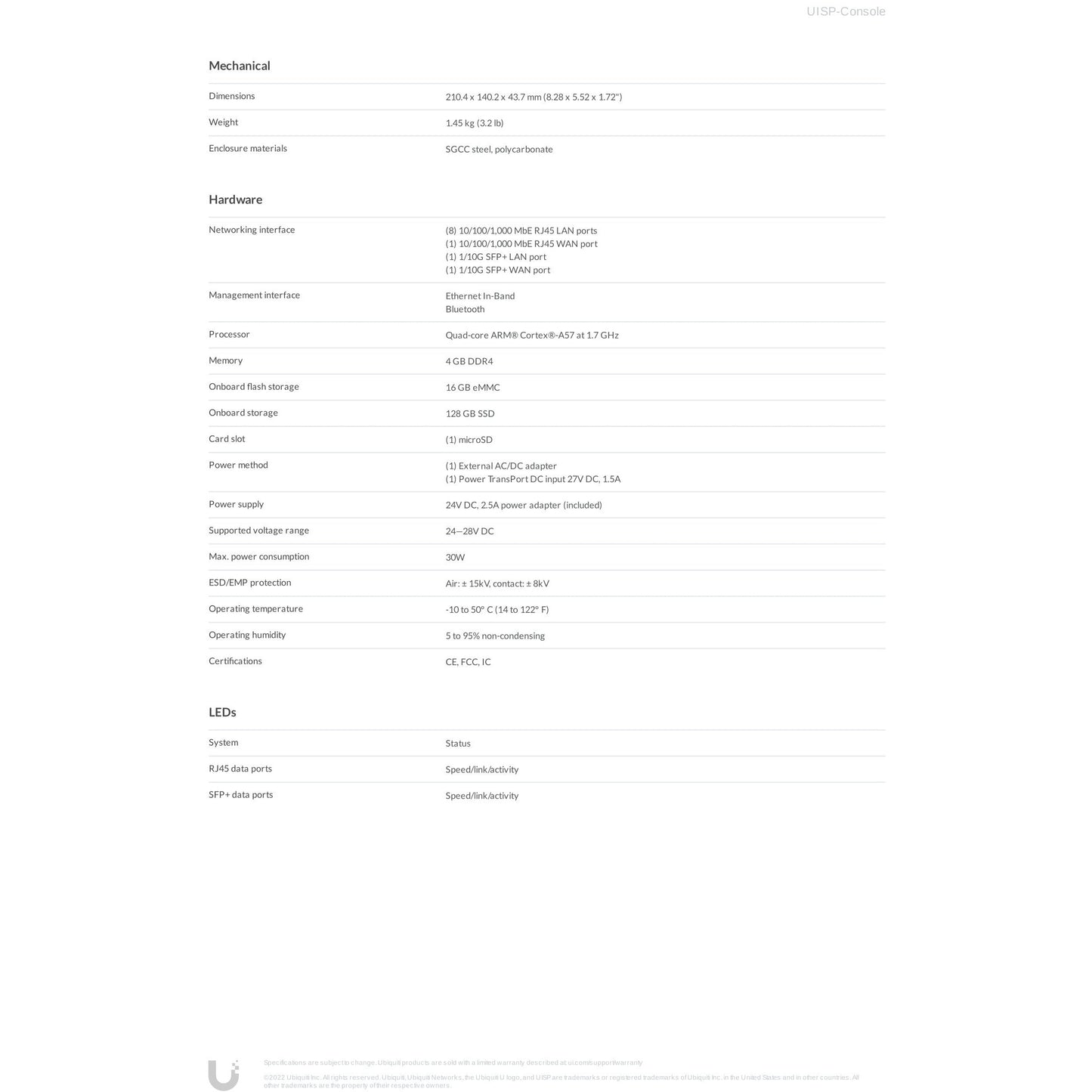

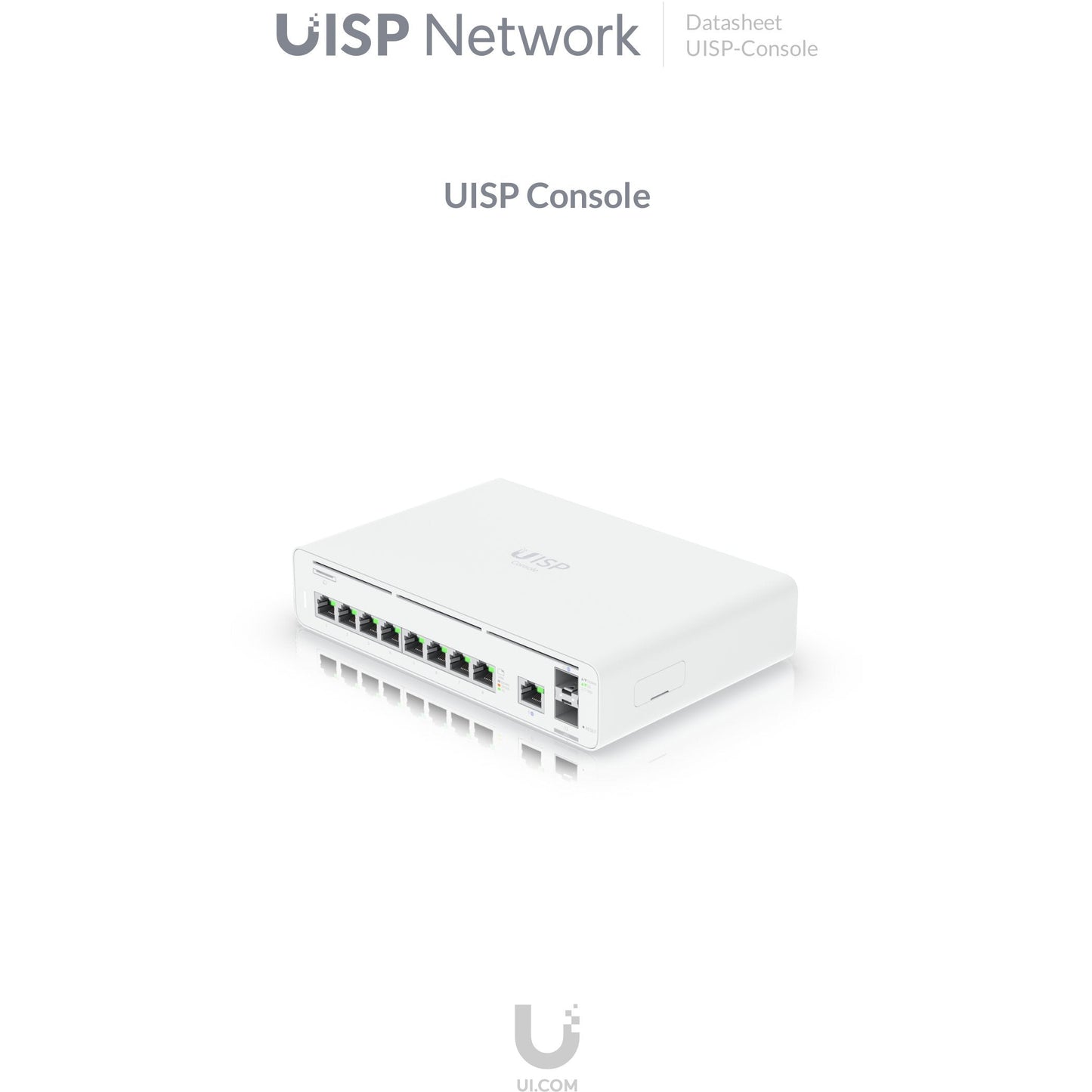

For more in-depth information, zoom in on picture of data sheet.
SKU | UISP-CON |
---|---|
Manufacturer | Ubiquiti |
Manufacturer Product Code | UISP-CONSOLE |
