Ubiquiti UISP Fiber GPON OLT 8 PON Ports 2SFP+

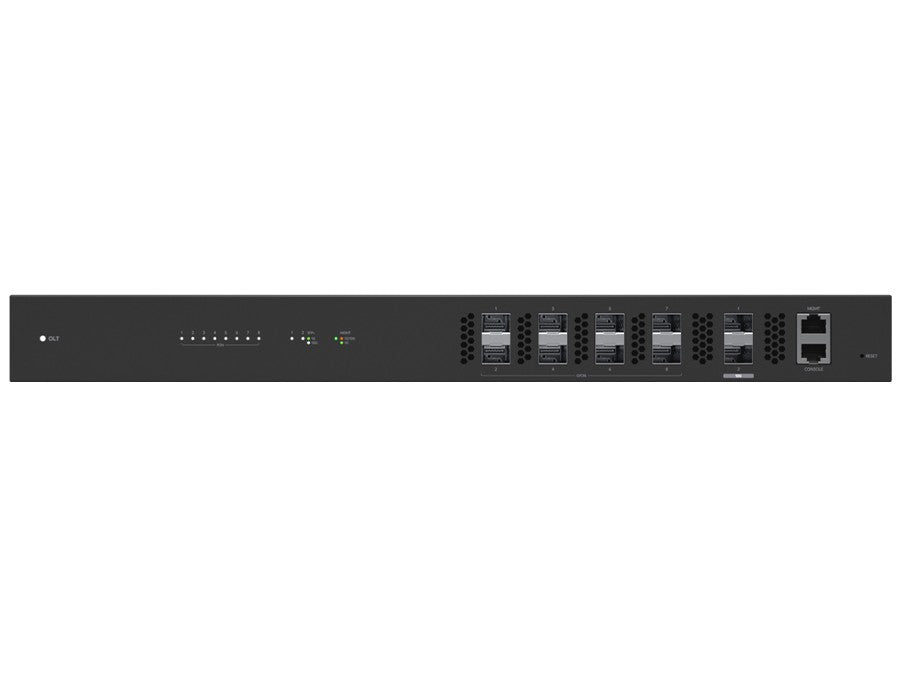

Ubiquiti's UF-OLT is a fibre solution that anyone can deploy. No command lines, manuals or paid support licenses are required. The UISP Fiber UF-OLT features 8x PON ports to connect up to 1024 ONUs (128x ONUs per port), 2x SFP+ ports and 2x Gigabit Ethernet Management ports. The unit also features 2x Hotswap AC/DC PSUs for power redundancy.

It can be managed via the UISP network management platform.

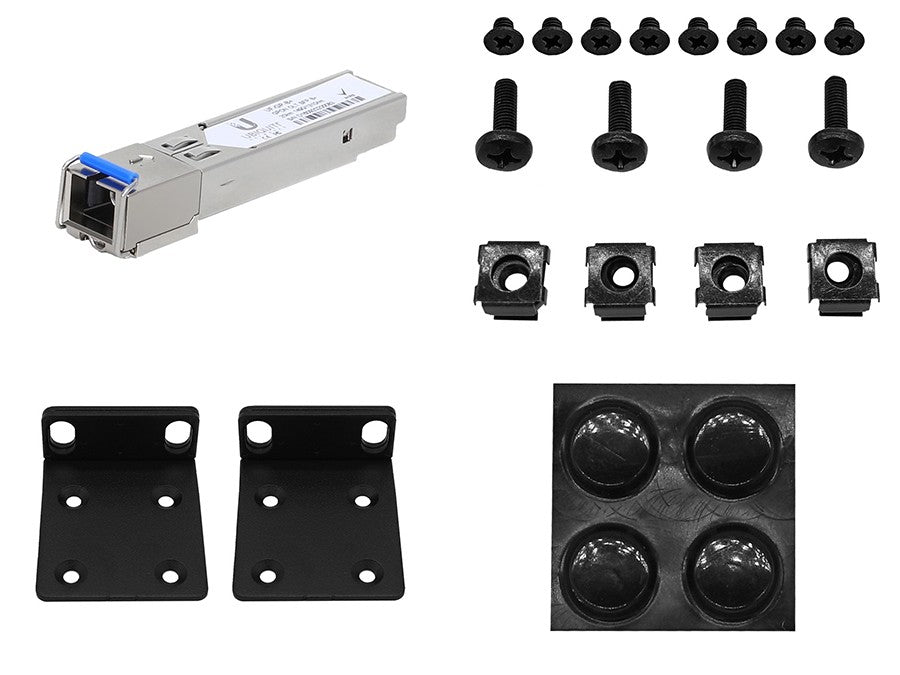

*Note: 1x UF-GP-B+ included.

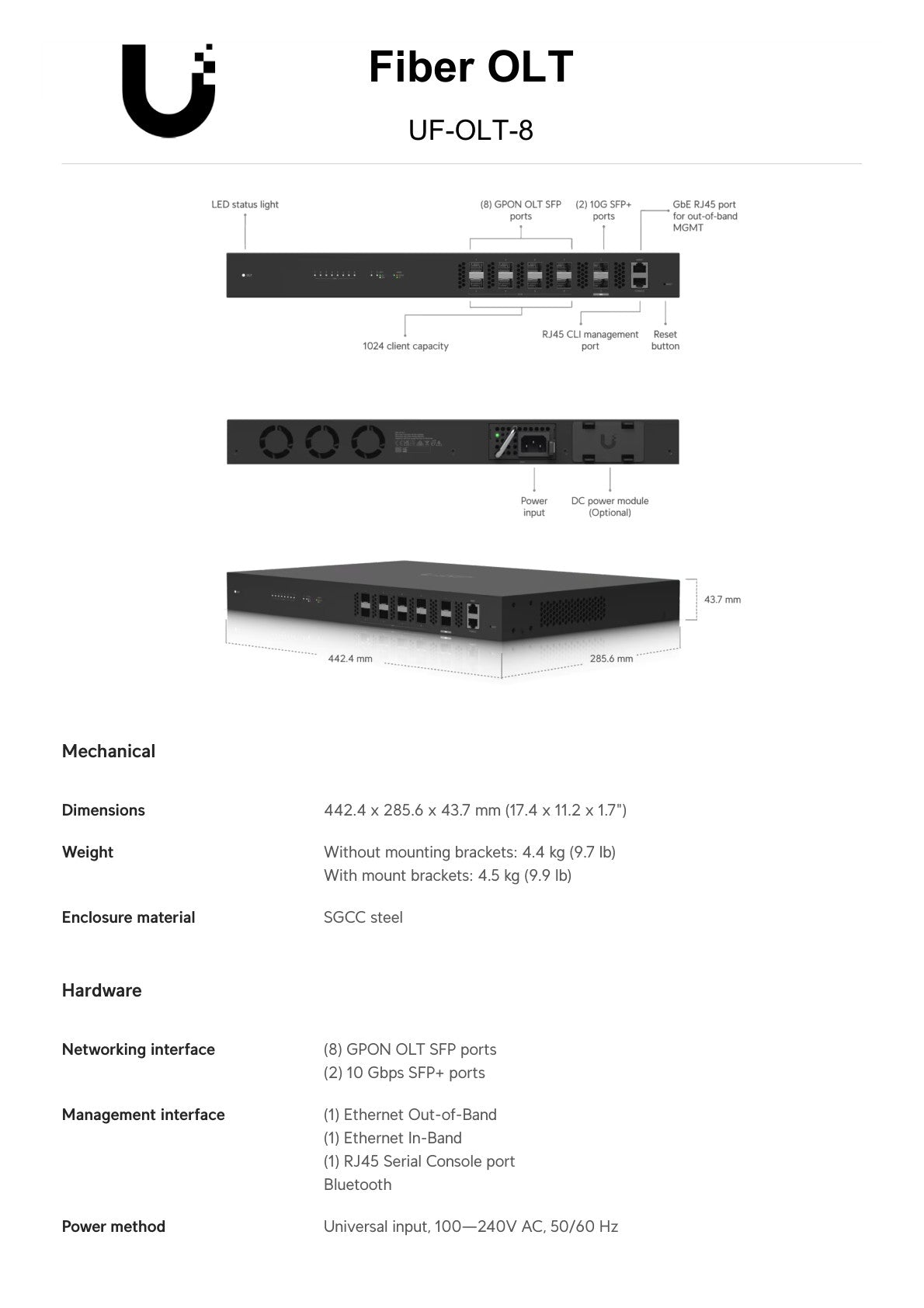

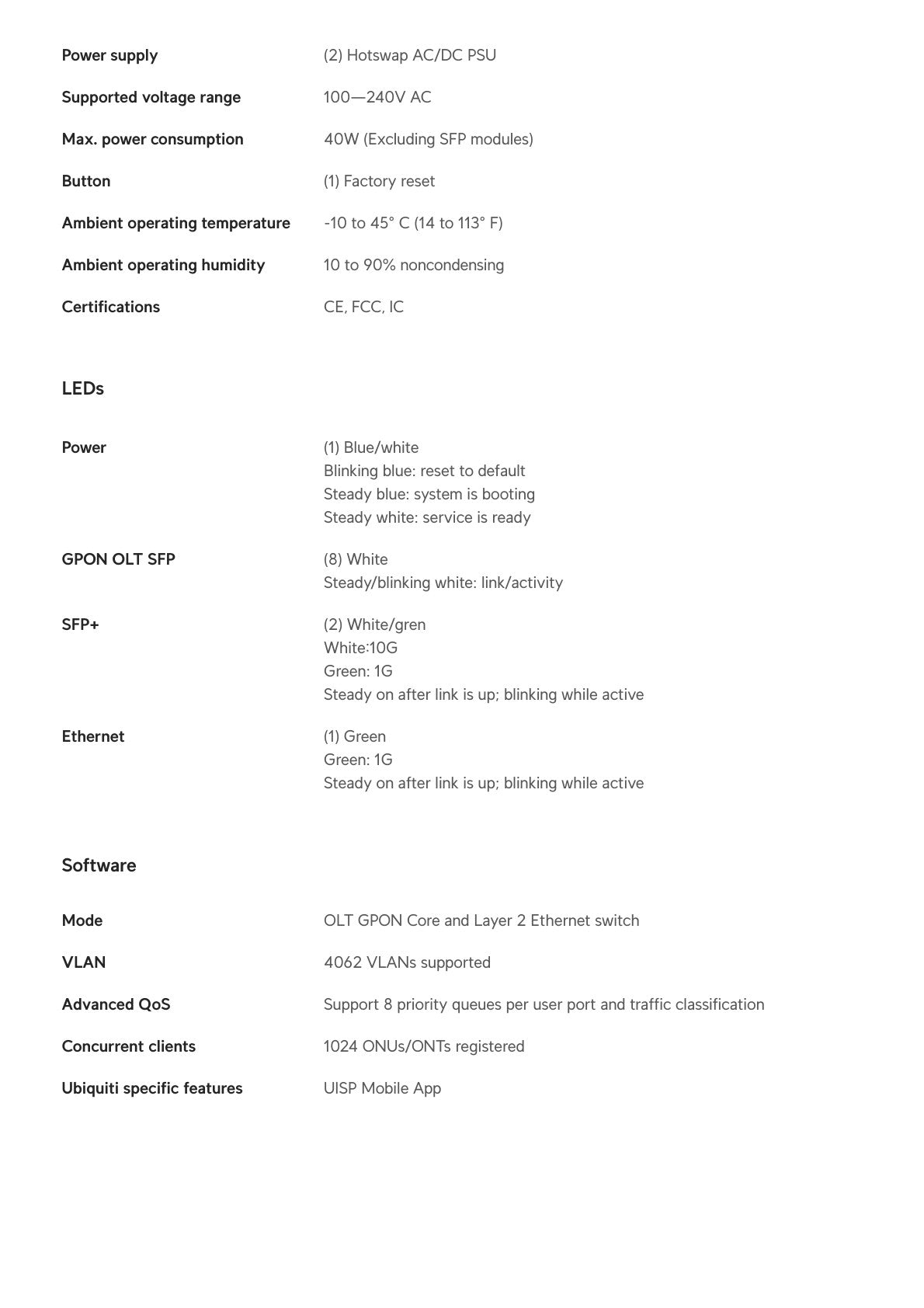

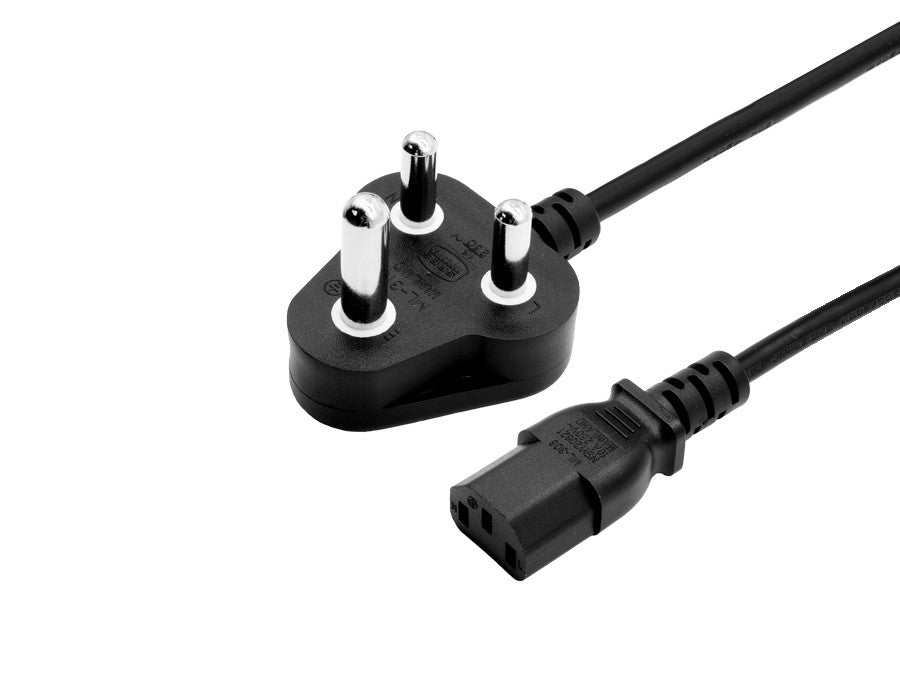

Specifications: Ethernet Ports: 1x 10/100/1000 (Management Port) Hardware Button: Reset Max. Power Consumption: 40W Mounting: Rack-Mount Operating System: UFiber Operating Temperature: -10°C to 45°C PoE Input: None PoE Output: None Power Input: 1x IEC Power Cord (Included) ; 24V DC (Not Included) Serial Interface: 1x RJ45 Serial Console Port SFP Ports: 8x 2.5/1.25Gbps GPON Ports ; 2x 10Gbps SFP+ Supported Voltage Range: 100V – 240V USB Ports: 1x USB 2.0

Dimensions: 442.4 x 285.6 x 43.7 mm Weight: 4.5kg

• SCALABLE FIBRE CONNECTIVITY: Supports up to 1024 ONUs across 8 PON ports, with each port connecting up to 128 ONUs, making it suited for deploying fibre networks at scale without needing to stack multiple units.
• SIMPLIFIED MANAGEMENT: Managed through the UISP network management platform with no command lines, manuals, or paid support licenses required, reducing the technical barrier for network administrators.
• HIGH-SPEED UPLINK PORTS: Includes 2x 10Gbps SFP+ uplink ports alongside 8x 2.5/1.25Gbps GPON ports, giving the network sufficient upstream bandwidth capacity to support a large number of connected ONUs.

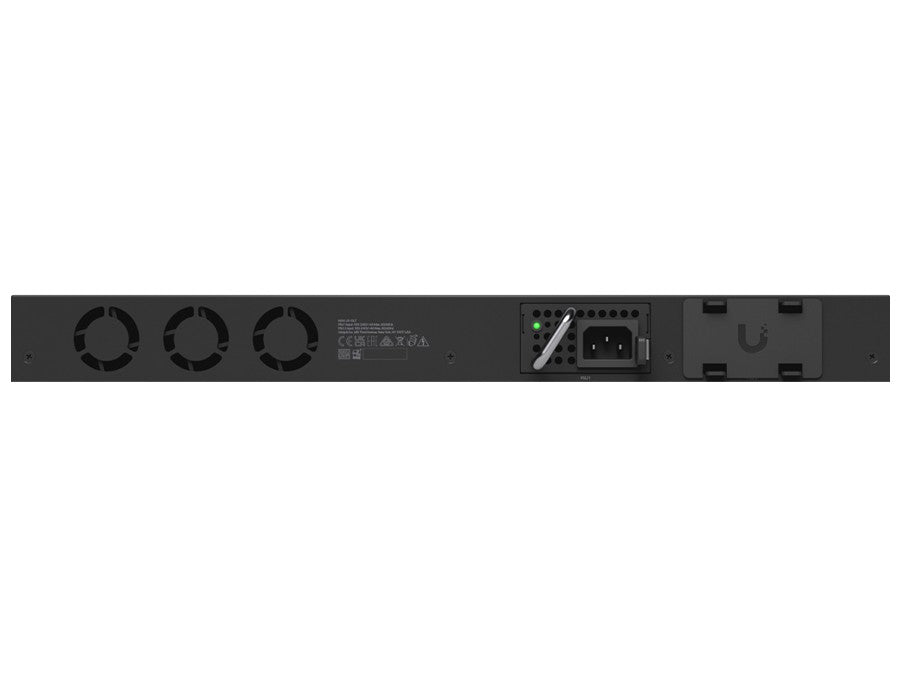

• POWER REDUNDANCY: Equipped with 2x hot-swap AC/DC power supply units, allowing a failed PSU to be replaced without powering down the device and reducing the risk of unplanned network downtime.
• RACK-MOUNT FORM FACTOR: Mounts in a standard rack at 442.4 x 285.6 x 43.7 mm and weighs 4.5kg, with a maximum power consumption of 40W and support for 100V to 240V input voltage.
