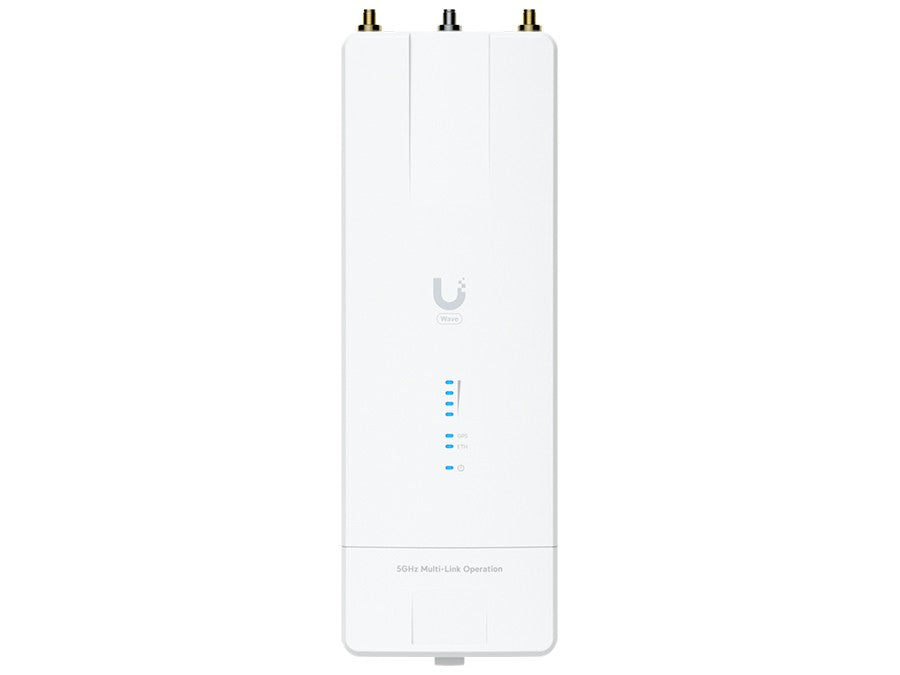

Ubiquiti UISP Wave MLO5 5GHz WiFi 7 PtP Radio

Ubiquiti's WAVE-MLO5 is a high-performance dual 5GHz, WiFi 7-based Point-to-Point radio with Multi-Link Operation (MLO) technology for enhanced throughput. It features an outdoor IPX6 rating, 1x 10Gbps Ethernet port, 1x 10Gbps SFP+ port and is powered by the included 10Gbps PoE Injector. It offers an aggregate data rate of up to 5Gbps on its dual 5GHz (2x2 MU-MIMO) radios. It can be managed via the UISP network management platform.

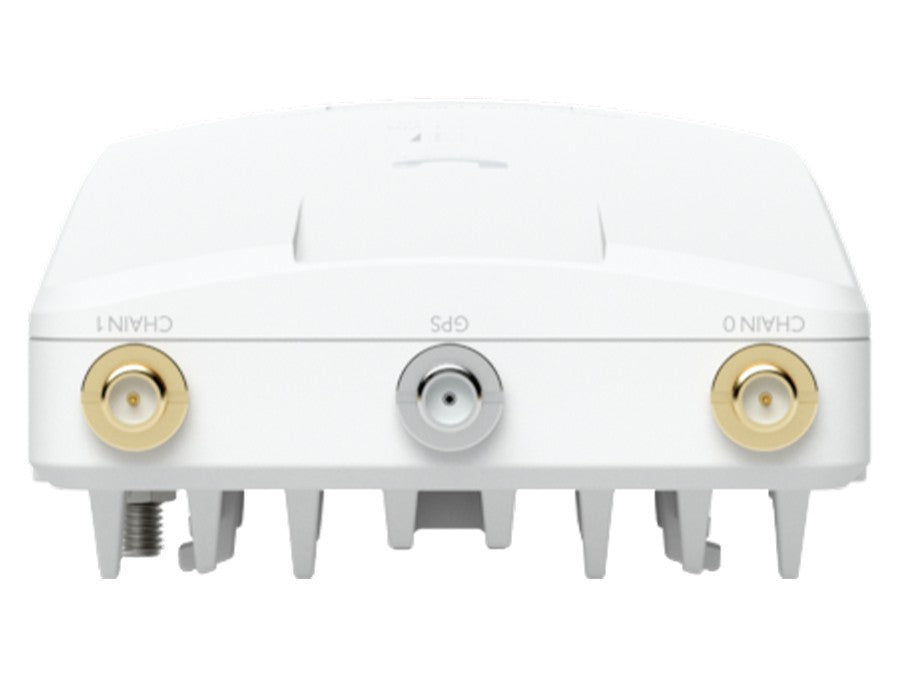

Specifications: Antenna Gain: Antenna Dependent (2x RP SMA Female) Beam-width: Antenna Dependent Data Rate: 5Gbps Ethernet Ports: 1x 10/100/1000/10000 Hardware Button: Reset Max. Power Consumption: 20W Mounting: Pole-Mount Operating System: UISP Operating Temperature: -40°C to 60°C PoE Input: 22-27V (4-pairs) or 44-54V Passive PoE PoE Output: None Power Input: 54V 0.56A, 10Gbps PoE Adapter (Included) Serial Interface: None SIM Slots: None Supported Voltage Range: 44-54V or 22–27V USB Ports: None Other: 1x RP SMA GPS Connector, 1x 10G SFP+

Dimensions: 249.3 x 82 x 47.6 mm Weight: 575g

• WIFI 7 POINT-TO-POINT PERFORMANCE: Built on WiFi 7 technology with Multi-Link Operation (MLO) across dual 5GHz radios, this radio delivers an aggregate data rate of up to 5Gbps, making it suited for high-demand wireless backhaul and point-to-point links.

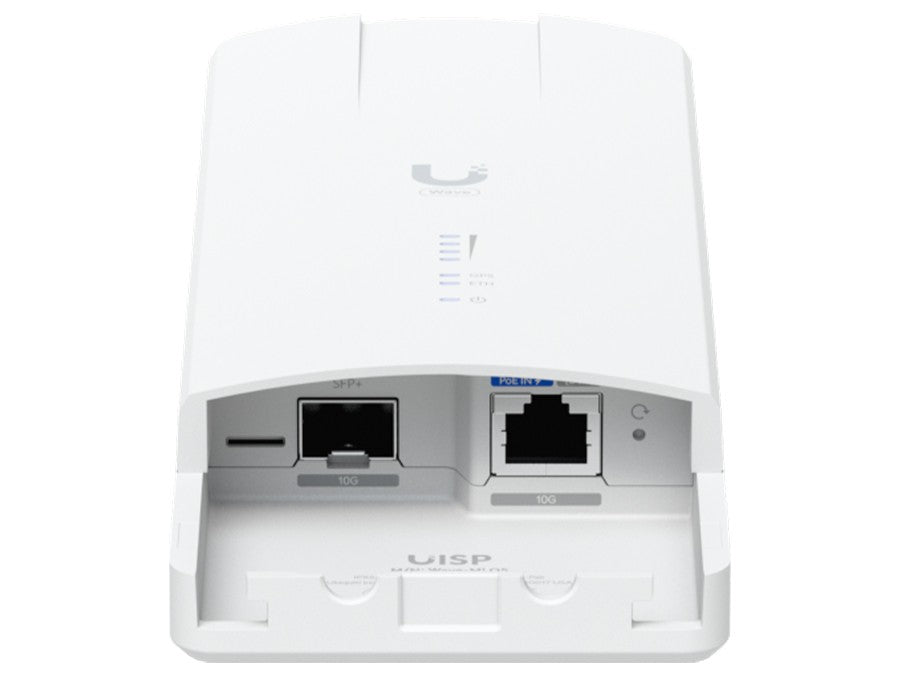

• DUAL HIGH-SPEED CONNECTIVITY PORTS: Includes one 10Gbps Ethernet port and one 10Gbps SFP+ port, giving network installers flexible options for integrating the radio into existing high-speed infrastructure without additional adapters.
• OUTDOOR-RATED DURABILITY: Rated IPX6 for outdoor use and tested across an operating temperature range of -40C to 60C, this radio is built to handle harsh weather conditions and extreme temperatures in permanent outdoor deployments.
• PLUG-AND-PLAY POWER INCLUDED: Comes with a 54V 10Gbps PoE adapter in the box, so no separate power supply needs to be sourced. The unit accepts both 44-54V and 22-27V passive PoE inputs and has a max power consumption of 20W.
• CENTRALISED NETWORK MANAGEMENT: Managed through the UISP platform, allowing network operators to monitor and configure the radio alongside other Ubiquiti UISP devices from a single interface, simplifying deployment and ongoing network administration.
