Ubiquiti UISP WaveFiber SC/APC 2.5Gbps Ethernet ONU 20pk

Ubiquiti's WAVE-ONU20 is a 20-pack with no PoE Injectors. The units are GPON optical network units with 1x SC/APC port and a 2.5Gbps Ethernet port, which takes 24V PoE Input. The unit delivers 1.2Gbps uplink and 2.5Gbps downlink at distances up to 20 km.

*Note: PoE Injectors Not Included.

Specifications: Ethernet Ports: 1x 10/100/1000/2500 Hardware Button: Reset Max. Power Consumption: 5W Mounting: Desktop or Wall Mount Operating System: UFiber Operating Temperature: -15°C to 45°C PoE Input: 24V Passive PoE PoE Output: None Power Input: 24V 0.5A PoE Adapter (Not Included) Serial Interface: None SIM Slots: None Supported Voltage Range: 20-28V USB Ports: None Other: 1x SC/APC GPON WAN port

Dimensions: 76.5 x 76.5 x 26.4 mm Weight: 78g

• GPON OPTICAL CONNECTIVITY: Equipped with a single SC/APC GPON WAN port, this ONU delivers 1.2Gbps uplink and 2.5Gbps downlink speeds, making it suited for high-throughput fibre network deployments at distances of up to 20km.

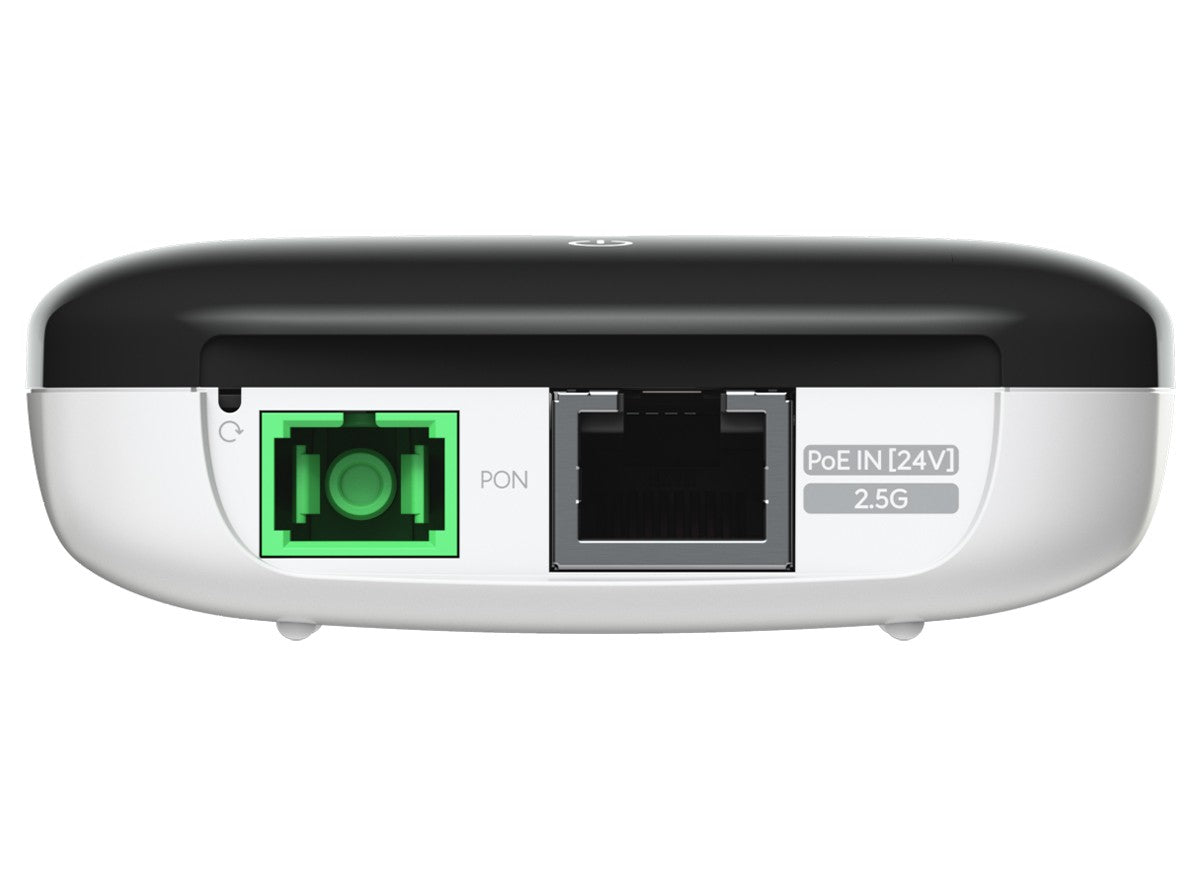

• 2.5GBPS ETHERNET PORT: Features a single 10/100/1000/2500 Mbps Ethernet port, giving connected devices access to fast, scalable wired connectivity without requiring additional switching hardware.
• POE POWERED DEVICE: Runs on 24V Passive PoE input (20-28V supported range) with a maximum power consumption of just 5W, allowing flexible cable runs without a separate power outlet at the installation point.
• FLEXIBLE MOUNTING OPTIONS: Supports both desktop and wall mount installation, allowing the unit to be deployed in a variety of indoor environments to suit different network setups.
• 20-UNIT BULK PACK: Supplied as a pack of 20 ONUs without PoE injectors, making this suitable for deployers rolling out fibre connections across multiple premises or units. PoE adapters must be sourced separately.
