Ubiquiti UniFi 5G Max Modem with PoE input and 2.5Gbps Ethernet

Ubiquiti's U5G-MAX is a high-performance 5G modem for any UniFi deployment. The unit instantly adopts through any UniFi PoE port, delivering automatic setup and features 1x 2.5Gbps Ethernet port, dual SIM/eSIM, and seamless failover.

It can be configured and managed with the UniFi Network Application.

*Note: This device only works with existing UniFi deployments and can not be used as a standalone device.

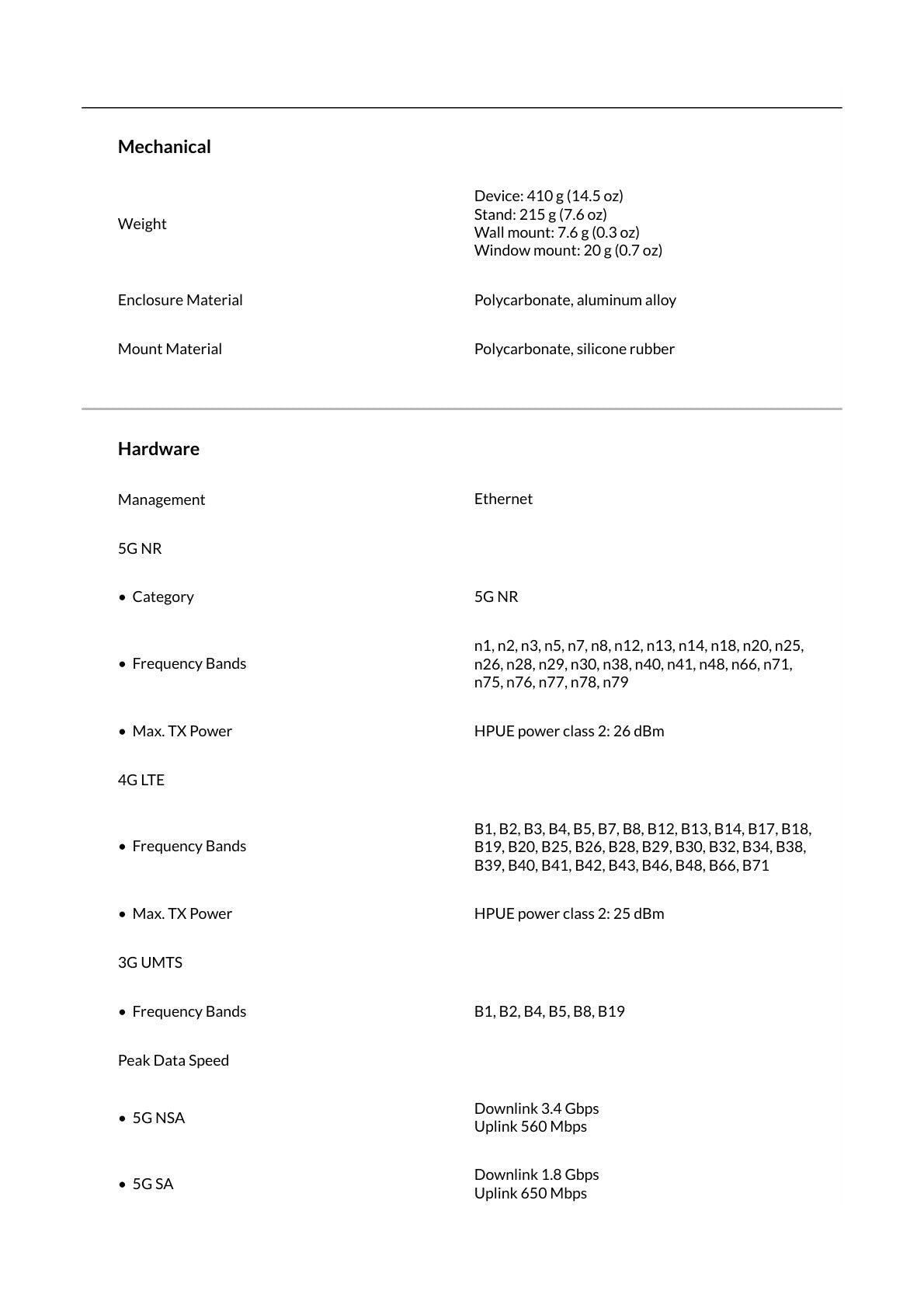

Specifications: Antenna Gain: 5G: 617-960 MHz: 1.4 dBi; 1710-2690 MHz: 3.4 dBi; 3450-3980 MHz: 1.8 dBi Beam-width: 360° Data Rate: 5G: Downlink: 3.4Gbps; Uplink: 560Mbps Ethernet Ports: 1x 10/100/1000/2500 Hardware Button: Reset Max. Power Consumption: 14.5W Mounting: Desktop, Window or Wall Mount Operating System: UniFi Operating Temperature: 0°C to 40°C PoE Input: 802.3af/at PoE Output: None Power Input: 802.3af/at (Not Included) Serial Interface: None SIM Slots: 2x Nano SIM or eSIM Supported Voltage Range: 44 to 57V USB Ports: None

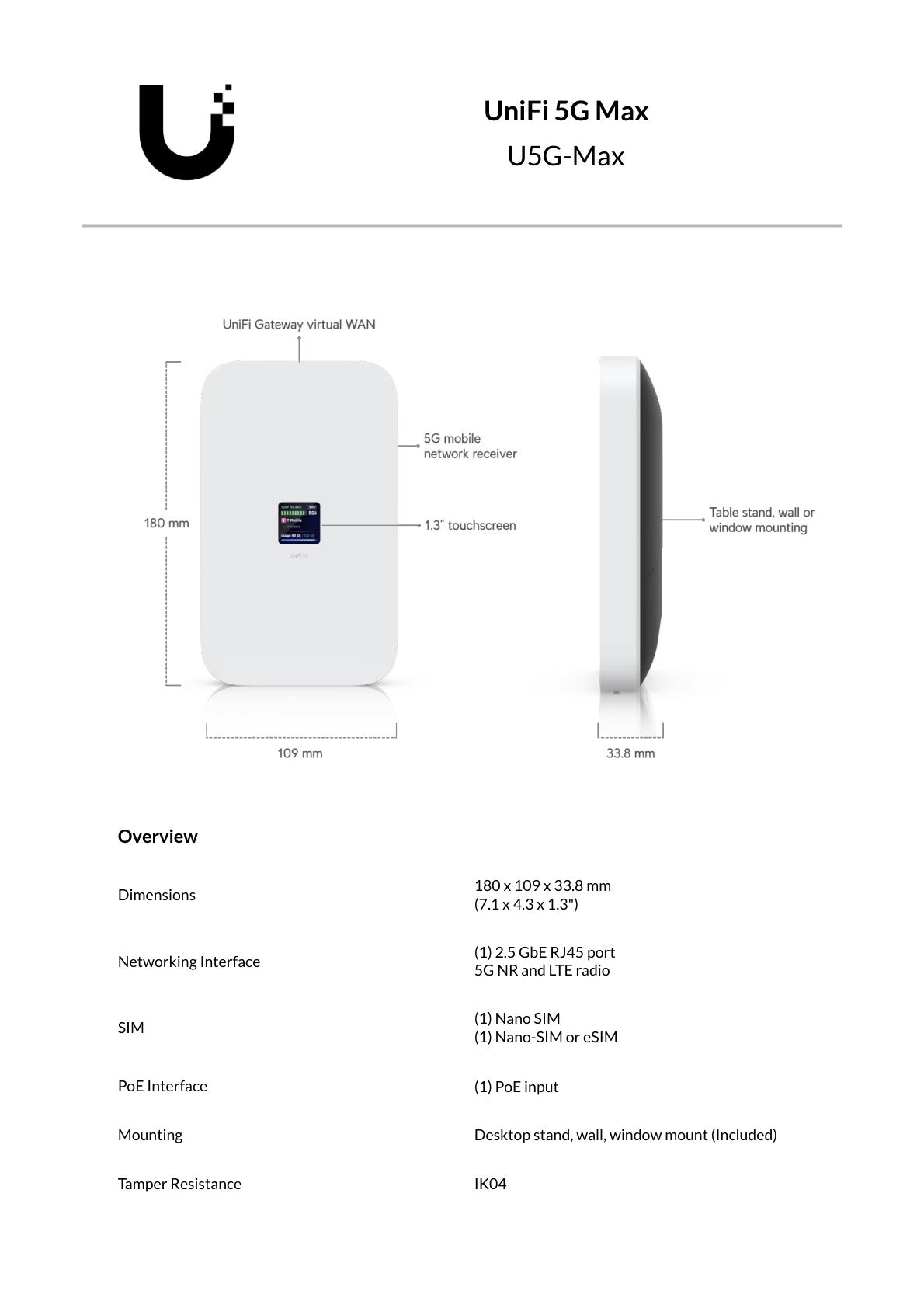

Dimensions: 180 x 109 x 33.8 mm Weight: 410g

• SEAMLESS UNIFI INTEGRATION: Instantly adopts through any UniFi PoE port for automatic setup, and is configured and managed entirely through the UniFi Network Application, making it a straightforward addition to any existing UniFi deployment.
• FAST 5G CONNECTIVITY: Supports 5G download speeds of up to 3.4Gbps and upload speeds of up to 560Mbps, providing high-throughput cellular internet access for demanding network environments.
• DUAL SIM SUPPORT WITH FAILOVER: Fitted with two Nano SIM slots plus eSIM support, the U5G-MAX enables seamless failover between connections, helping to maintain network uptime if one connection is interrupted.

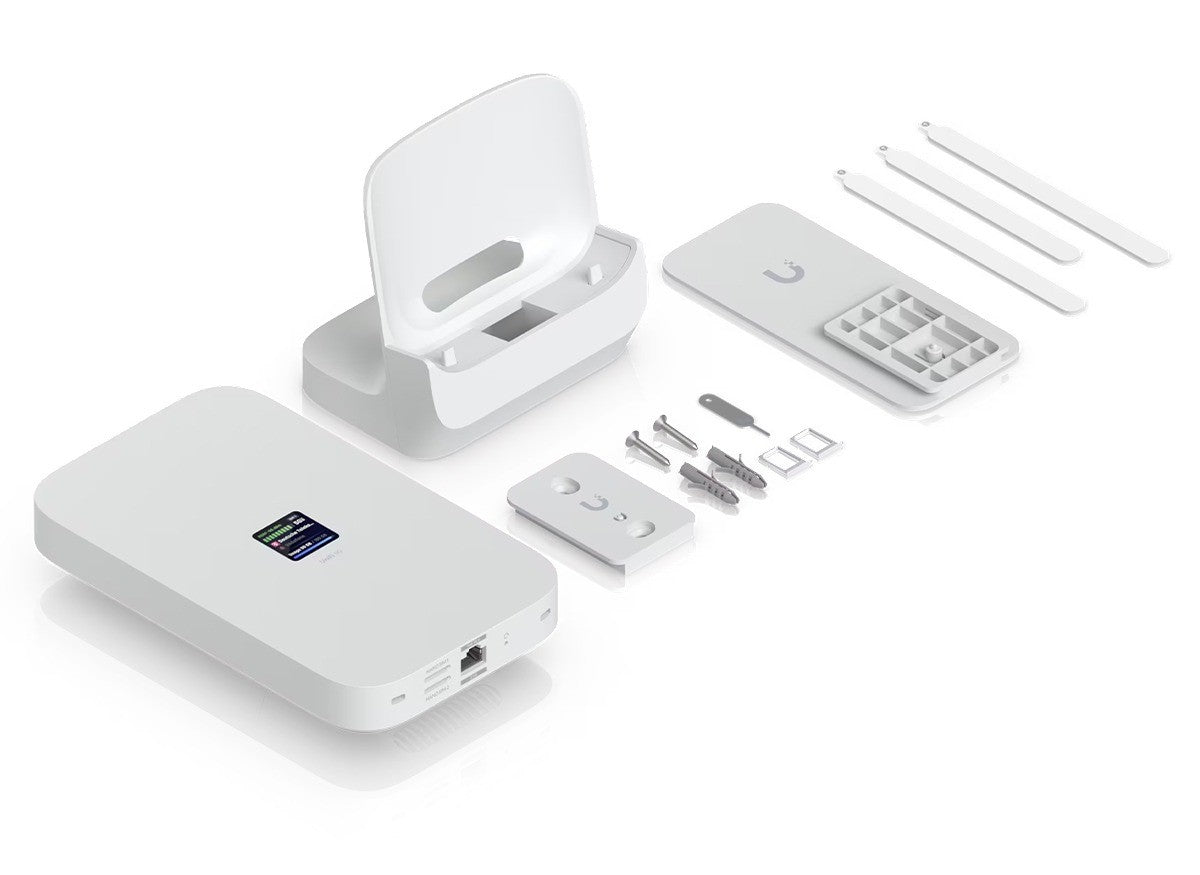

• FLEXIBLE MOUNTING AND POE POWERED: Can be mounted on a desktop, window, or wall to suit different installation needs, and is powered directly via an 802.3af/at PoE connection, eliminating the need for a separate power adapter.

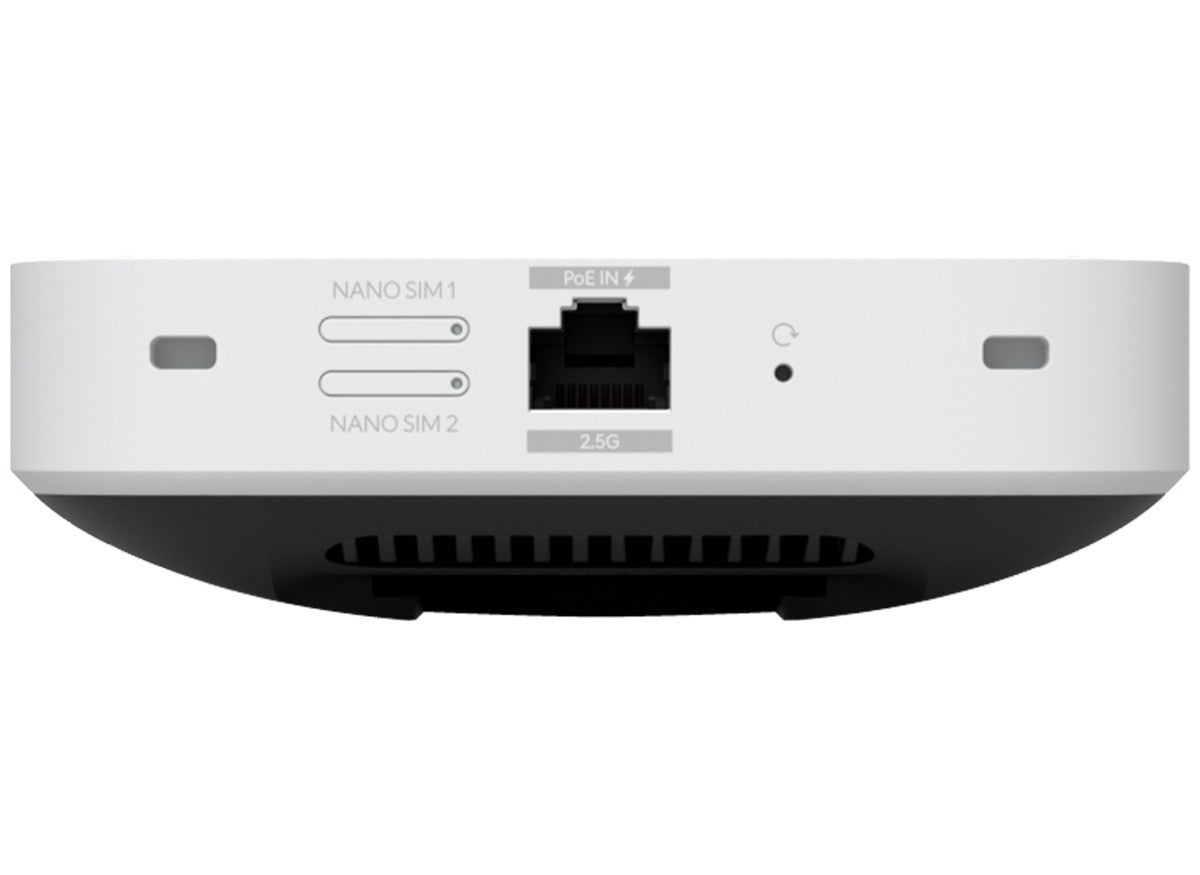

• 2.5GBPS ETHERNET PORT: Features a single 10/100/1000/2500 Mbps Ethernet port, allowing the modem to deliver multi-gigabit wired throughput to compatible UniFi switches and routers in your network.
