Ubiquiti UniFi Access Door Hub 4x Input, 4x Relay

Ubiquiti's UA-HUB-DOOR is a compact, indoor, access control hub which provides access control for a single door. It features 1x 802.3at PoE input and 4x Gigabit Ethernet Ports with PoE out. The hub also has 4x input terminals (2x door exit requests, 1x door position and 1x emergency), all of which can be unlocked using an NFC card or UniFi Identity Endpoint Mobile App.

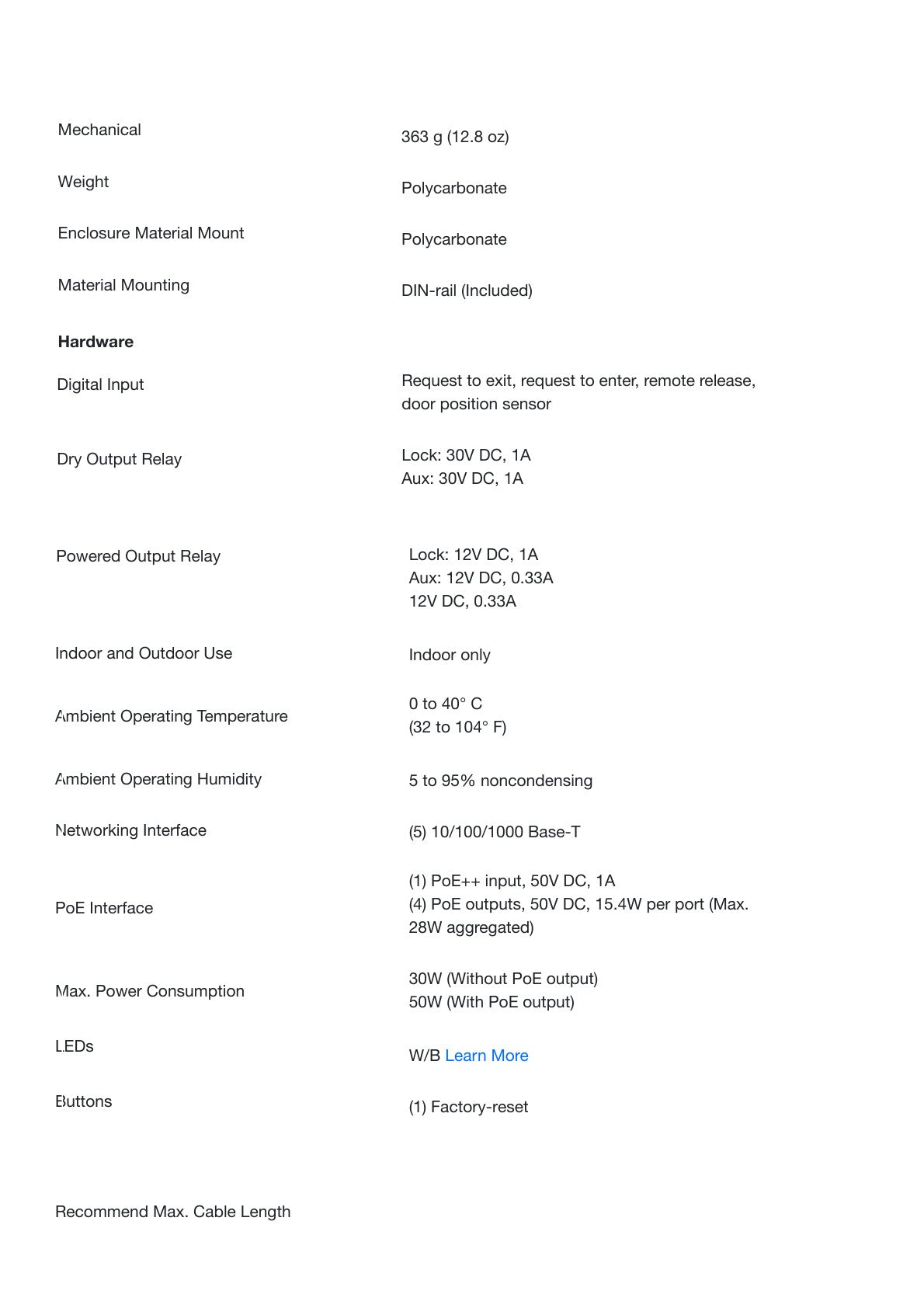

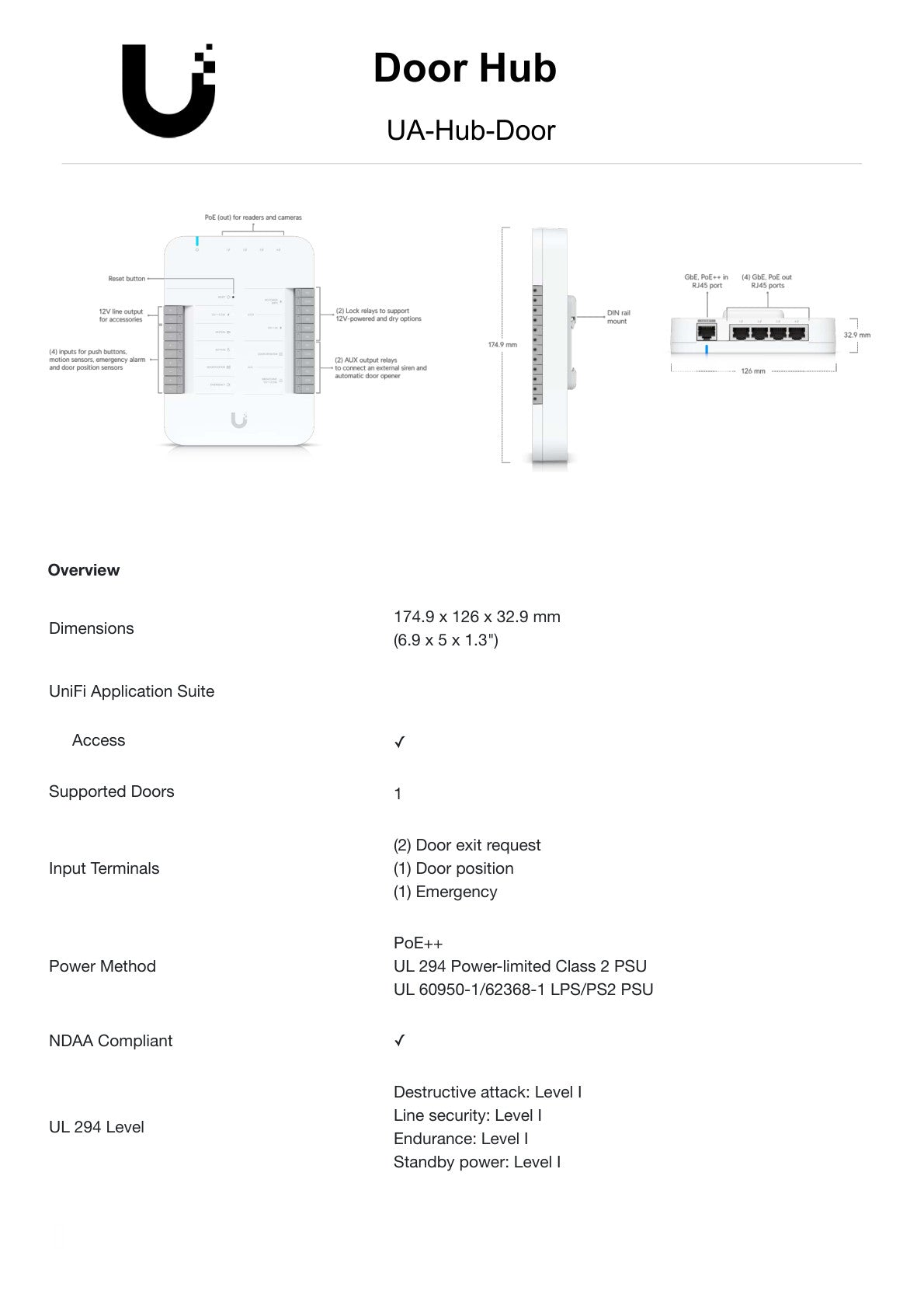

Specifications: Button: Reset; Dry/Wet Switch Bluetooth: None Input Terminals: 2x Door Exit Request ; 1x Door Position ; 1x Emergency Ethernet Ports: 5x 10/100/1000 Dry Output Relay: Lock: 30V DC, 1A ; Aux: 30V DC, 1A Wet Output Relay: Lock: 12V DC, 1A ; Aux: 12V DC, 0.33A ; 12V DC, 0.33A Mounting: DIN-rail (Included) Operating Temperature: 0 to 40° C Max Power Consumption: 30W Power Input: 802.3bt (PoE++)(Not Included) PoE Output: 802.3af

Dimensions: 174.9 x 126 x 32.9 mm Weight: 363g

• SINGLE DOOR ACCESS CONTROL: This compact indoor hub provides access control for a single door, supporting entry via NFC card or the UniFi Identity Endpoint Mobile App, making it straightforward to manage door access without dedicated hardware per reader.

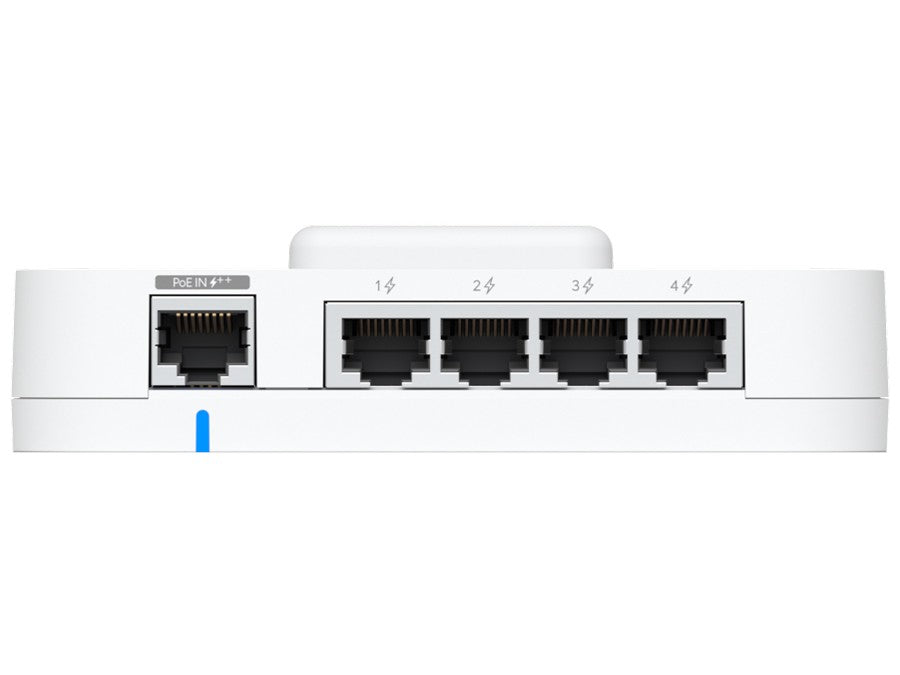

• POE POWERED AND POE OUTPUT: The hub receives power via an 802.3bt PoE++ input and provides 802.3af PoE output across its Ethernet ports, allowing connected devices such as readers or cameras to be powered directly through the network cable.

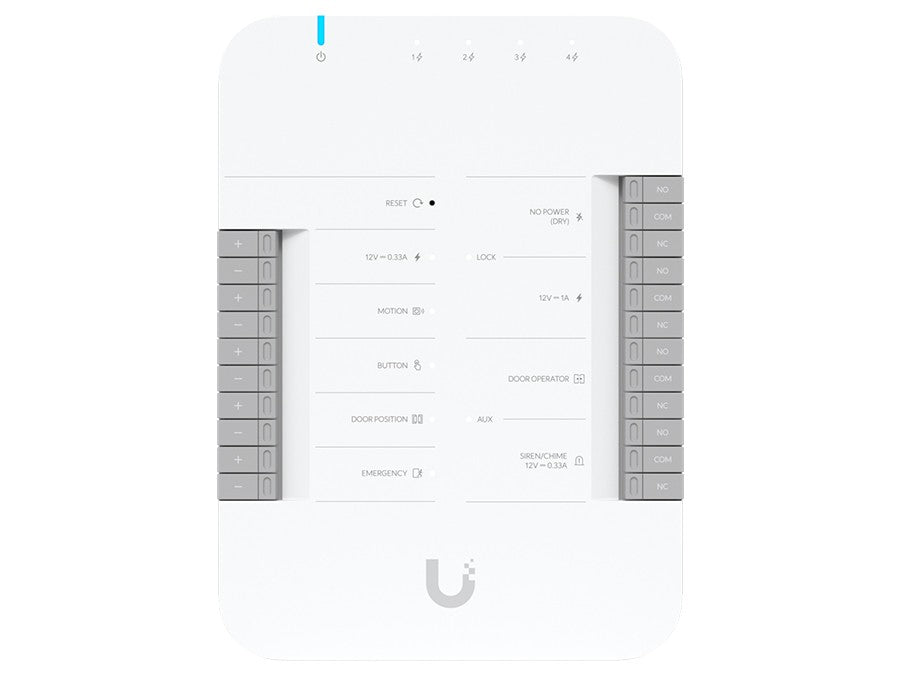

• MULTIPLE INPUT TERMINALS: Four onboard input terminals support two door exit request buttons, one door position sensor, and one emergency input, giving installers the connections needed to wire a fully functional door control setup in a single unit.
• FLEXIBLE RELAY OUTPUT OPTIONS: The hub includes both dry and wet output relays for lock and auxiliary control. Dry relays support up to 30V DC at 1A, while wet relays provide 12V DC output, accommodating a range of electric locks and ancillary devices.

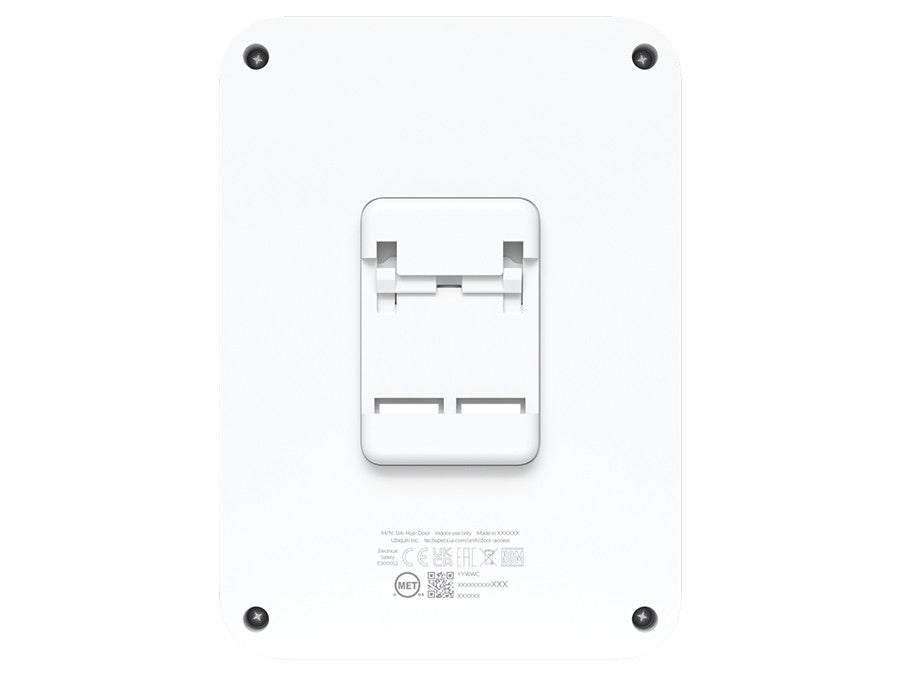

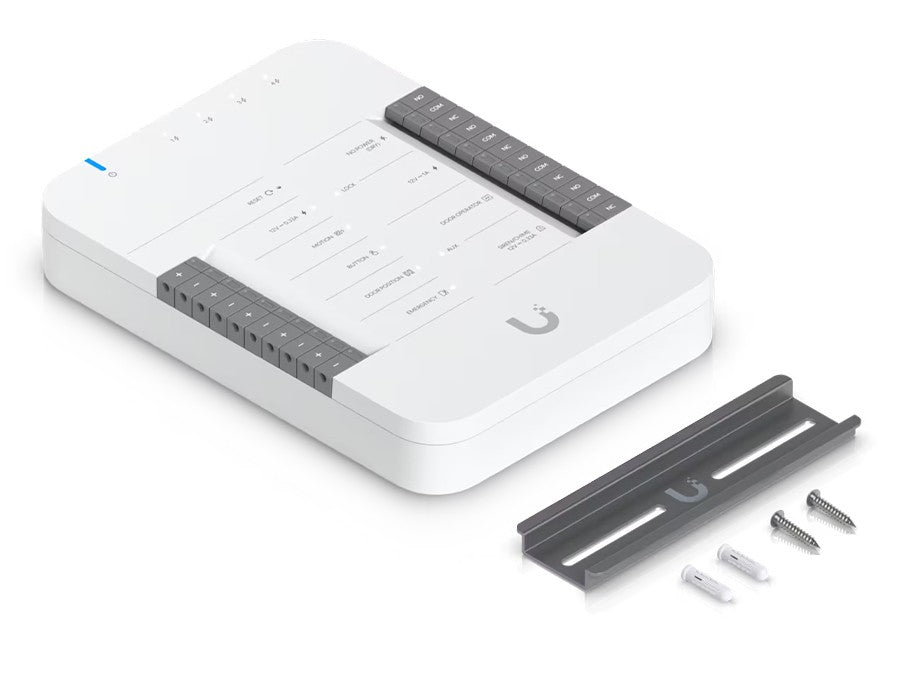

• DIN RAIL MOUNTING INCLUDED: The hub ships with DIN rail mounting hardware and has a compact footprint of 174.9 x 126 x 32.9 mm, making it suitable for installation inside standard electrical enclosures or control panels.
