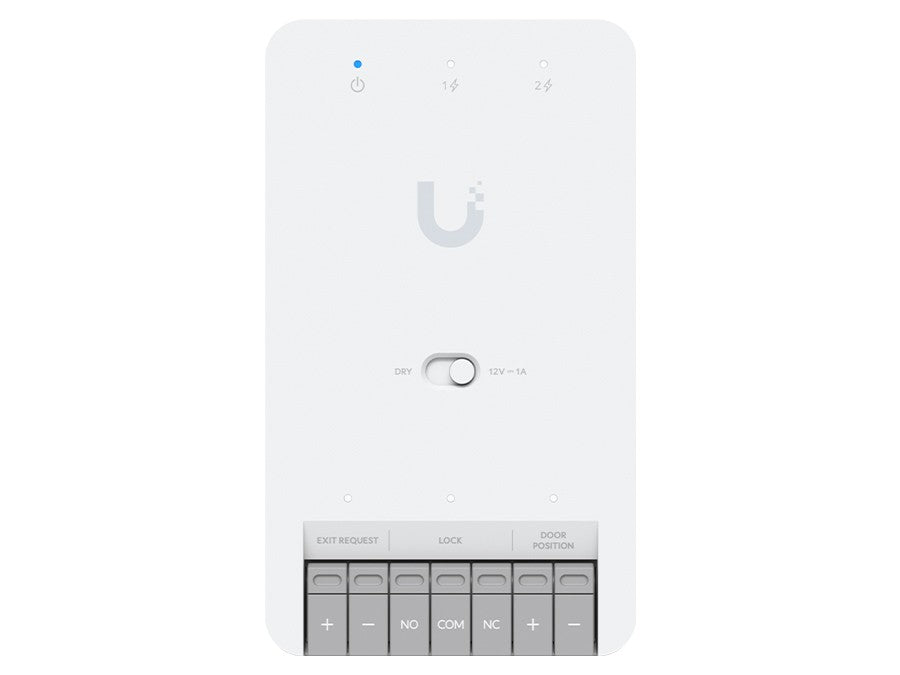

Ubiquiti UniFi Access Door Hub Mini 2x Input, 1x Relay

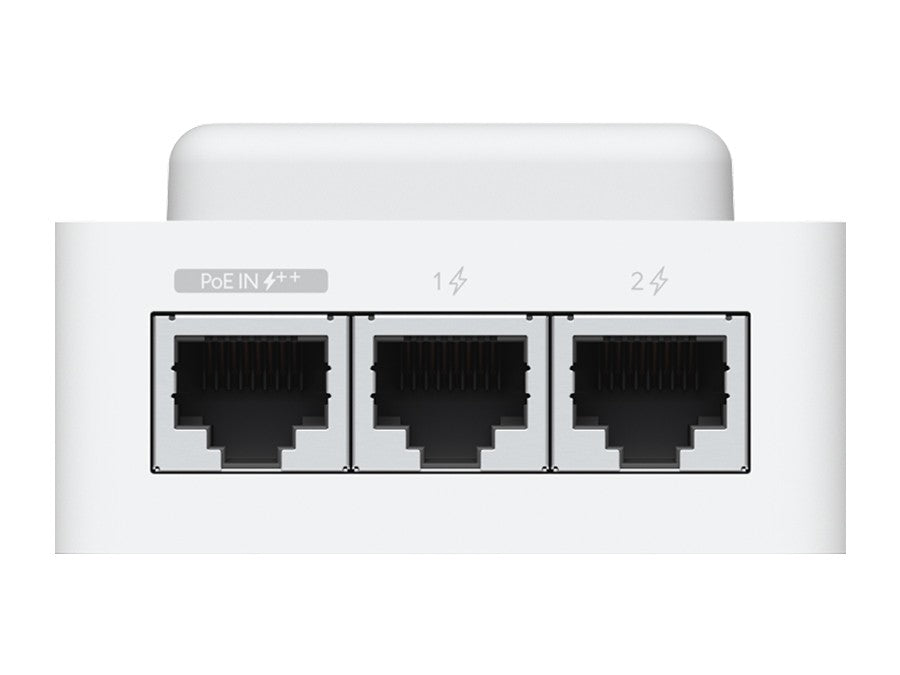

Ubiquiti's UA-HUB-DM is a compact, indoor, access control hub which provides access control for a single door. It features 1x 802.3at PoE input and 2x Gigabit Ethernet Ports with PoE out. The hub also has 2x input terminals (1x Door exit request, 1x door position) for simplified user exit, all of which can be unlocked using an NFC card or UniFi Identity Mobile App.

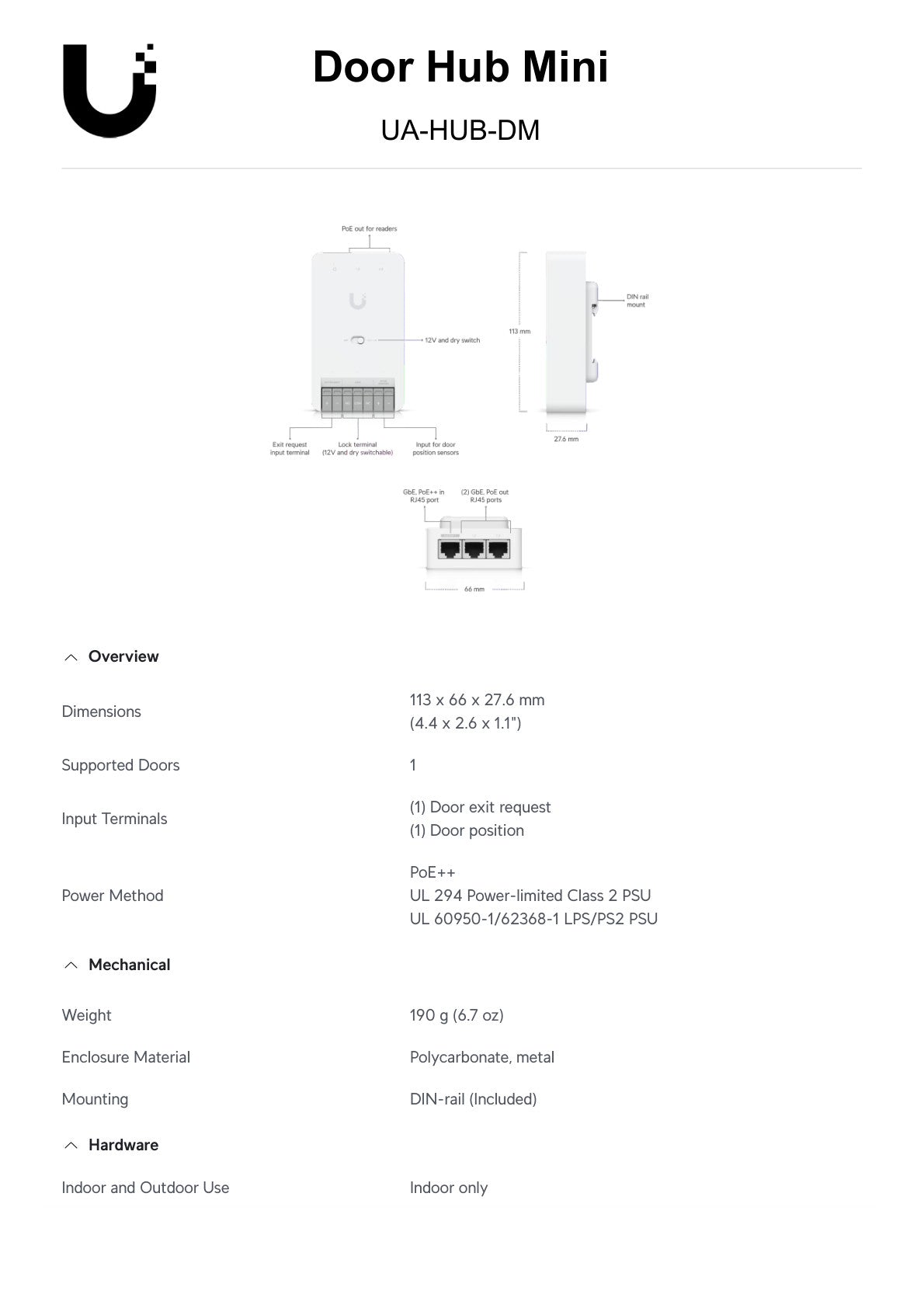

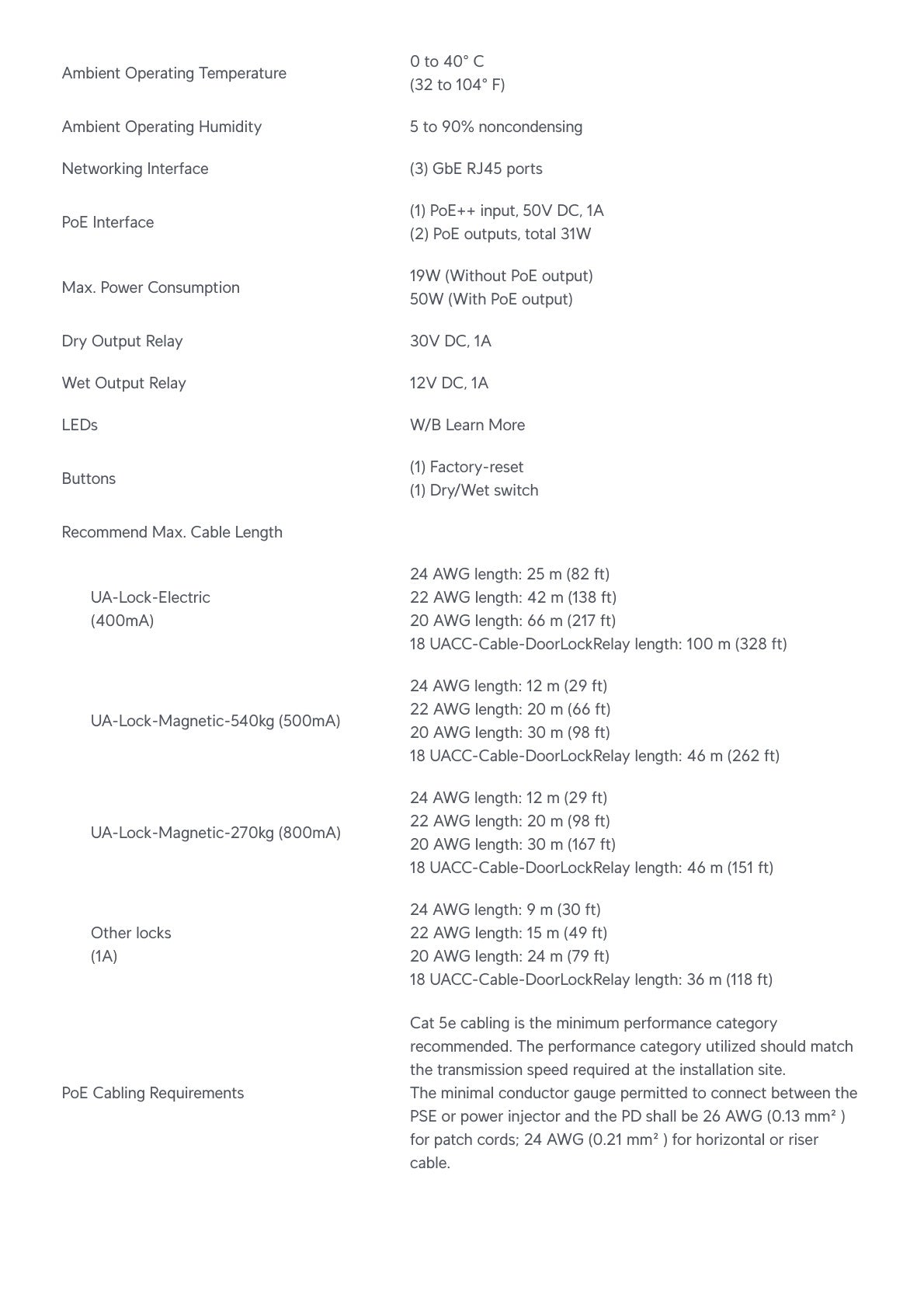

Specifications: Button: Reset; Dry/Wet Switch Bluetooth: None Input Terminals: 1x Door Exit Request ; 1x Door Position Ethernet Ports: 3x 10/100/1000 Dry Output Relay: 30V DC 1A Wet Output Relay: 12V DC 1A Mounting: DIN-rail (Included) Operating Temperature: -30 to 40° C Max Power Consumption: 19W Power Input: 802.3at (PoE++)(Not Included)

Dimensions: 113 x 66 x 27.6mm Weight: 190g

• SINGLE DOOR ACCESS CONTROL: This compact indoor hub provides access control for one door, making it a straightforward solution for small deployments or adding coverage to individual entry points without complex infrastructure.
• POE POWERED WITH POE OUTPUT: Powered by a single 802.3at PoE input, the hub also supplies PoE out across two of its three Gigabit Ethernet ports, reducing the need for additional power adapters at the door.
• DOOR MONITORING AND EXIT REQUEST INPUTS: Two dedicated input terminals support a door exit request button and a door position sensor, allowing users to exit simply and enabling the system to monitor whether the door is open or closed.
• FLEXIBLE RELAY OUTPUT: The built-in dry output relay supports up to 30V DC at 1A, and the wet output relay supports 12V DC at 1A, giving installers options when connecting to different types of electric locks or strike plates.
• WIDE OPERATING TEMPERATURE RANGE: Rated to operate between -30 and 40 degrees C, the hub can handle cold environments such as server rooms or unheated entry areas while staying within indoor installation guidelines.
