Ubiquiti UniFi Access Gate Hub 5x Input, 4x Relay

Ubiquiti's UA-HUB-GATE is a compact, indoor, access control hub which provides access control for a single gate. It features 1x 802.3at PoE input and 4x Gigabit Ethernet Ports with PoE out. The hub also has 5x input terminals (1x Gate exit request, 1x Gate position, 1x Side door exit request, 1x Side door position 1x Emergency), all of which can be unlocked using an NFC card, UniFi Identity Endpoint Mobile App, or Licence Plate Recognition if paired with a UniFi Protect AI Camera.

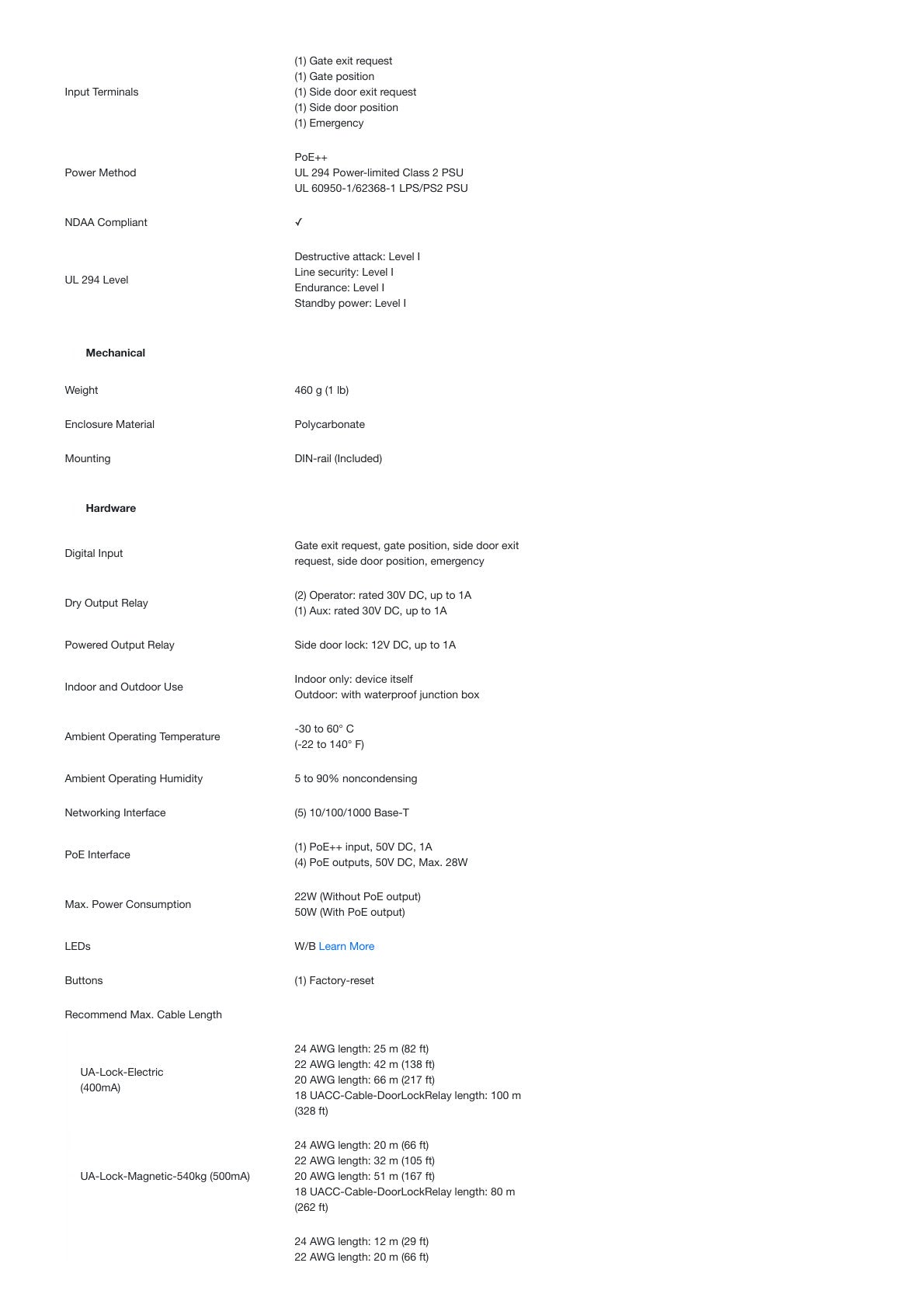

Specifications: Button: Reset; Dry/Wet Switch Bluetooth: None Input Terminals: 1x Gate Exit Request ; 1x Gate Position, 1x Side Door Exit, 1x Side Door Position, 1x Emergency Ethernet Ports: 5x 10/100/1000 Dry Output Relay: 2x Operator: rated 30V DC, up to 1A , 1x Aux: rated 30V DC, up to 1A Wet Output Relay: Side door lock: 12V DC, up to 1A Mounting: DIN-rail (Included) Operating Temperature: -30 to 60° C Max Power Consumption: 22W Power Input: 802.3at (PoE++)(Not Included)

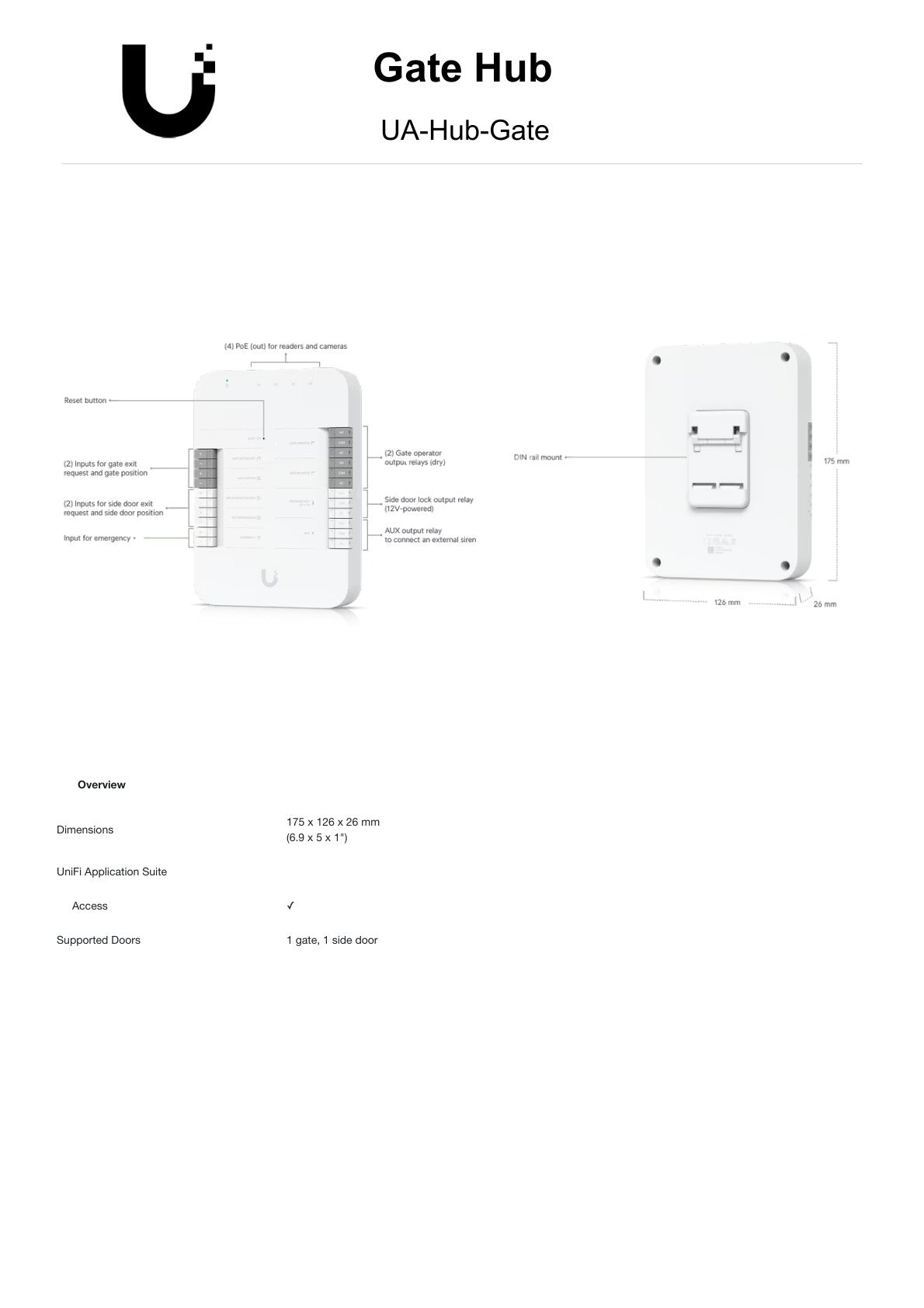

Dimensions: 175 x 126 x 26 mm Weight: 460g

• SINGLE GATE ACCESS CONTROL: Designed to manage access for a single gate, this compact indoor hub supports a gate operator, a side door lock, and an emergency input, giving you structured control over multiple entry points from one centralised device.
• FLEXIBLE UNLOCKING OPTIONS: Access can be granted via NFC card, the UniFi Identity Endpoint Mobile App, or Licence Plate Recognition when paired with a compatible UniFi Protect AI Camera, allowing you to choose the method that suits your setup.

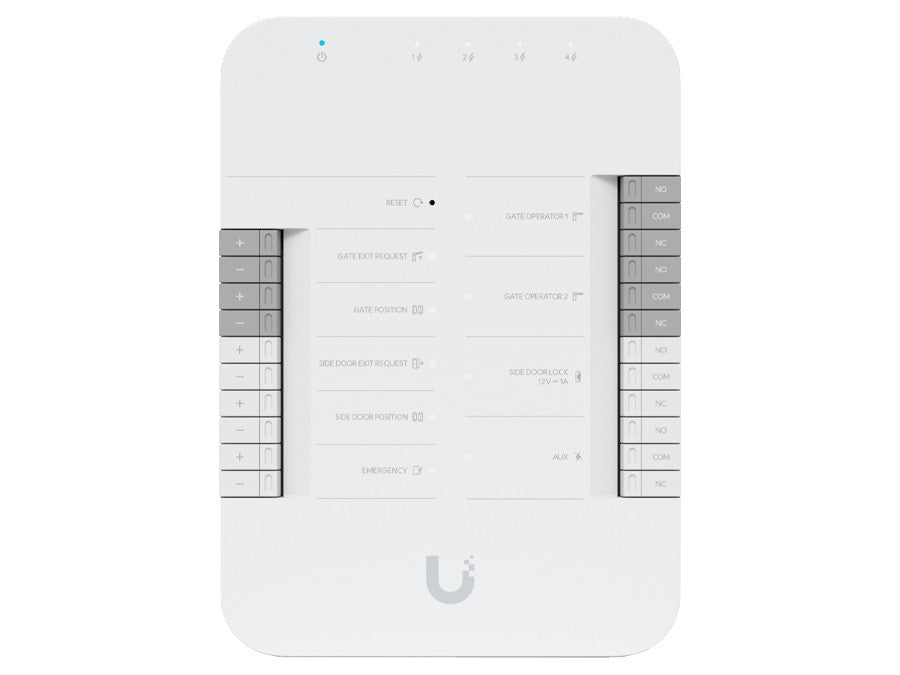

• MULTIPLE INPUT AND RELAY TERMINALS: Features 5x input terminals covering gate exit request, gate position, side door exit, side door position, and emergency, plus 4x output relays including dry relay outputs for gate operators and a wet relay for a side door lock.

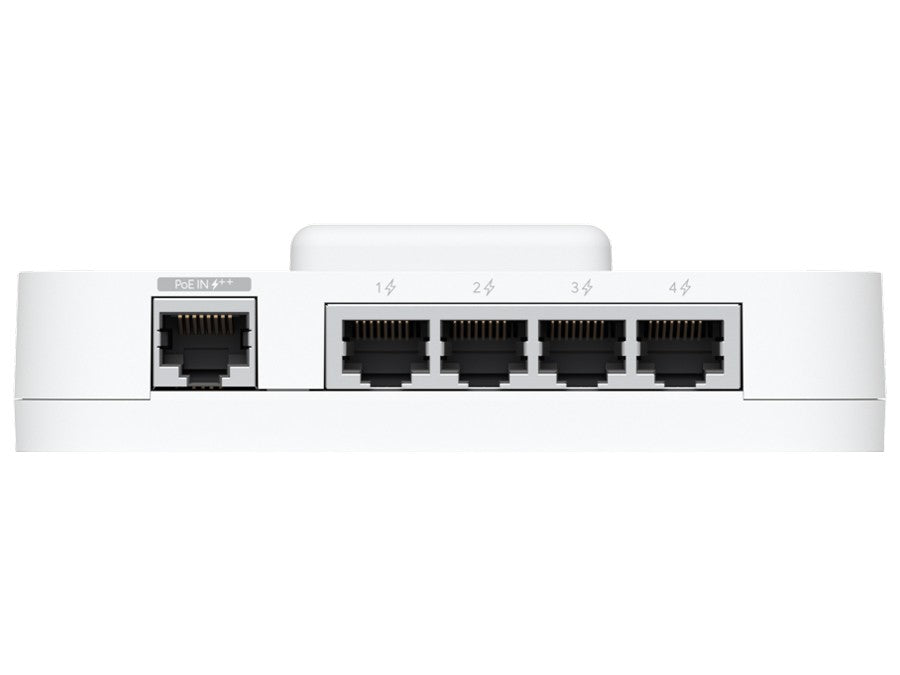

• POE POWERED WITH NETWORK CONNECTIVITY: Powered by a single 802.3at PoE input and equipped with 5x Gigabit Ethernet ports including PoE output, the hub connects and powers compatible devices on your network without requiring separate power supplies for each.

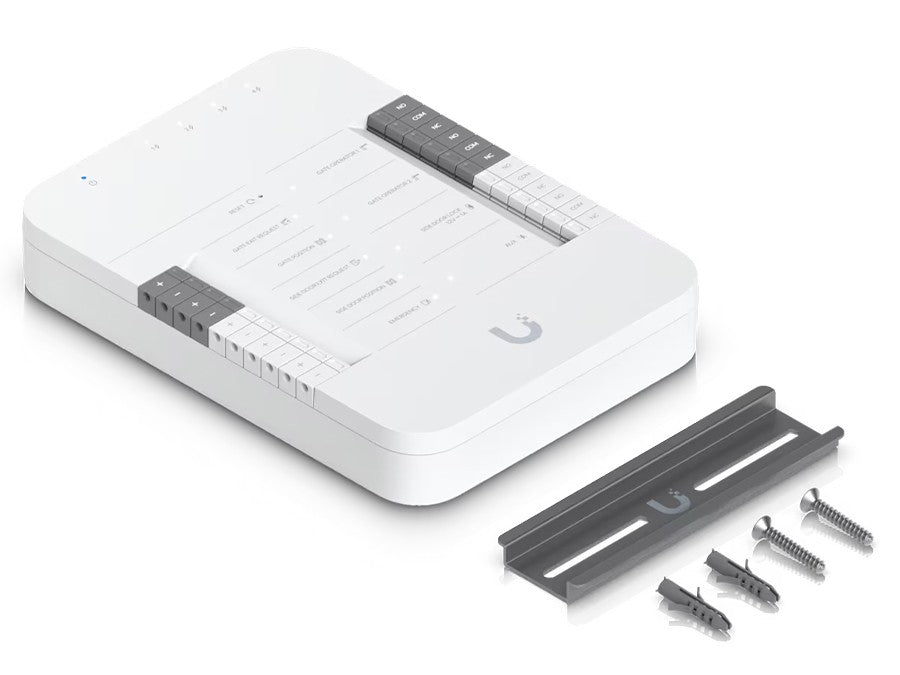

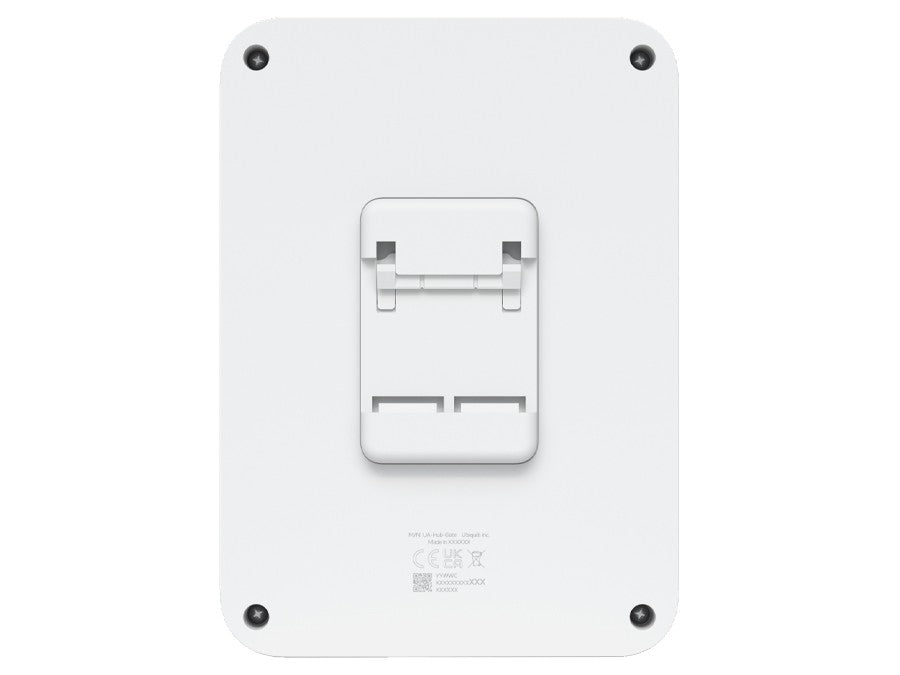

• WIDE TEMPERATURE RANGE AND DIN RAIL MOUNTING: Operates in temperatures from -30 to 60 degrees C, making it suitable for installations in variable environments, and includes DIN rail mounting hardware for straightforward installation in a standard electrical enclosure.
