Ubiquiti UniFi Device Bridge Pro 5GHz 17dBi 90° Sector

Ubiquiti's UDB-PRO-SEC is a UniFi 5GHz, 17dBi point-to-multipoint, 90° integrated sector which can connect up to 40+ UDB-PRO devices at distances of up to 5km. It features an outdoor IPX6 rating, 2 spatial streams, and up to 400Mbps throughput on its 5GHz radio. It can be configured and managed with the UniFi Network Application.

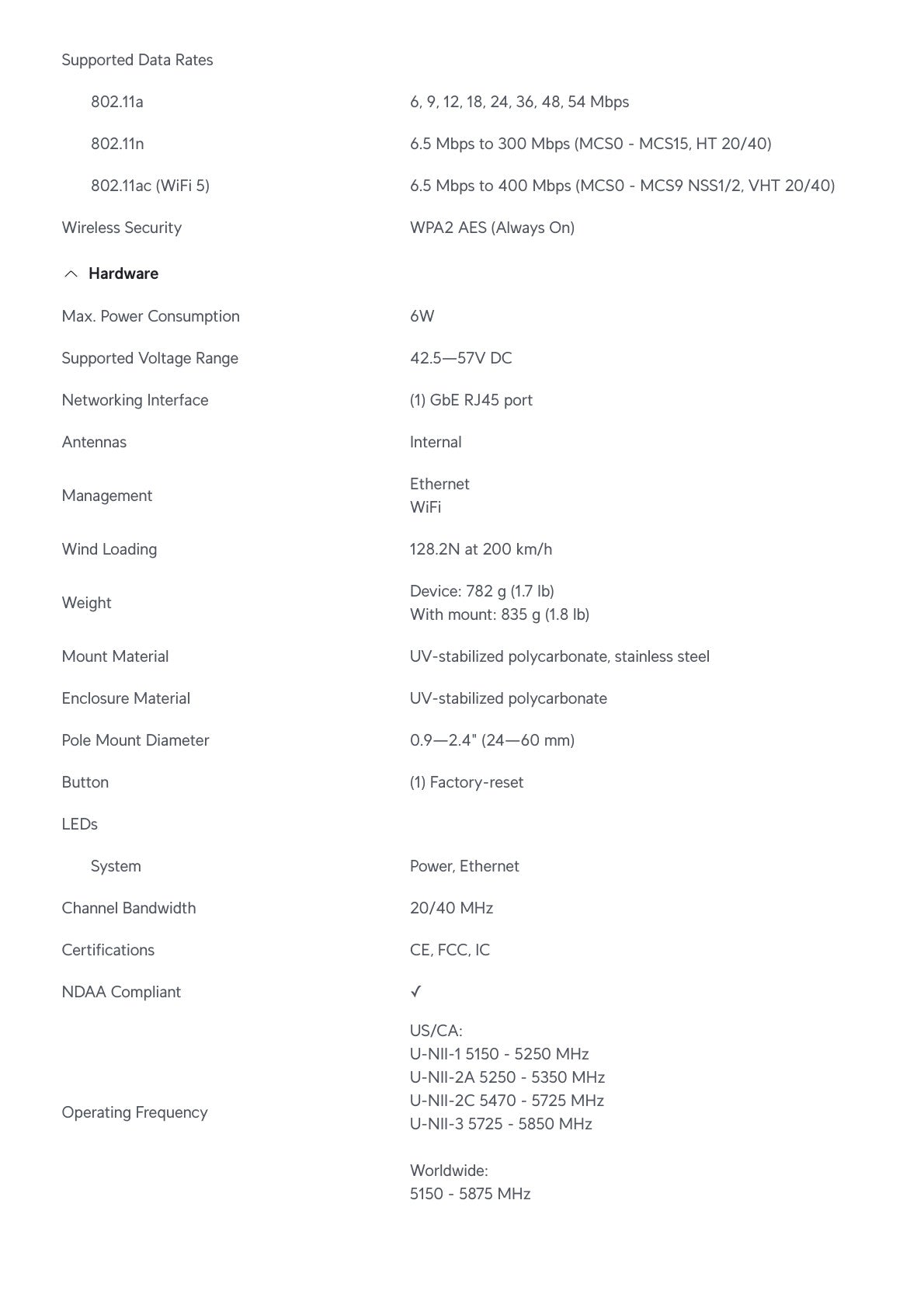

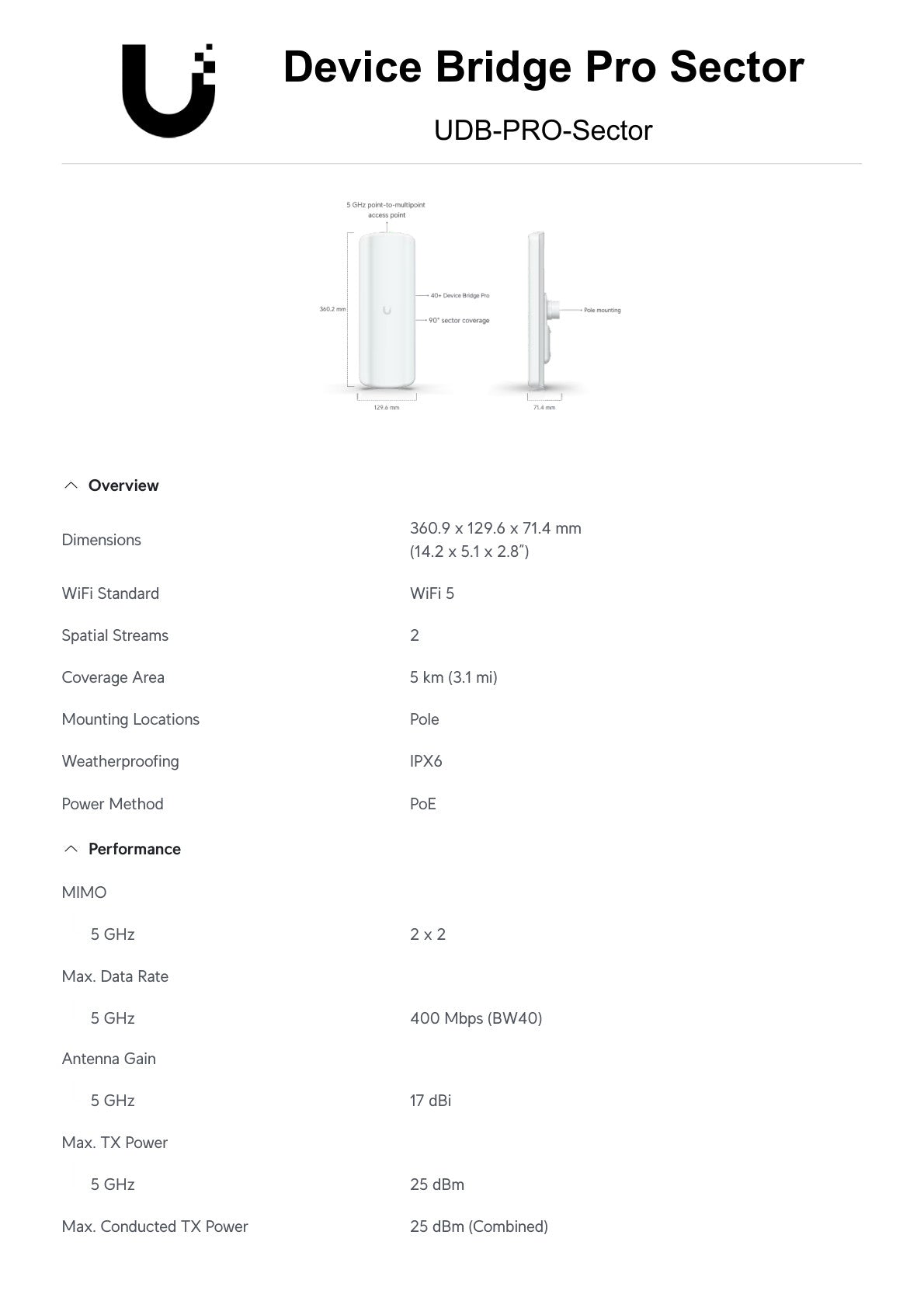

Specifications: Antenna Gain: 5.8GHz: 17dBi Beam-width: 90° Data Rate: 5.8GHz: 400Mbps Ethernet Ports: 1x 10/100/1000 Hardware Button: Reset Max. Power Consumption: 6W Mounting: Pole-Mount Operating System: UniFi Operating Temperature: -40°C to 60°C PoE Input: 802.3af/at PoE Output: None Power Input: 802.3af/at PoE (Not Included) Serial Interface: None SIM Slots: None Supported Voltage Range: 42.5–57V DC USB Ports: None

Dimensions: 360.9 x 129.6 x 71.4 mm Weight: 835g

• POINT-TO-MULTIPOINT CONNECTIVITY: This 5GHz sector antenna can connect to more than 40 UniFi Device Bridge Pro clients simultaneously, making it a practical choice for deploying wireless networks across multiple locations from a single access point.
• EXTENDED OUTDOOR RANGE: With a 17dBi antenna gain and 90-degree sector beam, this unit can reach UniFi Device Bridge Pro devices at distances of up to 5km, suitable for large outdoor deployments such as campuses or estates.
• WEATHER-RESISTANT CONSTRUCTION: Rated IPX6 for outdoor use and designed to operate in temperatures ranging from -40 degrees C to 60 degrees C, this device is built to withstand harsh outdoor environments year-round.
• HIGH-THROUGHPUT WIRELESS PERFORMANCE: The 5GHz radio supports up to 400Mbps throughput with 2 spatial streams, providing reliable bandwidth for connecting multiple remote locations over a point-to-multipoint wireless link.
• SIMPLE UNIFIED MANAGEMENT: Configured and managed through the UniFi Network Application, this device integrates into existing UniFi networks and is powered via 802.3af/at PoE, requiring no separate power supply at the installation point.
