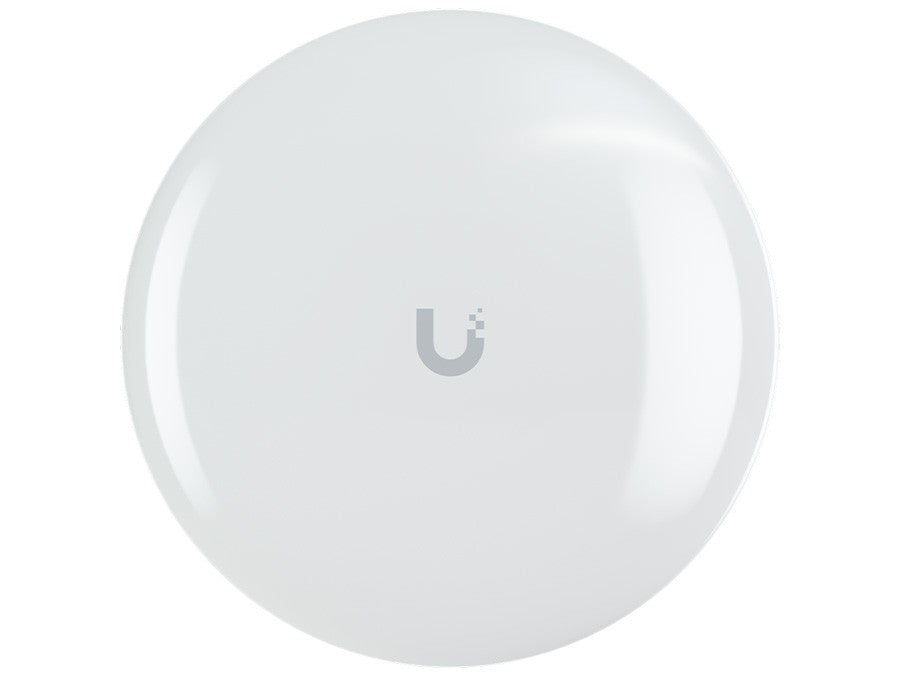

Ubiquiti UniFi Device Bridge Pro with PoE Input and PoE Output

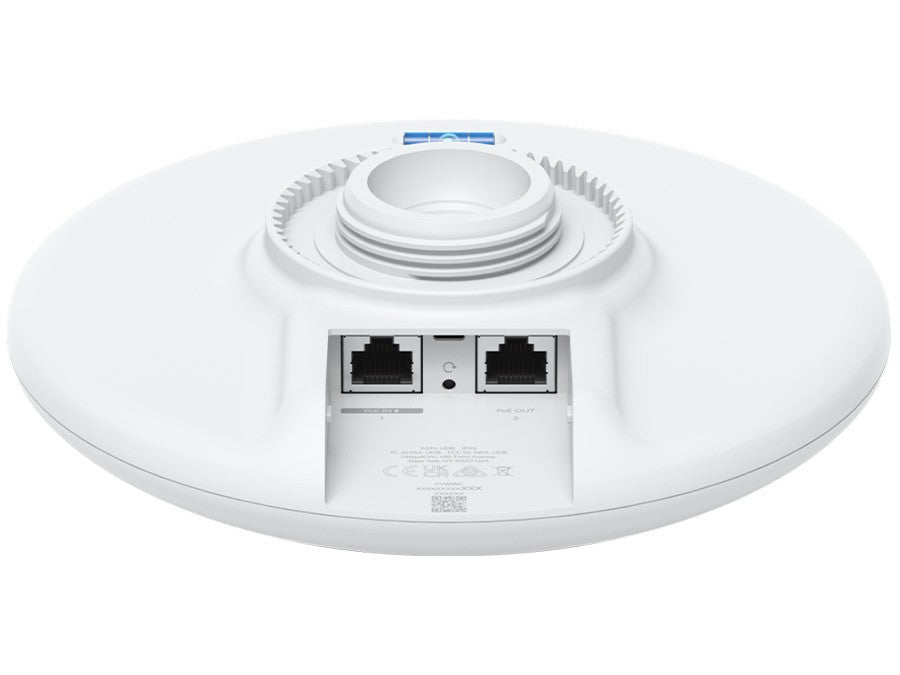

Ubiquiti's UDB-PRO is a UniFi long range outdoor radio with integrated UniFi WiFi Auto-Link. It features 2x Gigabit Ethernet ports, one for PoE input and the other with PoE output. PoE+ (802.3at) input is required for PoE passthrough on port 2. The UDB-PRO is sold as a single unit, and can be bridged to any UniFi Access point or used as a pair for PtP connections. It can be configured and managed with the UniFi Network Application.

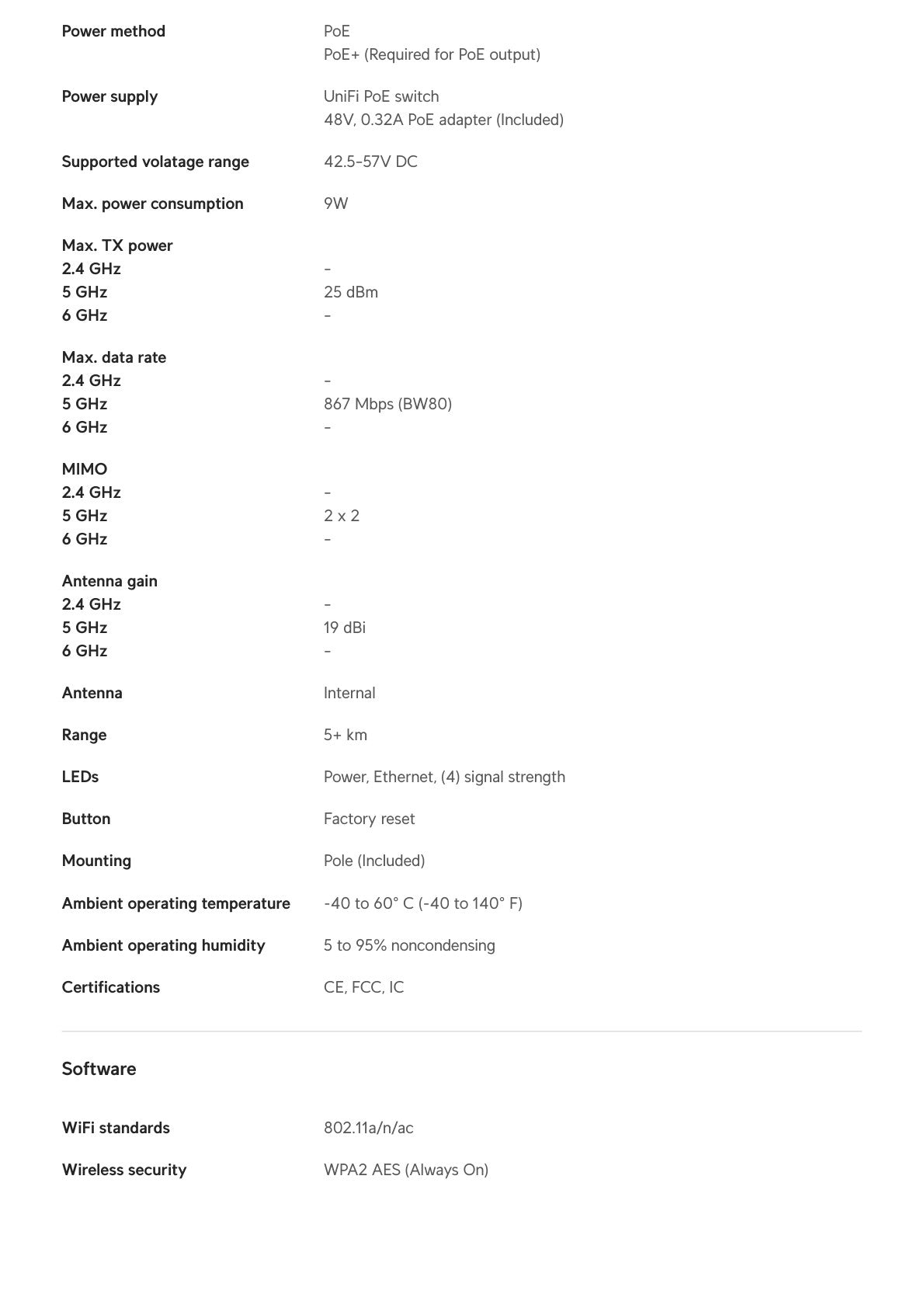

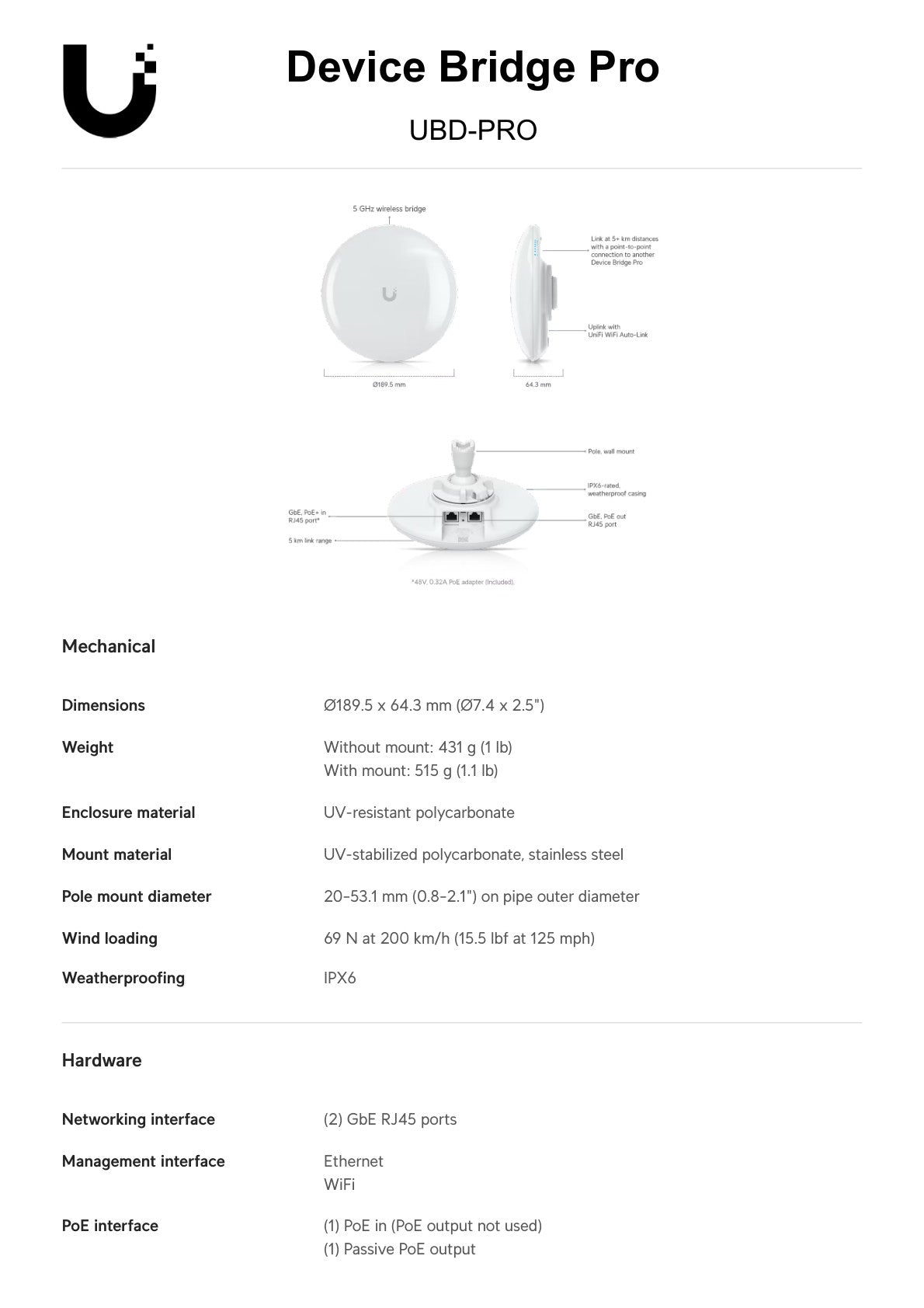

Specifications: Antenna Gain: 5.8GHz: 19dBi Beam-width: 12° Data Rate: 5.8GHz: 867Mbps Ethernet Ports: 2x 10/100/1000 Hardware Button: Reset Max. Power Consumption: 9W Mounting: Pole-Mount Operating System: UniFi Operating Temperature: -40°C to 60°C PoE Input: 802.3af/at PoE Output: 48V PoE Passthrough when powered with PoE+ (802.3at) Power Input: 48V 0.32 Gigabit PoE Injector (Included) Serial Interface: None SIM Slots: None Supported Voltage Range: 42.5–57V DC USB Ports: None

Dimensions: Ø189.5 x 64.3 mm Weight: 515g

• LONG RANGE OUTDOOR WIRELESS BRIDGE: The UDB-PRO is a UniFi outdoor radio operating at 5.8GHz with a 19dBi antenna gain and a 12-degree beamwidth, allowing it to deliver focused, long-range wireless connectivity for point-to-point links or as a bridge to a UniFi Access Point.
• POE PASSTHROUGH FOR CONNECTED DEVICES: Port 2 provides 48V PoE output when the unit is powered by a PoE+ (802.3at) source, allowing you to power a connected device directly from the bridge without needing a separate power supply at the remote end.
• GIGABIT ETHERNET CONNECTIVITY: Two 10/100/1000 Mbps Ethernet ports support data rates up to 867Mbps on the 5.8GHz band, ensuring high-throughput wired connections at both ends of the wireless link.
• RUGGED OUTDOOR DESIGN FOR HARSH CONDITIONS: The UDB-PRO is pole-mountable and built to operate in temperatures from -40C to 60C, making it suitable for permanent outdoor installations in demanding environments.
• MANAGED VIA UNIFI NETWORK APPLICATION: The UDB-PRO runs the UniFi operating system and is configured and managed through the UniFi Network Application, keeping it within your existing UniFi infrastructure alongside other UniFi devices.
