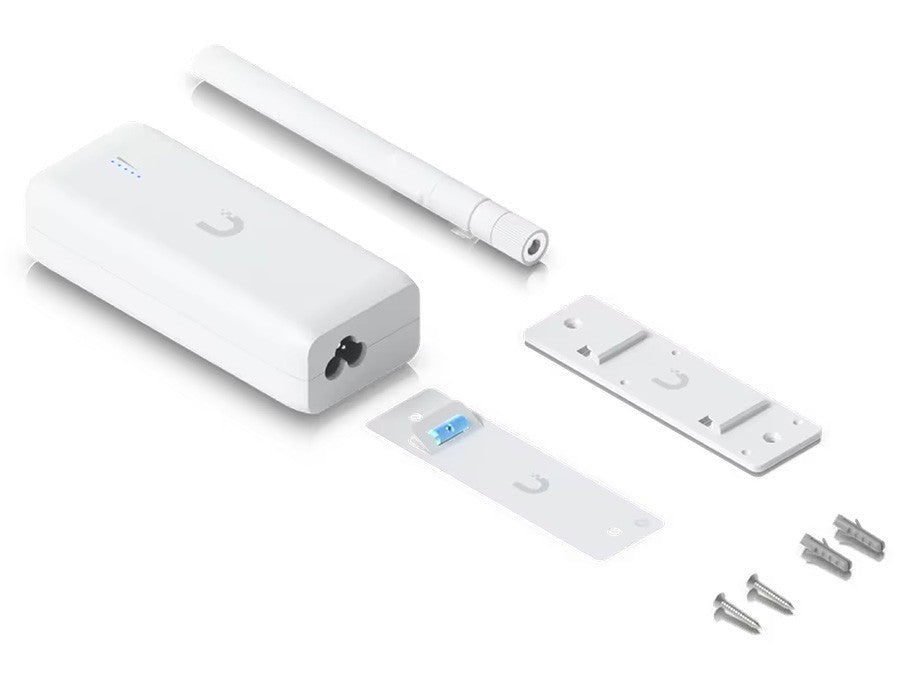

Ubiquiti UniFi Device Bridge WiFi Bridging PoE Adapter

Ubiquiti's UDB is a UniFi Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link. It features 1xGE LAN port that provides 48V 15W PoE output, a 5GHz band with up to 867 Mbps throughput and is compatible with UniFi Protect PoE cameras and various IoT devices via an Ethernet connection. It can be configured and managed with the UniFi Network Application.

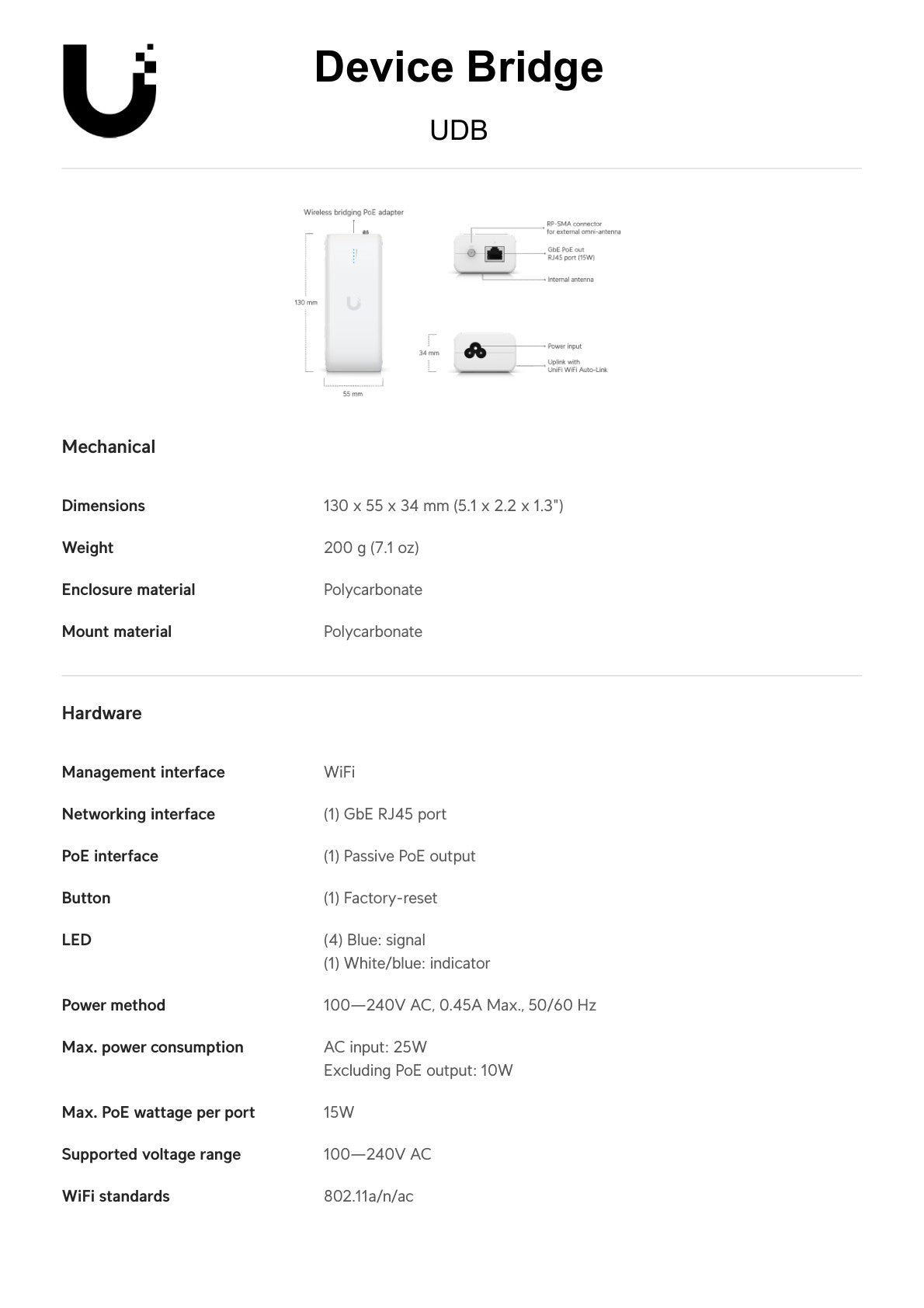

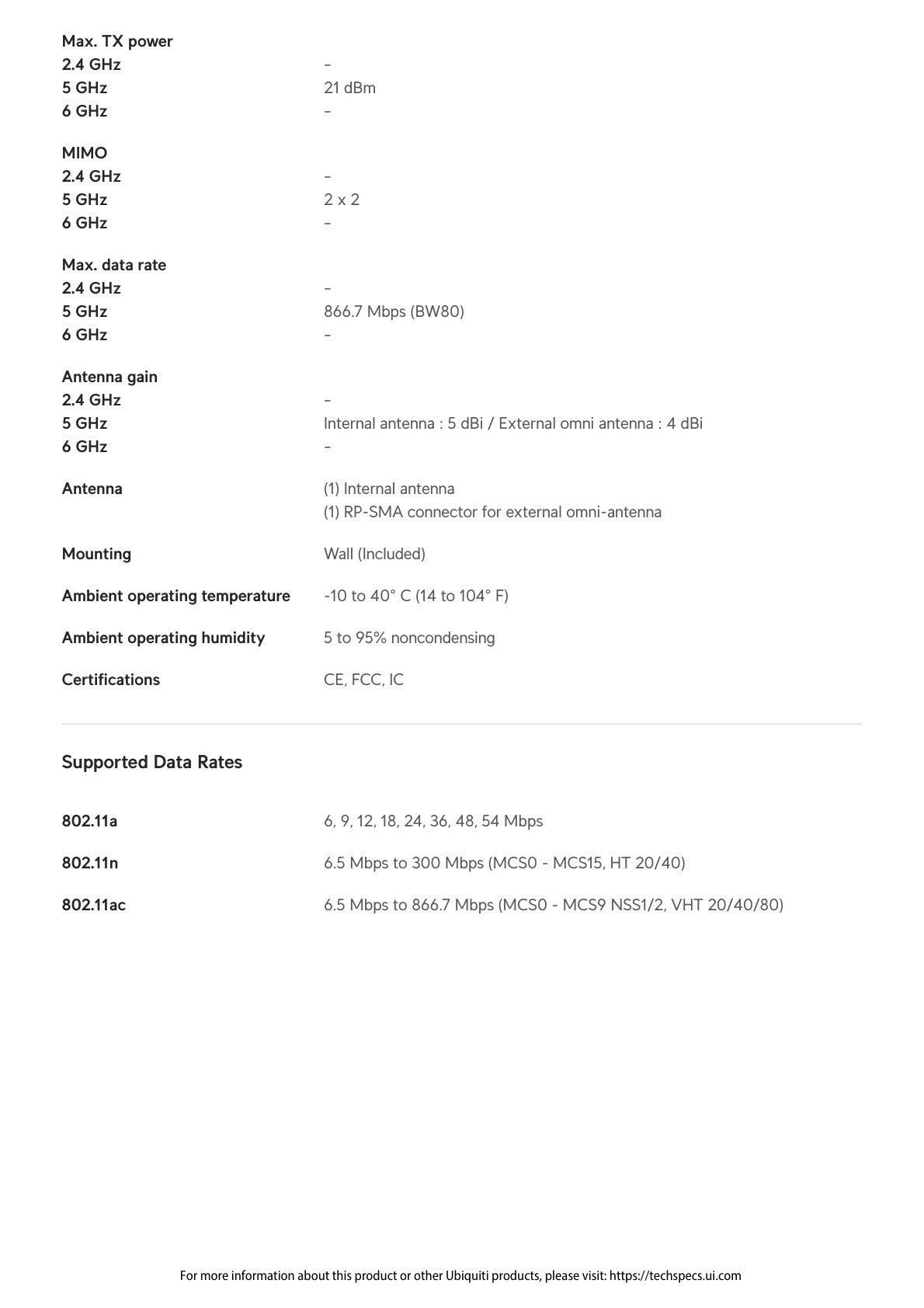

Specifications: Antenna Gain: 5.8GHz: 5dBi (Internal Antenna ) or 4 dBi (External Omni Antenna) Beam-width: 360° Data Rate: 5.8GHz: 867Mbps Ethernet Ports: 2x 10/100/1000 Hardware Button: Reset Max. Power Consumption: 10W Mounting: Wall Mount Operating System: UniFi Operating Temperature: -10 to 40°C PoE Input: None PoE Output: 48V 15W Power Input: 1x Clover Power Cable (Included) Serial Interface: None SIM Slots: None Supported Voltage Range: 100—240V USB Ports: None

Dimensions: 130 x 55 x 34 mm Weight: 200g

• PLUG-AND-PLAY WIRELESS BRIDGING: Connects wired devices like UniFi Protect PoE cameras and IoT equipment to your WiFi network wirelessly, eliminating the need to run new Ethernet cables to your router or switch.
• HIGH-SPEED 5GHz CONNECTIVITY: Operates on the 5GHz band with data rates up to 867Mbps, providing a fast and reliable wireless backhaul connection for bandwidth-sensitive devices like security cameras.

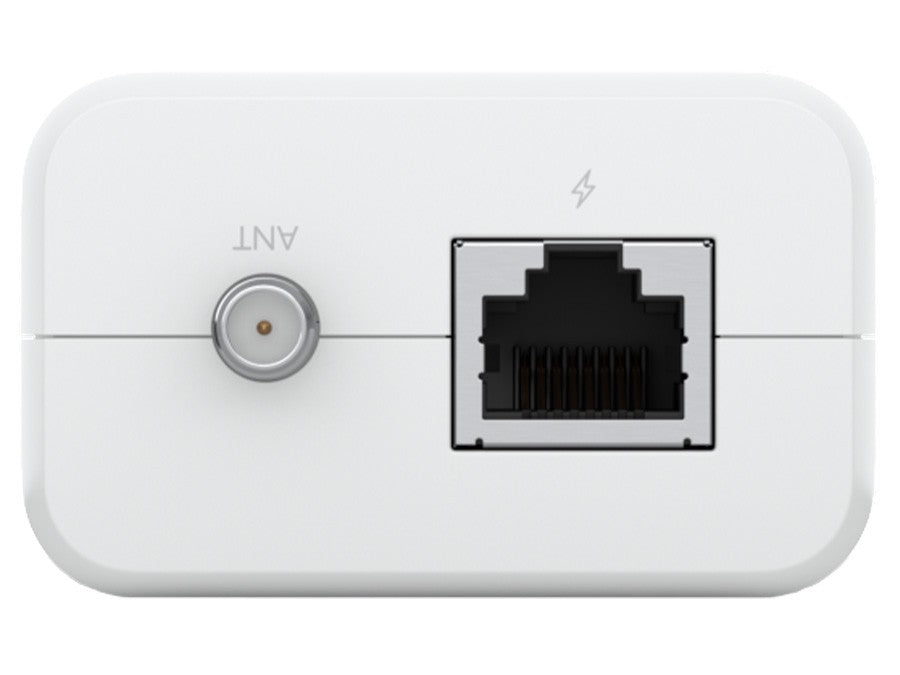

• POE OUTPUT FOR CONNECTED DEVICES: The built-in 48V 15W PoE output on the Gigabit LAN port powers compatible cameras and devices directly through the Ethernet cable, removing the need for a separate power supply at the device end.
• UNIFI NETWORK MANAGEMENT: Configured and managed through the UniFi Network Application, allowing you to monitor and control the device alongside your existing UniFi infrastructure from a single interface.

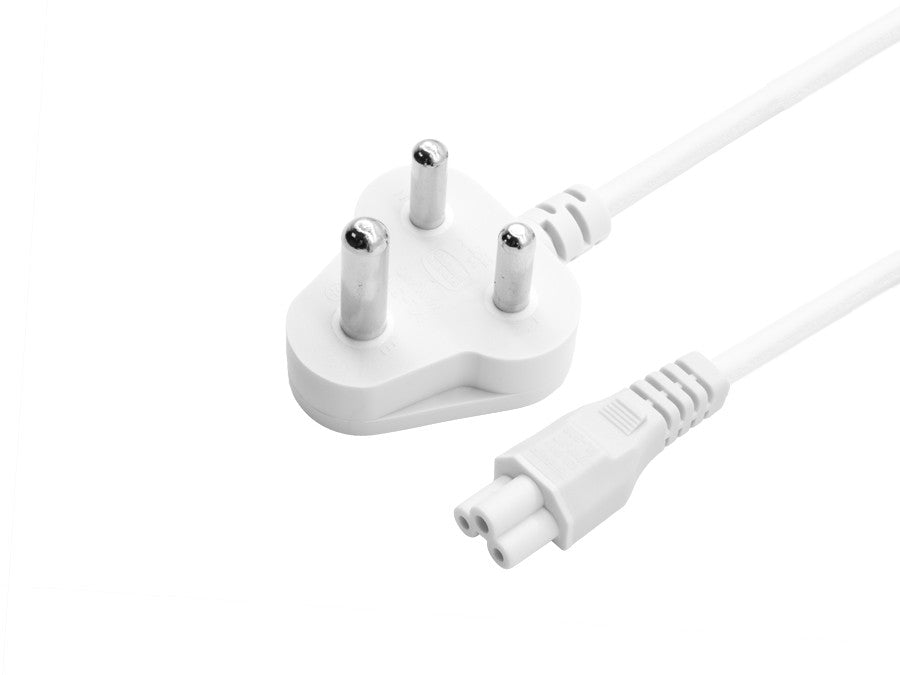

• STANDARD WALL POWER INPUT: Powered directly from a standard wall outlet via the included Clover power cable, supporting input voltages from 100 to 240V, with a maximum power consumption of 10W.
